Enthoo Elite

The premium production gaming enclosure

The most premium production gaming enclosure. Built from premium materials that are engineered with utmost care and attention to detail. A design based on continuous product improvement and innovation throughout the Enthoo Series. Discover the ultimate building experience.

Colors

Black

Satin Black

Configurations

Elite

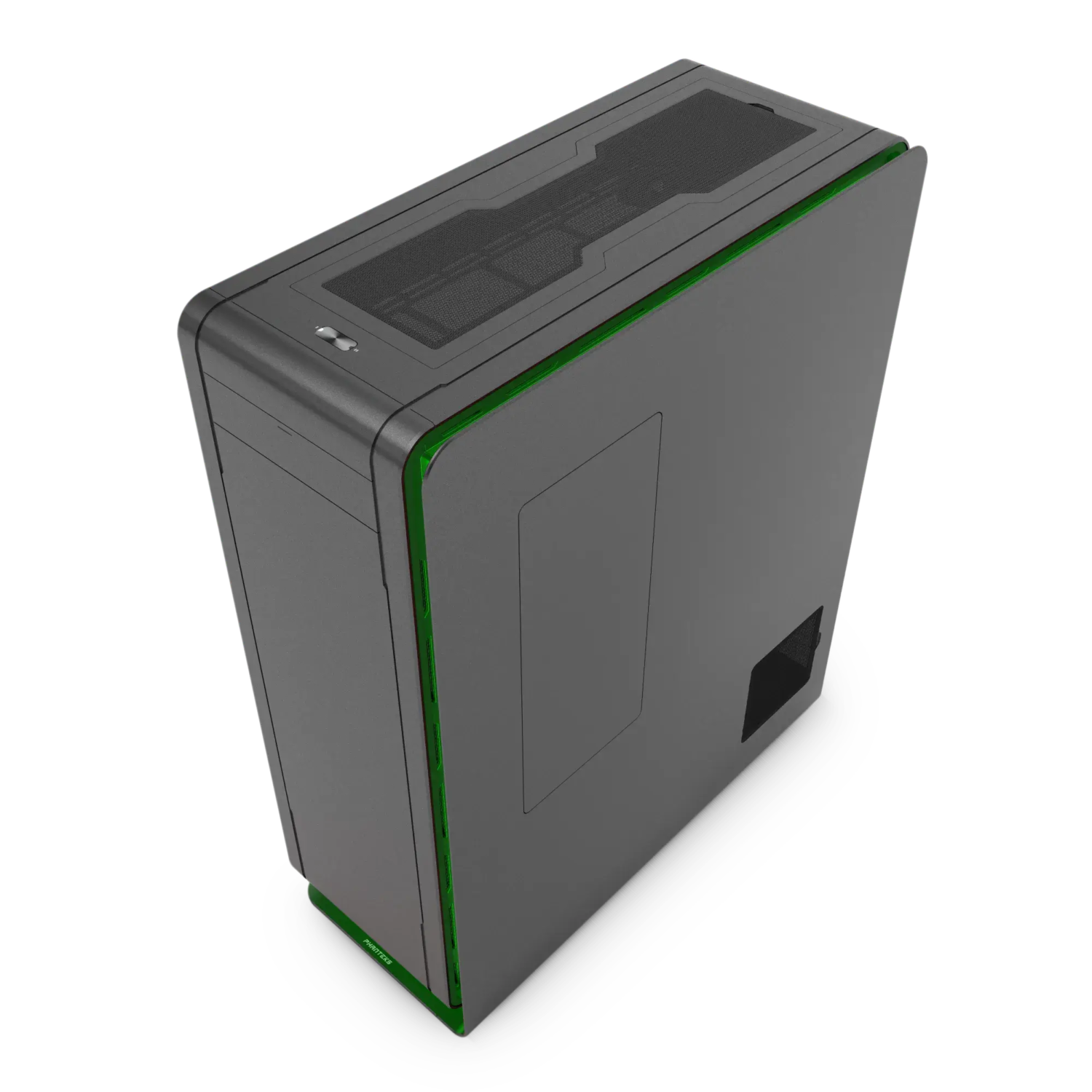

Swapable Panels

  • Hassle-free radiator brackets for easy installation.

  • Performance or silence panels, your choice.

  • Keep the most highend gaming system running cool.

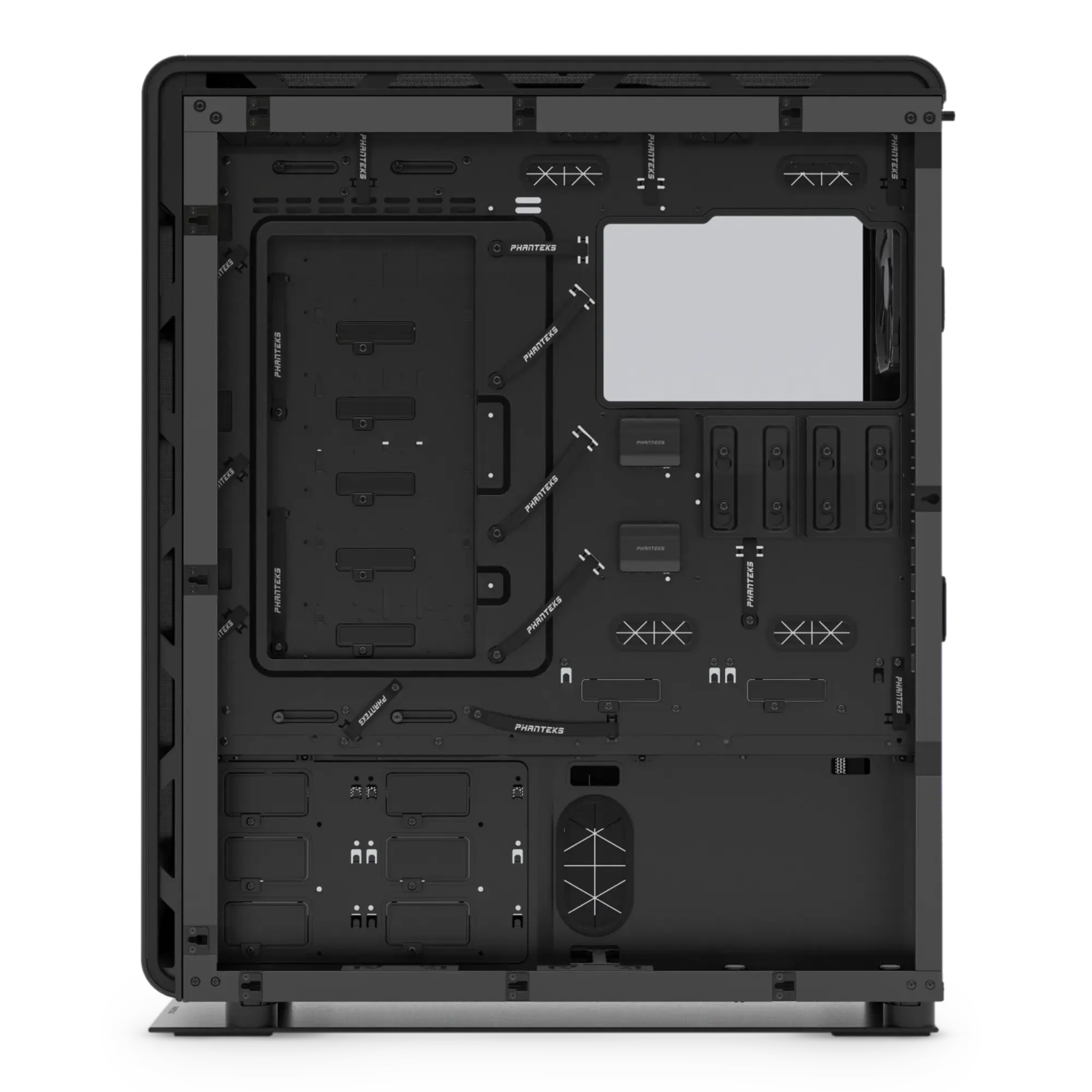

Flexibility & Smart Space Utilization

  • Every space in the Enthoo Elite is efficiently designed.

  • Different configurations available depending on personal system preferences.

  • Clean interior with aluminium covers and hidden PSU & cables.
  • Modular 5.25″ drive bracket.

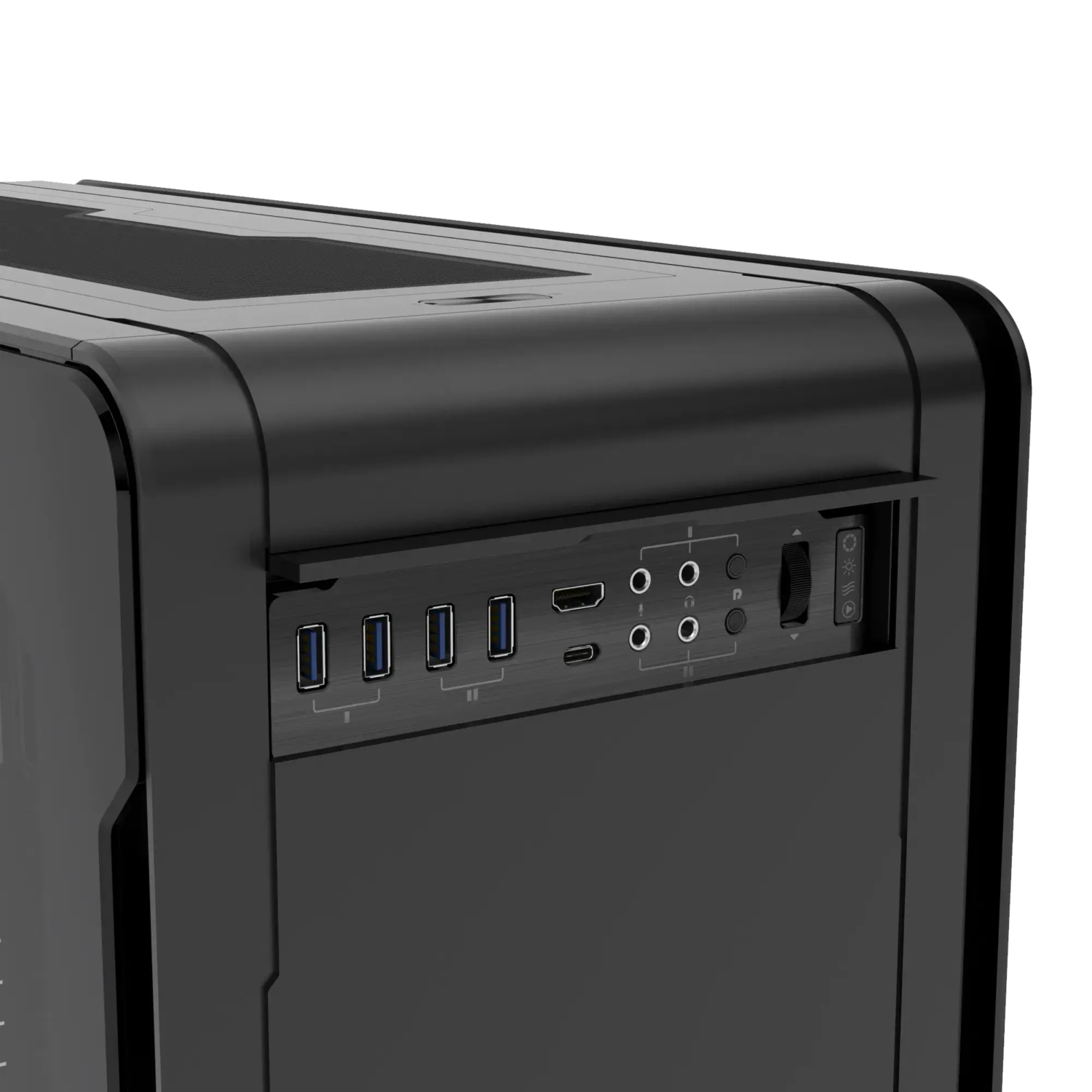

Extensive Front I/O

  • 4x USB 3.0
  • 1x USB 3.1 Type-C
  • 2x HEADPHONE
  • 2x MIC
  • 2x RESET
  • 1x HDMI 2.0
  • D-RGB Control Wheel

Integrated D-RGB lighting

  • Ambient illuminiation on the right side of the chassis.

  • Refined D-RGB lighting effects that just work, no software required.

  • Optionally sync with motherboard and software.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

Multiple storage options

  • Support for 4x 2.5″ SSD

  • Supports up to 13x 3.5″ HDDs (6x included)

  • Support for 2x 2.5″ SSD

Specifications

General

Model No.

PH-ES916E_BK

UPC Code

886523301233

Case Dimensions

270 x 750 x 615 mm | 10.6 x 29.5 x 24.2 in

Form Factor

Full Tower

Mainboard Support

EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

10

Vertical GPU Support

4-slots

Riser Cable included

Internal 2.5″ Bay

6 | 4 Included

+ 8x 3.5″ HDD

Internal 3.5″ Bay

13 | 6 Included

+ 2x 2.5″ SSD

Front I/O

1x USB 3.1 Type-C
4x USB 3.0
2x Microhone
2x Headphone
1x HDMI 2.0
2x Reset button
RGB control wheel

Fans 120 | 140

Total Fans

20x | 17x

Top

4x | 3x (1x pre-installed)

Front

4x | 4x (3x pre-installed)

Side

3x | 2x

Midplate

3x | 3x

Bottom

4x | 3x

Rear

2x | 2x (1x pre-installed)

Radiators 120 | 140

Top

Max. 480 | 420

Front

Max. 480 | 560

Side

Max. 360 | 240

Midplate

Max. 480 | 420

Bottom

Max. 480 | 420

Rear

120 | 140

Clearance

CPU Cooler

Height

210 mm | 8.27 in

GPU

Length

GPU

Height

Power Supply

Length

Top Radiator

Height

65 mm | 2.56 in

Front Radiator

Length x Width

Side Radiator

Length x Width

Bottom Radiator

Length x Width

Extra

Net Weight

33.00 kg | 72.75 lbs

Gross Weight

47.00 kg | 103.61 lbs

Warranty

5 Years limited

Scope of Delivery

1x Enthoo Elite chassis
4x SSD bracket
6x HDD bracket
2x 5.25” ODD bracket
5x 140 fans
1x Closed top panel
1x Radiator side panel

Accessory Box

1x GPU anti-sag bracket
1x Vertical GPU mount
1x Dual system bracket
1x Power splitter bracket
2x PWM fan hub
2x Pump bracket

10x Zip ties
1x 8-pin CPU extension cable 500 mm
2x RGB extension cable 650 mm
1x RGB motherboard adapter 700 mm
1x ITX GPU bracket
3x Spare Velcro ties
1x Phanteks logo badge

Screws

35x Mainboard | SSD screws
14x Power supply screws
24x HDD locking screws
20x 32×6 Thumb screws
10x 32×10 Thumb screws
12x Fan screws
8x Radiator screws
20x Case screws
2x Motherboard stand-off
1x Stand-off removal tool
1x PSU rubber feet

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
