NV5

Performance with a view

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.

Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.

Colors

Black

Satin Black

White

Matte White

Configurations

D-RGB

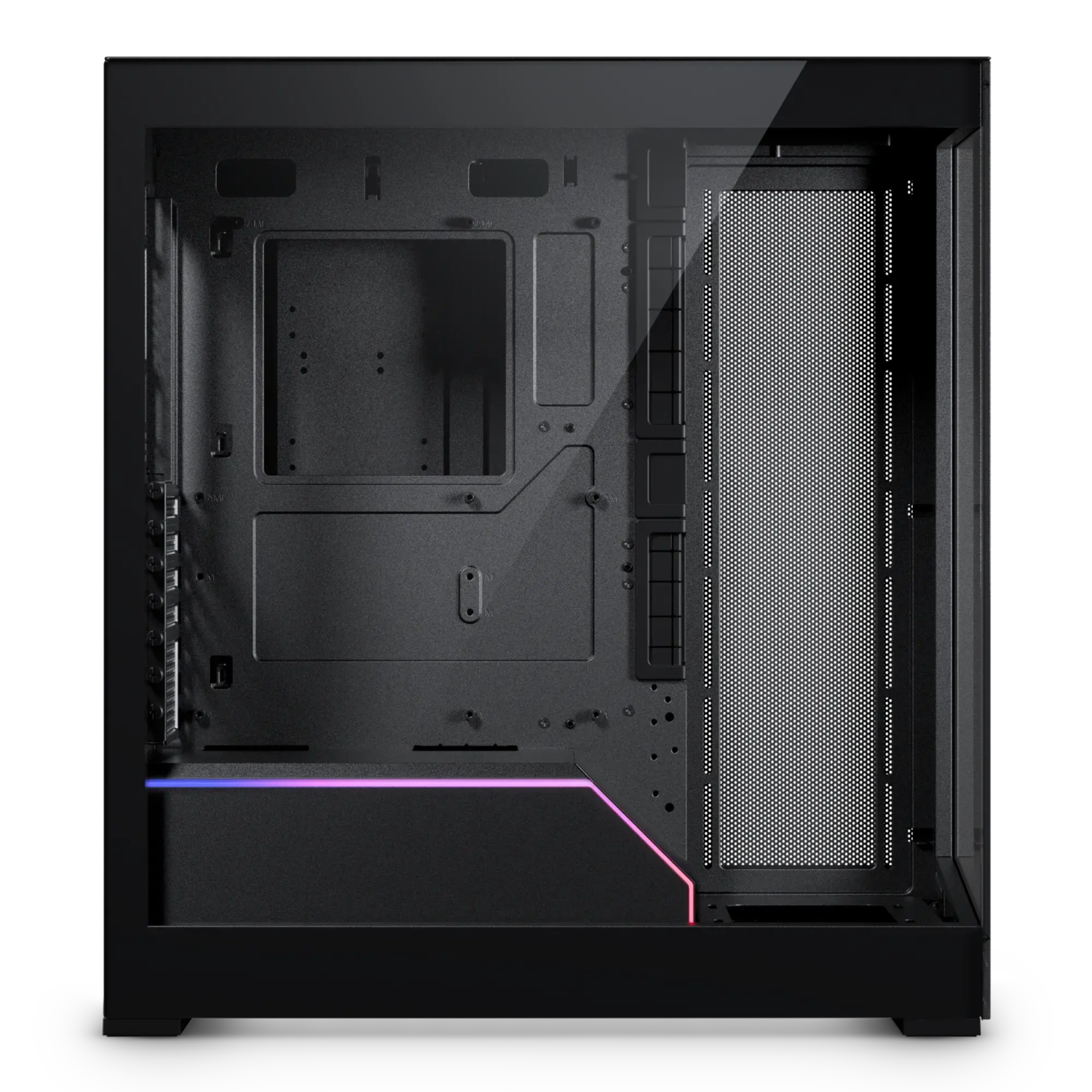

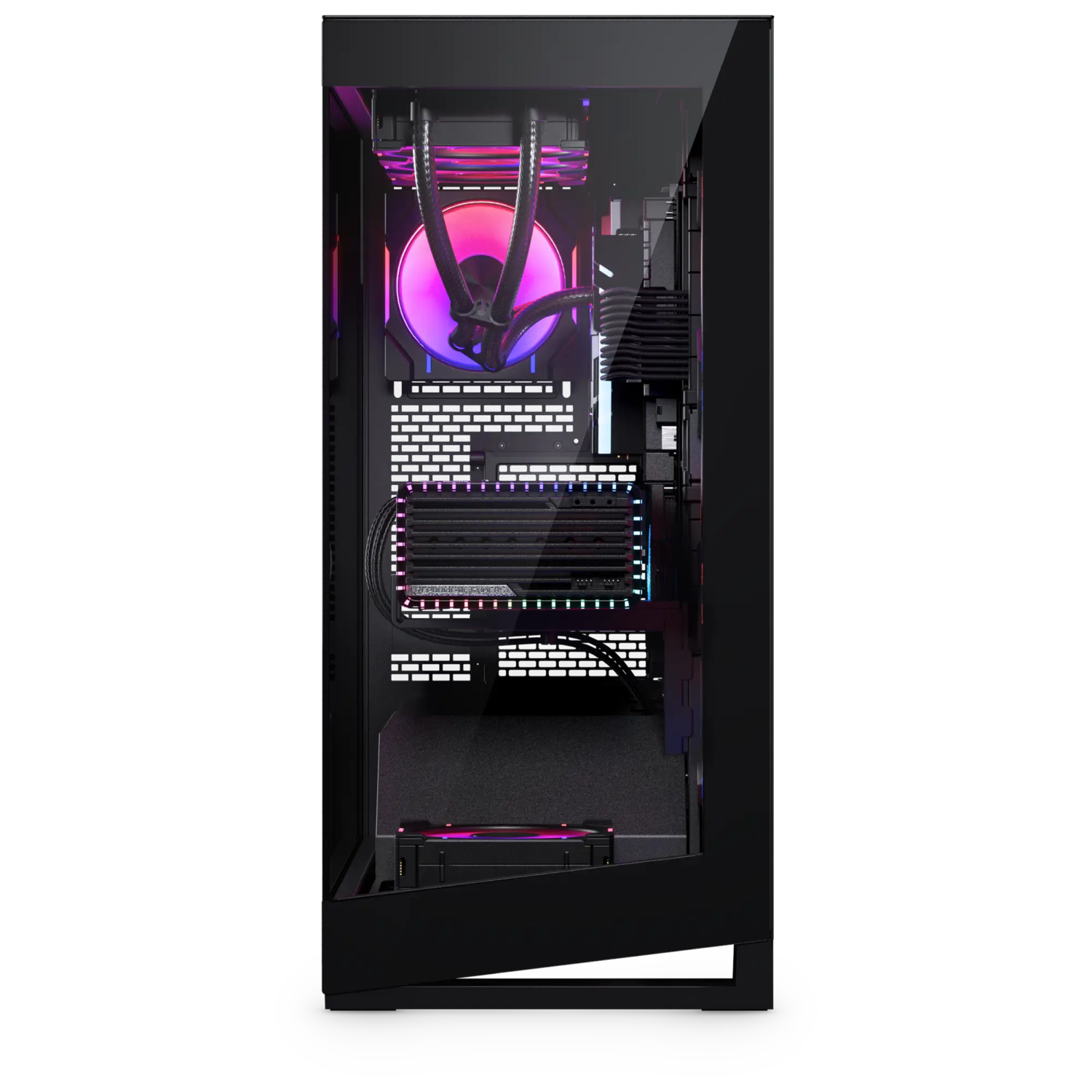

Perfect view of your system

  • Near-seamless glass panels for a perfect view of all your system components.
  • Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
  • A total of eight 120 mm fan positions for high-end cooling performance.
  • Dual 360 radiator support in the top and side.

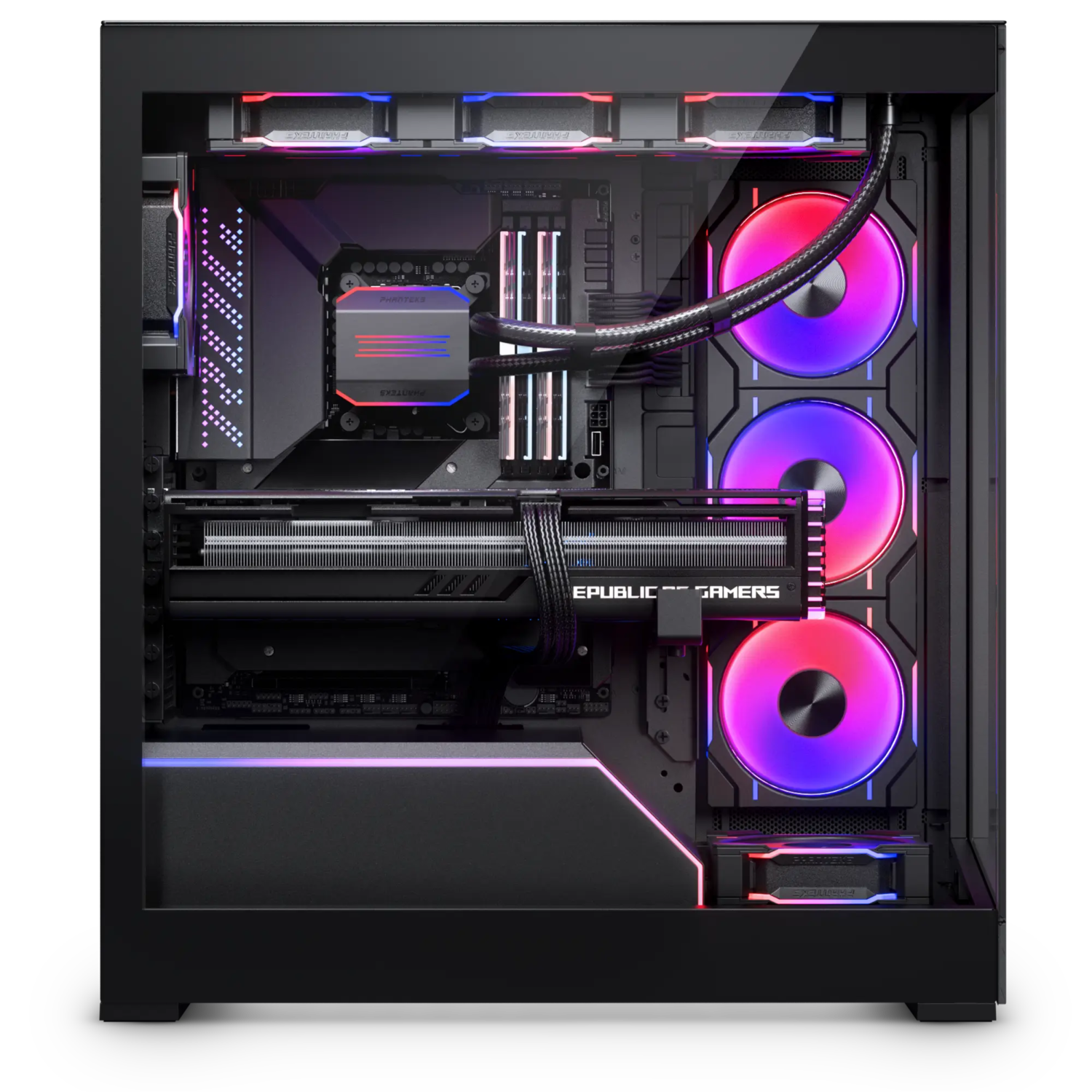

Ready for modern GPUs

  • Increased chassis width to support wider GPUs and 12VHPWR cables.
  • GPU support bracket supports and holds the GPU securely to chassis and motherboard.
  • Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
  • Removable PSU cover for easy access to power cables.

*Premium D-RGB Kit not included

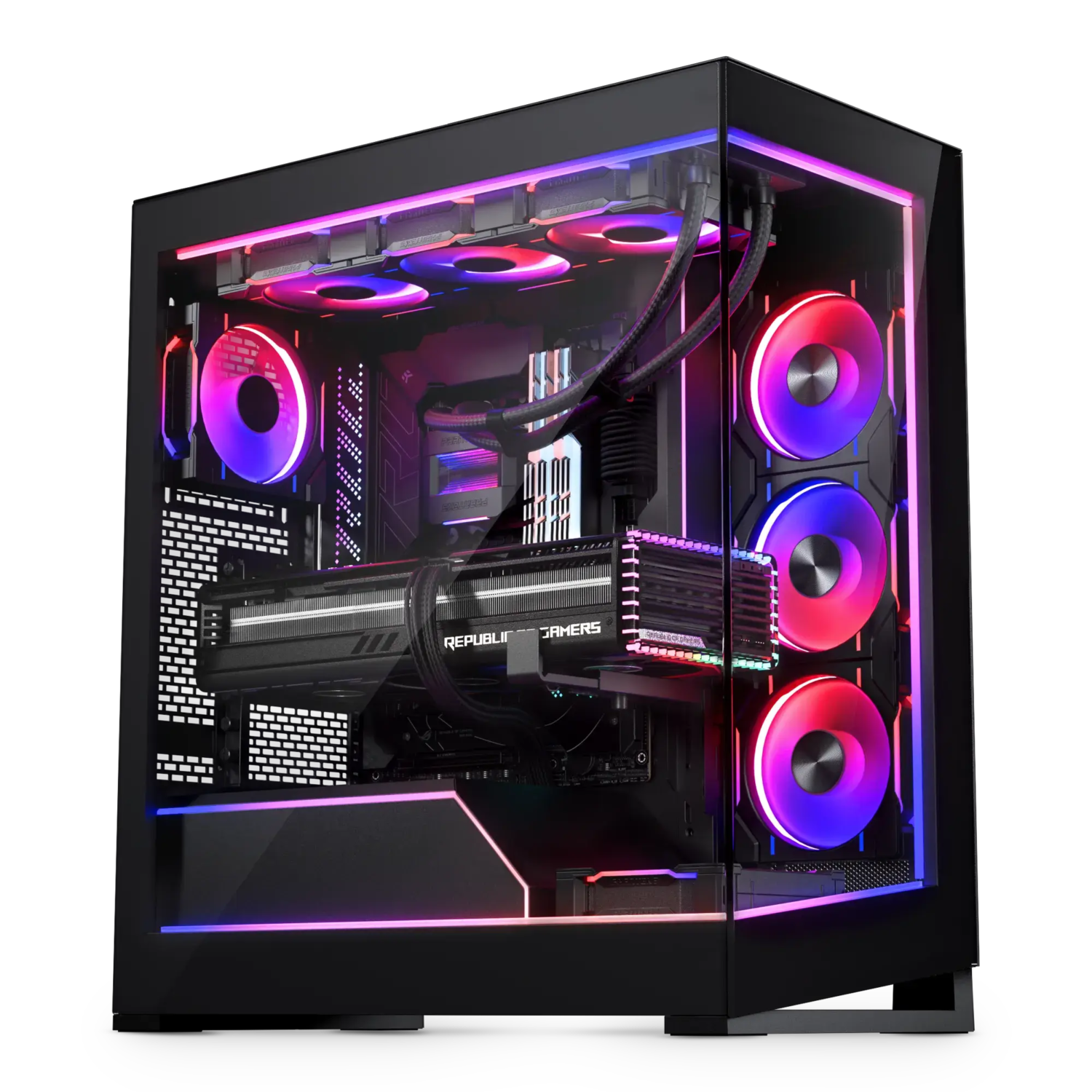

Integrated D-RGB lighting

  • Built-in Digital-RGB Controller.

  • Refined D-RGB lighting effects that just work, no software required.

  • Expand with more Digital-RGB lighting.

  • Optionally sync with motherboard and software.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

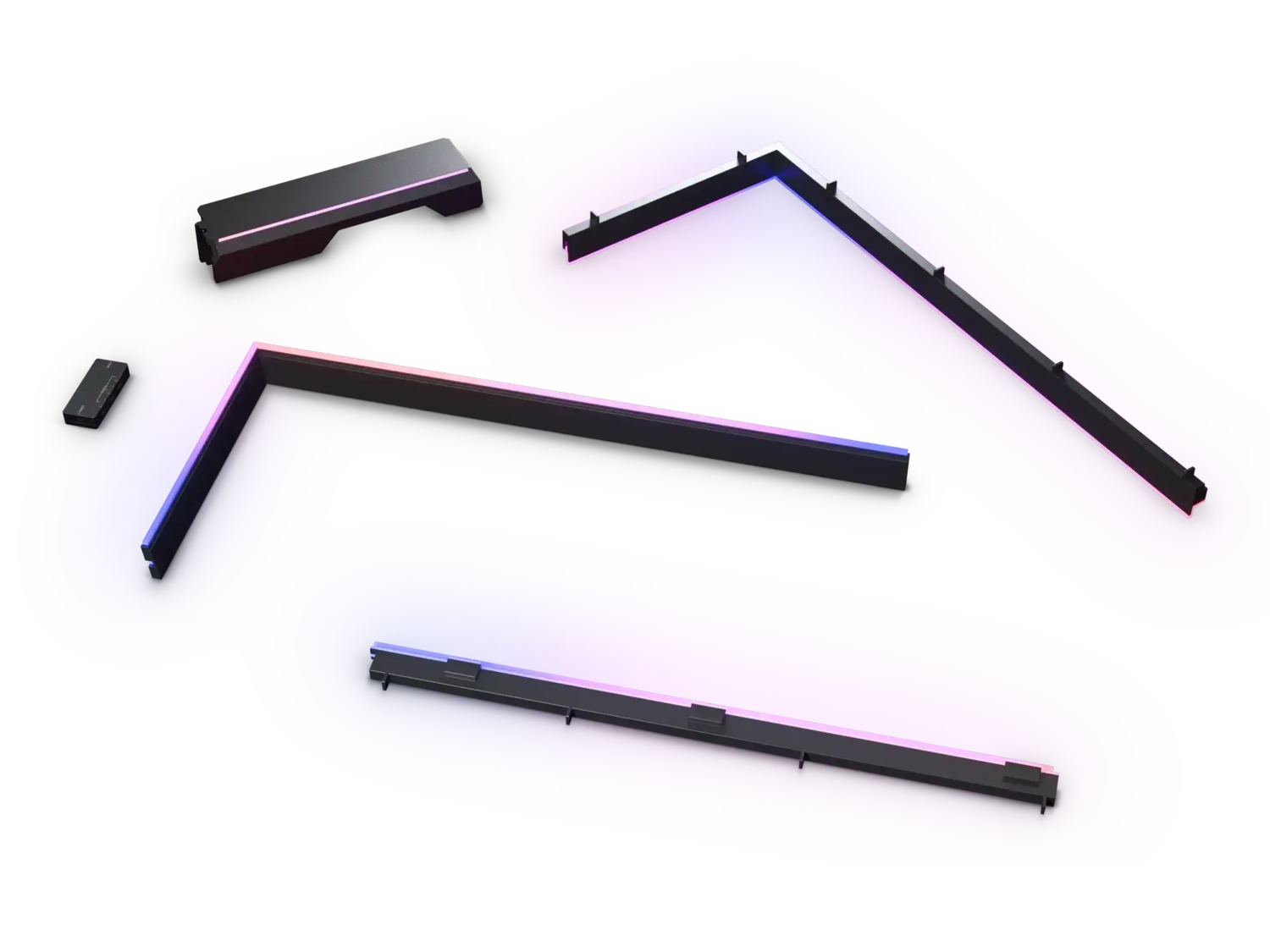

NV5 Premium D-RGB Kit

Optional Upgrade

  • Smooth D-RGB strips around the glass window.
  • D-RGB Motherboard Cable Cover.
  • Extra D-RGB Power Hub to expand with more lighting products.

Get Perfect Cables with the NV5 Presets from CableMod

Optional Upgrade

  • Combine the Revolt cableless PSU with custom cables from CableMod.

  • Use the perfect cable length for your NV5 build.
  • Alternatively, use the Revolt Cable kits to complement the Revolt PSU.

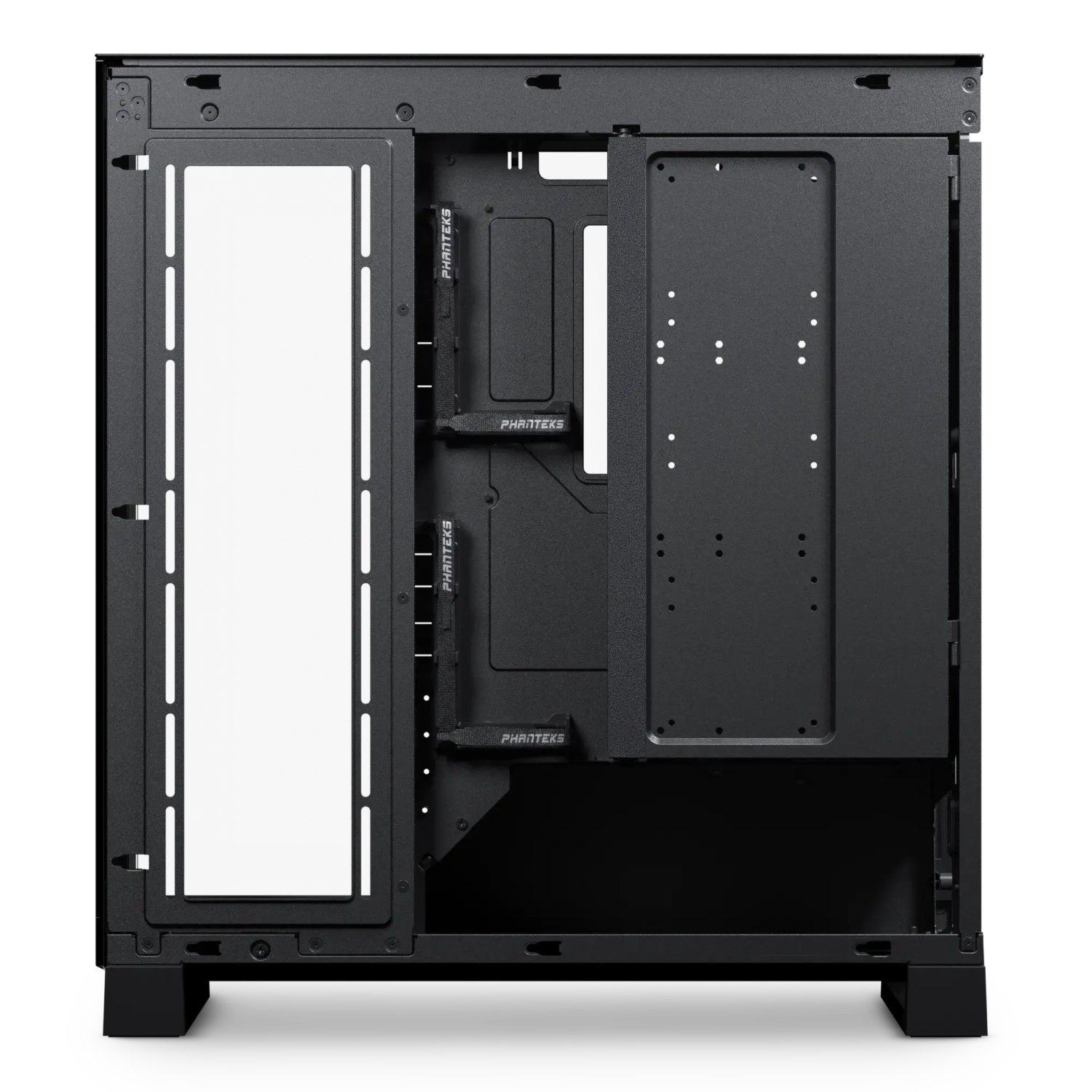

Multiple storage options

  • Support for 4x 2.5″ SSD.
  • Support 3x 3.5″ HDDs.

Specifications

General

Model No.

PH-NV523TG_DBK01

UPC Code

886523302940

Case Dimensions

239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in

Form Factor

Mid-Tower

Mainboard Support

*E-ATX | ATX | Micro-ATX | Mini-ITX

*Up to 280mm without GPU Support Bracket

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

7

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

4

Internal 3.5″ Bay

3

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button

Fans 120 | 140

Total Fans

8x | –

Top

3x | –

Front

– | –

Side

3x | –

Rear

1x | –

Bottom

1x | –

Radiators 120 | 140

Top

Max. 360 | –

Front

– | –

Side

Max. 360 | –

Rear

120 | –

Bottom

– | –

Clearance

CPU Cooler

Height

180 mm | 7.08 in

GPU

Length

440 mm | 17.32 in

GPU

Height

170 mm | 6.69 in

Power Supply

Length

230 mm | 9.05 in

Top Radiator

Length x Width

134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in

Front Radiator

Length x Width

– | –

Side Radiator

Length x Width

130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in

Rear Radiator

Length x Width

132 x 170 mm | 5.19 x 6.69 in

Extra

Net Weight

11.28 kg | 24.9 lbs

Gross Weight

13.97 kg | 30.8 lbs

Warranty

5 Years limited

Scope of Delivery

1x NV5 chassis

Accessory Box

6x Zip ties
1x GPU support bracket

Screws

22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

NV Series

Creating a picture-perfect build is the core element of the NV series, with fans positioned all around the motherboard, the heart of your system, like a picture frame. The near-seamless glass panels provide a perfect view of all your system components. With the ultra-fine performance mesh design is featured on all sides of the chassis, combining high airflow with good dust filtration. Features a high-quality dust filter with an intake area that provides the best cooling performance to the GPU. Integrated fan & radiator brackets, LED cable covers, airflow covers and an array of unique cable management tools make any NV build stand out from the crowd.
