T30-120

The ultimate fan for every scenario

The Phanteks T30-120 fan has undergone years of development and extensive testing in close collaboration with SUNON, a leading fan manufacturer. Combined with Phanteks’ expertise in chassis and air/water cooler design, we created the ultimate PC cooling fan. The T30-120 features the best aerodynamic blade design, 30mm thick frame, and is made from quality industrial-grade components to achieve a perfect balance between high cooling performance, low noise operation, and excellent sound quality.

Colors

Grey

Dimensions

120

Liquid Crystal Polymer

  • Glass fiber reinforced LCP (Liquid Crystal Polymer) fan blades and frame.

  • LCP enables high precision manufacturing.

  • Excellent strength, rigidity and longevity.

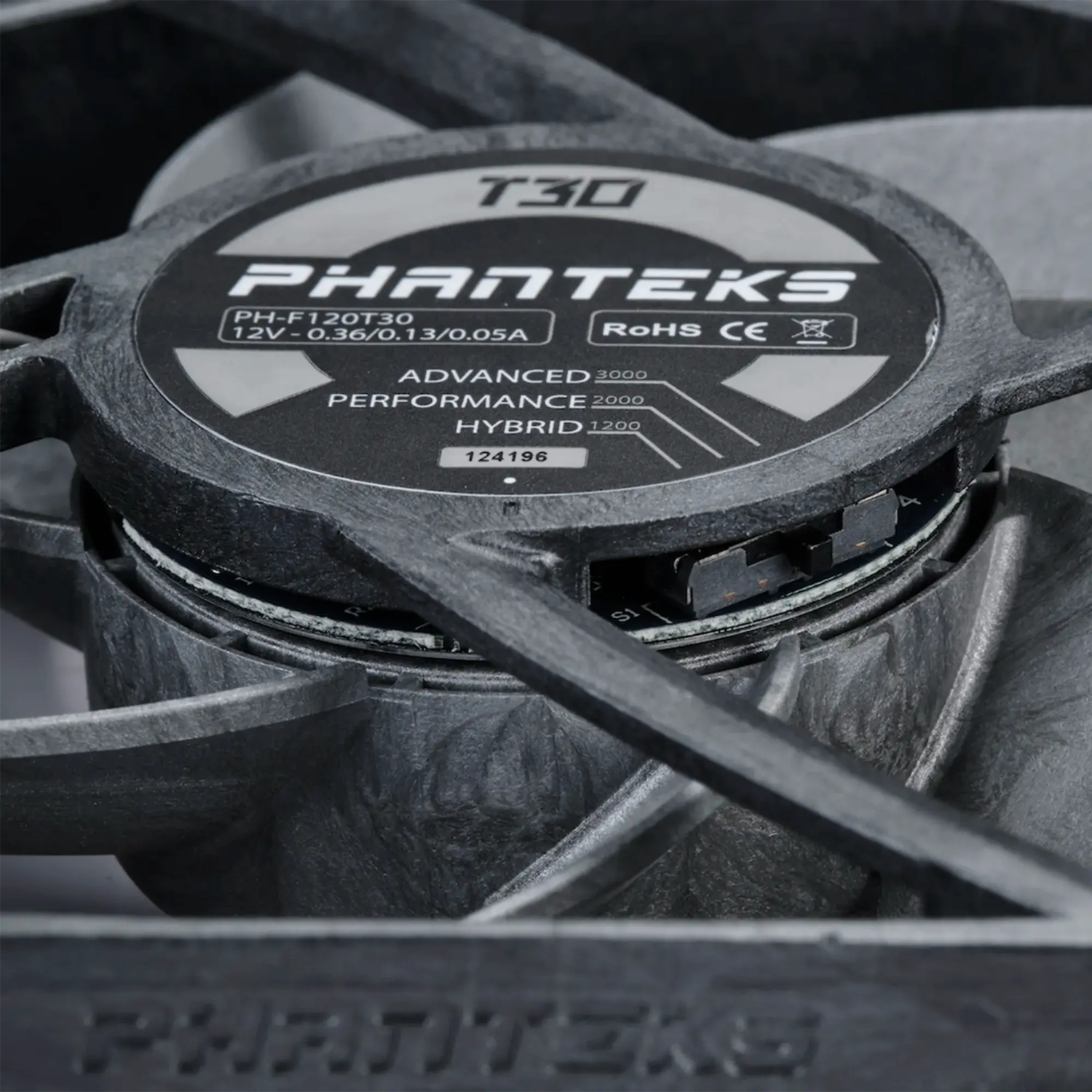

PWM Profile Switch

  • Hybrid mode (Semi-Passive)
    Up to 1200 RPM, 0 RPM below 50% PWM signal for absolute silence.

  • Performance mode (Recommended)
    Up to 2000 RPM for balanced performance and noise.

  • Advanced mode (Extreme)
    Up to 3000 RPM for extreme performance.

Unparalleled Performance

  • 25% larger fan blades for enhanched airflow thanks to 30mm thickness.

  • Aerodynamically optimized for radiators/heatsinks/dust filters.

  • Best-in-class noise-normalized performance.

Developed in collaboration with

Sunon

Perfected In Every Detail

  • Precise load balancing to minimize noise from vibrations.

  • Aerofoil shaped blades for increased static pressure.

  • Parallel 0.5 mm gap between blades and frame for improved performance and reduced turbulance.

  • Powerful magnetic levitated 3-Phase motor with DUAL VAPO bearing (Powered by SUNON).

  • Excellent sound quality with a lower sound frequency.

Specifications

General

Model No.

PH-F120T30_BG | PH-F120T30_BG _3P

UPC Code

886523001829 | 886523001836

Frame Size

120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in

Blade Geometry

Nine blades design

PWM Connector

4-Pin Daisy-chain

PWM Cable Length

130 mm + 500 mm Extension cable

D-RGB Connector

D-RGB Cable Length

TECHNICAL DETAILS

Bearing Type

DUAL VAPO Bearing System

Rated Voltage

12V

Noise Level

25.5 dBA

Max. Airflow

50 CFM

Max. Air Pressure

0.96 mm H2O

Speed

500~1500 ± 10% RPM

MTFB

150.000 hours

Max Current

0.36A

Max Power

4.32W

Operating Voltage Range

DC 10.2 – 13.2V

LED Number

LED Rated Current

Fan Profile Specifications

Advanced

Performance

Hybrid

Max. Speed

RPM

3000 ± 150

2000 ± 100

1200 ± 75

Max. Airflow

CFM

100.9

67.0

40.3

Max. Airflow

M3/H

171.4

113.8

68.5

Max. Static Pressure

Inch H2O

0.29

0.13

0.05

Max. Static Pressure

mm H2O

7.37

3.30

1.27

Max. Sound Level

dBA

39.7

27.3

9.8

Max. Current

A

0.41

0.16

0.07

Max. Power

W

4.92

1.92

0.84

Single Pack

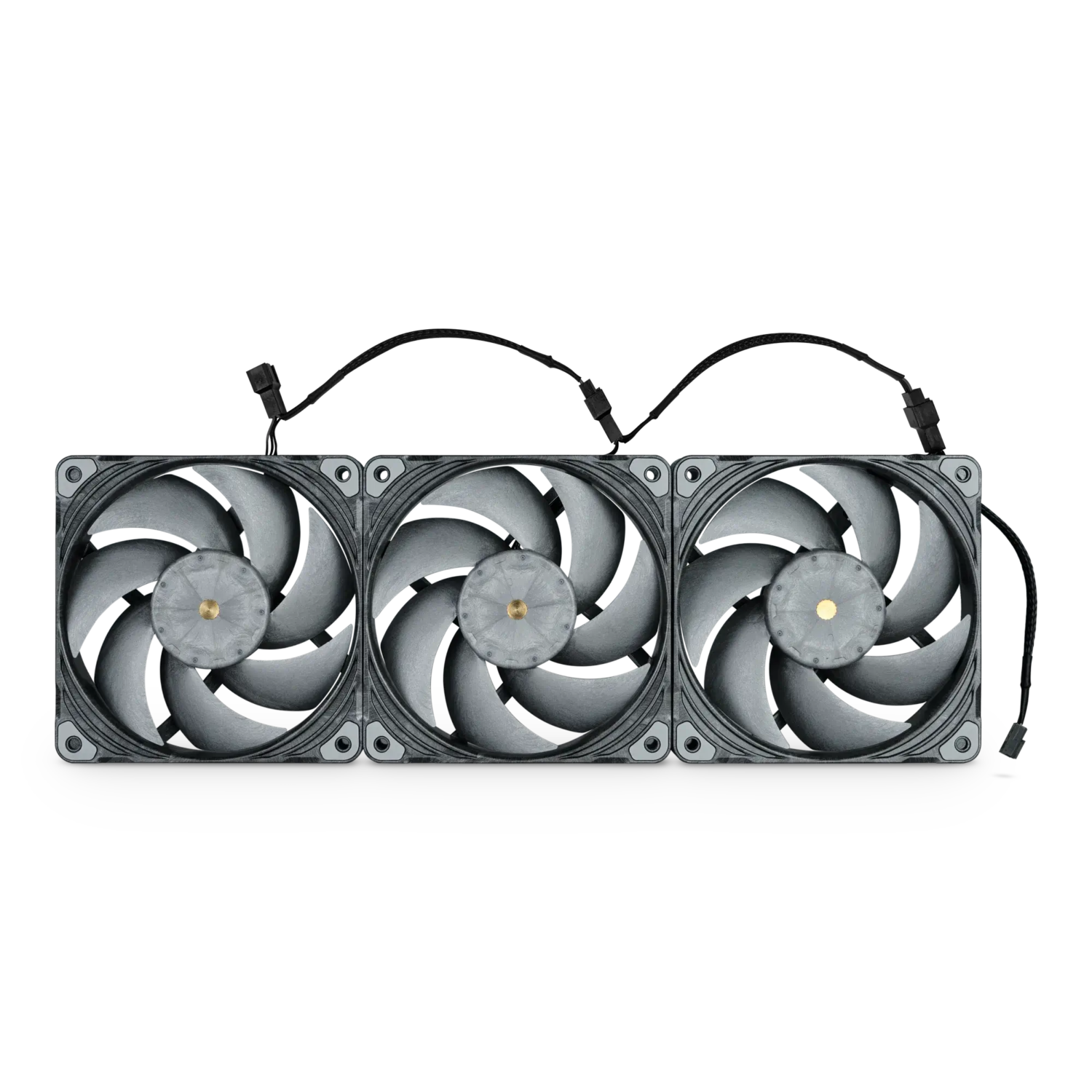

Triple Pack

Net Weight

230 g | 8.11 oz

Gross Weight

350 g | 12.34 oz

Warranty

6 Years limited

Scope of Delivery

1x T30-120 Fan

Accessory

1x 4-Pin Extension Cable

Screws

4x Fan Screw
4x Radiator Screw 36 mm
4x Radiator + HALOS Screw 39 mm

Net Weight

940 g | 33.15 oz

Gross Weight

1040 g | 36.68 oz

Warranty

6 Years limited

Scope of Delivery

3x T30-120 Fans

Accessory

3x 4-Pin Extension Cable

Screws

12x Fan Screw
12x Radiator Screw 36 mm
12x Radiator + HALOS Screw 39 mm

Support

Documentation

N/A

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
