NV7

A True Showcase of Performance

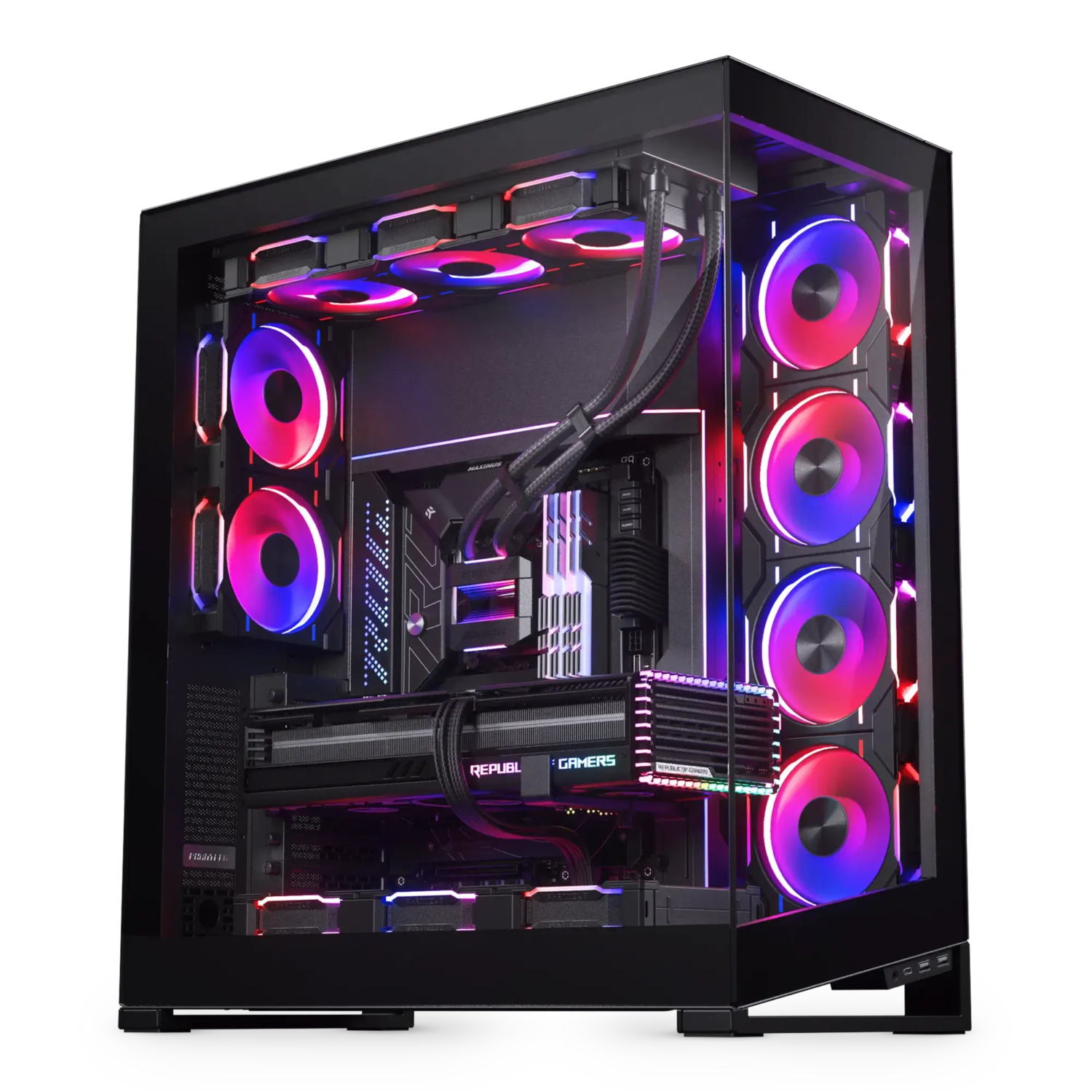

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

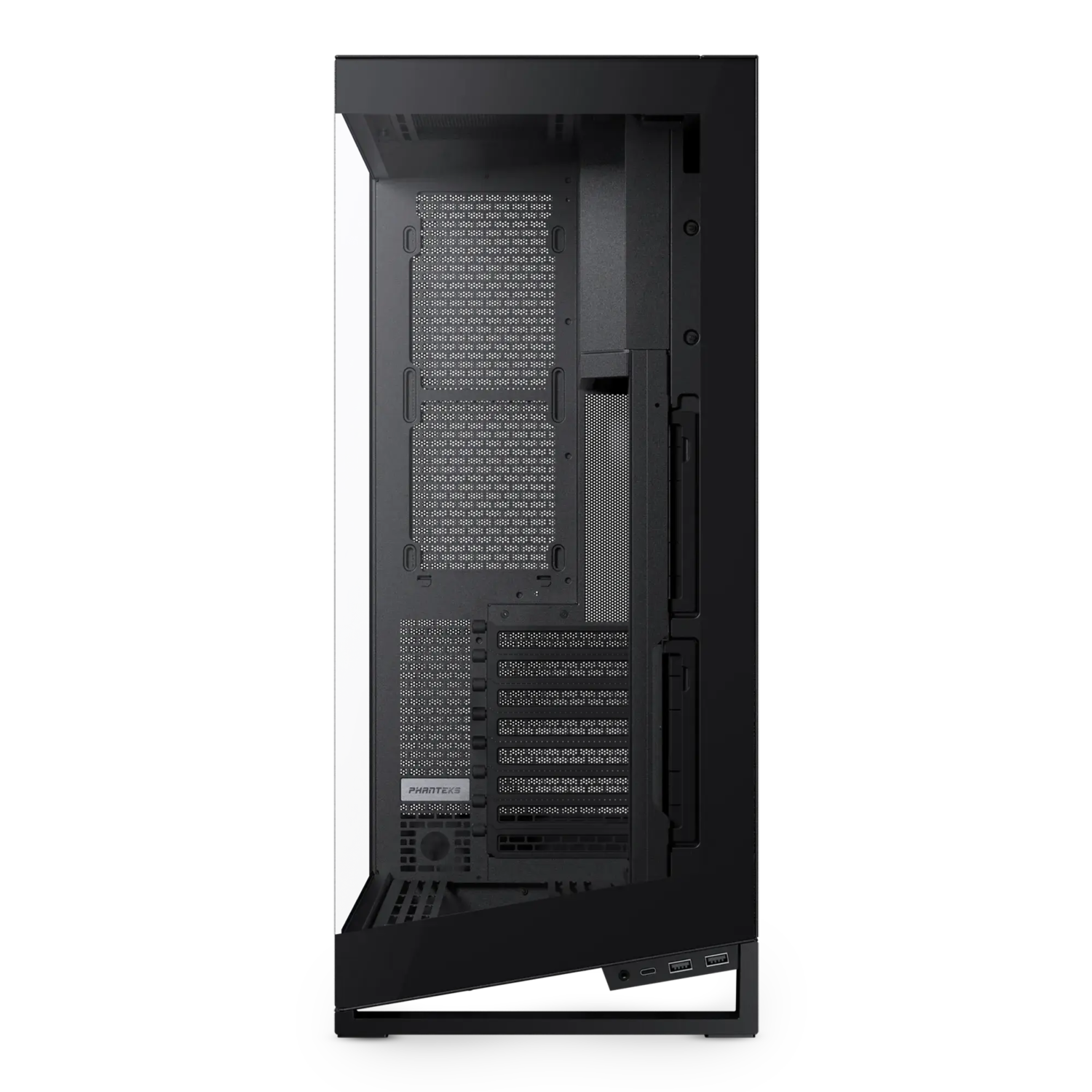

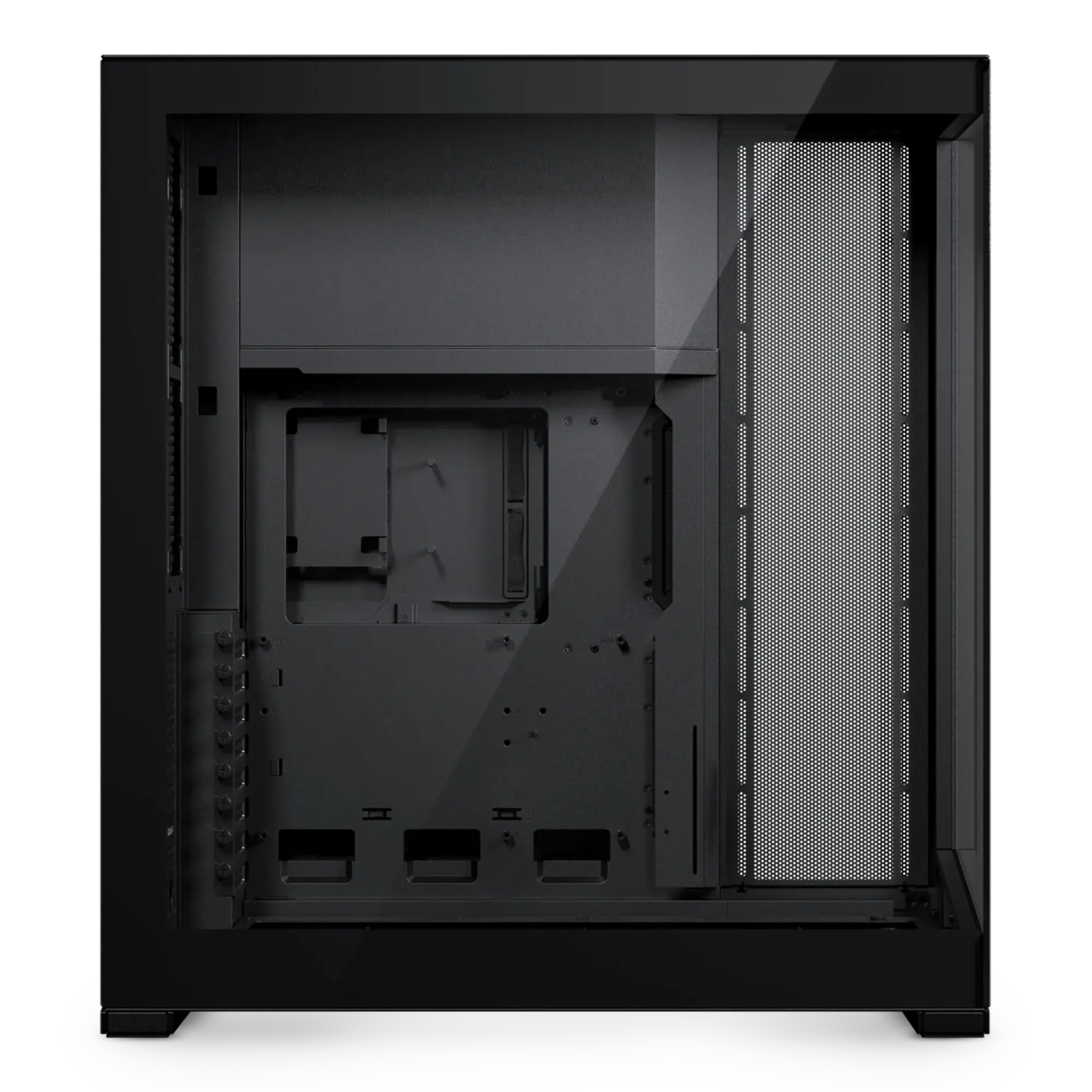

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.

Colors

Black

Satin Black

White

Matte White

Configurations

D-RGB

A Perfect Frame For Your System

  • Near-seamless glass panels.
  • The motherboard as a centerpiece of your build.
  • Fans all around the system with a strong outer frame.
  • Build to last from thick reinforced steel.

Performance without Compromise

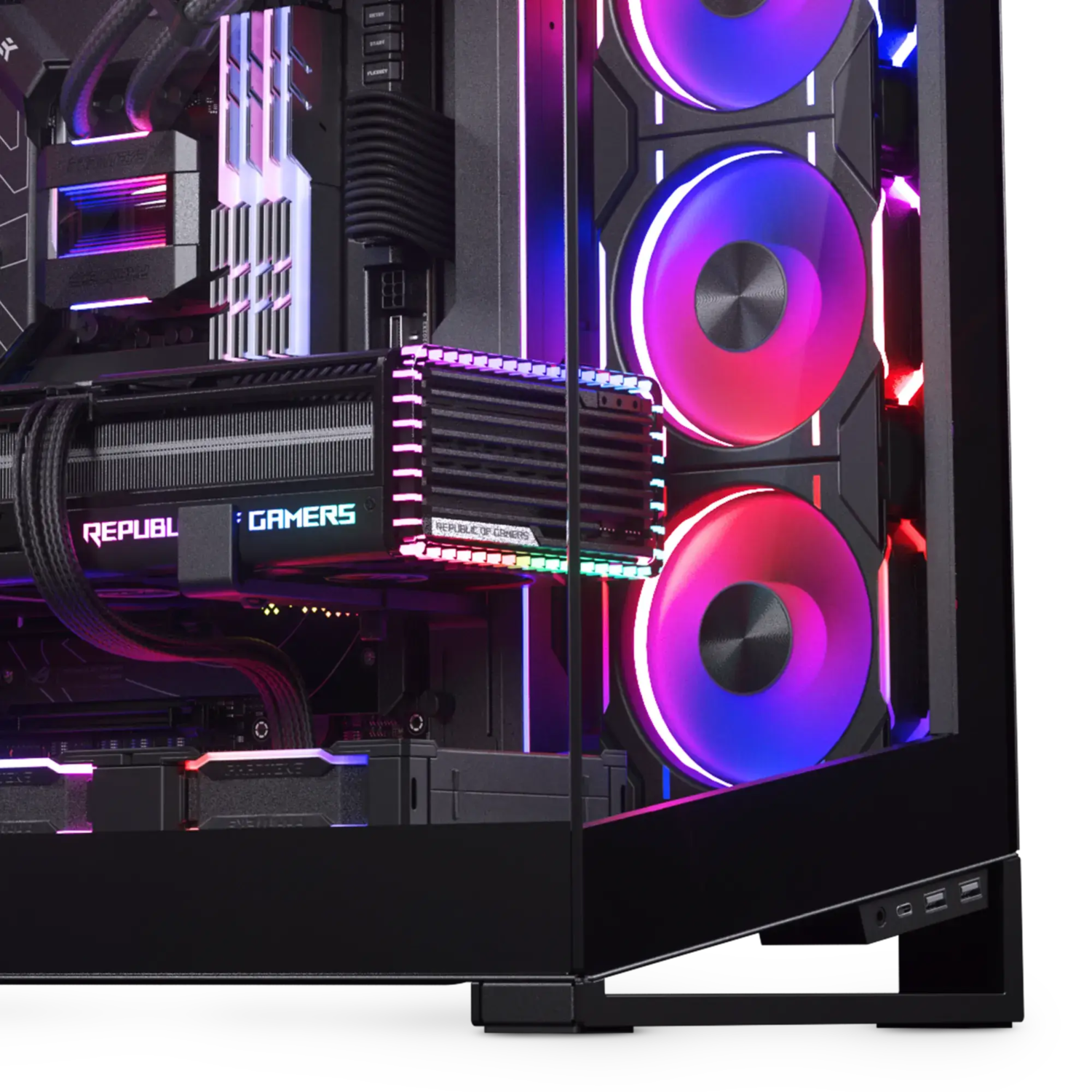

  • Direct and dedicated GPU cooling from the bottom.
  • Immense bottom airflow intake with 65mm clearance.
  • Ultra-Fine Performance mesh on all external panels.
  • Extensive cooling supports triple 360 plus a 240 radiator simultaneously.

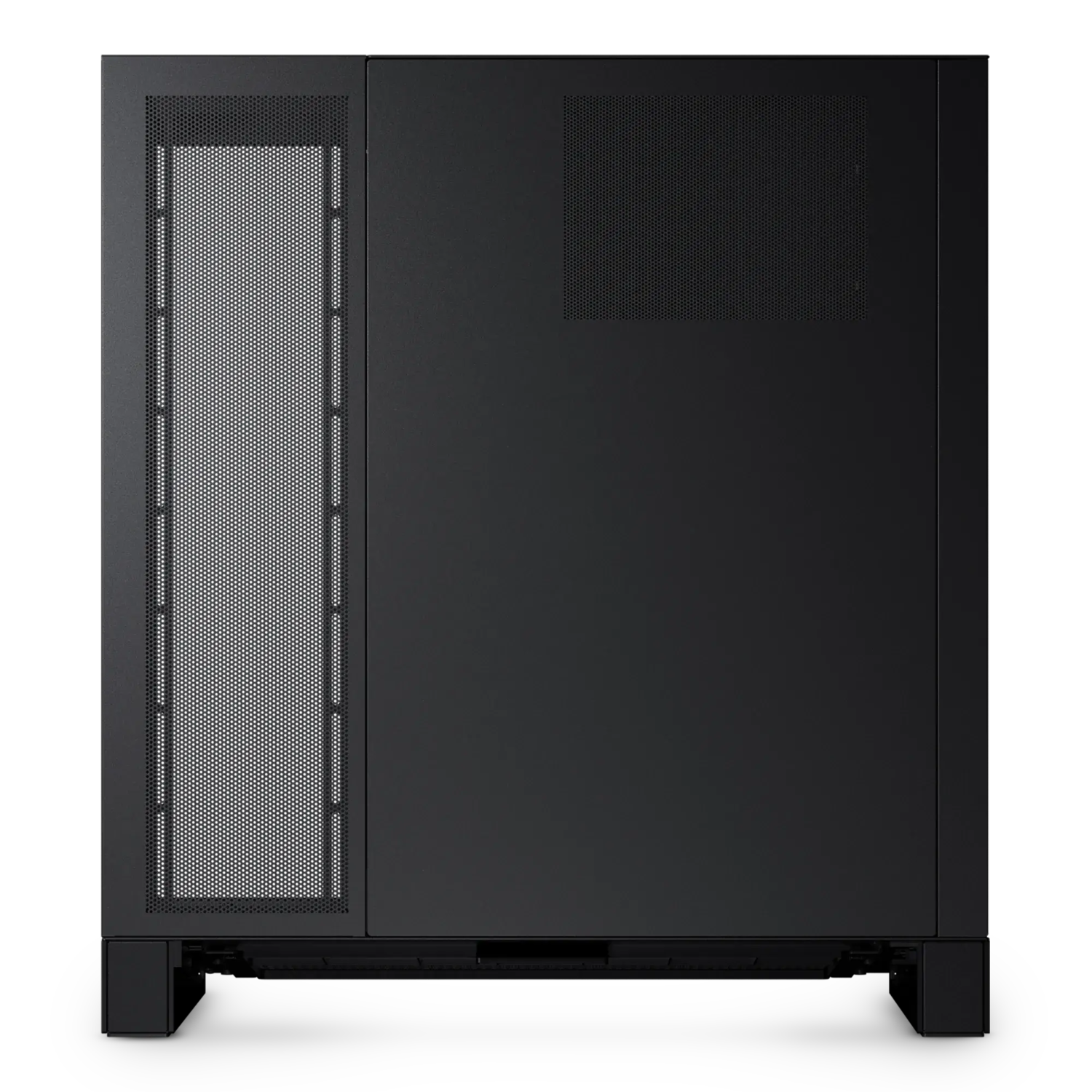

Clean Exterior From All Sides

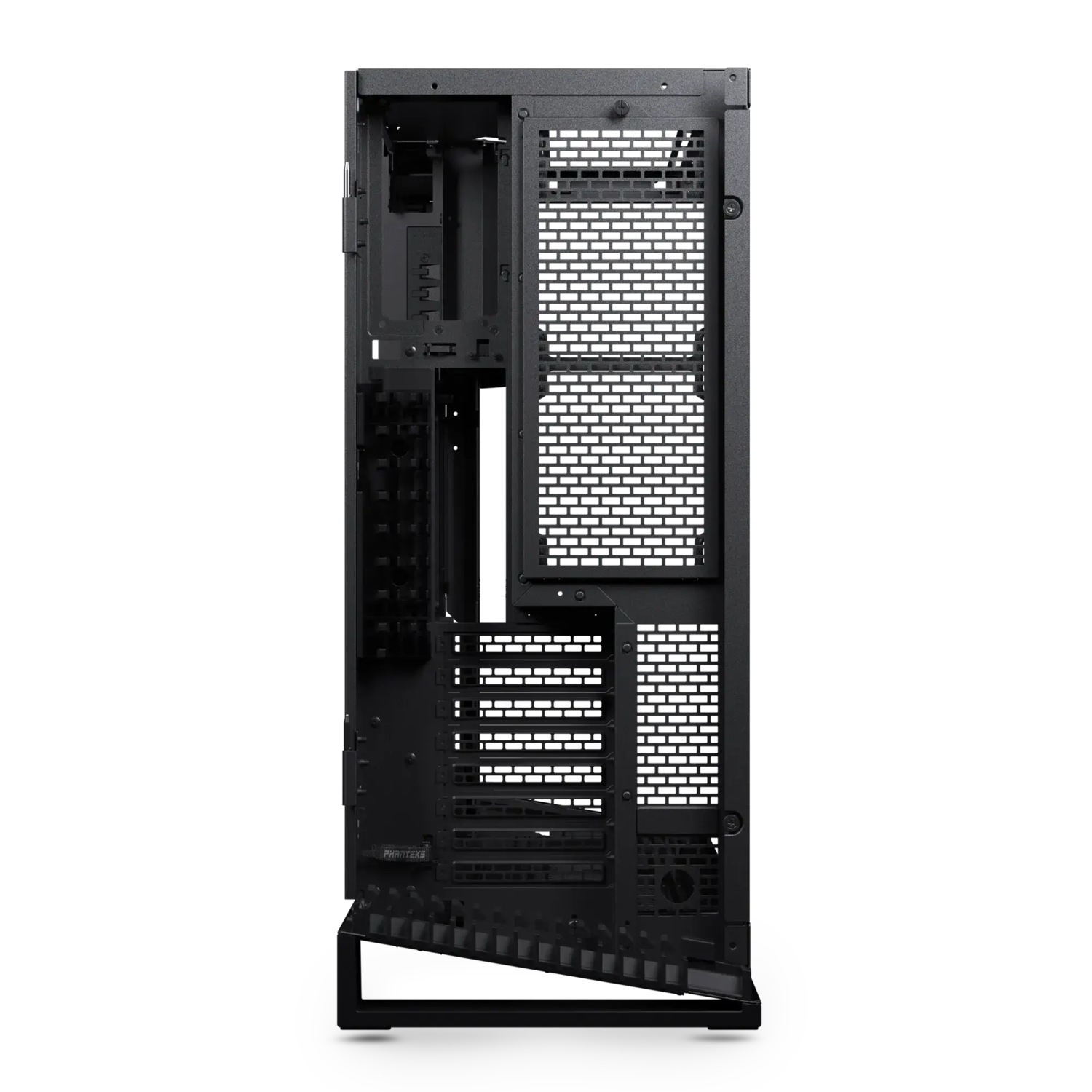

  • The clean rear door and moveable front IO module allows for multiple placement options.

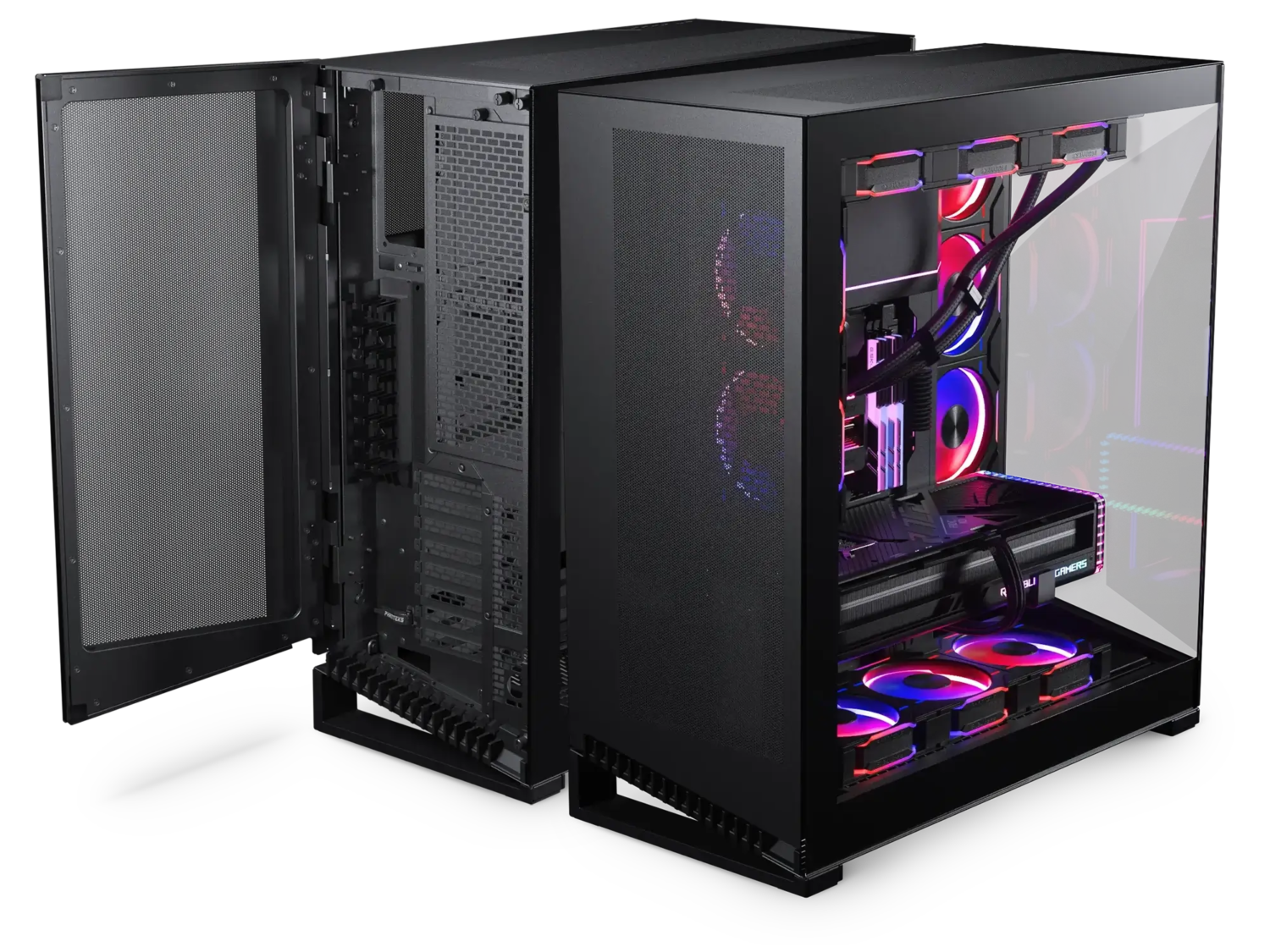

  • Rear door swings open to provide easy access.
  • Unique cable management system for external cables.
  • Go for a zero-cable setup using the hidden cable exit grommet.

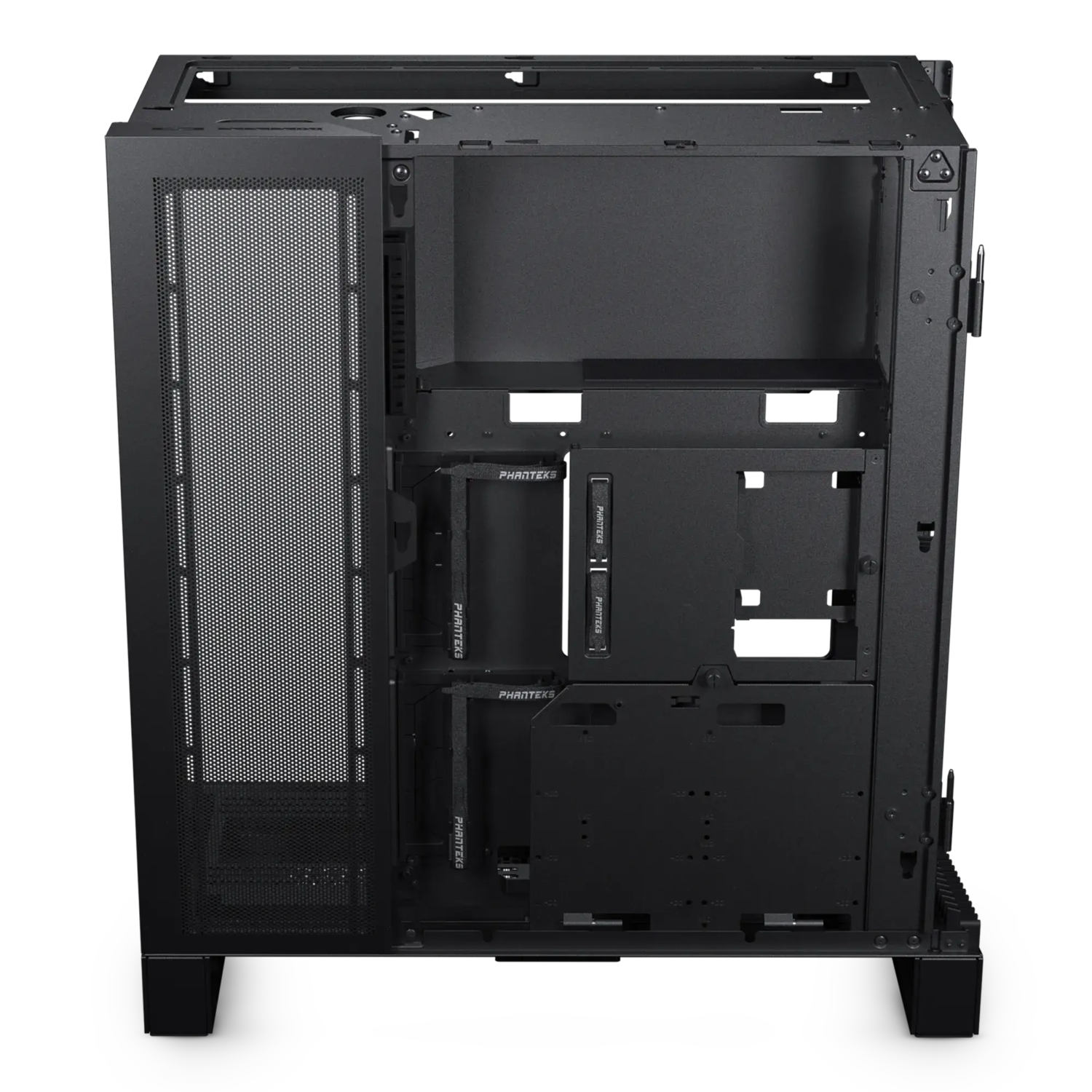

  • Cover doors and velcro cable combs easily hide and manage the internal cables.

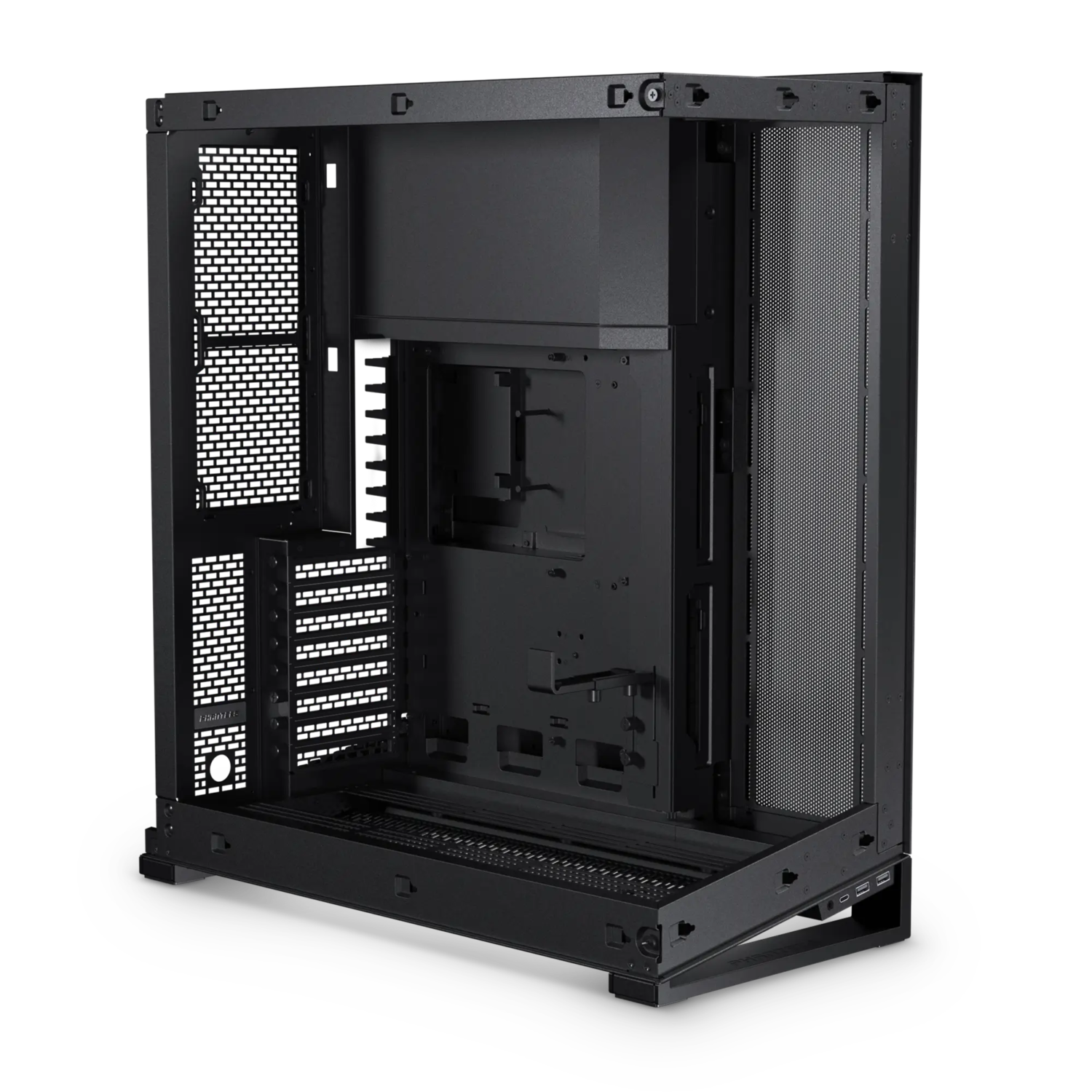

Unique Interior Features

  • Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard.
  • Removable side and bottom fan bracket for easy installation.
  • Bottom bracket can be reversed for angled or horizontal position.

*Premium D-RGB Kit not included

New Generation D-RGB Controller

  • Built-in Digital-RGB Controller.

  • Integrated D-RGB lighting around the motherboard.
  • Dual channel output to allow for dual color effects.
  • A total of 4 output ports and dual Sata power expands the possibilities.
  • Refined D-RGB lighting effects that just work, no software required.

  • Expand with more Digital-RGB lighting.

  • Optionally sync with motherboard and software.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

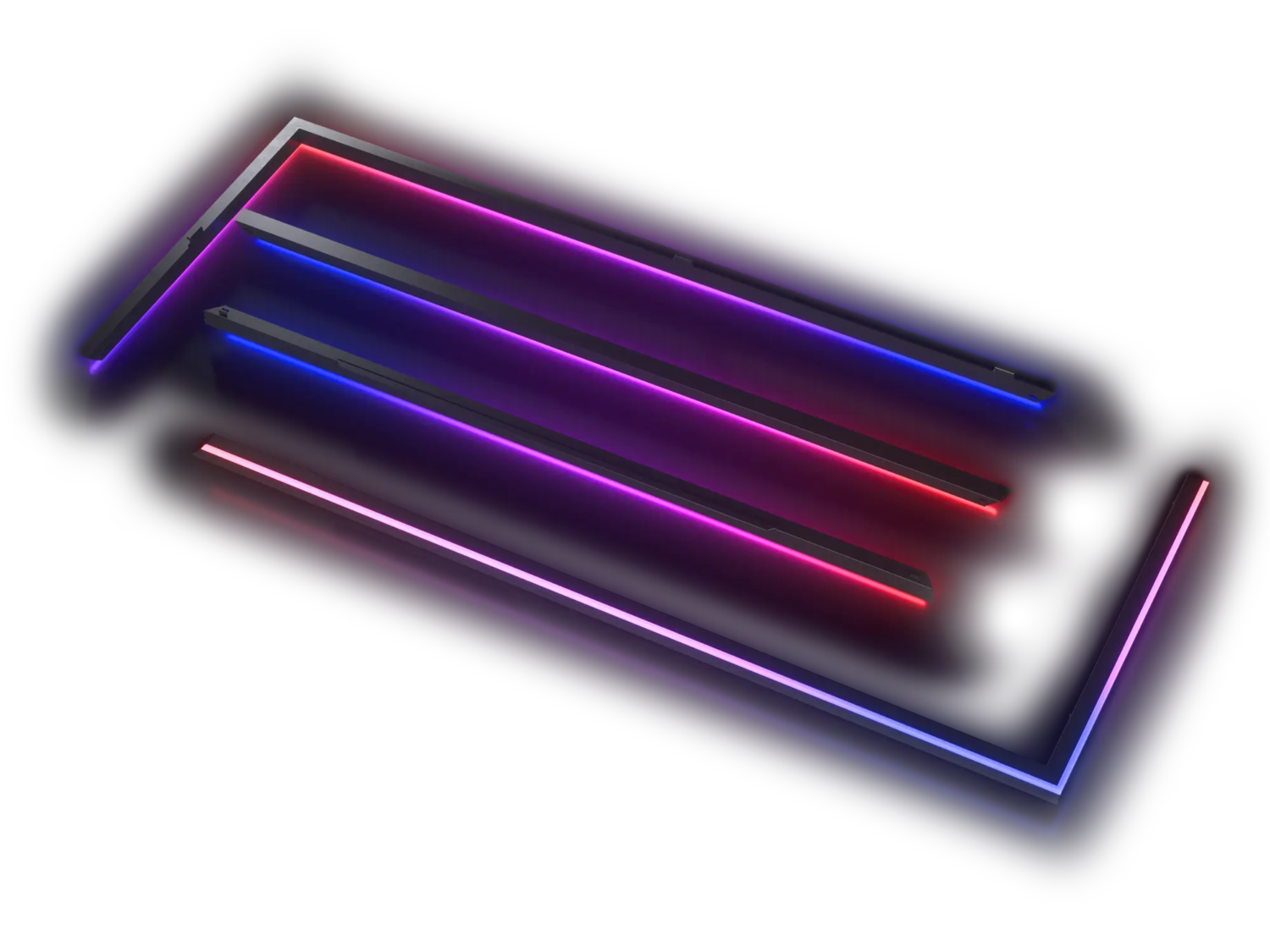

NV7 Premium D-RGB Kit

Optional Upgrade

  • Smooth D-RGB strips around the glass window.

Get Perfect Cables with the NV7 Presets from CableMod

Optional Upgrade

  • Combine the Revolt cableless PSU with custom cables from CableMod.

  • Use the perfect cable length for your NV7 build.

  • Alternatively, use the Revolt Cable kits to complement the Revolt PSU.

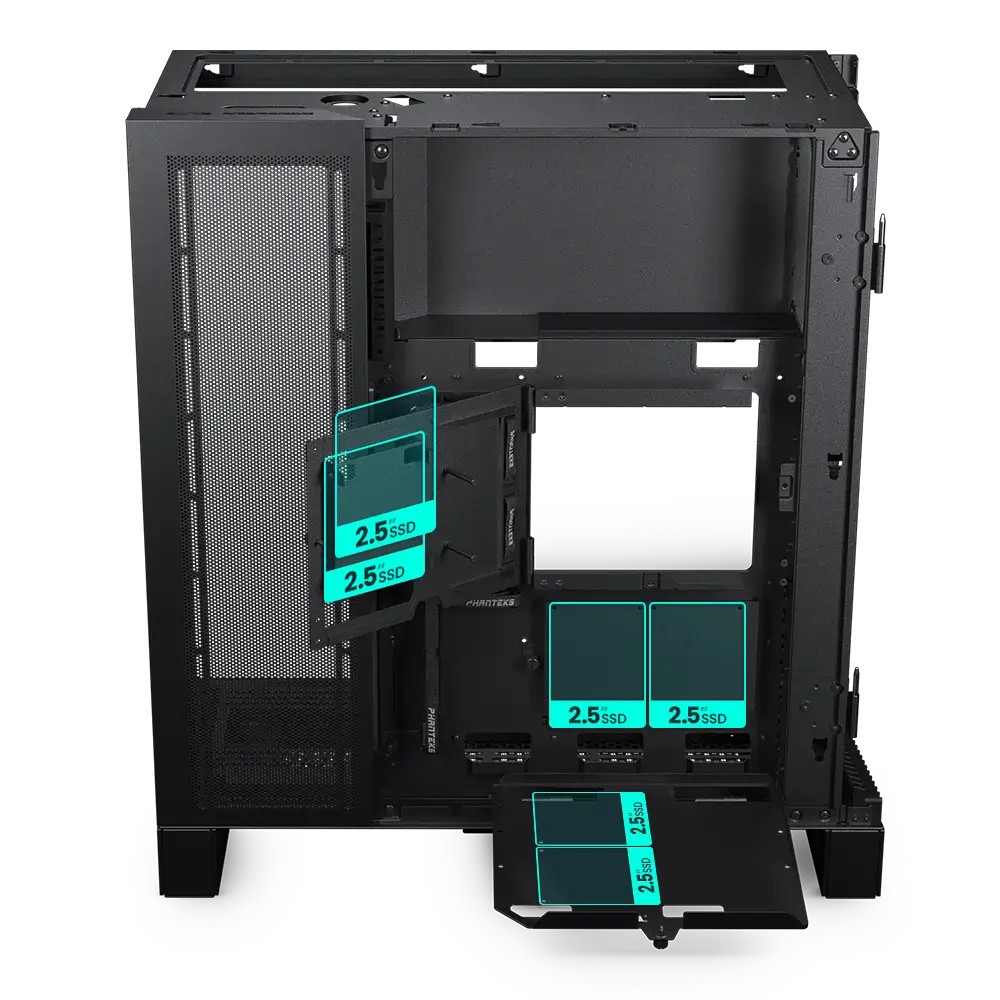

Multiple storage options

  • Support for 6x 2.5″ SSD.

  • Support 2x 3.5″ HDDs.

Specifications

General

Model No.

PH-NV723TG_DBK01

UPC Code

886523302780

Case Dimensions

253 x 532 x 586 mm | 10.0 x 20.9 x 23.1 in

Form Factor

Full Tower

Mainboard Support

*E-ATX | ATX | Micro-ATX | Mini-ITX

*Up to 277mm wide with LED Cover

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

8

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

6

+ 1x 3.5″ HDD

Internal 3.5″ Bay

2

+ 2x 2.5″ SSD

Front I/O

2x USB 3.0 USB-C Gen2
Microphone | Headphone Combo
Power Button
D-RGB Mode Button
D-RGB Color Button
D-RGB Speed Button
D-RGB Channel Button

Fans 120 | 140

Total Fans

12x | 3x

Top

3x | –

Front

– | –

Side

4x | –

Rear

2x | –

Bottom

3x | 3x

Radiators 120 | 140

Top

Max. 360 | –

Front

– | –

Side

Max. 360 | –

Rear

120 | –

Bottom

Max. 360 | 280

Clearance

CPU Cooler

Height

185 mm | 7.28 in

GPU

Length

450 mm | 17.71 in

Power Supply

Length

255 mm | 10.03 in

Top Radiator

Length x Width

132 x 440 mm | 5.19 x 17.32 in

Front Radiator

Length x Width

– | –

Side Radiator

Length x Width x Height

132 x 440 x 65 mm | 5.19 x 17.32 x 2.55 in

Rear Radiator

Length x Width

132 x 320 mm | 5.19 x 12.59 in

Extra

Net Weight

16.90 kg | 37.25 lbs

Gross Weight

19.70 kg | 43.43 lbs

Warranty

5 Years limited

Scope of Delivery

1x NV7 chassis

Accessory Box

2x Airflow covers
1x Microfiber cloth
6x Zip ties
1x GPU support bracket

Screws

34x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
9x HDD screws
1x Motherboard stand-off
1x Stand-off removal tool
1x Extra R-side panel screw

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

NV Series

Creating a picture-perfect build is the core element of the NV series, with fans positioned all around the motherboard, the heart of your system, like a picture frame. The near-seamless glass panels provide a perfect view of all your system components. With the ultra-fine performance mesh design is featured on all sides of the chassis, combining high airflow with good dust filtration. Features a high-quality dust filter with an intake area that provides the best cooling performance to the GPU. Integrated fan & radiator brackets, LED cable covers, airflow covers and an array of unique cable management tools make any NV build stand out from the crowd.
