NV5 MKII
Performance with a view

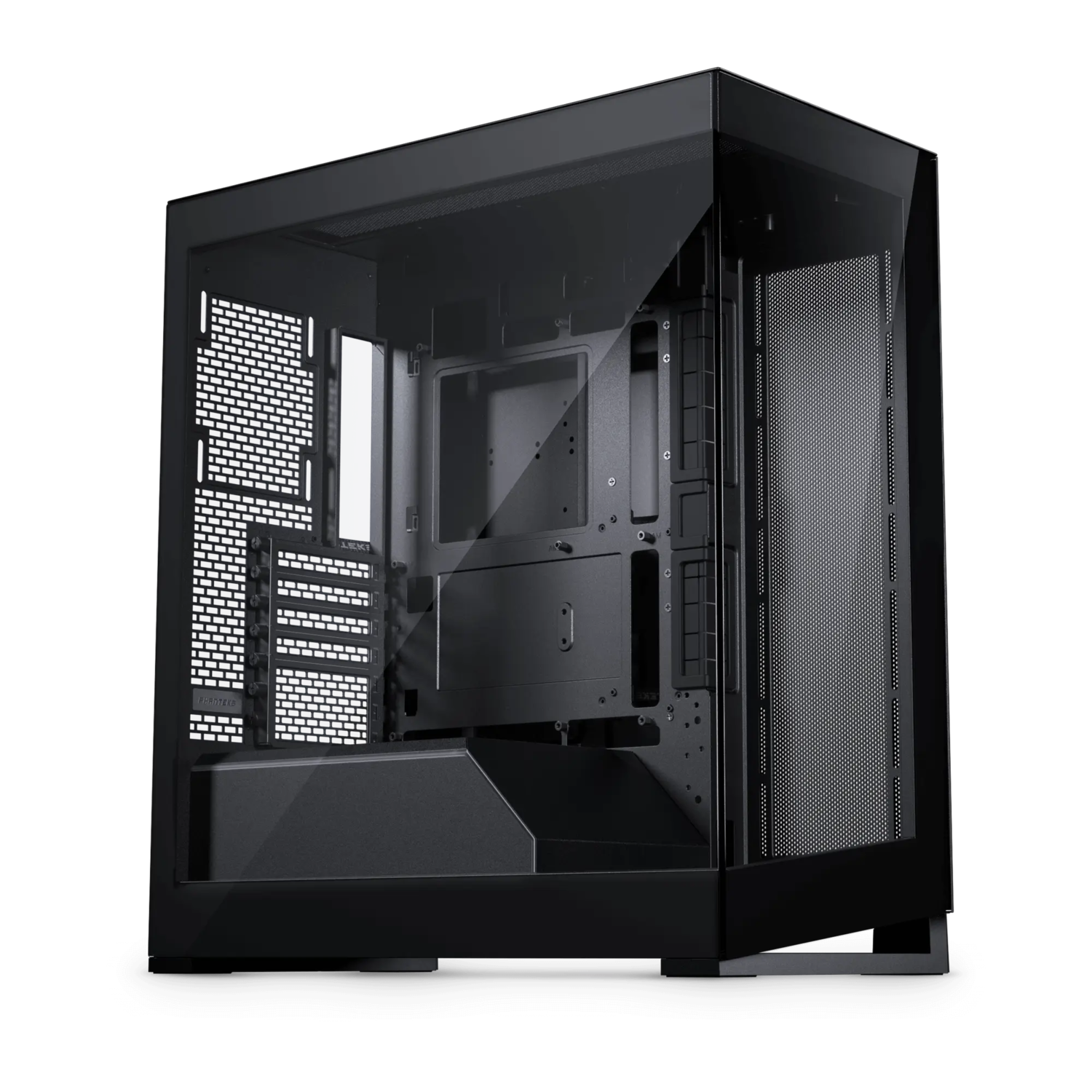

Meet the NV5 MKII mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. Supports rear side connector mainboards (BTF & Project Zero), with a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 MKII is designed to excel.

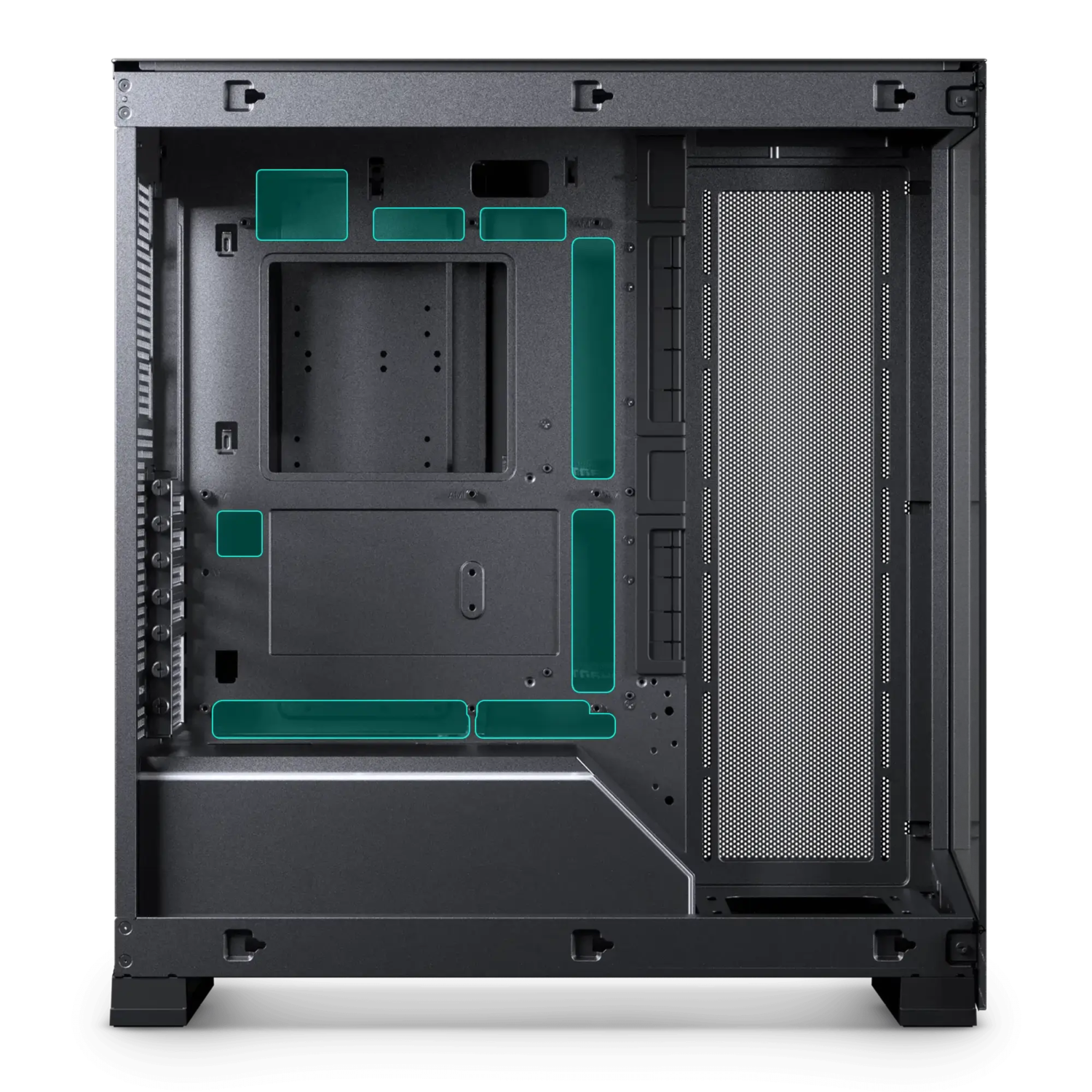

Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 MKII is the perfect choice for a high-performance PC build that looks as good as it performs.
Colors
Configurations
D-RGB

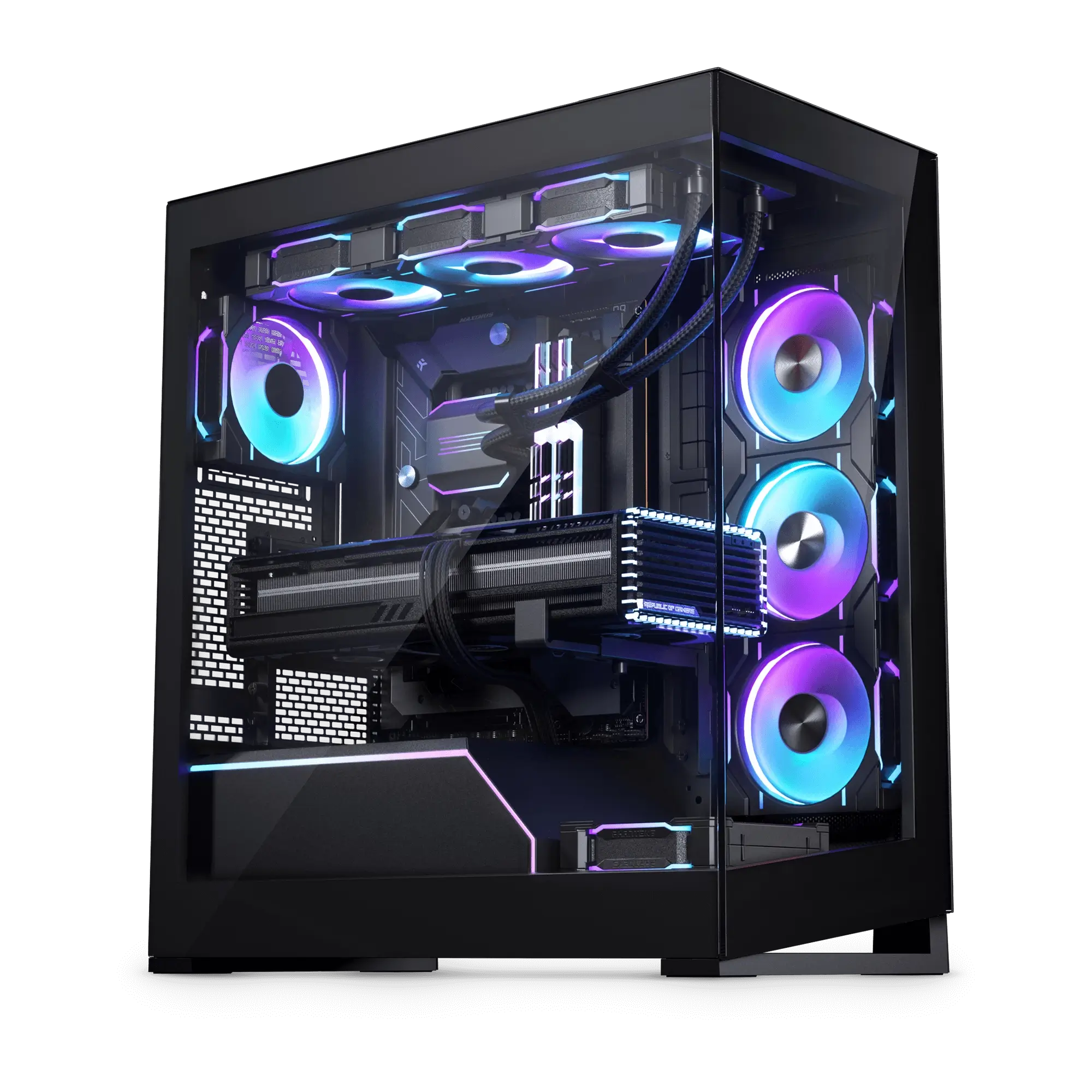

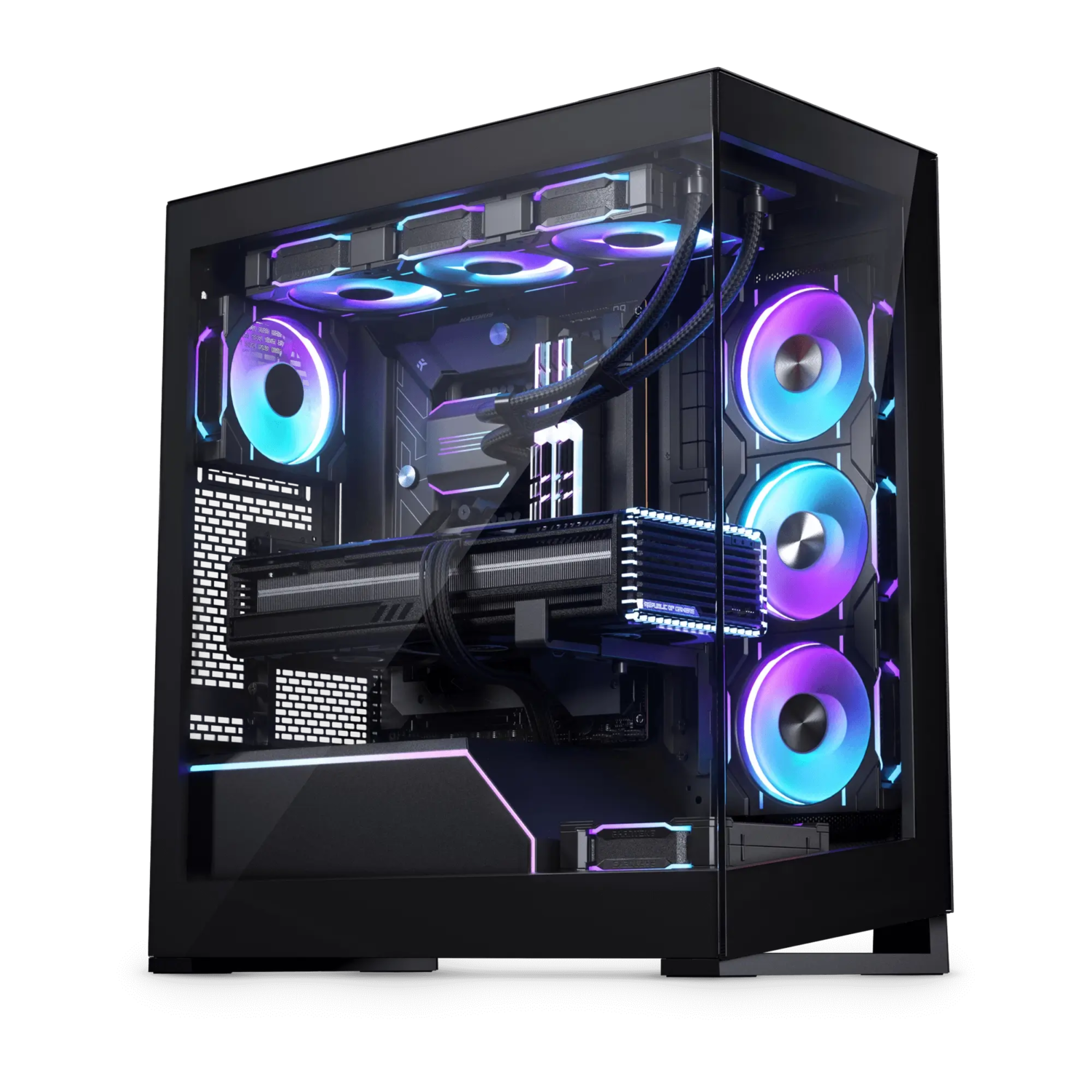

Perfect view of your system

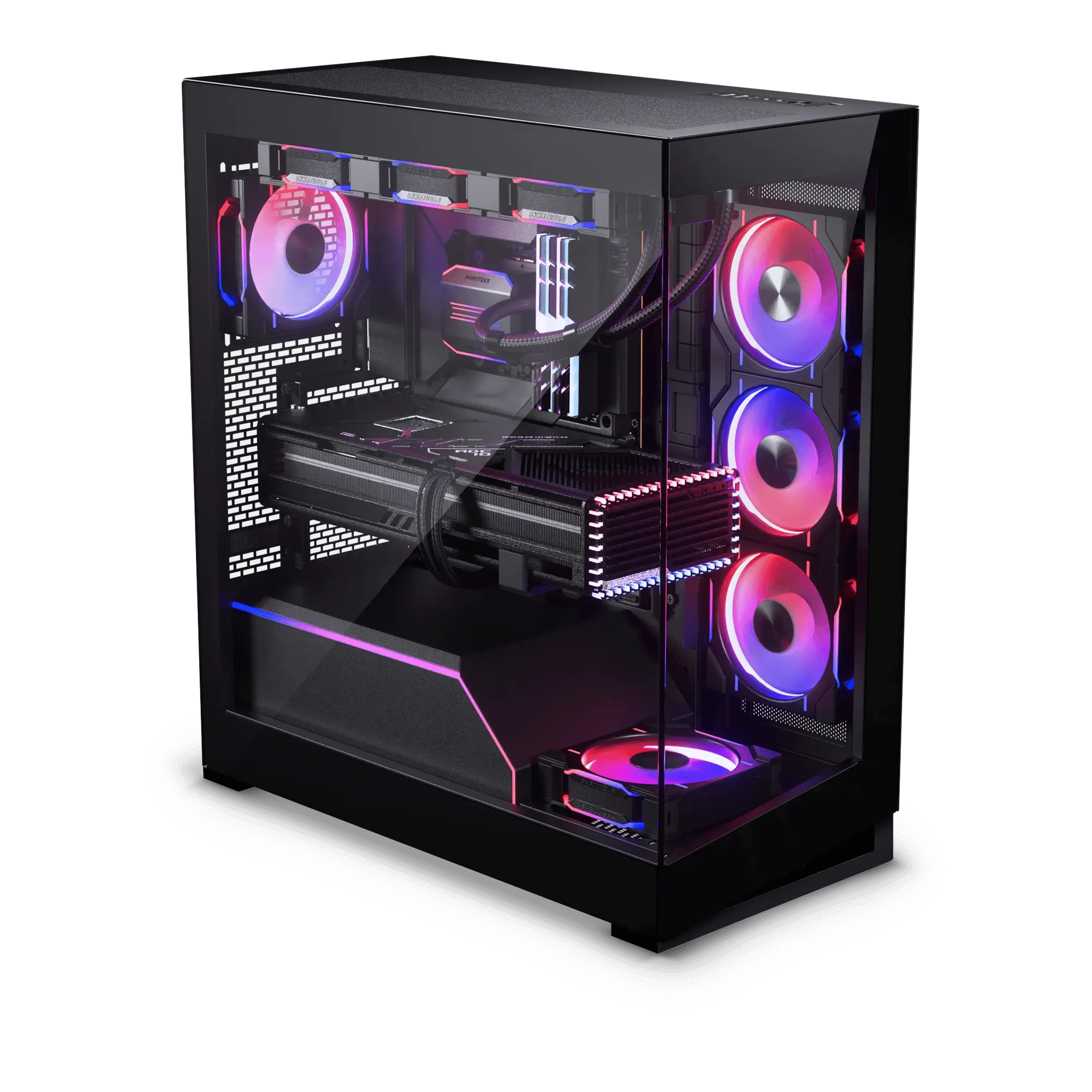

Ready for modern GPUs

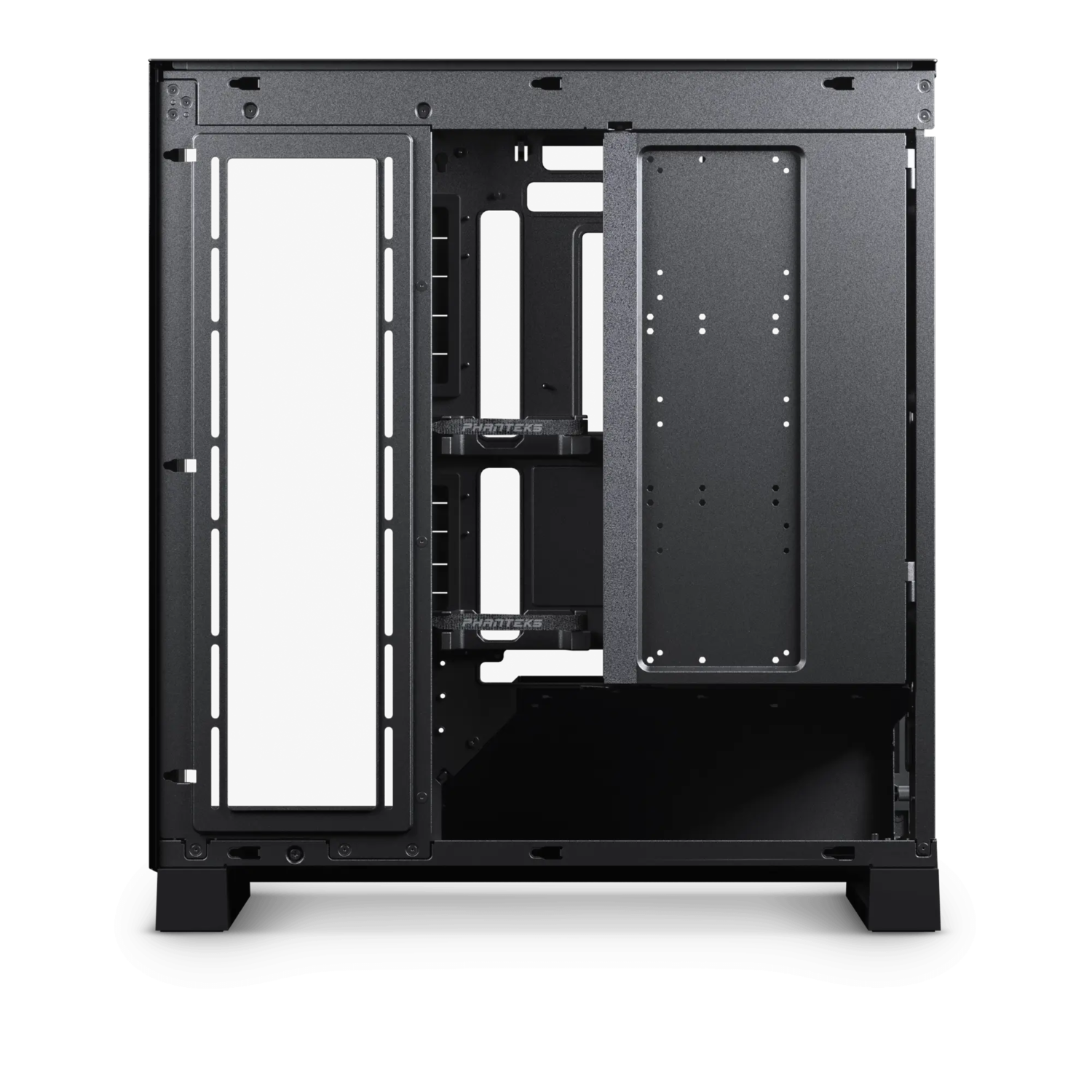

Build for the Future

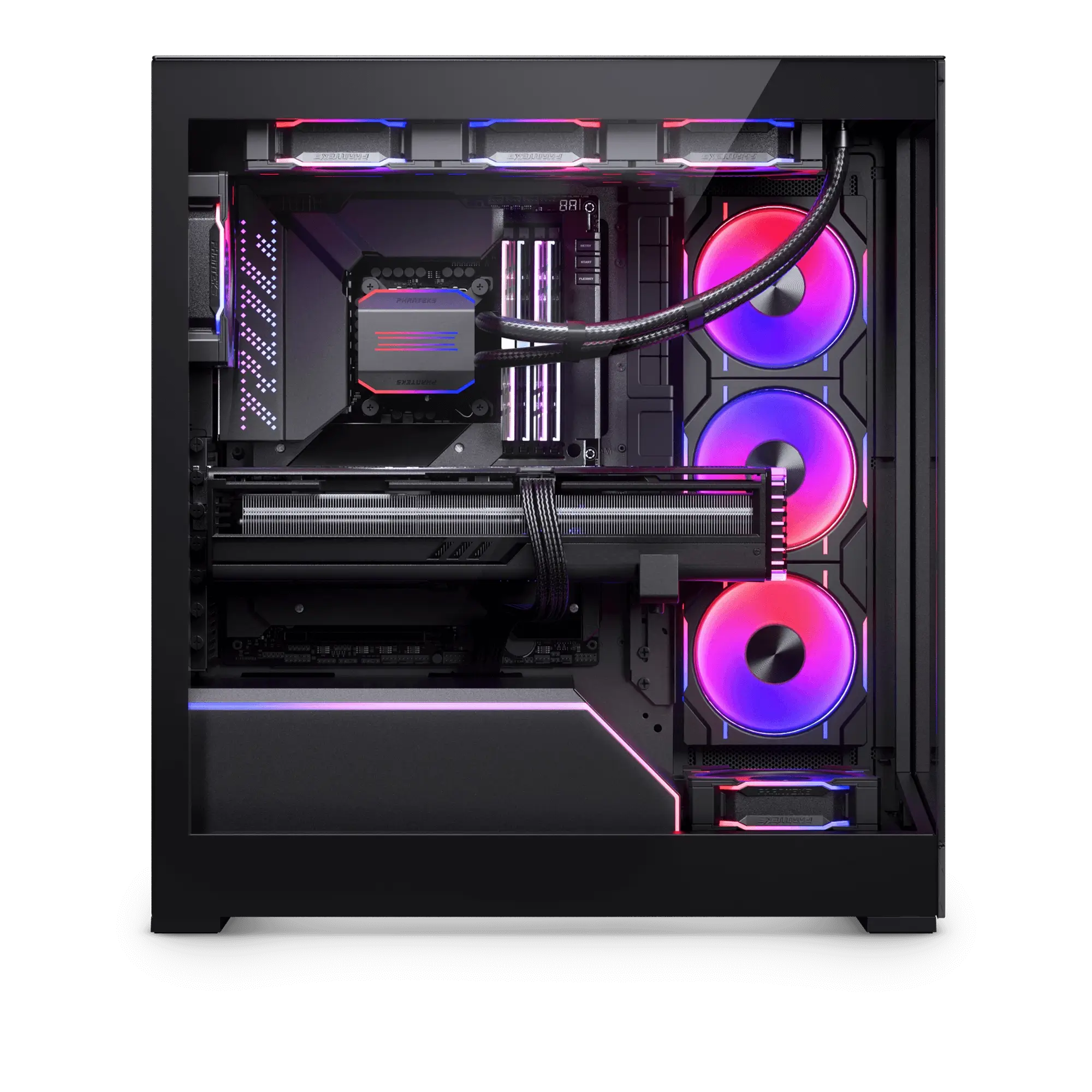

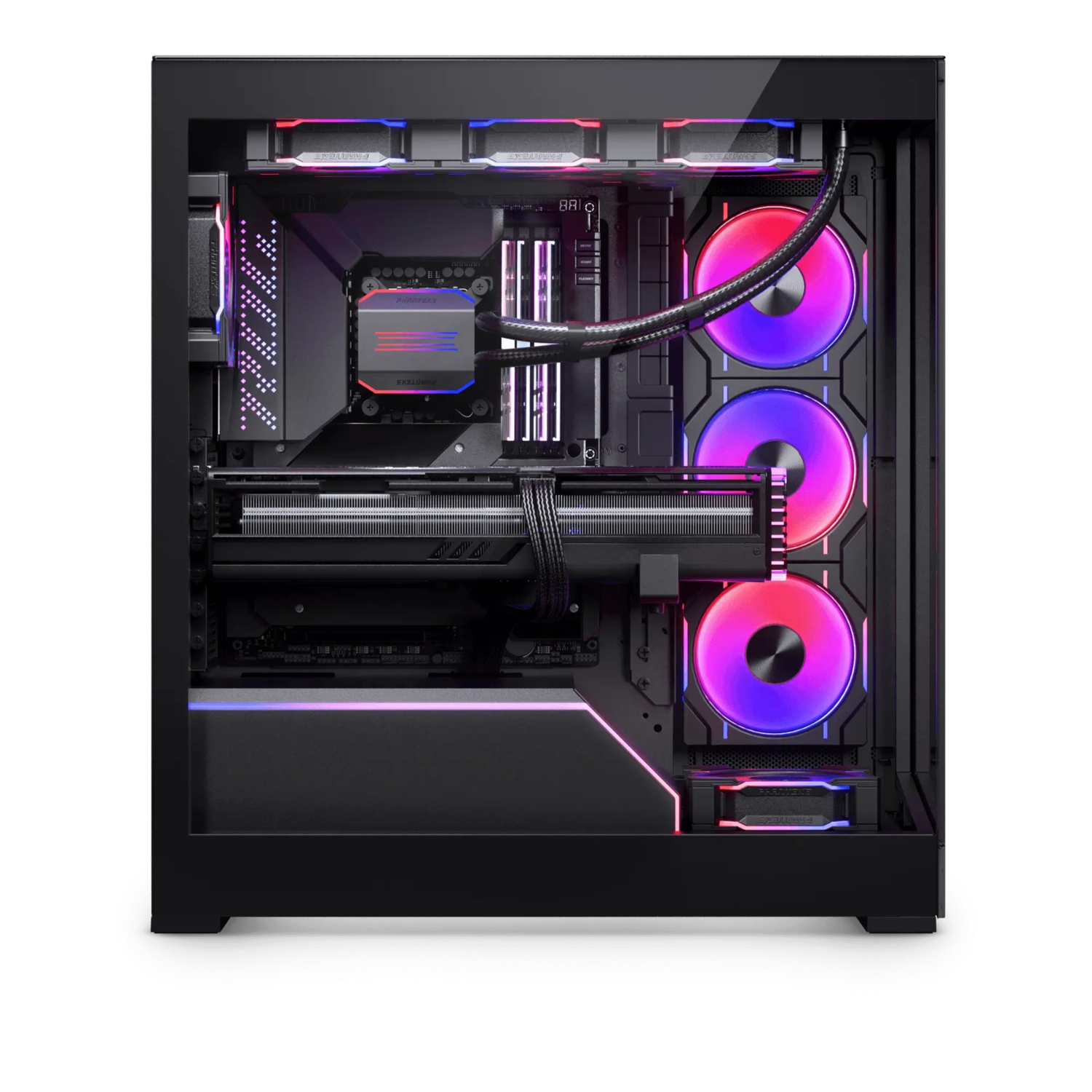

Integrated D-RGB lighting

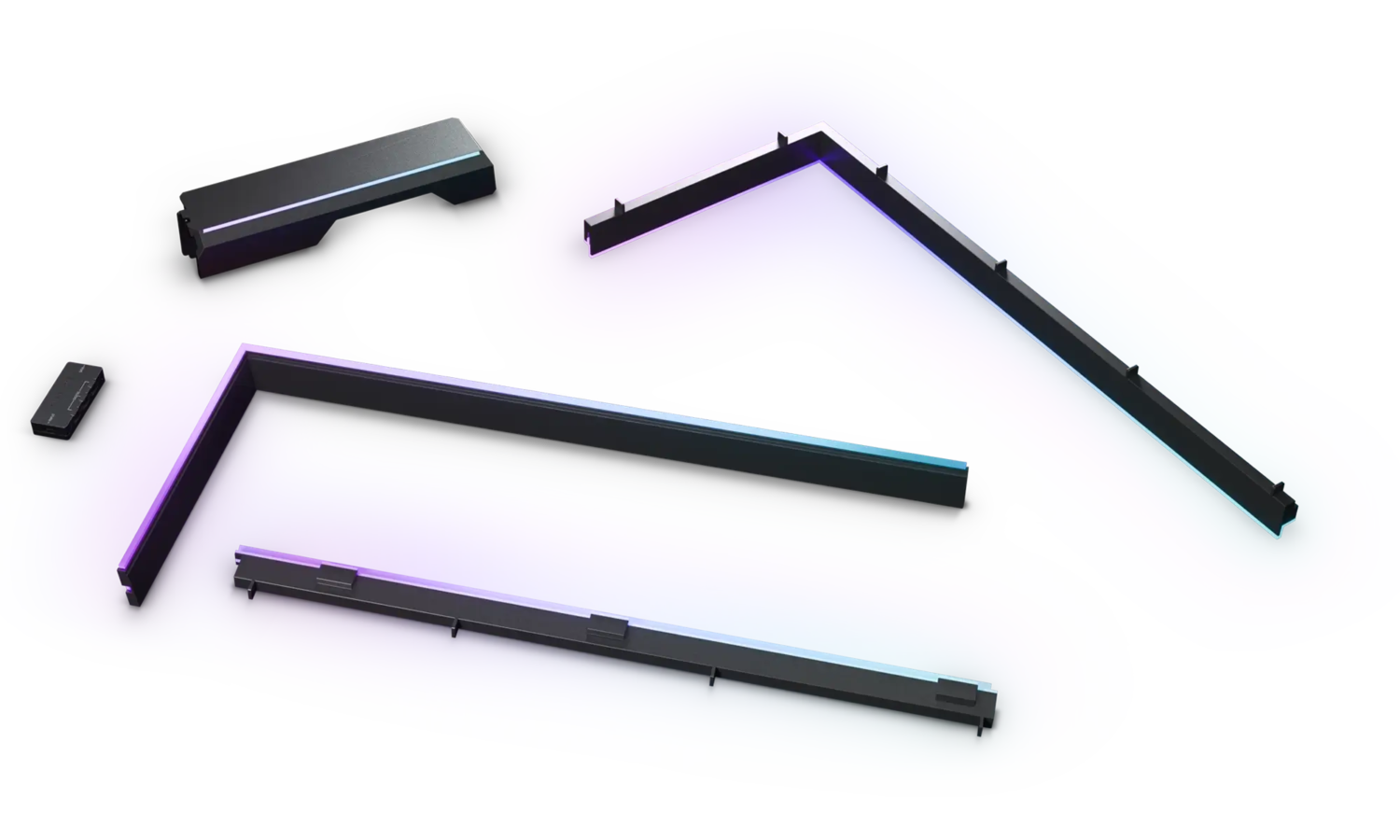

NV5 Premium D-RGB Kit
Optional Upgrade

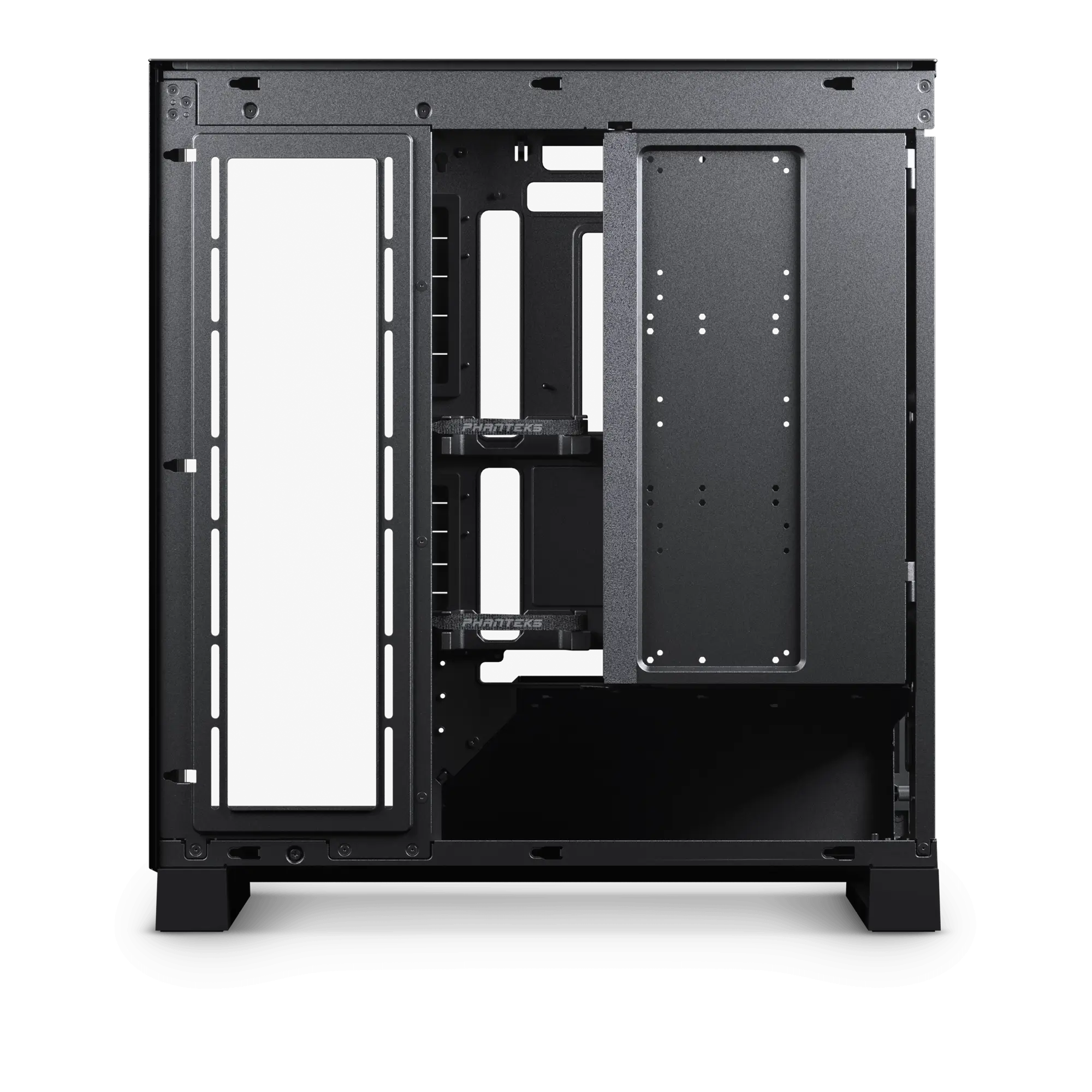

Multiple storage options
Specifications
General
Model No.
PH-NV523TG_DBK02
UPC Code
886523303466
Case Dimensions
239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in
Form Factor
Mid-Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280mm without GPU Support Bracket
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
4
Internal 3.5″ Bay
3
Front I/O
1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button
Fans 120 | 140
Total Fans
8x | –
Top
3x | –
Front
– | –
Side
3x | –
Rear
1x | –
Bottom
1x | –
Radiators 120 | 140
Top
Max. 360 | –
Front
– | –
Side
Max. 360 | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
180 mm | 7.08 in
GPU
Length
440 mm | 17.32 in
GPU
Height
170 mm | 6.69 in
Power Supply
Length
230 mm | 9.05 in
Top Radiator
Length x Width
134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in
Front Radiator
Length x Width
– | –
Side Radiator
Length x Width
130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in
Rear Radiator
Length x Width
132 x 170 mm | 5.19 x 6.69 in
Extra
Scope of Delivery
1x NV5 chassis
Accessory Box
6x Zip ties
1x GPU support bracket
Screws
22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
NV Series
Creating a picture-perfect build is the core element of the NV series, with fans positioned all around the motherboard, the heart of your system, like a picture frame. The near-seamless glass panels provide a perfect view of all your system components. With the ultra-fine performance mesh design is featured on all sides of the chassis, combining high airflow with good dust filtration. Features a high-quality dust filter with an intake area that provides the best cooling performance to the GPU. Integrated fan & radiator brackets, LED cable covers, airflow covers and an array of unique cable management tools make any NV build stand out from the crowd.
