D30-120
Premium D-RGB performance fan
The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Colors
Dimensions

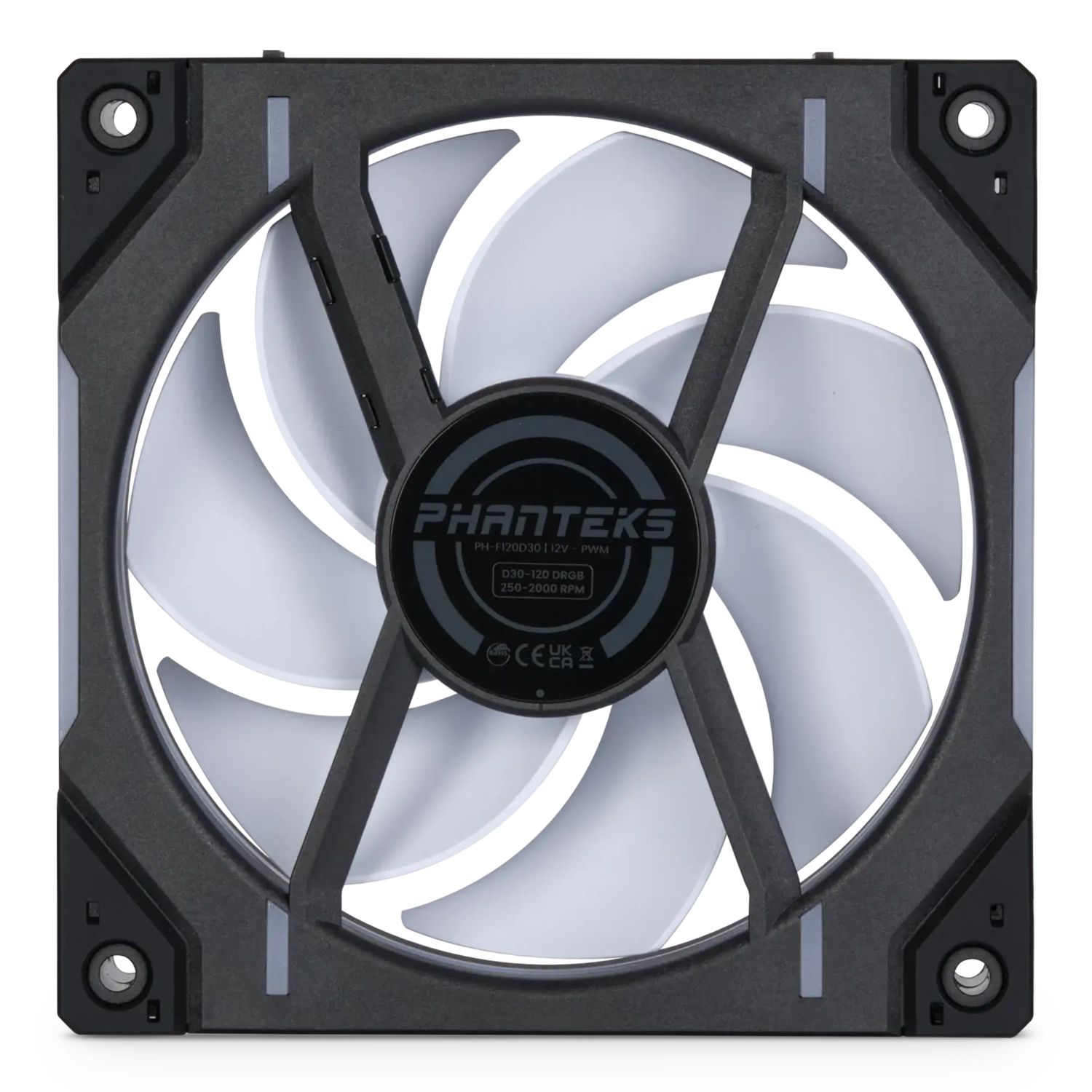

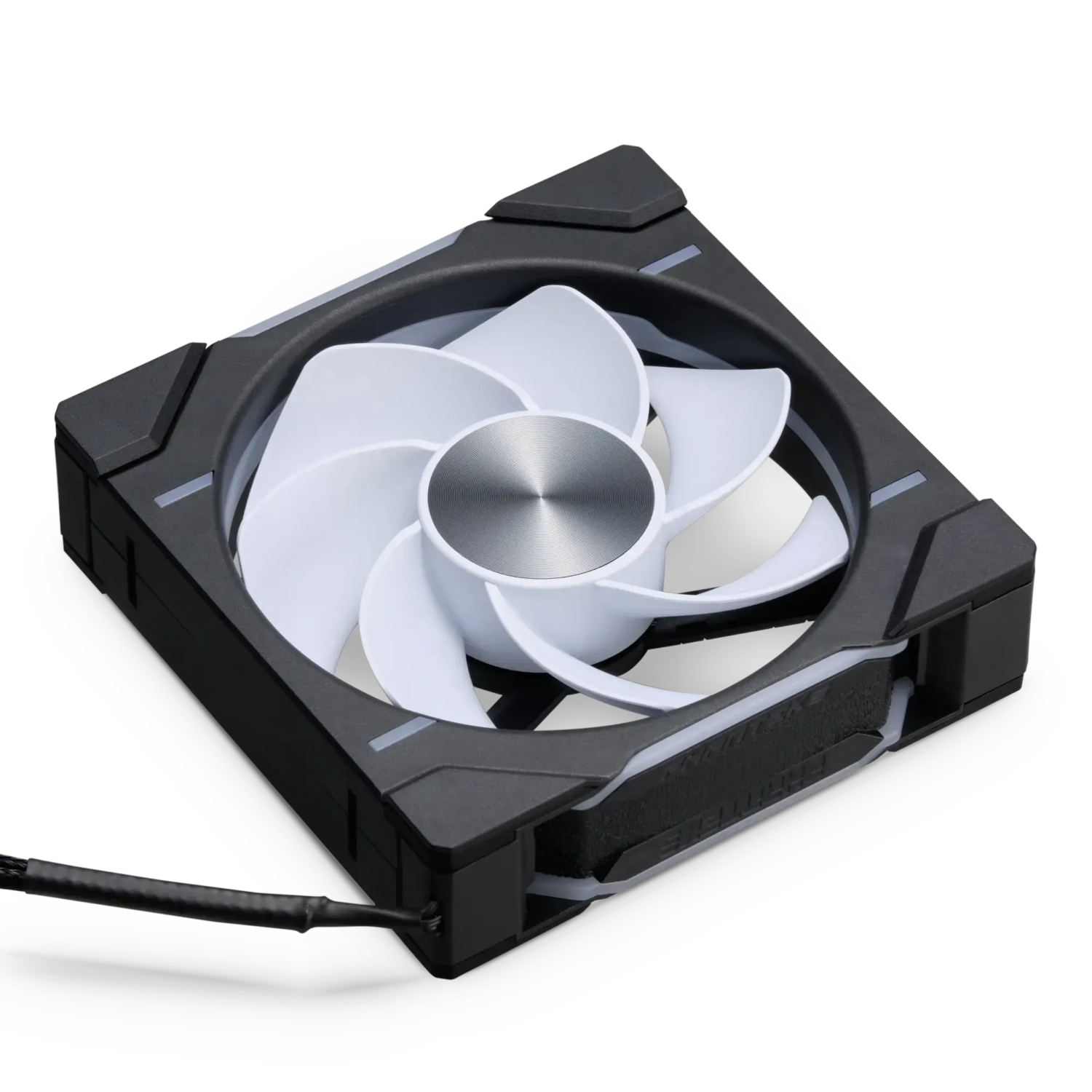

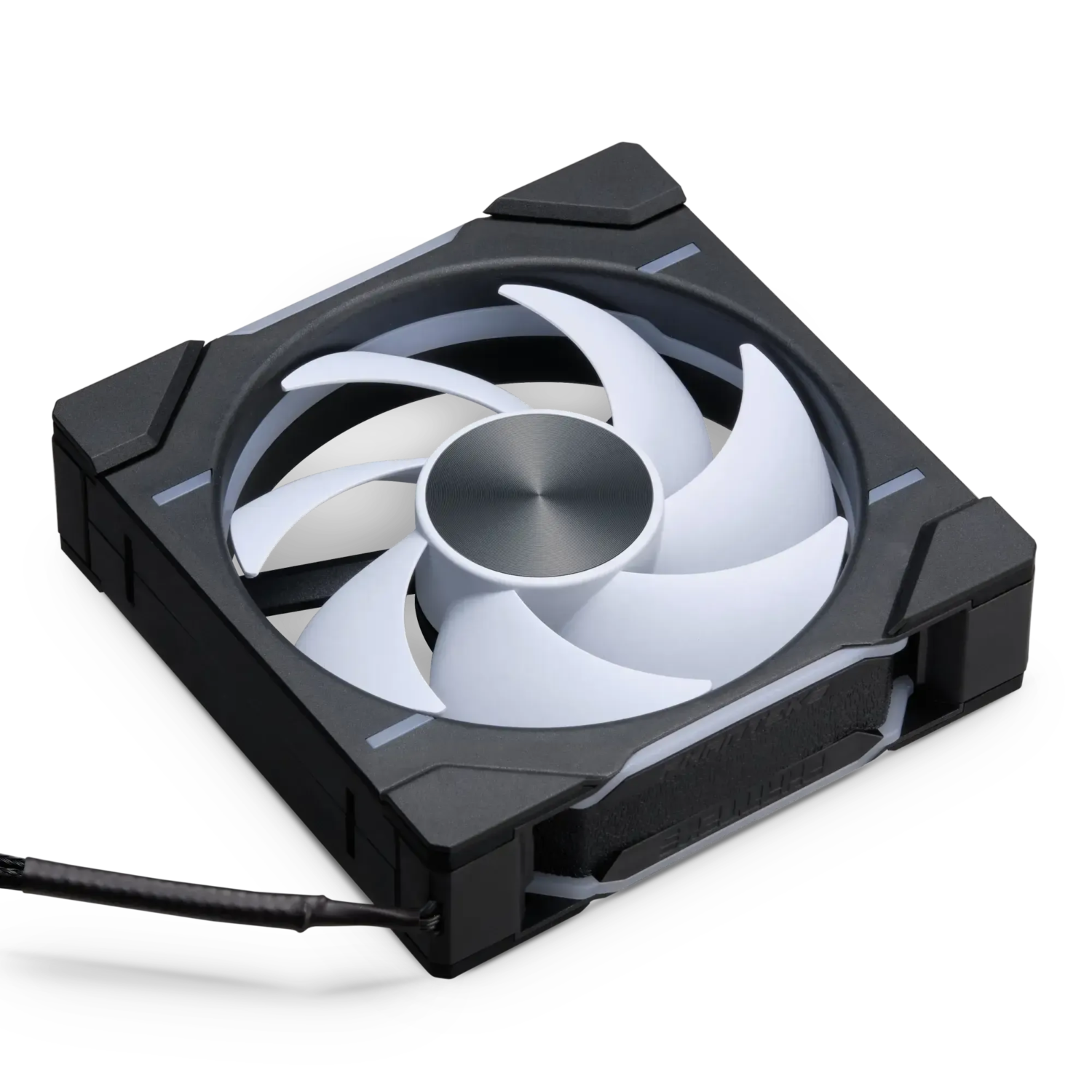

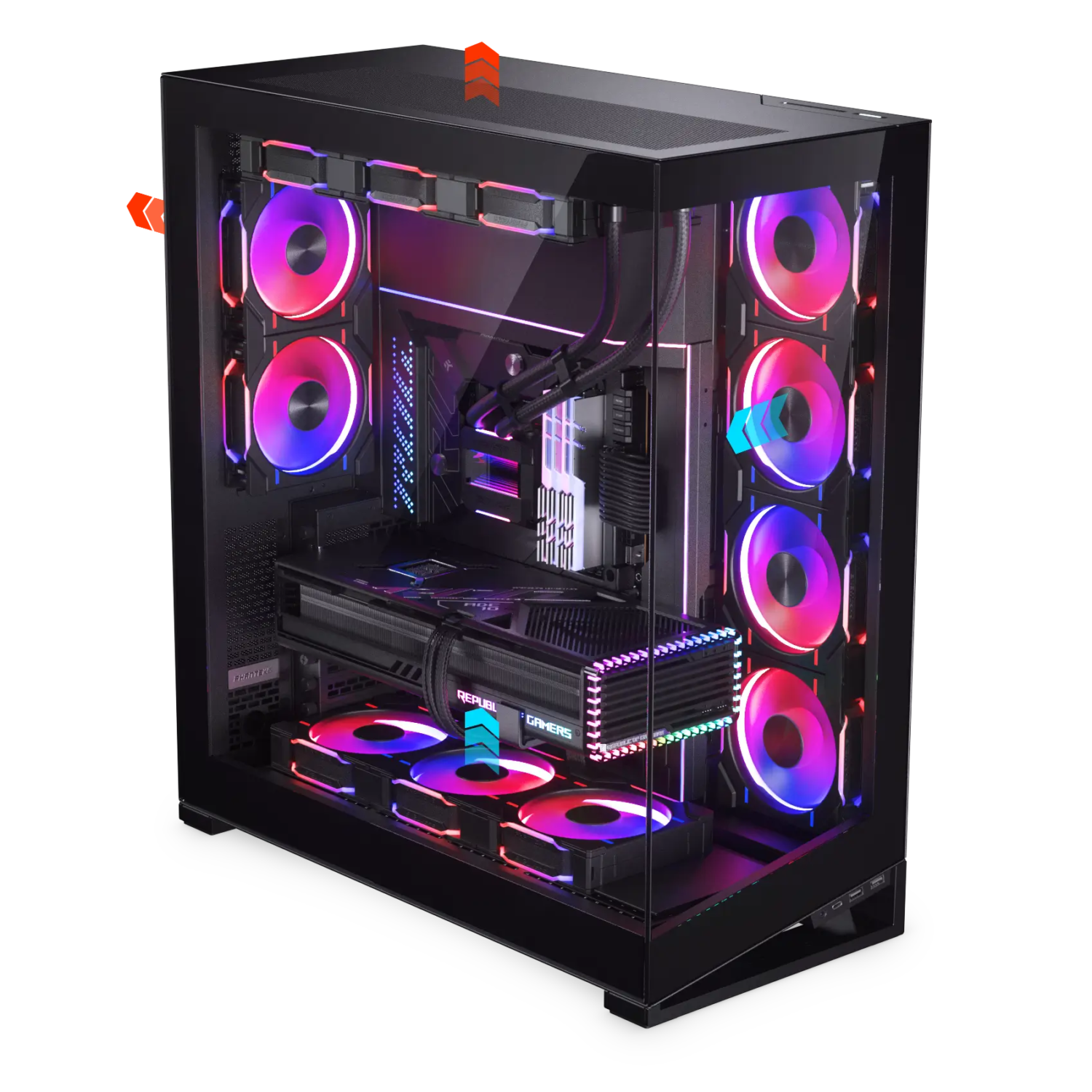

Regular & Reverse Models

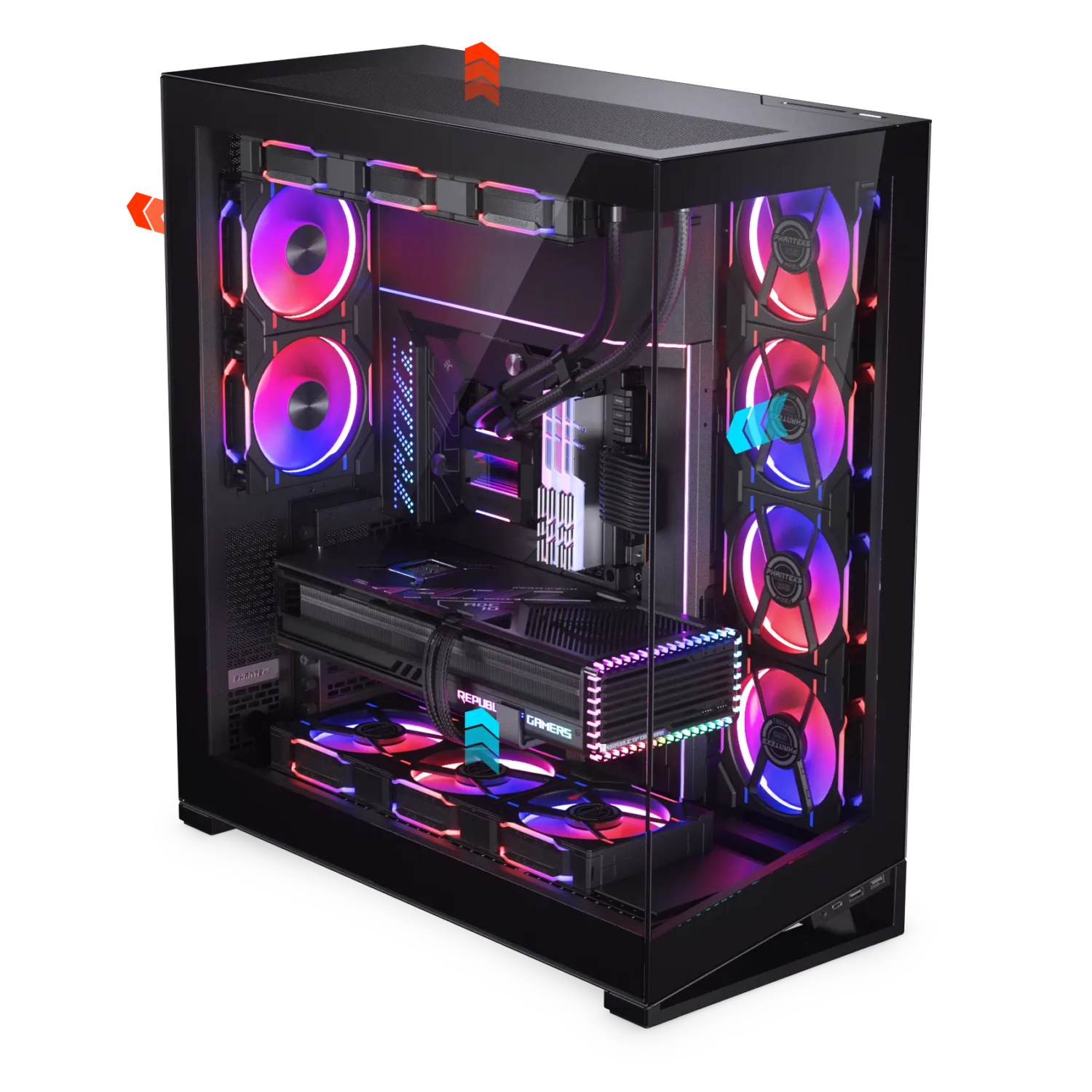

Clean look in both positions

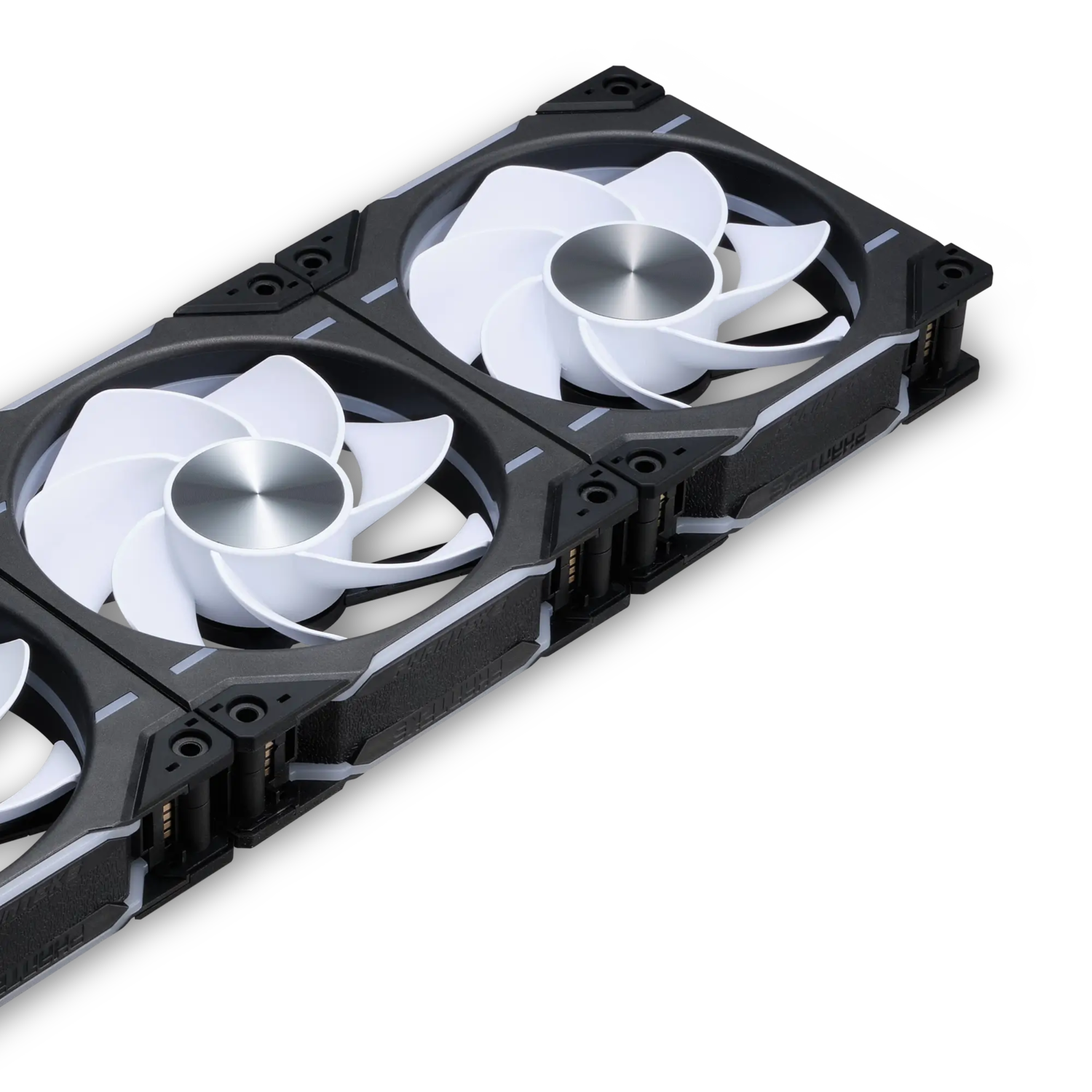

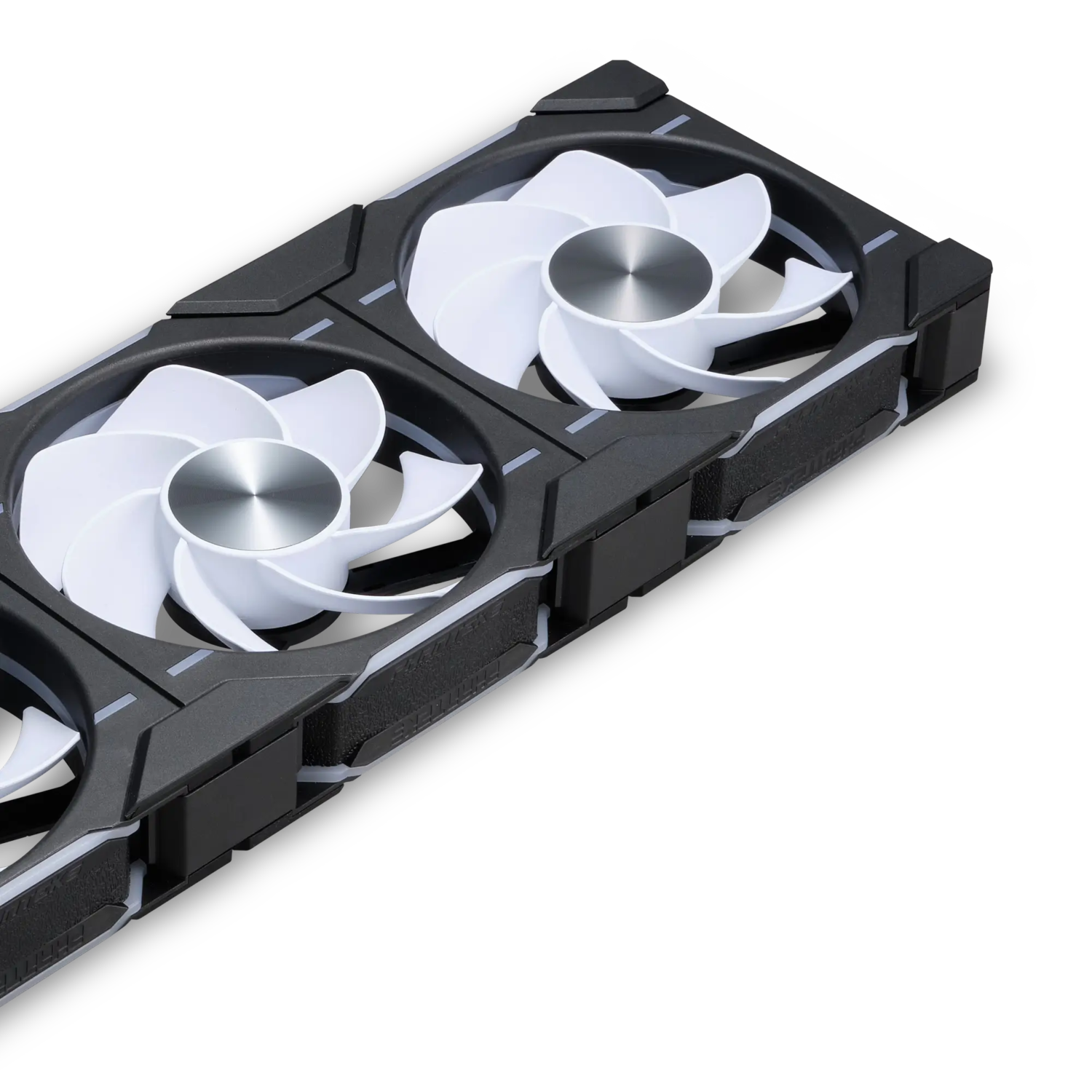

Link Together as One

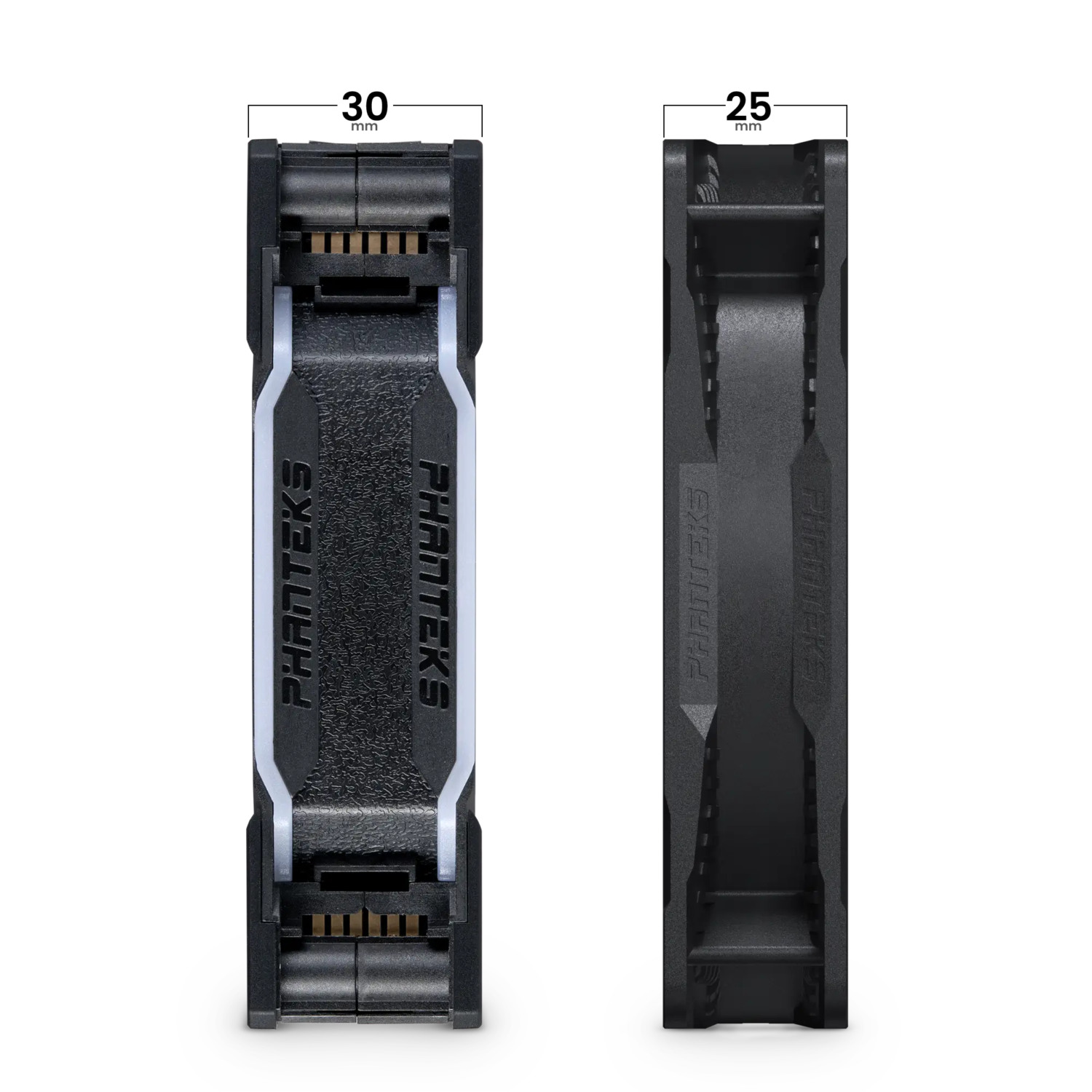

30 mm of Performance

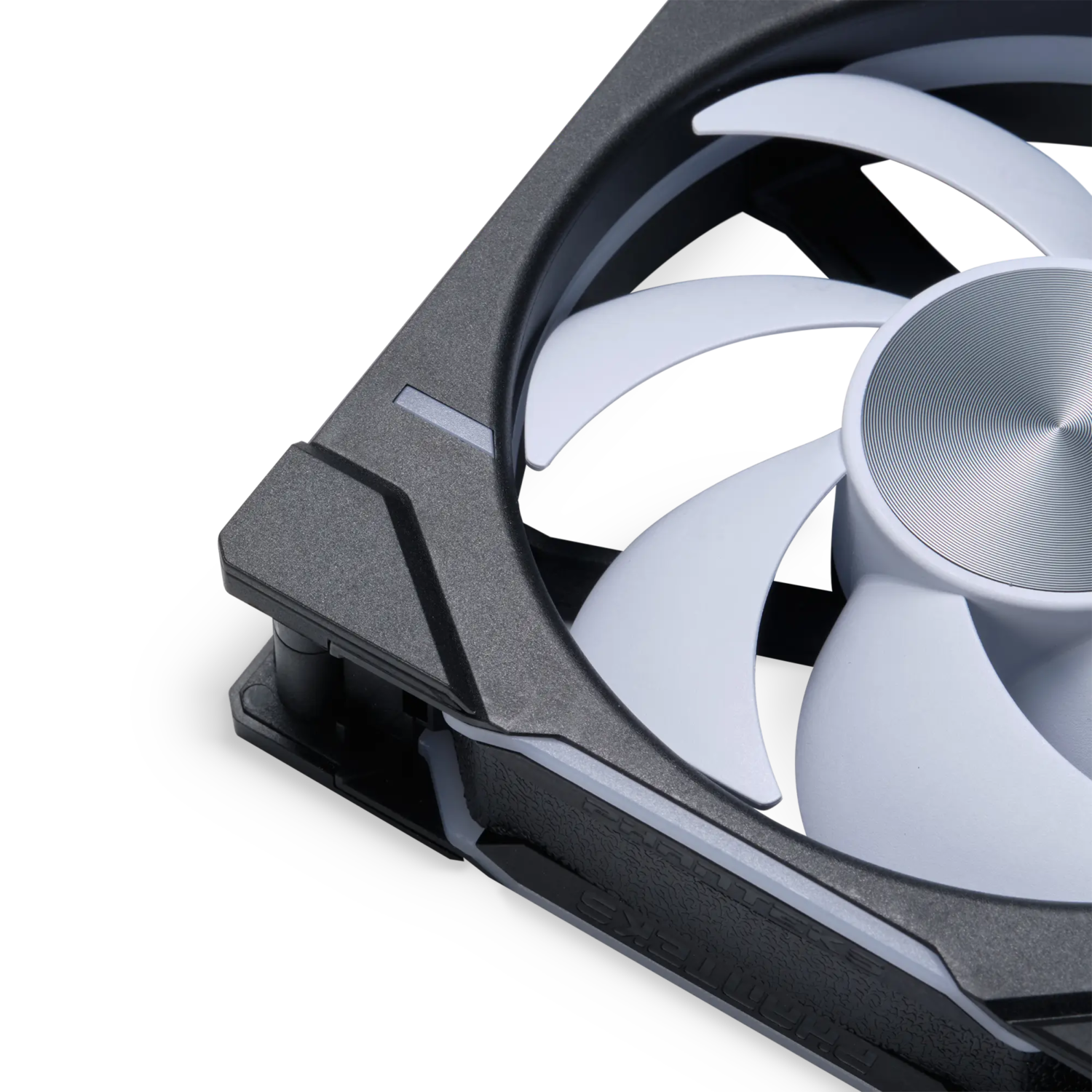

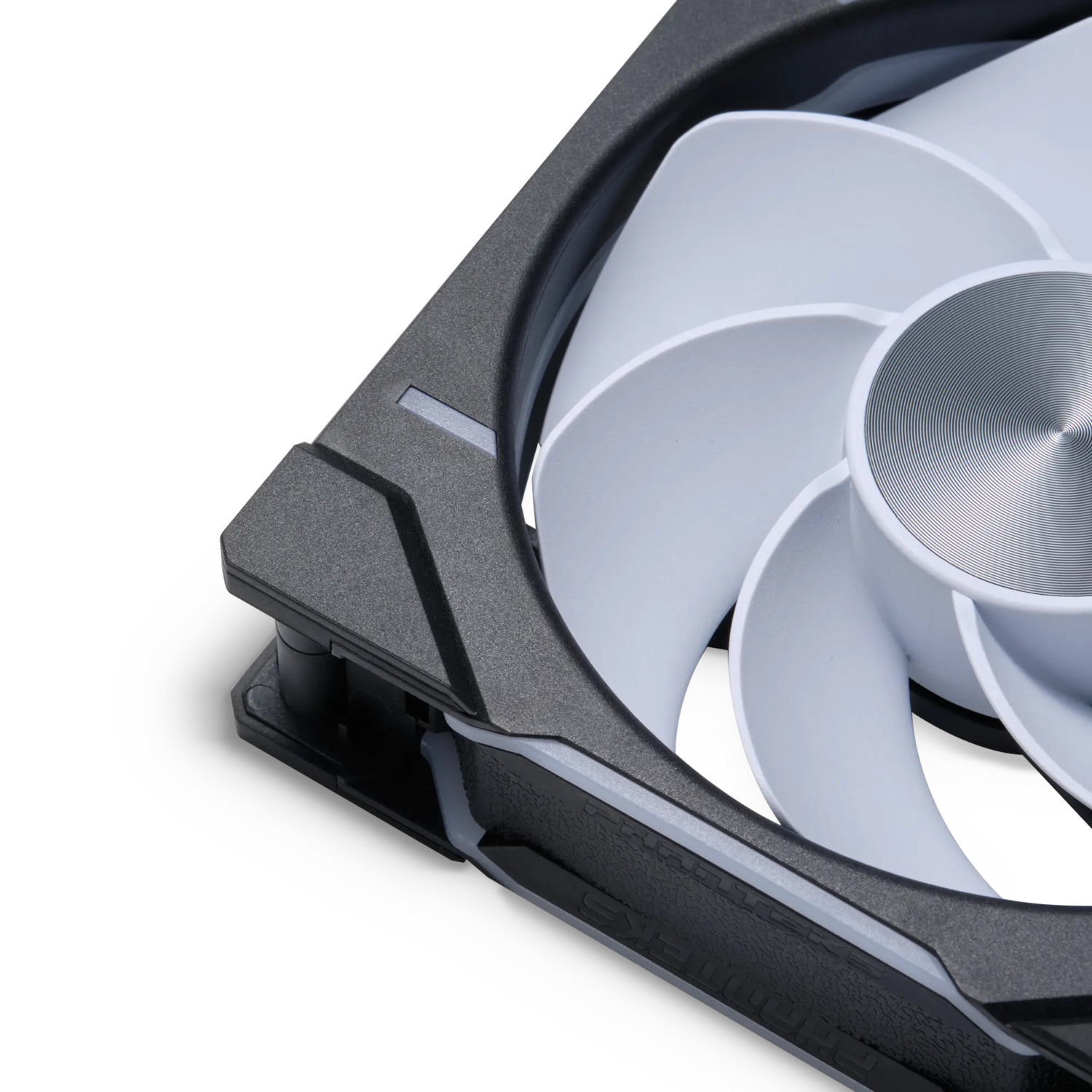

D-RGB All the Way
Specifications
General
Model No.
Regular
Reverse
PH-F120D30_DRGB_PWM_BK01 | PH-F120D30_DRGB_PWM_BK01_3P
PH-F120D30R_DRGB_PWM_BK01 | PH-F120D30R_DRGB_PWM_BK01_3P
UPC Code
Regular
Reverse
886523002925 | 886523002949
886523003038 | 886523003052
Frame Size
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
Blade Geometry
Seven blades design
PWM Connector
4-Pin Daisy-chain
PWM Cable Length
700 mm | 27.56 in
D-RGB Connector
3-Pin JST Daisy-chain
D-RGB Cable Length
600 + 100 mm | 23.62 + 3.94 in
Technical Details Regular
Technical Details Reverse
Bearing Type
FDB (Fluid Dynamic Bearing)
Rated Voltage
5~13.2V
Noise Level
30.2 dBA
Max. Airflow
64.3 CFM
Max. Air Pressure
3.01 mm H2O
Speed
250~2000 ± 10% RPM
MTFB
50.000 hours
Max Current
0.15A
Max Power
≦ 1.8W
Operating Voltage Range
DC 5 ~ 13.2V
LED Number
30
LED Rated Current
Max. 0.45A
Bearing Type
FDB (Fluid Dynamic Bearing)
Rated Voltage
5~13.2V
Noise Level
31.8 dBA
Max. Airflow
61.5 CFM
Max. Air Pressure
2.72 mm H2O
Speed
250~2000 ± 10% RPM
MTFB
50.000 hours
Max Current
0.15A
Max Power
≦ 1.8W
Operating Voltage Range
DC 5 ~ 13.2V
LED Number
30
LED Rated Current
Max. 0.45A
Single Pack
Triple Pack
Net Weight
300 g | 10.58 oz
Gross Weight
375 g | 13.22 oz
Warranty
3 Years limited
Scope of Delivery
1x D30-120 fan
Accessory
1x D-RGB mainboard adapter
Screws
4x Fan screw
4x UNC 6-32 radiator Ssrew 36mm
4x M4 radiator screw 36mm
1x Corner clip cable
3x Corner clip
1x Bridge clip connector
1x Bridge clip
4x Screw cover corner (2L|2R)
2x Screw cover bridge
Net Weight
300 g | 10.58 oz
Gross Weight
990 g | 34.92 oz
Warranty
3 Years limited
Scope of Delivery
3x D30-120 fans
Accessory
2x D-RGB mainboard adapter
Screws
12x Fan screw
12x UNC 6-32 radiator Ssrew 36mm
12x M4 radiator screw 36mm
2x Corner clip cable
6x Corner clip
2x Bridge clip connector
2x Bridge clip
8x Screw cover corner (4L|4R)
4x Screw cover bridge
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
