EX5-Plus
Defined by form, driven by flow and divided for precision

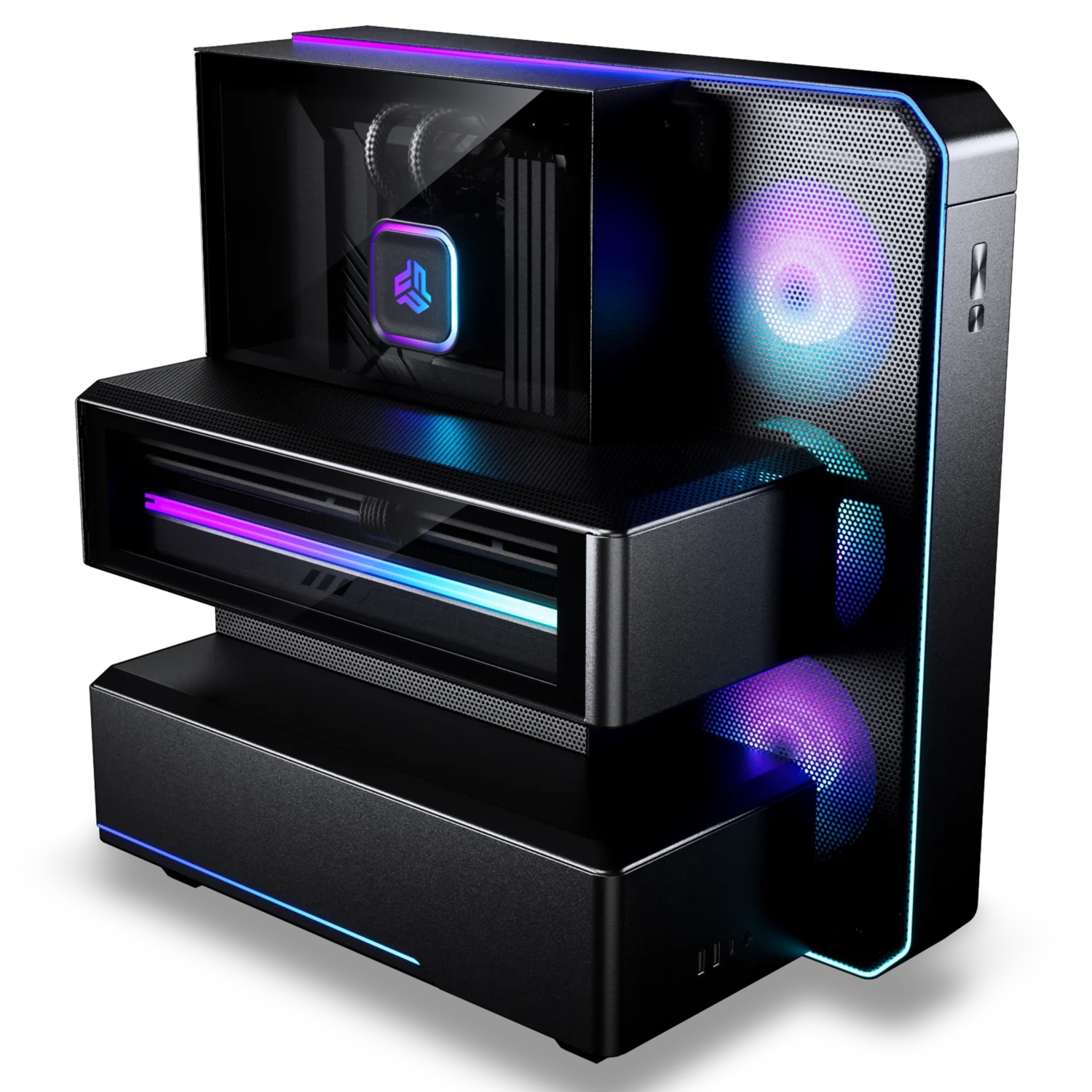

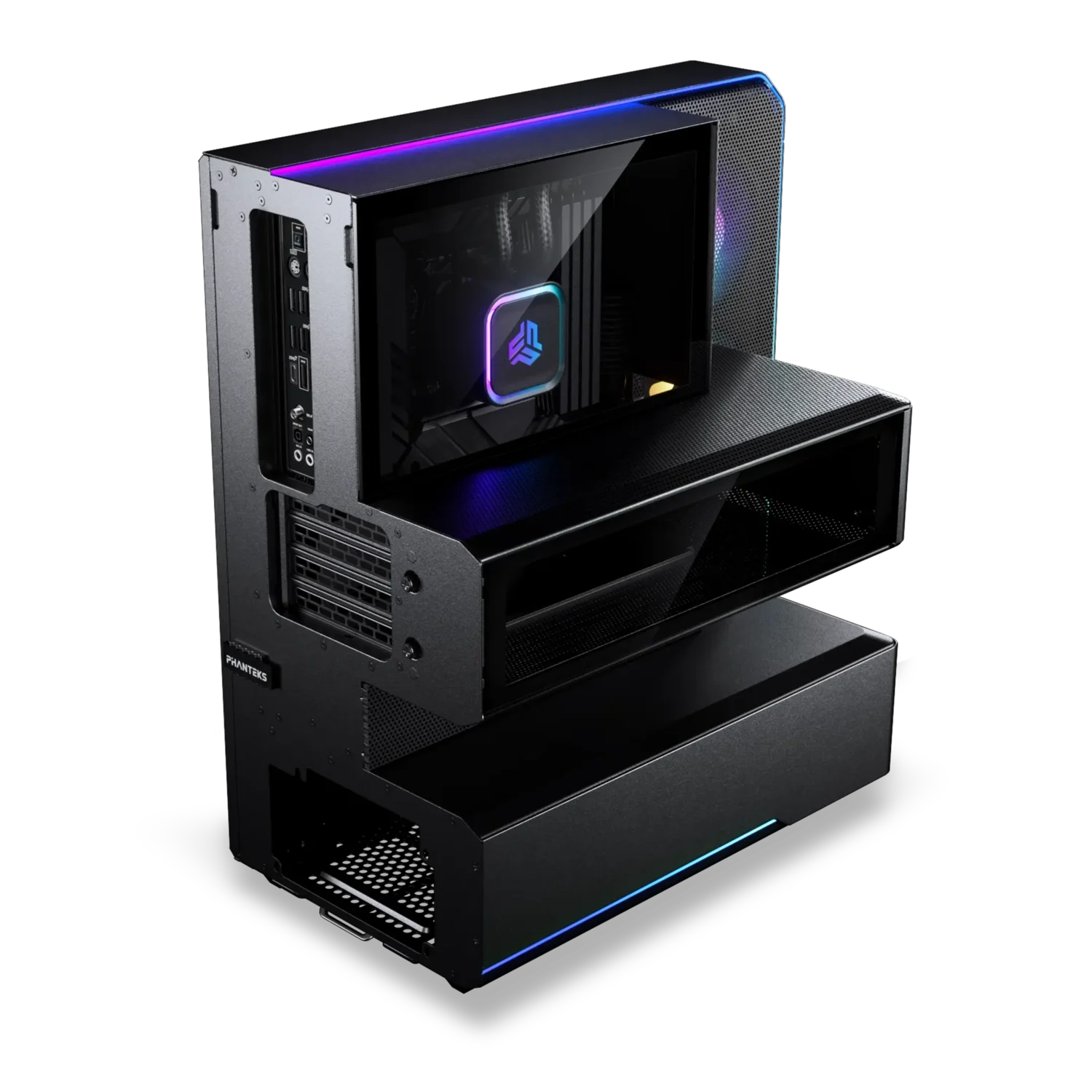

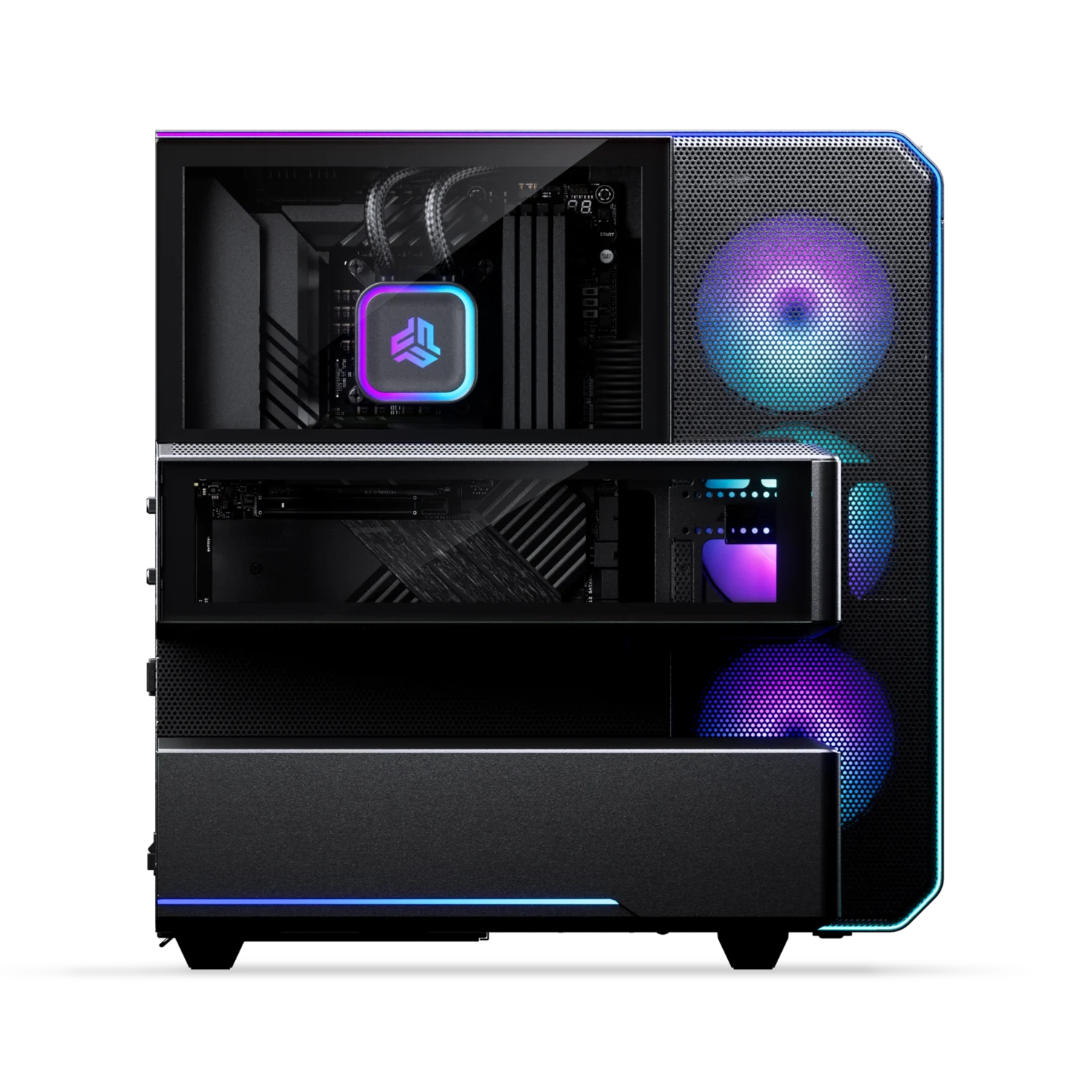

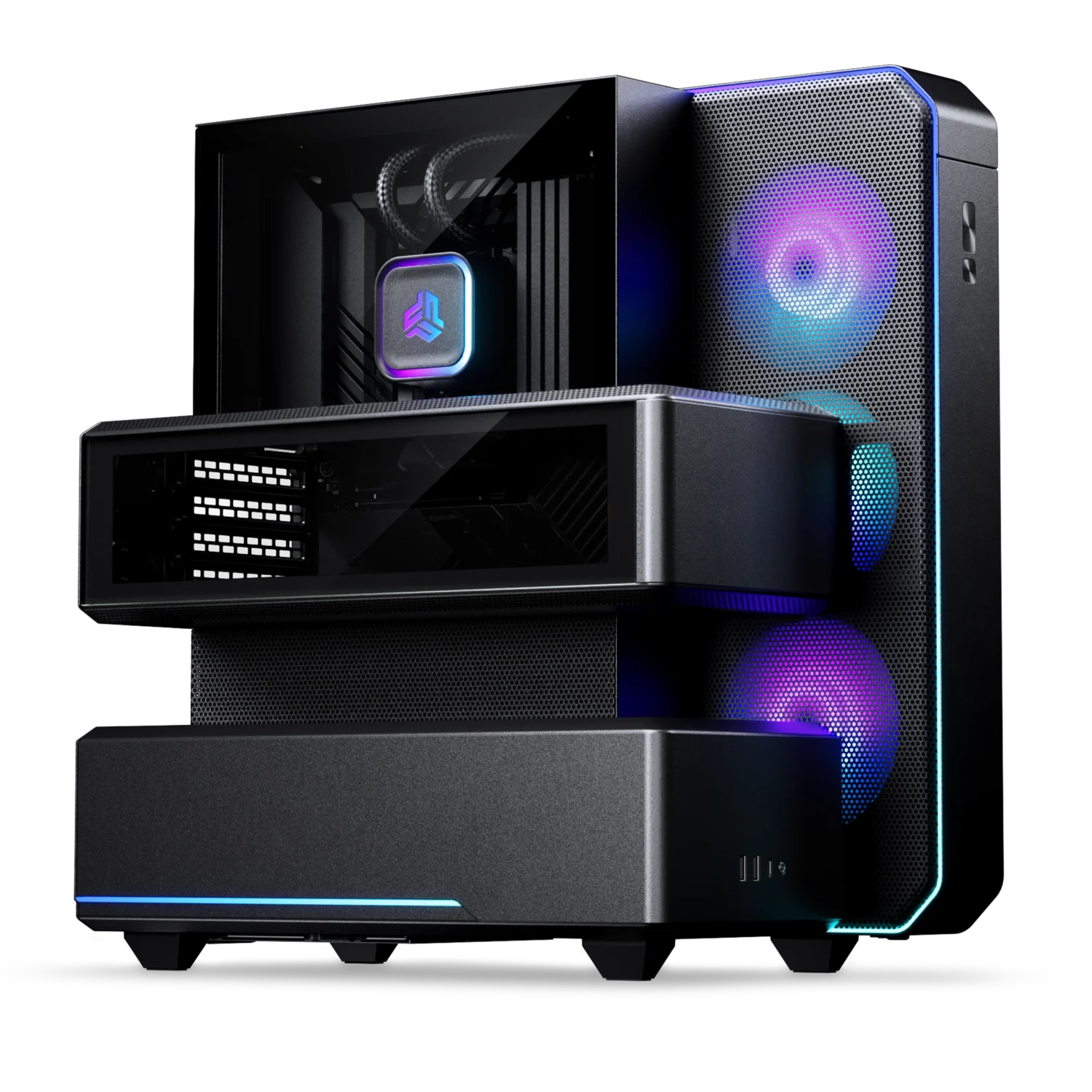

Phanteks introduces the EX5; the new chassis is designed with a compartmentalized structure. This layout organizes key components into dedicated chambers, ensuring each receives a direct flow of fresh air.

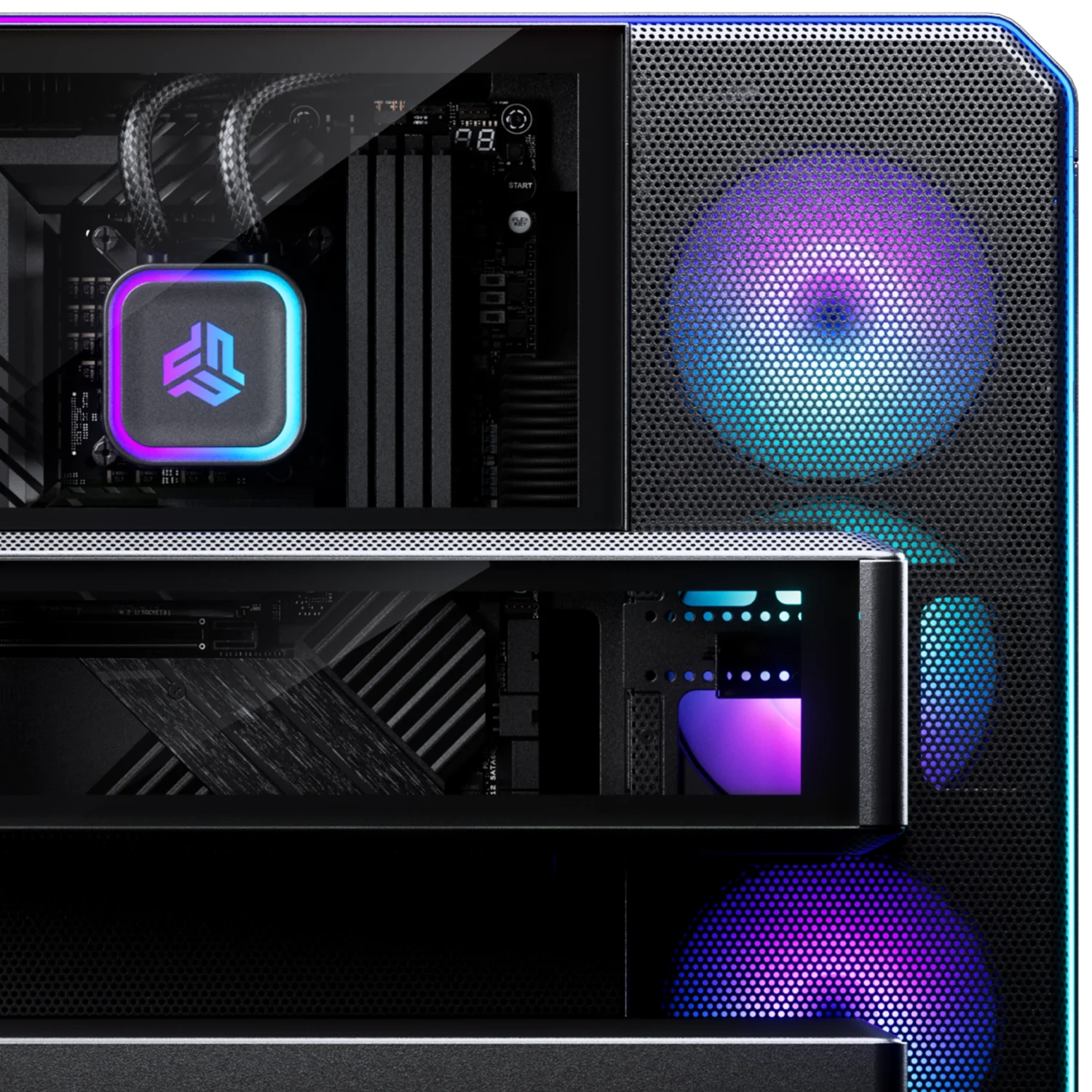

Designed for a “no-tubes” aesthetic. This model includes a fully integrated AIO liquid cooler with sidemounted connections, keeping the interior remarkably uncluttered, and making system installation a breeze.
The EX5 moves away from the traditional boxy, ‘fish tank’ look and presents a bold, creative way to showcase a PC build. The unique layout optimizes cooling efficiency by directing fresh air precisely where it’s needed and expelling heat more effectively. This effective airflow design reduces reliance on excessive fan setups, allowing builders to achieve excellent thermals with fewer fans.
Configurations
Specifications
General
Model No.
PH-EX526P_DBK01
UPC Code
886523304739
Case Dimensions
449 x 234 x 474 mm | 17.67 x 9.21 x 18.66 in
From Factor
Mid-Tower
Mainboard Support
ATX | Micro-ATX | Mini-ITX
Materials
Steel panels | Tempered glass window | ABS plastic
Color
Black
Expansion Slots
4
Starting from first slot position
Vertical GPU Support
No
Internal 2.5″ Positions
1
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 1x 2.5″ SSD
Front I/O
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Reset button
Fans 120 | 140
Total Fans
4 | –
Top
– | –
Front
– | –
Side
3+1 | –
Rear
– | –
Bottom
– | –
Radiator 120 | 140
Top
– | –
Front
– | –
Side
Max. 360 | –
Rear
– | –
Bottom
– | –
Clearance
CPU Cooler
Height
72 mm | 2.83 in
GPU
Length
358 mm | 14.09 in
GPU
Width
175 mm | 6.88 in
Power Supply
Length
210 mm | 8.26 in
GPU PCI-slot 1
Thickness
4.6 Slots
93 mm | 3.66 in
GPU PCI-slot 2
Thickness
3.6 Slots
73 mm | 2.87 in
GPU PCI-slot 3
Thickness
2.6 Slots
53 mm | 2.08 in

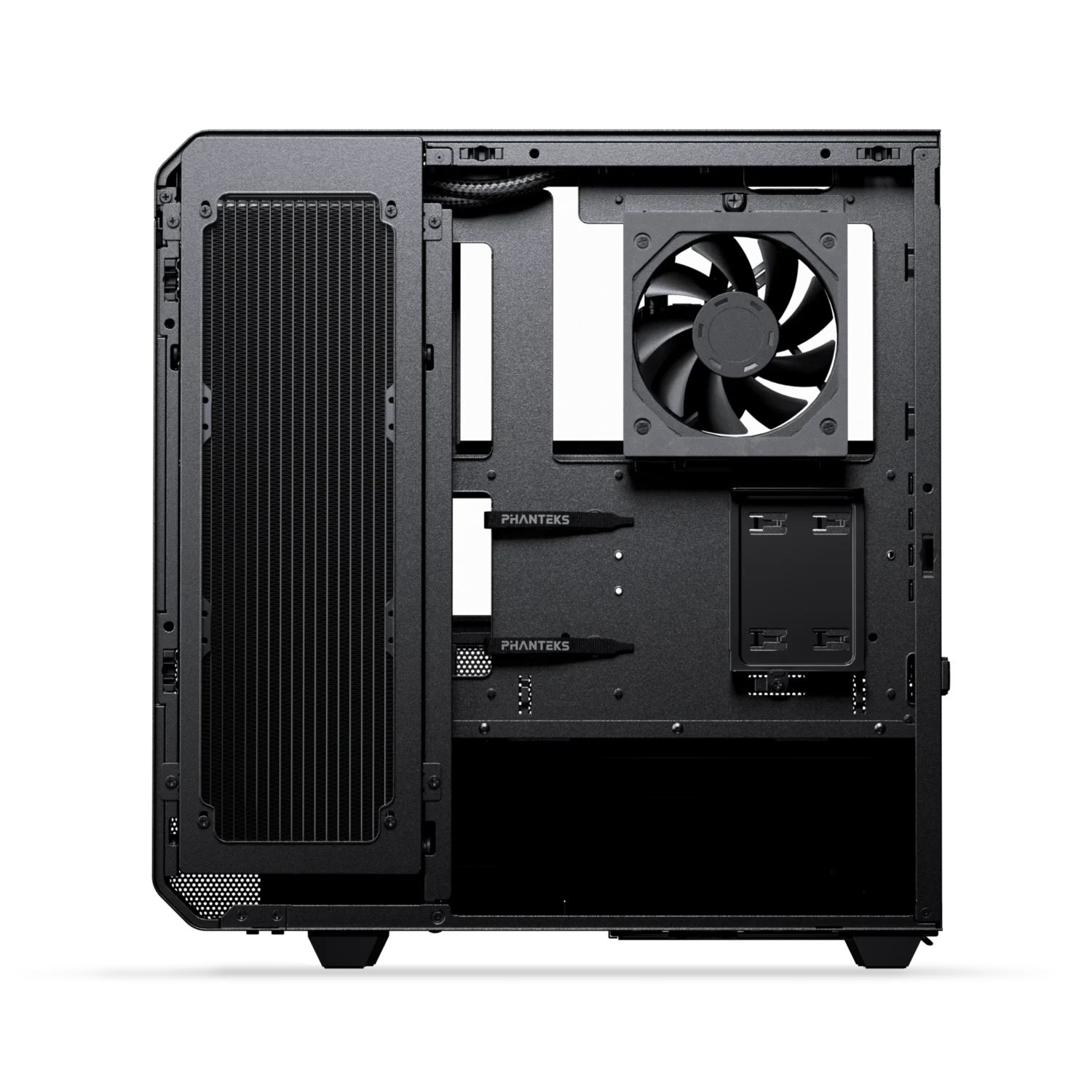

Side 360 Radiator
Length x Width x Height
413 x 134 x 60 mm | 16.25 x 5.27 x 2.36 in
Extra
Scope of Delivery
1x EX5-Plus chassis
1x HDD bracket Pre-installed
1x SSD bracket Pre-installed
Accessory Box
6x Zip ties
1x Stand-off removal tool
1x ARGB mainboard adapter 80 mm
Screws
14x Mainboard | SSD screws
4x Power supply | GPU bracket screws
8x HDD screws
1x Mainboard stand-off
1x GPU bracket 241-308 mm
1x GPU bracket 275-358 mm
