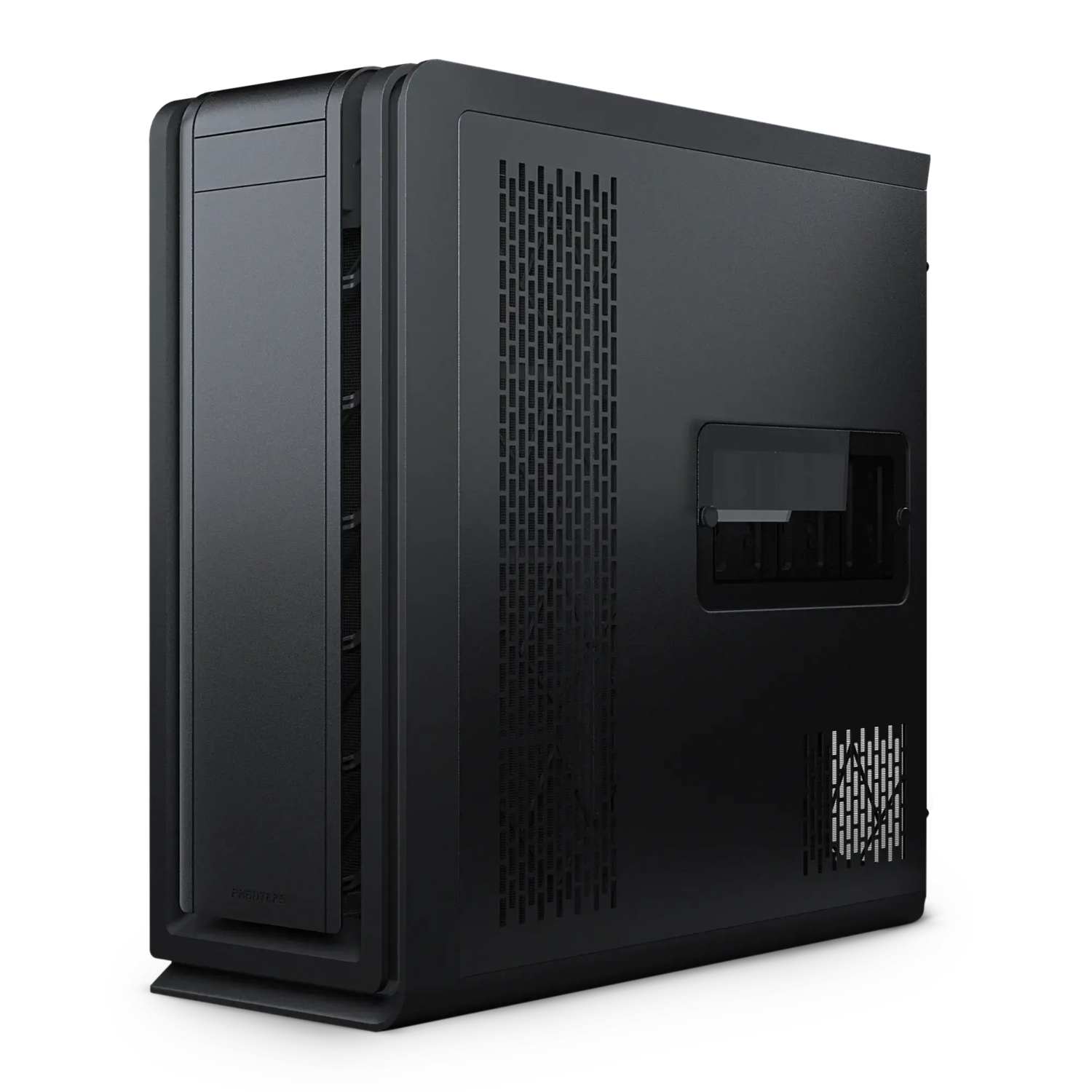

Enthoo 719

Extreme Workstation and Dual-system

The Enthoo 719 has been designed to house the most powerful hardware with the flexibility to configure it to your needs for the perfect system. From SSI-EEB motherboards to extreme water cooling and extensive storage capabilities, anything is possible.

When combined with the Revolt X or Revolt Pro even a dual system or the most powerful workstations can be a reality.

Colors

Black

Satin Black

Configurations

D-RGB

High Quality

  • Supports up to SSI-EEB mainboards.

  • Capable of housing dual 480 radiators.

  • Install two systems in one chassis.

  • Dual PSU support, for that extra power.

  • High airflow air vents for optimal cooling.

Superior Customization

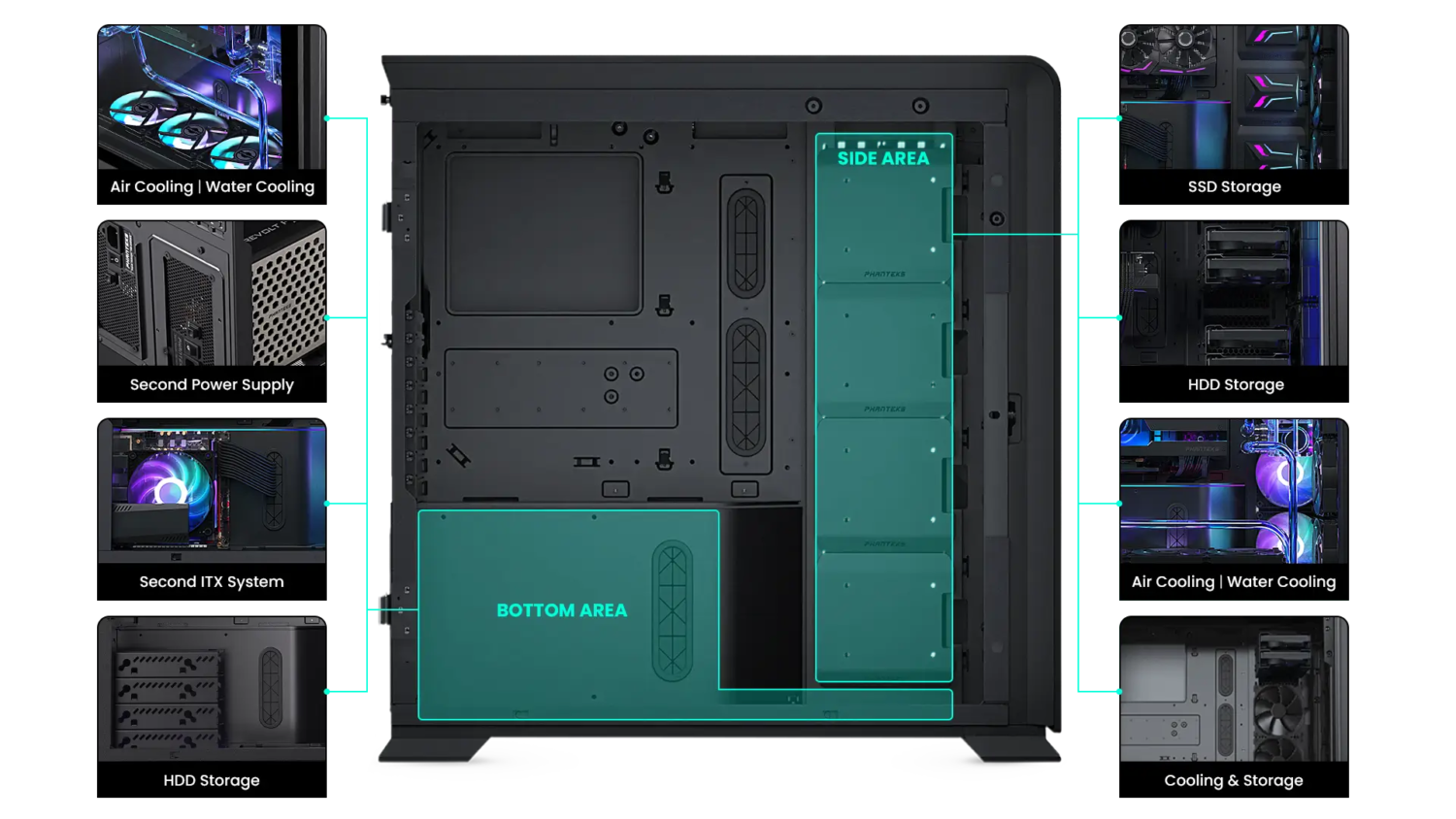

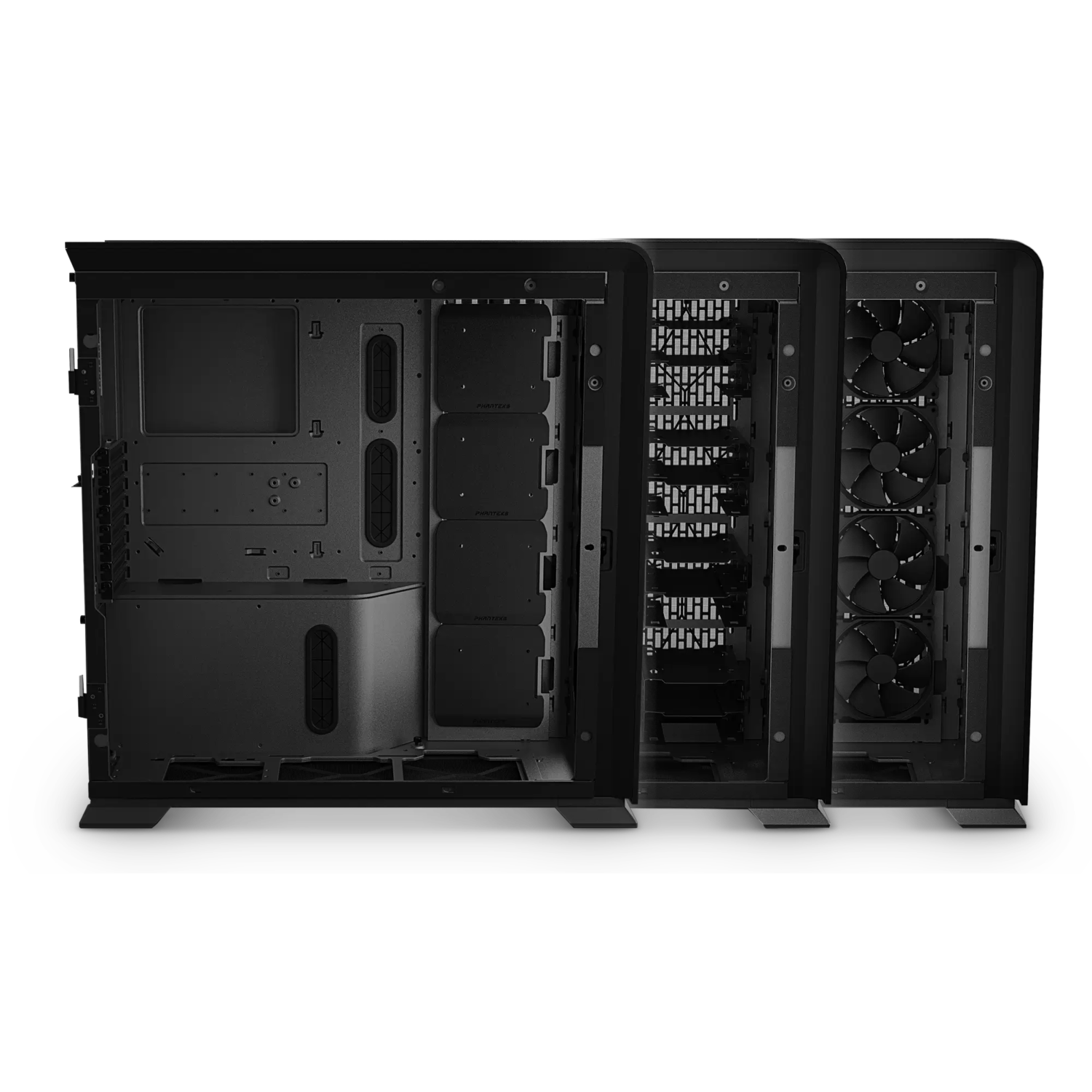

The interior of the Enthoo 719 offers the flexibility to configure it to your needs. Both the side and bottom fan positions can be utitlized for multiple purposes so you can build your system just the way you want it.

Practical & Versatile

Design Your Ideal Configuration

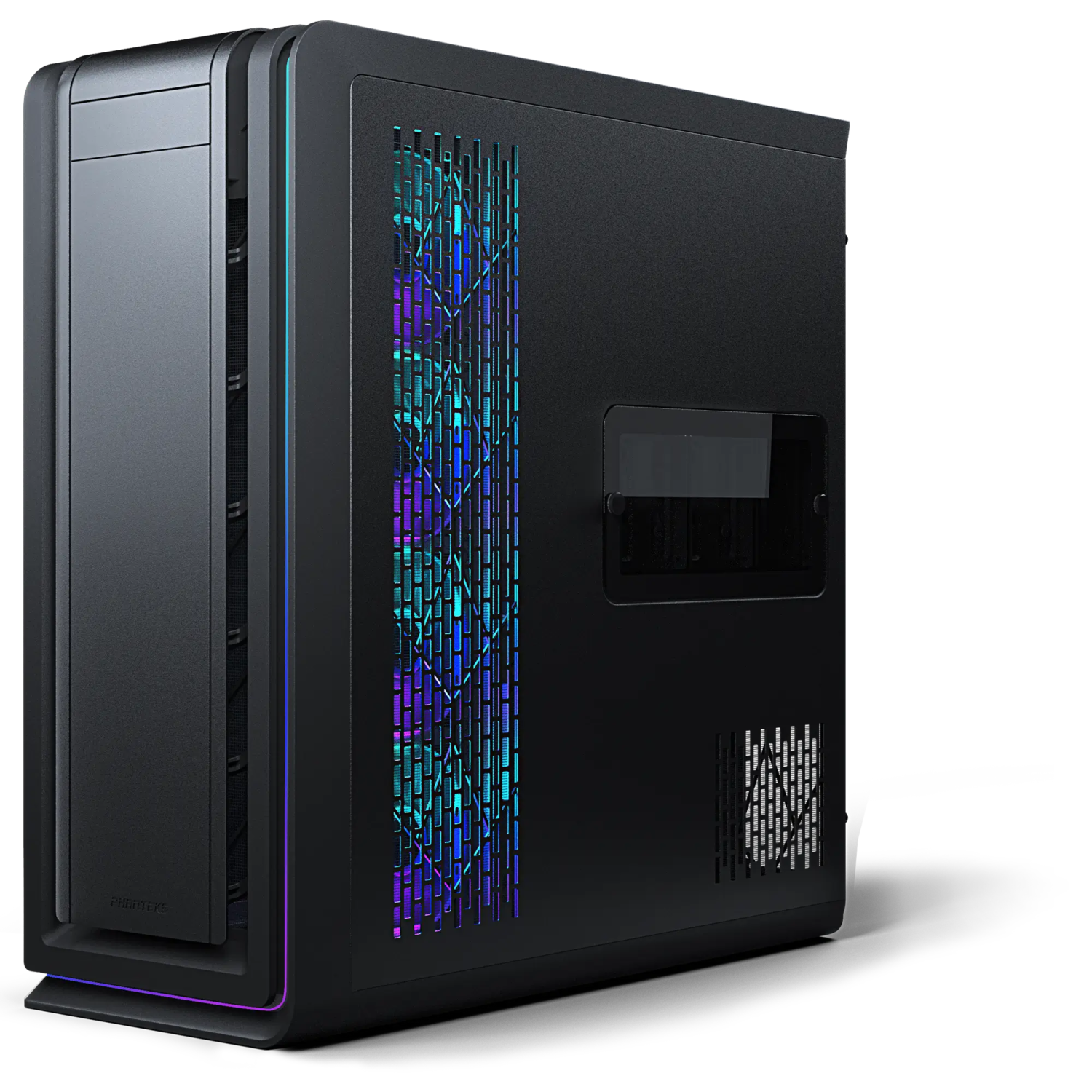

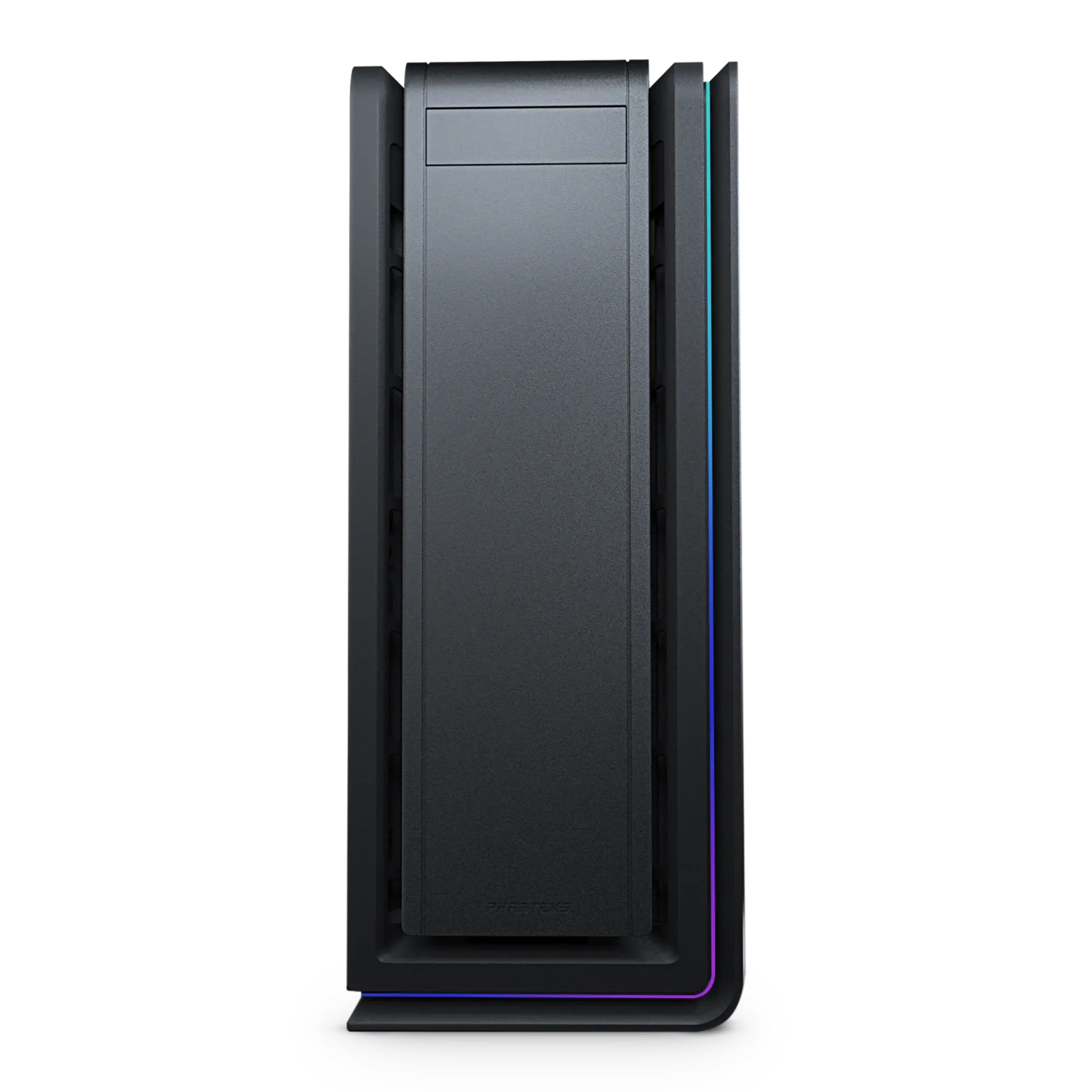

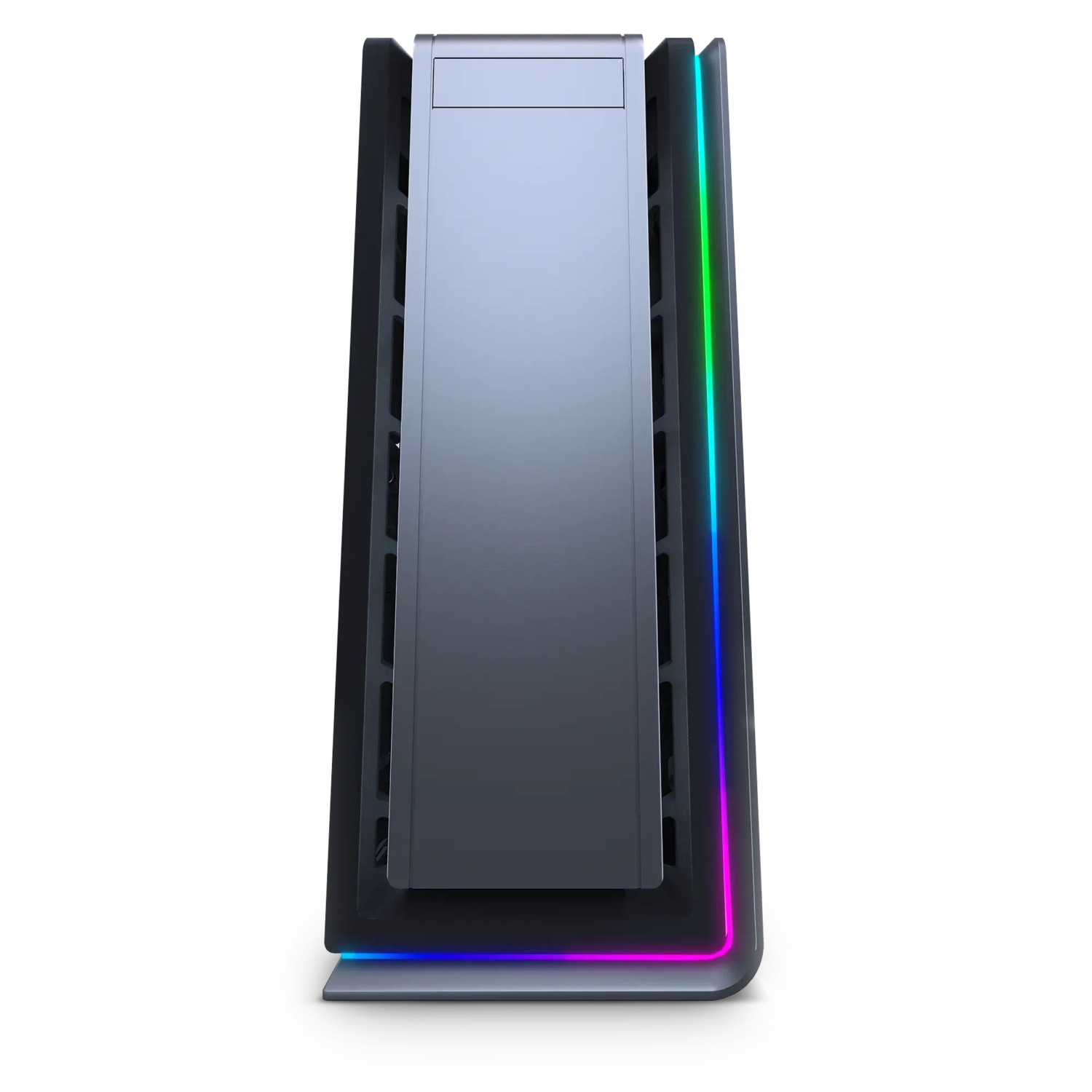

Integrated D-RGB lighting

  • Built-in LED strip along the power supply cover.
  • Refined D-RGB lighting effects that just work, no software required.

  • Optionally sync with motherboard and software.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

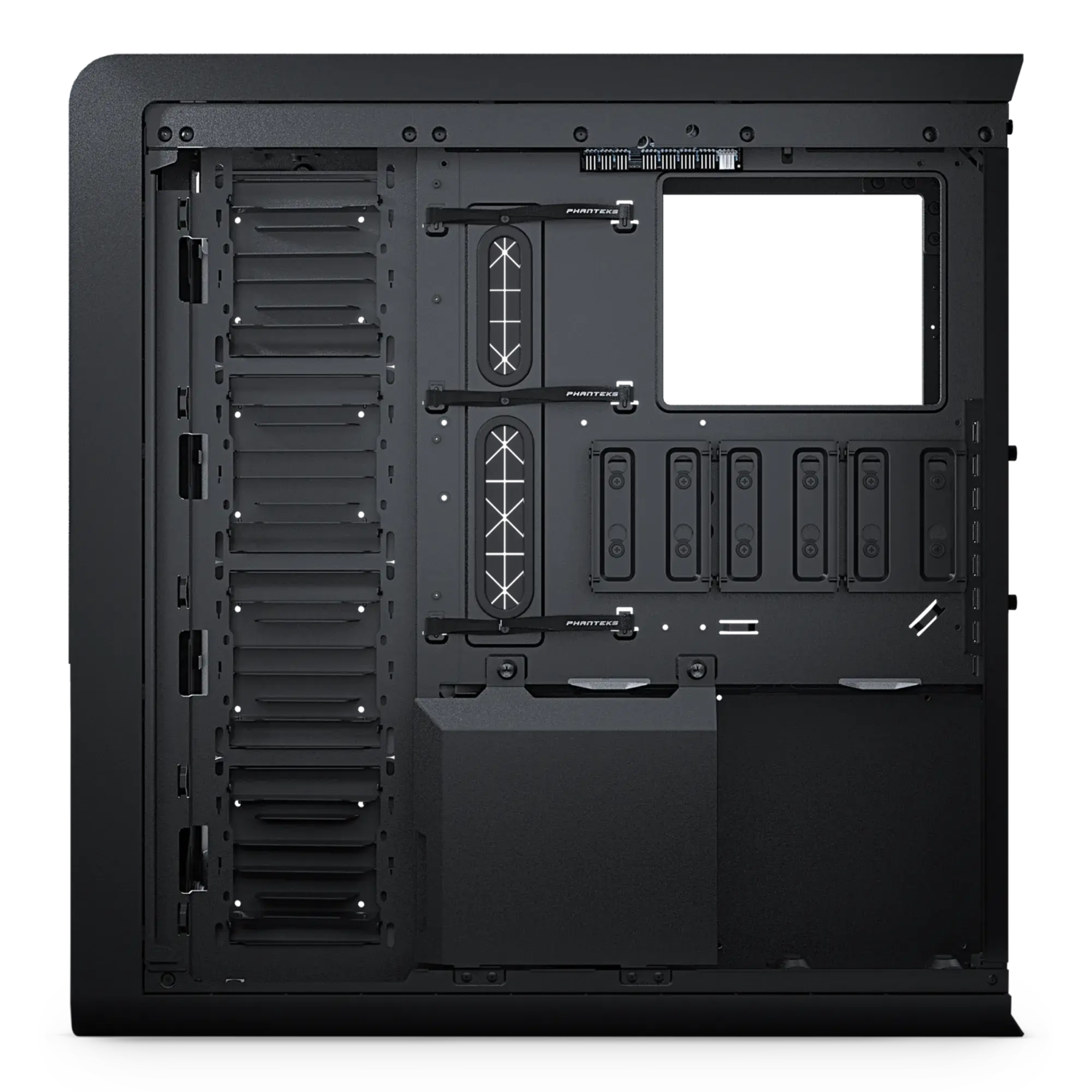

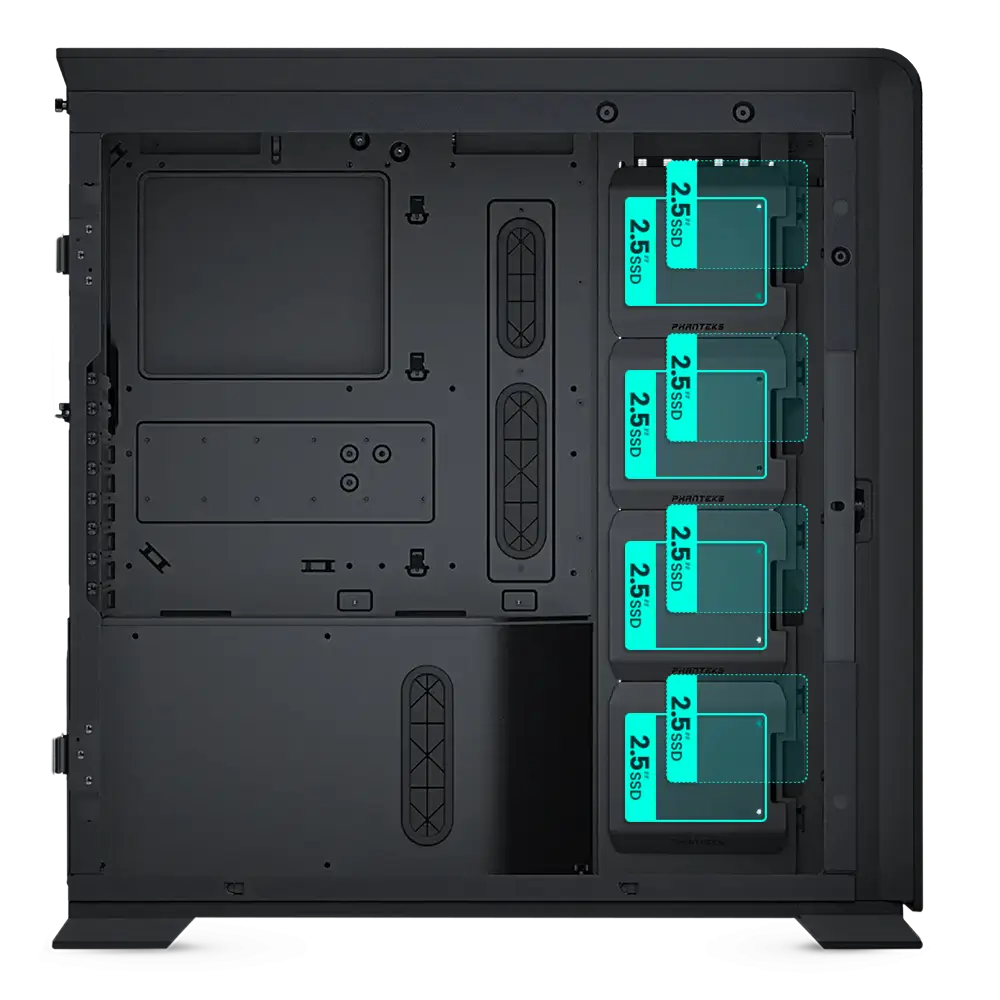

Multiple storage options

  • Support for 8x 2.5″ SSD

  • 4x 3.5″ HDD brackets included.

  • Supports up to 12x 3.5″ HDD with the additional stackable 3.5″ brackets.

  • Support for 3x 2.5″ SSD

Specifications

General

Model No.

PH-ES719LTG_DBK01

UPC Code

886523301615

Case Dimensions

240 x 595 x 560 mm | 9.45 x 23.42 x 22.05 in

Form Factor

Full Tower

Mainboard Support

XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

8

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

11

Internal 3.5″ Bay

12 | 4 Included

+ 3x 2.5″ SSD

Front I/O

1x USB-C GEN 2
4x USB 3.0
Microphone | Headphone Combo
Reset Button
Power Button
D-RGB Color Button
D-RGB Mode Button

Fans 120 | 140

Total Fans

15x | 6x

Top

3x | 3x

Front

4x | 3x

Side

4x | –

Bottom

3x | 1x

Rear

1x | 1x

Radiators 120 | 140

Top

Max. 360 | –

Front

Max. 480 | 420

Side

Max. 480 | –

Rear

120 | –

Bottom

Max. 360 | –

Clearance

CPU Cooler

Height

195 mm | 7.67 in

GPU

Length

503 mm | 19.95 in

Mainboard

Height x Width

Max. 305 x 340 mm | 12.00 x 13.38 in

Top Radiator

Length x Width

120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height)

Front Radiator

Length x Width

142 x 475 mm | 5.59 x 18.70 in

Side Radiator

Length x Width x Height

134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in

Extra

Net Weight

14.30 kg | 31.52 lbs

Gross Weight

16.90 kg | 37.26 lbs

Warranty

5 Years limited

Scope of Delivery

1x Enthoo 719 chassis
1x Left side bracket
3x SSD bracket
4x HDD bracket

Accessory Box

6x Zip ties
1x Vertical GPU mount
1x GPU anti-sag bracket
1x Dual system cover
1x Phanteks case badge

Screws

18x Mainboard | SSD screws
5x Power supply screws
12x Fan screws
1x Motherboard stand-off
2x HDD cage screws

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
