Eclipse P600S

Designed to offer the best of two worlds

A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode. Designed with an effective soundproofing panel and Phanteks’ new high-airflow fabric, the Eclipse P600s offers the full potential of two opposites, minimum noise and maximum airflow.

Colors

Black

Black

Configurations

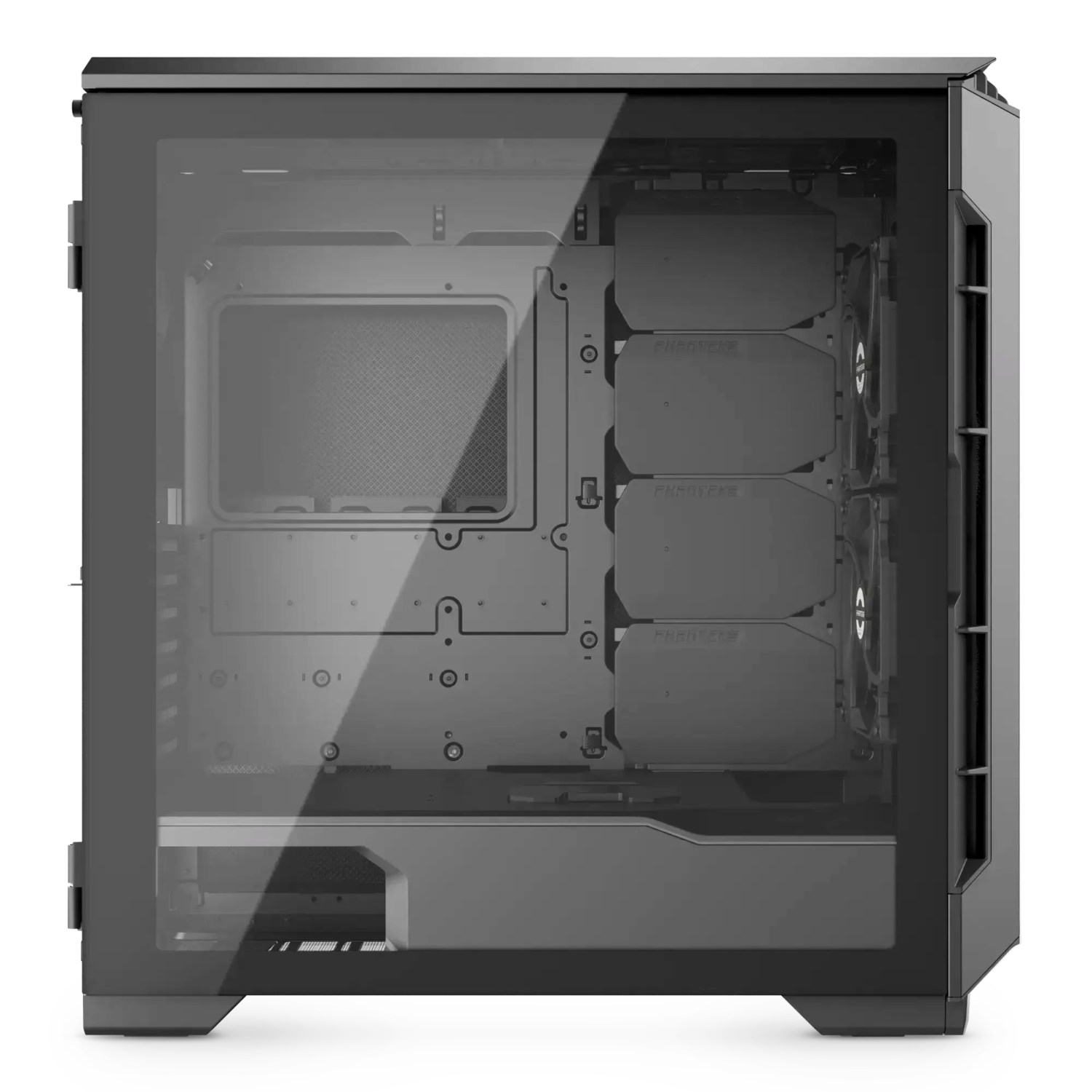

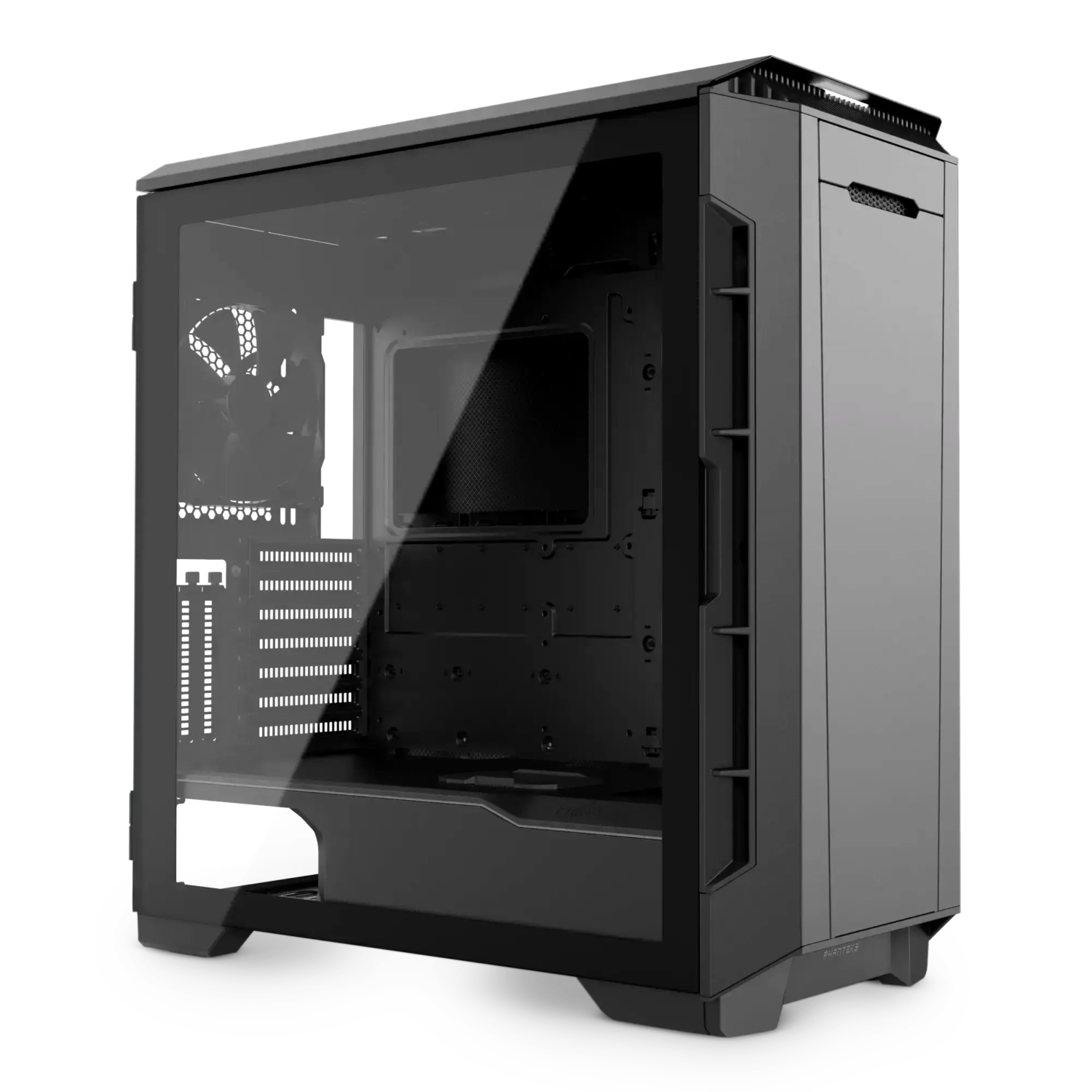

Tempered Glass

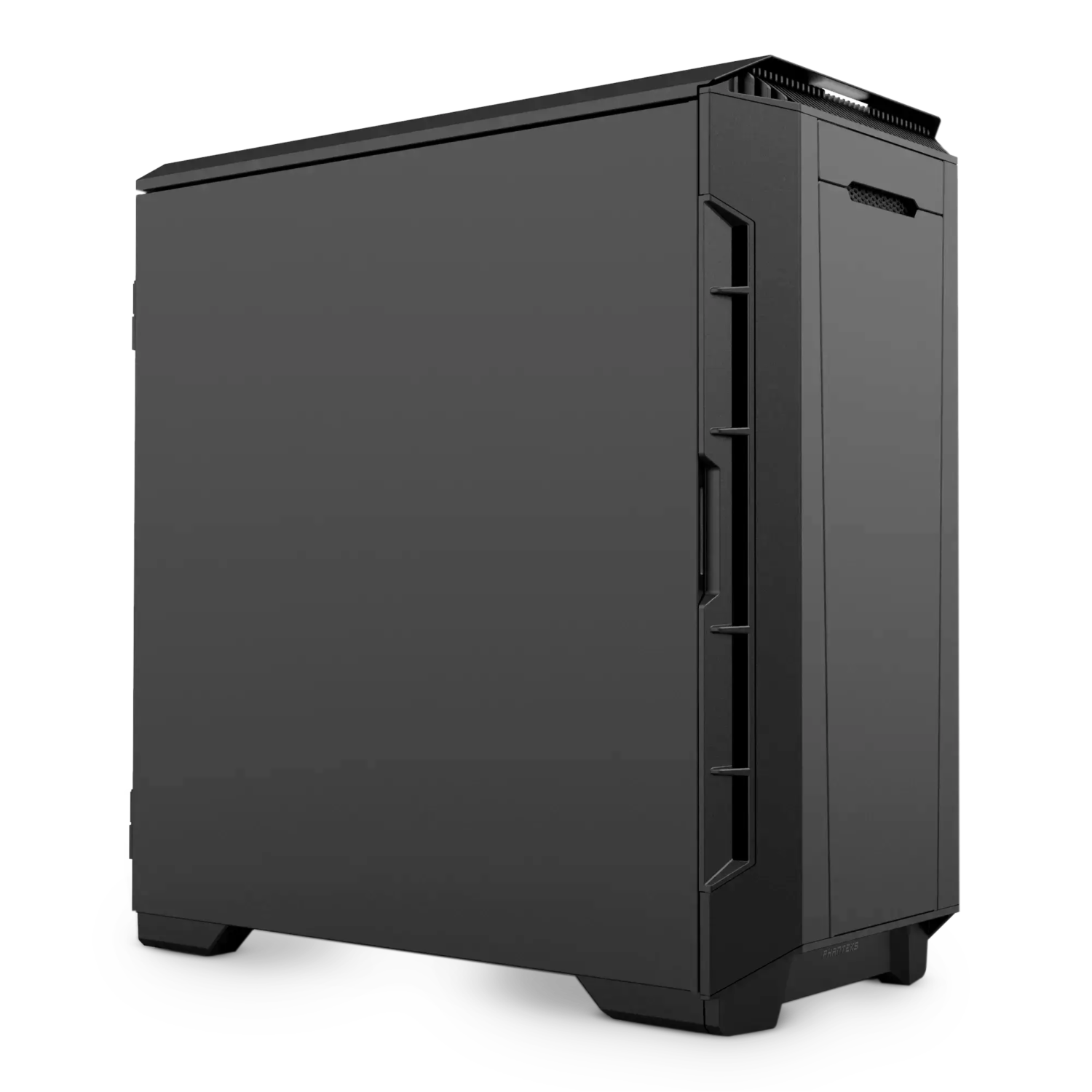

Closed Panel

Two Interchangeable Modes

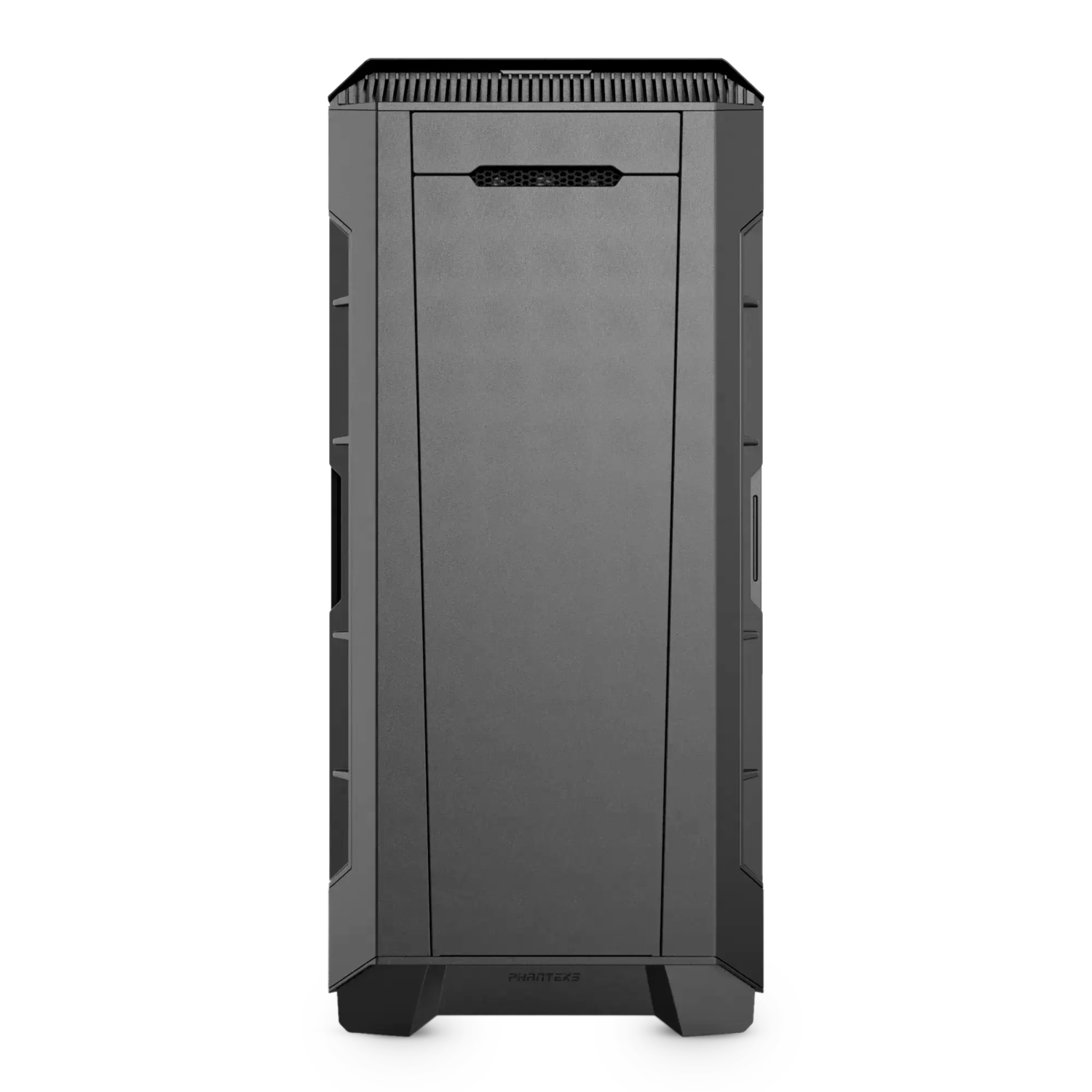

  • SILENT MODE
    Find peace and quiet with the P600S in silent mode. Weight reinforced acoustic panels reduces all unwanted noise.

  • HIGH-PERFORMANCE MODE

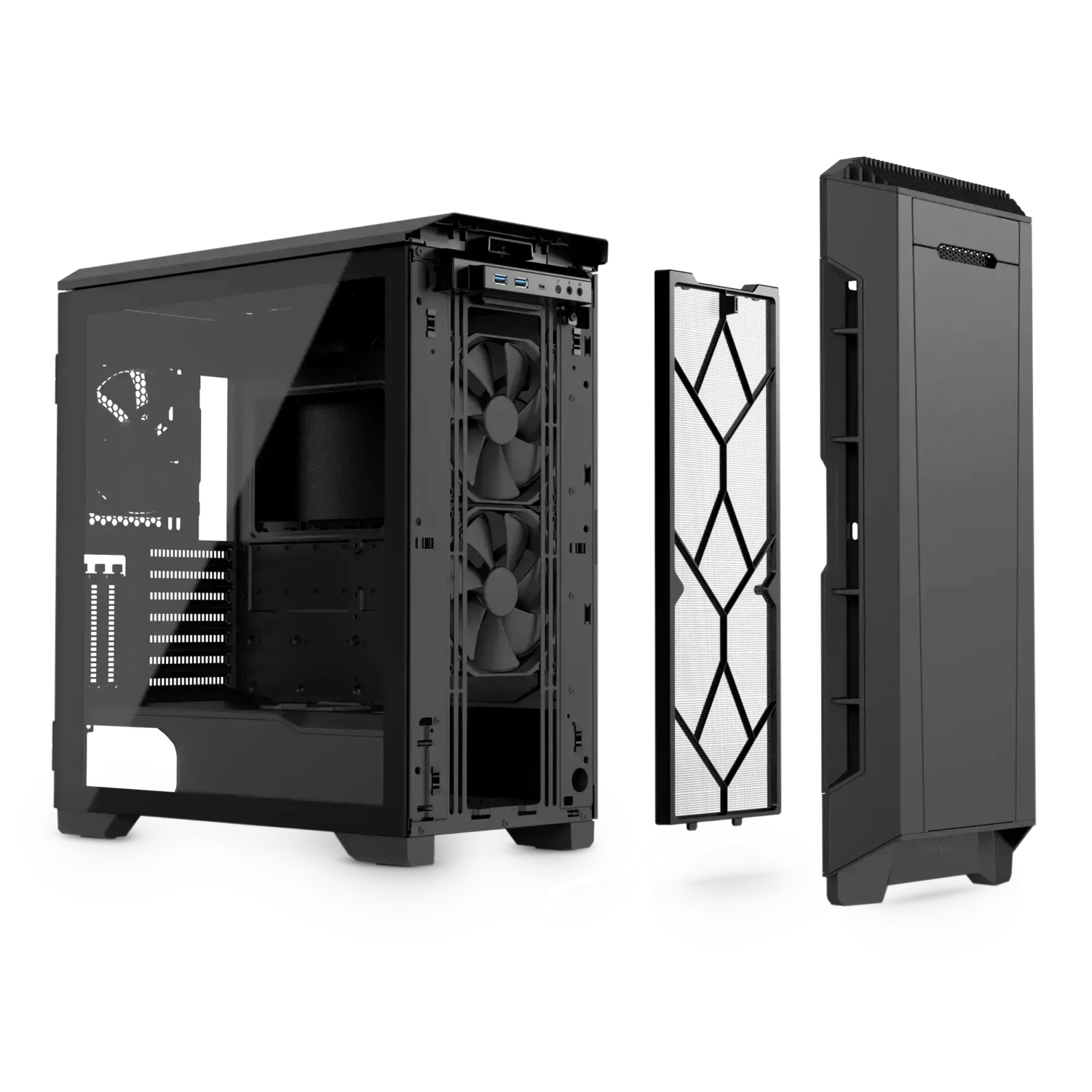

    Instantly switch to high performance mode by removing the acoustic panels to reveal Phanteks’ High-Airflow Fabric Mesh for maximum case airflow.

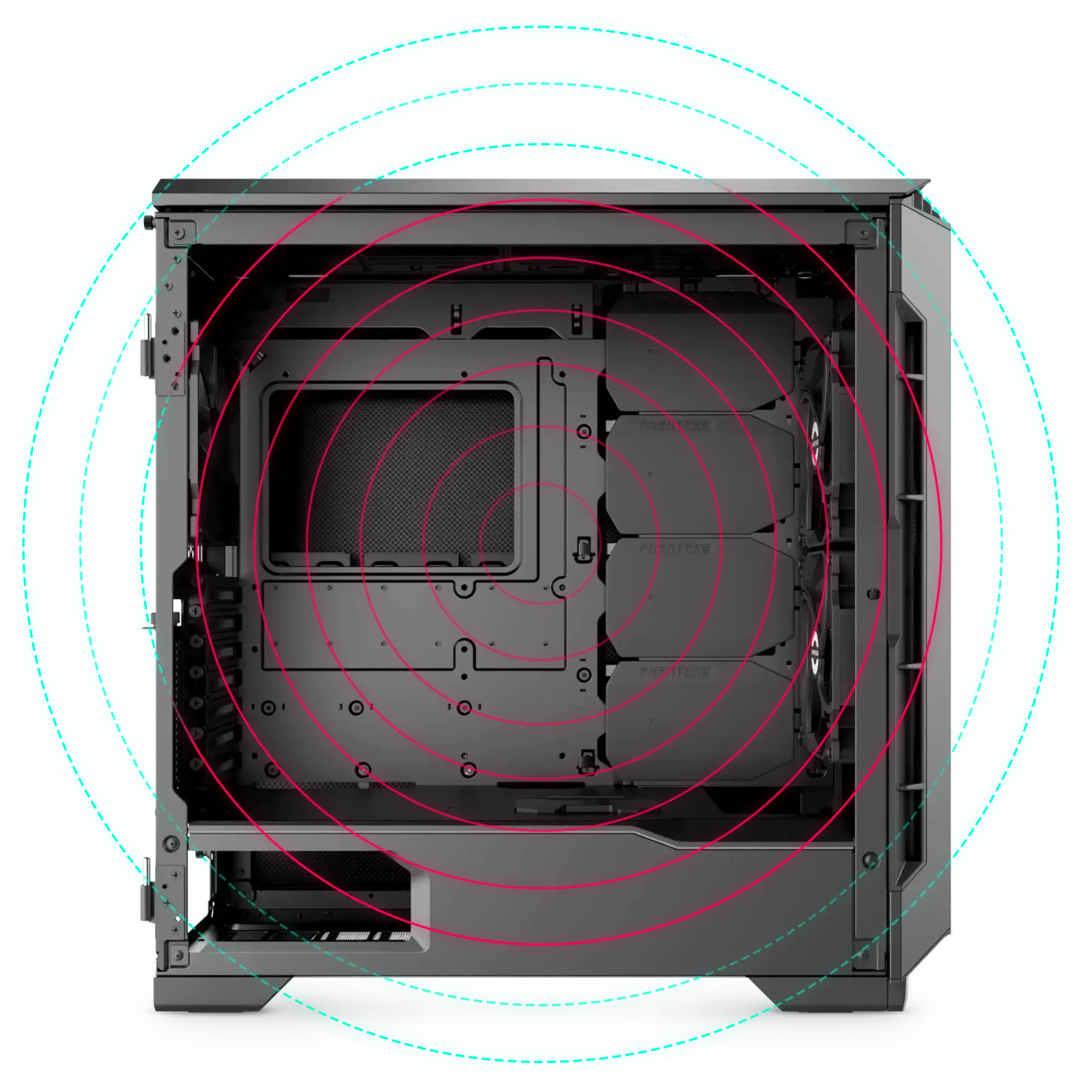

Effective Soundproofing

  • Dampens internal hardware sound.

  • Still allows sufficient case airflow.

  • Multiple layers of sound insulation.

  • Stops high-frequency and low-frequency soundwaves.

  • Breaks down internal sound waves in multiple sections.

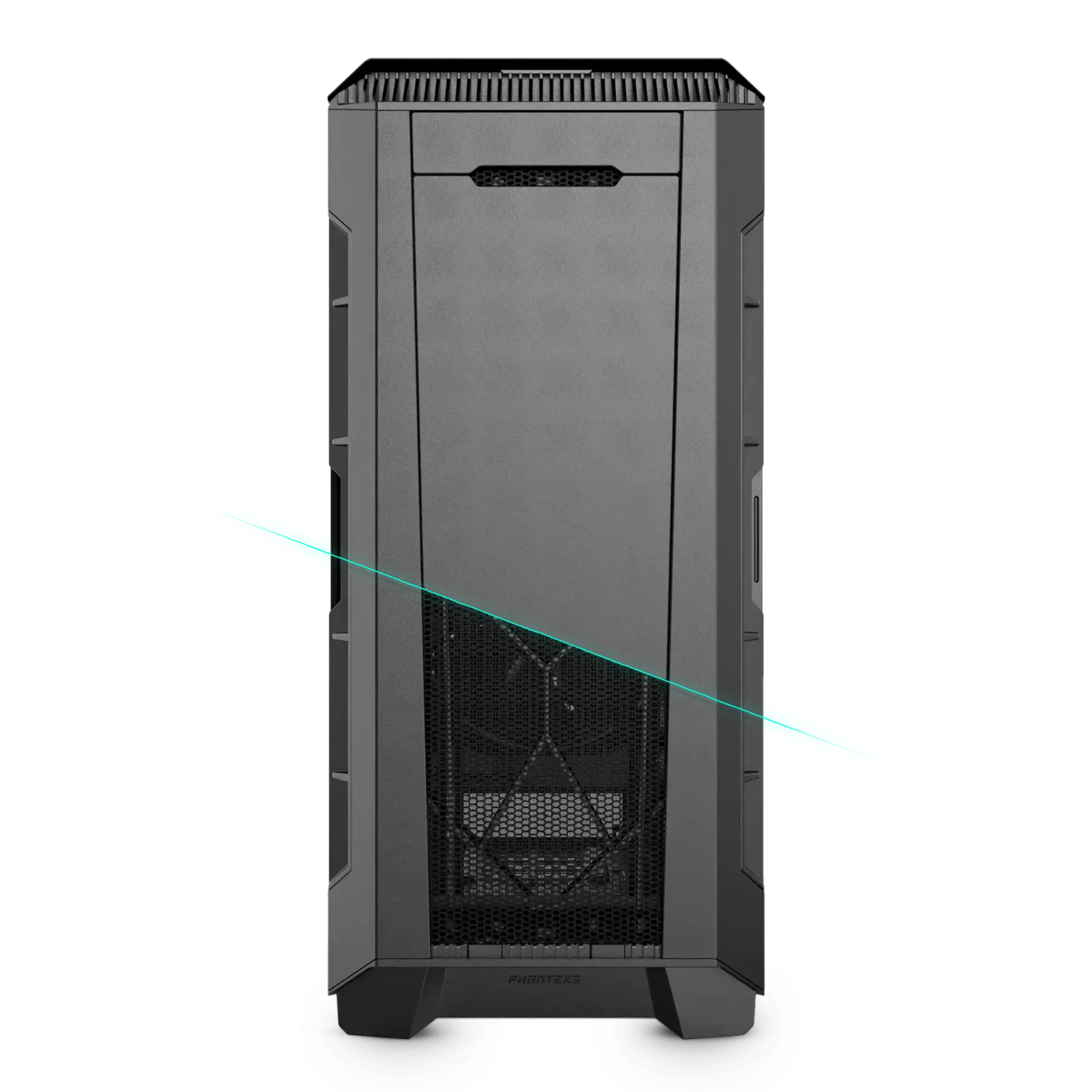

High-Airflow Fabric Mesh

  • Made from highly breathable technical textile.

  • Allows even more airflow passthrough than traditional mesh panels.

  • Equiped with 3x 140 mm premium fans.

  • Removable magnetic silent cover.

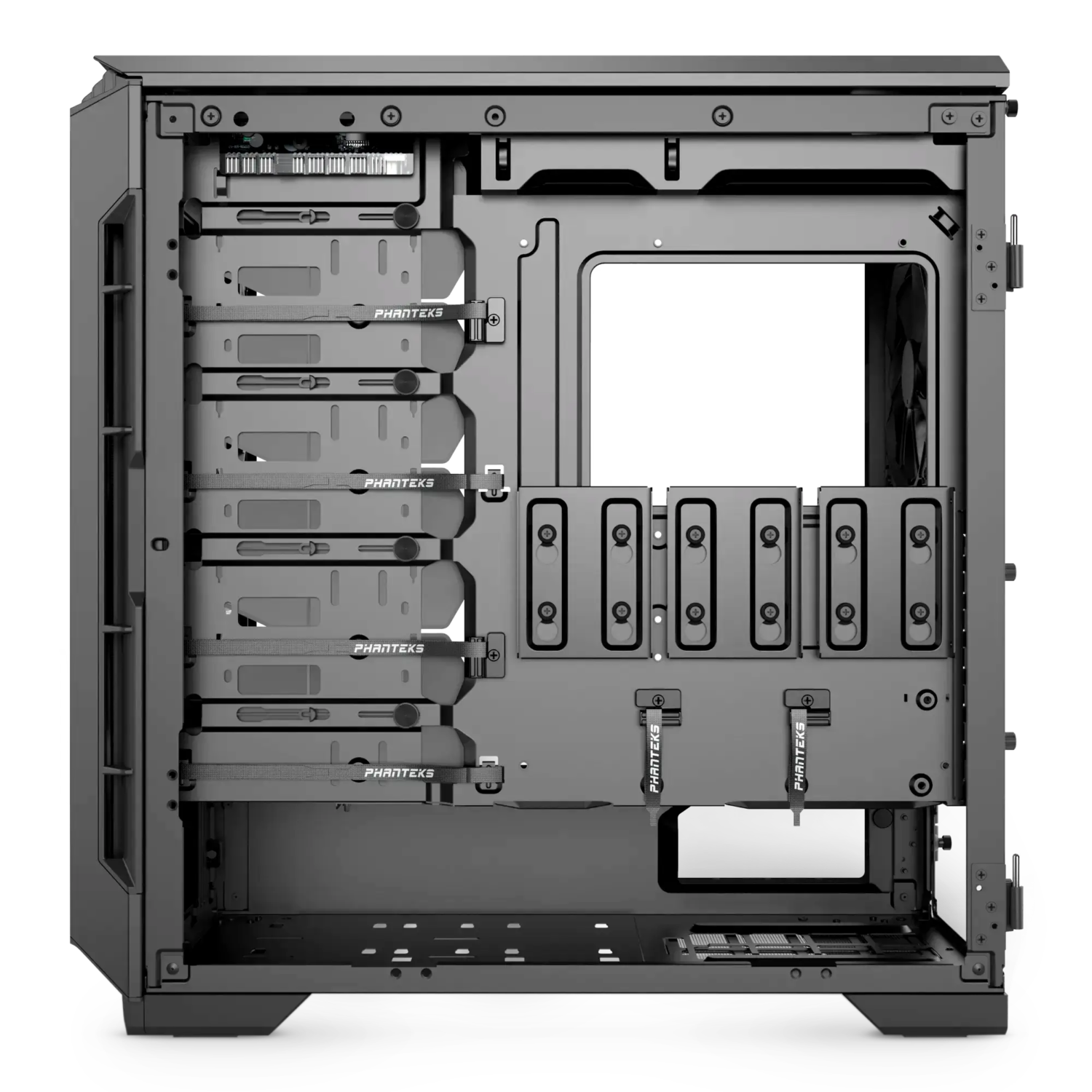

Multiple storage options

  • Support for 3x 2.5″ SSD

  • Pre-installed with 4x 3.5″ stackable brackets.

Specifications

General

Model No.

PH-EC600PSTG_BK01

UPC Code

886523301509

Case Dimensions

240 x 520 x 510 mm | 9.45 x 20.50 x 20.10 in

Form Factor

Mid-Tower

Mainboard Support

E-ATX* | ATX | Micro-ATX | Mini-ITX

*Up to 280mm wide

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

7

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

3

+ 10x 3.5″ HDD

Internal 3.5″ Bay

10 | 4 Included

+ 3x 2.5″ SSD

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button

Fans 120 | 140

Total Fans

7x | 6x

Top

3x | 3x

Front

3x | 2x (pre-installed)

Side

– | –

Rear

1x | 1x (pre-installed)

Bottom

– | –

Radiators 120 | 140

Top

Max. 360 | 280

Front

Max. 360 | 420

Side

– | –

Rear

120 | 140

Bottom

– | –

Clearance

CPU Cooler

Height

190 mm | 7.48 in

GPU

Length

435 mm | 17.12 in

GPU

Height

Power Supply

Length

195 mm | 7.67 in

Top Radiator

Height

65 mm | 2.56 in

Front Radiator

Height

95 mm | 3.74 in

Side Radiator

Length x Width

Bottom Radiator

Length x Width

Extra

Net Weight

13.50 kg | 29.76 lbs

Gross Weight

15.50 kg | 34.17 lbs

Warranty

5 Years limited

Scope of Delivery

1x Eclipse P600S chassis
3x SSD bracket
4x HDD bracket
3x Premium 140 fans

Accessory Box

6x Zip ties
1x GPU anti-sag bracket
1x Vertical GPU mount

Screws

22x Mainboard | SSD screws
7x Power supply screws
16x HDD locking screws
12x Thumb screws
12x Fan screws
6x Case screws
1x Motherboard stand-off
3x Riser cable screws
1x Stand-off removal tool

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Eclipse Series

Our Eclipse series is a line-up with the active gamer in mind. It ranges from compact mini-towers up to spacious full-towers, so no matter what your setup is, it will look awesome in any of our Eclipse cases.
