Revolt SFX
The Perfect Small Form Factor Power Supply

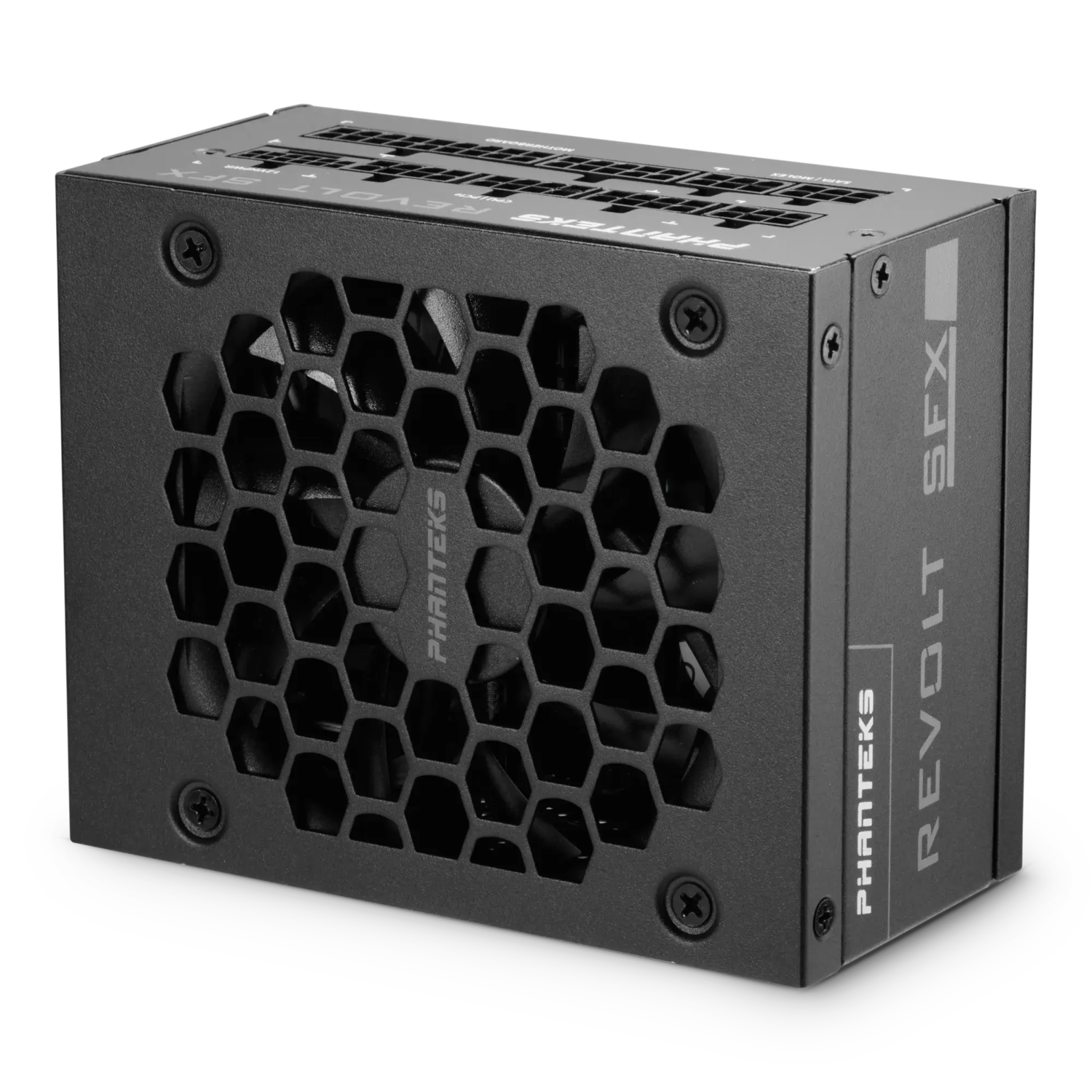

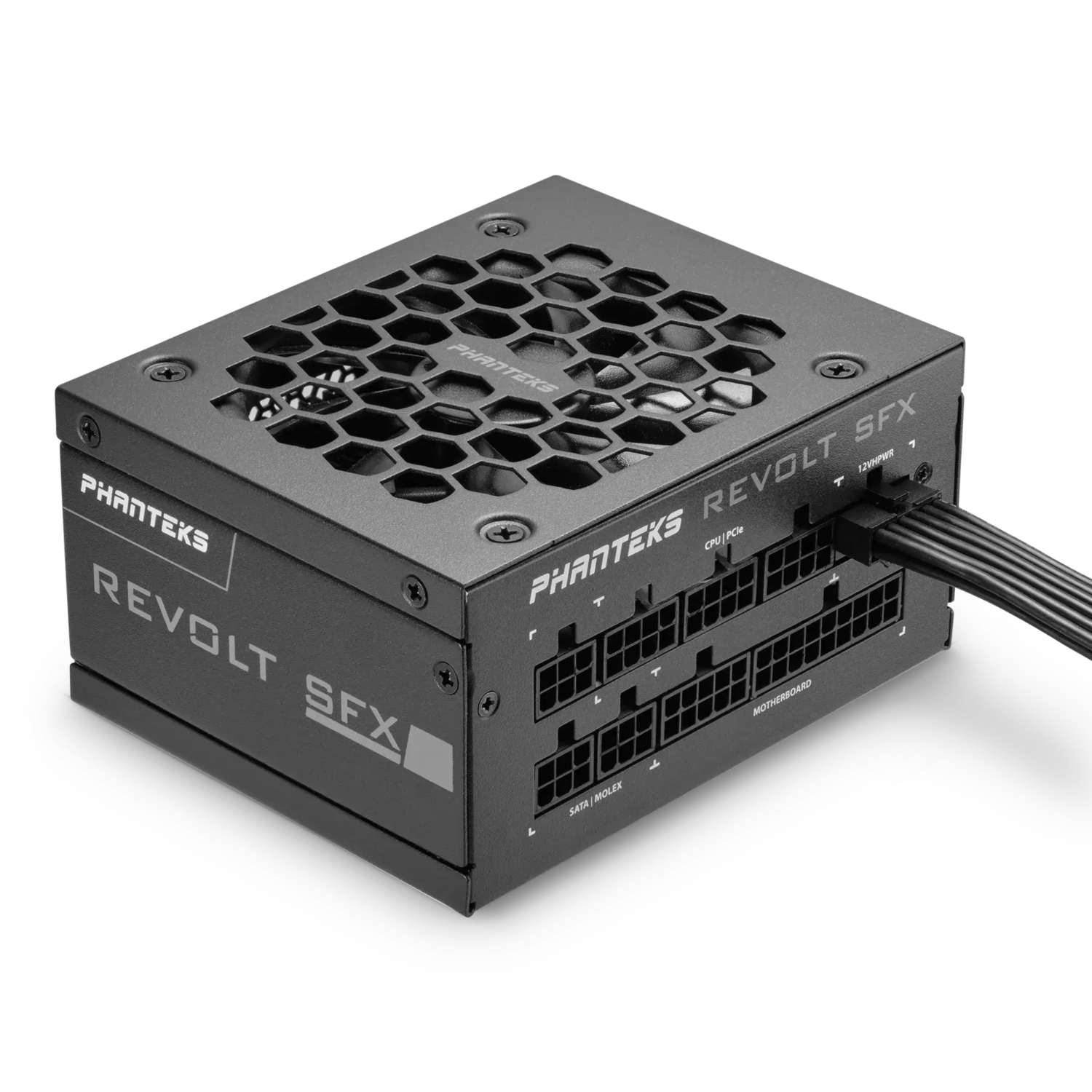

The Phanteks Revolt SFX 850W is ready for the most powerful next-gen hardware in a super-compact SFX footprint. It was built according to the new Intel ATX 3.0 platform specifications and comes with native PCIe Gen5 12VHPWR support out of the box. The high efficiency, 80 PLUS Platinum certification guarantees 92% efficiency at 50% system load.
The Revolt SFX 850W power supply comes with customized cables that are tailored for small form factor chassis, especially when paired with the Phanteks Evolv Shift XT chassis. A built-in silent 92mm Fluid Dynamic Bearing (FDB) fan with intelligent thermal control, optimizes noise and cooling performance. It also features a 0 RPM mode while under 30% load for ultimate silence.
Colors
Wattage
850
Platinum
Native PCIe Gen5 12VHPWR
Tailored For Small Form Factor Chassis
Build To Last
Ultimate Silence With Hybrid Fan Control

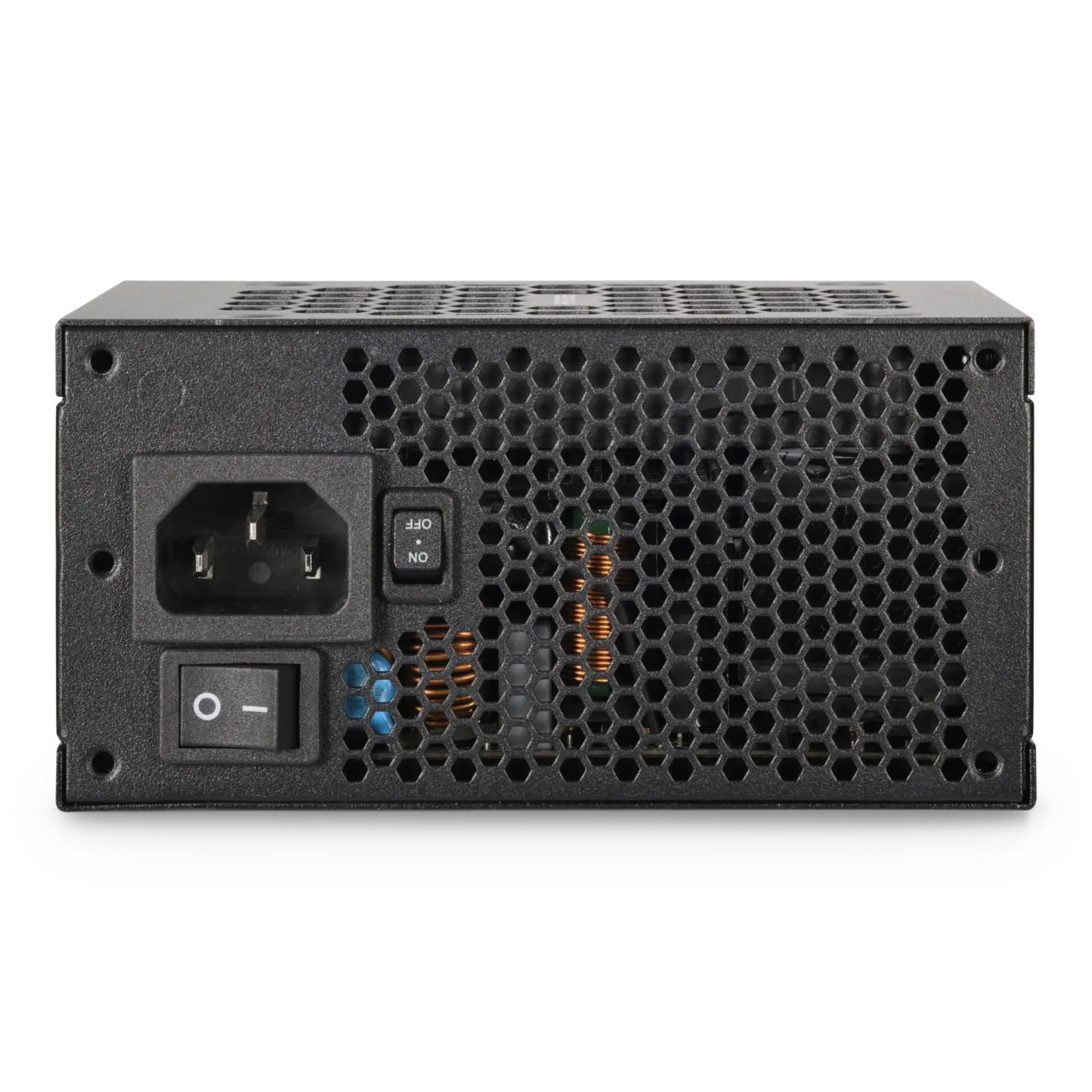

Activate the 0 RPM mode with the Hybrid Fan button on the rear to go for absolute silence when under low load. The REVOLT SFX will control the fan speed intelligently based on load and temperature.
Specifications
General
Model No.
PH-P850PSF
UPC Code
886523510116
Color
Black
Dimensions
Length x Width x Height
125 x 100 x 63.5 mm | 3.9 x 5.9 x 3.4 in
Power Output
850W
PCIe GEN5 OUTPUT
600W
80 Plus
Platinum
TECHNICAL DETAILS
Cooling Fan
92 mm Fluid Dynamic Bearing (FDB) Fan
Back Plate
Fully modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)

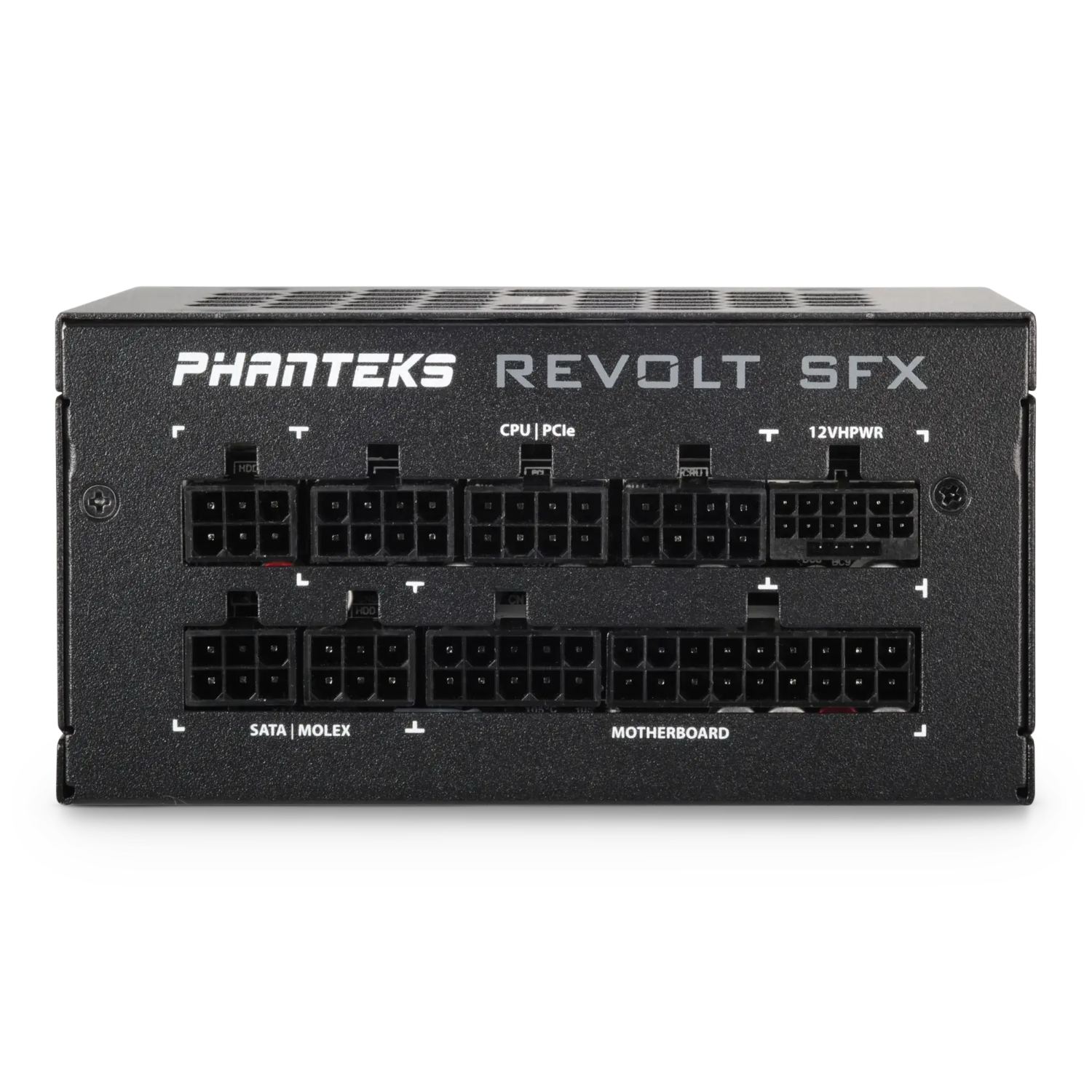

Power Supply Output Connectors
Mainboard – 1x
CPU | PCIe – 3x
SATA | Molex – 3x
12V-2×6 – 1x
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
| Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB | |
|---|---|---|---|---|---|---|
| Maximum Output | 70.8A | 20A | 20A | 0.3A | 3A | |
| Maximum Capacity | 850W | 100W | 3.6W | 15W | ||
| DC Output | 850W | |||||
| AC Output | 100-240Vac 12-6A 50-60Hz | |||||
Extra
Scope of Delivery
1x Revolt 750W SFX Power supply unit
1x C13 Power cord (1500mm)
1x SFX to ATX bracket
Included Cables
1x 18+10-Pin Mainboard (310 mm)
1x 8-Pin CPU (420 mm)
1x 8-Pin PCI-E (250 mm)
1x 8-Pin PCI-E (250 mm Splitter)
1x 16-Pin PCI-E Gen 5.0 (250 mm)
1x 6-Pin 2-SATA (370 – 250 | 120 mm)
1x 6-Pin 4-SATA (550 – 250 | 100 | 100 | 100 mm)
1x 6-Pin 3-SATA + 1-Molex 180° (550 – 250 | 100 | 100 | 100 mm)
Accessory Box
1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
Discover the Revolt powersupply
Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.
