NV5-Distro
Distro Plate for NV5

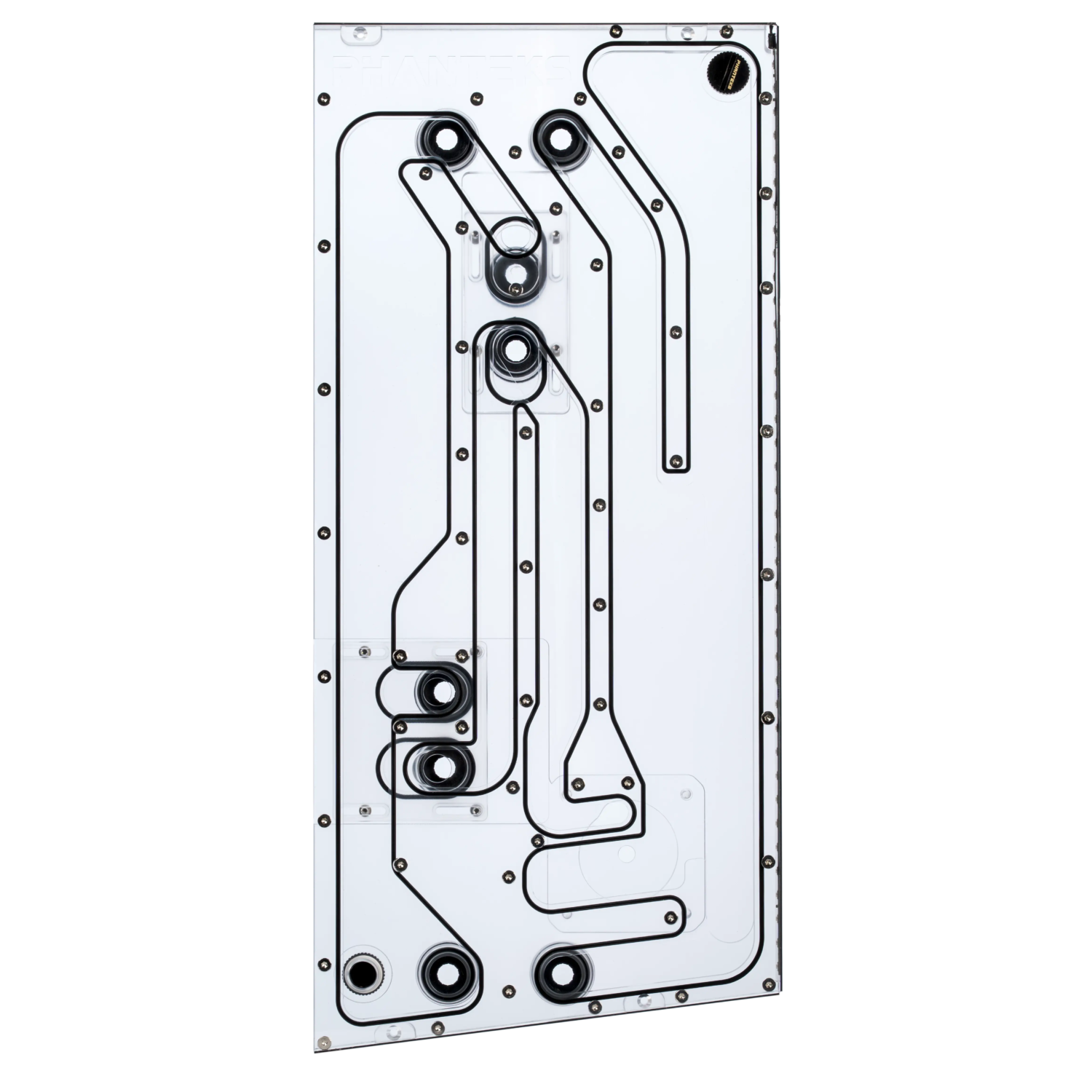

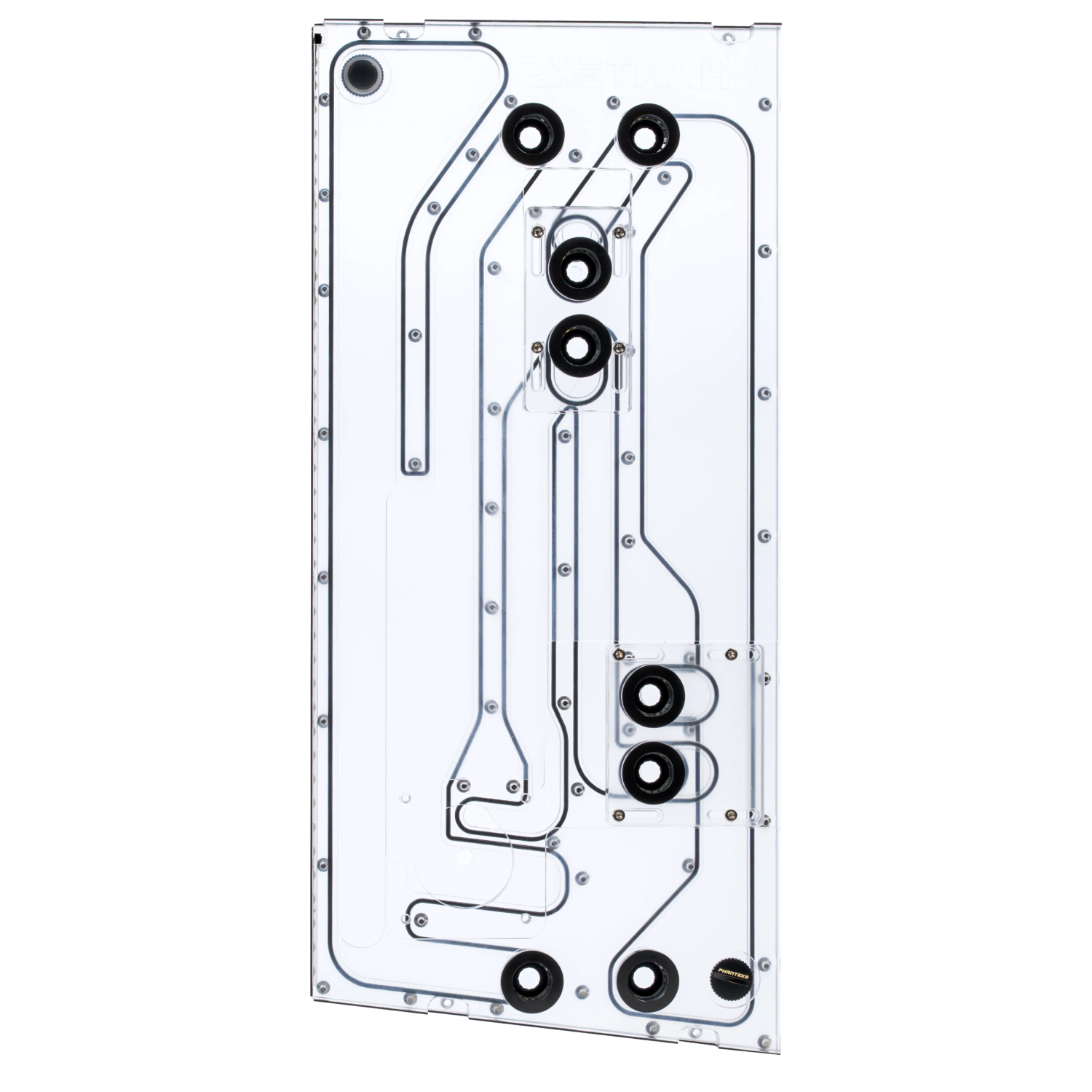

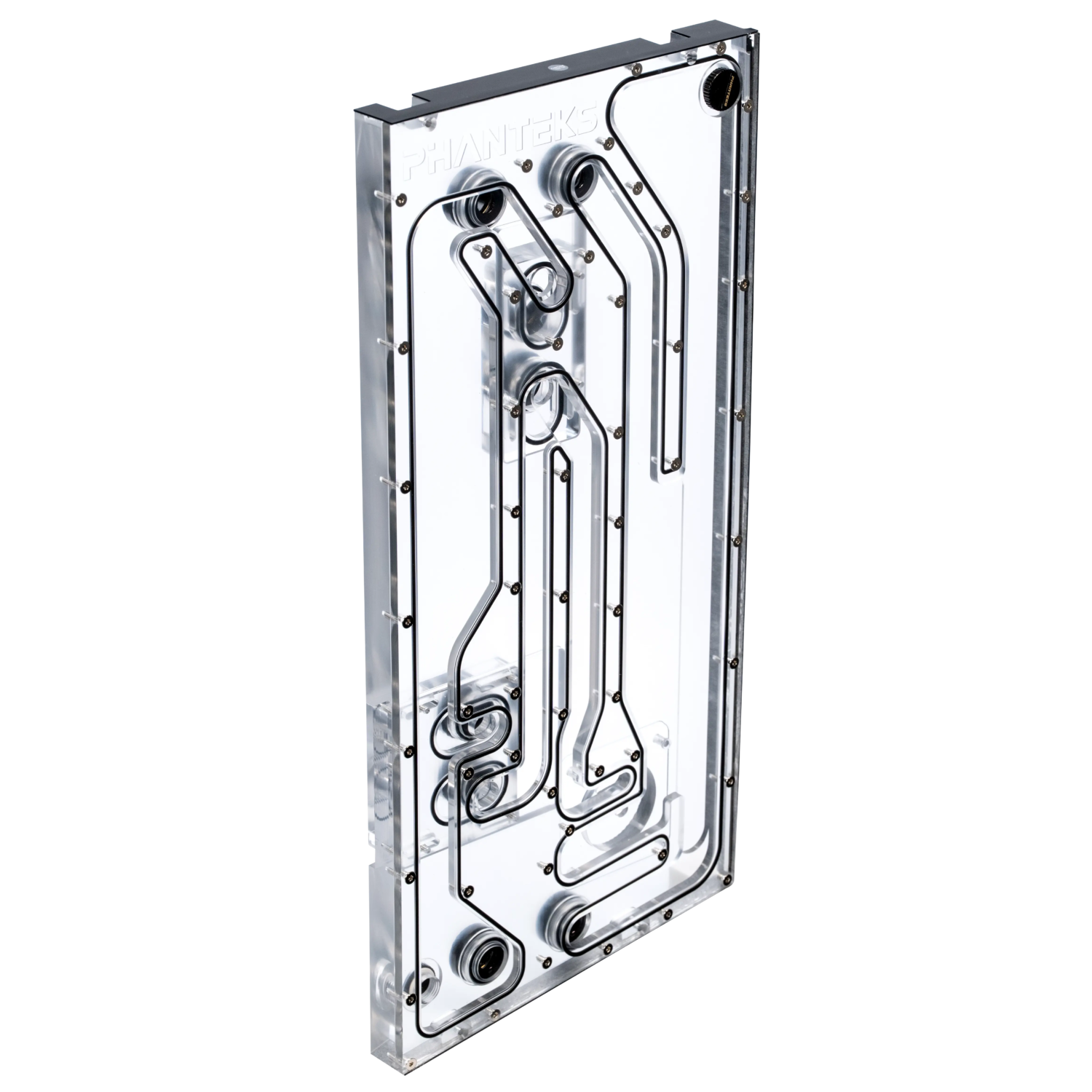

Designed exclusively for the Phanteks NV5 chassis, the Glacier EZ-Fit NV5-DISTRO is a custom water-cooling distribution plate that redefines elegance and efficiency for PC cooling. Built with the best materials and integrated 16 mm EZ-Fit push-in fittings, it transforms your build into a showcase of engineering and art.
Configurations
Specifications
General
Model No.
PH-GEF_DIS-NV5
UPC Code
886523703327
Product Type
Distro plate
Color
N/A
Chassis Support
Phanteks NV5
Materials
Cast acrylic | Aluminum mounting hooks | Brass fitting | ABS fitting inserts | EPDM-NBR O-rings
Technical Details
Dimensions
Width x Height x Depth
194.8 x 429.3 x 49.75 mm | 7.66 x 16.90 x 1.95 in
Pump Compatibility
DDC
Not included
Liquid Capacity
220 ml
Inlet Ports
4x M24
Outlet Ports
4x M24
Fill Port
1x G¼ brass stop fitting Pre-installed
Plugs
2x M24 acrylic plug fitting Pre-installed
Fittings
8x M24 EZ-Fit 16 mm fittings Pre-installed
Hard Tube Support
16 ± 0.1 mm OD | HI-PMMA | PMMA | Acrylic | PETG | Glass
Soft Tube Support
16 ± 0.1 mm OD | H10 ± 0.1 mm ID | PVC
LED Number
39
LED Max. Rated Current
0.96A
Extra
Scope of Delivery
1x NV5 distro plate
Accessory Box
3x Fitting inserts
4x Mounting hooks
1x D-RGB LED cable Pre-Installed
1x 2.5 mm Hex key
1x 2 mm Hex key
Screws
4x M3x16 mm Mounting screws
4x M4x25 mm Pump screws
