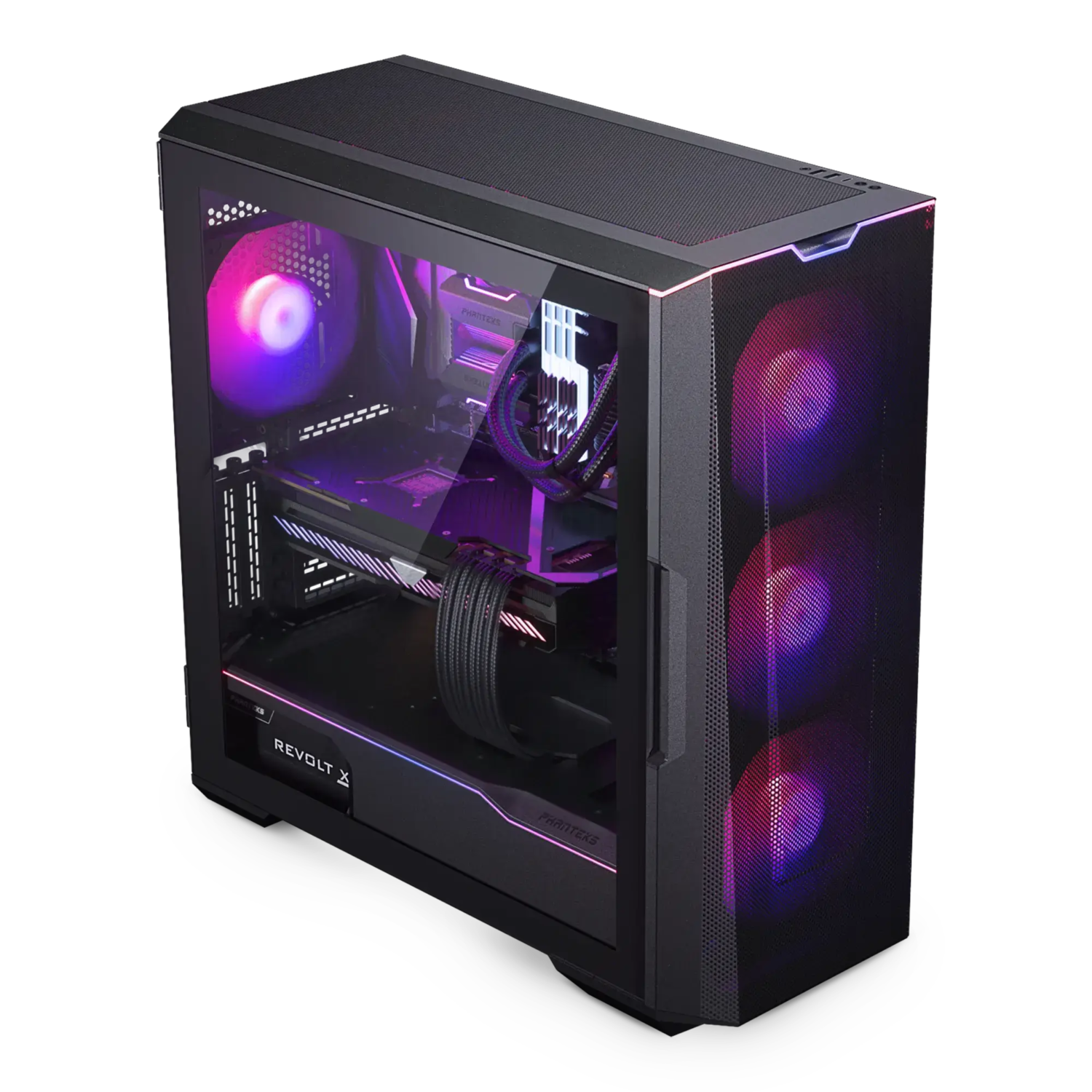

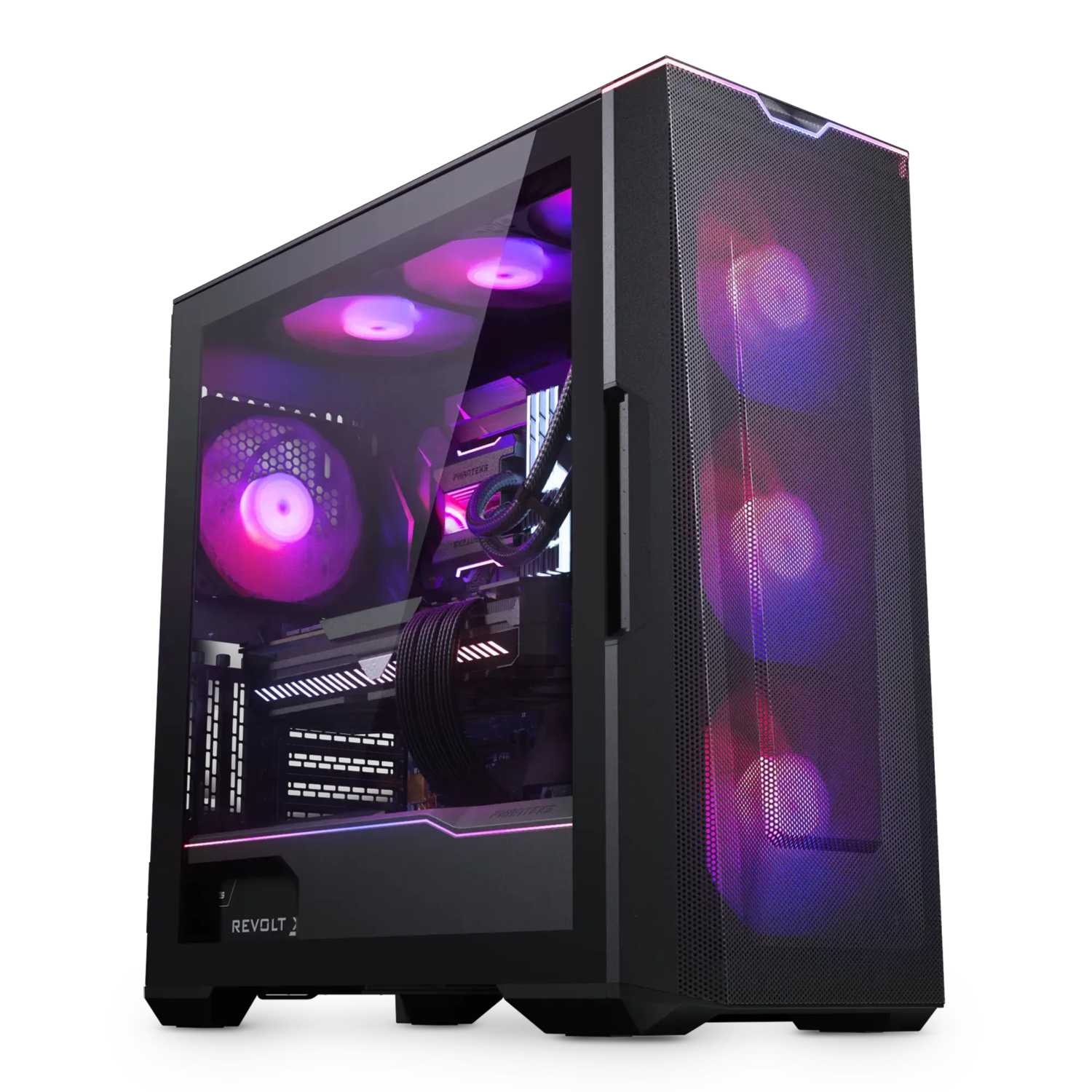

Eclipse G500A
High performance premium powerhouse
The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one.
With its spacious interior, the G500A is ready for powerful gaming setups, offering a 420 radiator in the front and a 360 radiator in the top while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Colors
Configurations
Perfect size for modern hardware

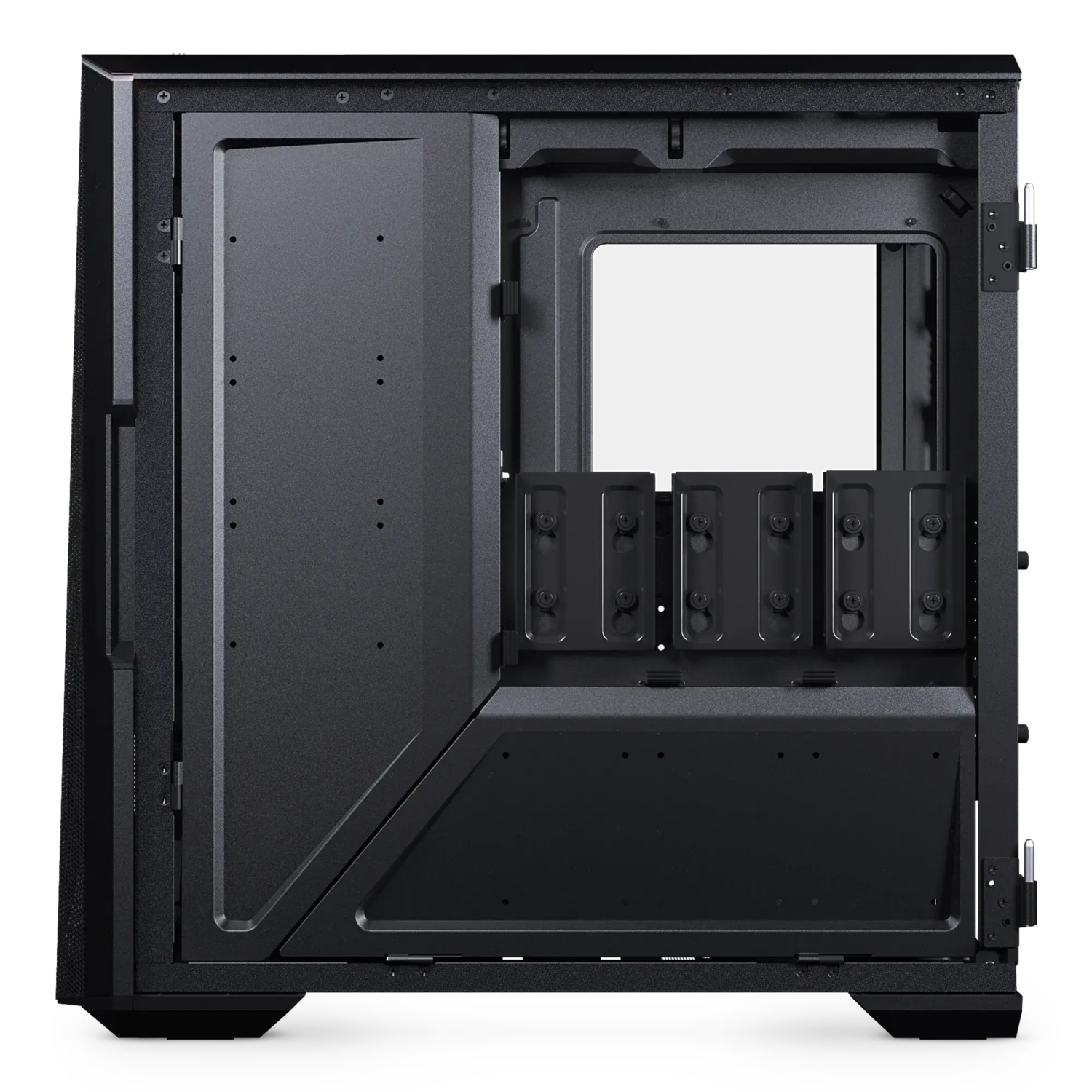

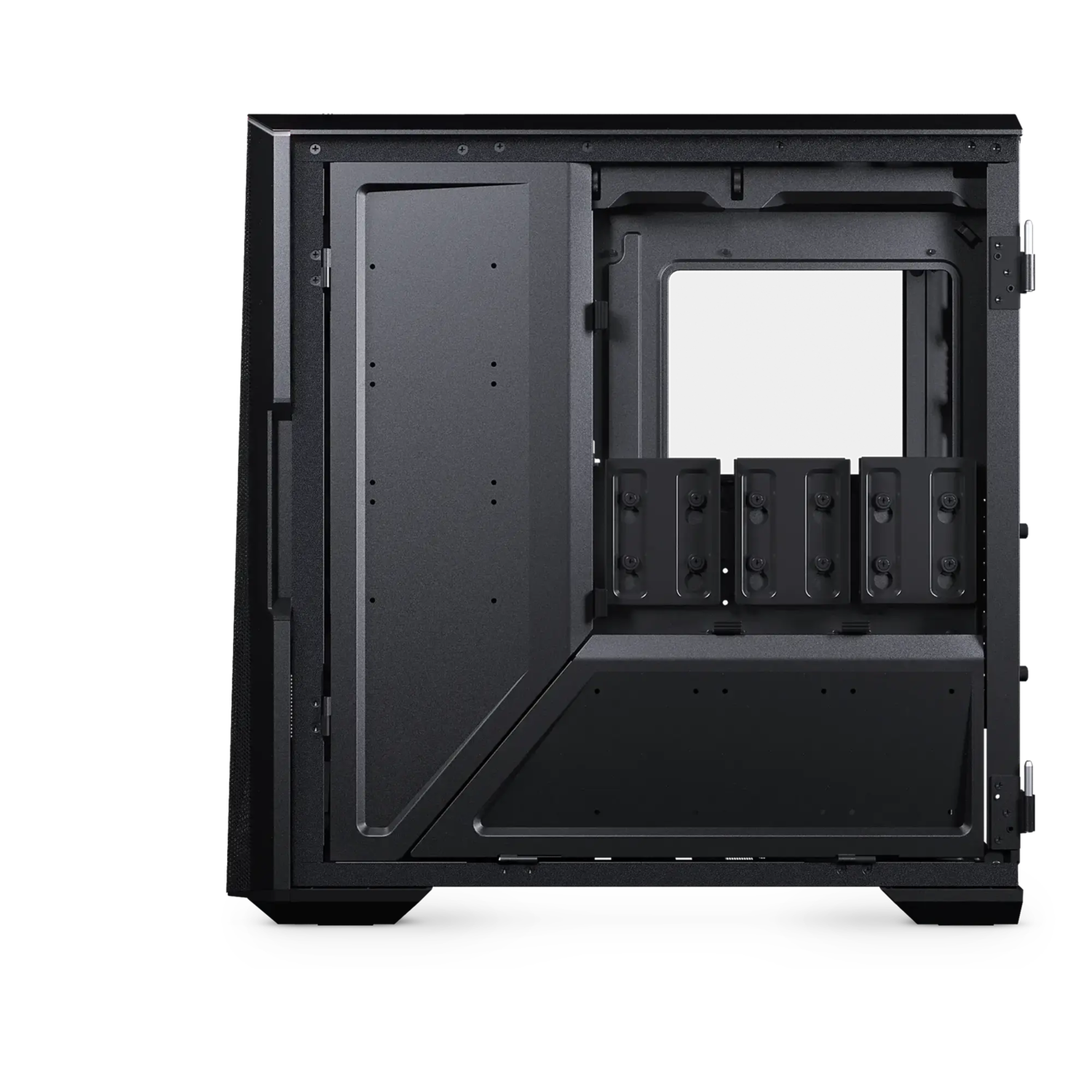

Clean cable management

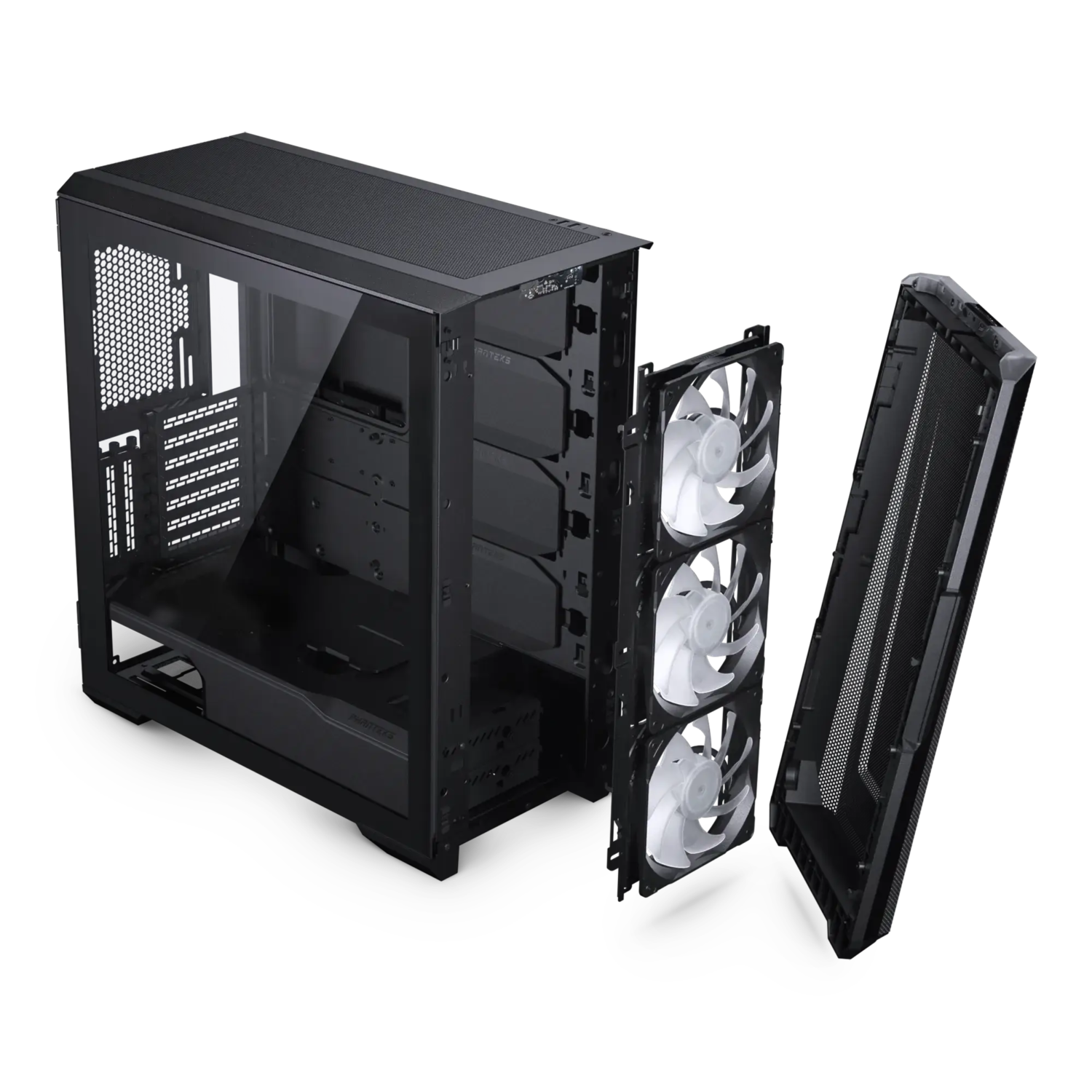

High airflow design
Integrated D-RGB lighting

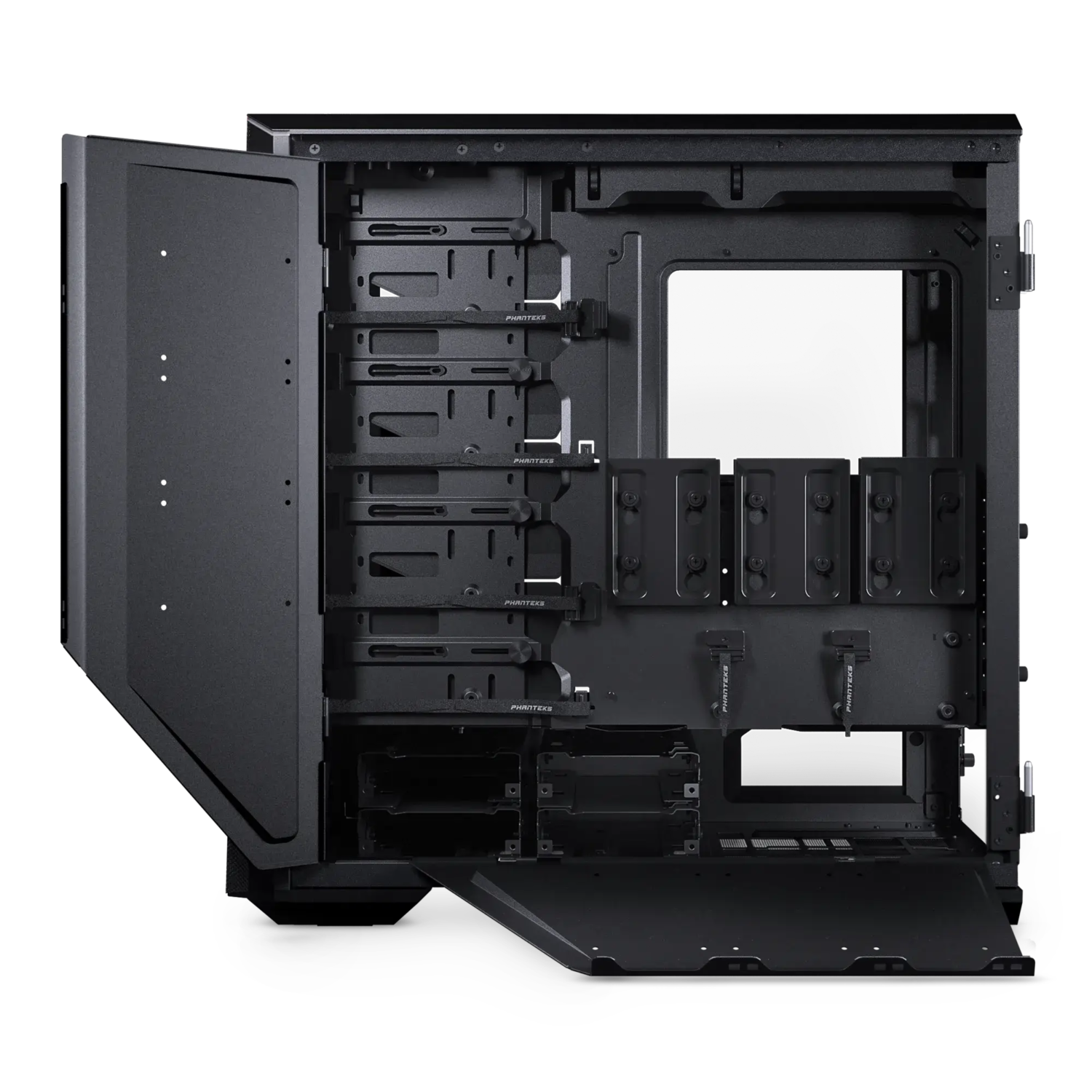

Multiple storage options
Specifications
General
Model No.
PH-EC500GA_DBK01A
UPC Code
886523302612
Case Dimensions
240 mm x 500 mm x 515 mm | 9.45 in x 19.69 in x 20.28 in
Form Factor
Mid-Tower
Mainboard Support
E-ATX | ATX | Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
9
+ 10x 3.5″ HDD
Internal 3.5″ Bay
10 | 2 Included
+ 9x 2.5″ SSD
Front I/O
1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button
Fans 120 | 140
Total Fans
7x | 7x
Top
3x | 3x
Front
3x | 3x (pre-installed)
Side
– | –
Rear
1x | 1x
Bottom
– | –
Radiators 120 | 140
Top
Max. 360 | 280
Front
Max. 360 | 420
Side
– | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
185 mm | 7.28 in
GPU
Length
435 mm | 17.12 in
GPU
Height
–
Power Supply
Length
195 mm | 7.67 in
Top Radiator
Length x Width
? x 70 mm | ? x 2.75 in
Front Radiator
Length x Width
142 x 475 mm | 5.59 x 18.70 in
Side Radiator
Length x Width
–
Bottom Radiator
Length x Width
–
Extra
Scope of Delivery
1x Eclipse G500A chassis
3x SSD bracket
2x HDD bracket
3x M25-140 D-RGB fan
Accessory Box
6x Zip ties
1x GPU anti-sag bracket
1x Vertical GPU mount
Screws
22x Mainboard | SSD screws
7x Power supply screws
8x HDD locking screws
12x Thumb screws
8x Fan screws
8x Case screws
1x Motherboard stand-off
3x Riser cable screws
1x Stand-off removal tool
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
