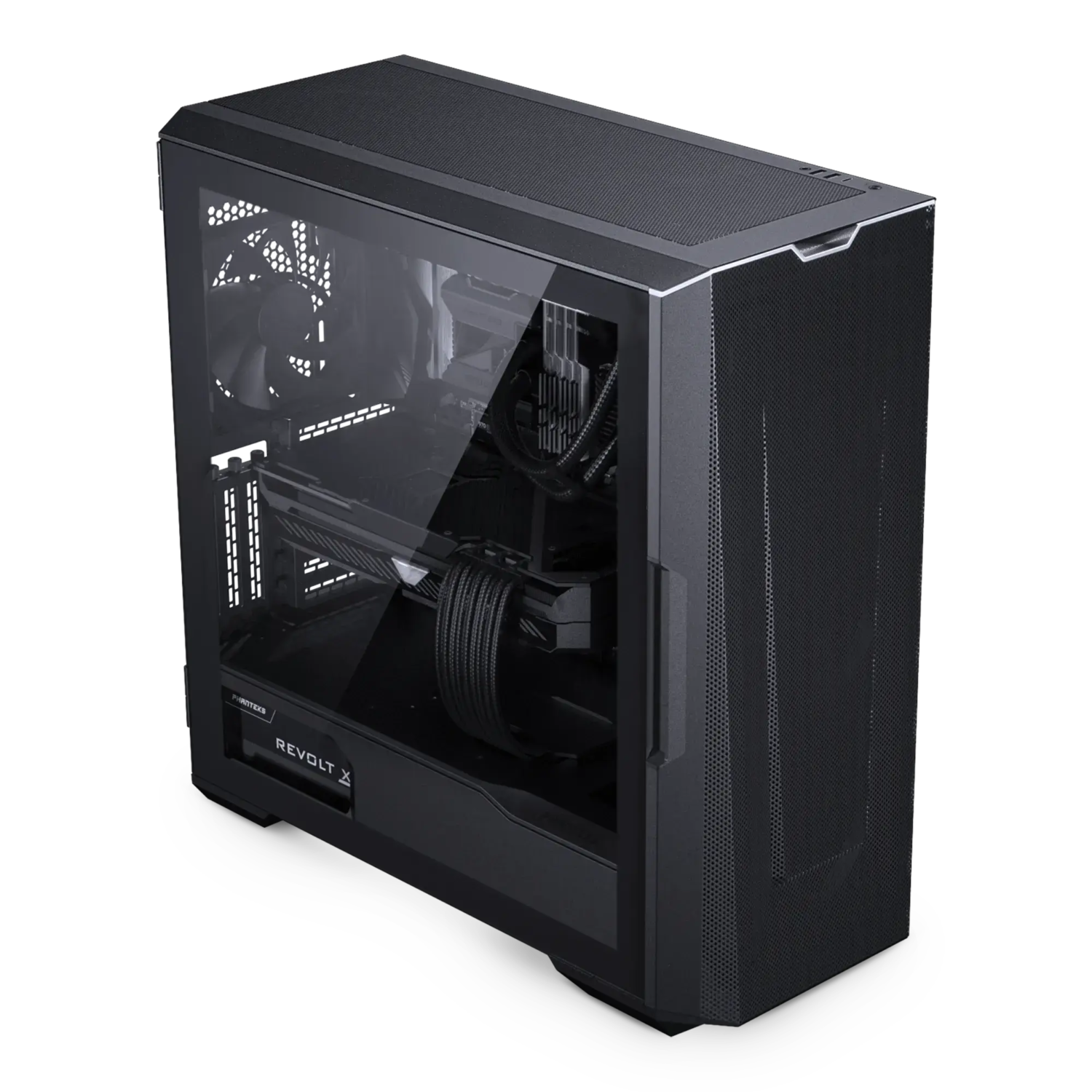

Eclipse G500A
High performance premium powerhouse
The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one.
With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Colors
Configurations
Perfect size for modern hardware
Clean cable management
High airflow design
Ultimate stealth look
Multiple storage options
Specifications
General
Model No.
PH-EC500GA_BBK01
UPC Code
886523302667
Case Dimensions
240 mm x 500 mm x 515 mm | 9.45 in x 19.69 in x 20.28 in
Form Factor
Mid-Tower
Mainboard Support
E-ATX | ATX | Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
9
+ 10x 3.5″ HDD
Internal 3.5″ Bay
10 | 2 Included
+ 9x 2.5″ SSD
Front I/O
1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
Reset Button
Power Button
Fans 120 | 140
Total Fans
7x | 7x
Top
3x | 3x
Front
3x | 3x (pre-installed)
Side
– | –
Rear
1x | 1x (pre-installed)
Bottom
– | –
Radiators 120 | 140
Top
Max. 360 | 280
Front
Max. 360 | 420
Side
– | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
185 mm | 7.28 in
GPU
Length
435 mm | 17.12 in
GPU
Height
–
Power Supply
Length
195 mm | 7.67 in
Top Radiator
Length x Width
? x 70 mm | ? x 2.75 in
Front Radiator
Length x Width
142 x 475 mm | 5.59 x 18.70 in
Side Radiator
Length x Width
–
Bottom Radiator
Length x Width
–
Extra
Scope of Delivery
1x Eclipse G500A chassis
3x SSD bracket
2x HDD bracket
4x M25-140 black fans
Accessory Box
6x Zip ties
1x GPU anti-sag bracket
1x Vertical GPU mount
Screws
22x Mainboard | SSD screws
7x Power supply screws
8x HDD locking screws
12x Thumb screws
8x Fan screws
8x Case screws
1x Motherboard stand-off
3x Riser cable screws
1x Stand-off removal tool
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
Eclipse Series
Our Eclipse series is a line-up with the active gamer in mind. It ranges from compact mini-towers up to spacious full-towers, so no matter what your setup is, it will look awesome in any of our Eclipse cases.
