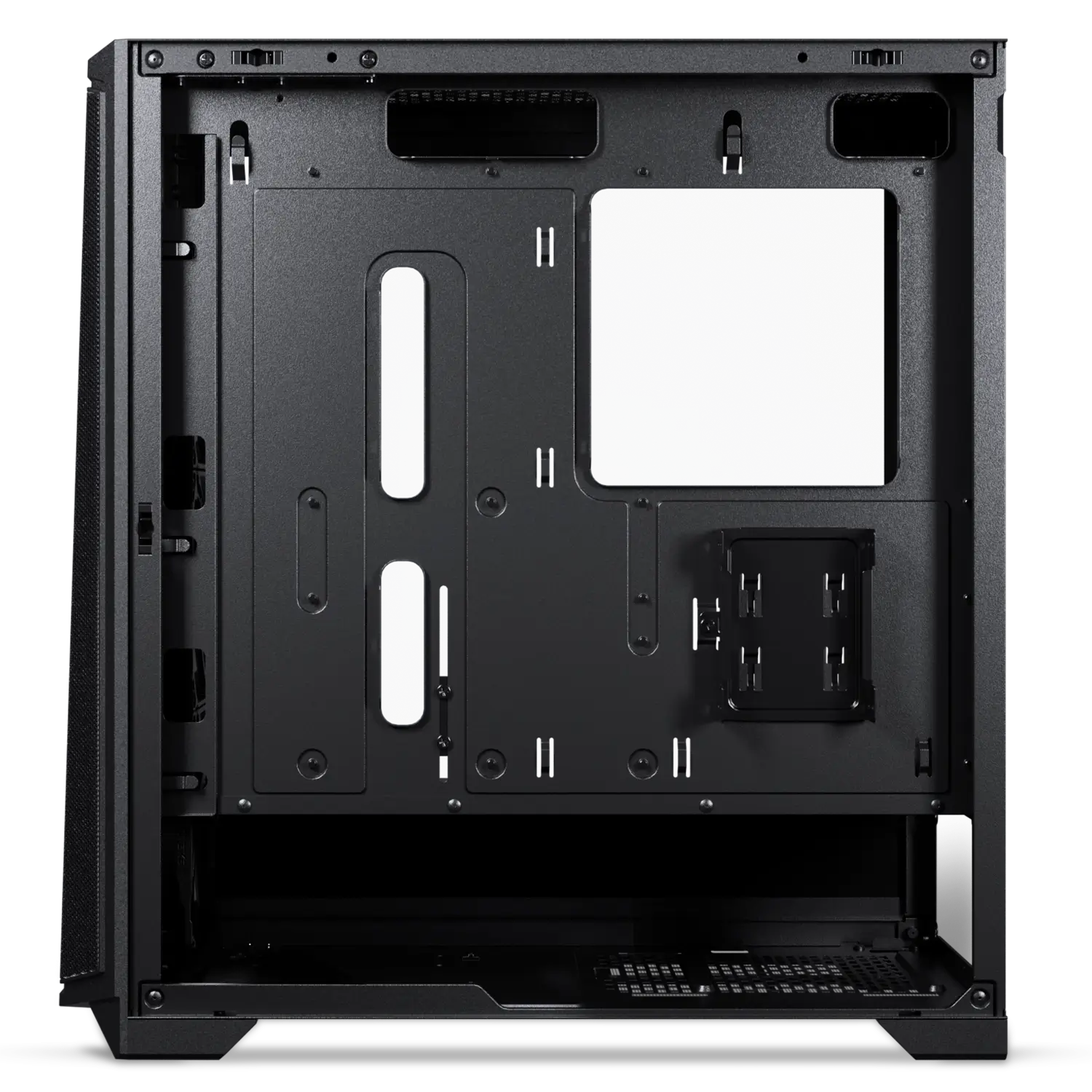

Eclipse G370A
High Airflow Gaming Chassis
The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120 mm fan positions and dedicated top 360 radiator clearance provides ample fresh airflow to unlock even the most demanding workstation-grade systems.
Extensive mainboard support up to and including SSI-EEB mainboards makes the G370A punch way above its weight.
Colors
Black
Specifications
General
Model No.
PH-EC370A_DBK01
UPC Code
886523303930
Case Dimensions
465 x 476 x 220 mm | 18.30 x 18.74 x 8.66 in
From Factor
Mid-Tower
Mainboard Support
SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass window | ABS plastic
Color
Black
Expansion Slots
7
Vertical GPU Support
No
Internal 2.5″ Positions
2
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 2x 2.5″ SSD
Front I/O
1x USB 3.0
1x USB-C 3.0
1x Microphone | Headphone combo
Power button
Reset button
Fans 120 | 140
Total Fans
7 | –
Top
3 | –
Front
3 | –
Rear
1 | –
Bottom
– | –
Radiator 120 | 140
Top
Max. 360 | –
Front
Max. 240 | –
Rear
– | –
Bottom
– | –
Clearance
CPU Cooler
Height
170 mm | 6.69 in
GPU
Length
375 mm | 14.76 in
With front fans installed
GPU
Width
170 mm | 6.69 in
Power Supply
200 mm | 7.87 in
Top 360 Radiator
Length x Width x Height
400 x 120 x 60 mm | 15.74 x 4.72 x 2.36 in
Extra
Scope of Delivery
1x Eclipse G370A chassis
1x SSD bracket Pre-installed
Accessory Box
6x Zip ties
1x Stand-off removal tool
Screws
18x Mainboard | SSD screws
13x PSU | Chassis screws
4x HDD screws
4x HDD standoff
4x HDD rubber dampener
1x Mainboard stand-off
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
