Neon
D-RGB LED Strips
Phanteks’ NEON Digital-RGB LEDs provide the smoothest lighting effect with many mounting positions to highlight your system. It’s easy to use, and the secure mounting set lets you choose which hardware to highlight with a diffuse ray of light from the NEON LED strip.

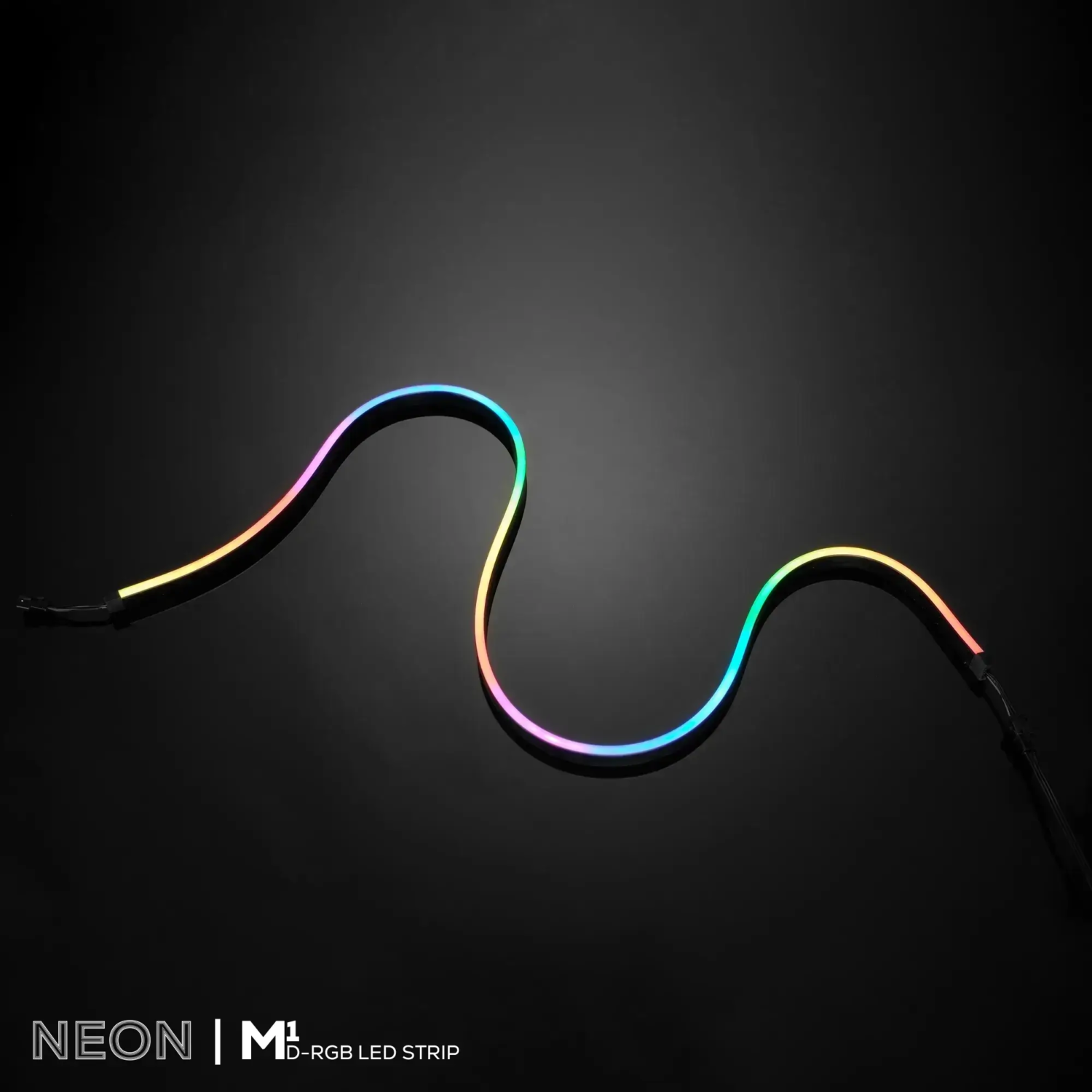

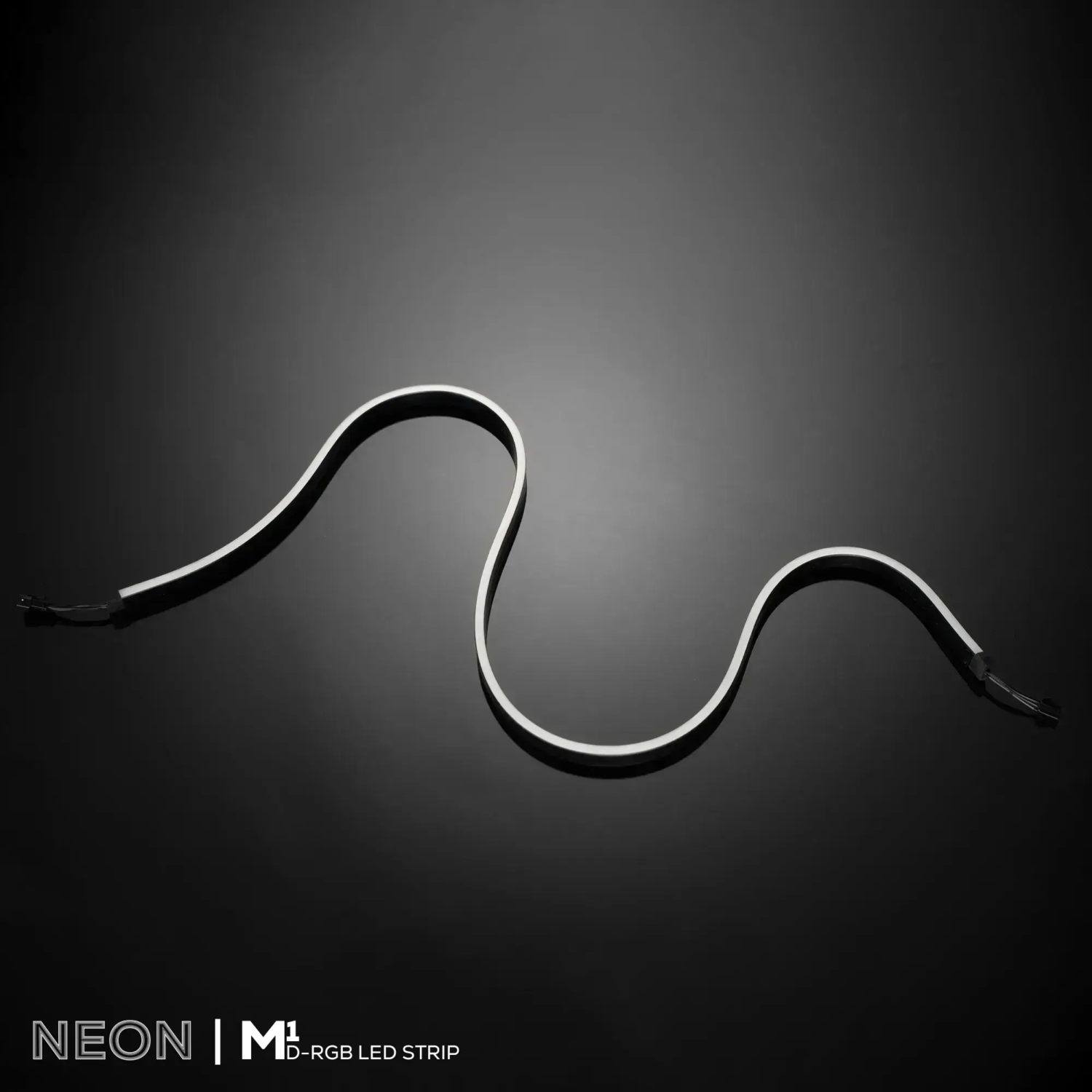

M1
Length: 1000 mm

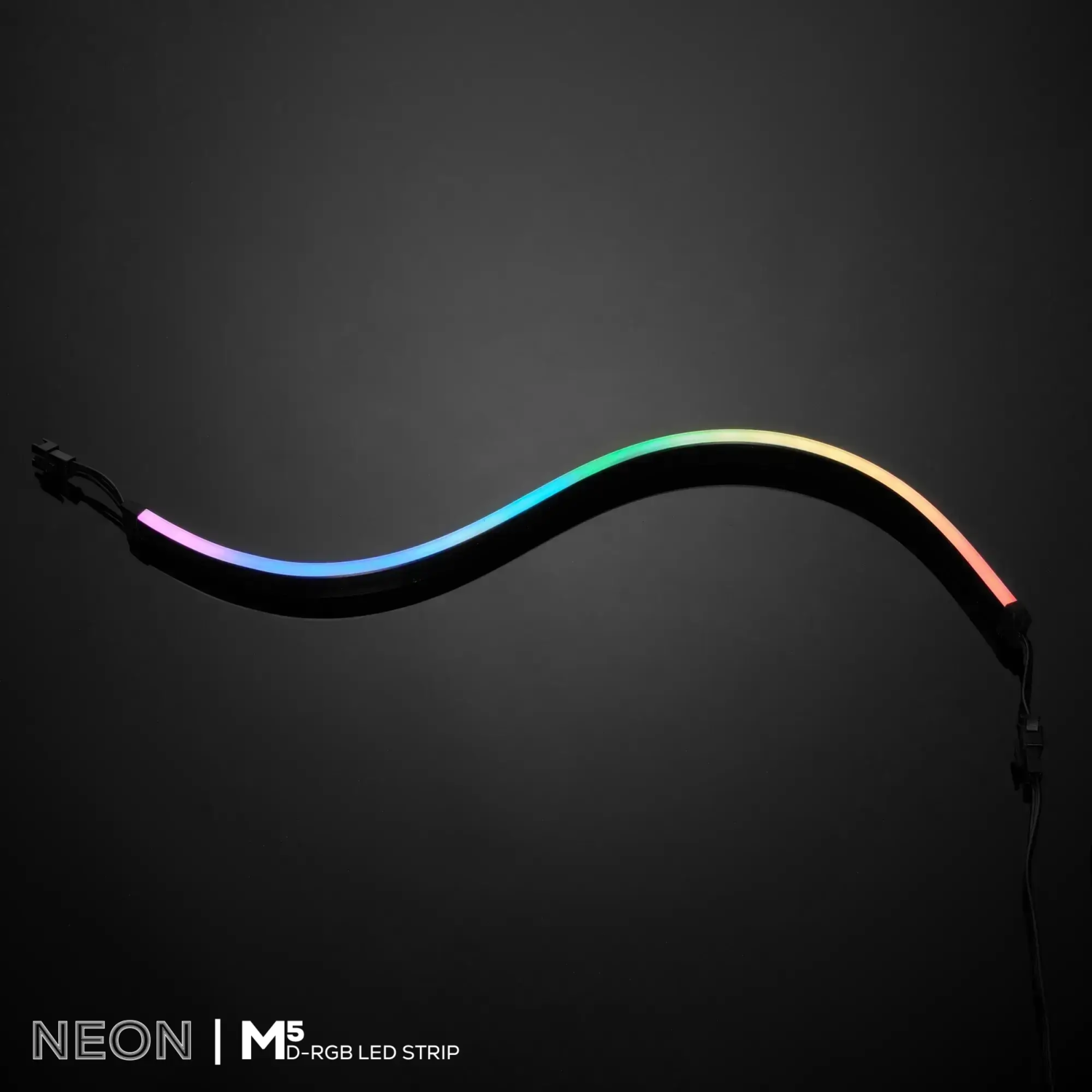

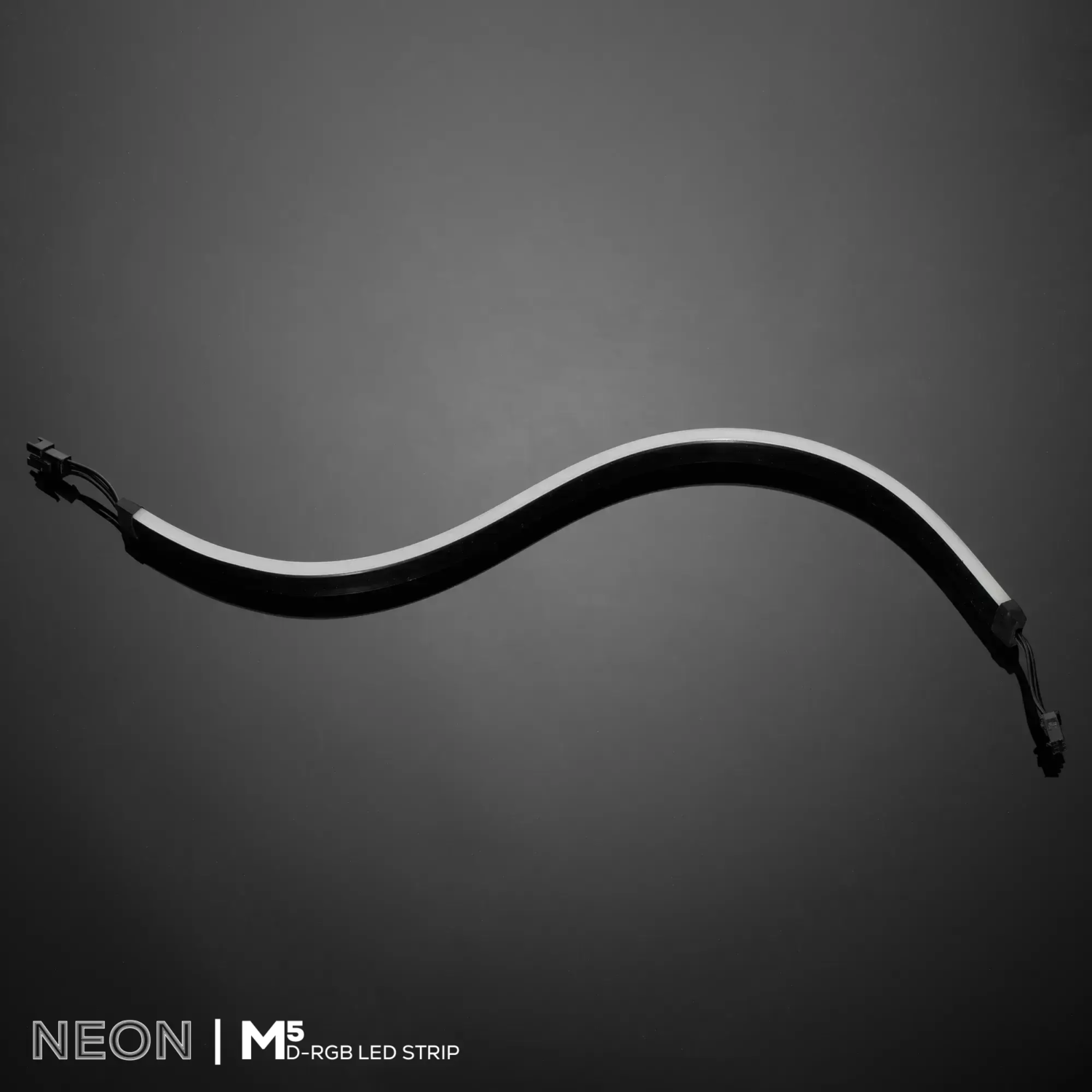

M5
Length: 500 mm

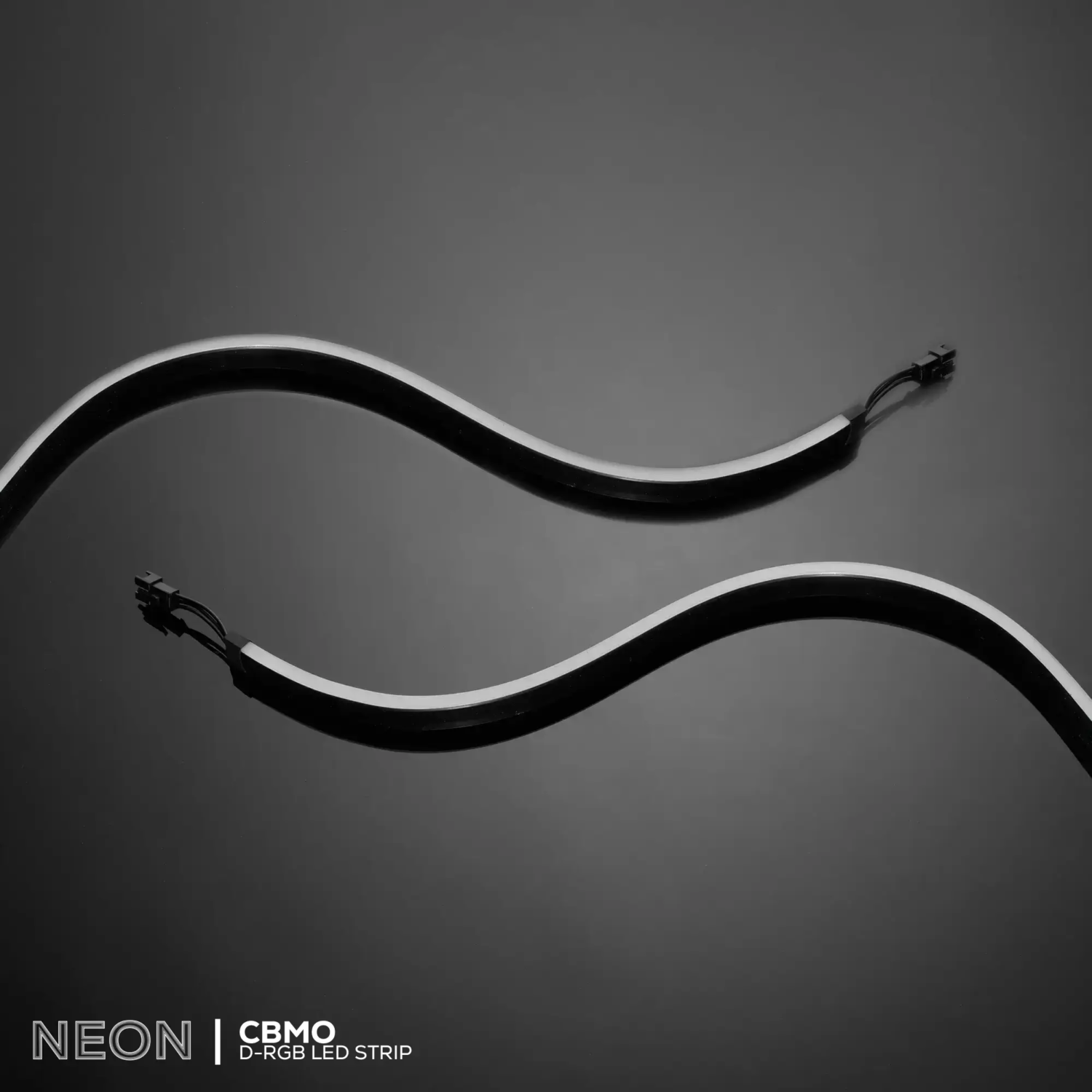

CMBO
Length: 2x 400 mm
Colors
Starter Kit

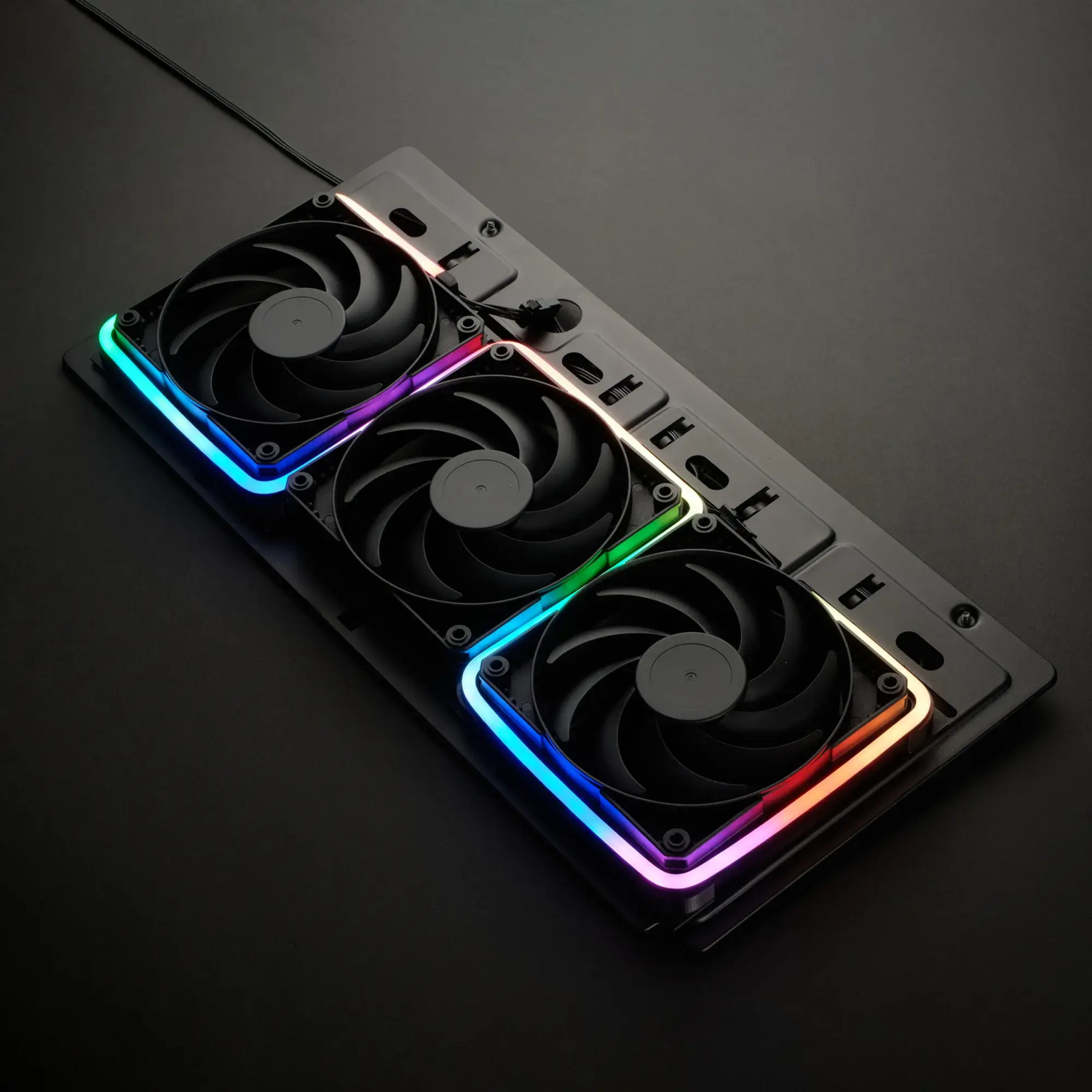

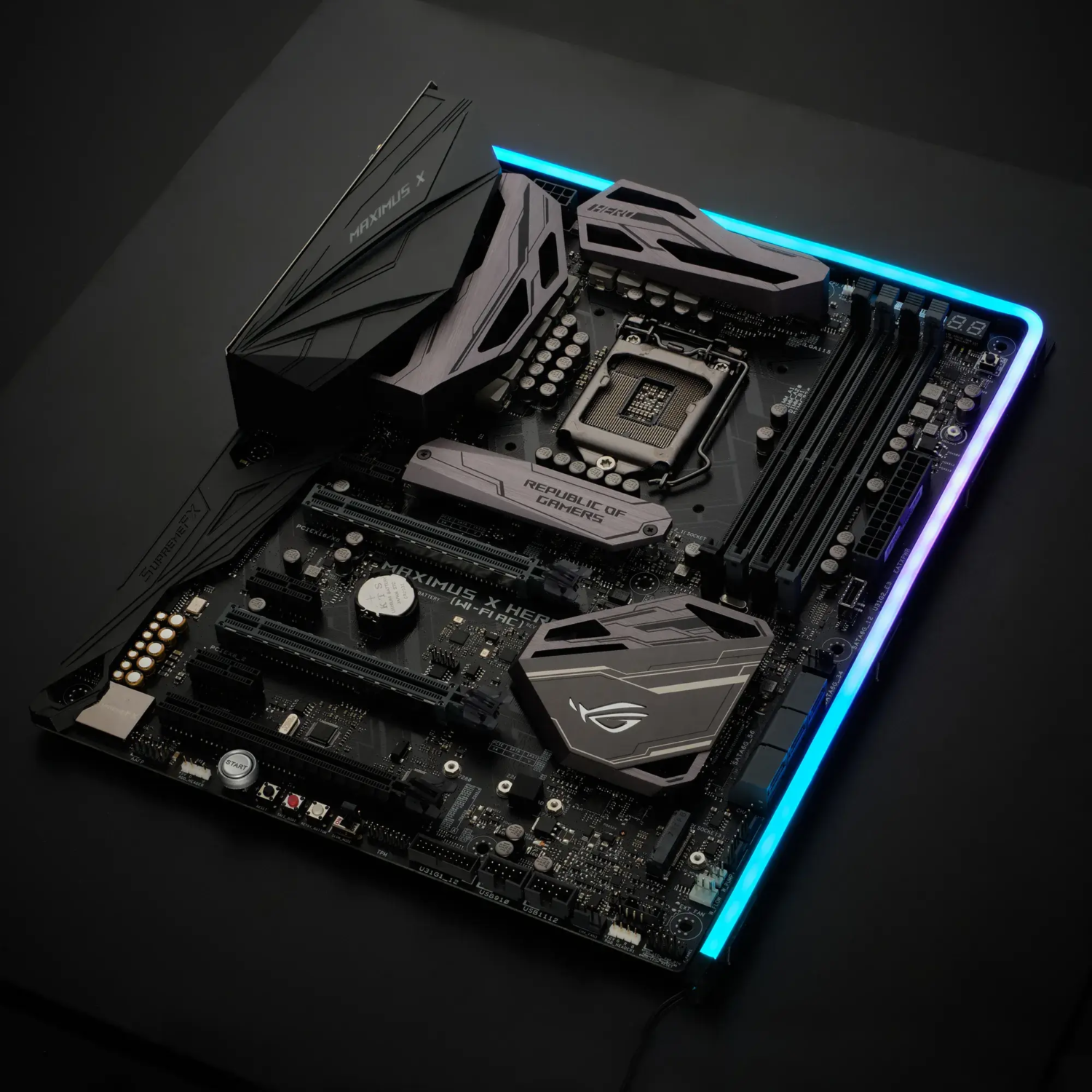

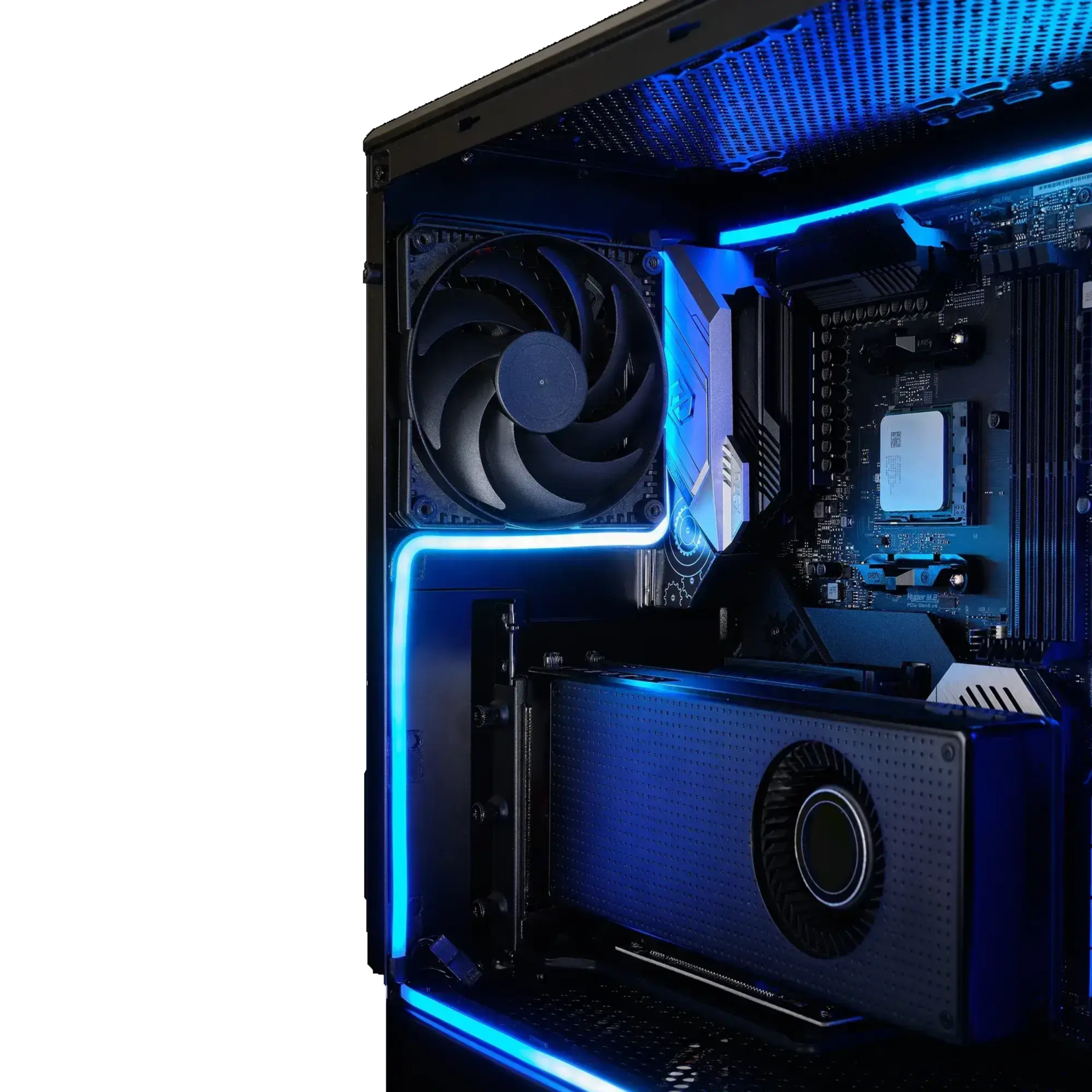

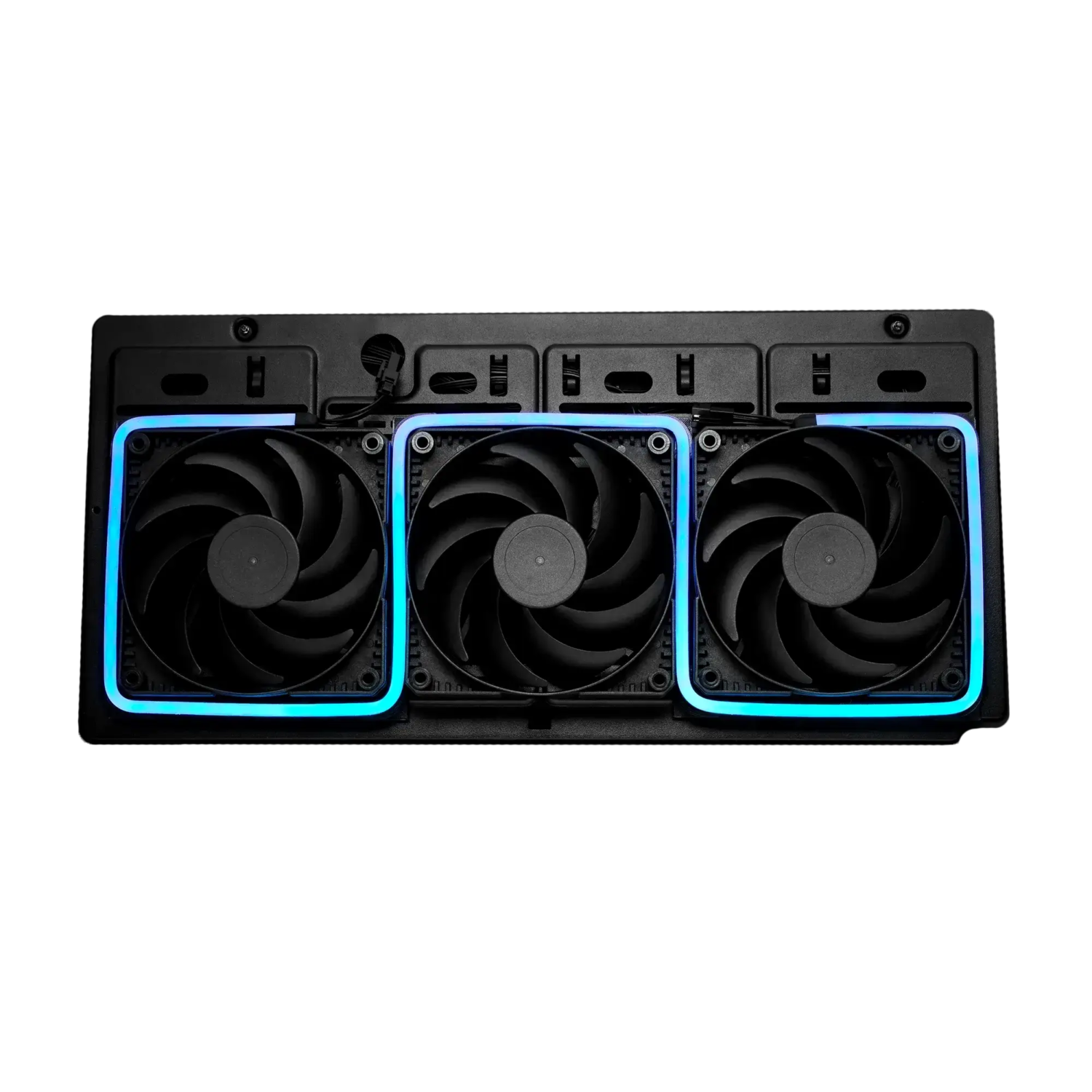

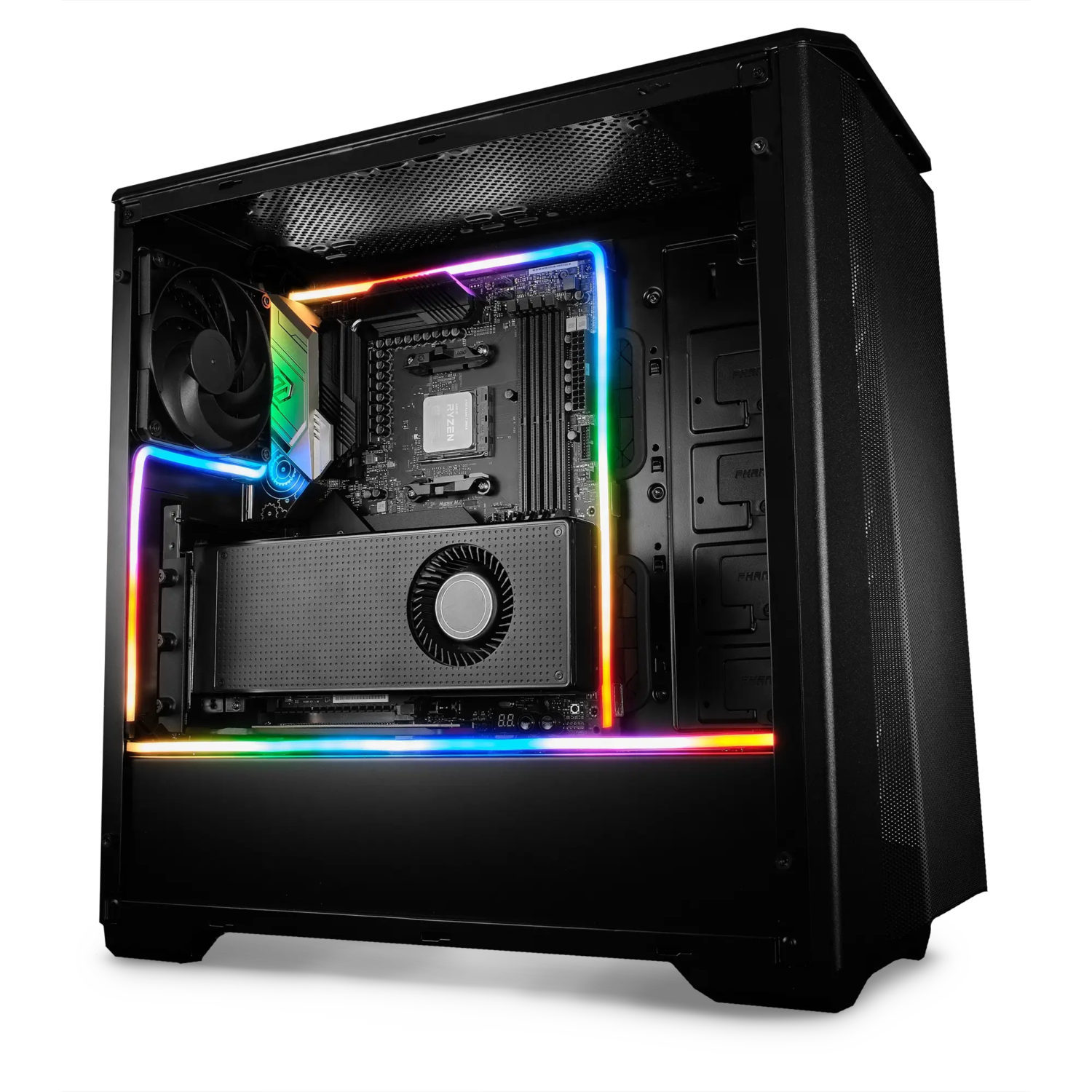

Illuminate Your Hardware
Easy Installation
900 Mount
1800 Mount
Flat Mount
Strong M3 Adhesive
Smooth D-RGB Lighting
Specifications
M1
M5
Model No.
PH-NELEDKT_M1
UPC Code
886523001584
Colors
Black
D-RGB Color Range
Full RGB color spectrum
Connections
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
Input Voltage
+5V
Current
Single Strip
Max. 2.1A
Wattage
Single Strip
Max. 10.5W
LED Number
70
MTBF
20.000 hrs
Product Dimensions
1000 x 13 x 5.5 mm | 39.4 x 0.5 x 0.2 in
Scope of Delivery
1x 1000 mm | 39.4 in NEON Digital-RGB LED strip
1x 600 mm | 23.6 in Mainboard Digital-RGB adapter | extension
4x 90o mount
4x 180o mount
4x 180o flat mount
12x 3M adhesive
Warranty
2 Years
Model No.
PH-NELEDKT_M5
UPC Code
886523001577
Colors
Black
D-RGB Color Range
Full RGB color spectrum
Connections
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
Input Voltage
+5V
Current
Single Strip
Max. 1.14A
Wattage
Single Strip
Max. 5.7W
LED Number
38
MTBF
20.000 hrs
Product Dimensions
500 x 13 x 5.5 mm | 21.7 x 0.5 x 0.2 in
Scope of Delivery
1x 500 mm | 21.7 in NEON Digital-RGB LED strip
1x 600 mm | 23.6 in Mainboard Digital-RGB adapter | extension
4x 90o mount
4x 180o mount
4x 180o flat mount
12x 3M adhesive
Warranty
2 Years
Combo
Starter Kit
Model No.
PH-NELEDKT_CMBO
UPC Code
886523001560
Colors
Black
D-RGB Color Range
Full RGB color spectrum
Connections
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
Input Voltage
+5V
Current
Single Strip
Max. 0.84A
Wattage
Single Strip
Max. 4.2W
LED Number
28 (Single strip)
MTBF
20.000 hrs
Product Dimensions
400 x 13 x 5.5 mm | 15.74 x 0.5 x 0.2 in
Scope of Delivery
2x 400 mm NEON D-RGB LED strip
1x 600 mm Mainboard D-RGB adapter
1x 600 mm Extension cable
4x 90o Mount
4x 180o Mount
4x 180o Flat mount
12x 3M Adhesive
Warranty
2 Years
Model No.
PH-DRGB_SKT
UPC Code
886523001348
Colors
Black
D-RGB Color Range
Full RGB color spectrum
Connections
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
Input Voltage
+5V
Current
Single Strip
Max. 0.84A
Wattage
Single Strip
Max. 4.2W
LED Number
30 (Single strip)
MTBF
20.000 hrs
Product Dimensions
400 x 13 x 5.5 mm | 15.74 x 0.5 x 0.2 in
Scope of Delivery
1 x Digital LED control hub with housing
1x Controller cable 1000 mm
1x SATA power cable 200 mm
3x Digital LED output cable 70 mm
1x Digital LED mainboard adaptor 60 0mm
1x 3M Velcro sticker for controller housing
2x 400 mm (15.7 in) Phanteks Digital RGB LED strip
1x 400 mm Extension cable
4x 150 mm (5.9 in) 3M strip stickers
1x User’s Manual
Warranty
2 Years
