XT Pro Ultra

Spacious, Powerful & Affordable

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.

Colors

Black

Black

White

White

Configurations

Pro

Pro Ultra

Cool and Powerful

  • Dedicated top 360 radiator space in the top.

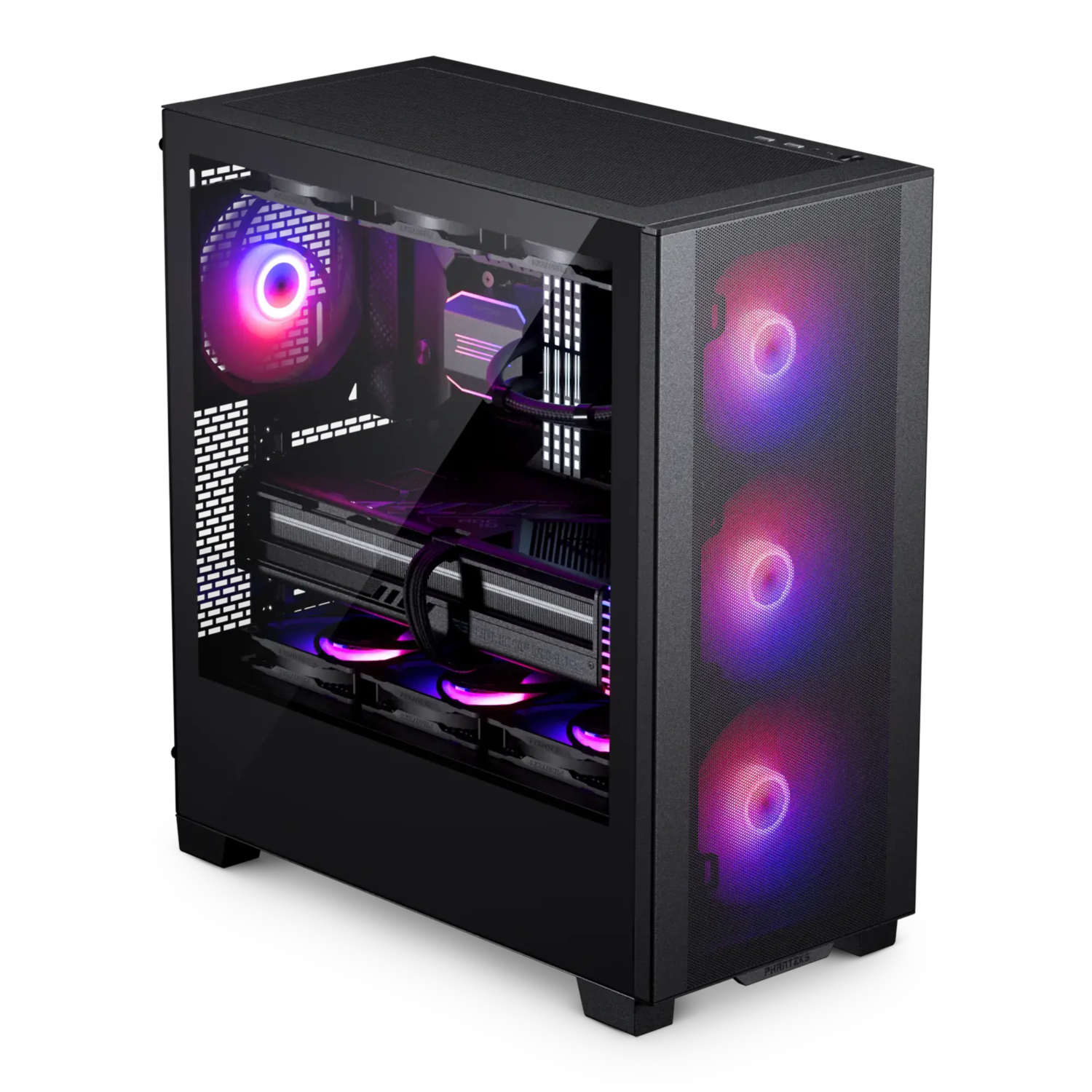

  • Triple 120mm positions on the midplate for direct GPU cooling.

  • A total of 10x 120 fans | 6x 140 + 3x 120 fan locations

Build for the Future

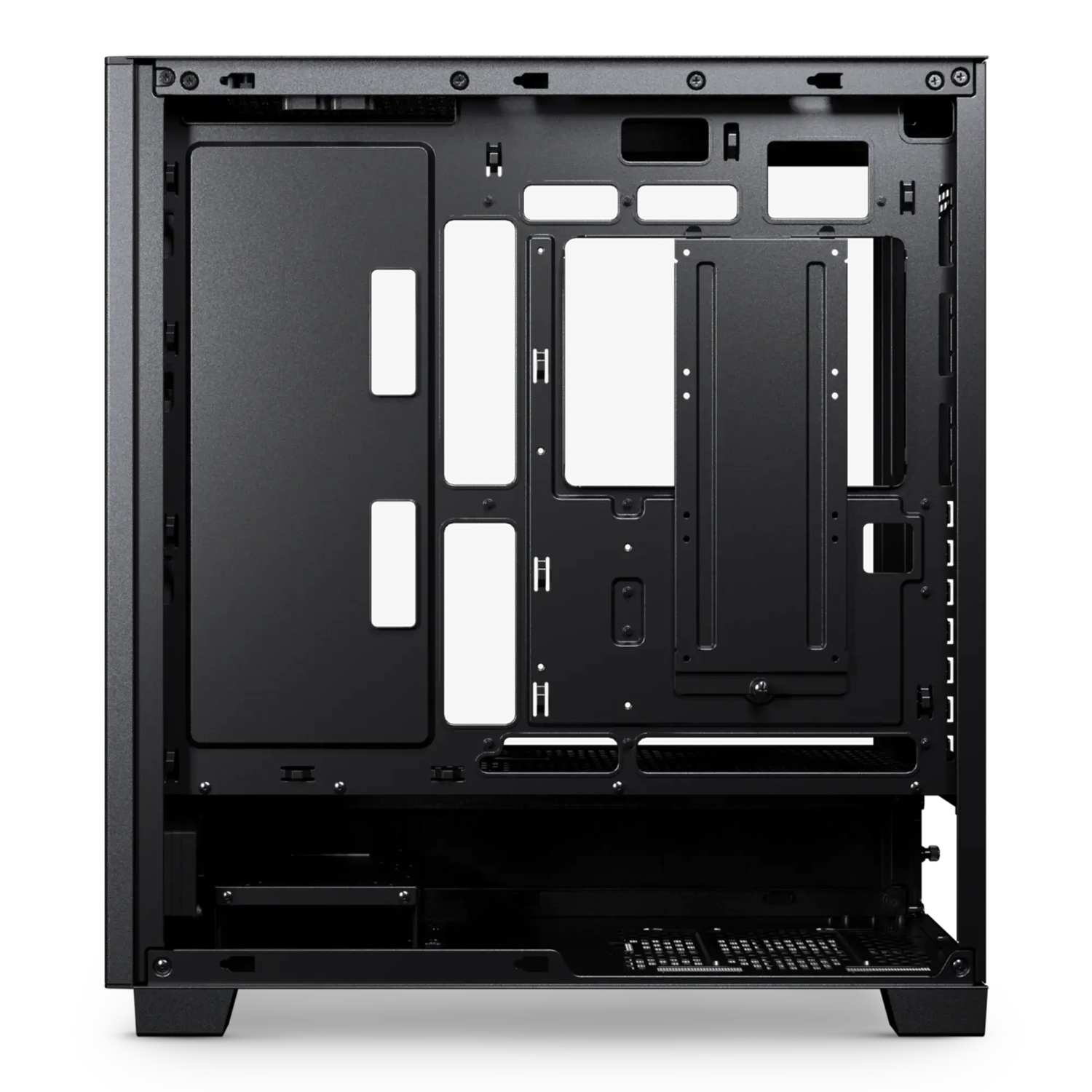

  • UNLOCK THE ZERO-CABLE SETUP
    Mainboards with hidden connectors on the rear-side are fully supported by the XT Pro chassis.

  • Support for MSI Project Zero mainboards.

  • Support for ASUS BTF mainboards.

Packed with Value

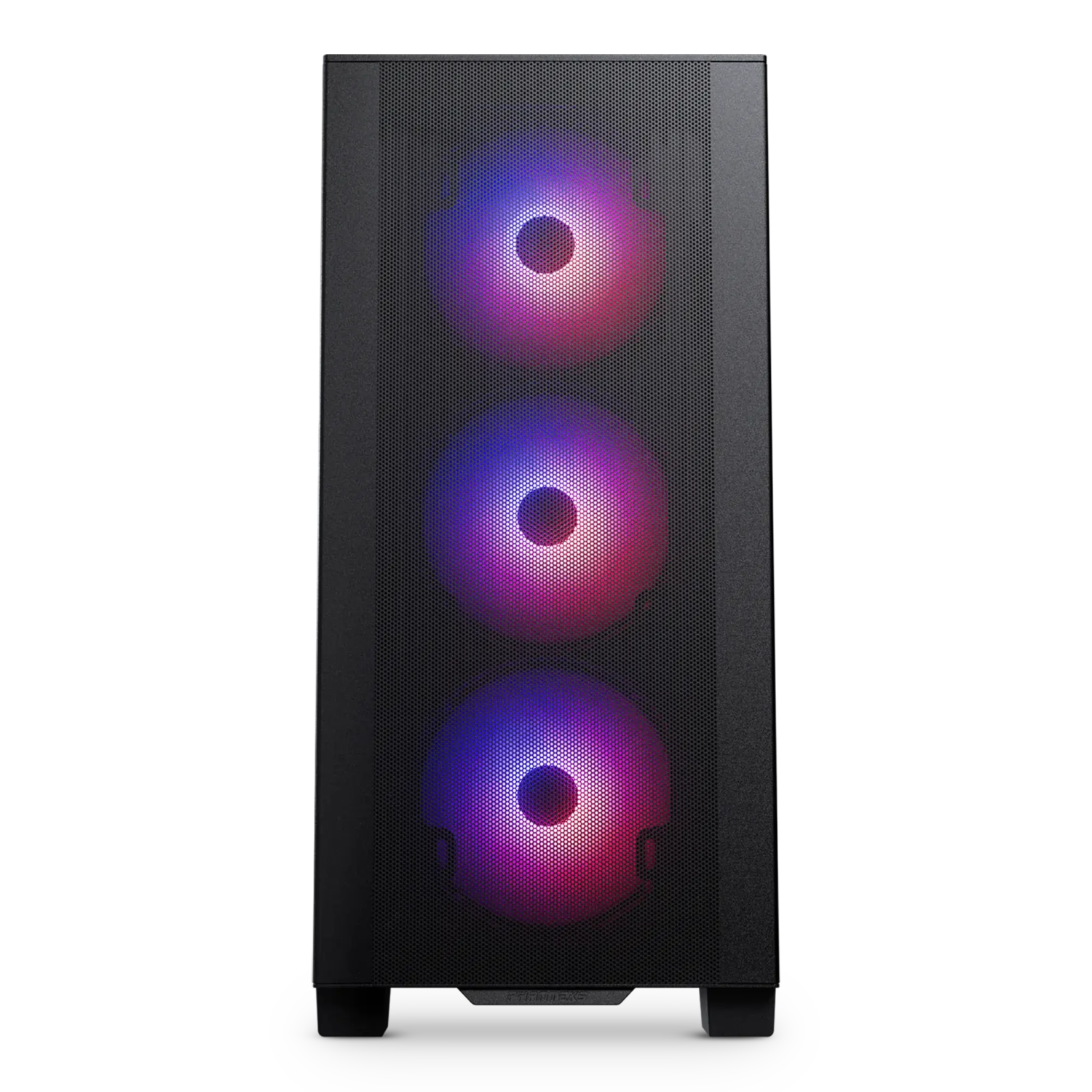

  • Powerful and cool with 4x D-RGB 140mm fans build in.

  • USB-C 3.2 Gen2 for ultra-fast data transfers.

Integrated D-RGB lighting

  • Refined D-RGB lighting effects that just work, no software required

  • Optionally sync with motherboard and software

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

Multiple Storage Options

  • Configuration 01
    5x 2.5″ + 1x 3.5″

  • Configuration 02
    3x 2.5″ + 2x 3.5″

Specifications

General

Model No.

PH-XT523P1_DBK01

UPC Code

886523303138

Case Dimensions

450 x 230 x 500 mm | 17.7×9.05×19.68 in

Form Factor

Mid-Tower

Mainboard Support

E-ATX* | ATX | Micro-ATX | Mini-ITX

*Up to 280mm wide

Materials

Steel chassis | Tempered glass | ABS plastic

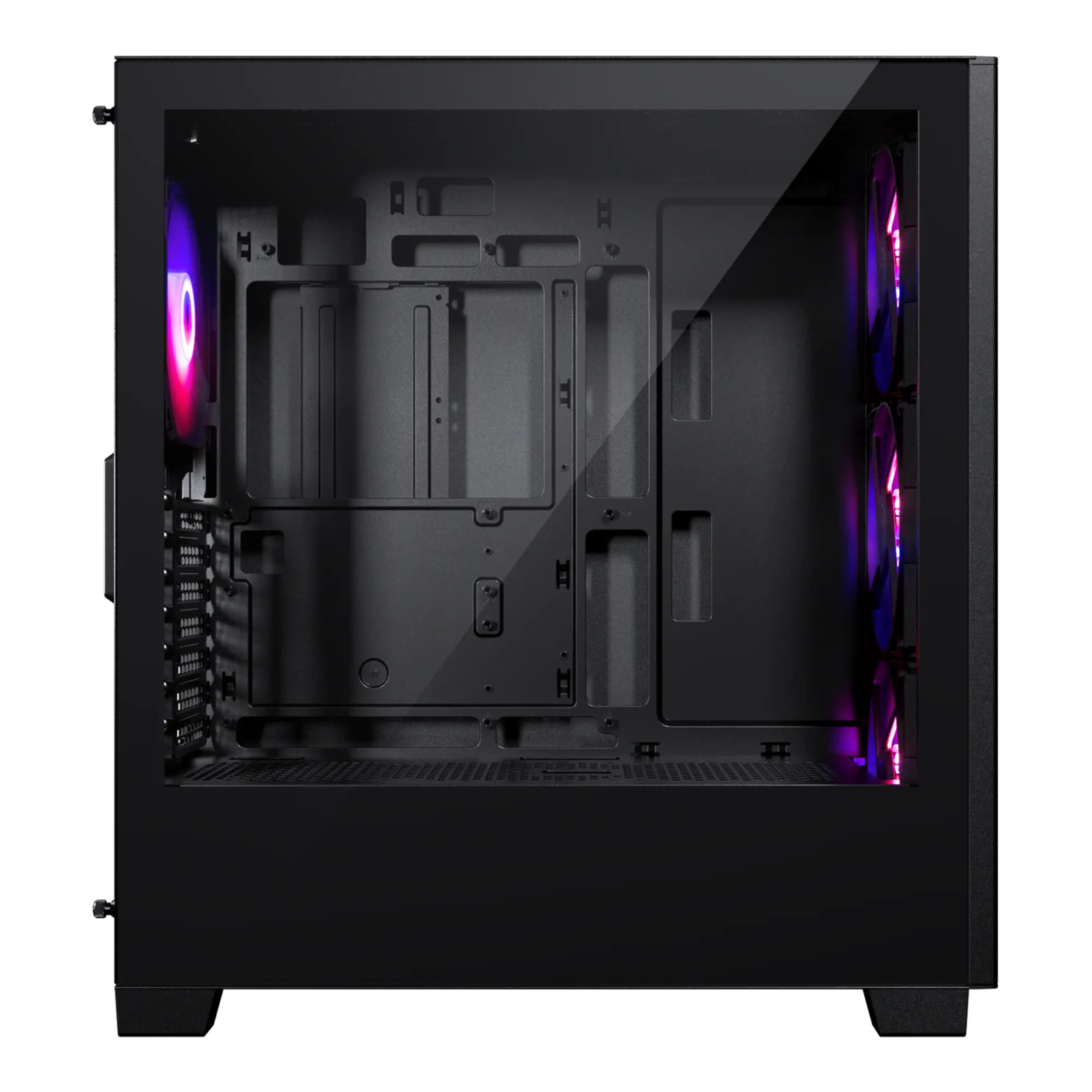

Side Window

Yes

PCI Slots

7

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

5

+ 1x 3.5″ HDD

Internal 3.5″ Bay

2

+ 3x 2.5″ SSD

Front I/O

1x USB-C 3.2 Gen2
1x USB 3.0
Microphone | Headphone combo
Power Button
Reset Button

Fans

Total Fans

120 mm | 140 mm

10x | 6x

Top

3x | 2x

Front

3x | 3x

Side

– | –

Rear

1x | 1x

Midplate

3x | –

Radiators

Top

Max. 360 | –

Front

Max. 240 | –

Side

– | –

Rear

120 | –

Midplate

– | –

Clearance

CPU Cooler

Height

184 mm | 7.24 in

GPU

Length

415 mm | 16.33 in

GPU

Width

184 mm | 7.24 in

Power Supply

Length

270 mm | 10.62 in

Top Radiator

Length x Width x Height

415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in

Front Radiator

Length x Width

170 x 132 mm | 6.69 x 5.19 in

Side Radiator

Length x Width

Midplate Radiator

Length x Width

Extra

Net Weight

7.55 kg | 16.64 lbs

Gross Weight

9.45 kg | 20.83 lbs

Warranty

5 Years limited

Scope of Delivery

1x XT Pro Ultra chassis
4x M25-140 D-RGB fans

Accessory

30x Zip ties

Screws

30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
12x 30mm Fan Screw
1x Motherboard stand-off
1x Stand-off removal tool

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
