Glacier One 360M25 LCD
360 Cooling with 6″ Display

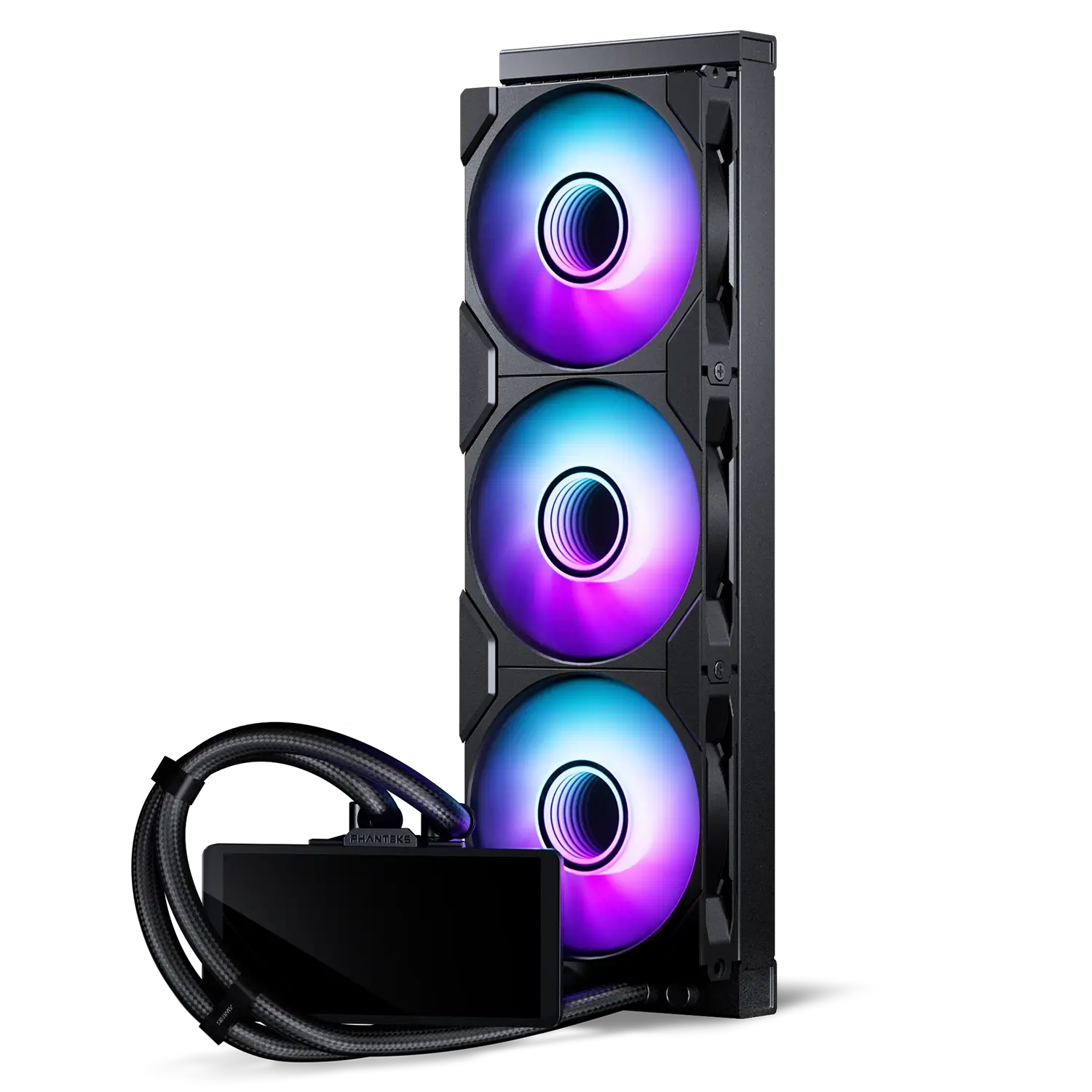

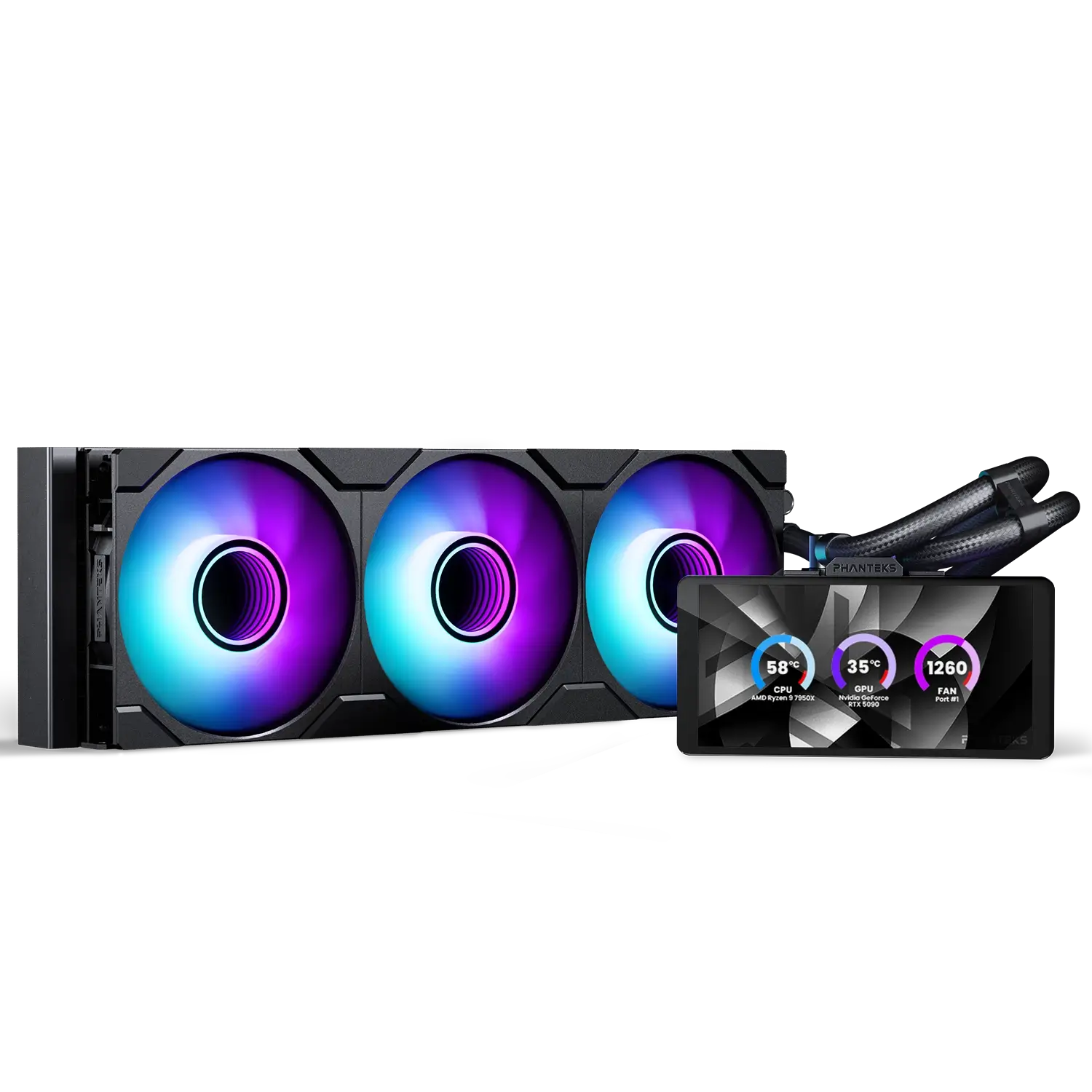

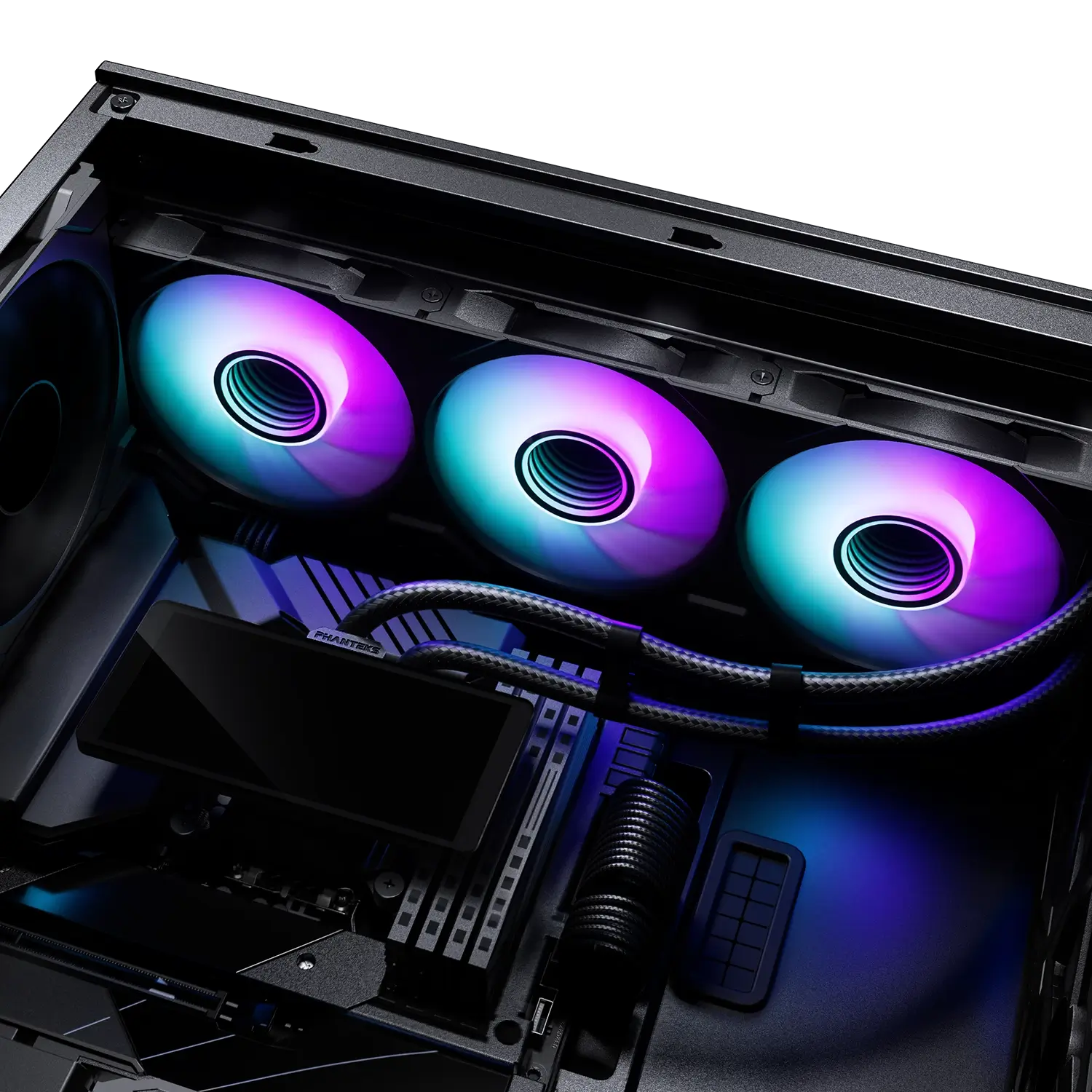

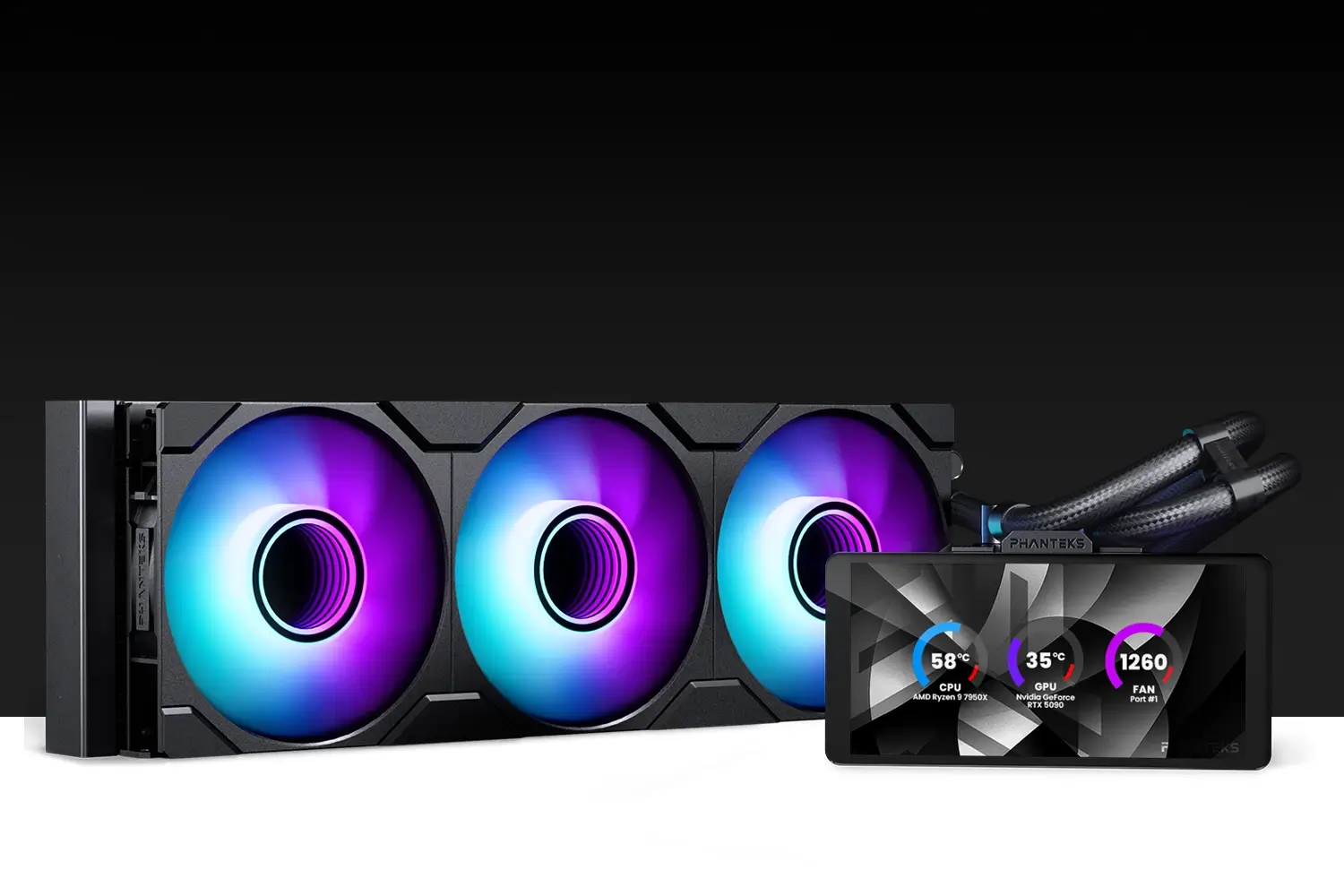

The Phanteks Glacier One 360M25-LCD brings customization to a whole new level with a crisp, super large LCD-IPS display. Built on top of a powerful and reliable liquid CPU cooler and three powerful M25 Gen2 fans, it keeps the most powerful CPUs cool and stays whisper quiet.

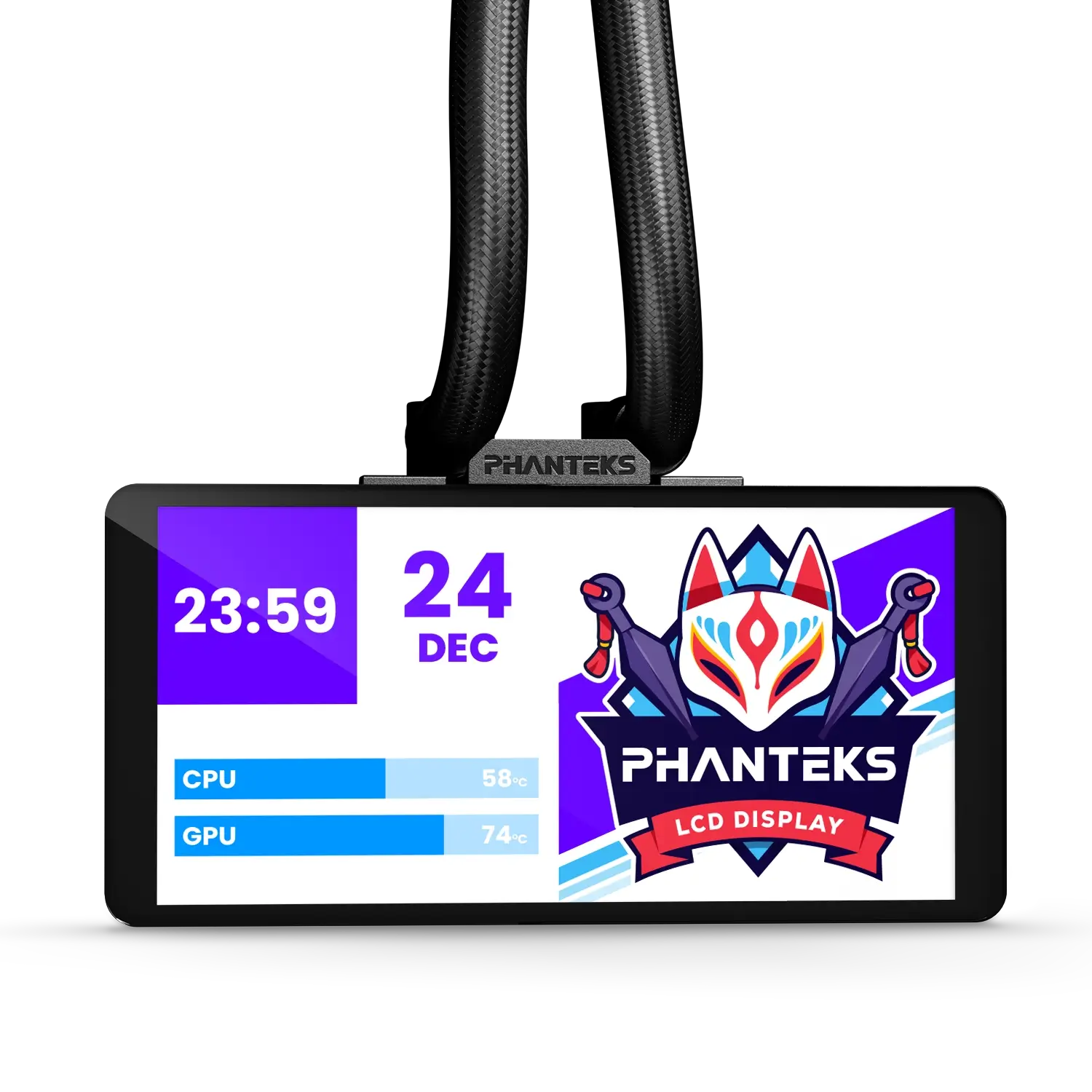

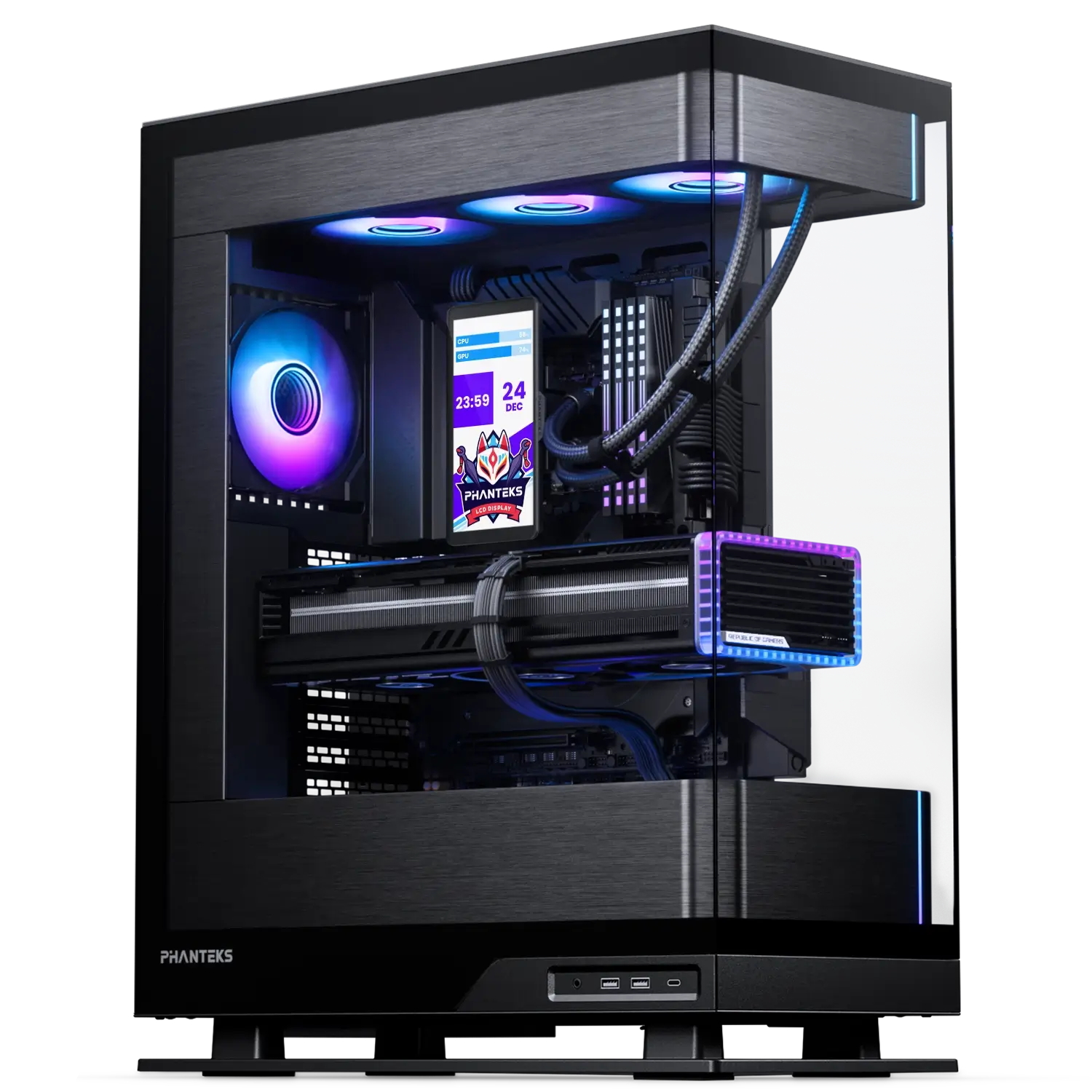

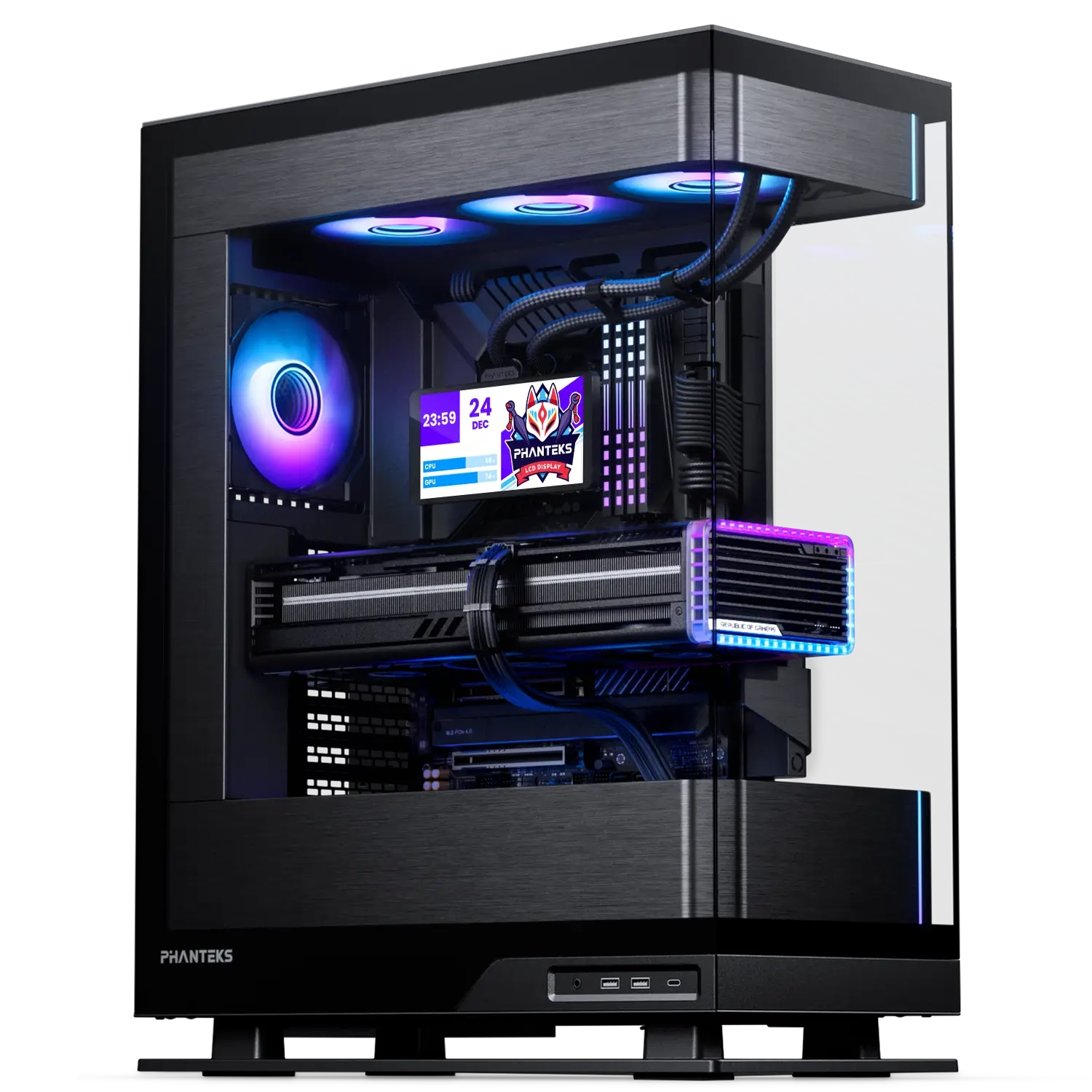

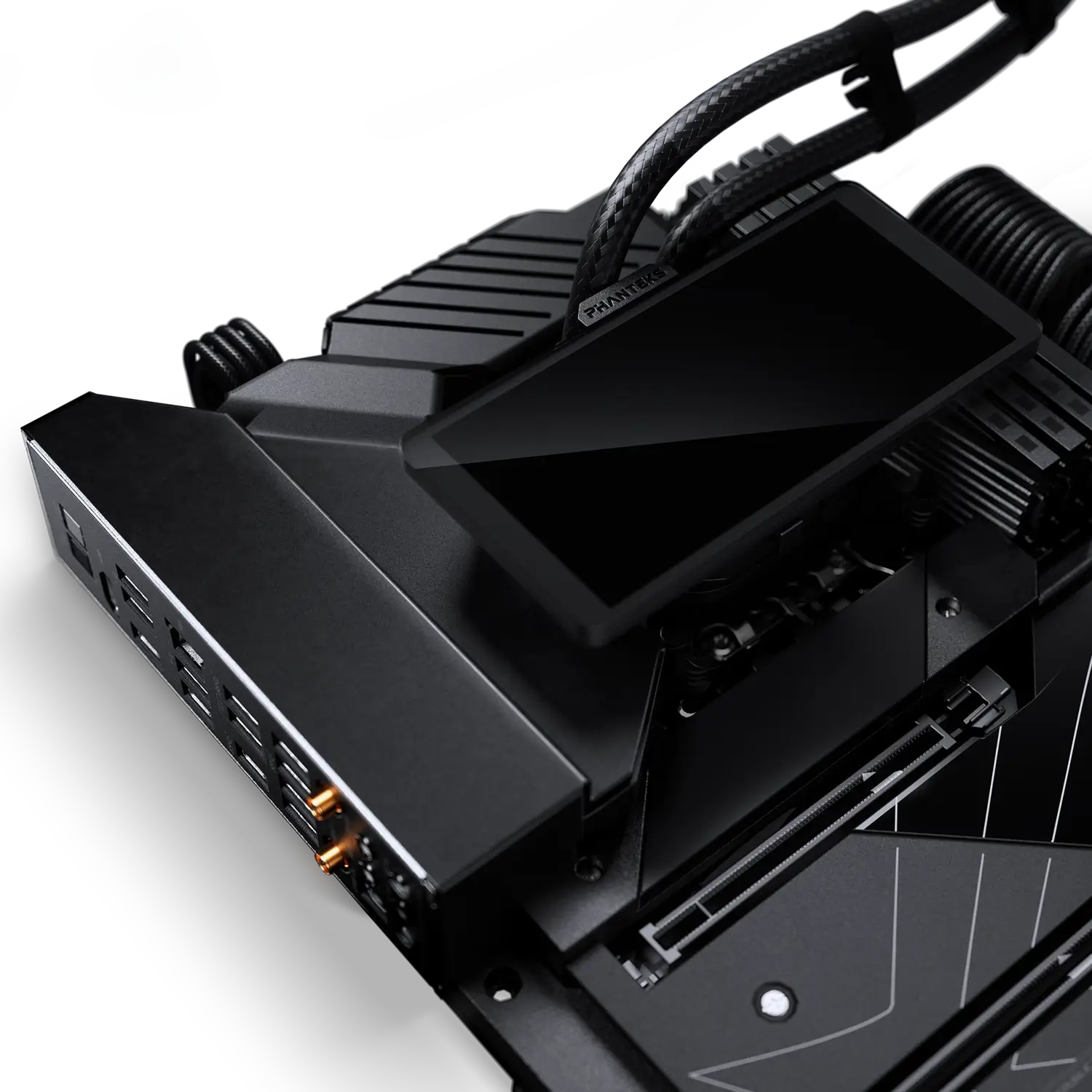

Its large 6″ LCD-IPS display is installed effortlessly and provides ample clearance for mainboard components and even RGB RAM modules. Customization is at the core, with numerous orientations possible and endless possibilities in the Nexlinq App for Windows.

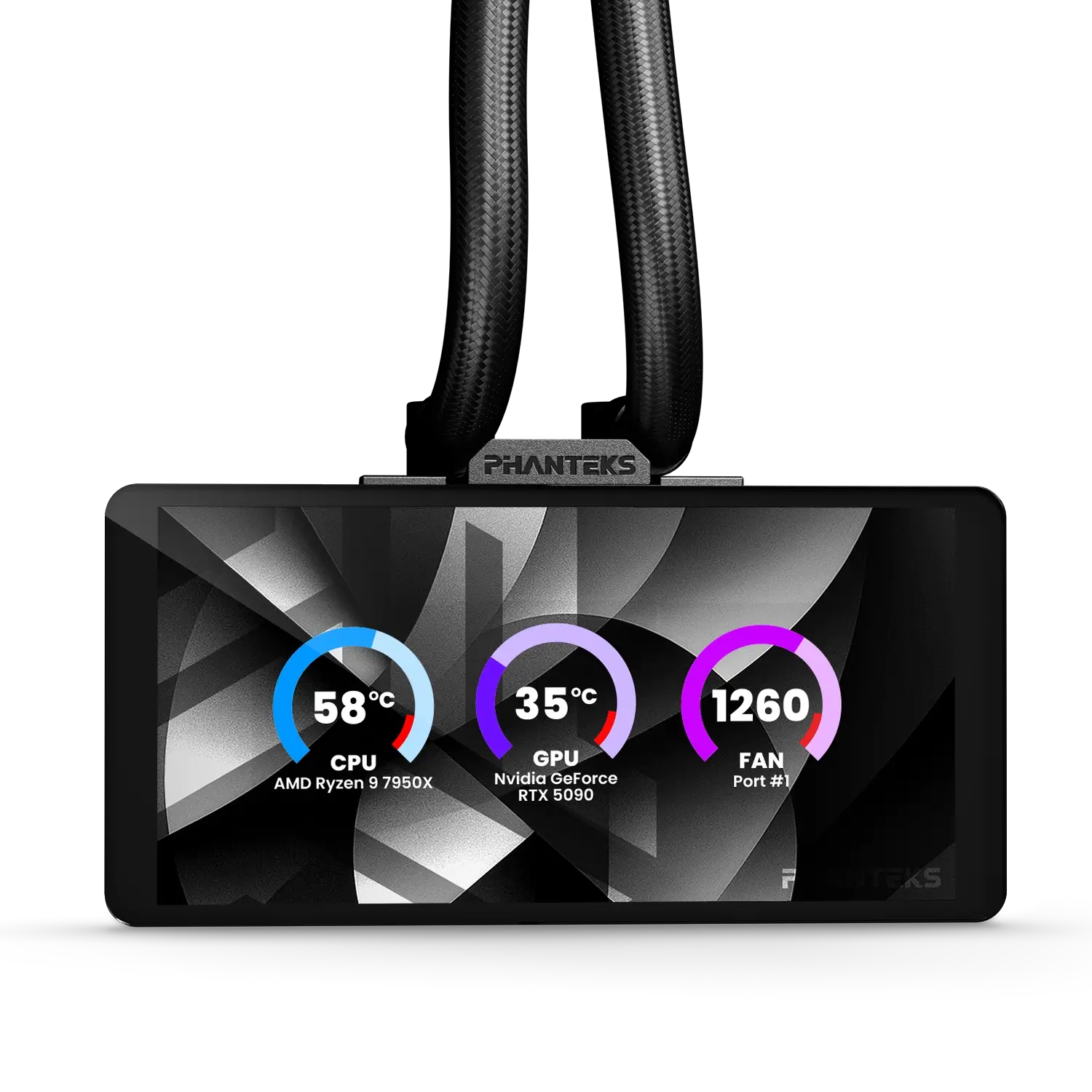

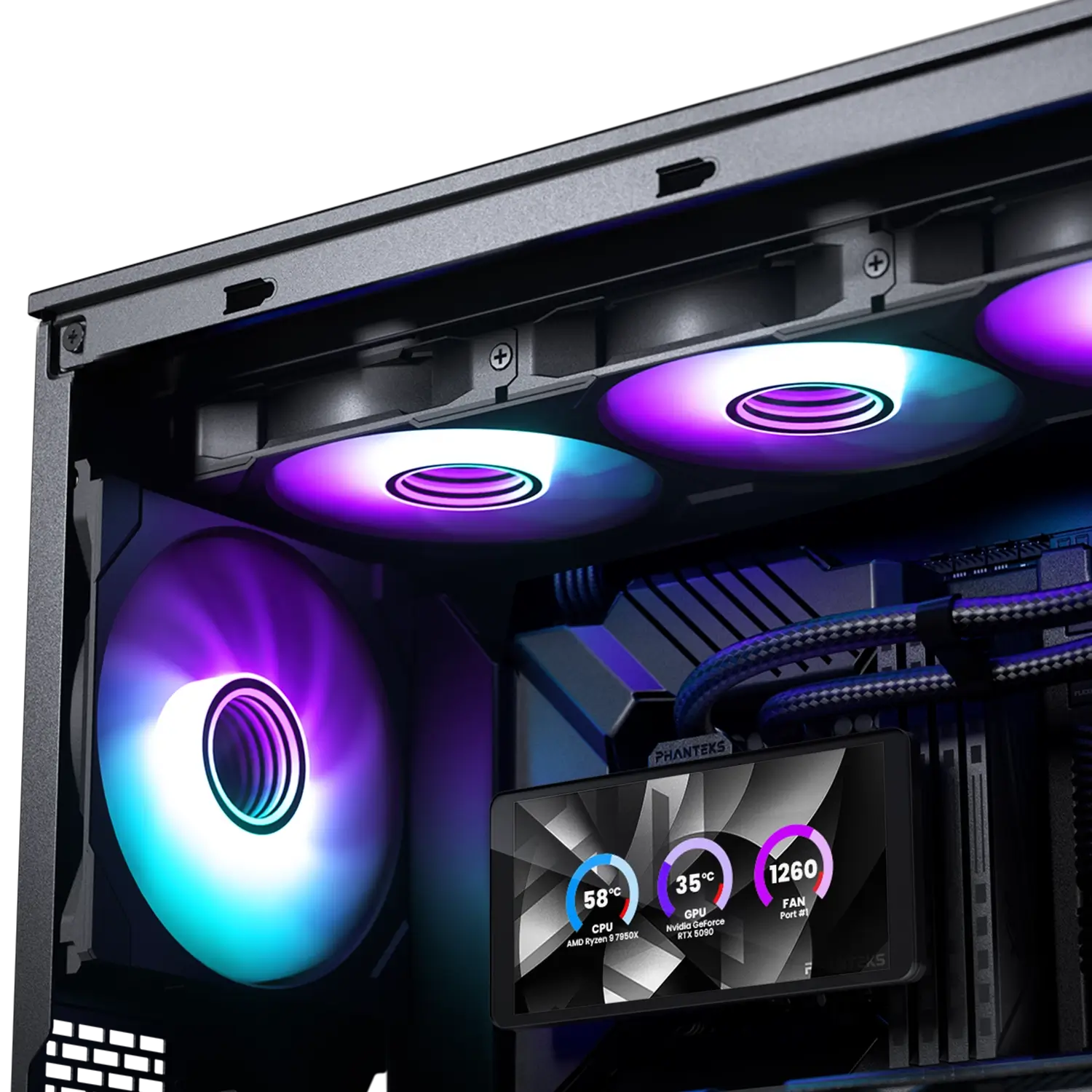

Transform the 6″ display into a personalized command center with real-time system telemetry, thermals, speeds, time, and media—all while running on the hardware itself, saving your precious CPU resources.
Colors
Specifications
General
Model No.
PH-GO360M25G2LCD_DBK01
UPC Code
886523004202
Materials
Aluminum | ABS plastic | Copper | Glass

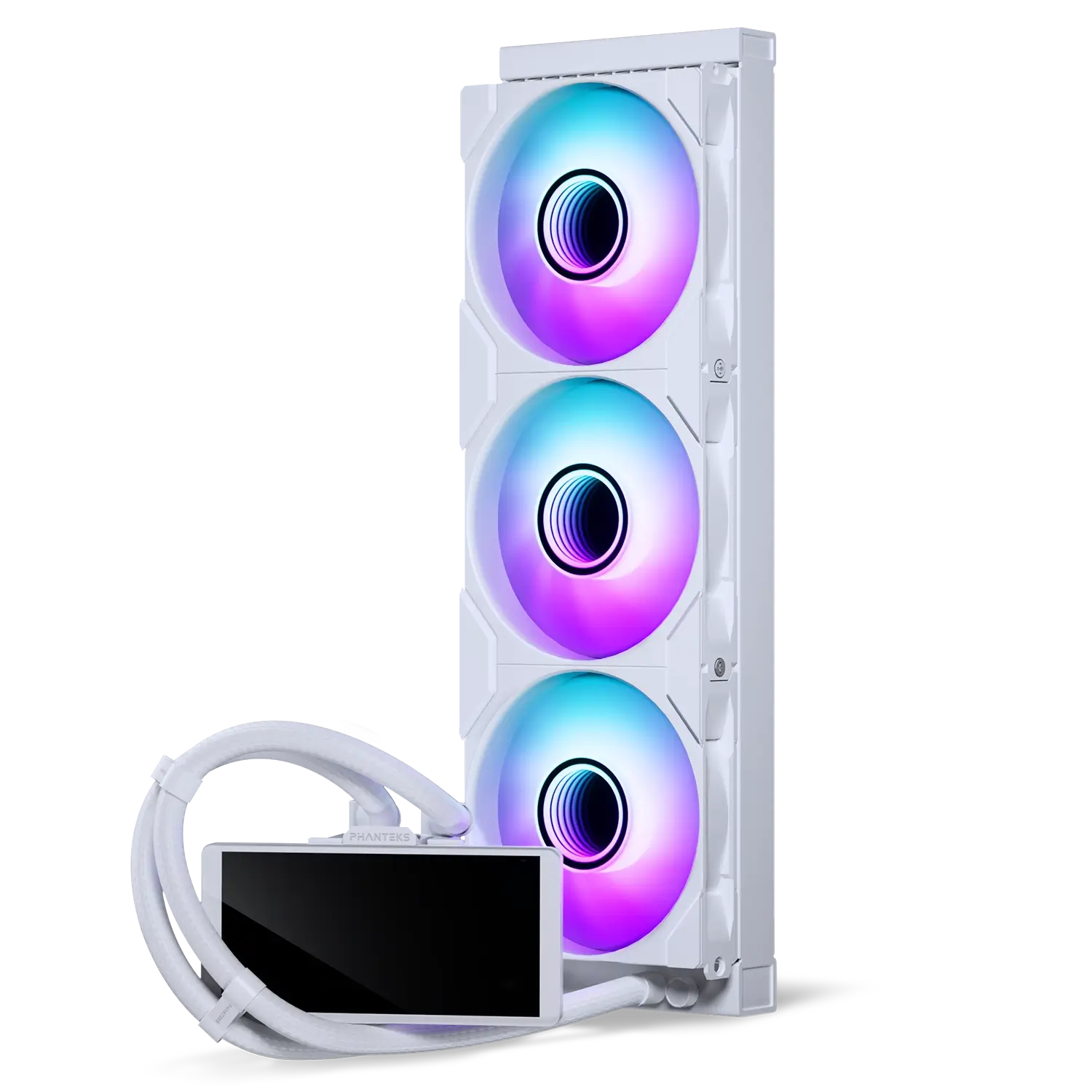

Color
Black
Intel Compatibility
LGA 115x | 1200 | 1700 | 1851
AMD Compatibility
AM4 | AM5
Radiator Dimensions
Length x Width x Height
397 x 120 x 27mm | 15.62 x 4.72 x 1.06 in
Pump Dimensions
Length x Width x Height
68.0 x 74.5 x 51.1 mm | 2.67 x 2.92 x 2.01 in
Pump Details
Tube Details
Motor Speed
3100 RPM ± 10% (100% Duty Cycle)
Power
12V | 0.28A – 0.45A | 3.36W – 3.96W
Pump DC Cable
400 + 10 mm | 15.74 + 0.39 in
Sound Level
20.0 dBA
Material
Copper | ABS
Length
400 mm | 15.74 in
Diameter
12.5 mm ⌀| 0.49 in ⌀

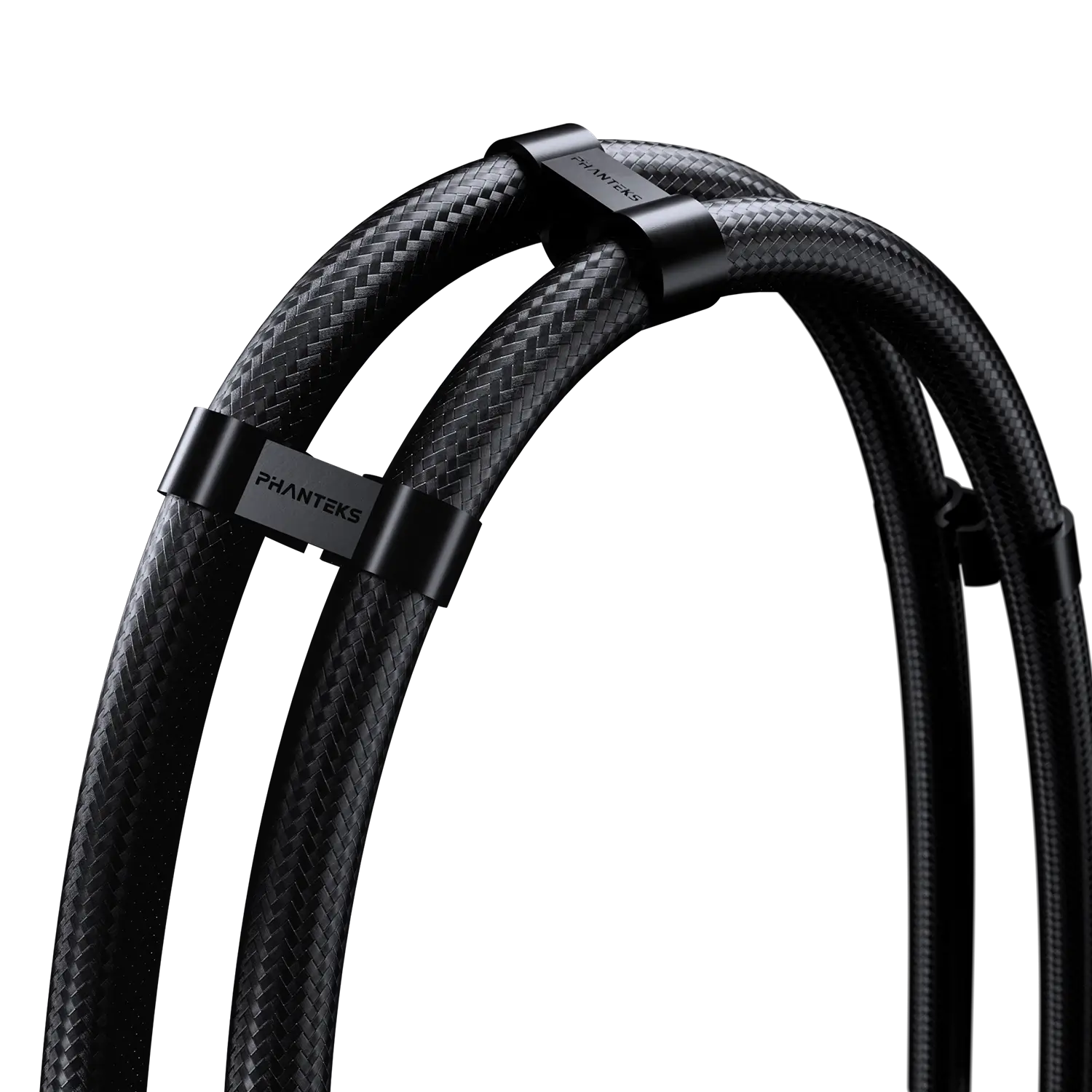

Tube Clips
3x
Material
CIIR rubber| Braided sleeves
LCD Screen LCD6-HD
Fans M25G2-120
LCD Type
IPS panel
LCD Dimensions
145.2 x 70.5 x 2.08 mm | 5.71 x 2.77 x 0.08
LCD Resolution
1480 x 720
Refresh Rate
60 Hz
Luminance
250 Nit
LCD RAM Clearance
51.00 mm
Connector
USB-C
Max Power Draw
0.43A
Fan Model
M25G2-120 D-RGB
Dimensions
Length x Width x Height
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
Speed
350 – 2000 ± 10% RPM
Air Flow
72.72 CFM
Fan Static Pressure
2.51 mm H₂O
Sound Level
35.13 dBA
MTFB
150.000 Hours
Connector
Linq6
Cable Length
500 mm | 19.68 in Daisy-chain
Extra
Scope of Delivery
1x Glacier One 360M25-LCD Pre-applied thermal paste

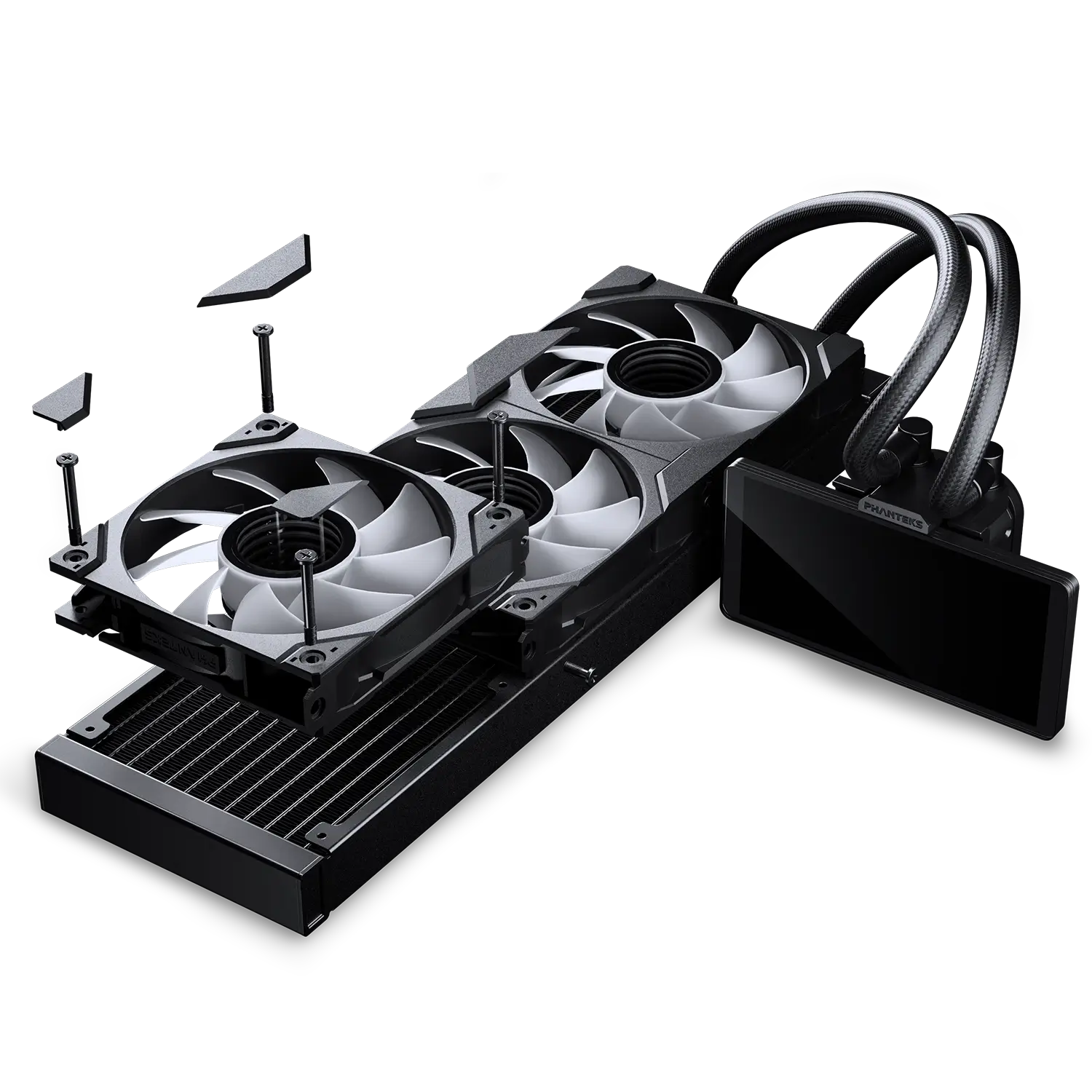

3x M25G2 fans Pre-installed
4x Screw corner covers Pre-installed
4x Screw bridge covers Pre-installed
Accessory Box
3x Tube clip
1x USB-C to USB 2.0 internal header 600 mm
1x Linq6 extension cable 500 mm
1x Linq6 Mainboard adapter cable 500 mm
Screws
12x 36 mm 6-32 UNC Radiator screws
12x 6 mm 6-32 UNC Radiator screws
Mounting Hardware
1x LGA 115X | 1200 | 1700 | 1851 Bracket
1x LGA 115X | 1200 | 1700 | 1851 Plastic backplate
4x LGA 1700 | 1851 Stand-off screws
4x LGA 115X | 1200 Stand-off screws
4x Thumb nuts
2x AM4 | AM5 Adapter brackets
