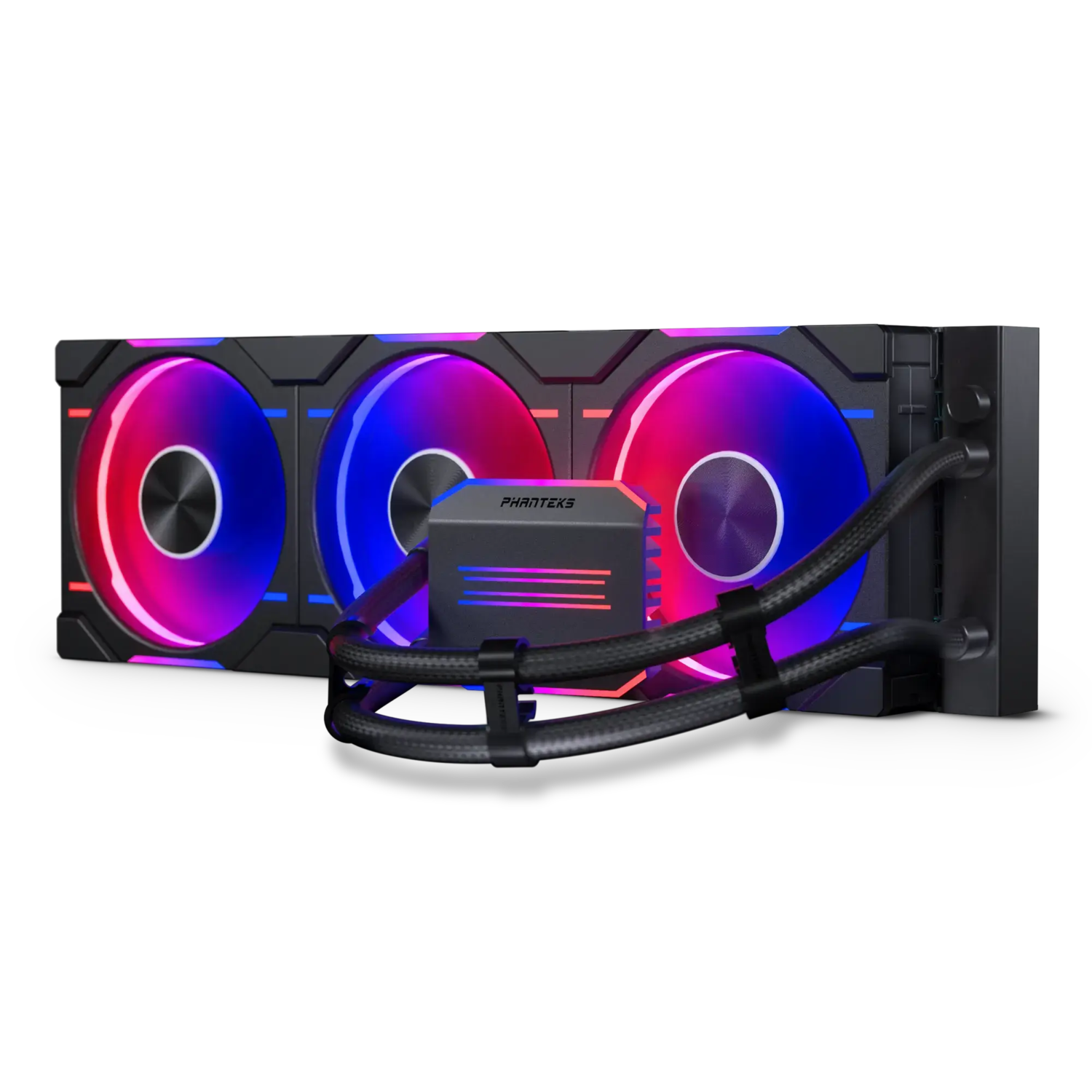

Glacier One 360D30

Premium D-RGB AIO Water Cooling

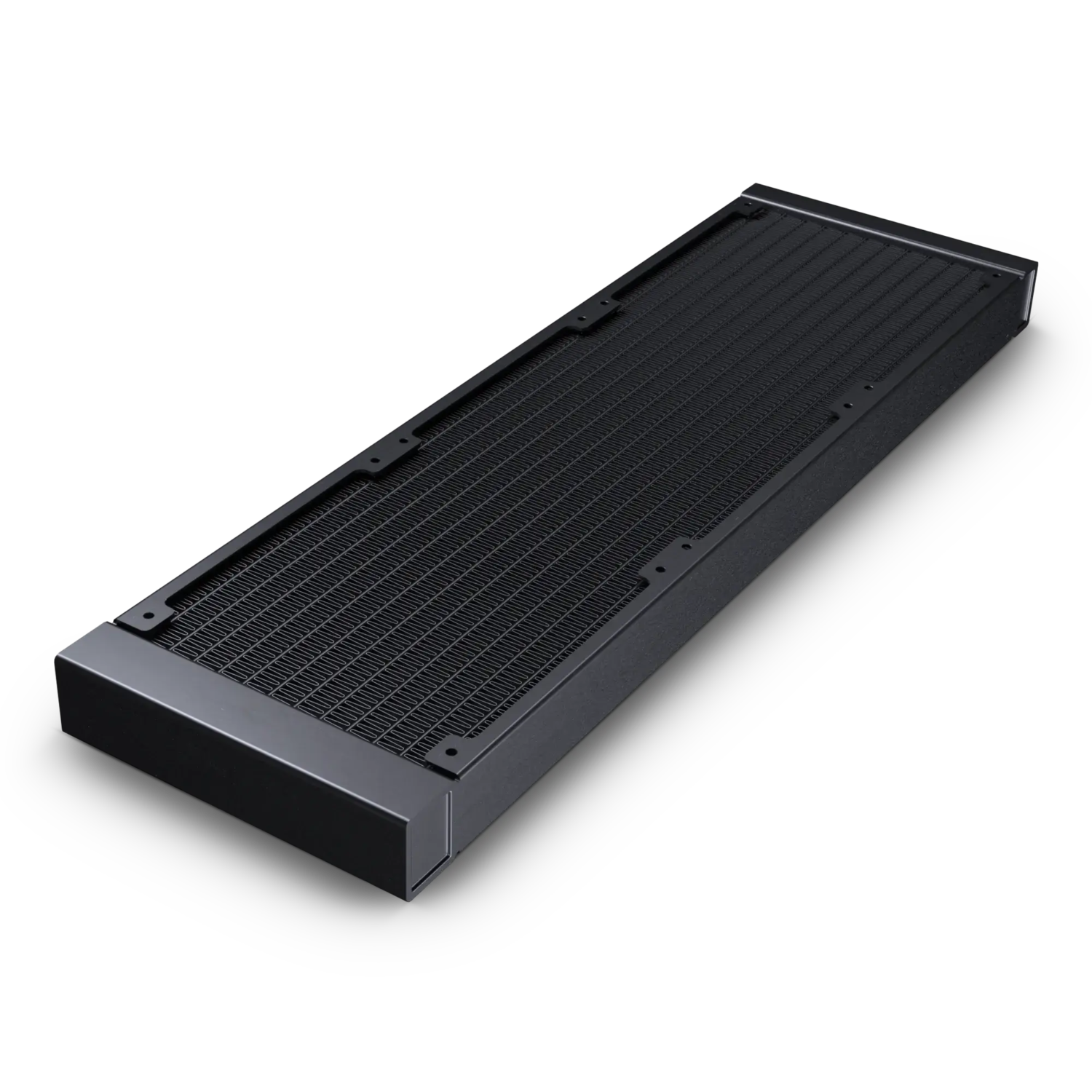

The Glacier One D30 AIO cooler is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the D30 fans. The Glacier One D30 AIO cooler equipped with D30 fans, can be daisy-chained and controlled through a single cable. Its large copper base and fin array make it suitable for use with high-end CPUs, while its design allows for maximum clearance with motherboard and RAM components.

Colors

Black

White

Dimensions

240

360

420

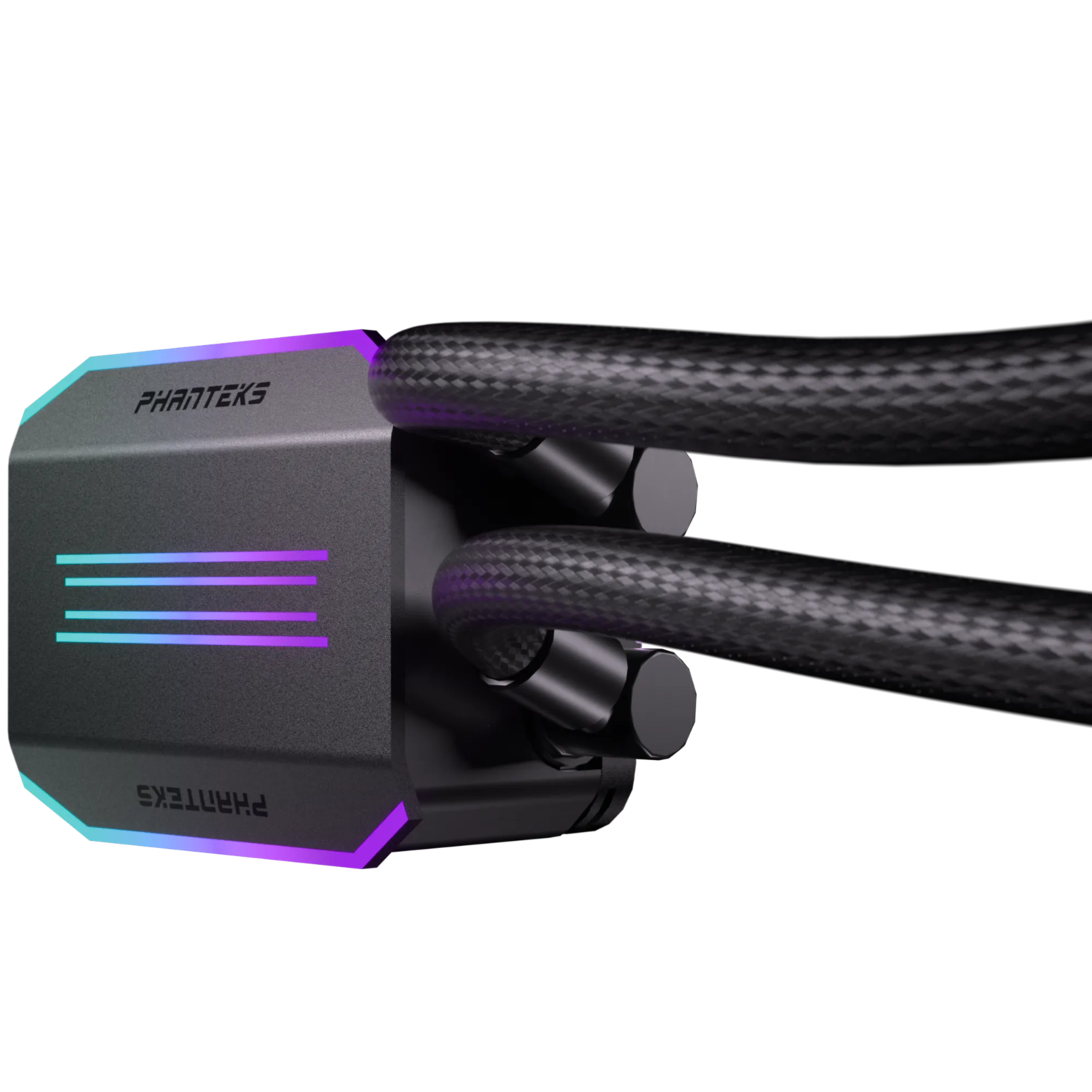

Minimalistic And High Performance Design

  • Highly reliable and silent pump to provide perfect cooling.

  • Large copper base optimized for current and future CPUs.

  • Rotary fittings stay close to the pump to maximize RAM clearance.

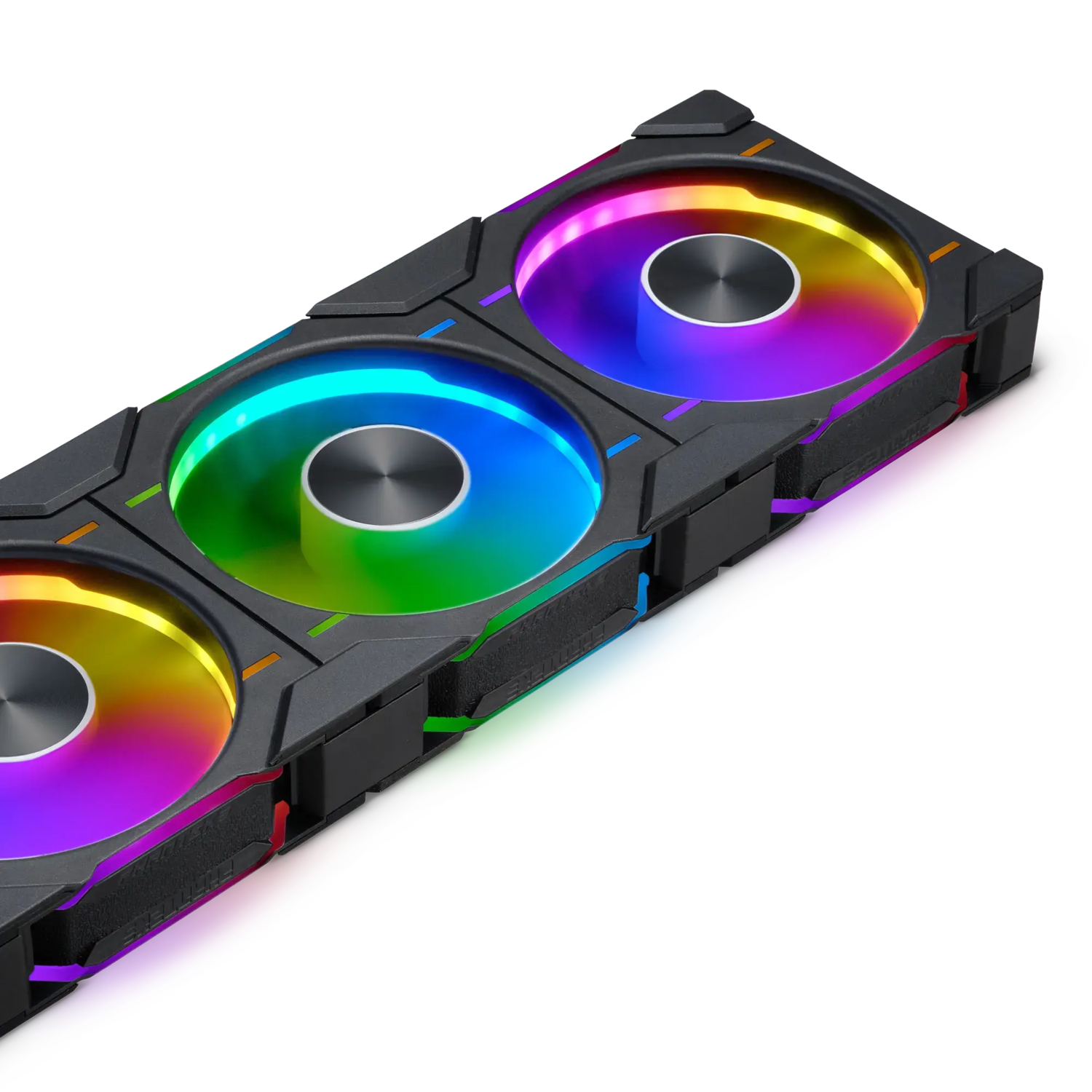

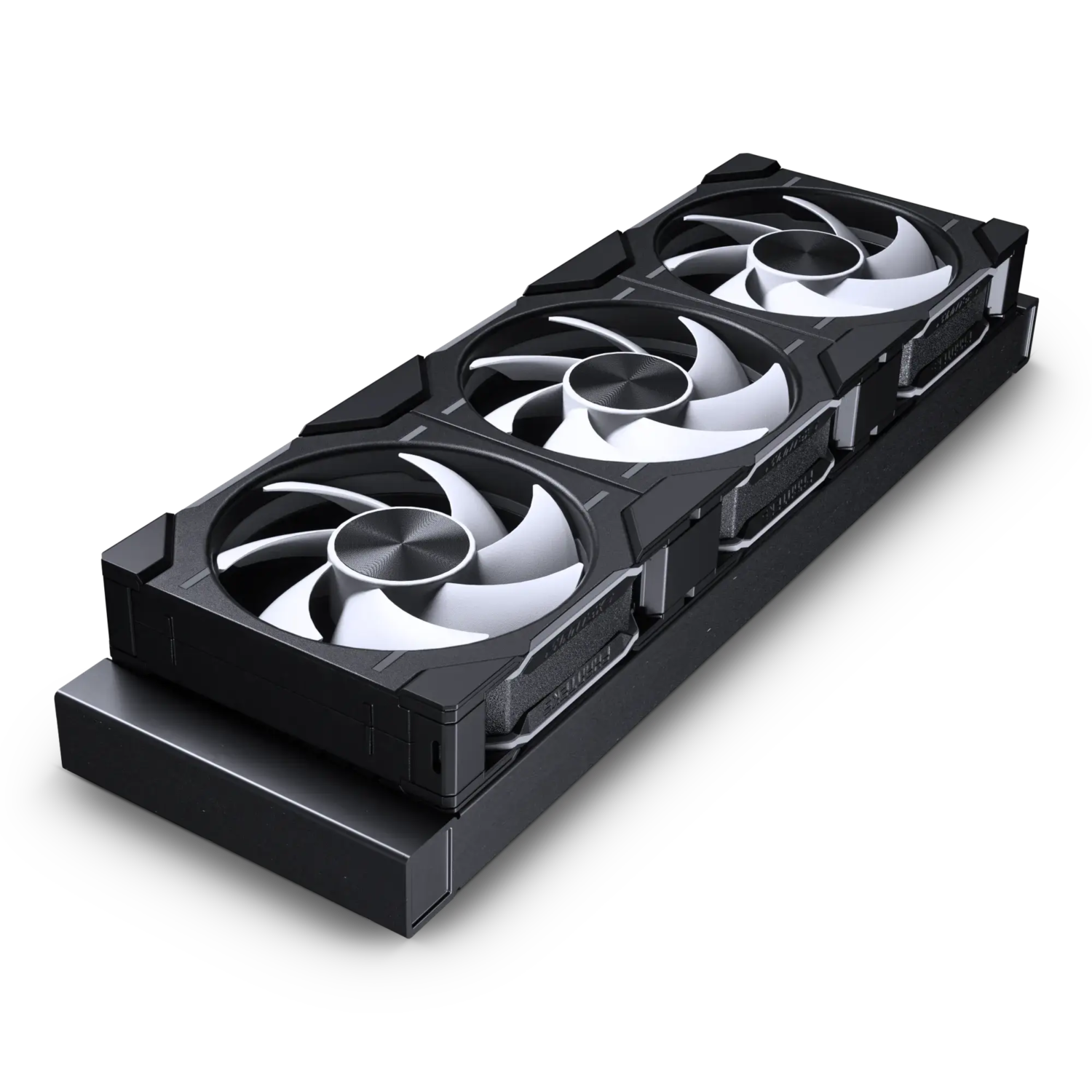

Performance D30 D-RGB PWM Fans

  • High performance 30mm thick frame.

  • Super-clean look with screw cover plates.

Ready To Perform

  • Compatible with all common Intel & AMD sockets.

  • Toolless intuitive mounting system.

  • Pre-applied thermal compound and extra Phanteks thermal compound included.

  • Three tube clips included to guide the tubing and fan cables.

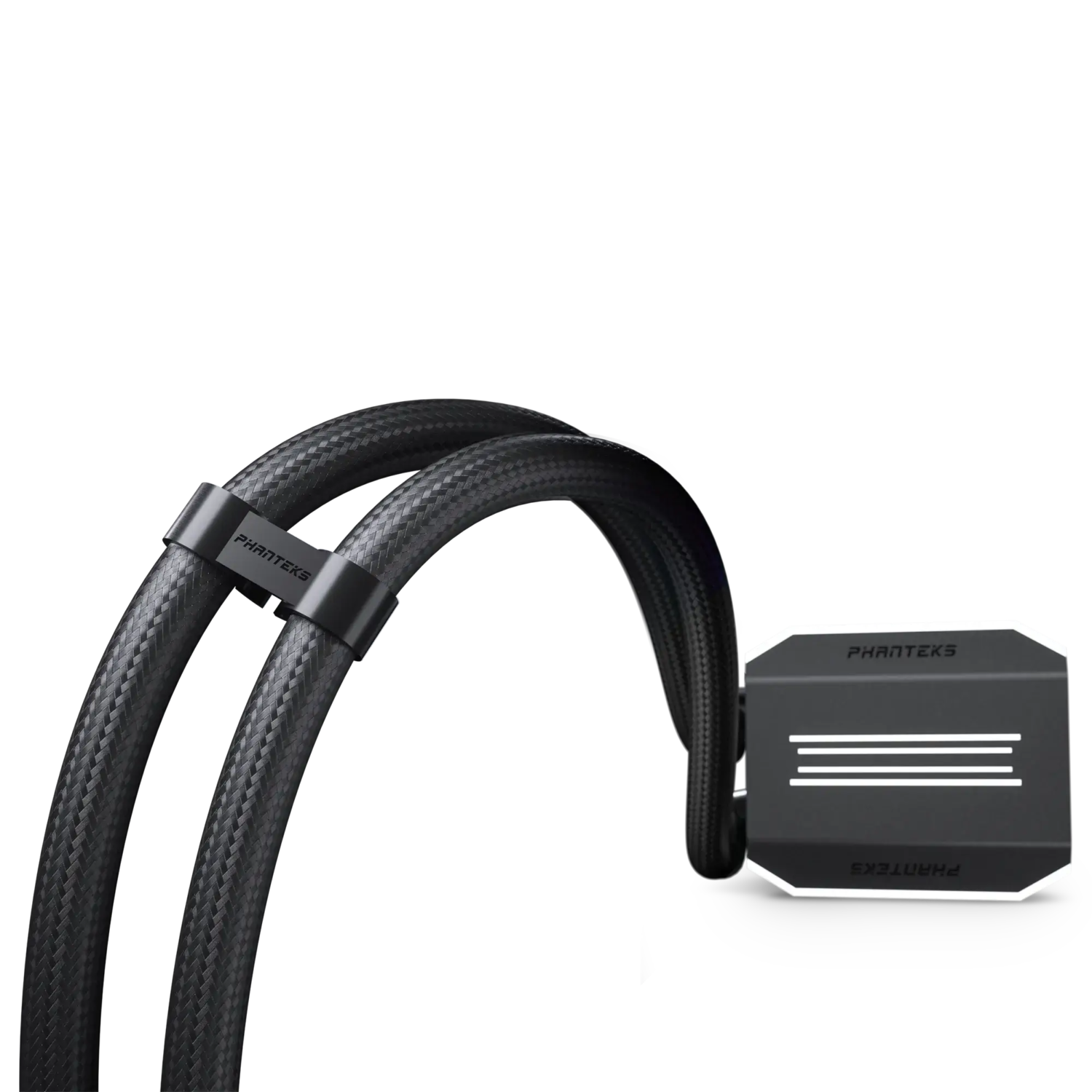

  • Flexible tubing with durable braided sleeving.

Integrated D-RGB lighting

  • 3x D30-120 D-RGB PWM fans included.

  • Smooth D-RGB lighting in frame and blades.

  • Compatible with Phanteks D-RGB controller and cases.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

Specifications

General

Model No.

PH-GO360D30_DBK01

UPC Code

886523003106

Materials

Aluminum | ABS Plastic | Copper

Color

Black

Intel Compatibility

LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066

AMD Compatibility

AM4 | AM5

Radiator Dimensions

Length x Width x Height

397 x 120 x 27 mm | 15.62 x 4.72 x 1.06 in

Pump Dimensions

Length x Width x Height

76 x 64 x 51.4 mm | 2.99 x 2.51 x 2.02 in

Pump Details

Tube Details

Motor Speed

3100 RPM ± 10% (100% Duty Cycle)

Power

12V | 0.38A – 0.45A | 4.56W – 5.4W

Pump DC Cable

490 mm

Sound Level

20.0 dBA

Material

Copper | ABS

D-RGB Connector

3-Pin D-RGB Daisy-chain

D-RGB Cable Length

500 + 90 mm

Length

400 mm | 15.74 in

Diameter

10.5 mm OD | 0.41 in OD

Tube Clips

3x

Material

CIIR rubber | Braided sleeves

Fans 3x Included

Fan Model

D30-120 D-RGB PWM

Dimensions

Length x Width x Height

120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in

Speed

250 – 2000 ± 10% RPM

Air Flow

64.3 CFM

Fan Static Pressure

3.01 mm H2O | 0.11 in H2O

Sound Level

30.2 dBA

MTFB

150.000 Hours

PWM Connector

4-Pin Daisy-chain

PWM Cable Length

700 mm | 27.55 in

D-RGB Connector

3-Pin D-RGB Daisy-chain

D-RGB Cable Length

600 + 100 mm | 23.62 + 3.93 in

Extra

Net Weight

1.91 kg | 4.21 lbs

Gross Weight

2.99 kg | 6.59 lbs

Warranty

5 Years limited

Scope of Delivery

1x Glacier One 360D30 AIO cooler
3x D30-120 fans

Accessory Box

3x Tube clip
1x SATA to 2-pin pump adapter
1x D-RGB mainboard adapter 600 mm
1x PH-NDC thermal paste
1x Installation guide

Mounting Hardware

4x AM4 | AM5 Stand-Off screws
4x LGA 1700 Stand-Off screws
4x LGA 115X | 1200 Stand-Off screws
4x LGA 2011 | 2066 Stand-Off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
1x LGA 115X | 1200 | 1700 | 2011 | 2066 Bracket
1x LGA 115X | 1200 | 1700 Metal back plate

Screws

12x 33 mm 6-32 UNC radiator screws
12x 35 mm 6-32 UNC radiator screws
12x 6 mm 6-32 UNC radiator screws

D30 Fan Components

1x Corner clip connector
3x Corner clip
2x Bridge clip connector
2x Bridge clip
4x Screw cover bridge
2x Screw cover L
2x Screw cover R

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
