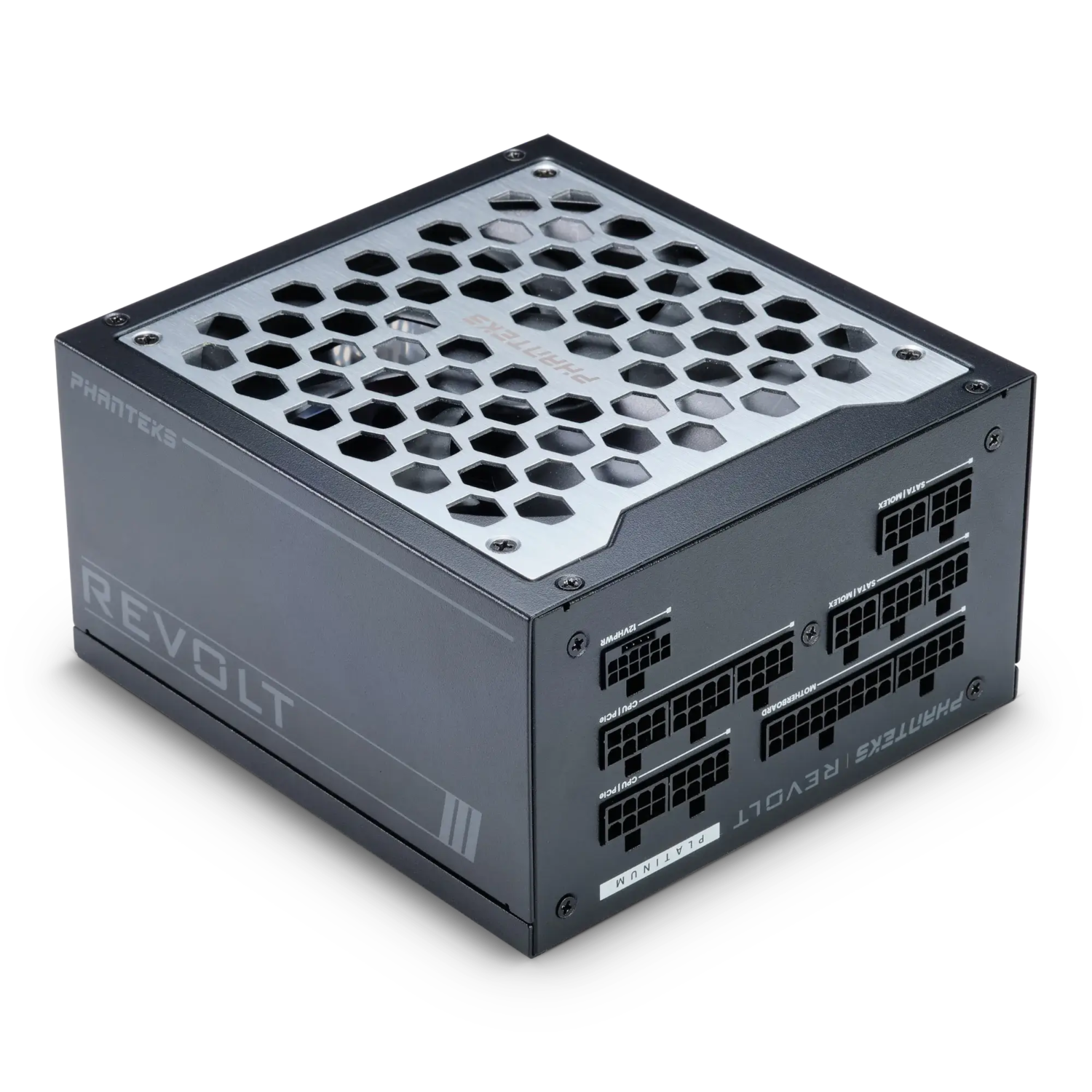

Revolt

Designed For Custom Cables

Extending the Revolt Series power supplies, Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.

The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and come with either 80 Plus Platinum or Titanium certification. Wattage capacity ranges from 1000 Watt all the way up to 1600 watt.

Colors

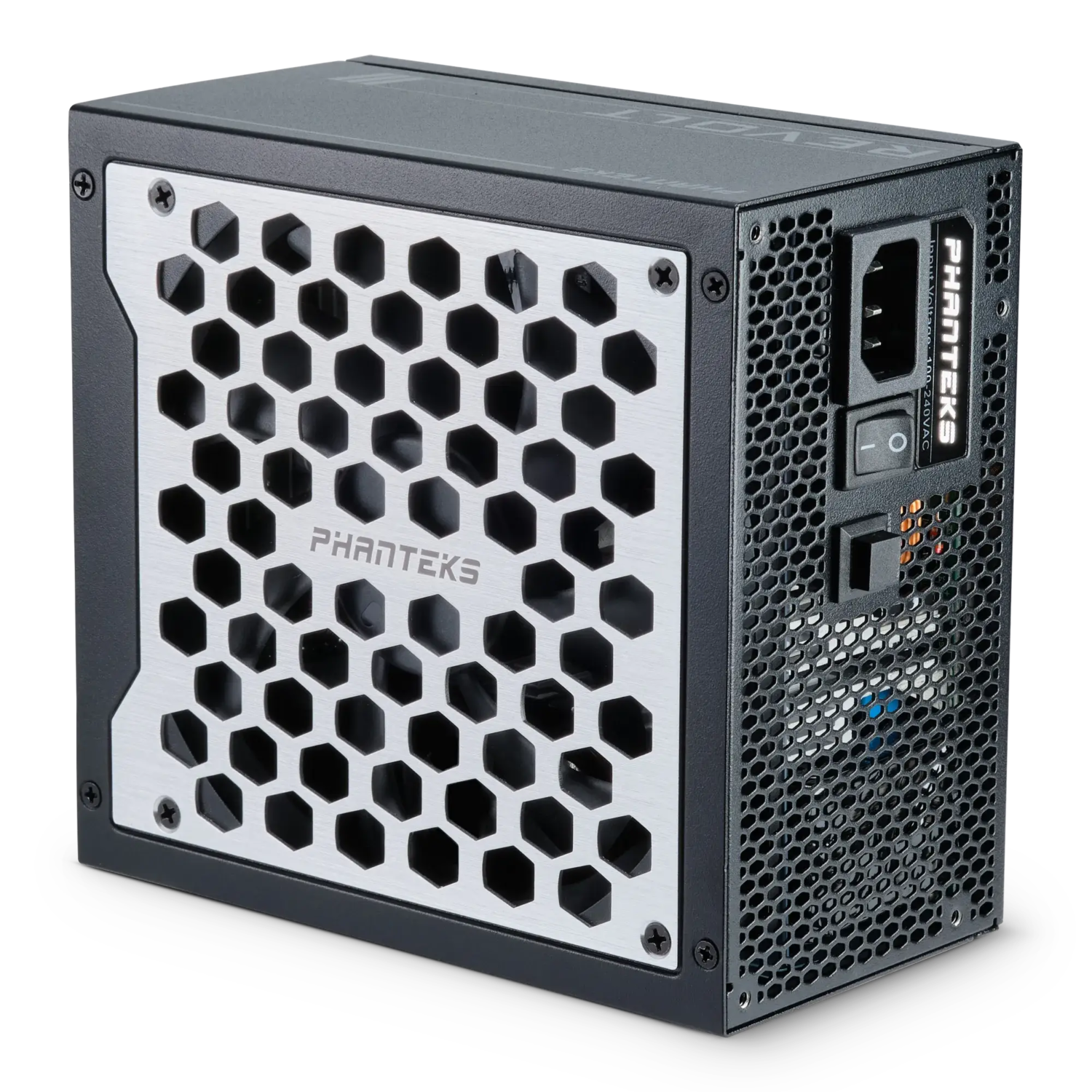

Black

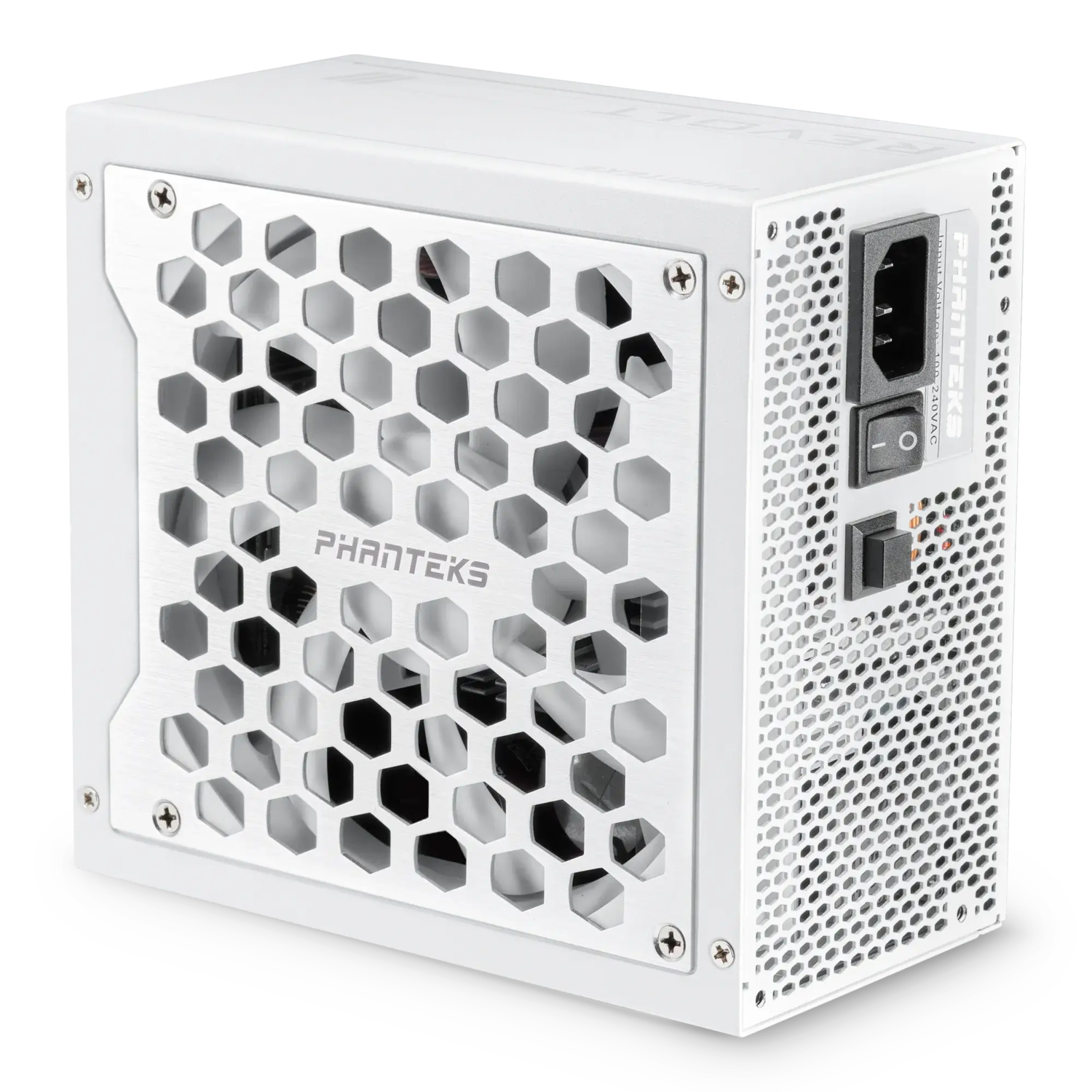

White

Wattage

1000

Platinum

1200

Platinum

1600

Titanium

CableMod Collaboration

  • Choose the perfect customized cables from CableMod.

  • Get just the cables you need for the cleanest build.

  • Use the presets recommended by Phanteks already setup by CableMod and pick your favourite colours.

GPU Mainboard CPU SATA
NV7 | NV9 750 mm 450 mm 400 mm 150 + 50 mm
NV5 | G360A | G500A | P600S | EVOLV X 300 mm 650 mm 700 mm 600 mm

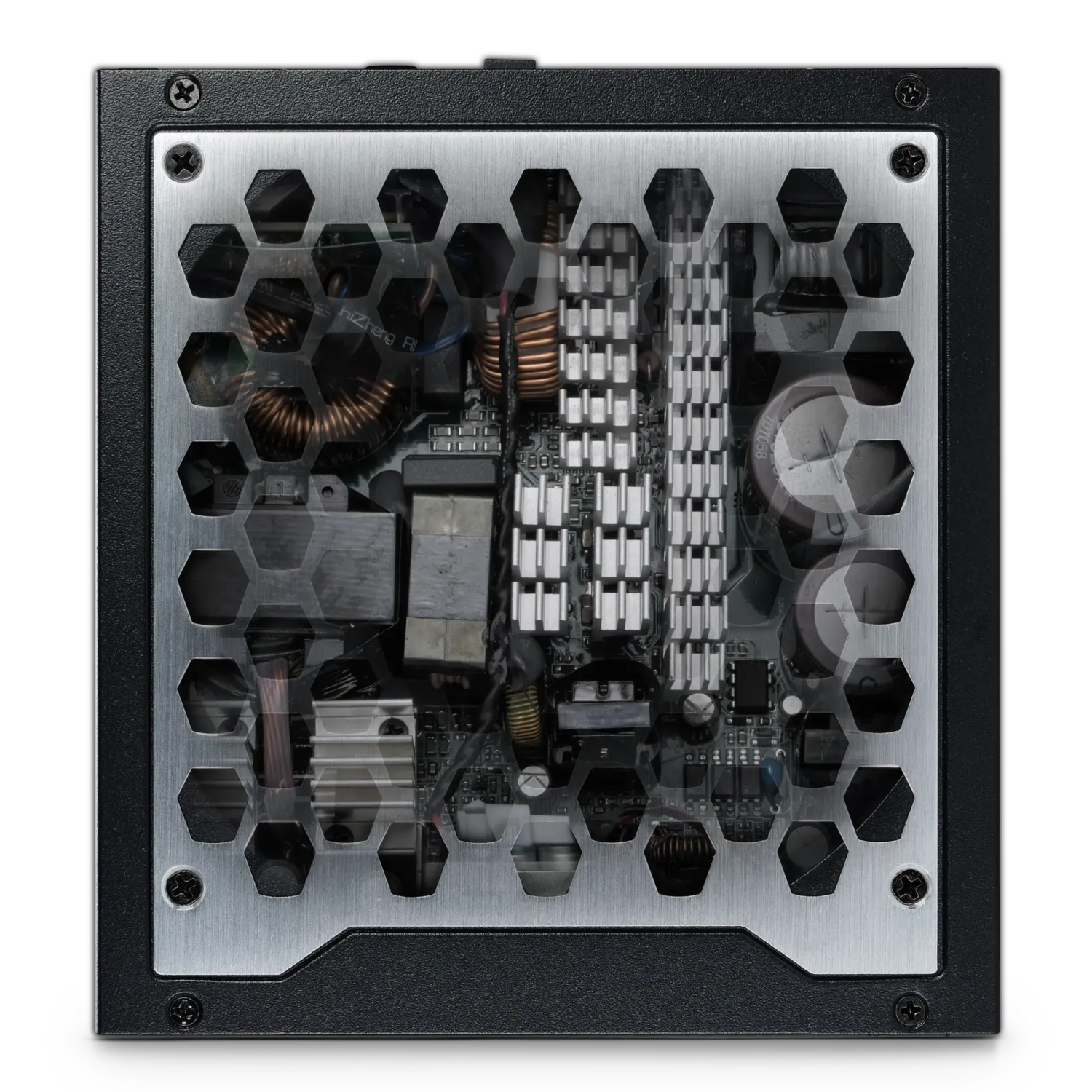

Powered By SeaSonic

Next-Gen Platform by Seasonic

  • Fully supports Intel ATX 3.0 and PCIe Gen5 specifications.

  • ATX 3.0 standard peak load is 200%, Phanteks’ Revolt exceeds this requirements by 35%.

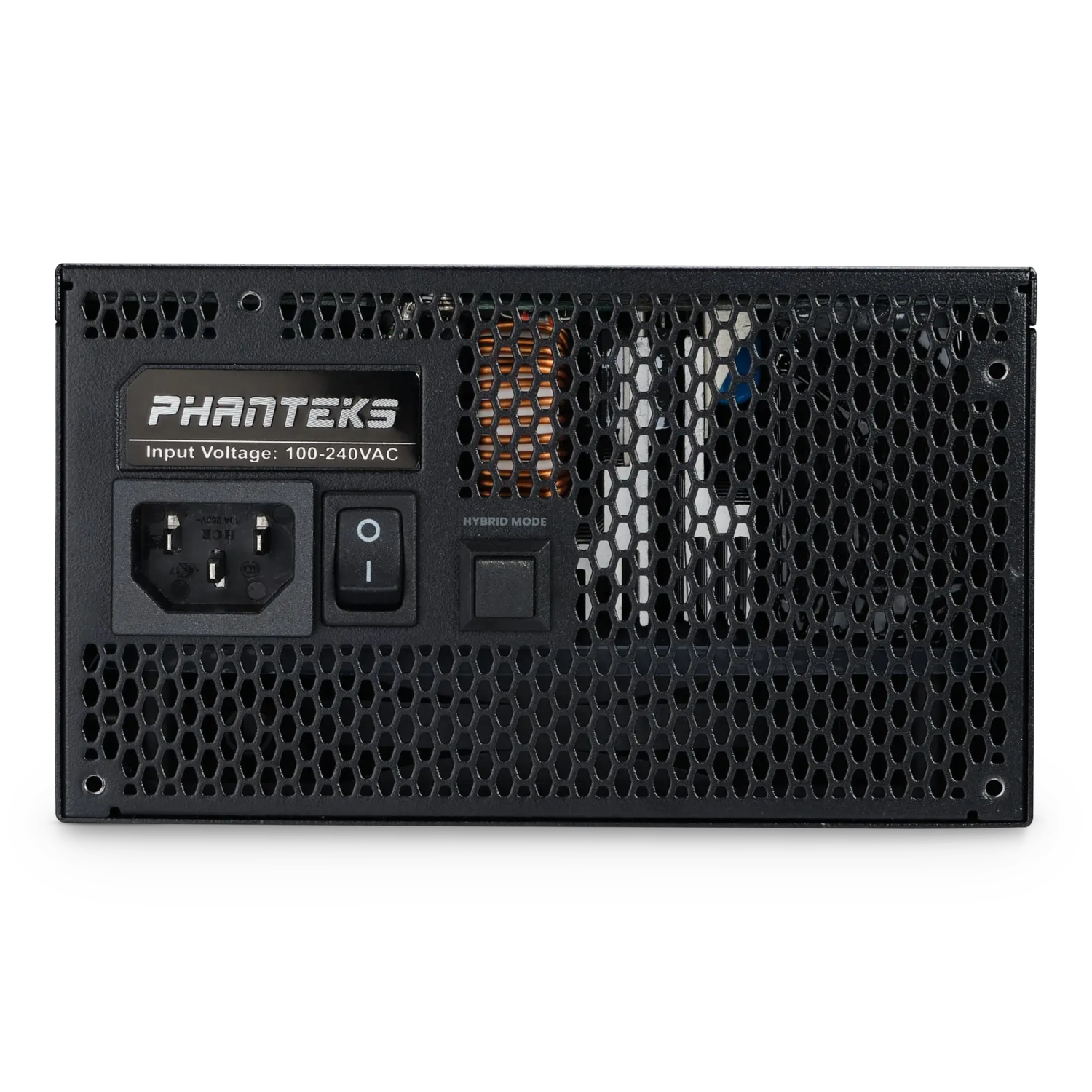

  • Hybrid fan control for ultimate silence with a simple switch.

  • 135mm Fluid Dynamic Bearing fan for silent cooling.

  • Developed with Seasonic on the award-winning Vertex platform.

Combine with CableMod Cable Kits

  • Widely available with the high quality known from CableMod.

  • Choose from multiple cable color options.

  • The Phanteks Revolt is fully compatible with the Seasonic cable kits from CableMod.

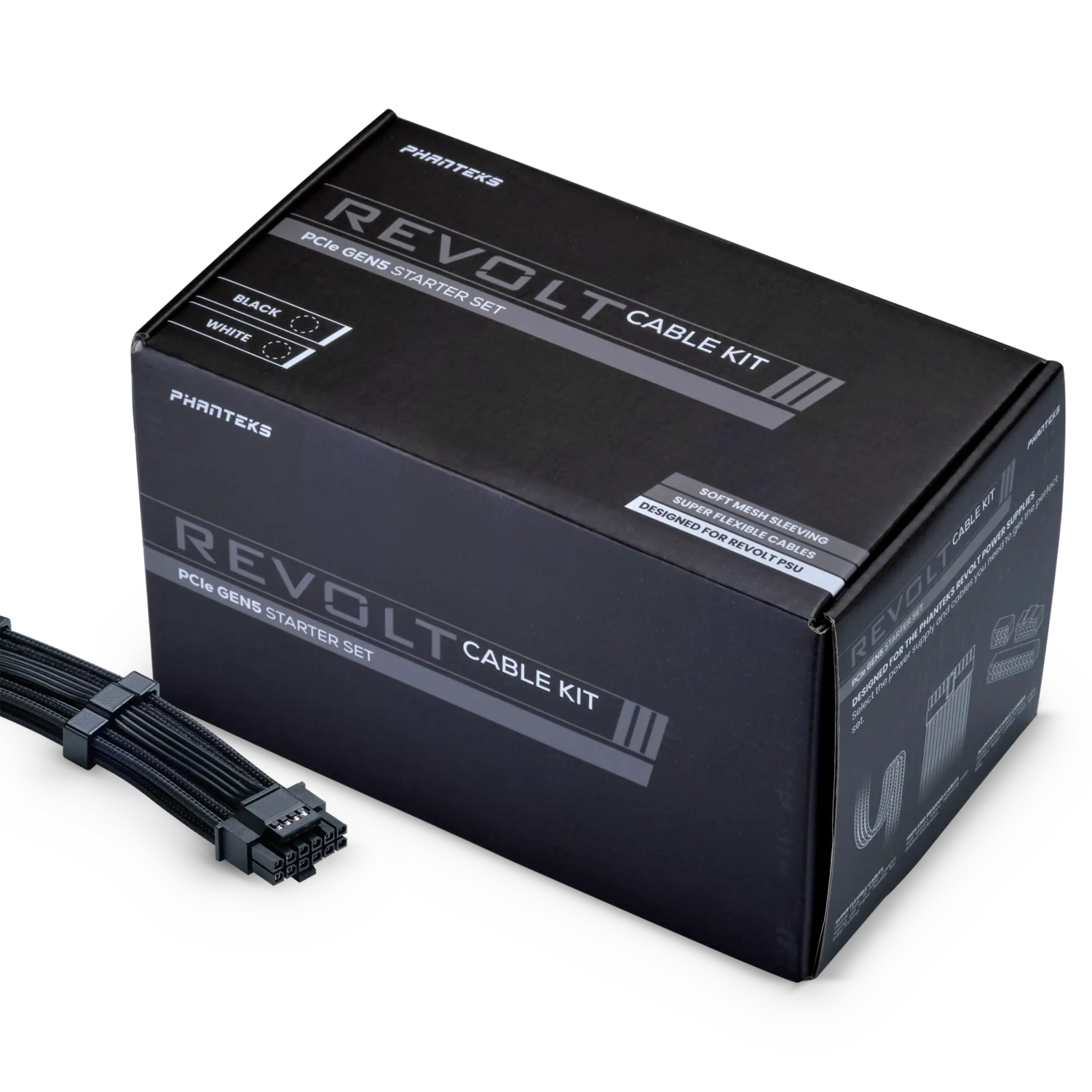

Phanteks Revolt Cable Kits

  • Build with high quality and flexible 16AWG copper wires.

  • Soft sleeving and aluminum cable combes.

Available in two sets

Cables Included

1x Mainboard
2x CPU
1x PCIe Gen5
2x SATA
2x SATA | Molex

Cables Included

1x Mainboard
2x CPU
7x PCIe
2x PCIe Gen5
3x SATA
3x SATA | Molex

Specifications

General

Model No.

PH-P1200PR_BK01C

UPC Code

886523510215

Color

Black

Dimensions

Length x Width x Height

160 x 150 x 86 mm | 6.3 x 5.9 x 3.4 in

Power Output

1000W

PCIe GEN5 OUTPUT

600W

80 Plus

Platinum

TECHNICAL DETAILS

Cooling Fan

135 mm Fluid Dynamic Bearing (FDB) Fan

Back Plate

Fully modular

MTFB

> 100.000 hrs at 25˚C (Excluding DC fan)

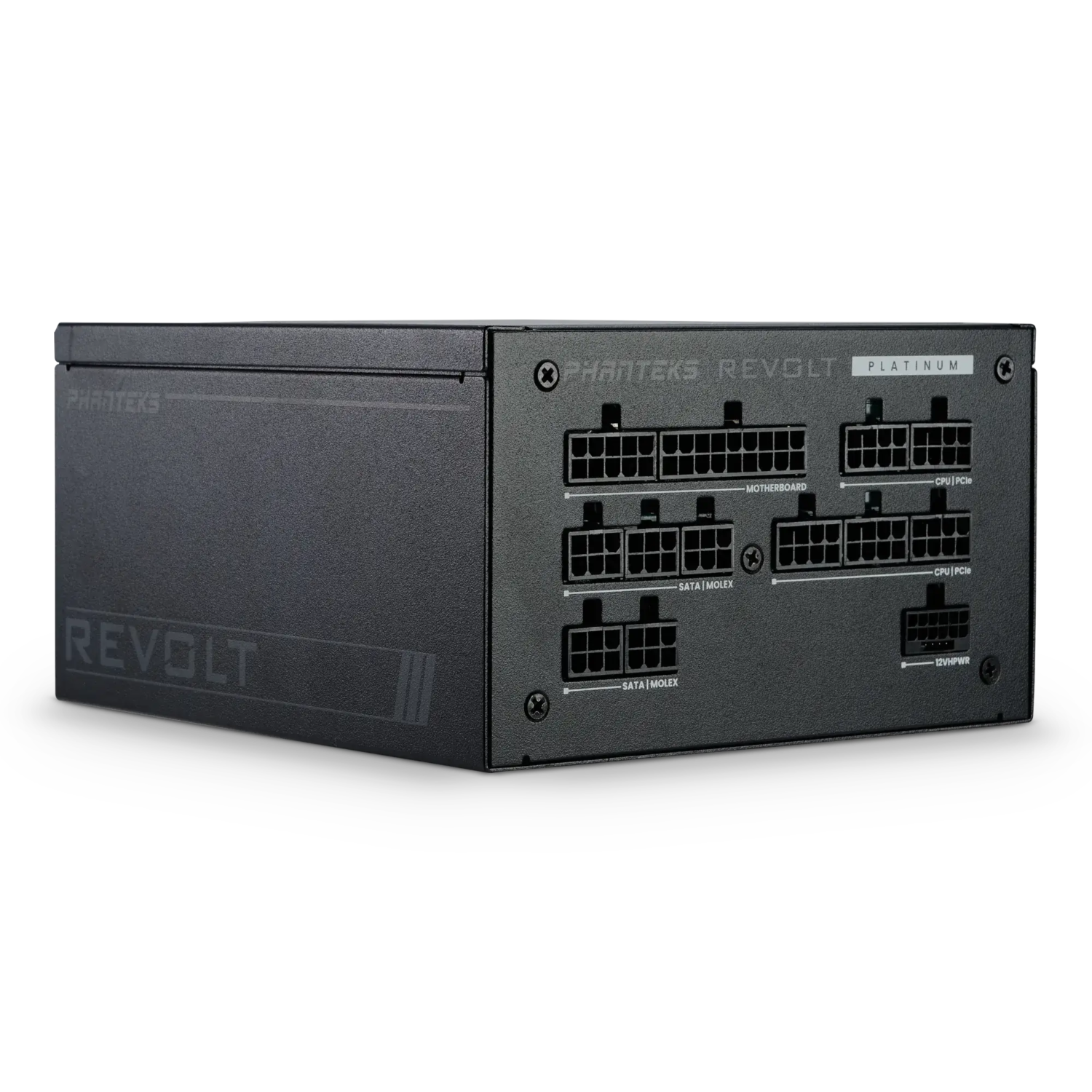

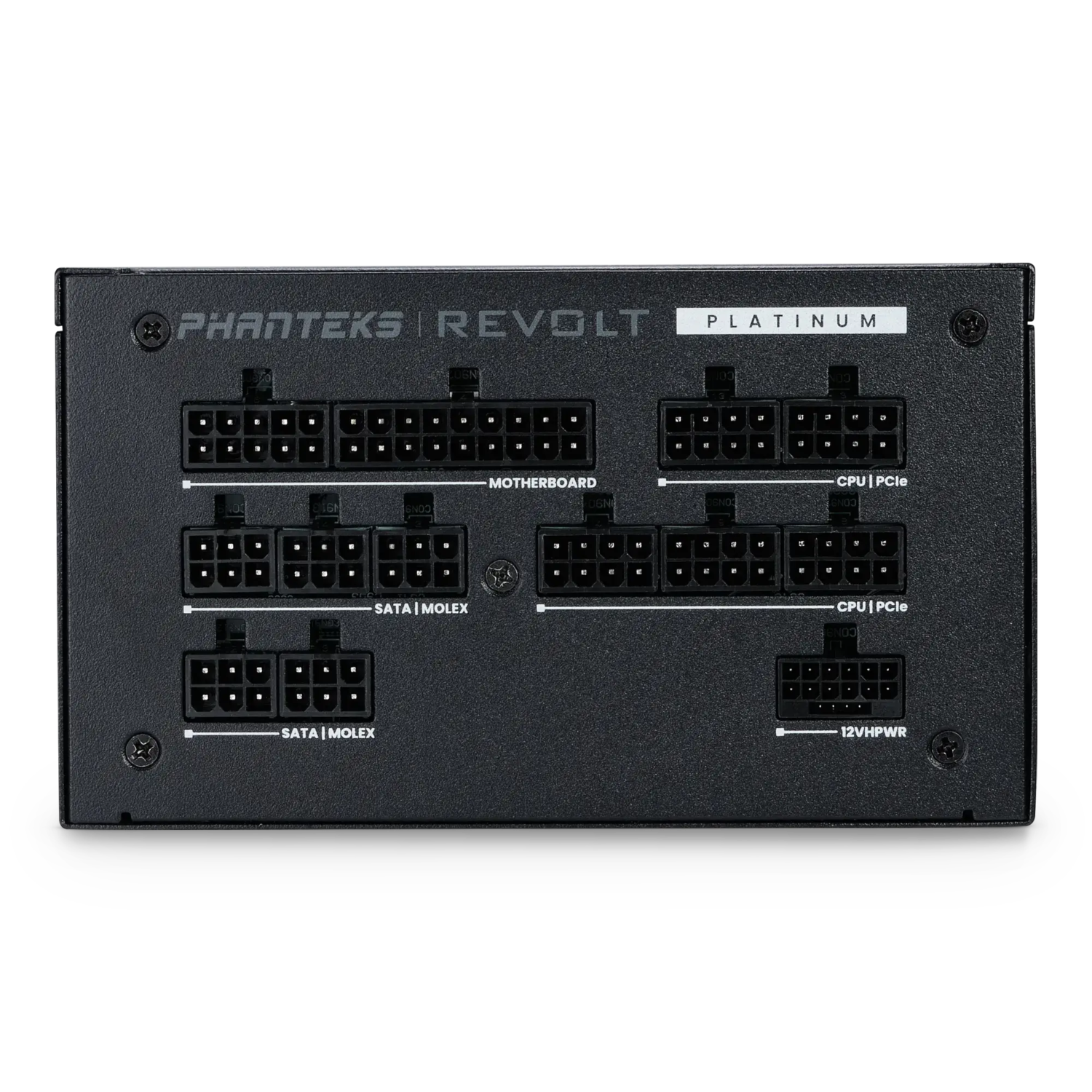

Power Supply Output Connectors

Mainboard – 1x
CPU | PCIe – 5x
SATA | Molex – 5x
12V-2×6 – 1x

Output Protection

OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection

Output Voltage 12V 5V 3.3V -12V 5VSB
Maximum Output 100A 25A 25A 0.3A 3A
Maximum Capacity 1200W 125W 3.6W 15W
DC Output 1200W
AC Output 100-240Vac 15-7.5A 50-60Hz
200-240V ~ 7.5A 50-60Hz

Extra

Net Weight

2.05 kg | 4.52 lbs

Gross Weight

2.50 kg | 5.51 lbs

Warranty

12 Years limited

Scope of Delivery

1x Revolt 1200W Power supply unit
1x C13 Power cord (1500mm)

Accessory Box

1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack

Support

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
