Revolt
Designed For Custom Cables
Extending the Revolt Series power supplies, Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.
The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and come with either 80 Plus Platinum or Titanium certification. Wattage capacity ranges from 1000 watts all the way up to 1600 watts.
Colors
Wattage

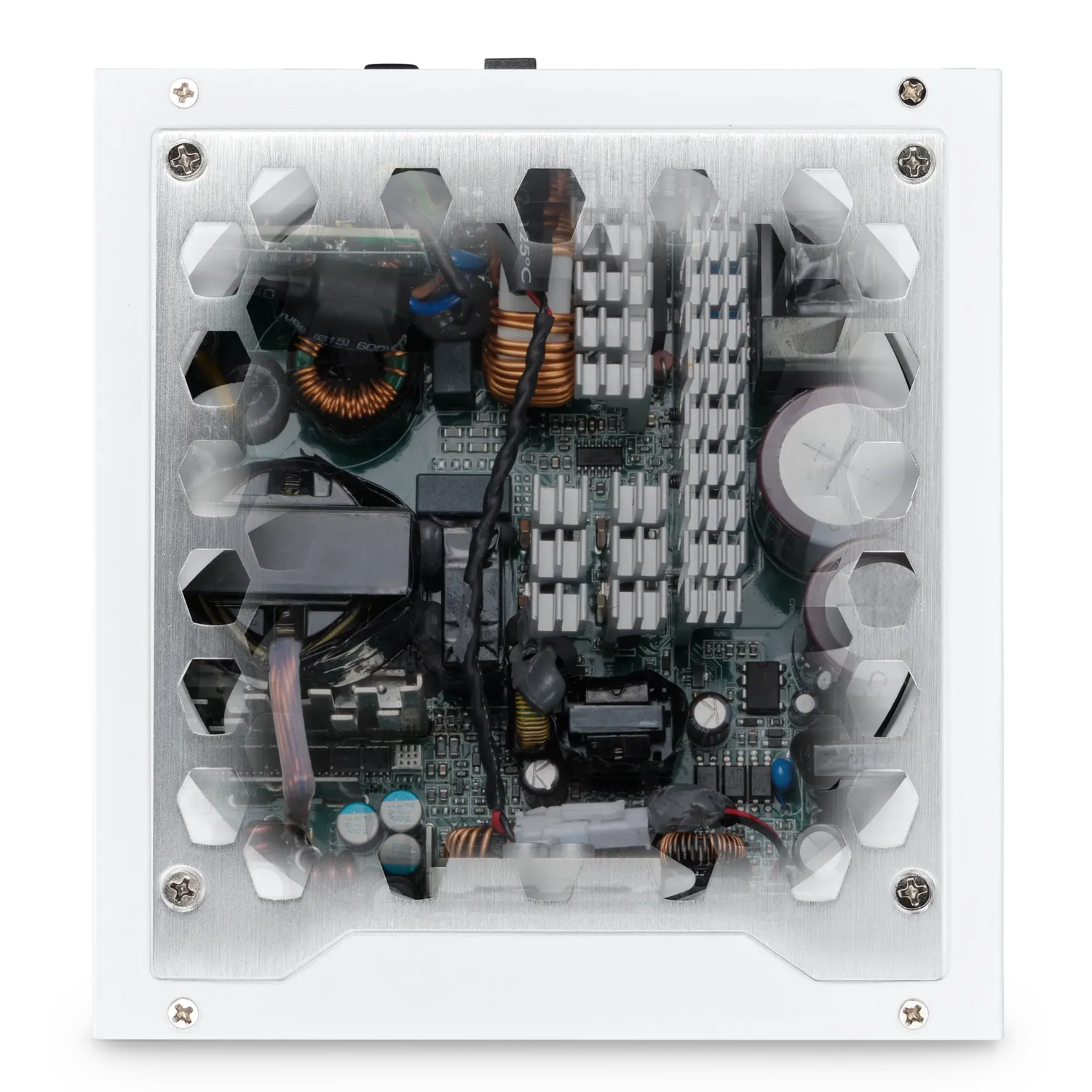

Next-Gen Platform by Seasonic
Combine with CableMod Cable Kits
Specifications
General
Model No.
PH-P1200PR_WT01C
UPC Code
886523510222
Color
White
Dimensions
Length x Width x Height
160 x 150 x 86 mm | 6.3 x 5.9 x 3.4 in
Power Output
1000W
PCIe GEN5 OUTPUT
600W
80 Plus
Platinum
TECHNICAL DETAILS

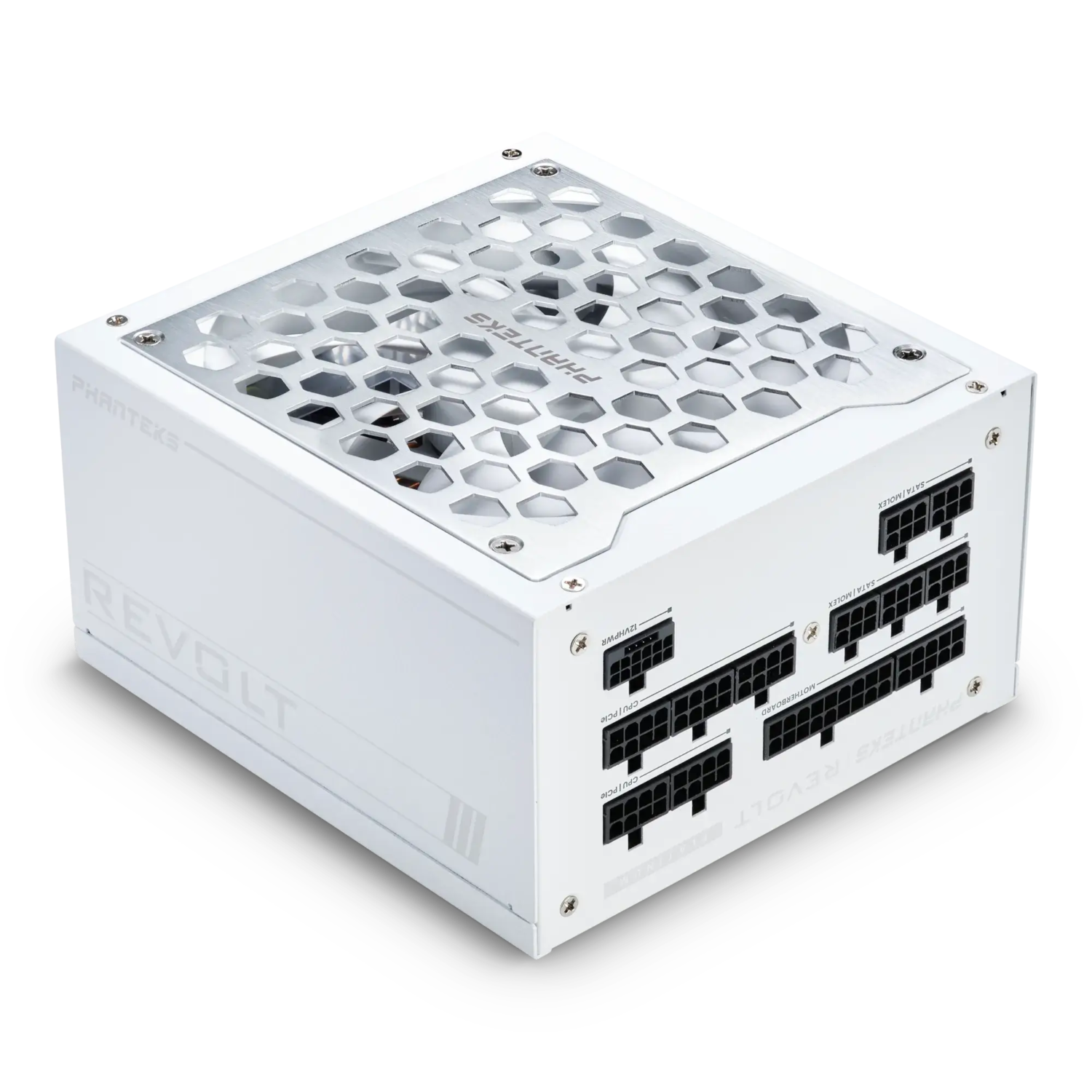

Cooling Fan
135 mm Fluid Dynamic Bearing (FDB) Fan
Back Plate
Fully modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)

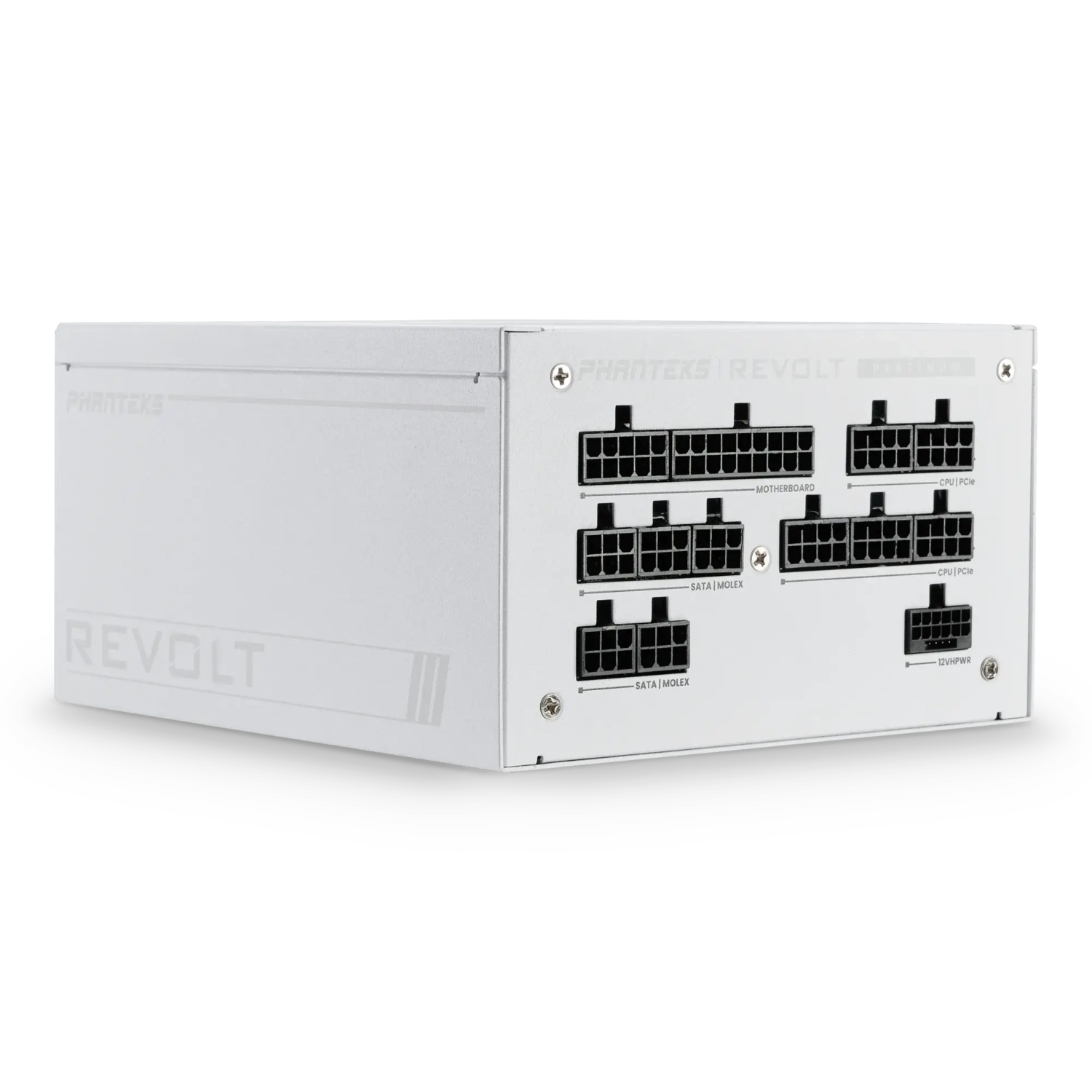

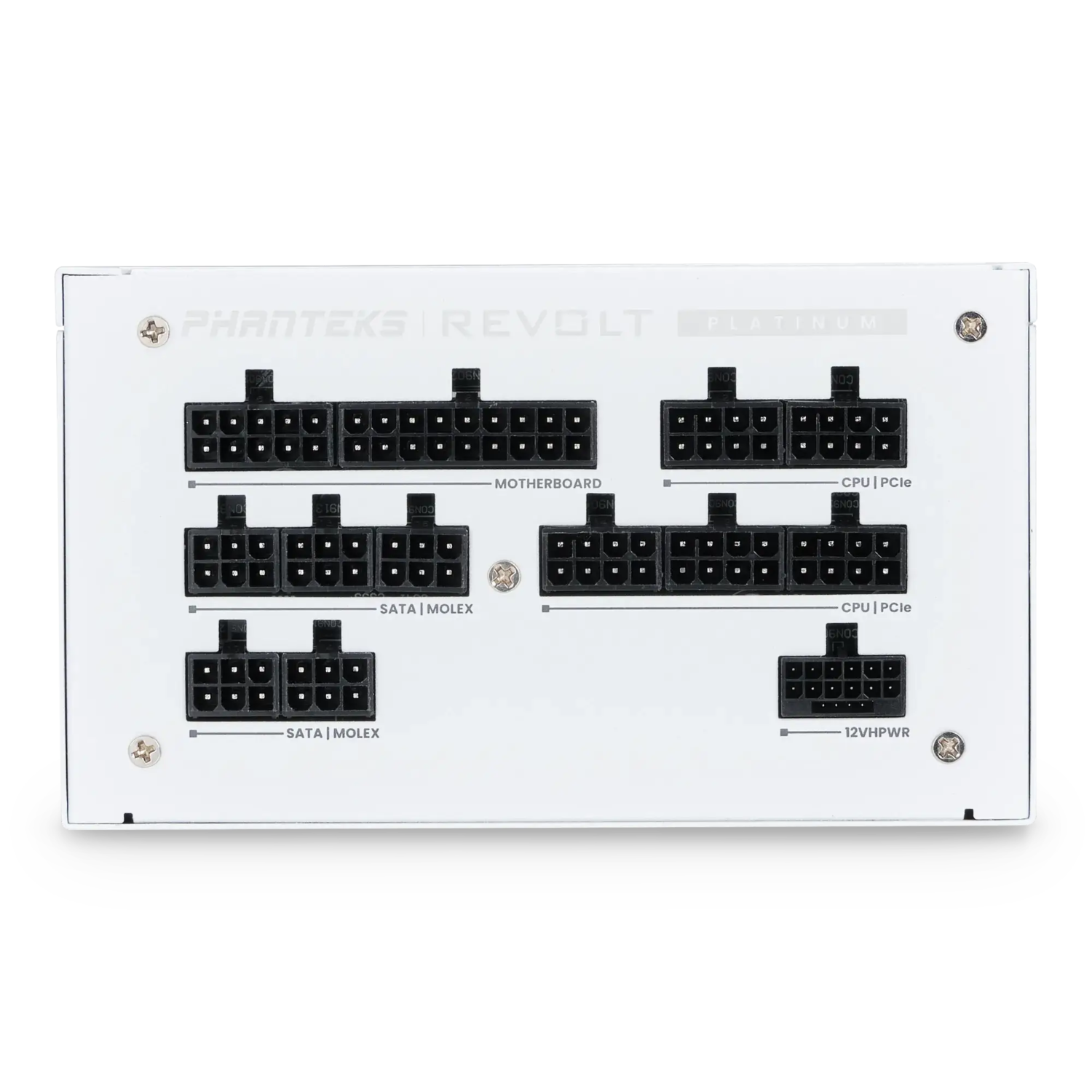

Power Supply Output Connectors
Mainboard – 1x
CPU | PCIe – 5x
SATA | Molex – 5x
12V-2×6 – 1x
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
| Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB | |
|---|---|---|---|---|---|---|
| Maximum Output | 83A | 25A | 25A | 0.3A | 3A | |
| Maximum Capacity | 996W | 125W | 3.6W | 15W | ||
| DC Output | 1000W | |||||

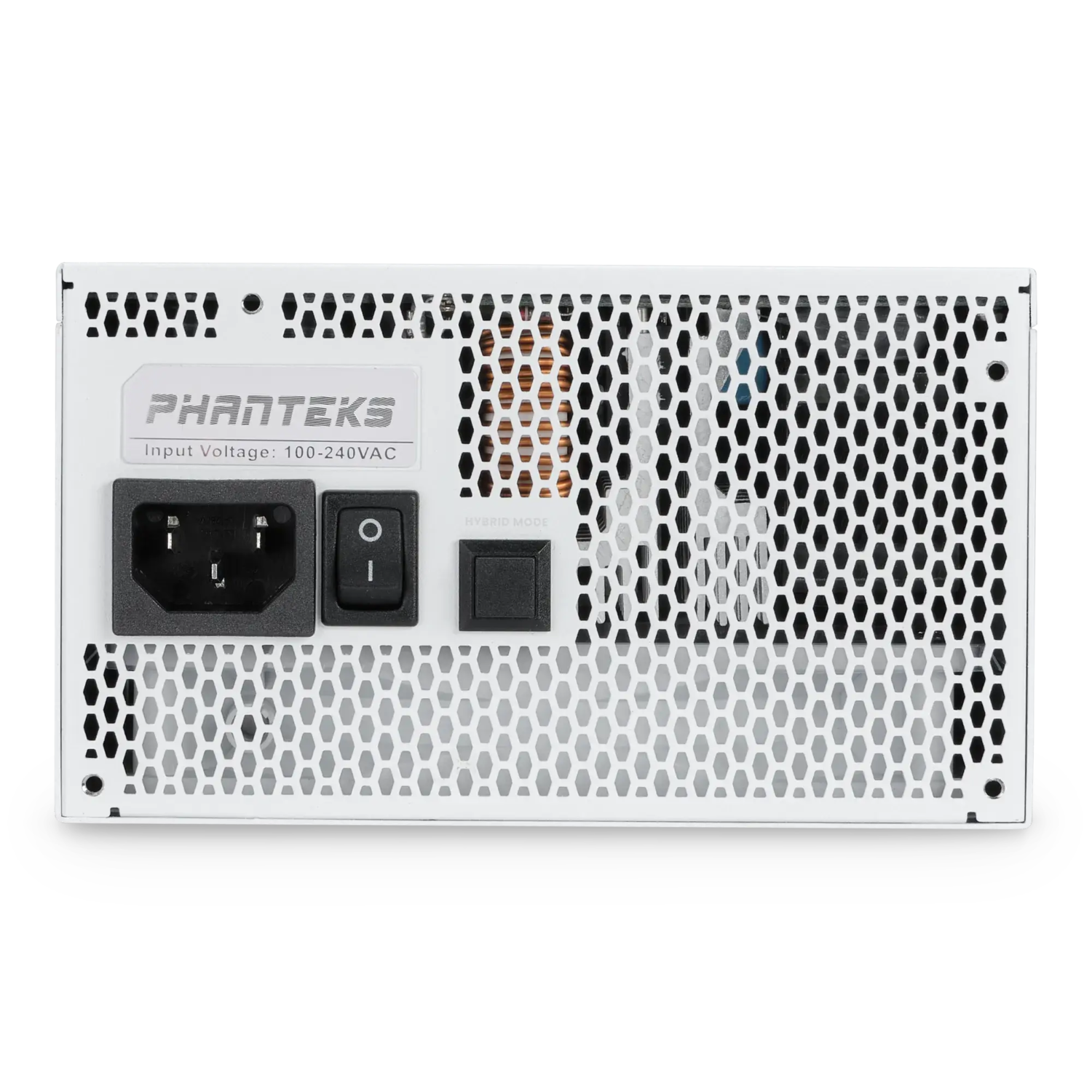

| AC Output | 100-240Vac 13-6.5A 50-60Hz 200-240V ~ 6.5A 50-60Hz |
|||||
Extra
Scope of Delivery
1x Revolt 1200W Power supply unit
1x C13 Power cord (1500mm)
Accessory Box
1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
