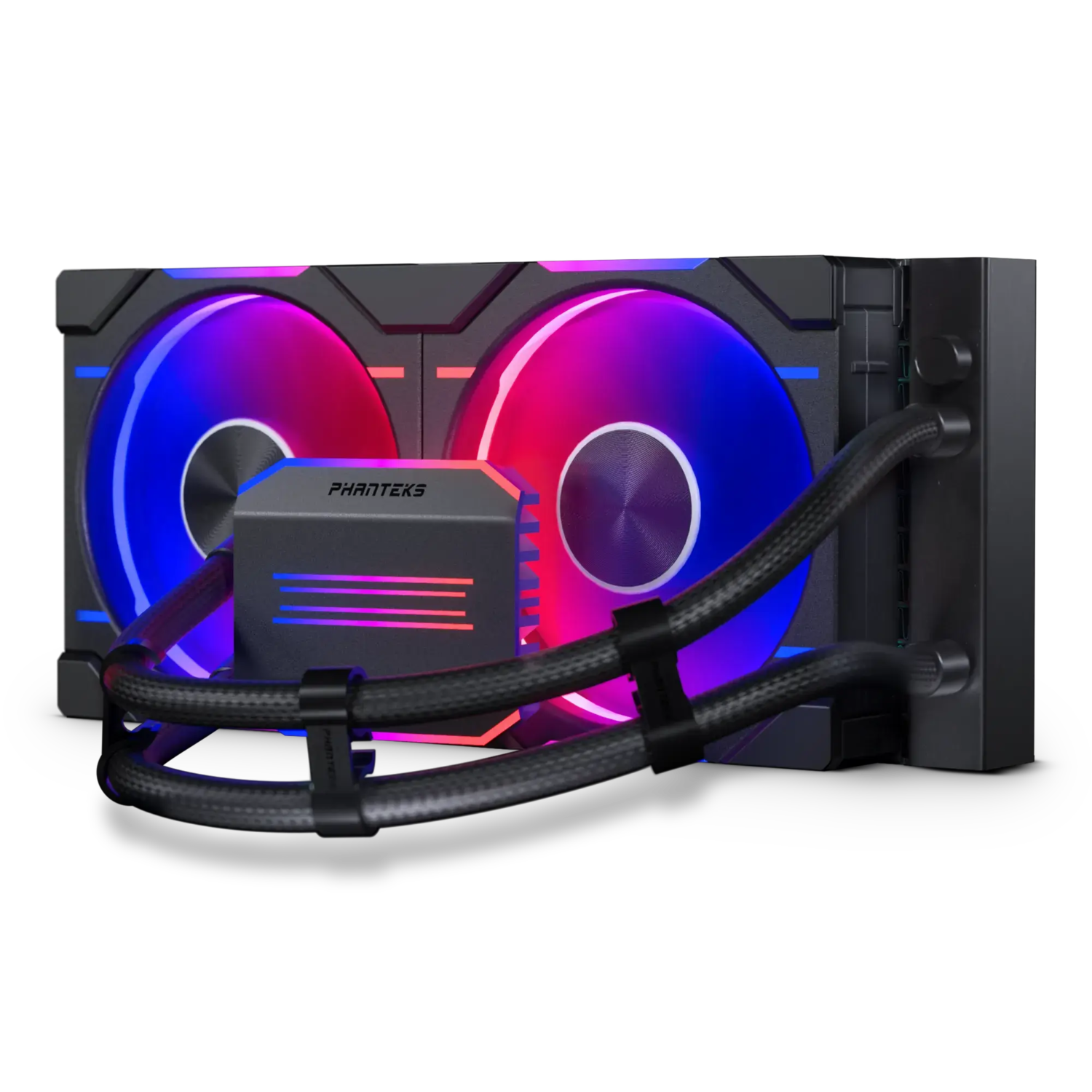

Glacier One 240D30
Premium D-RGB AIO Water Cooling
The Glacier One D30 AIO cooler is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the D30 fans. The Glacier One D30 AIO cooler, equipped with D30 fans, can be daisy-chained and controlled through a single cable. Its large copper base and fin array make it suitable for use with high-end CPUs, while its design allows for maximum clearance with mainboard and RAM components.
Colors
Dimensions
Minimalistic And High Performance Design

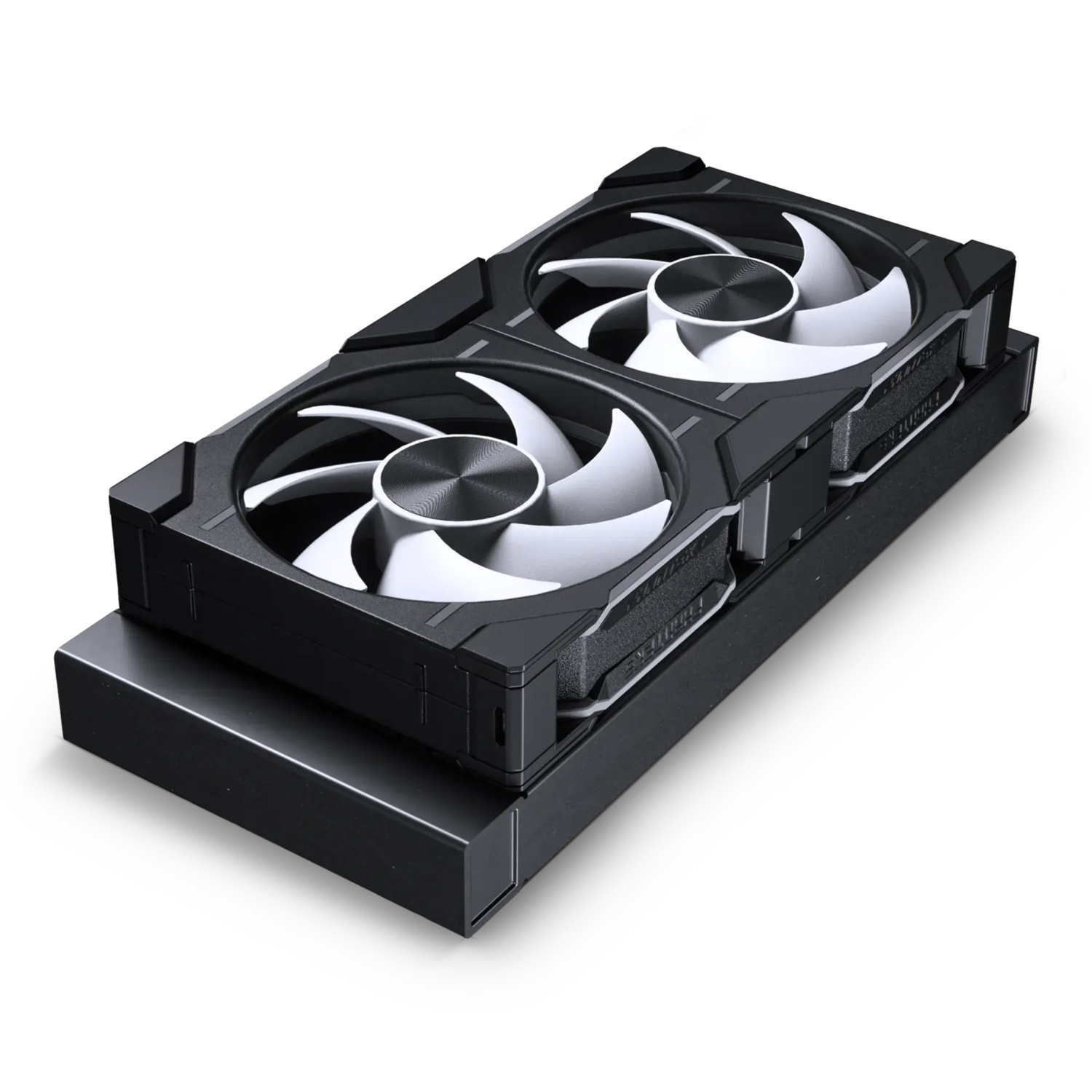

Performance D30 D-RGB PWM Fans
Ready To Perform
Integrated D-RGB lighting
Specifications
General
Model No.
PH-GO240D30_DBK01
UPC Code
886523003083
Materials
Aluminum | ABS Plastic | Copper
Color
Black
Intel Compatibility
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066
AMD Compatibility
AM4 | AM5

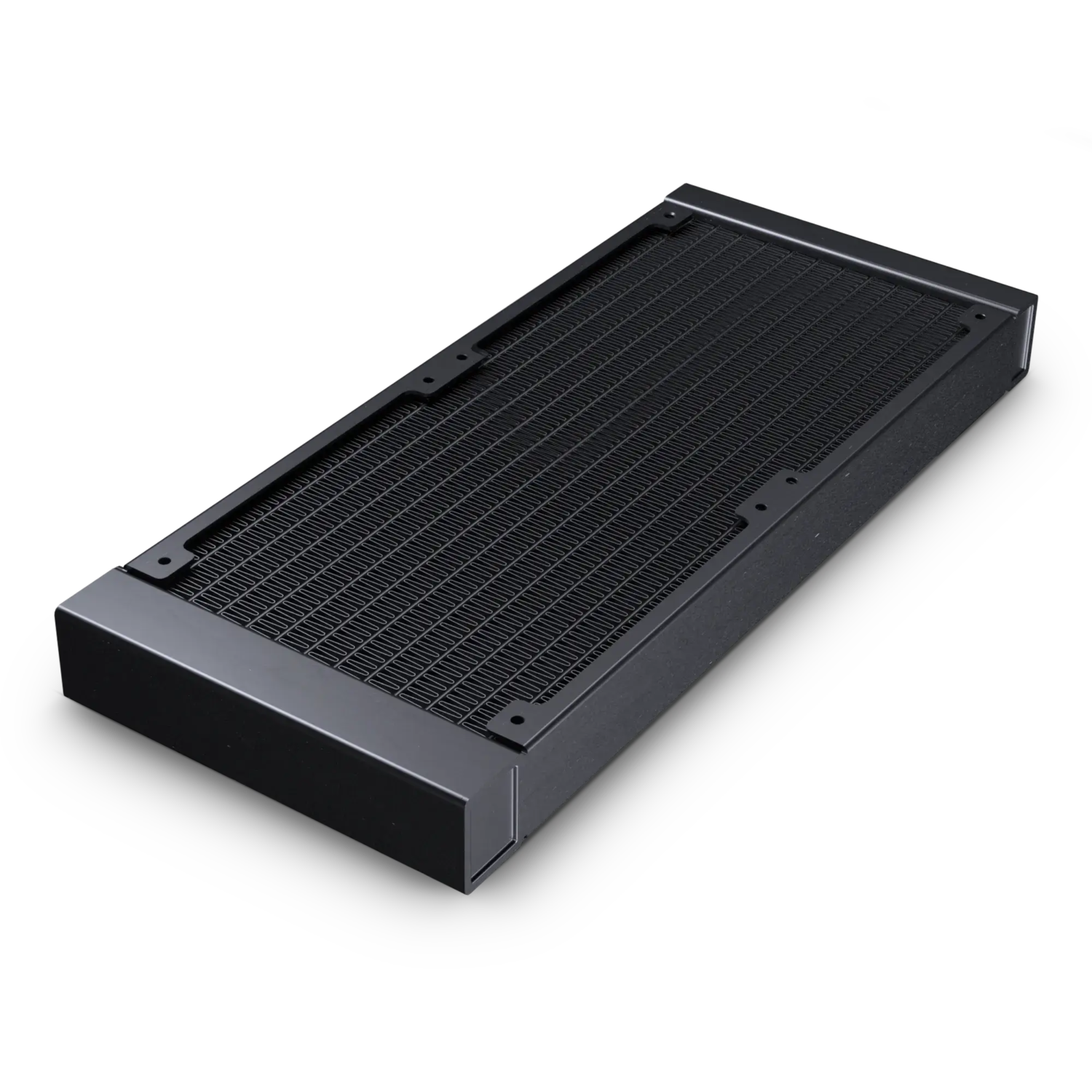

Radiator Dimensions
Length x Width x Height
277 x 120 x 27 mm | 10.90 x 4.72 x 1.06 in
Pump Dimensions
Length x Width x Height
76 x 64 x 51.4 mm | 2.99 x 2.51 x 2.02 in
Pump Details
Tube Details
Motor Speed
3100 RPM ± 10% (100% Duty Cycle)
Power
12V | 0.38A – 0.45A | 4.56W – 5.4W
Pump DC Cable
490 mm
Sound Level
20.0 dBA
Material
Copper | ABS
D-RGB Connector
3-Pin D-RGB Daisy-chain
D-RGB Cable Length
500 + 90 mm
Length
400 mm | 15.74 in
Diameter
10.5 mm OD | 0.41 in OD
Tube Clips
3x
Material
CIIR rubber | Braided sleeves
Fans 2x Included
Fan Model
D30-120 D-RGB PWM
Dimensions
Length x Width x Height
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
Speed
250 – 2000 ± 10% RPM
Air Flow
64.3 CFM
Fan Static Pressure
3.01 mm H2O | 0.11 in H2O
Sound Level
30.2 dBA
MTFB
150.000 Hours
PWM Connector
4-Pin Daisy-chain
PWM Cable Length
700 mm | 27.55 in
D-RGB Connector
3-Pin D-RGB Daisy-chain
D-RGB Cable Length
600 + 100 mm | 23.62 + 3.93 in
Extra
Net Weight
1.50 kg | 3.30 lbs
Gross Weight
2.30 kg | 5.07 lbs
Warranty
5 Years limited
Scope of Delivery
1x Glacier One 240D30 AIO cooler
2x D30-120 fans
Accessory Box
3x Tube clip
1x SATA to 2-pin pump adapter
1x D-RGB mainboard adapter 600 mm
1x PH-NDC thermal paste
1x Installation guide
Mounting Hardware
4x AM4 | AM5 Stand-Off screws
4x LGA 1700 Stand-Off screws
4x LGA 115X | 1200 Stand-Off screws
4x LGA 2011 | 2066 Stand-Off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
1x LGA 115X | 1200 | 1700 | 2011 | 2066 Bracket
1x LGA 115X | 1200 | 1700 Metal back plate
Screws
8x 33 mm 6-32 UNC radiator screws
8x 35 mm 6-32 UNC radiator screws
8x 6 mm 6-32 UNC radiator screws
D30 Fan Components
1x Corner clip connector
3x Corner clip
1x Bridge clip connector
1x Bridge clip
2x Screw cover bridge
2x Screw cover L
2x Screw cover R
