NV5S
Showcase Mid-Tower Chassis

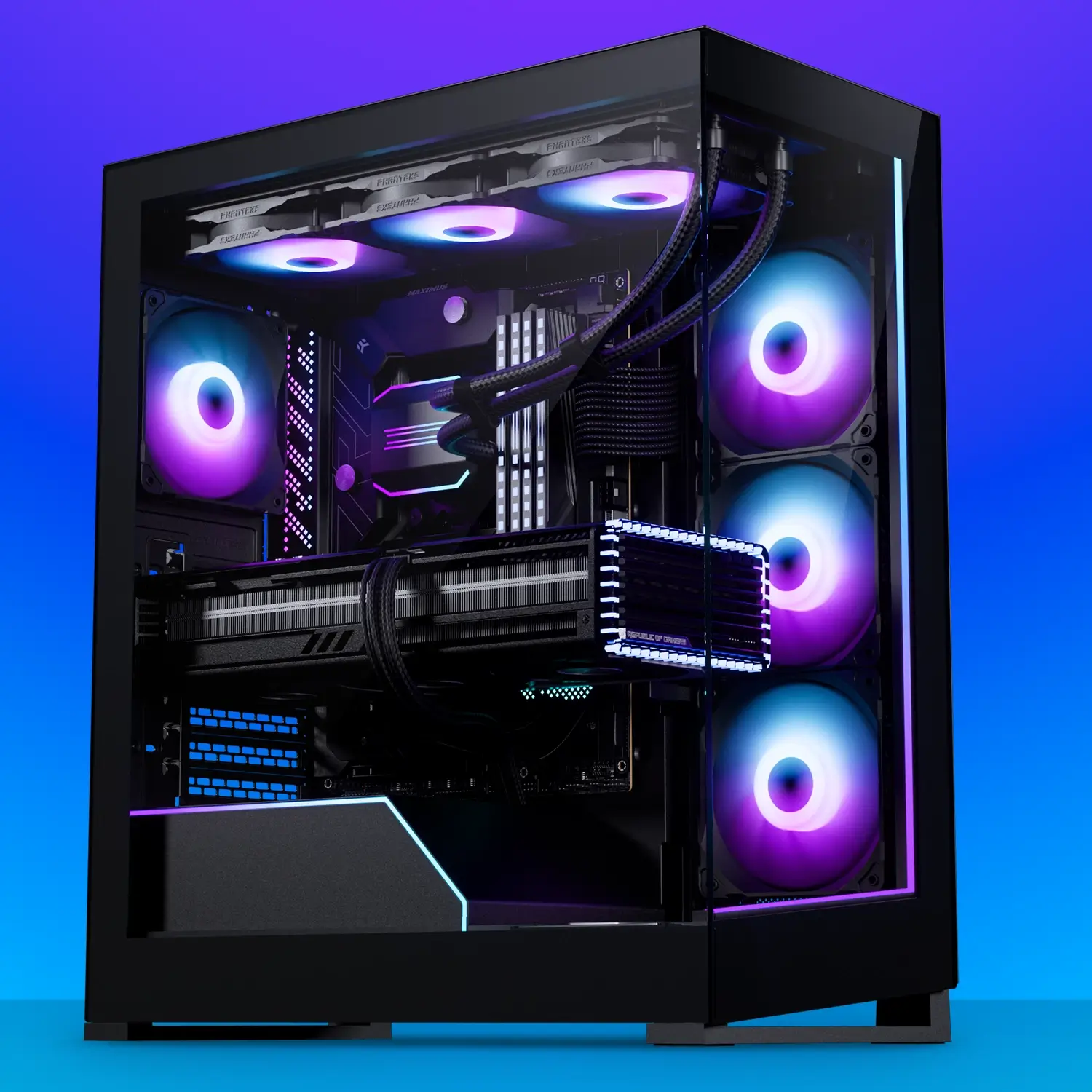

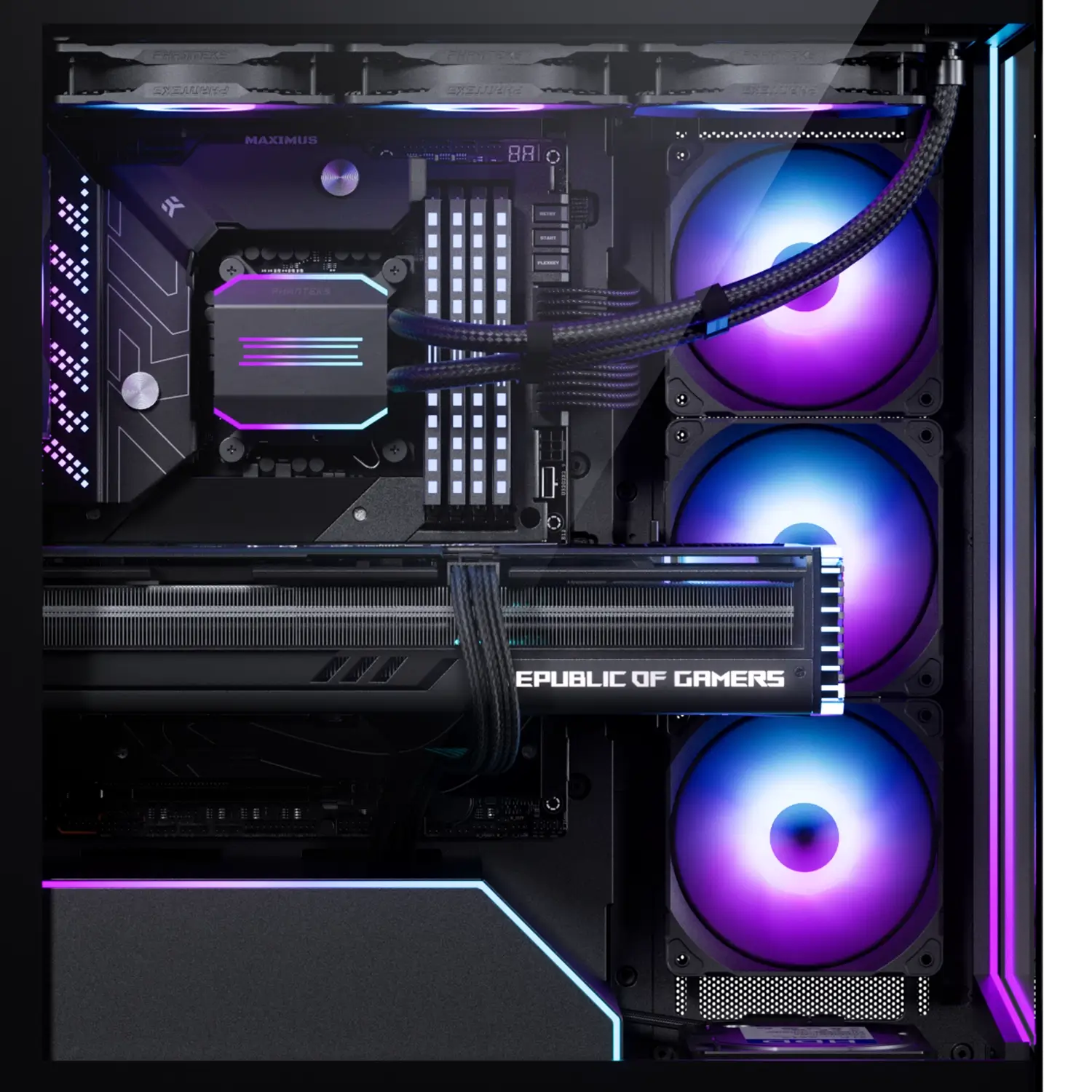

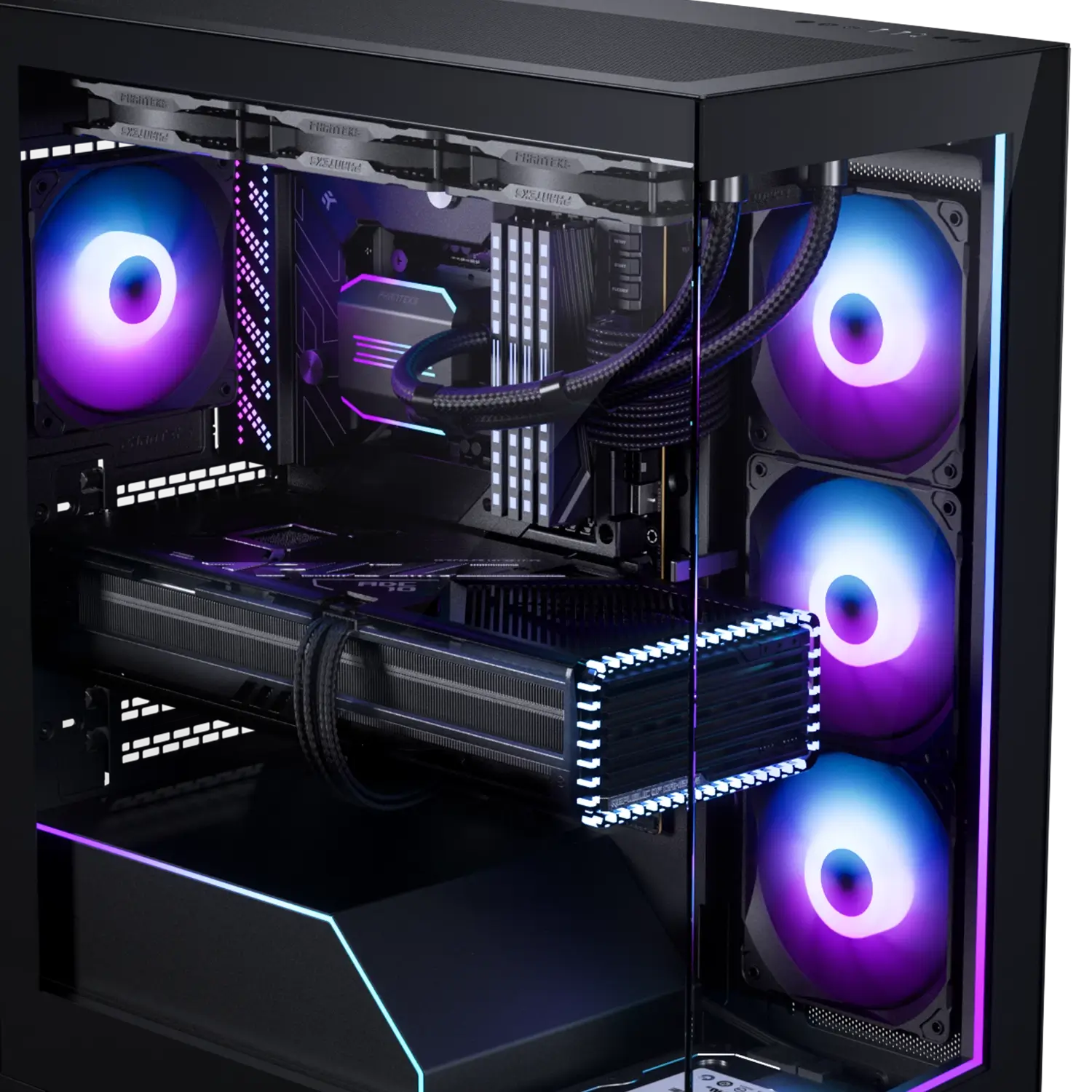

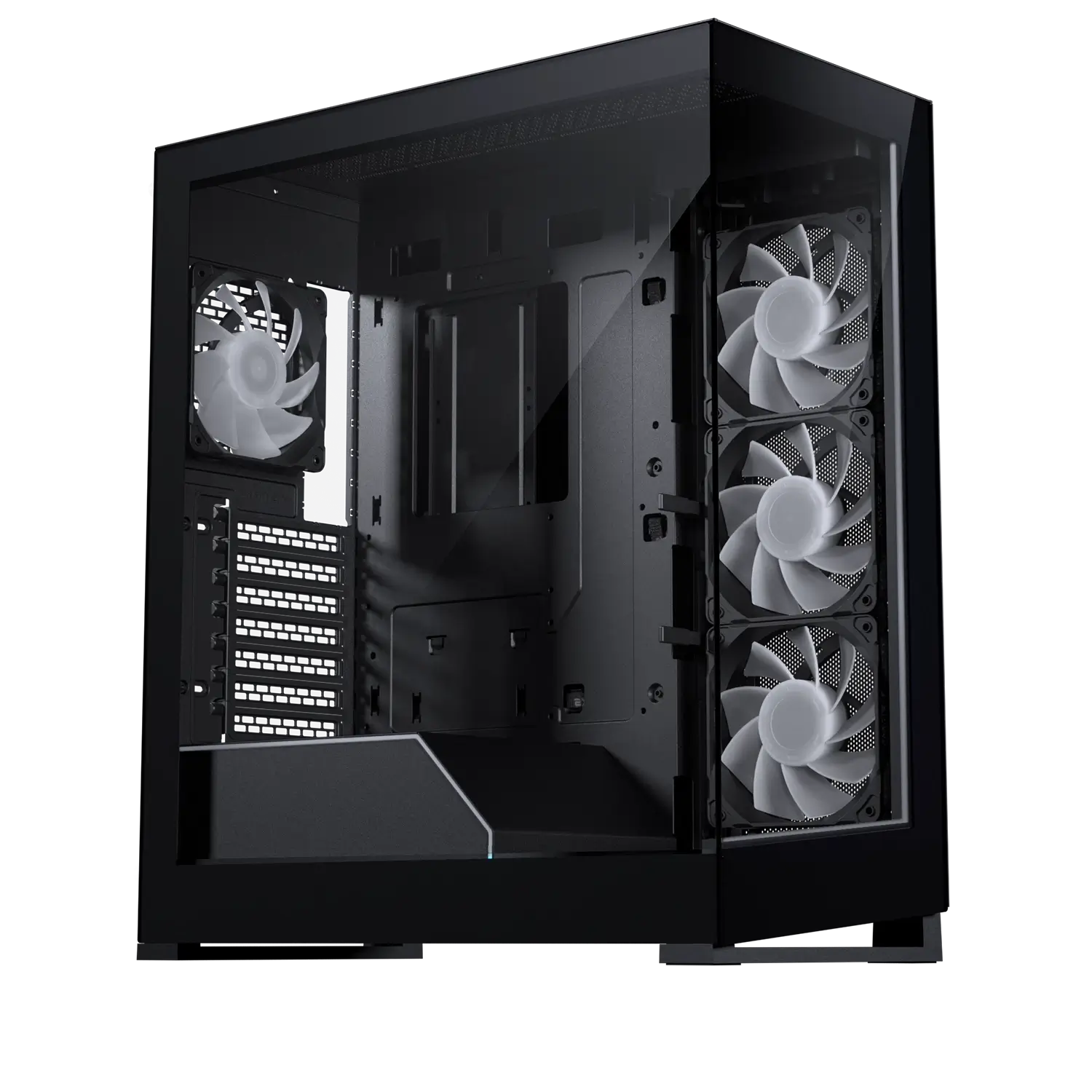

Meet the NV5S mid-tower chassis, featuring a stunning near-seamless glass view and support for 7 x 120 mm fans and dedicated space for a 360 radiator in the top. Its PSU cover opens for easy cable management, and its D-RGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5S is the perfect choice for a high-performance PC build that looks as good as it performs.
Specifications
General
Model No.
PH-NV523X_DBK01
UPC Code
886523304364
Case Dimensions
594 x 293 x 526 mm | 23.38 x 11.53 x 20.70 in
From Factor
Mid-Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280 mm wide
Materials
Steel chassis | Aluminum panels | Tempered glass window | ABS plastic
Color
Black
Expansion Slots
7
Vertical GPU Support
Yes
Riser cable & bracket sold separately
Internal 2.5″ Positions
3
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 3x 2.5″ SSD
Front I/O
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Reset button
Fans 120 | 140
Total Fans
7 | –
Top
3 | –
Front
– | –
Side
3 | –
Rear
1 | –
Bottom
– | –
Radiator 120 | 140
Top
Max. 360 | –
Front
– | –
Side
Max. 360 | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
170 mm | 6.69 in
GPU
Length
430 mm | 16.92 in
GPU
Width
170 mm | 6.69 in
Power Supply
195 mm | 7.67 in
Top 360 Radiator
Length x Width x Height
400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in
Side 360 Radiator
Length x Width x Height
400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in
Rear 120 Radiator
Length x Width
120 x 180 mm | 4.72 x 7.08 in
Extra
Scope of Delivery
1x NV5X chassis
1x S25-360 fan Pre-installed
1x S25-120 fan Pre-installed
1x SSD bracket Pre-installed
1x GPU support bracket Pre-installed
Accessory Box
6x Zip ties
1x Stand-off removal tool
Screws
22x Mainboard | SSD screws
4x Power supply screws
4x HDD screws
4x HDD stand-off screws
4x HDD rubber
1x Mainboard stand-off
