Premium D-RGB Kit

NV9

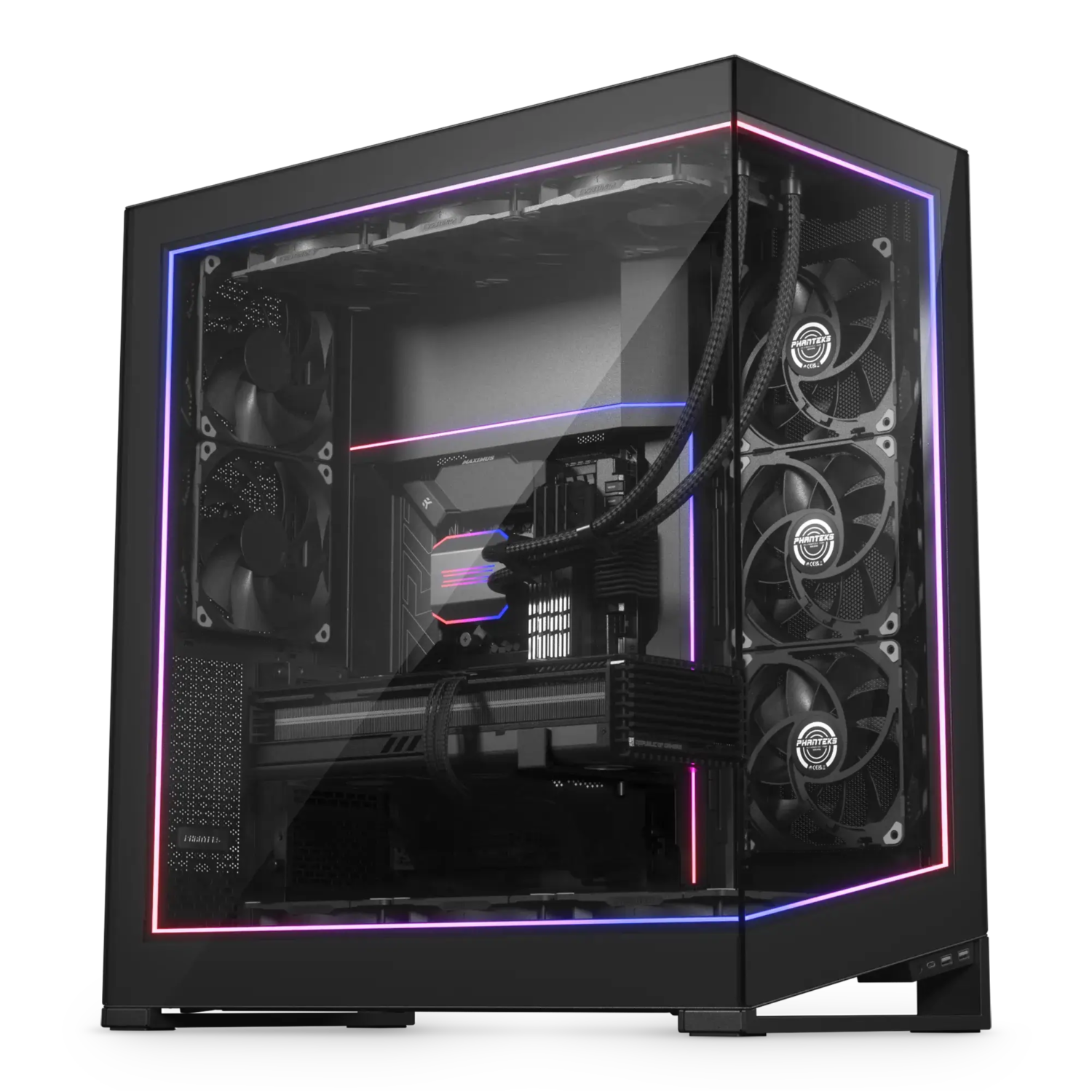

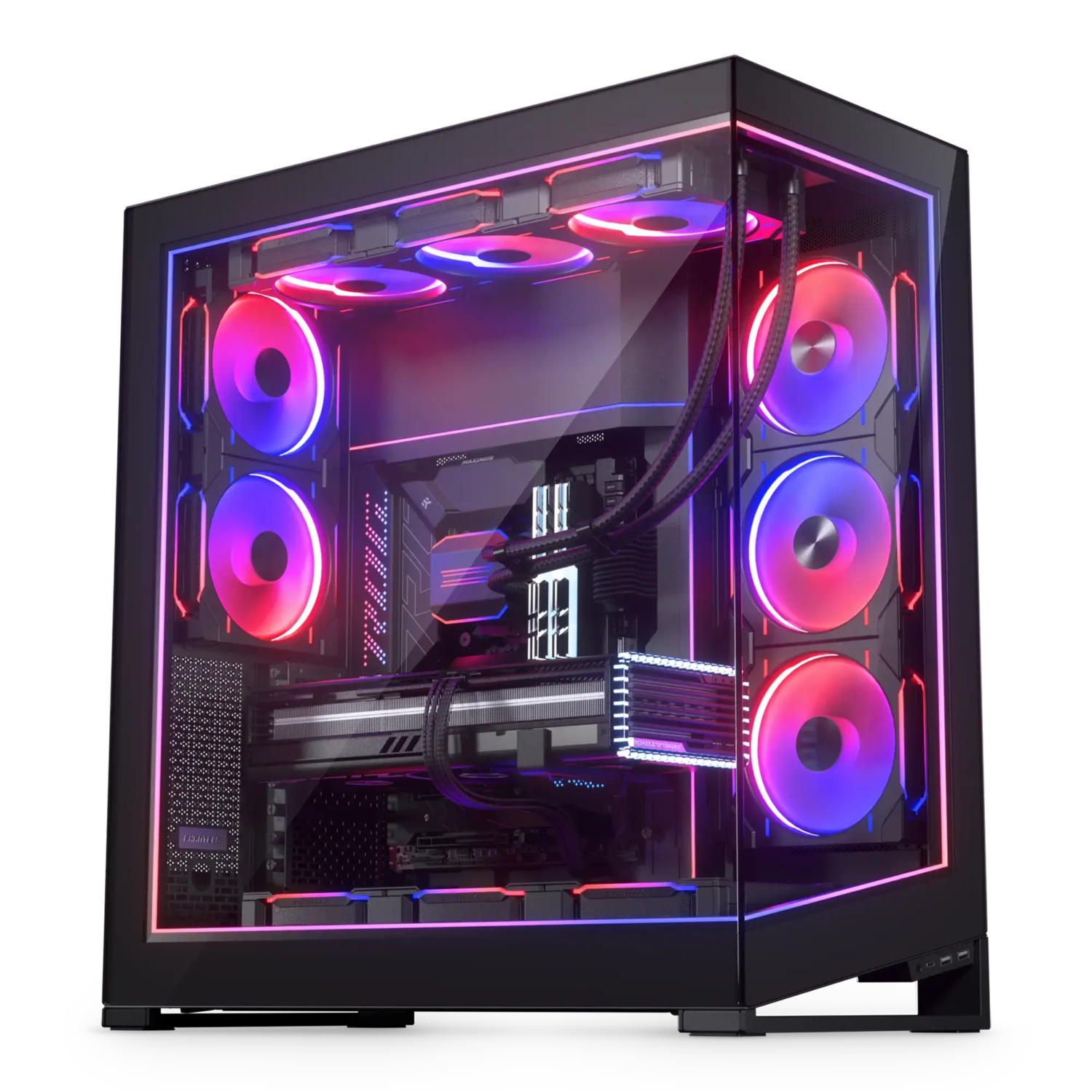

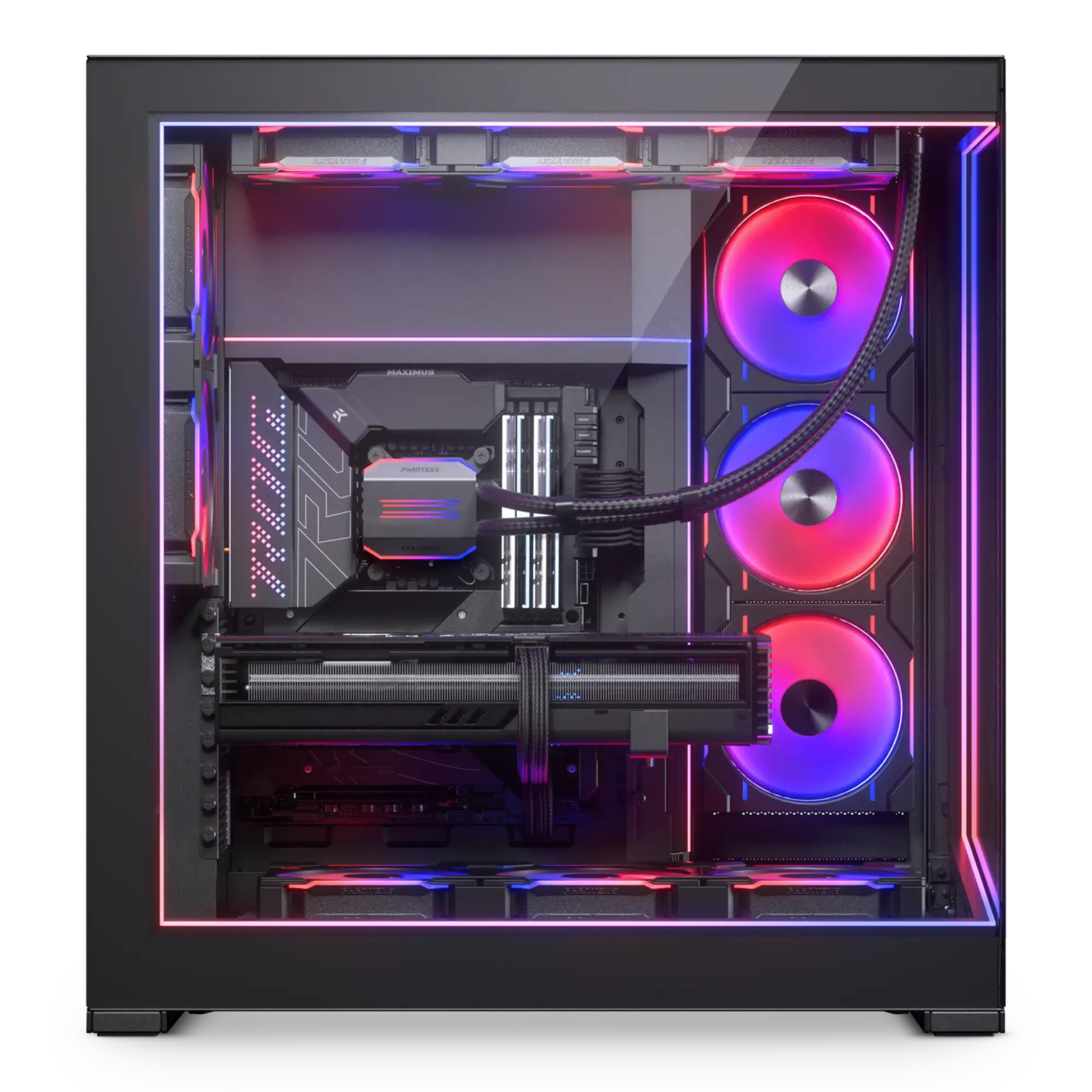

The NV9 Premium D-RGB Kit is designed specifically for NV9 chassis. Elevate your NV9 chassis with mesmerizing lighting effects with the included 4x D-RGB LED modules that securely mount on the outer frame of the NV9. Effortlessly connect to the NV9 D-RGB case controller.

Colors

Black

Black

White

White

Chassis Support

NV5

NV7

NV9

Custom Designed for the NV5 Chassis

  • Elevate your NV9 chassis with mesmerizing lighting effects with the included 4x D-RGB LED modules.

  • LED modules magnetically secure around the outer frame of the NV9.

  • Smooth D-RGB to provide unique lighting effects.

D-RGB by Phanteks

  • Works out of the box (plug-and-play)
  • Standard JST Connector.
  • Always compatible with third-party software control, free choice.
Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

Specifications

General

Extra

Model No.

PH-PLEDKT_NV9_DBK01

UPC Code

886523003274

Materials

ABS plastic | PC plastic

Color

Black

D-RGB Controller Output

7A

Chassis Support

Phanteks NV9

Net Weight

1.43 kg | 3.15 lbs

Gross Weight

1.59 kg | 3.50 lbs

Warranty

2 Years limited

Scope of Delivery

4x D-RGB LED modules

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Discover all premium D-RGB kits

The Premium D-RGB kits are designed specifically to elevate your chassis with mesmerizing lighting effects. The included D-RGB LED modules that securely mount on the outer frame of the chassis. Effortlessly connect to the D-RGB case controller.
