Enthoo Elite Server
Engineered for extreme performance and scalability
The Phanteks Enthoo Elite Server redefines what a high-end server chassis can be engineered for: maximum configurability, professional reliability, and next-level cooling potential. Designed to accommodate the most demanding workstation or server builds, it offers unmatched space and precision for enthusiasts and professionals alike.
Crafted from premium steel and aluminum, the Elite Server provides a rock-solid foundation with extensive hardware support, including SSI-EEB motherboards, dual power supplies, and 12 PCI slots. Its massive internal layout is optimized for 29 fan positions and multi-radiator compatibility, ensuring superior airflow and thermal balance even under extreme workloads.

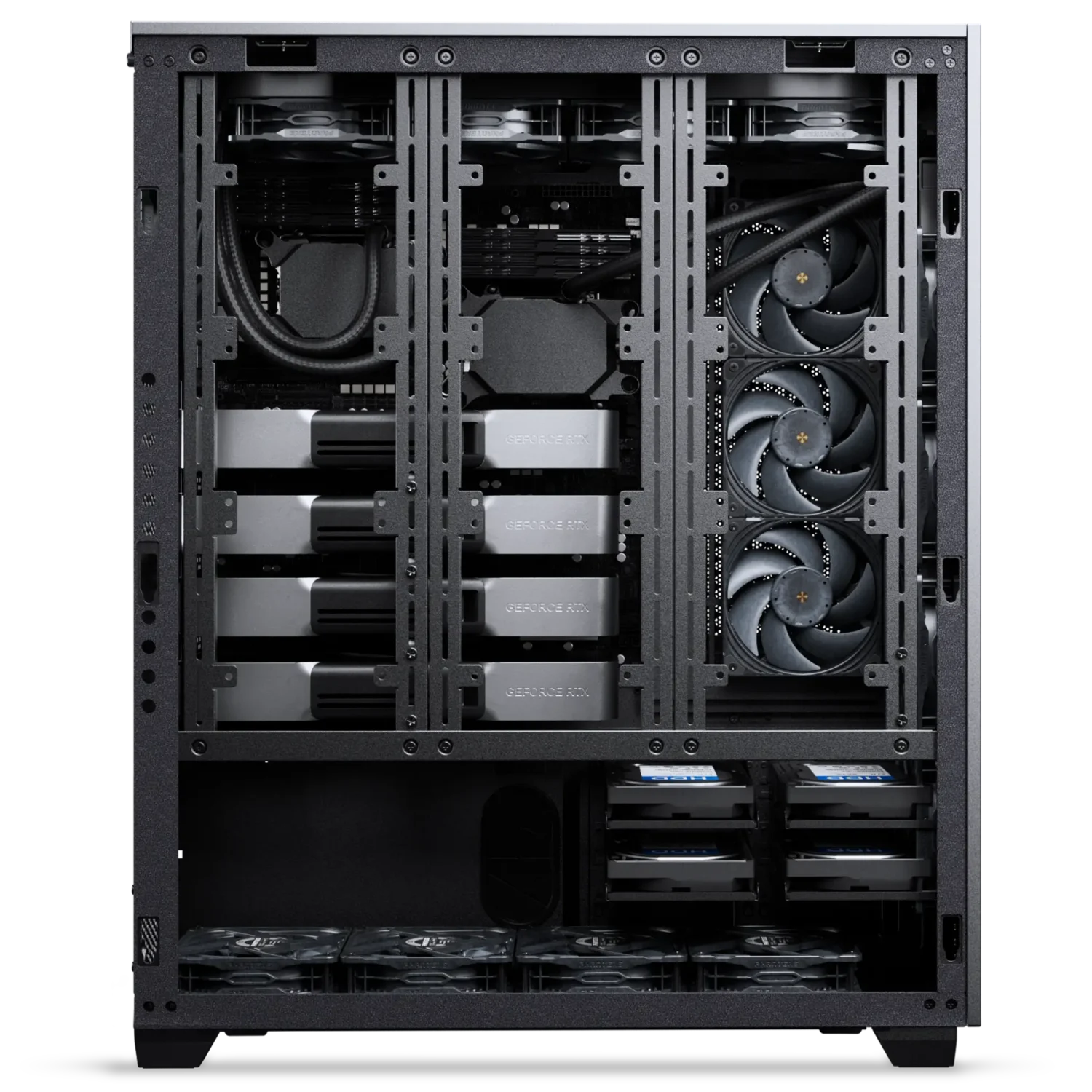

Every detail is purpose-built for scalability and performance, from modular drive bays that support large storage arrays to open airflow zones designed to keep every component performing at its best. Whether you’re building a render workstation, storage server, or multi-GPU compute rig, the Enthoo Elite Server delivers the flexibility, power, and cooling capacity to make it happen.
Specifications
General
Model No.
PH-ES916E_BK02
UPC Code
886523304135
Case Dimensions
582 x 261 x 721 mm | 22.91 x 10.27 x 28.38 in
From Factor

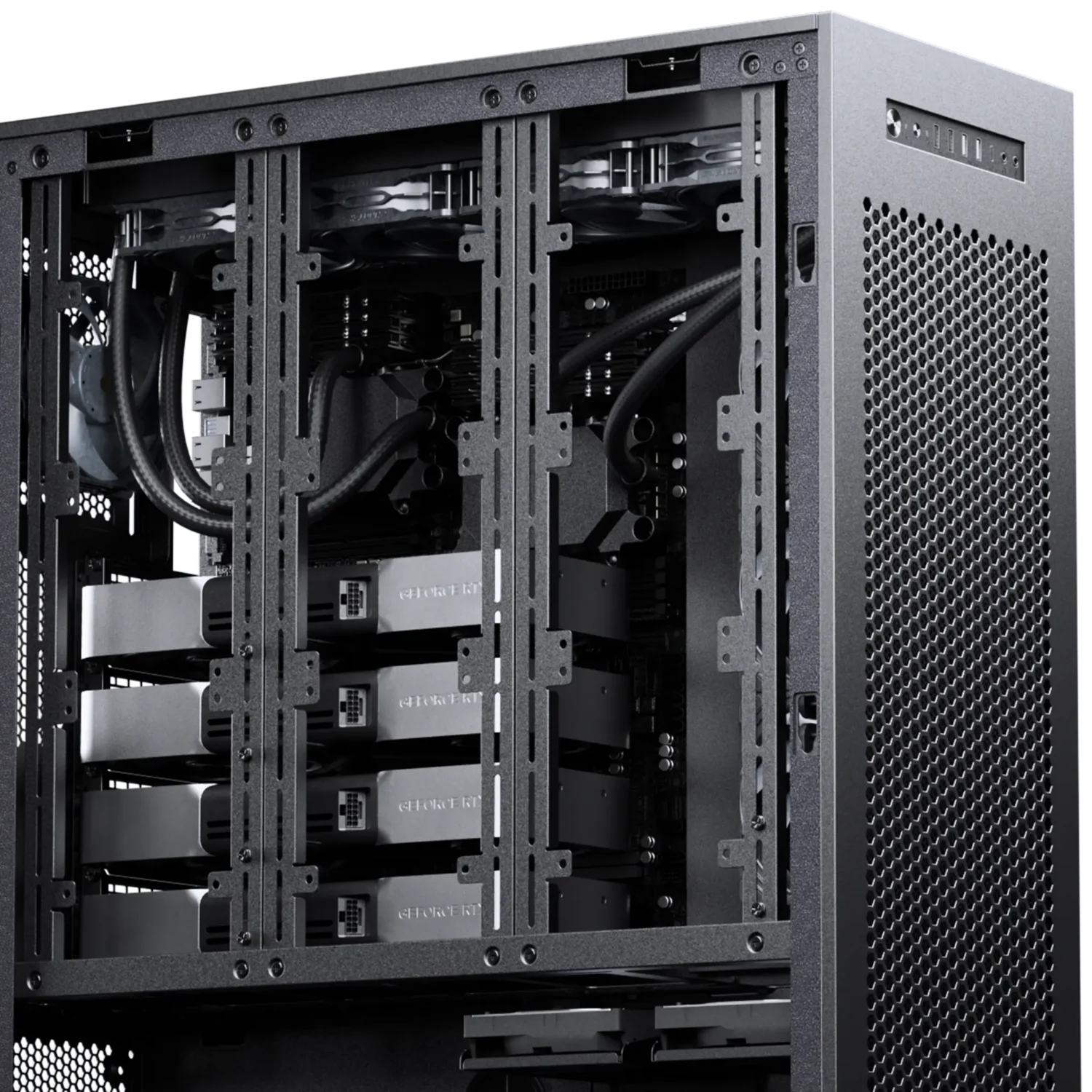

Extreme Full-Tower
Mainboard Support
SSI-EEB | XL-ATX | E-ATX | ATX | Micro-ATX | Mini-ITX
Materials
Steel chassis | ABS plastic
Color
Black
Expansion Slots
12
Vertical GPU Support
Yes
Riser cable & bracket sold separately

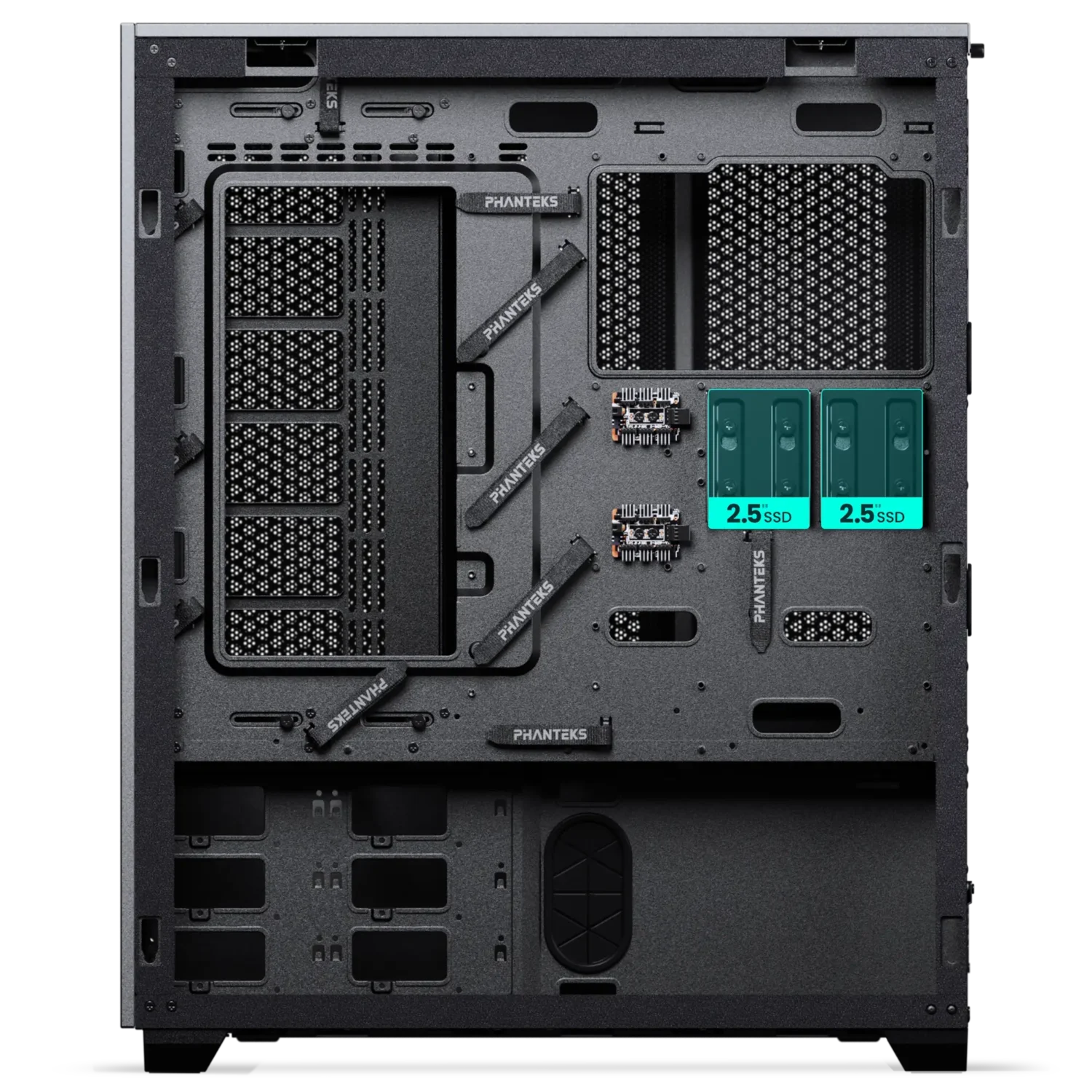

Internal 2.5″ Positions
2
+ 8x 3.5″ HDD

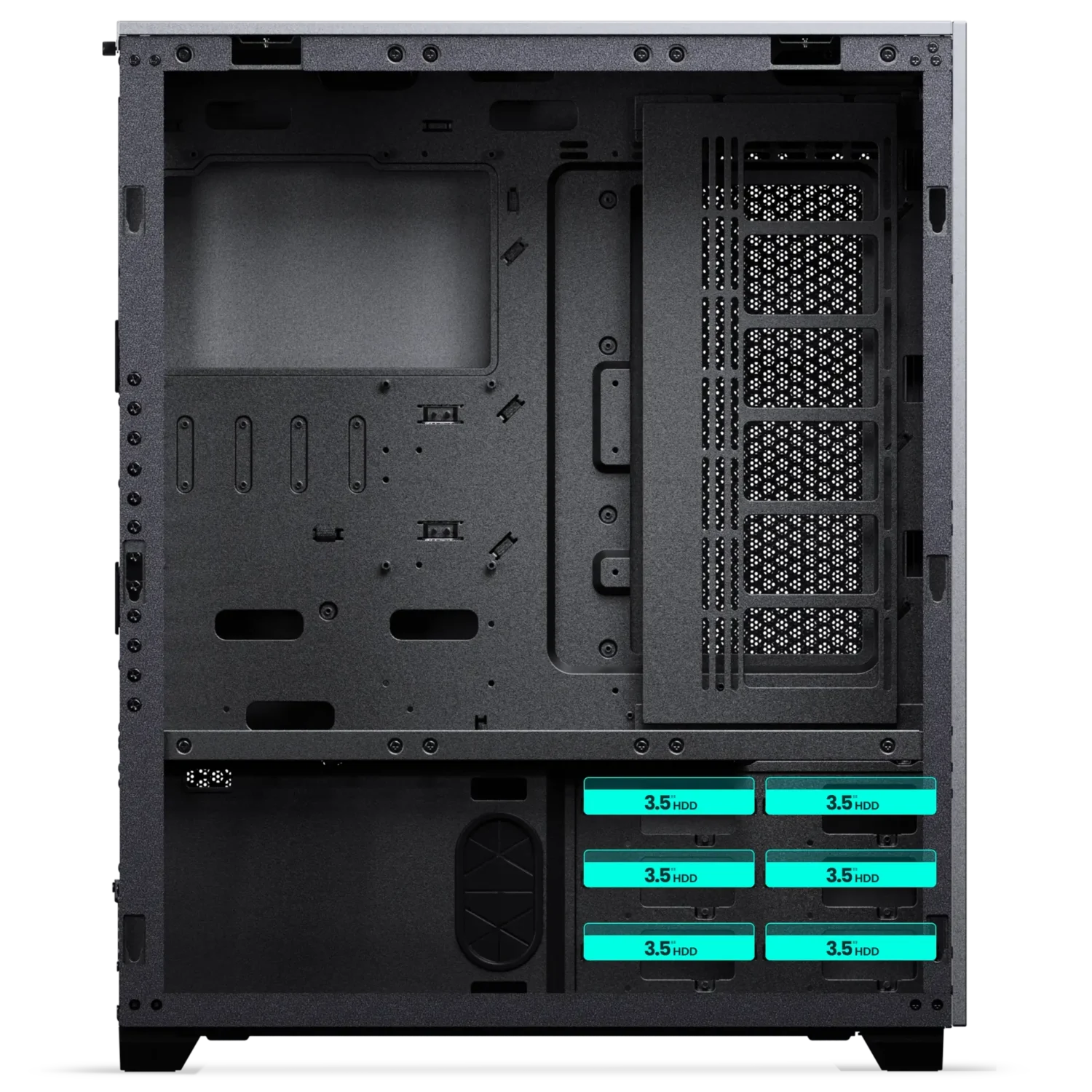

Internal 3.5″ Positions
8
+ 2x 2.5″ SSD

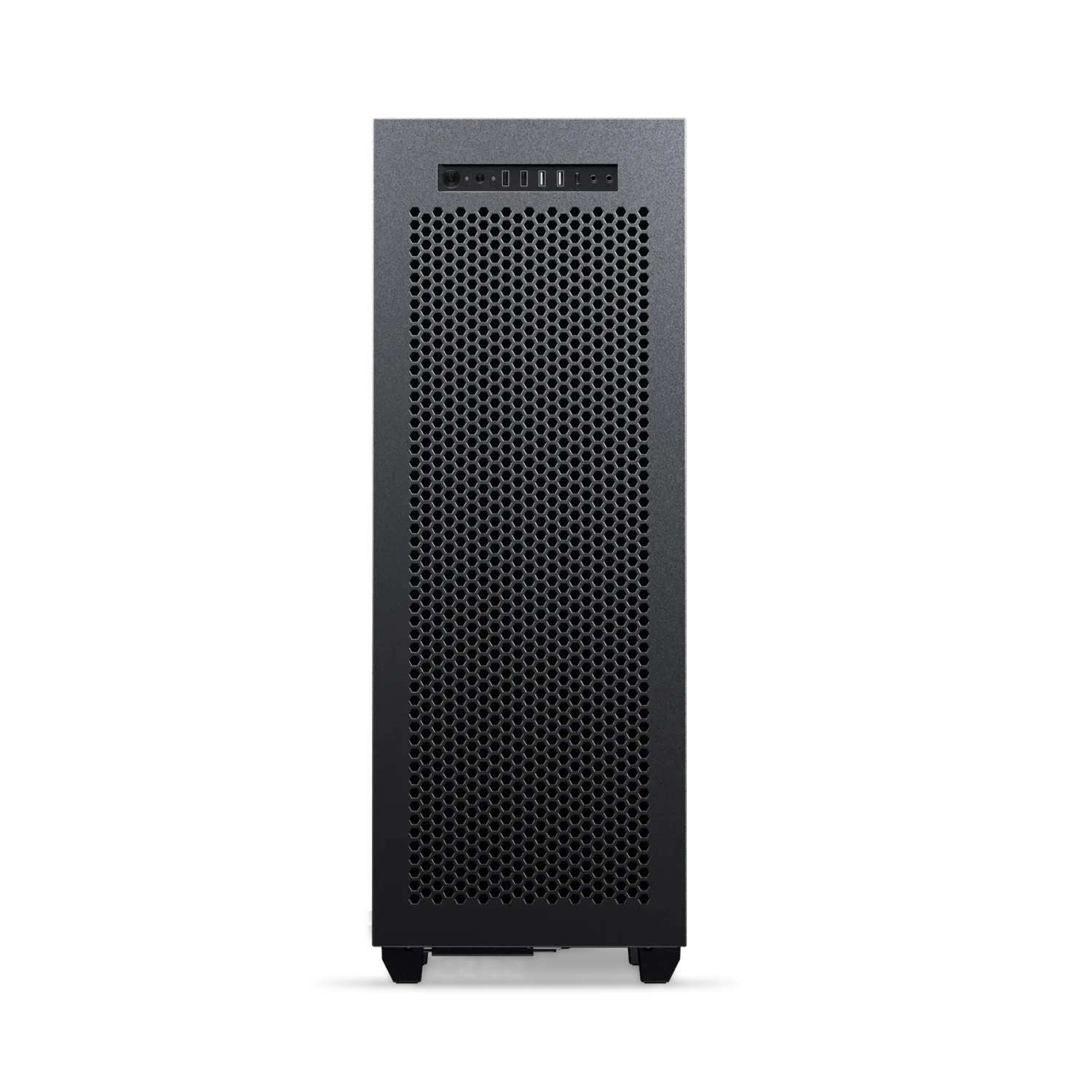

Front I/O
2x USB 2.0
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone
1x Headphone
Power button
Reset button

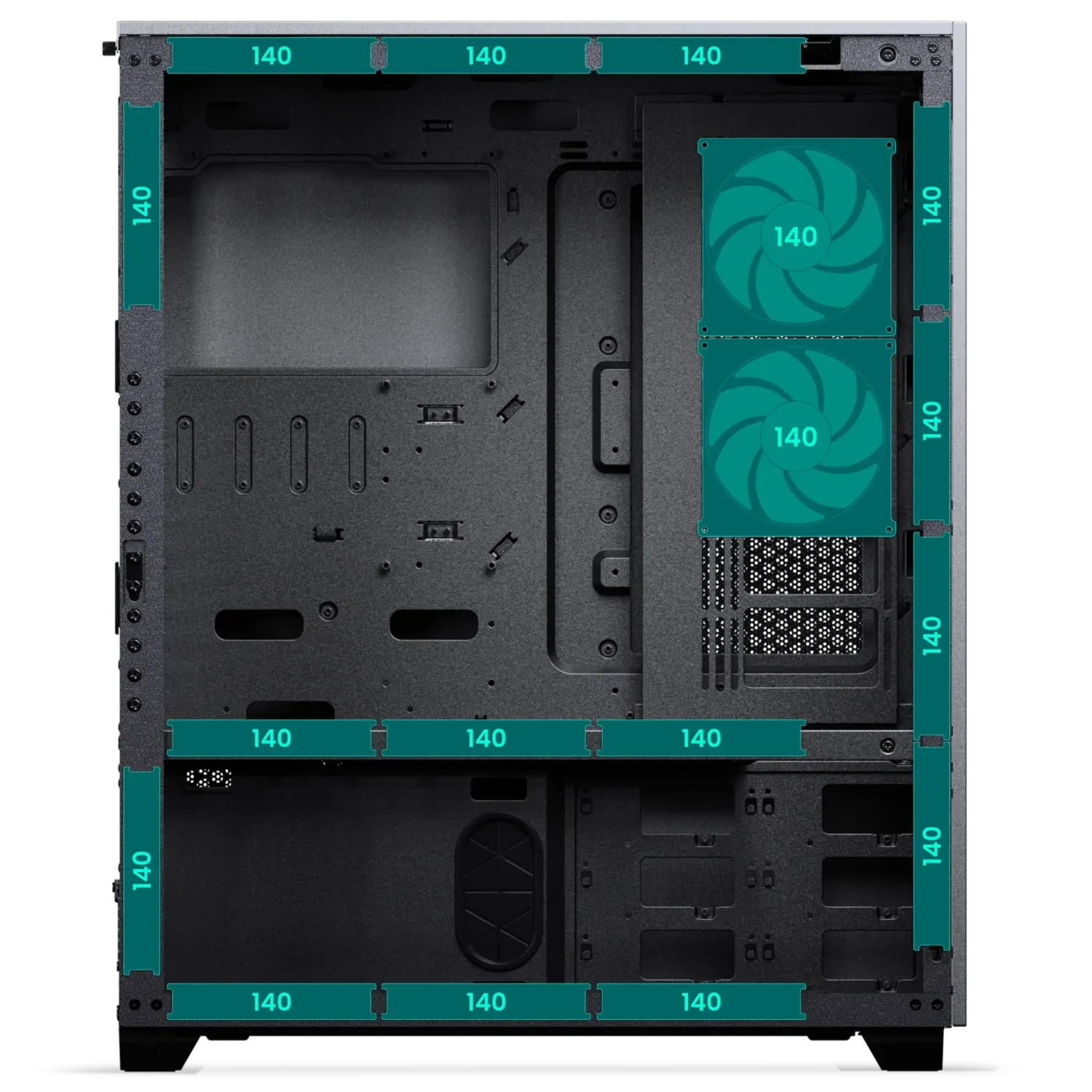

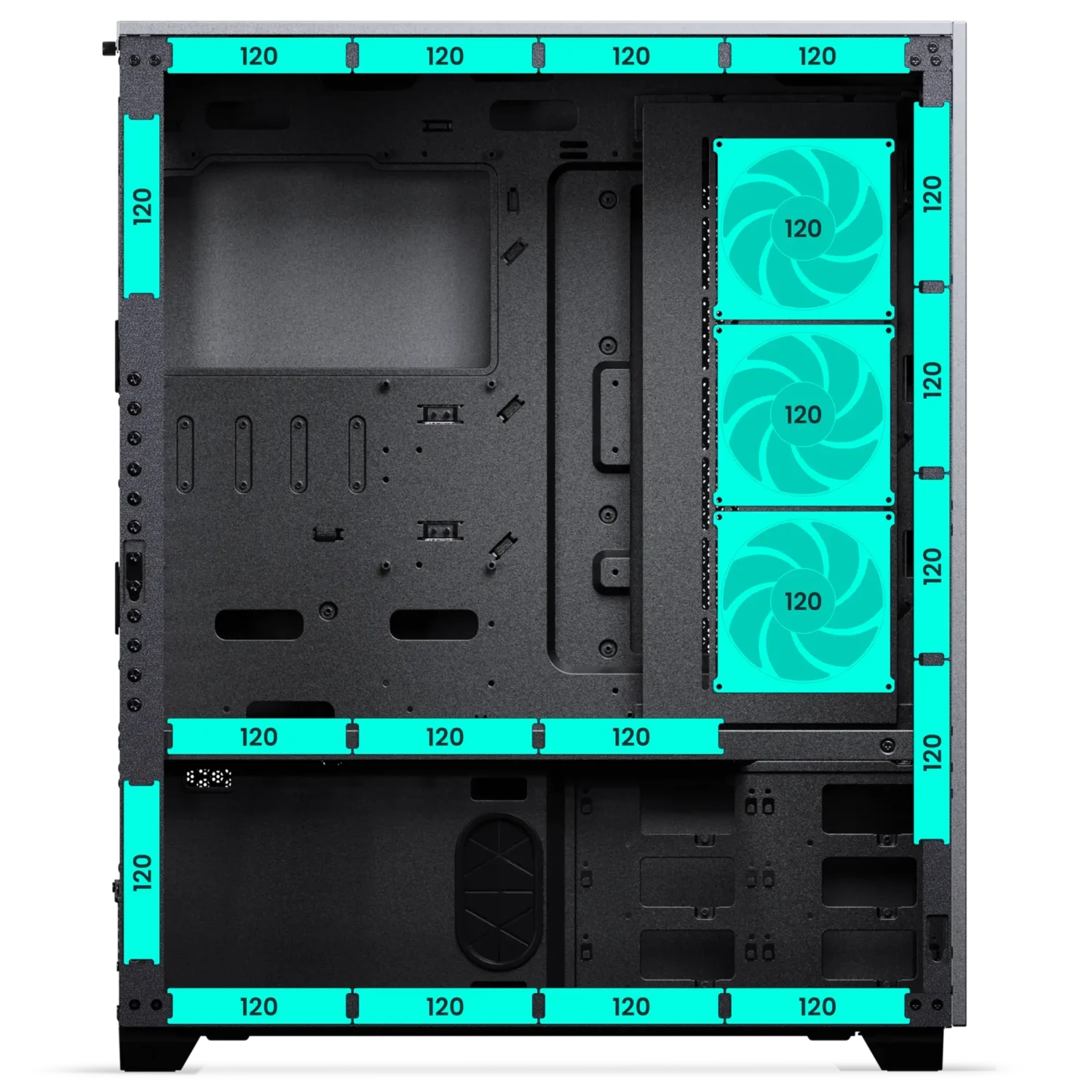

Fans 120 | 140
Total Fans
29 | 17
Top
4 | 3
Front
4 | 4
Midplate
3 | 3
Right side
3 | 2

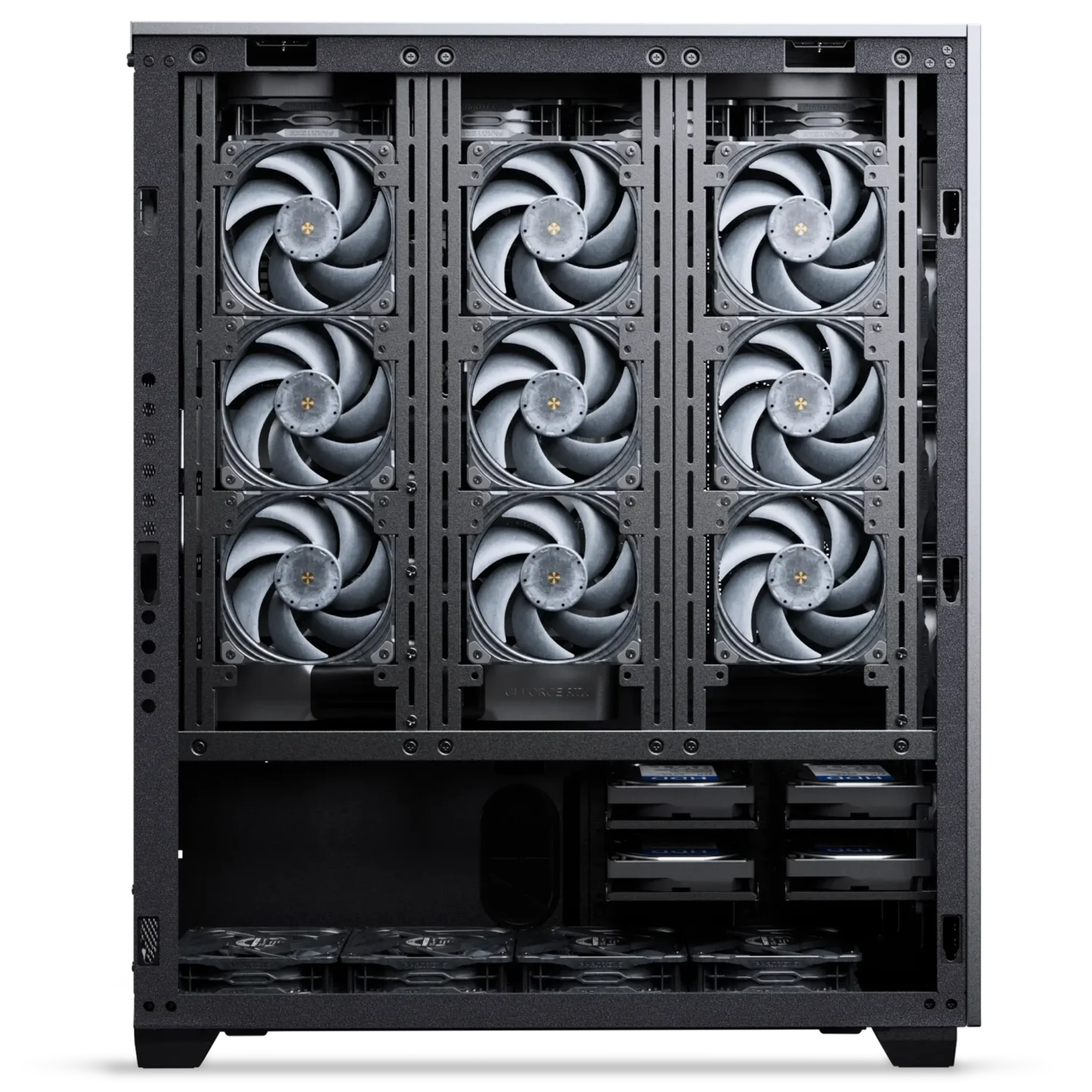

Left side
9 | –
Rear
2 | 2
Bottom
4 | 3

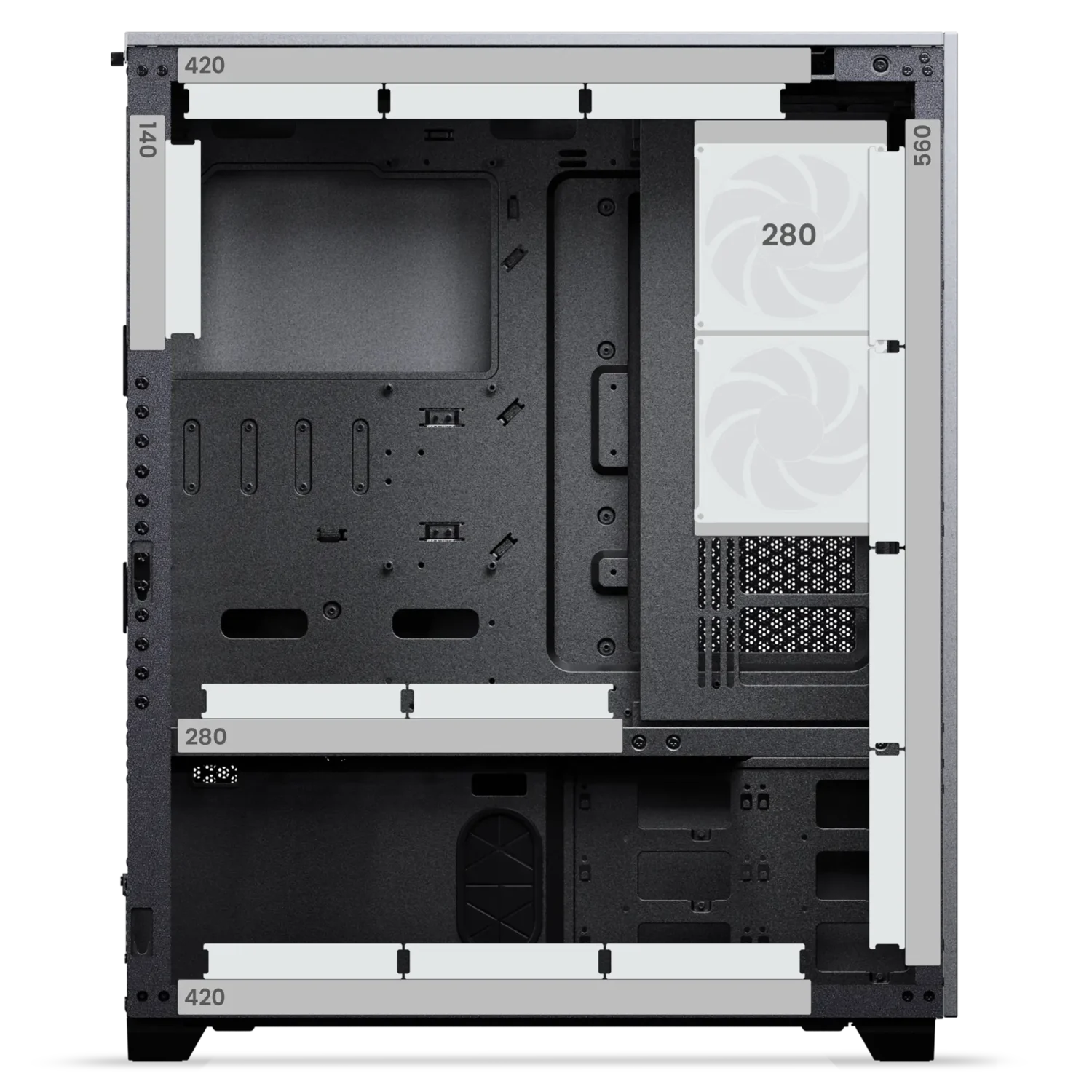

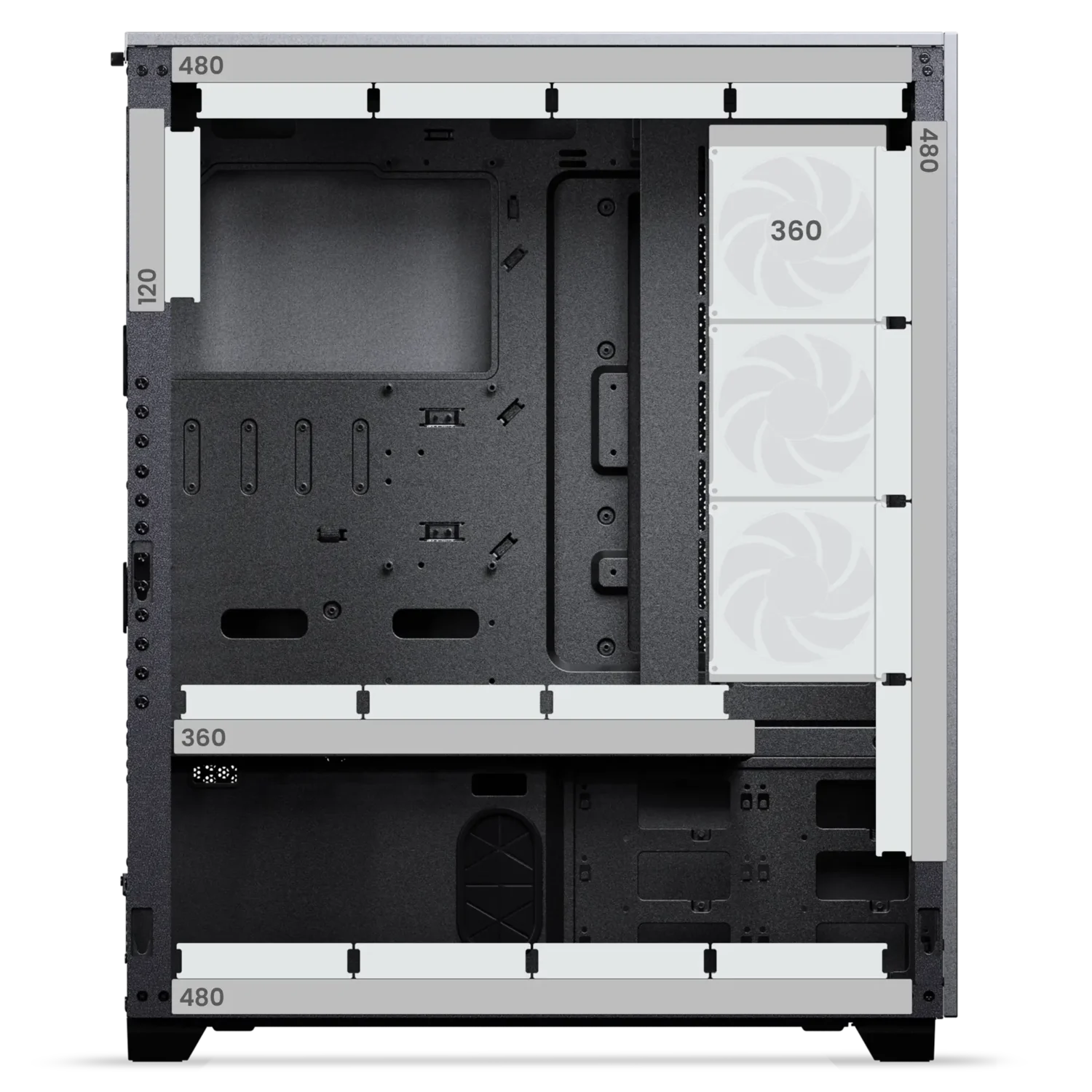

Radiator 120 | 140
Top
Max. 480 | Max. 420
Front
Max. 480 | Max. 560
Midplate
Max. 360 | Max. 280
Right side
Max. 360 | 280
Left side
– | –
Rear
Max. 120 | 140
Bottom
Max. 480 | 420
Clearance
CPU Cooler
Height
200 mm | 7.87 in
Top Radiator
Height
65 mm | 2.55 in
Extra
Scope of Delivery
1x Enthoo Elite Server chassis
2x SSD bracket Pre-installed
1x Right-side fan bracket Pre-installed
Accessory Box
6x HDD bracket
4x GPU support bracket
6x Left-side fan brackets
4x GPU brackets

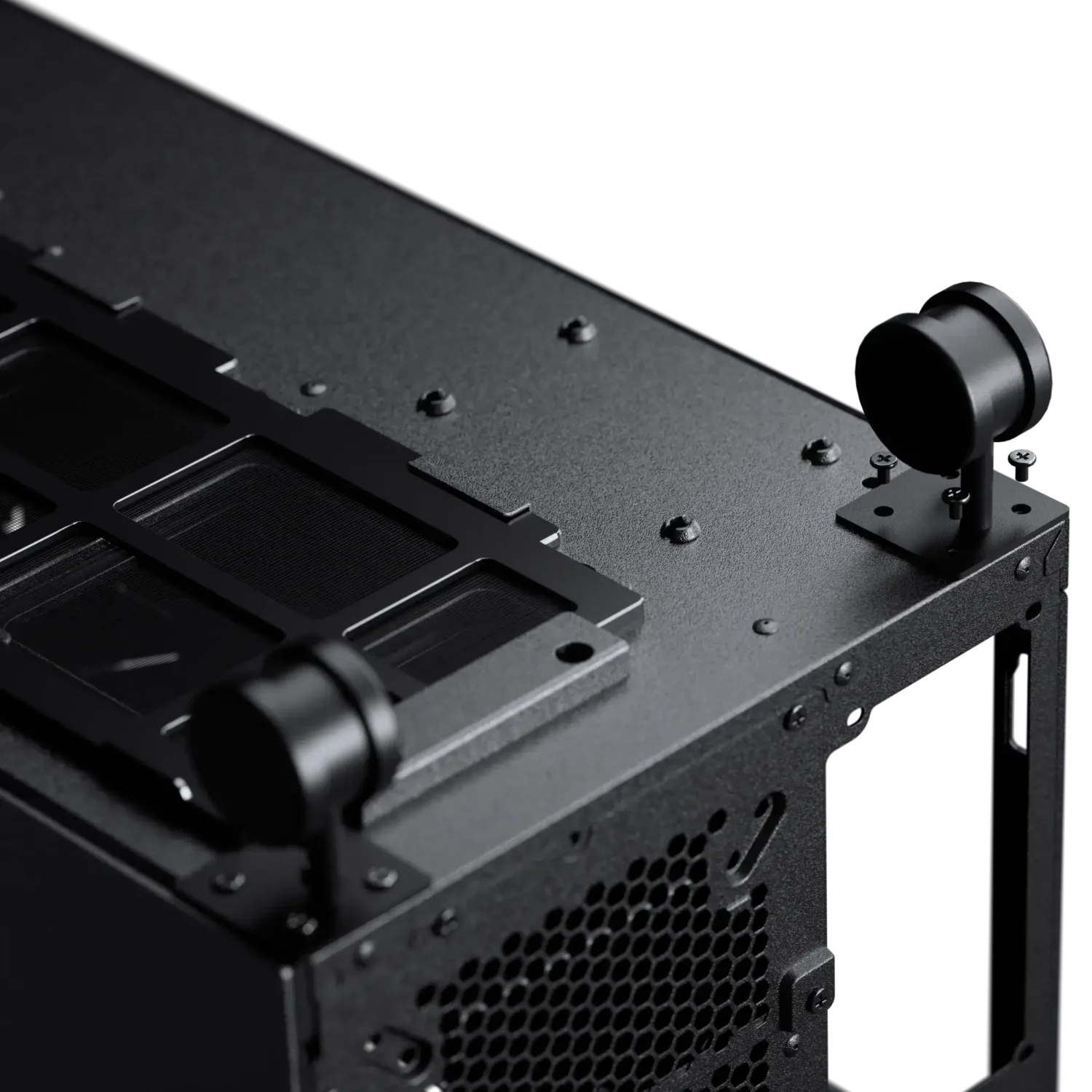

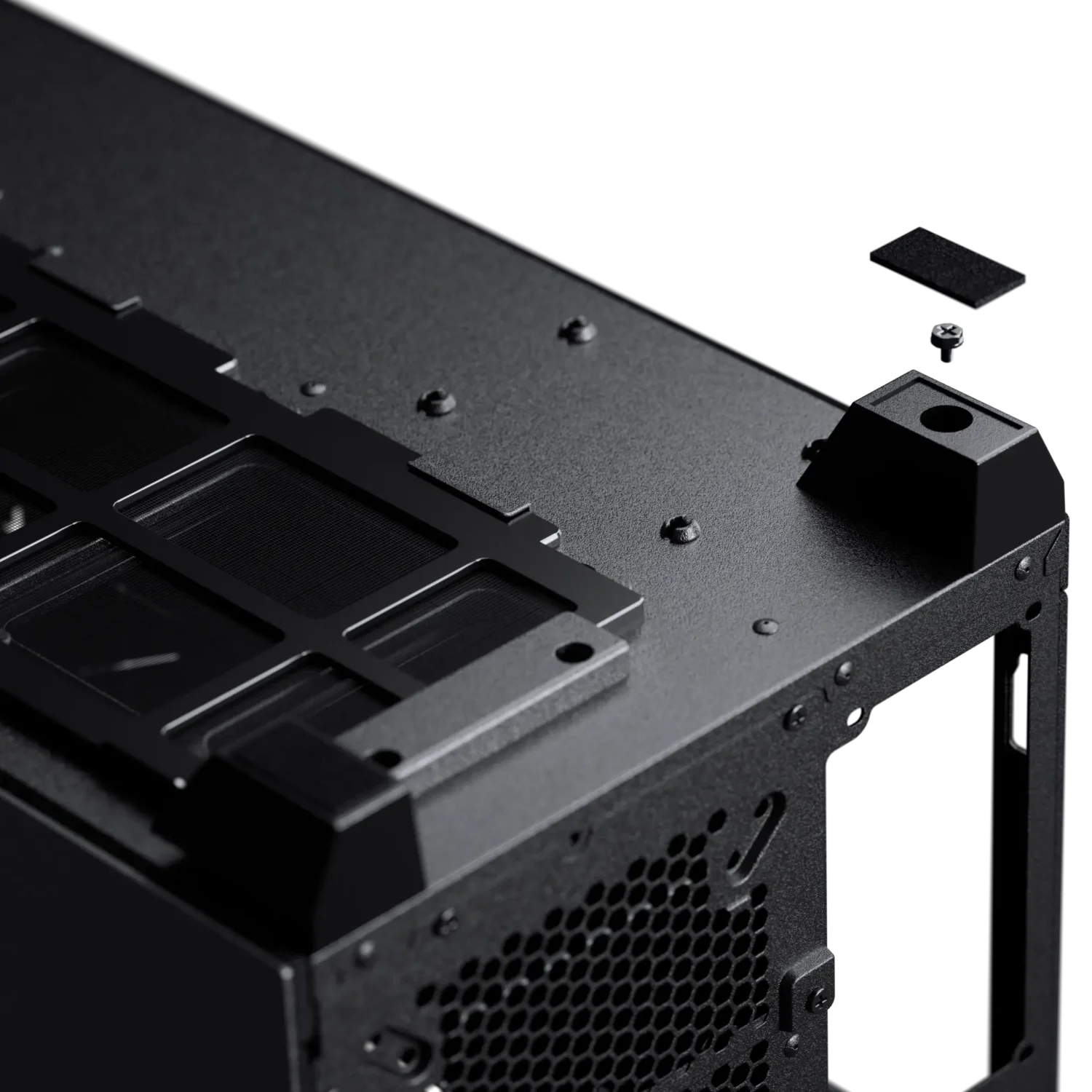

4x Wheels
10x Zip ties
1x Stand-off removal tool
Screws
30x Mainboard | SSD screws
8x Power supply screws
4x GPU bracket screws
22x Thumb screws
24x HDD screws
24x Case screws
1x Mainboard stand-off
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
You don’t need the Nexlinq app directly for housing your PC in the Matrix-supported cases. However, the Nexlinq app is required to set up and customize the Matrix display (system stats, animations, lighting, and custom visuals). Without the app, the Matrix screen cannot be configured and will show the text ‘Matrix 600’ or ‘Matrix 900’ depending on the Matrix display size.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
