D30-140
Premium D-RGB performance fan
The Phanteks D30-140 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-140 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Colors
Dimensions

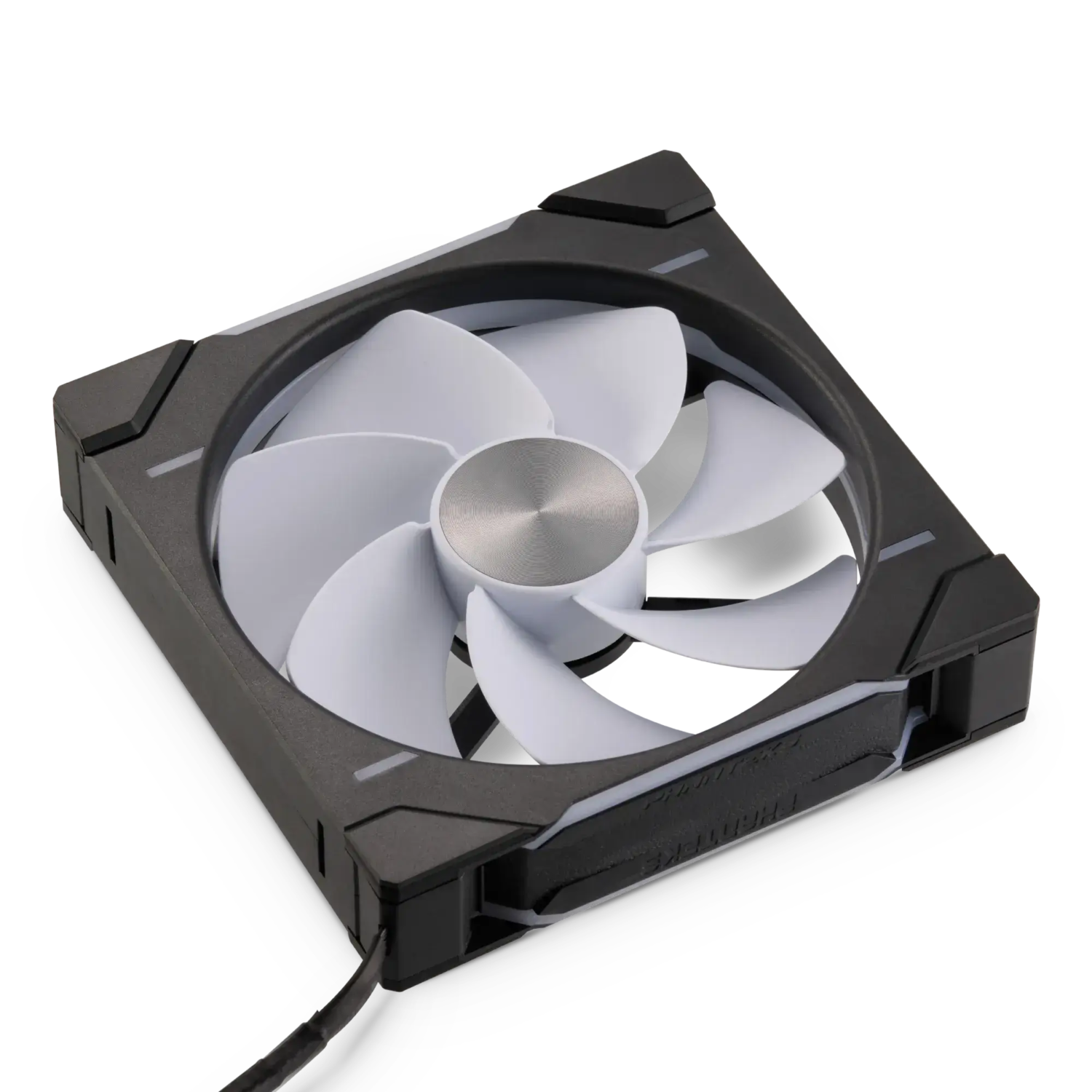

Regular & Reverse Models

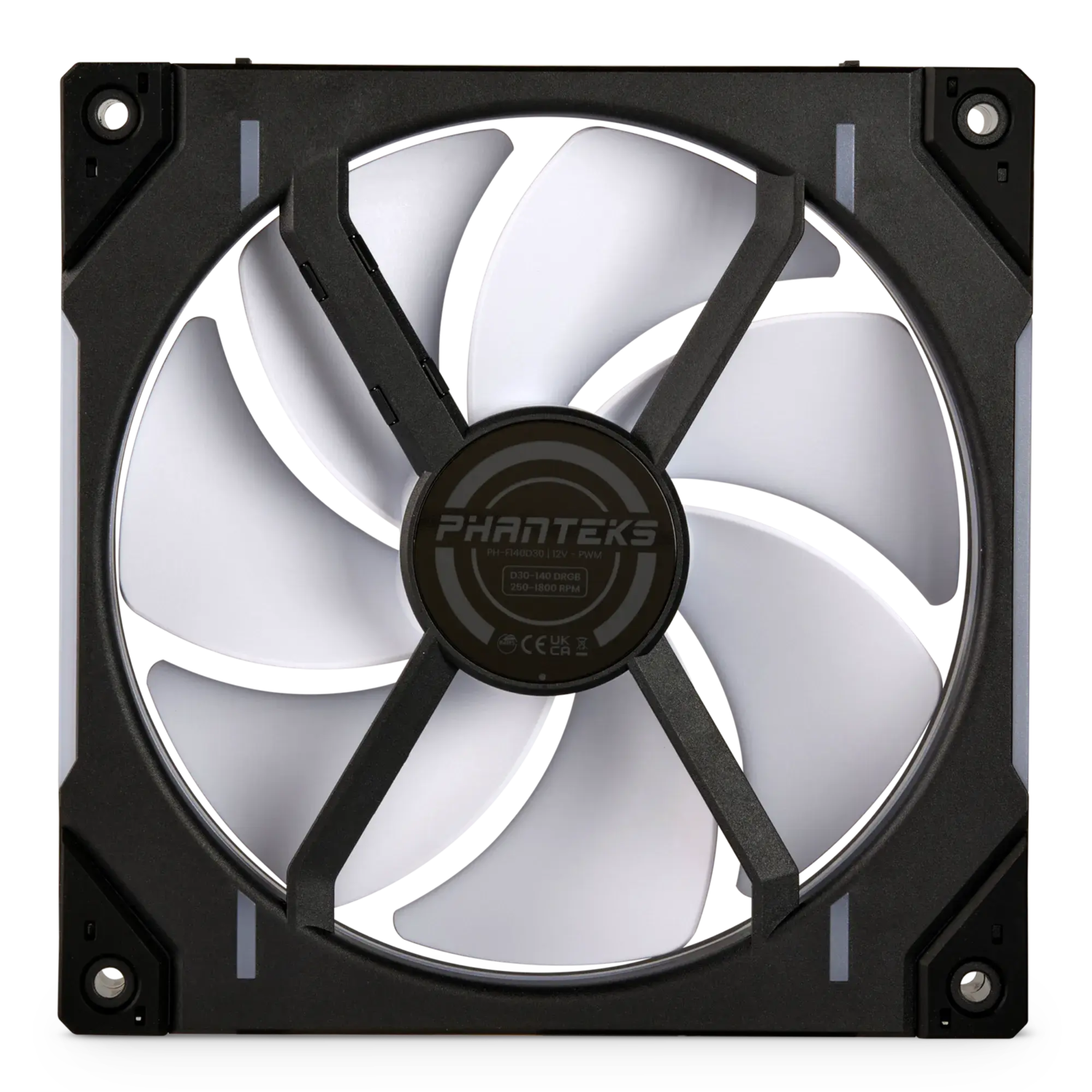

Clean look in both positions

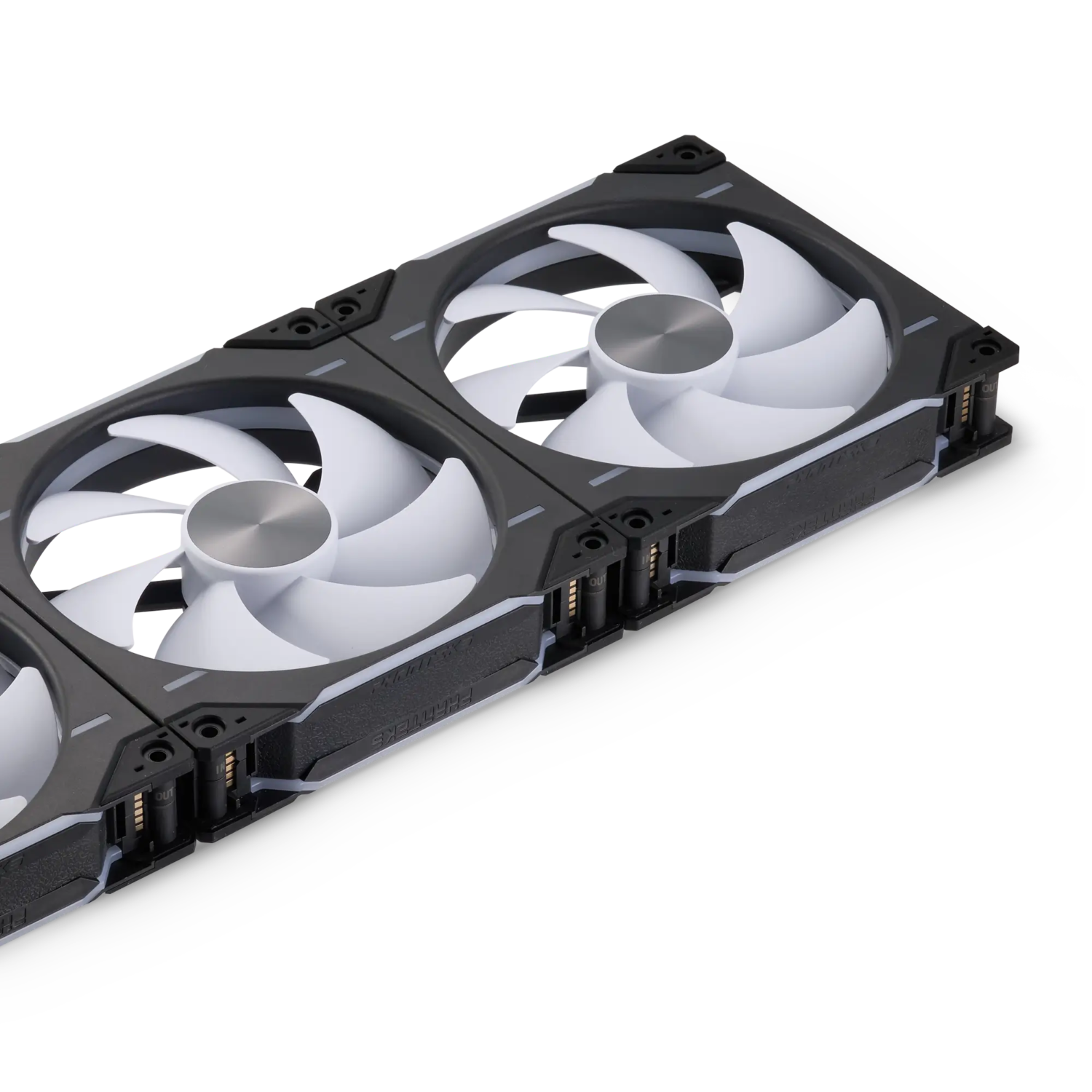

Link Together as One

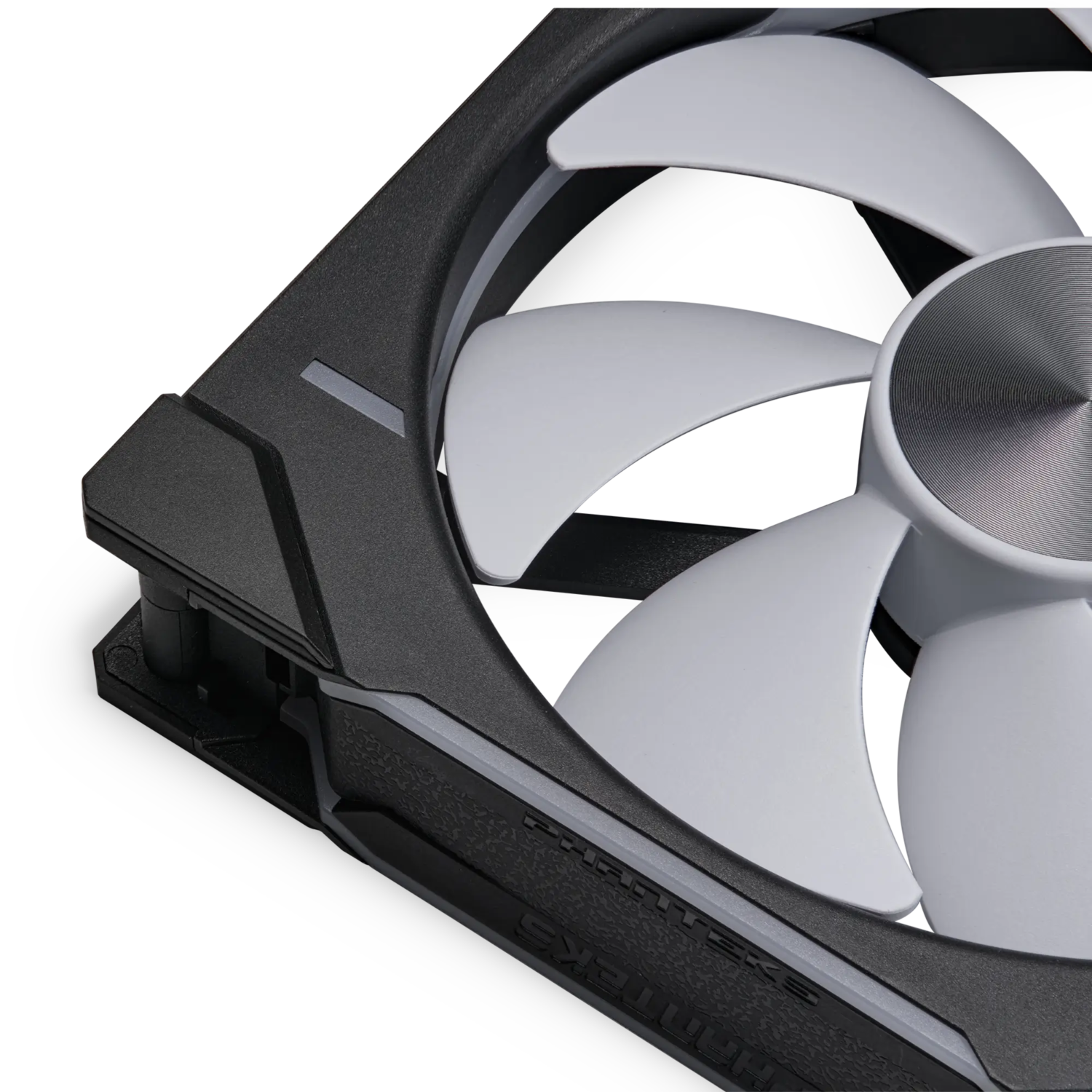

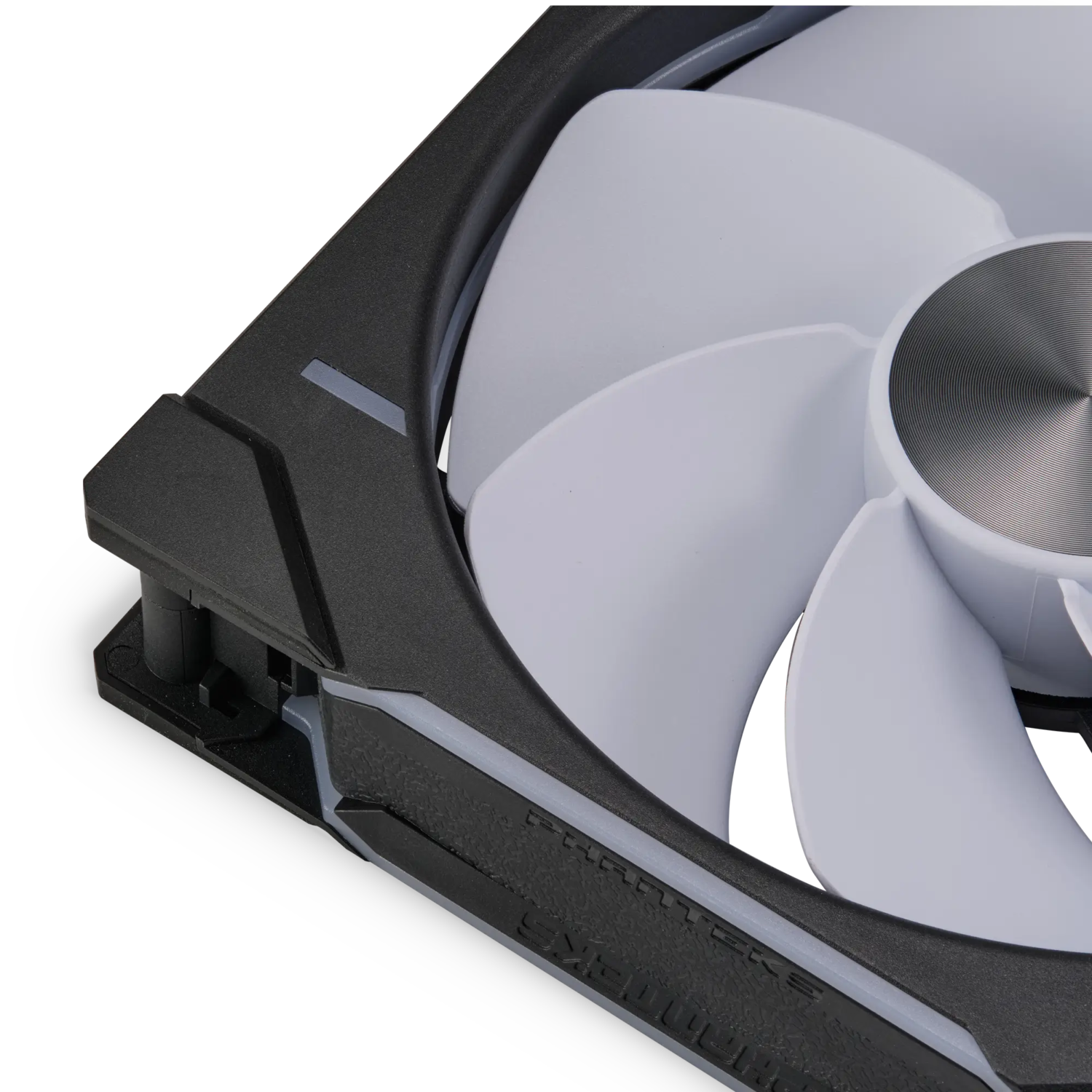

30 mm of Performance

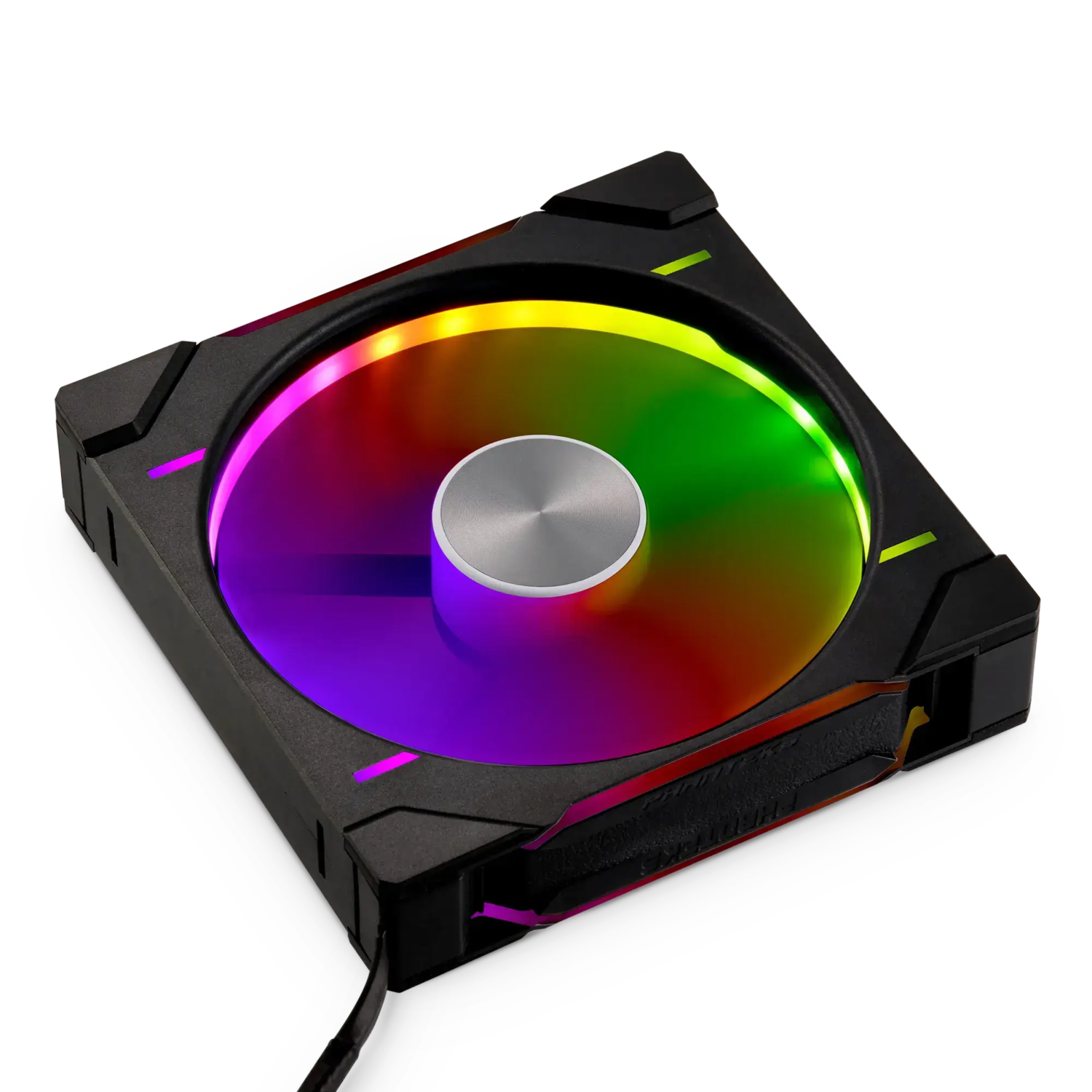

D-RGB All the Way
Specifications
General
Model No.
Regular
Reverse
PH-F140D30_DRGB_PWM_BK01 | PH-F140D30_DRGB_PWM_BK01_3P
PH-F140D30R_DRGB_PWM_BK01 | PH-F140D30R_DRGB_PWM_BK01_3P
UPC Code
Regular
Reverse
886523002963 | 886523002987
886523003298 | 886523003311
Frame Size
140 x 140 x 30 mm | 5.51 x 5.51 x 1.18 in
Blade Geometry
Seven blades design
PWM Connector
4-Pin Daisy-chain
PWM Cable Length
700 mm | 27.56 in
D-RGB Connector
3-Pin JST Daisy-chain
D-RGB Cable Length
600 + 100 mm | 23.62 + 3.94 in
Technical Details Regular
Technical Details Reverse
Bearing Type
FDB (Fluid Dynamic Bearing)
Rated Voltage
5~13.2V
Noise Level
29.5 dBA
Max. Airflow
71.93 CFM
Max. Air Pressure
3.32 mm H2O
Speed
250~1800 ± 10% RPM
MTFB
50.000 hours
Max Current
0.15A
Max Power
≦ 1.8W
Operating Voltage Range
DC 5 ~ 13.2V
LED Number
30
LED Rated Current
Max. 0.45A
Bearing Type
FDB (Fluid Dynamic Bearing)
Rated Voltage
5~13.2V
Noise Level
32.1 dBA
Max. Airflow
71.76 CFM
Max. Air Pressure
3.08 mm H2O
Speed
250~1800 ± 10% RPM
MTFB
50.000 hours
Max Current
0.15A
Max Power
≦ 1.8W
Operating Voltage Range
DC 5 ~ 13.2V
LED Number
30
LED Rated Current
Max. 0.45A
Single Pack
Triple Pack
Net Weight
350 g | 12.34 oz
Gross Weight
430 g | 15.16 oz
Warranty
3 Years limited
Scope of Delivery
1x D30-140 fan
Accessory
1x D-RGB mainboard adapter
Screws
4x Fan screw
4x UNC 6-32 radiator screw 36mm
4x M4 radiator screw 36mm
1x Corner clip cable
3x Corner clip
1x Bridge clip connector
1x Bridge clip
4x Screw cover corner (2L|2R)
2x Screw cover bridge
Net Weight
350 g | 12.34 oz
Gross Weight
1030 g | 36.33 oz
Warranty
3 Years limited
Scope of Delivery
3x D30-140 fans
Accessory
2x D-RGB mainboard adapter
Screws
12x Fan screw
12x UNC 6-32 radiator screw 36mm
12x M4 radiator screw 36mm
2x Corner clip cable
6x Corner clip
2x Bridge clip connector
2x Bridge clip
8x Screw cover corner (4L|4R)
4x Screw cover bridge
