NV5
Performance with a view

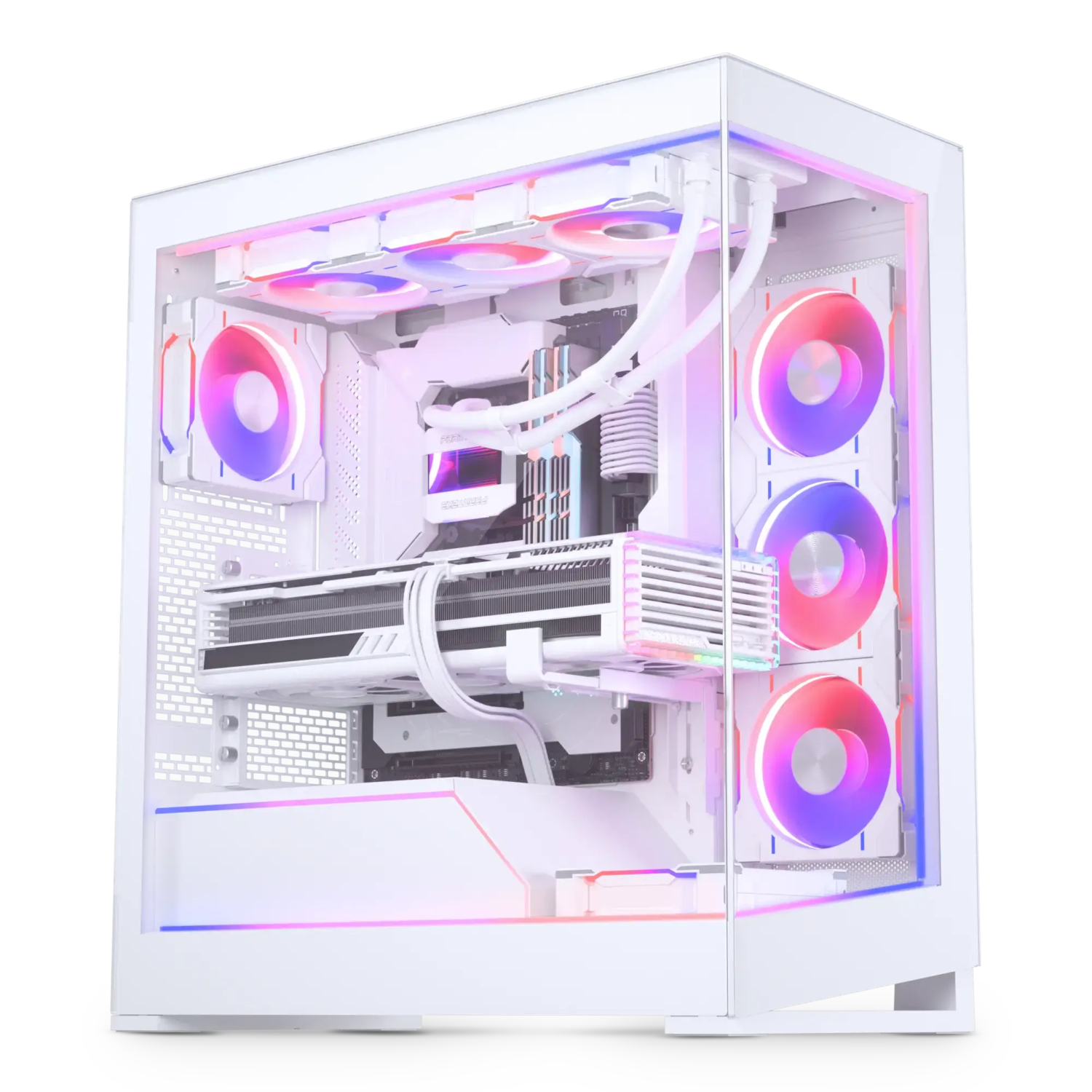

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and a spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.
Colors
Configurations
D-RGB

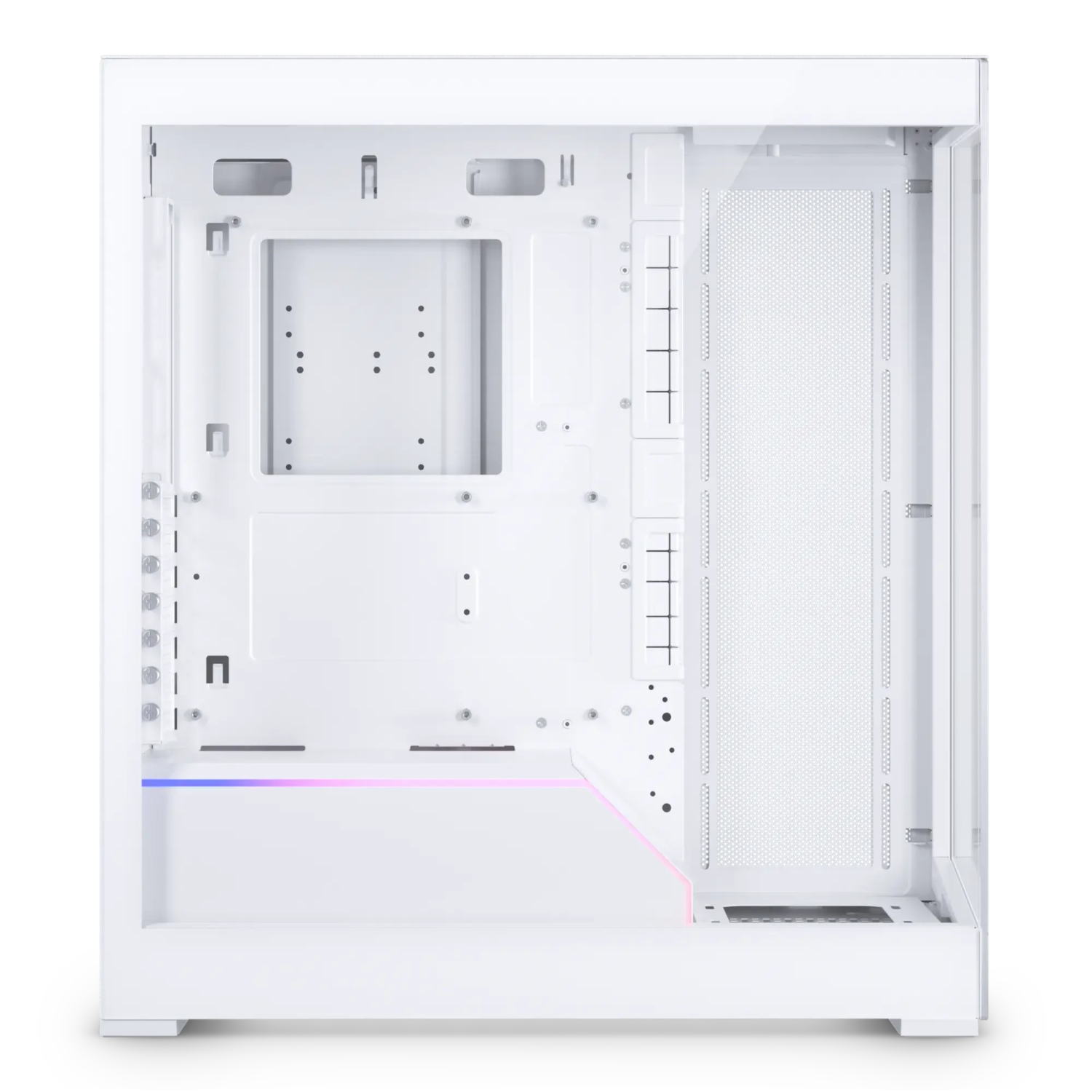

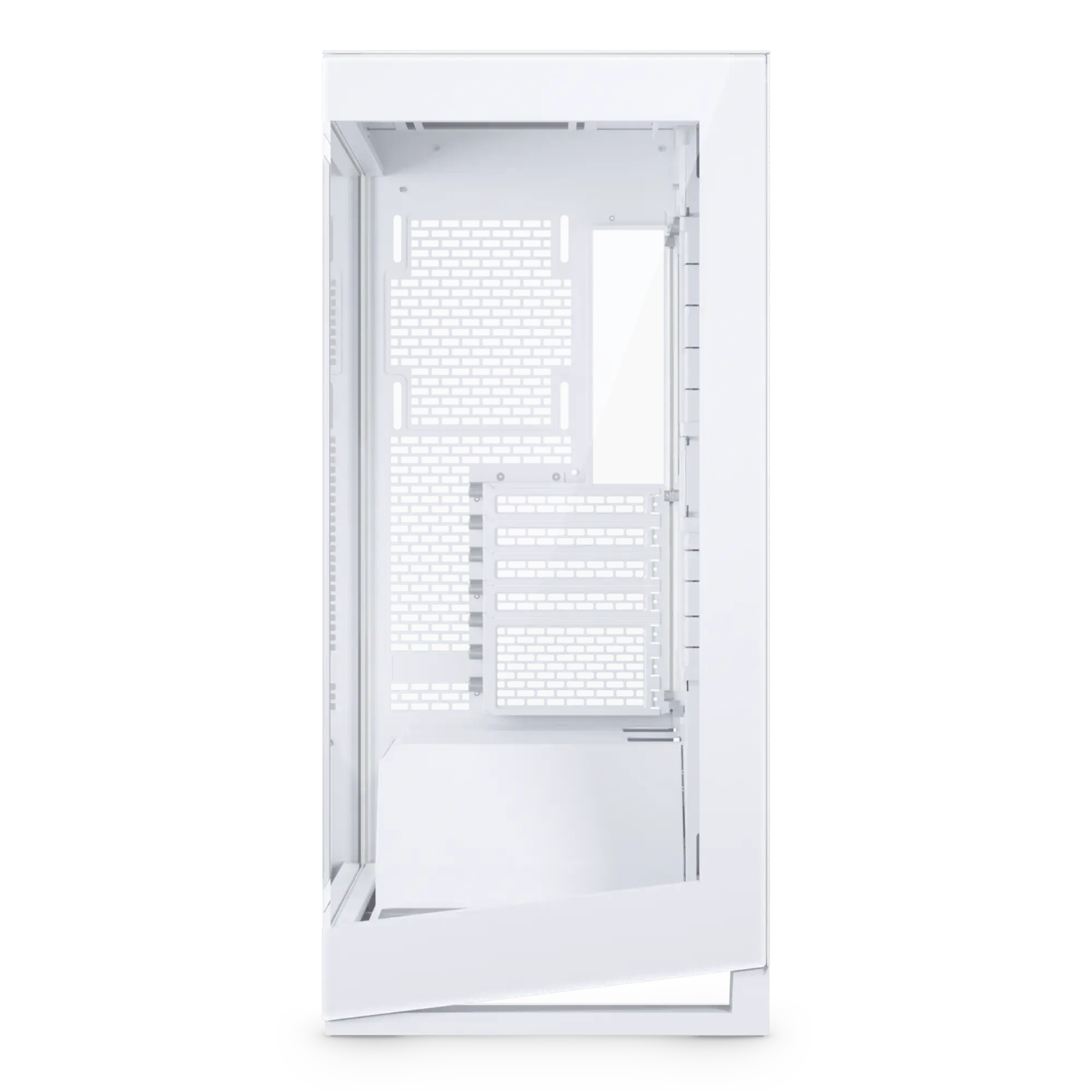

Perfect view of your system

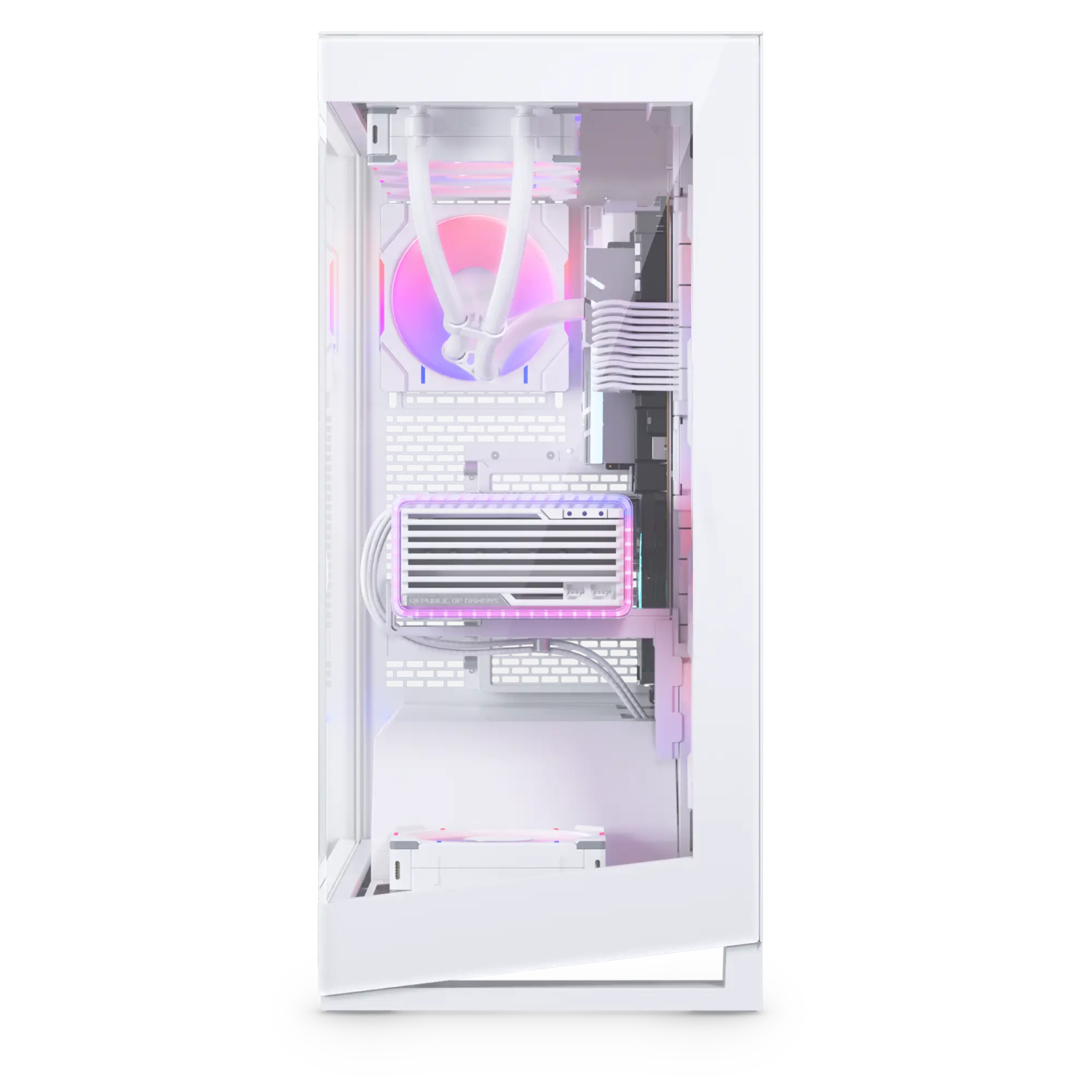

Ready for modern GPUs
*Premium D-RGB Kit not included

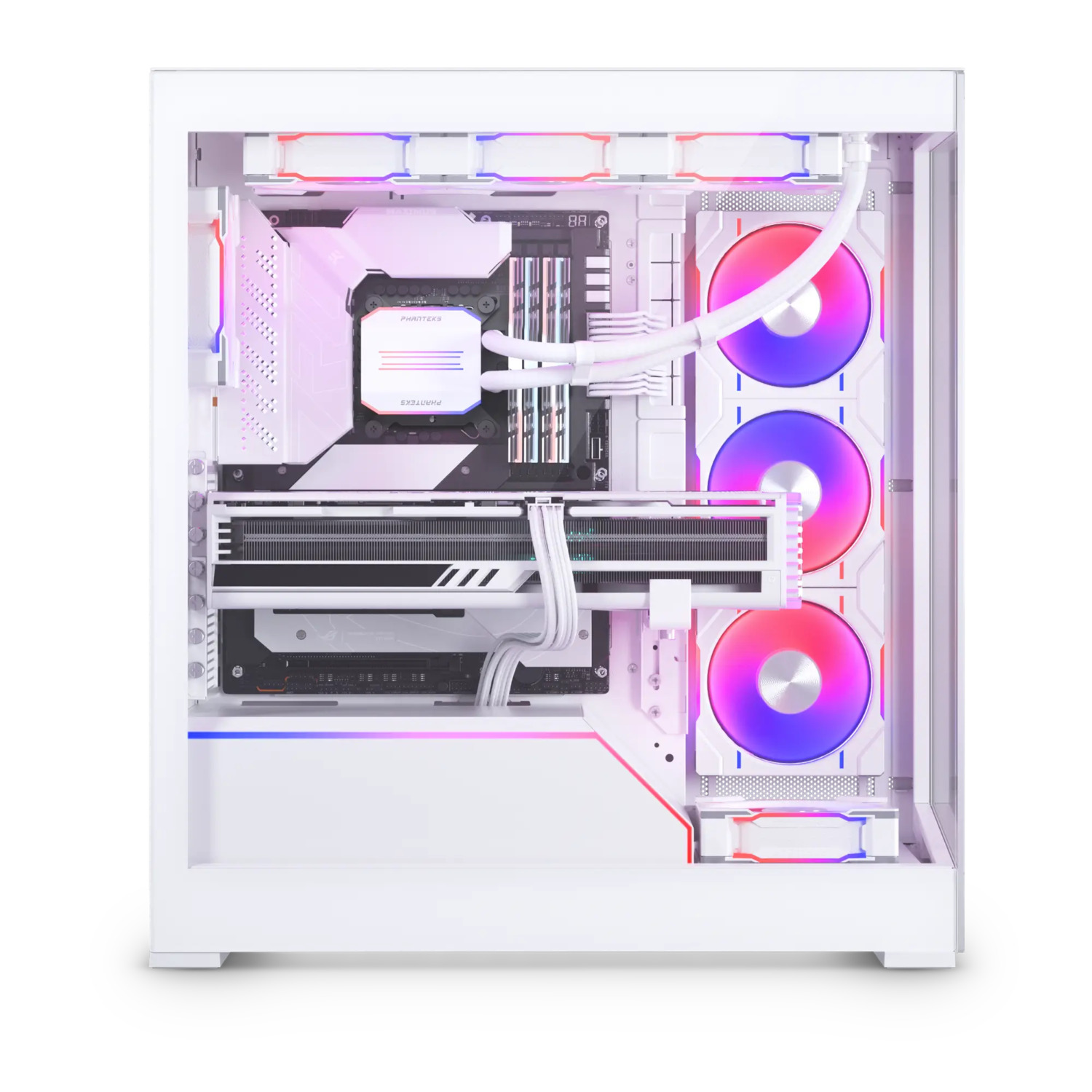

Integrated D-RGB lighting

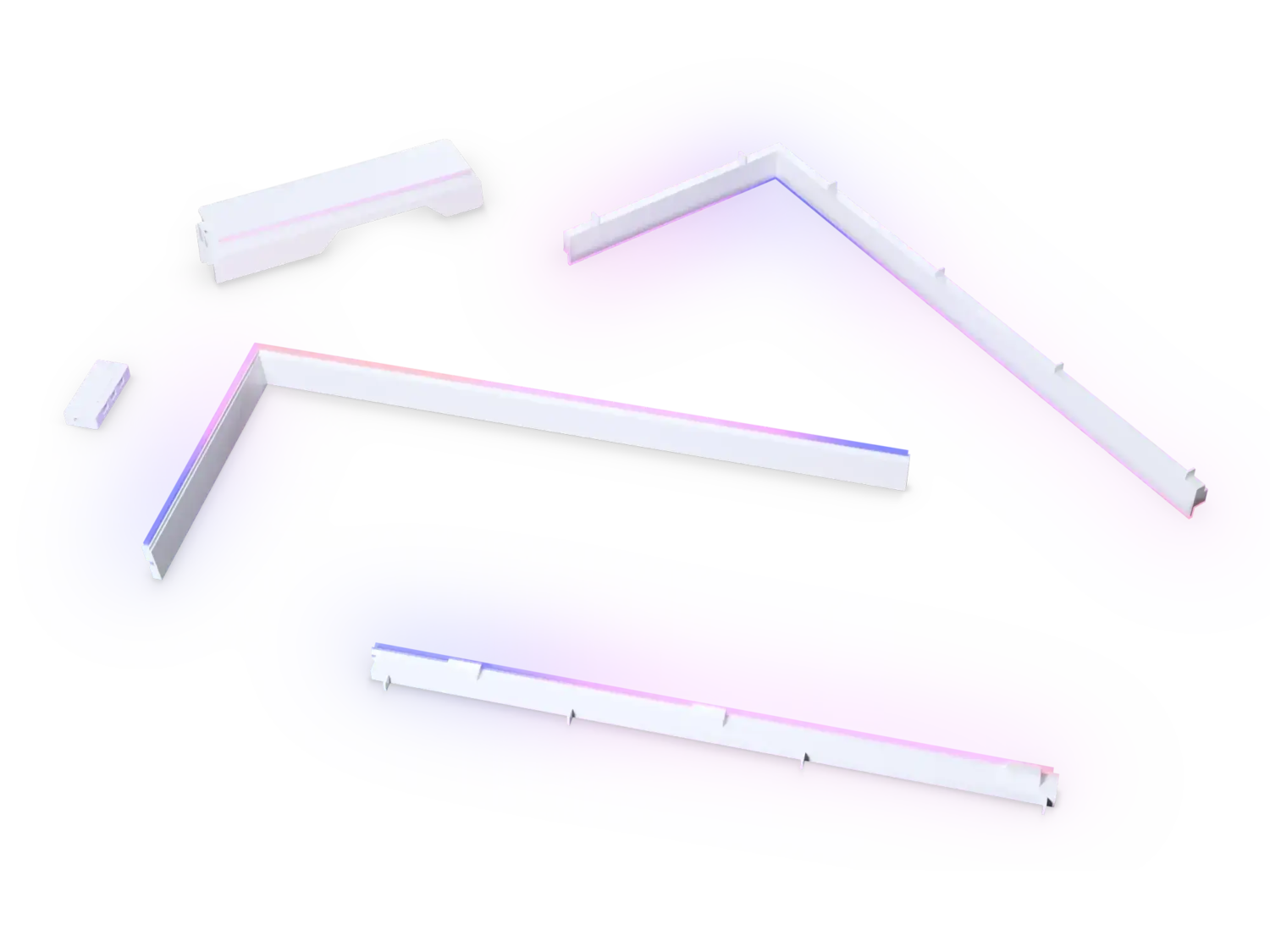

NV5 Premium D-RGB Kit
Optional Upgrade

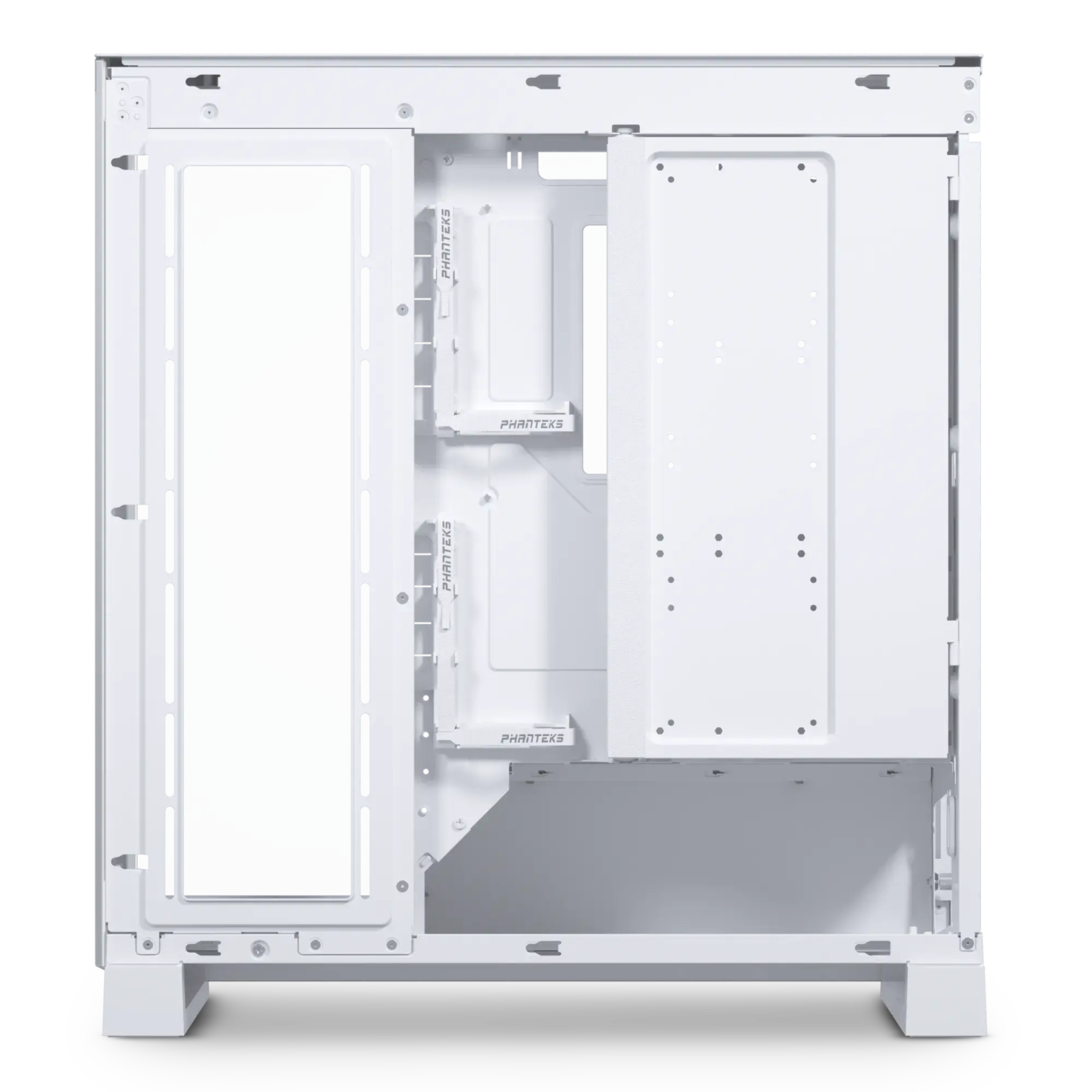

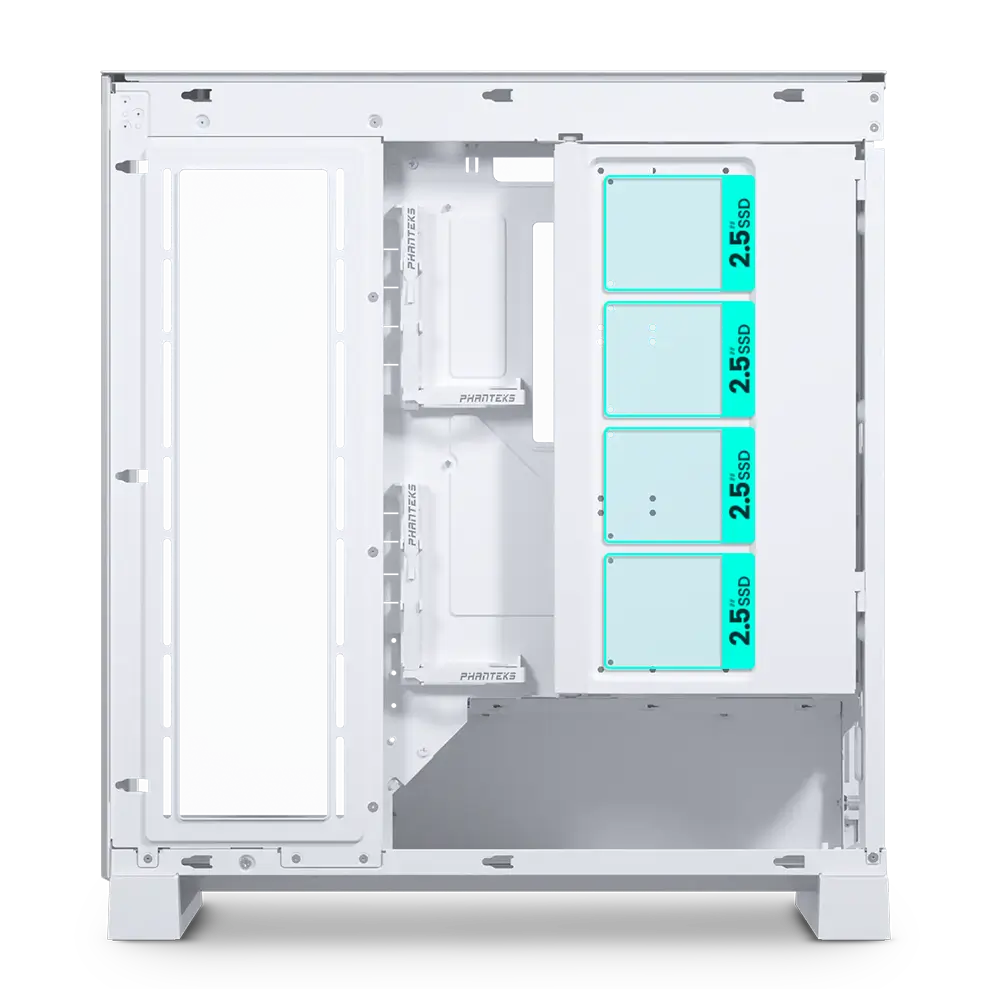

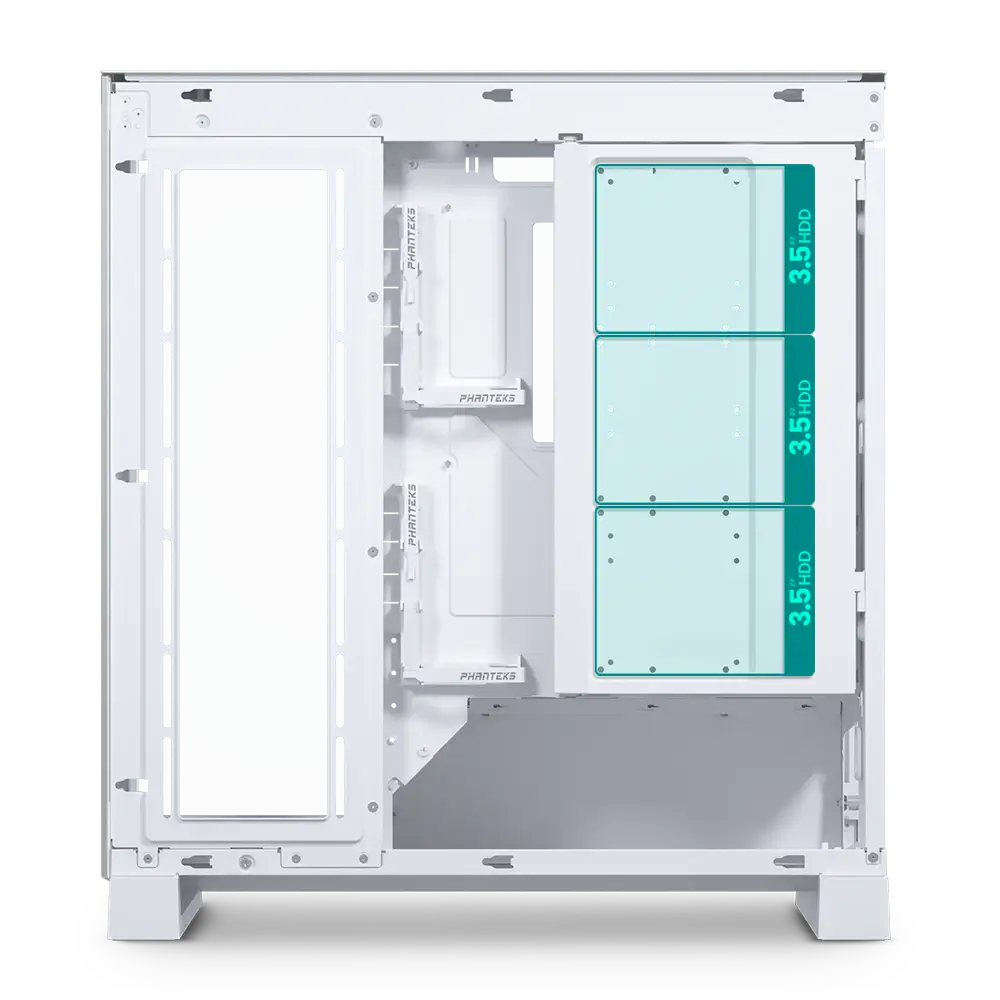

Multiple storage options
Specifications
General
Model No.
PH-NV523TG_DMW01
UPC Code
886523302957
Case Dimensions
239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in
Form Factor
Mid-Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280mm without GPU Support Bracket
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
4
Internal 3.5″ Bay
3
Front I/O
1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button
Fans 120 | 140
Total Fans
8x | –
Top
3x | –
Front
– | –
Side
3x | –
Rear
1x | –
Bottom
1x | –
Radiators 120 | 140
Top
Max. 360 | –
Front
– | –
Side
Max. 360 | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
180 mm | 7.08 in
GPU
Length
440 mm | 17.32 in
GPU
Height
170 mm | 6.69 in
Power Supply
Length
230 mm | 9.05 in
Top Radiator
Length x Width
134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in
Front Radiator
Length x Width
– | –
Side Radiator
Length x Width
130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in
Rear Radiator
Length x Width
132 x 170 mm | 5.19 x 6.69 in
Extra
Scope of Delivery
1x NV5 chassis
Accessory Box
6x Zip ties
1x GPU support bracket
Screws
22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool
