NV9 MKII
A True Showcase of Performance

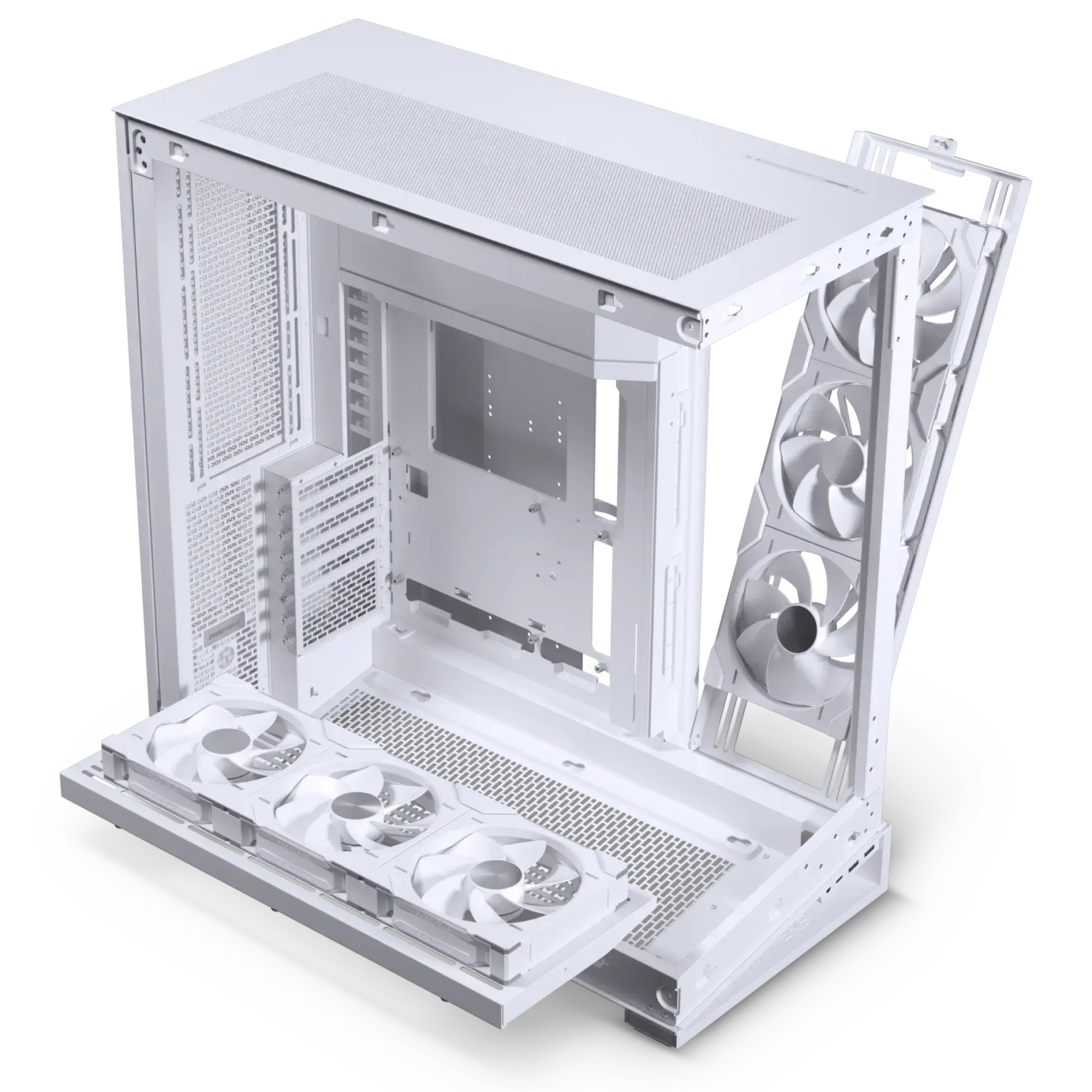

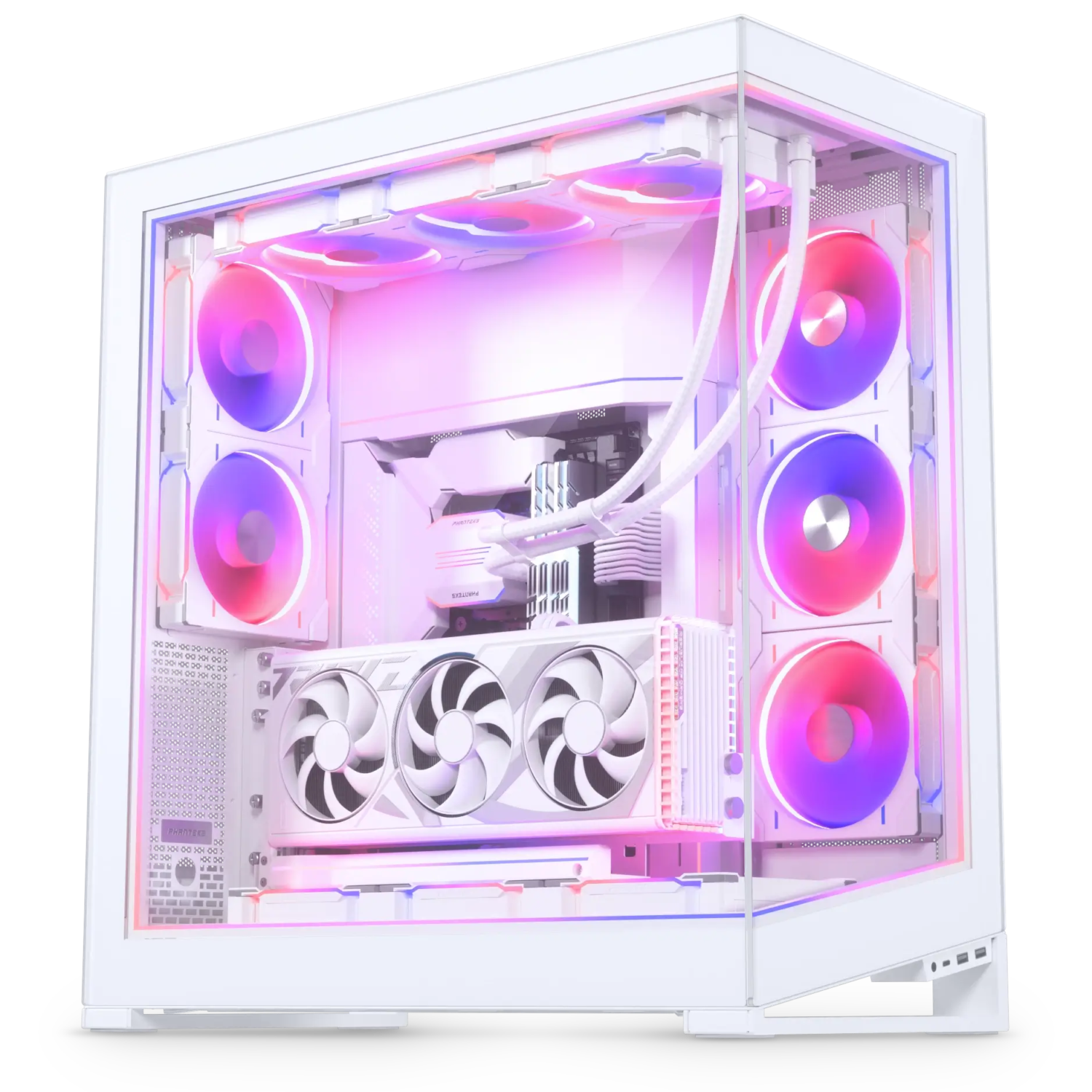

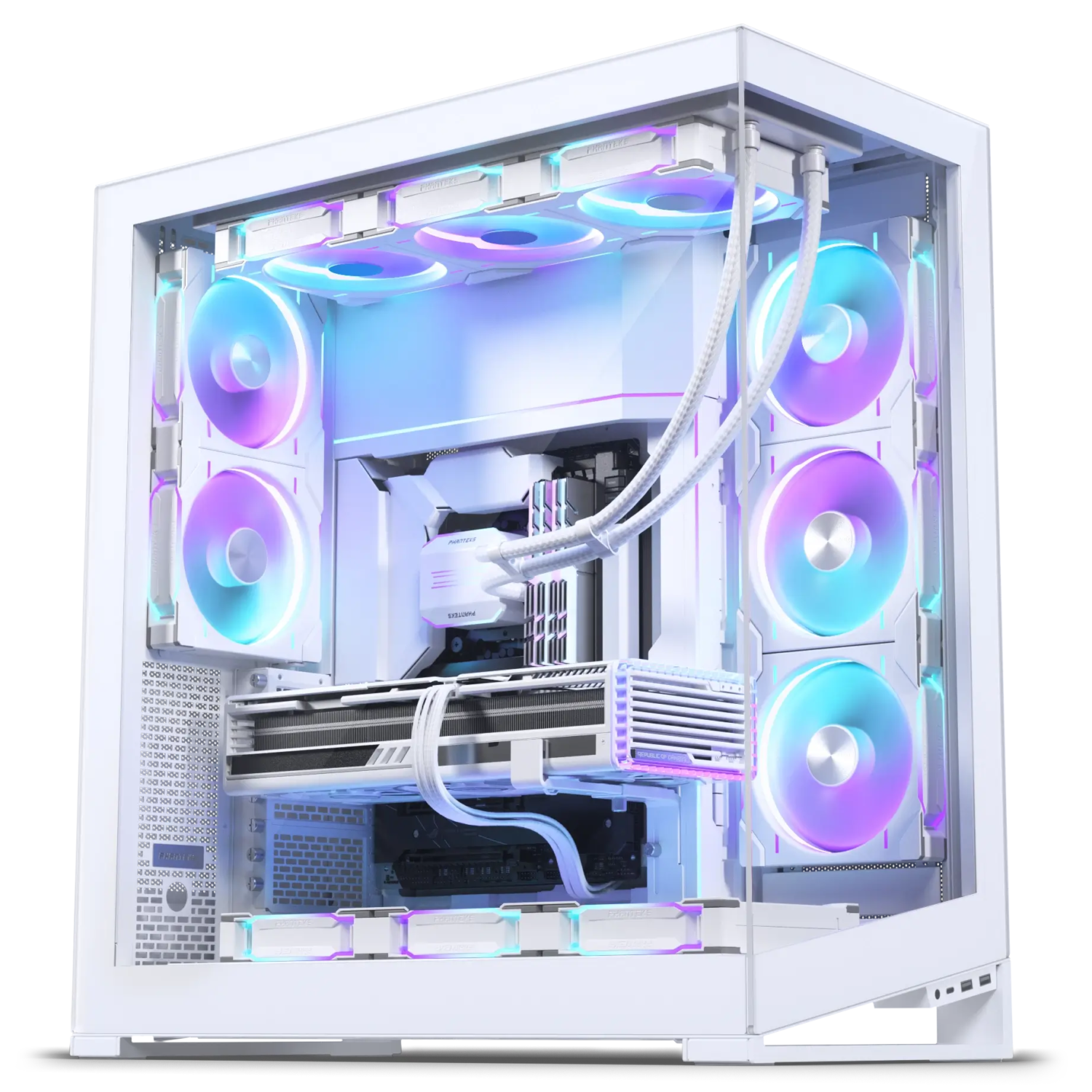

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for twelve 140 mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the mainboard at its center. Combined with a strong and defining outer frame, it captures and accentuates the hardware components.

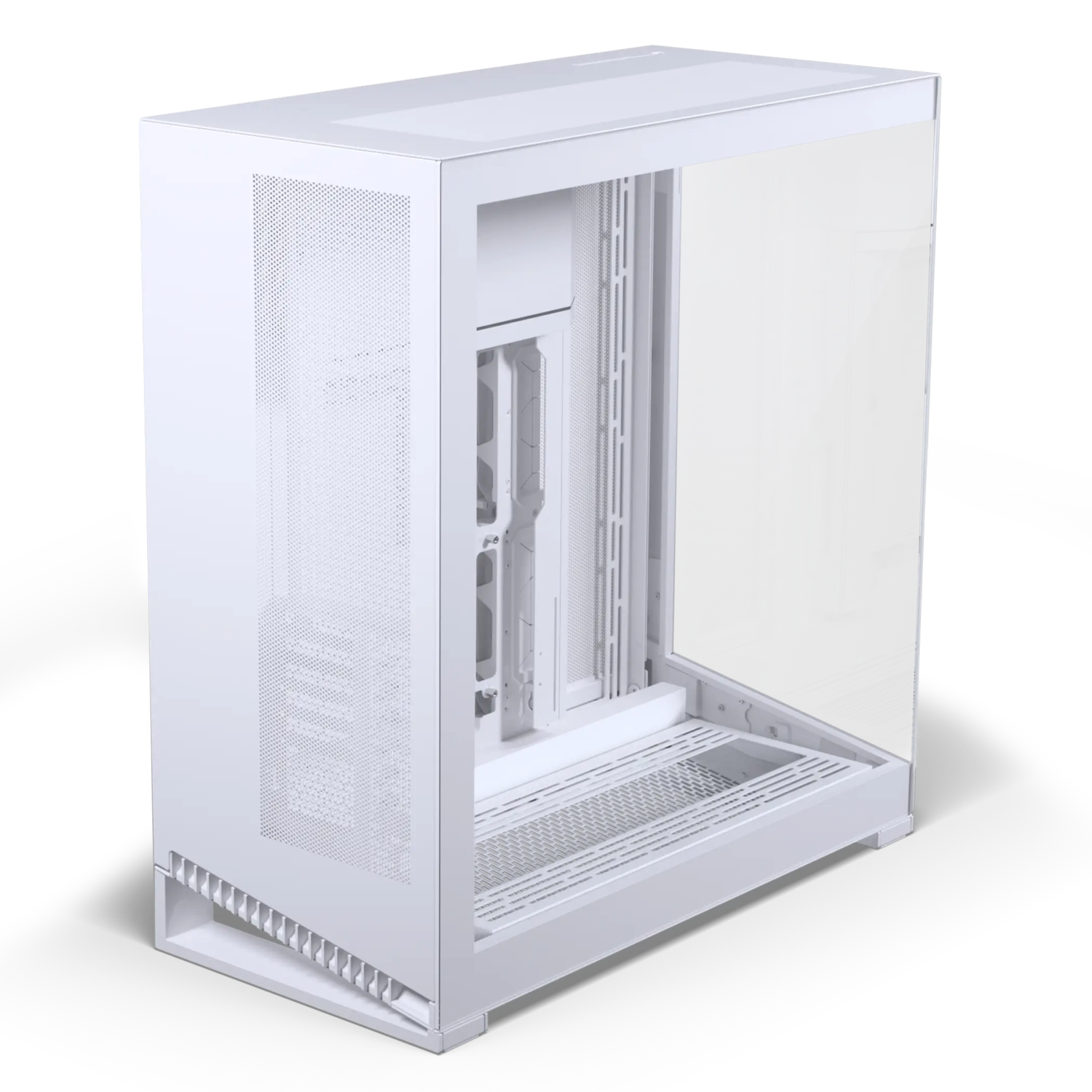

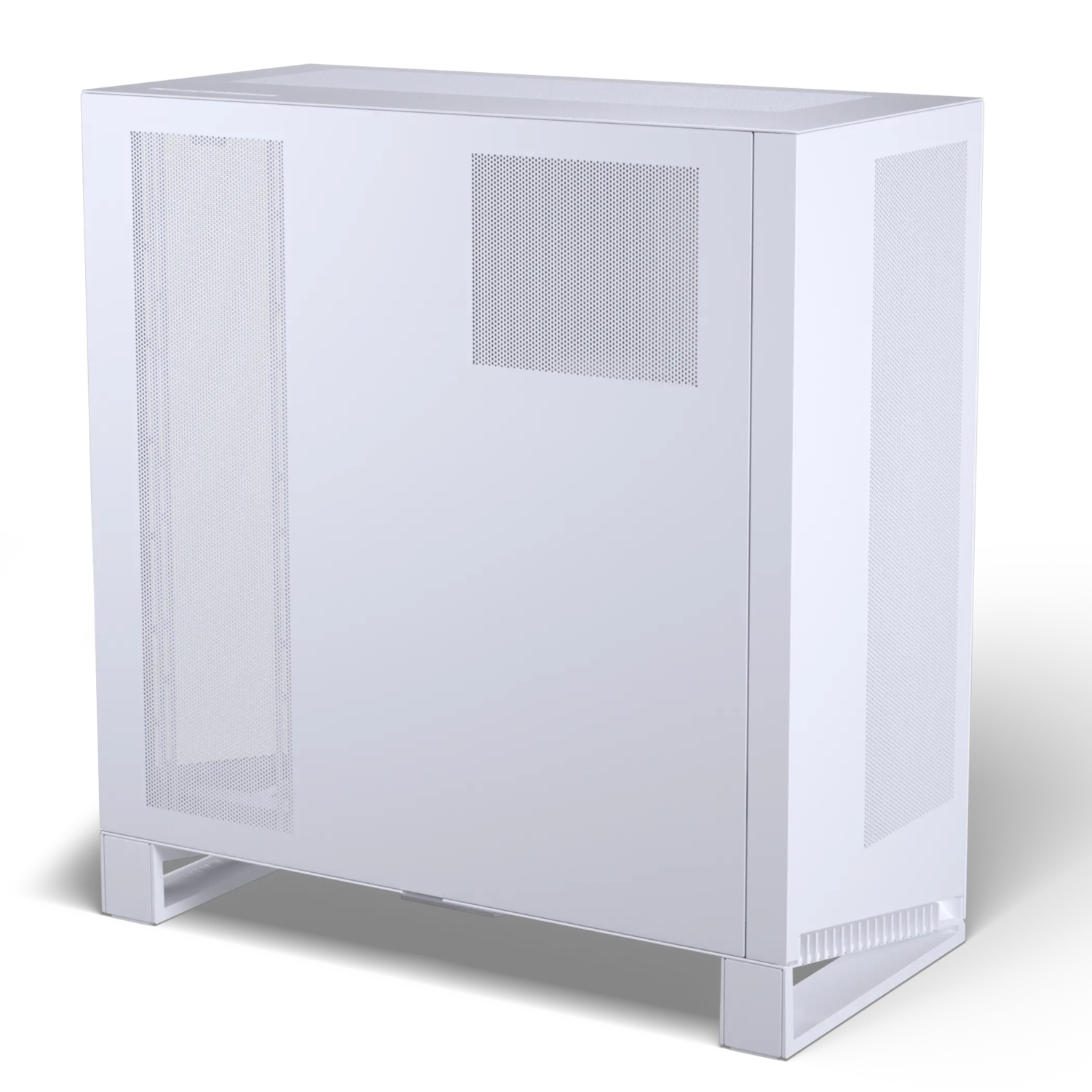

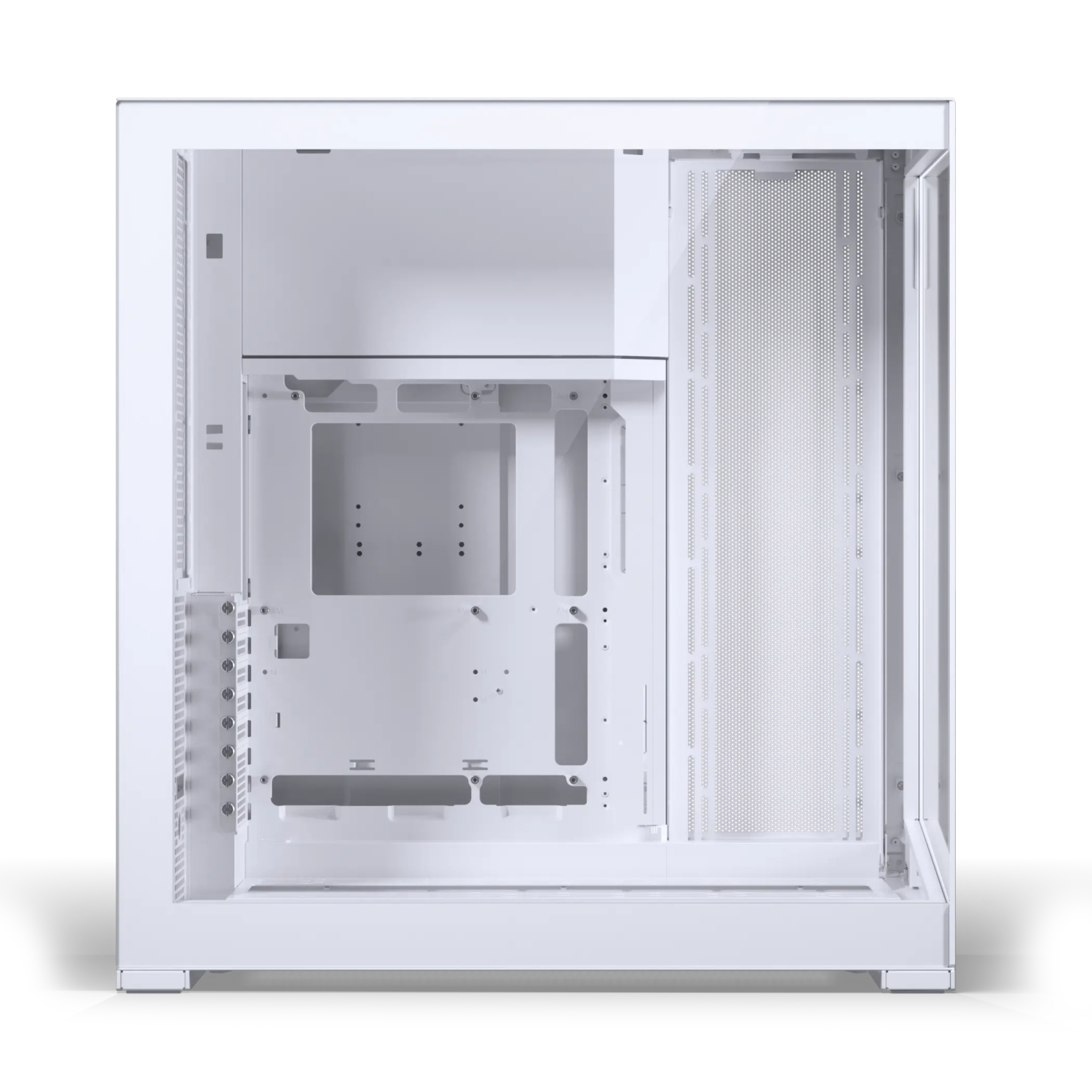

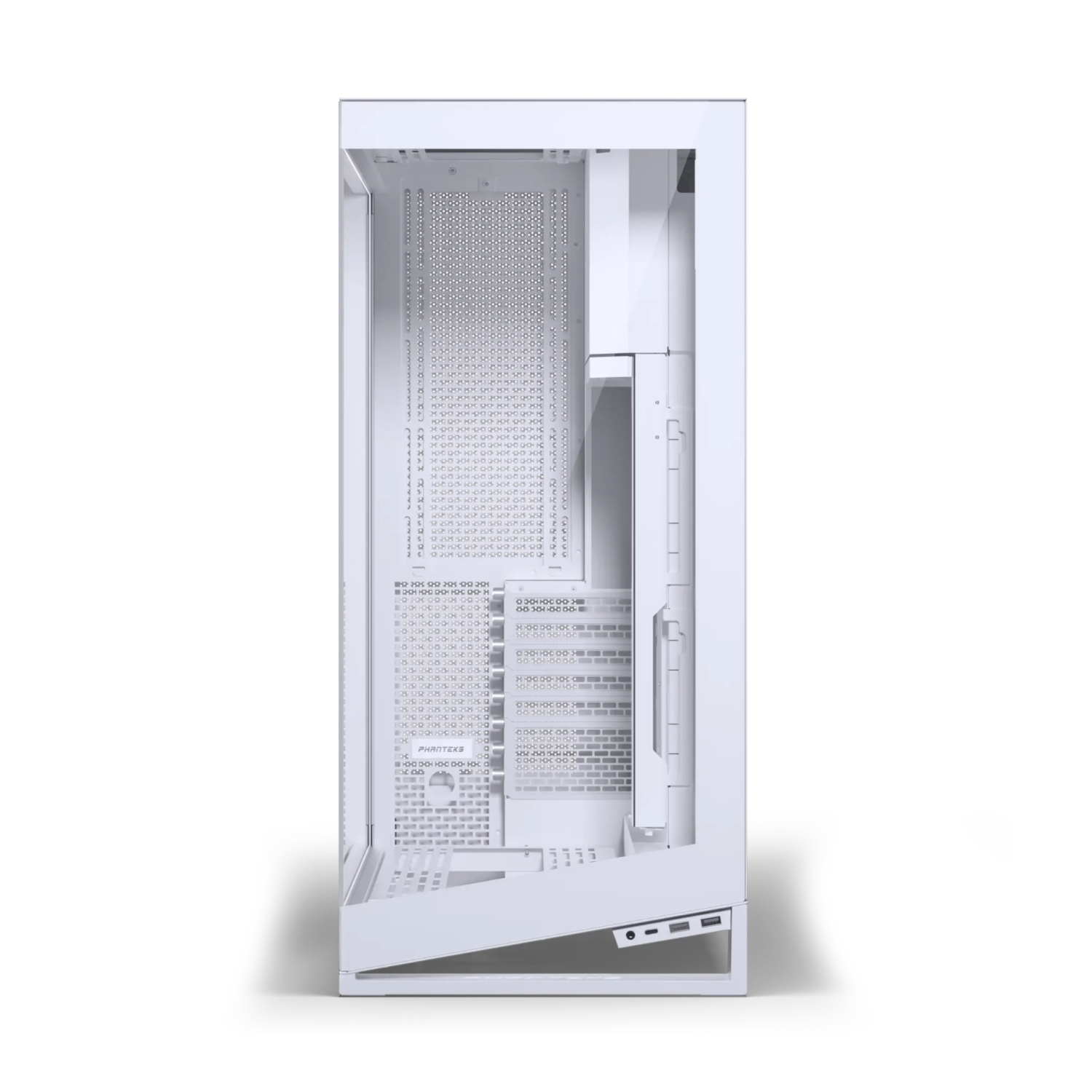

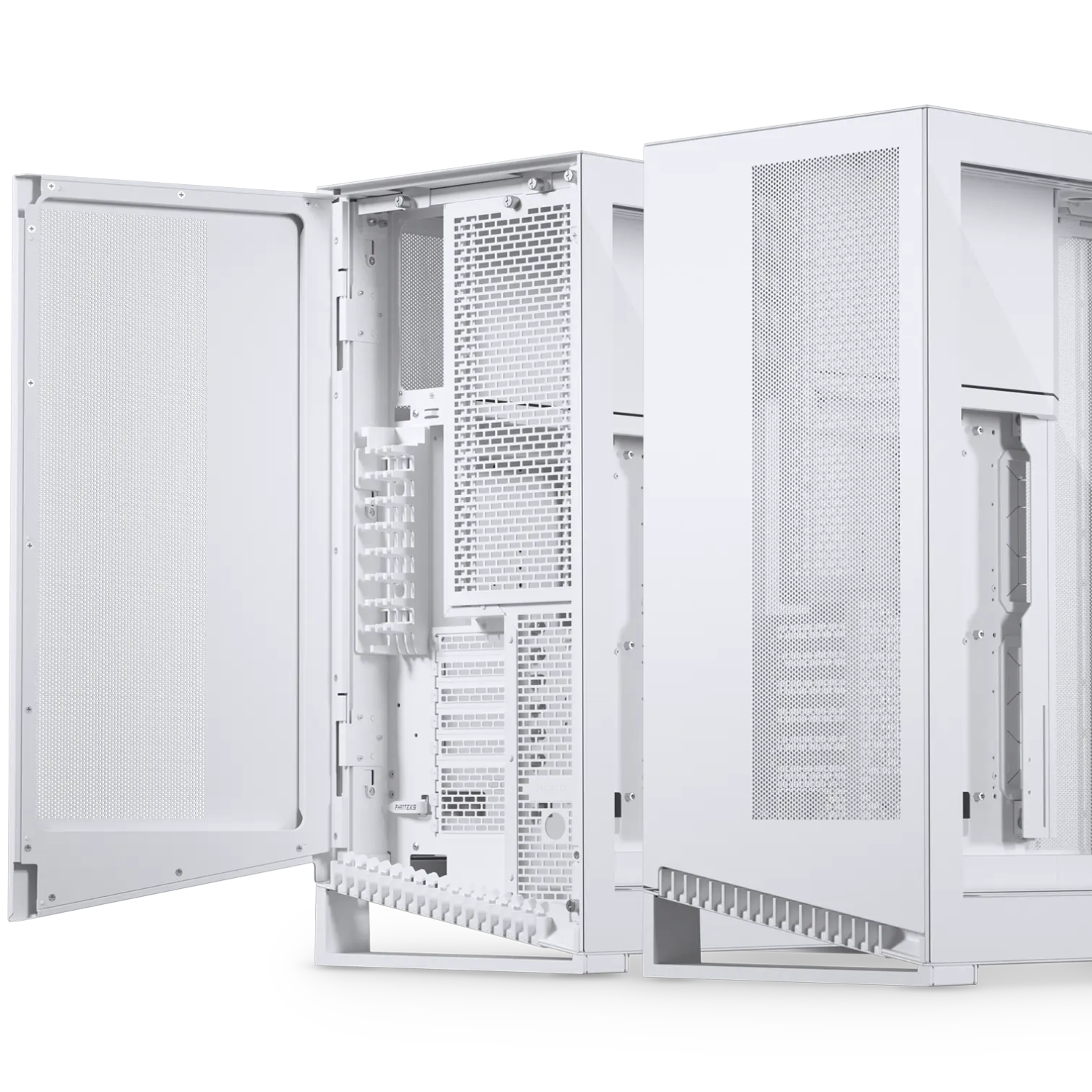

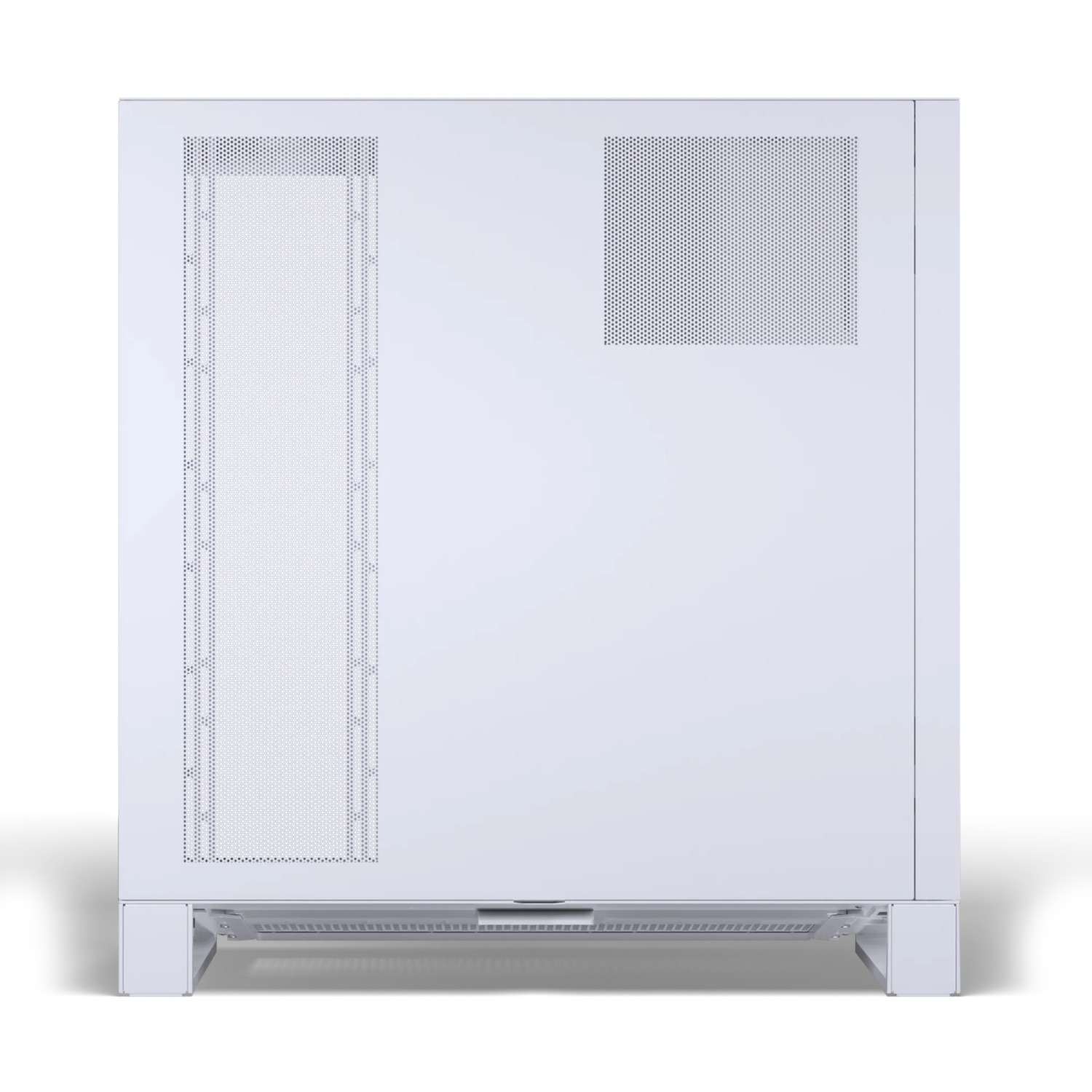

With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
Colors
Specifications
General
Model No.
PH-NV923TG_DMW02
UPC Code
886523303498
Case Dimensions
575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in
From Factor
Full Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280 mm wide
Materials
Steel chassis | Aluminum panels | Tempered glass window | ABS plastic
Color
White
Expansion Slots
8
Vertical GPU Support
Yes
Riser cable & bracket sold separately
Internal 2.5″ Positions
6
+ 0x 3.5″ HDD
Internal 3.5″ Positions
3
+ 2x 2.5″ SSD *Max 24mm HDD height when SSDs installed

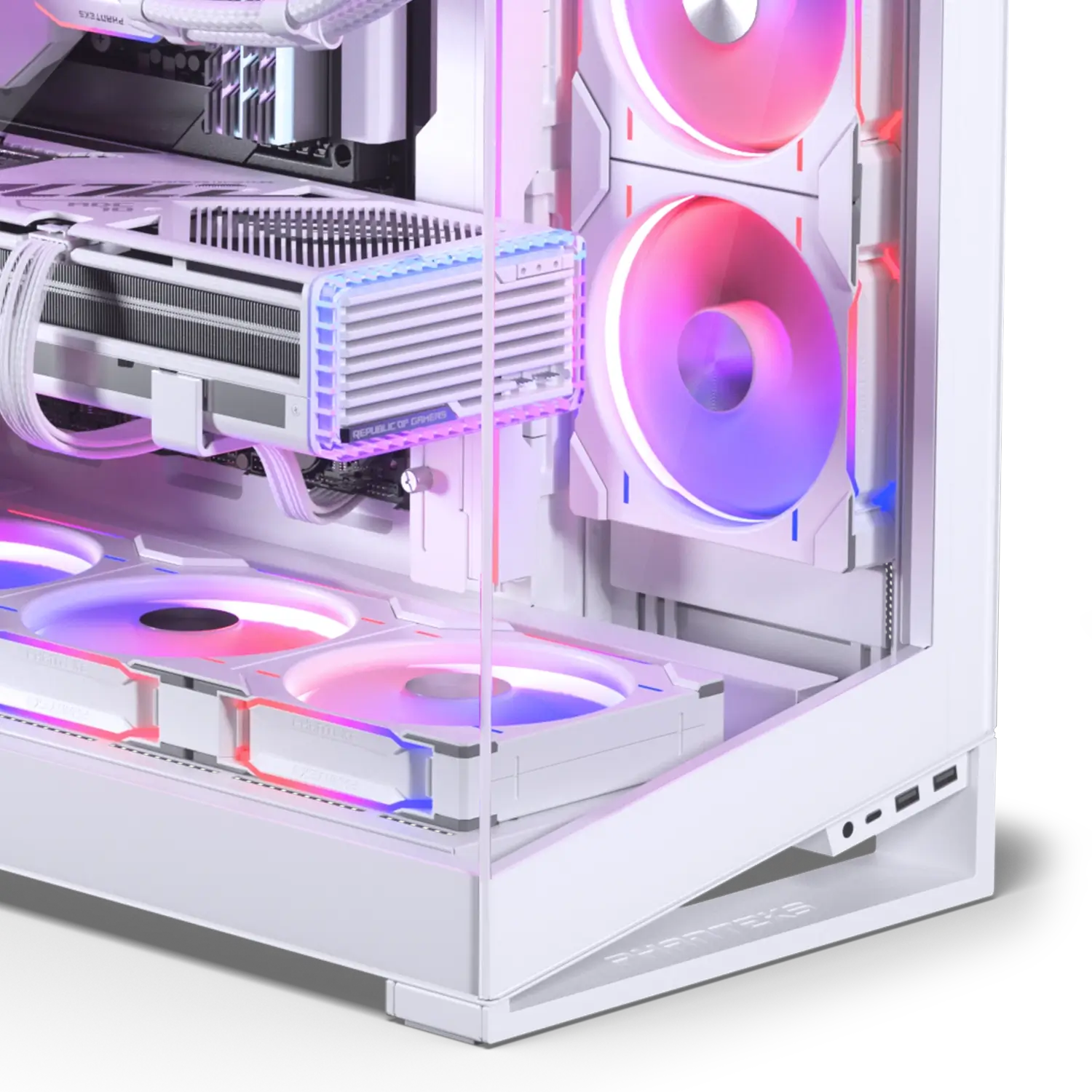

Front I/O
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Reset button
D-RGB mode
D-RGB color
D-RGB speed

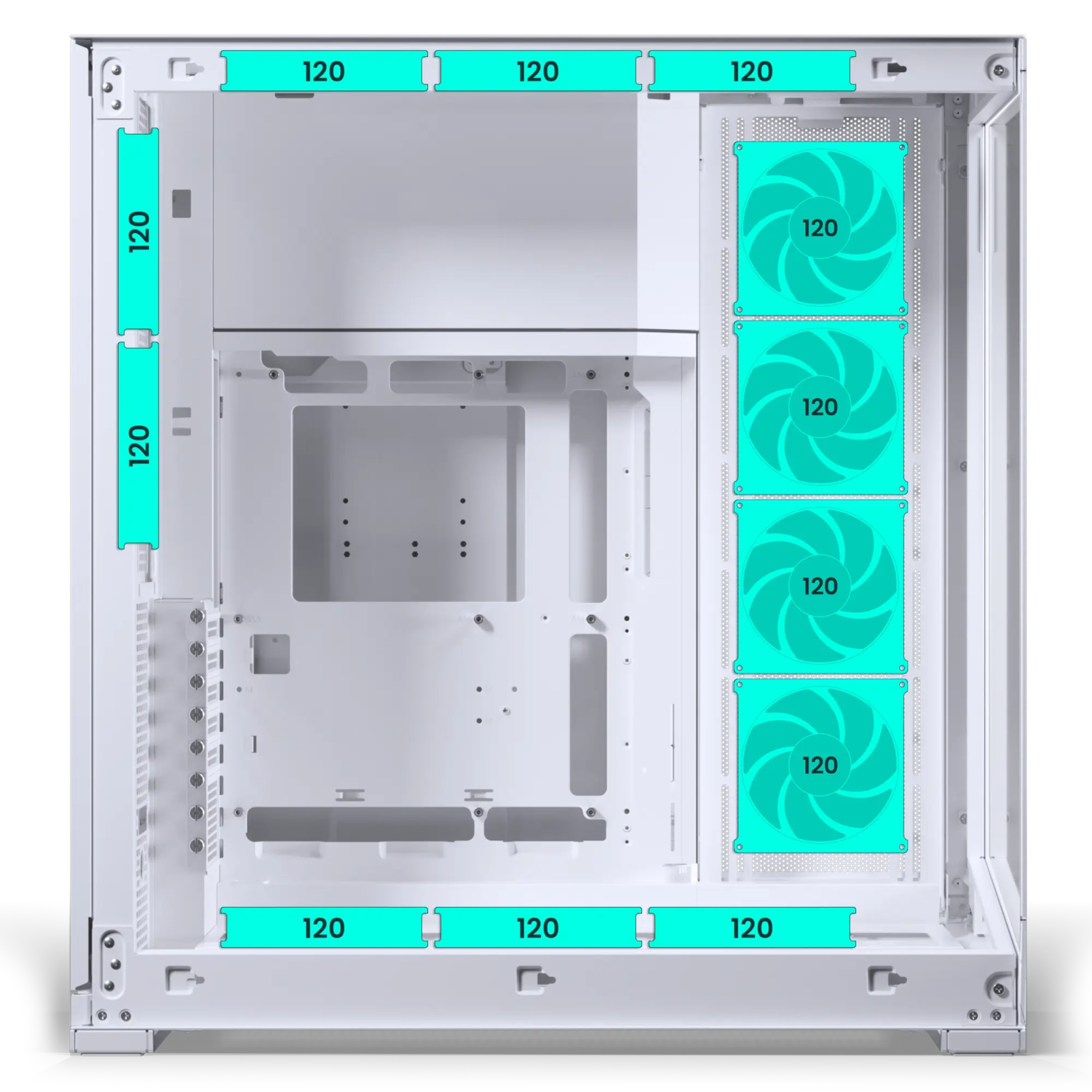

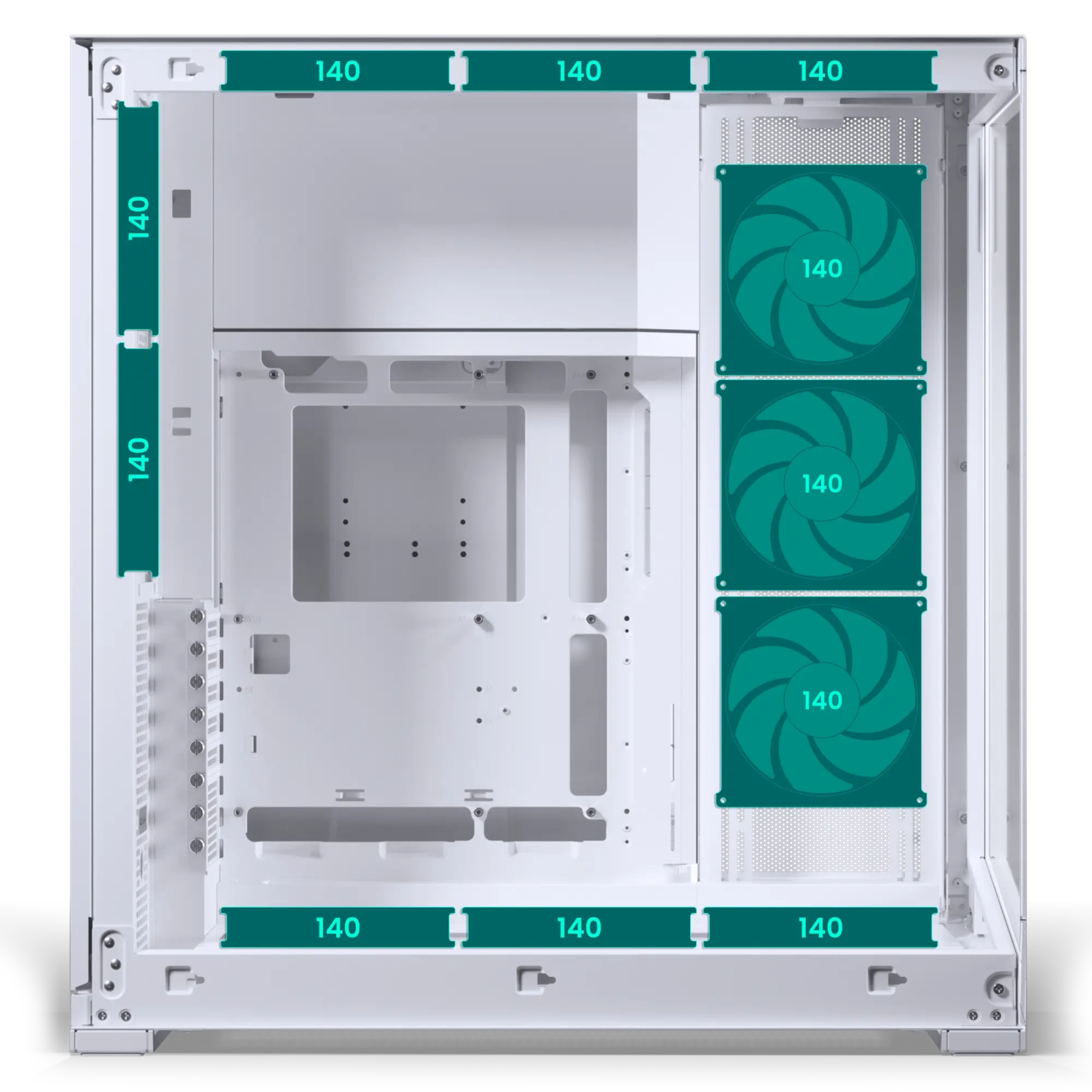

Fans 120 | 140
Total Fans
12 | 11
Top
3 | 3
Front
– | –
Side
4 | 3
Rear
2 | 2
Bottom
3 | 3

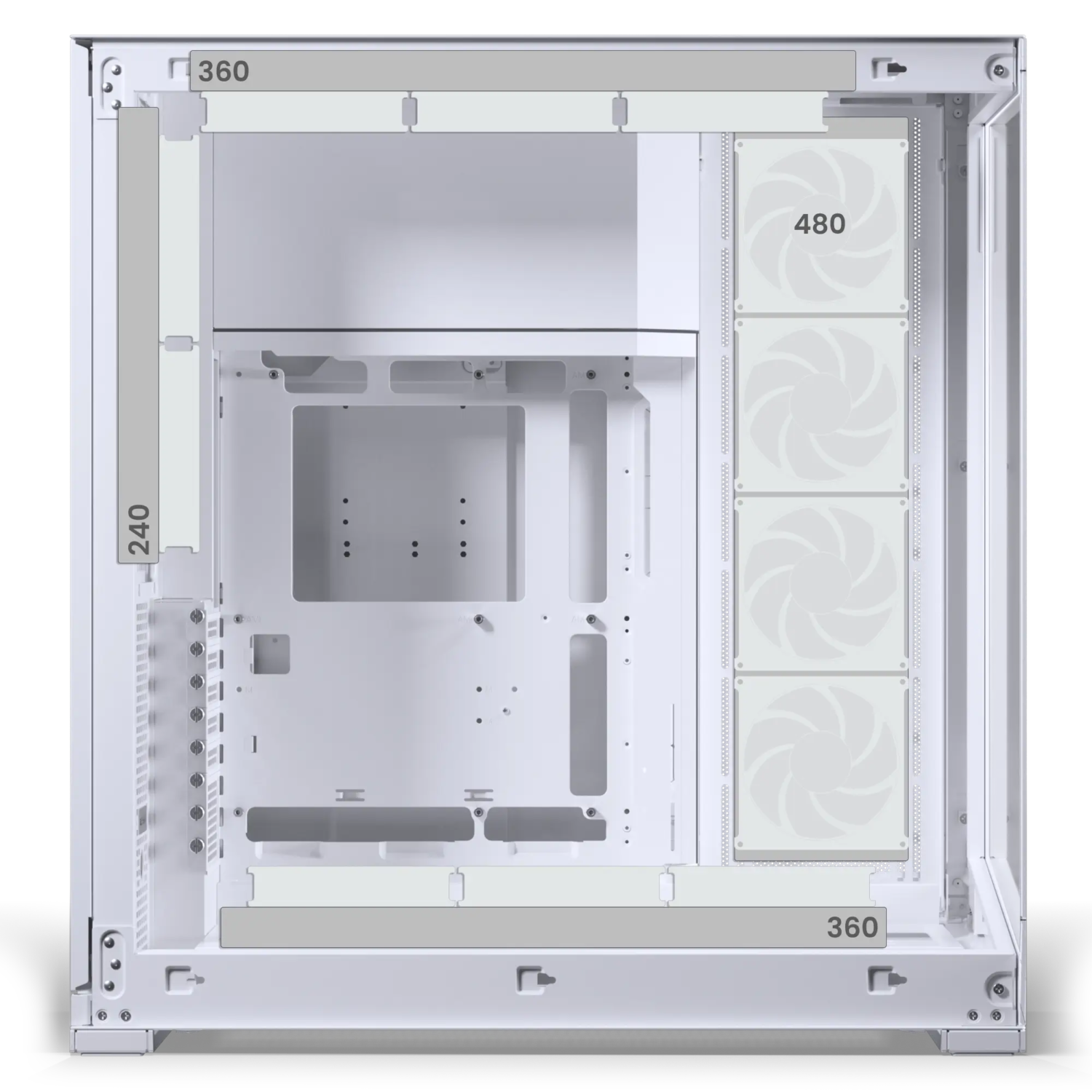

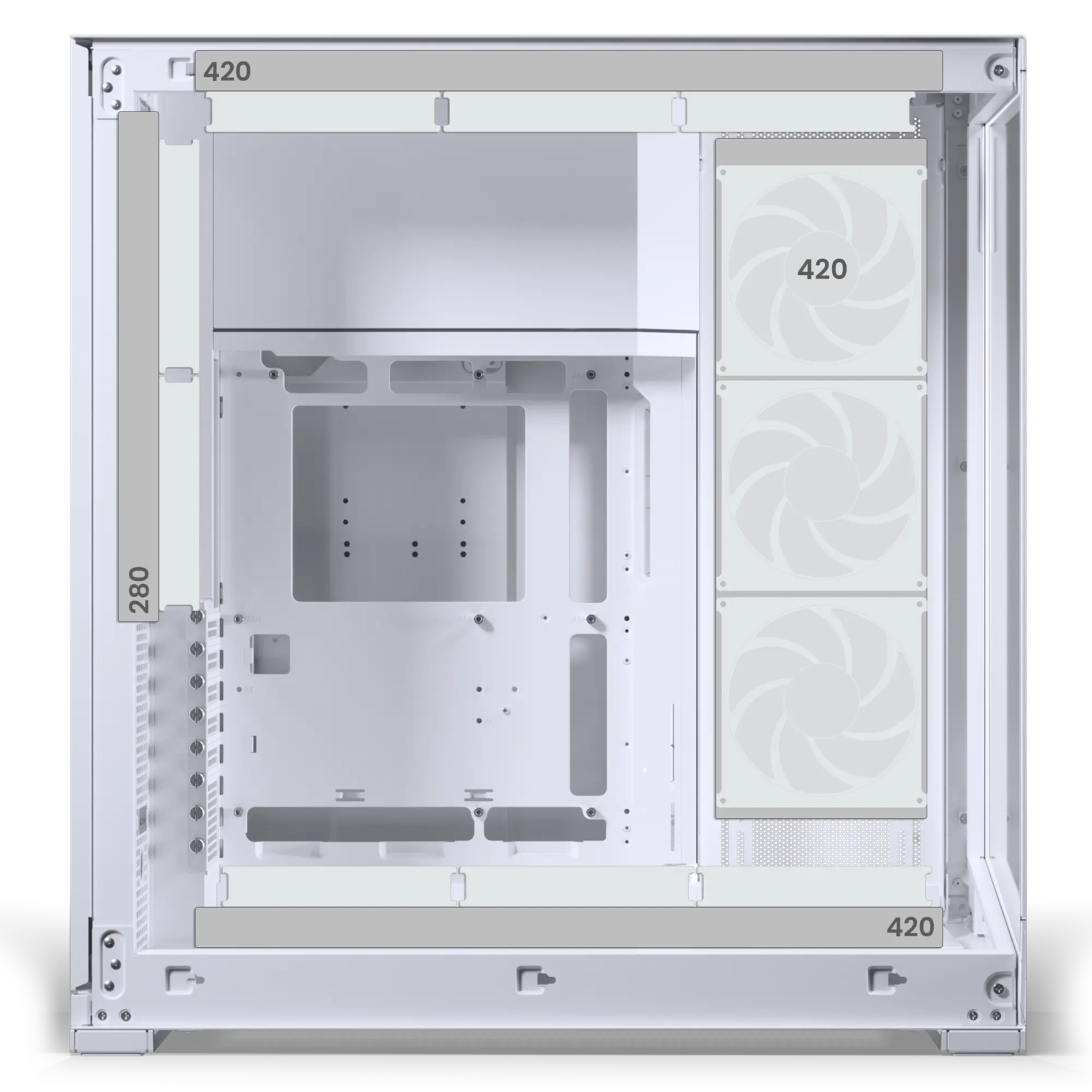

Radiator 120 | 140
Top
Max. 360 | 420
Front
– | –
Side
Max. 480 | 420
Rear
Max. 240 | 280
Bottom
Max. 360 | 420
Clearance
CPU Cooler
Height
205 mm | 8.07 in
GPU
Length
490 mm | 19.29 in
GPU
Width
205 mm | 8.07 in
Power Supply
210 mm | 8.26 in
Top 360 Radiator
Length x Width
515 x 154 mm | 20.27 x 6.06 in
Side 480 Radiator
Length x Width
525 x 154 mm | 20.66 x 6.06 in
Rear 240 Radiator
Length x Width
325 x 154 mm | 12.79 x 6.06 in
Extra
Scope of Delivery
1x NV9 MKII chassis
1x Storage bracket Pre-installed
Accessory Box
1x GPU support bracket
2x Airflow covers
6x Zip ties
1x D-RGB mainboard adapter 500 mm
1x Microfiber cloth
Screws
34x Mainboard | SSD screws
4x Power supply screws
9x HDD screws
4x thumbscrews
1x Mainboard stand-off
1x Stand-off removal tool
1x Extra right-side panel screw
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
