5.5″ Hi-Res Display
Universal LCD Display

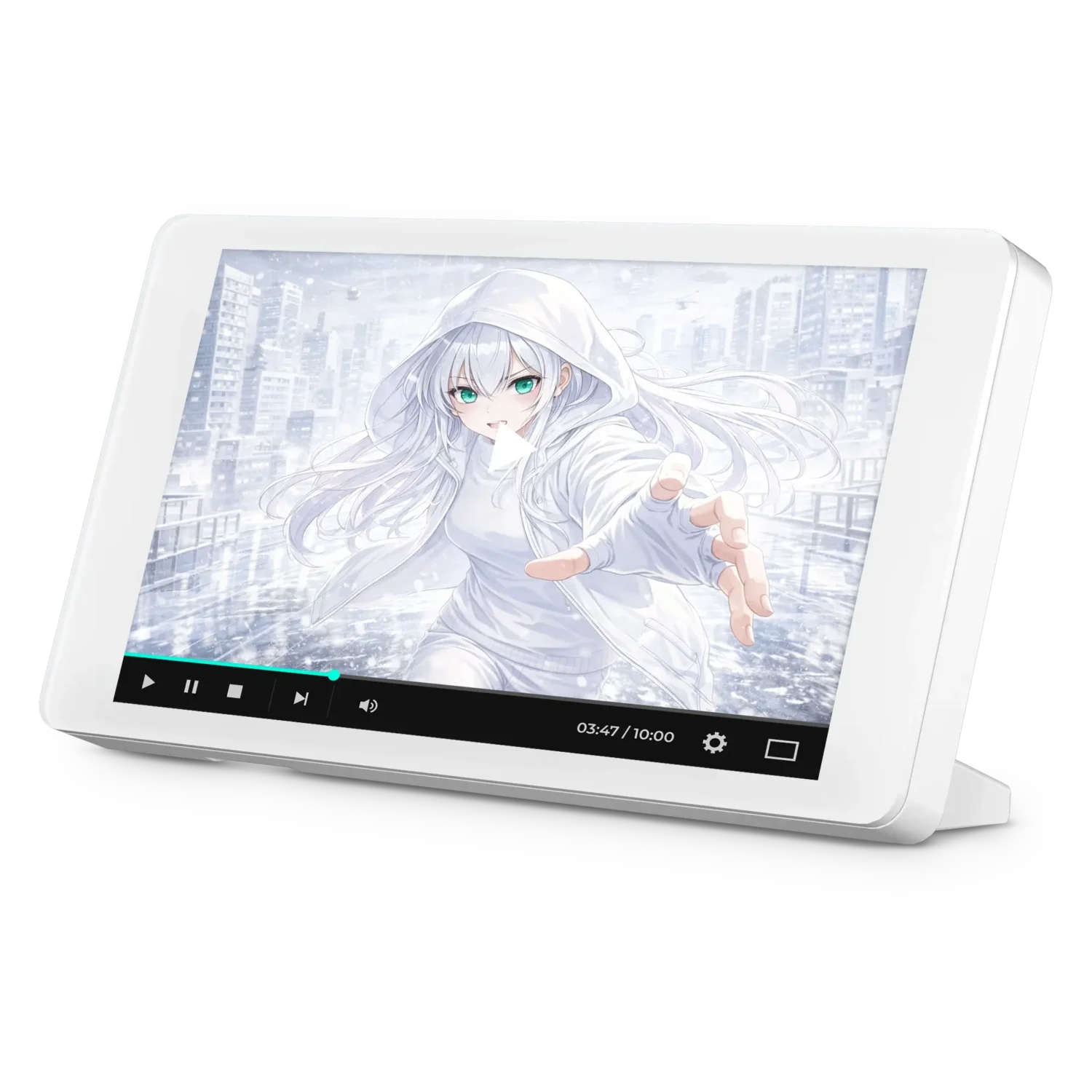

The Phanteks 5.5” Hi-Res Display offers a functional and eye-catching element to any PC setup. The 5.5-inch screen size with a high resolution of 2160×1440 pixels is the ultimate second screen inside your PC.

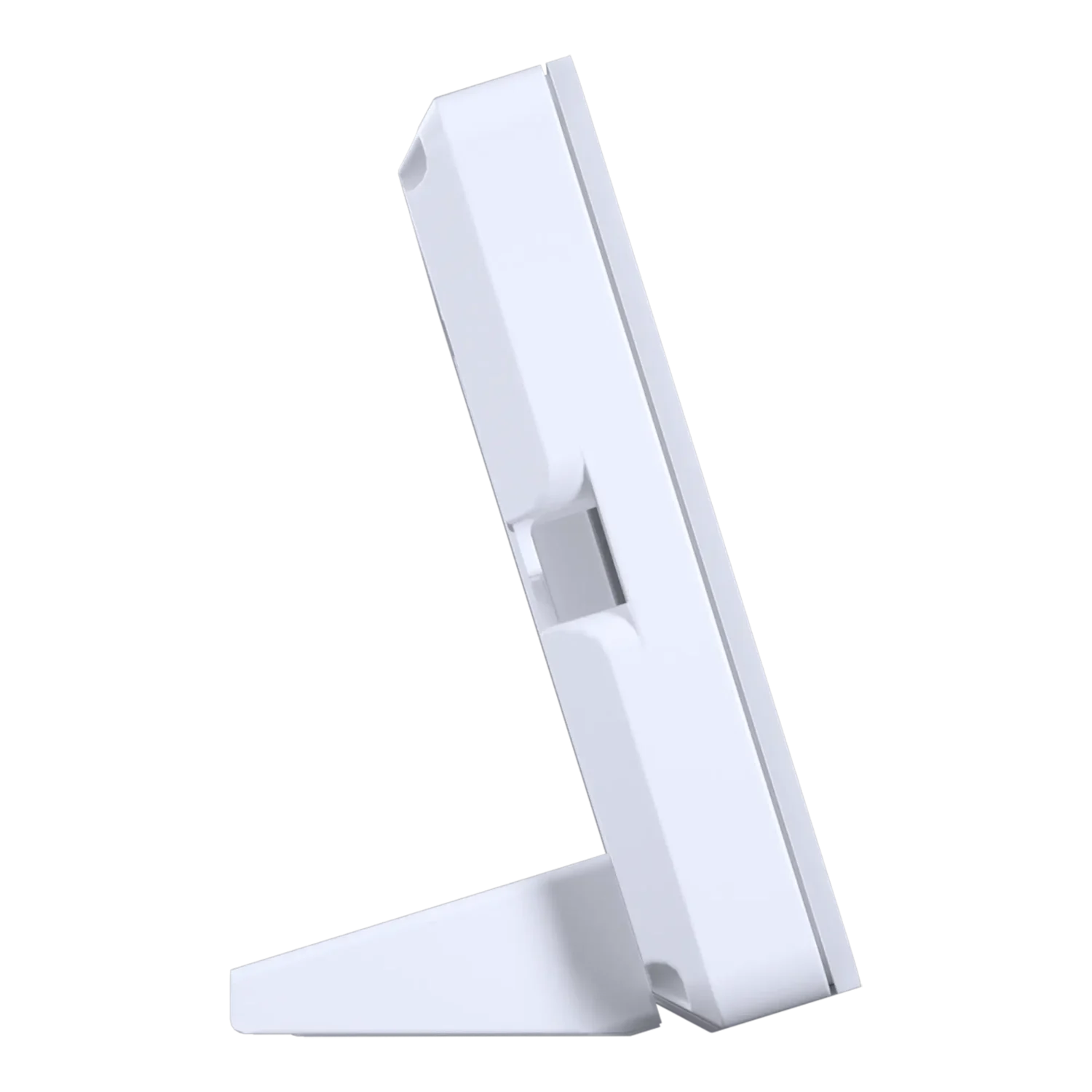

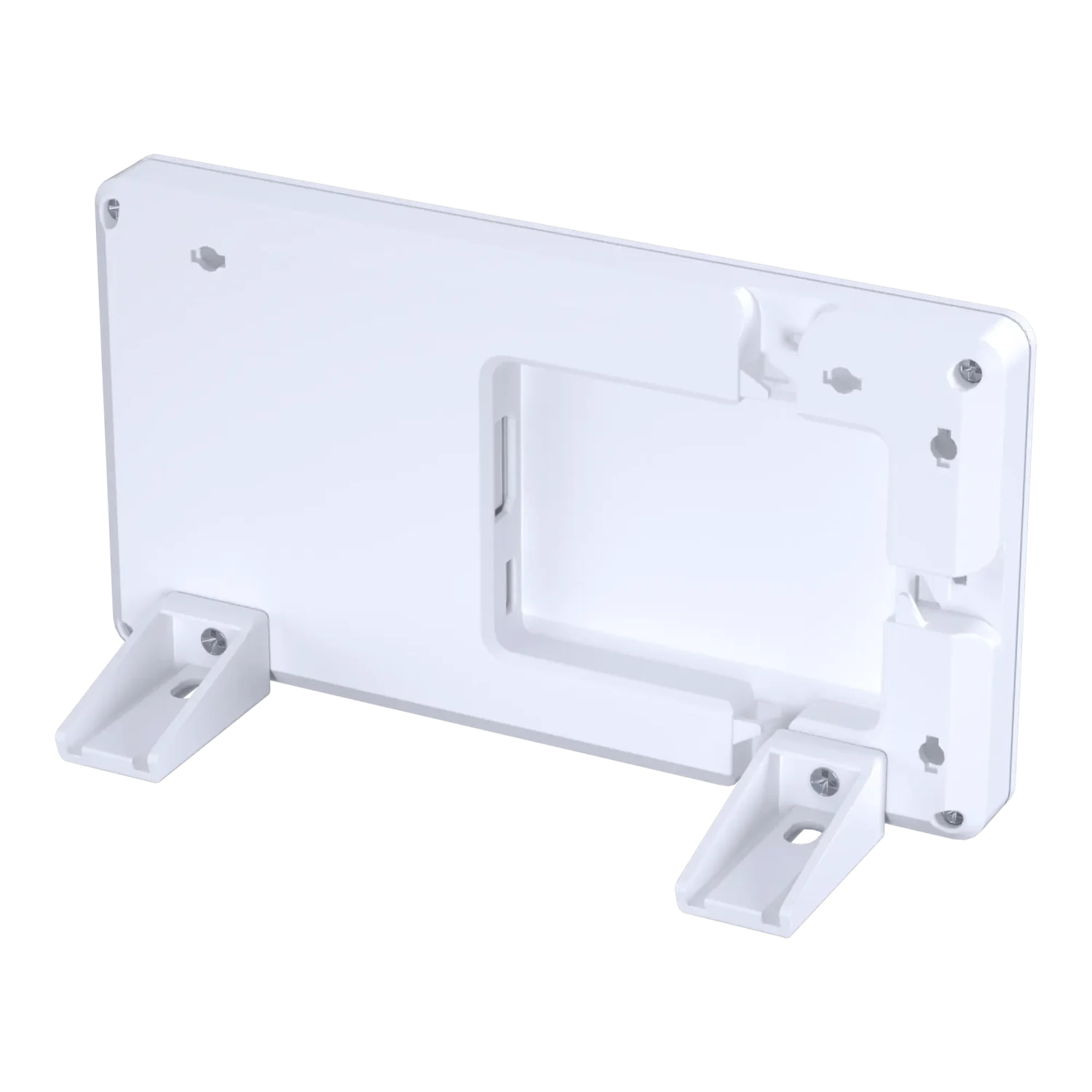

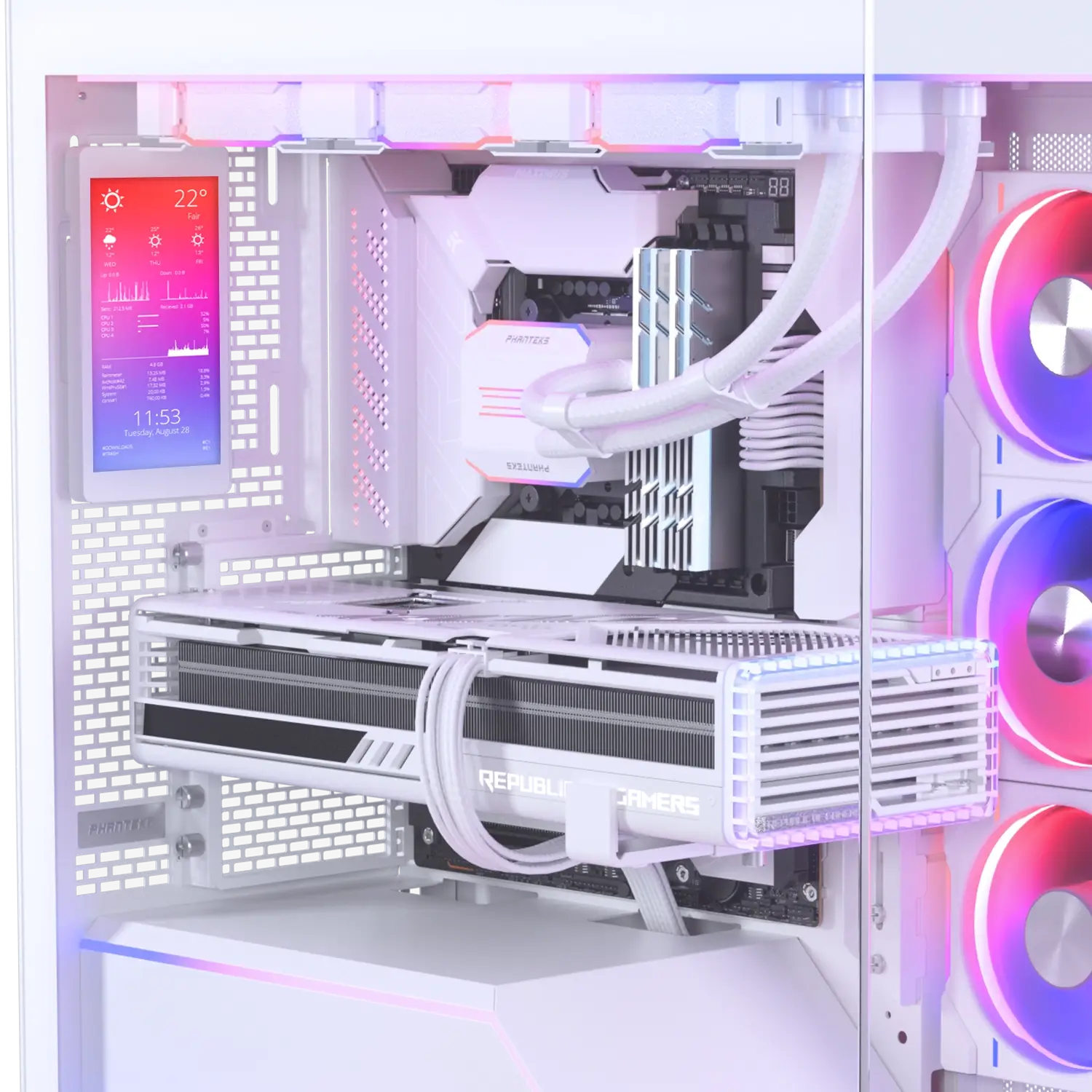

The multiple mounting options offer extremely versatile placing options. Place it inside the PC with magnets or fan mounting options, or use it outside the PC with the included legs.
Whether a hardcore gamer or a dedicated PC enthusiast, the universal hi-res display delivers an outstanding second screen that will ensure a system that stands out from the crowd.
Colors
Specifications
General
Model No.
PH-HRLCD_WT01
UPC Code
886523003366
Dimensions
150.9 x 80 x 16.4 mm | 5.94 x 3.14 x 0.64 in
Materials
ABS Plastic | PC Plastic
Color
White
Display Size
5.5″ IPS display
Resolution
2160×1440
Color Spectrum
sRGB 99%
Refresh Rate
60 Hz
Connectors
HDMI
Micro USB 2.0 Type B
Extra
Scope of Delivery
1x 5.5″ Hi-Res display
Accessories
4x Fan screws
4x M4 screws
2x Feet
1x HDMI cable 500 mm
1x SATA to Micro USB 2.0 Type B cable 500 mm
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
