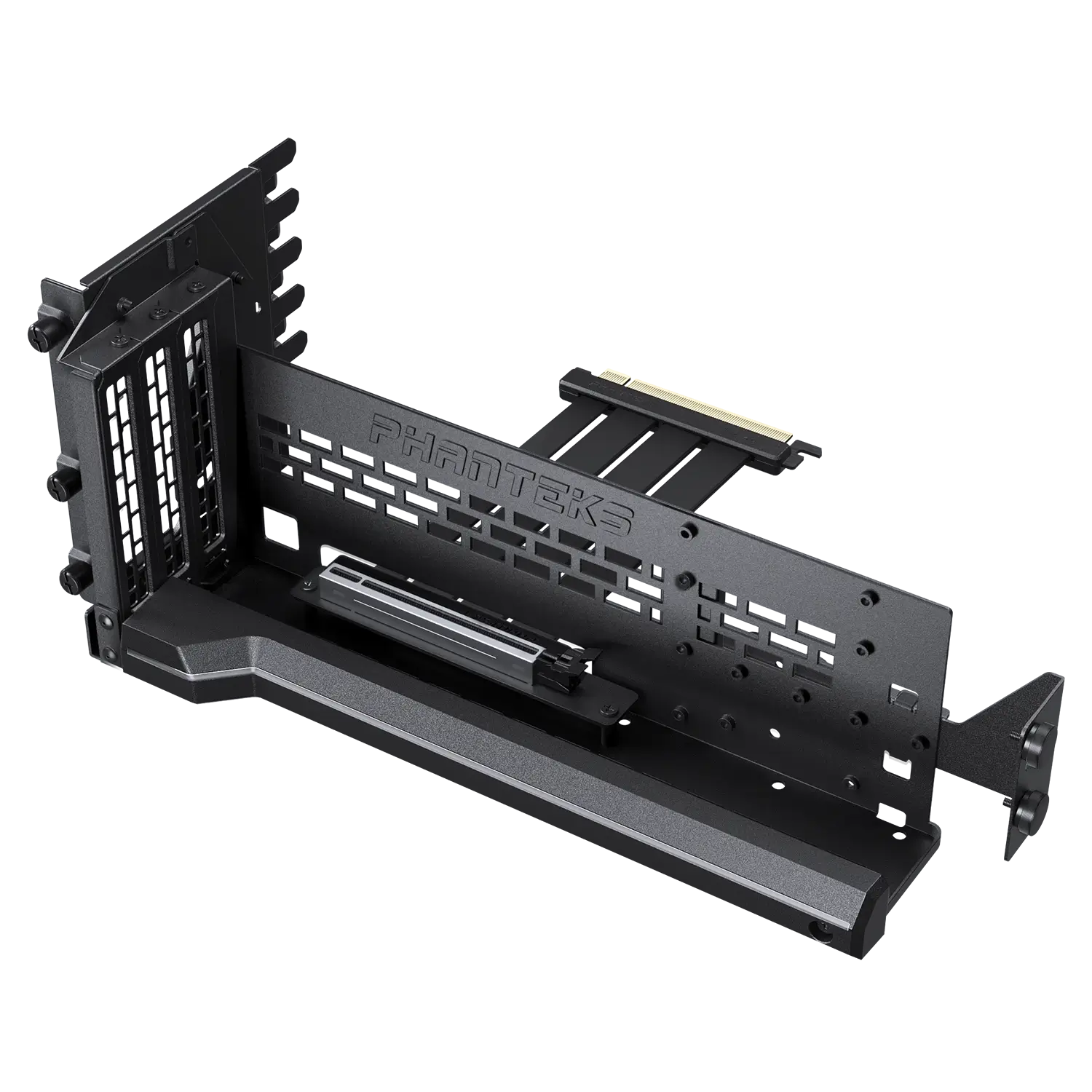

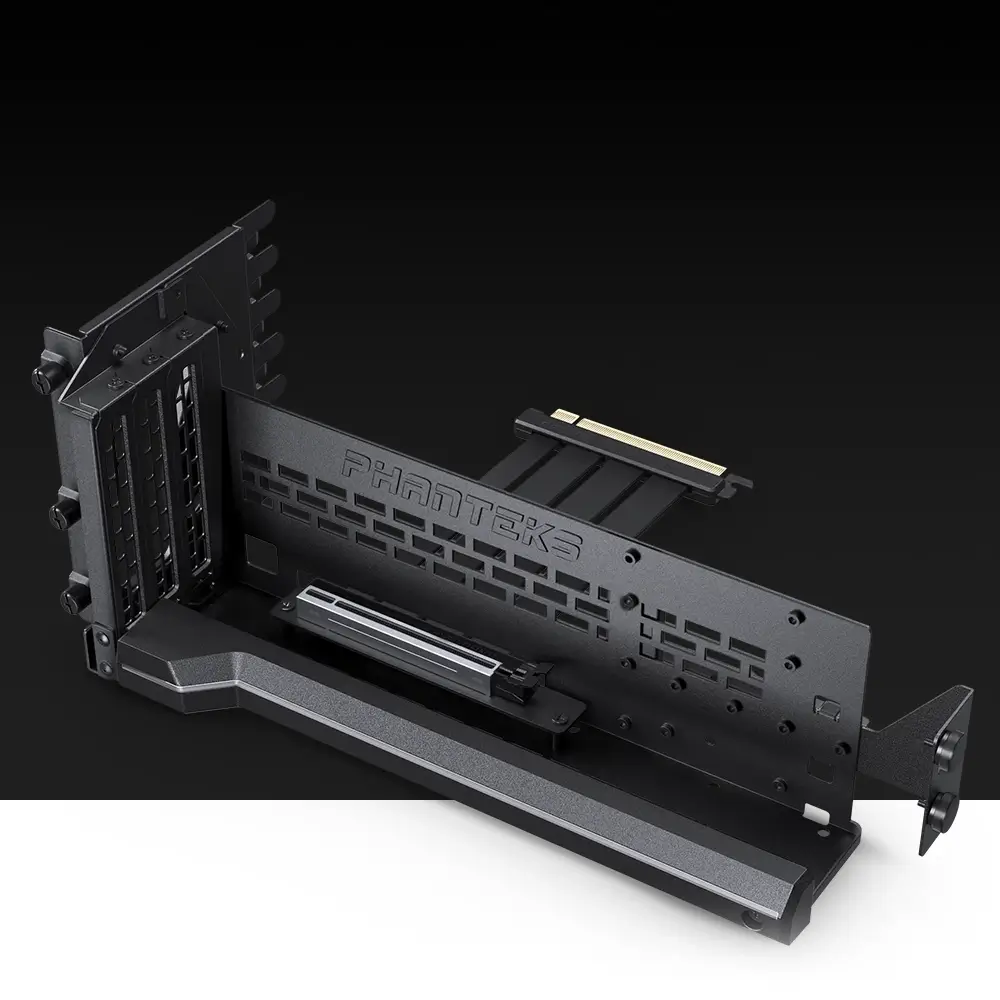

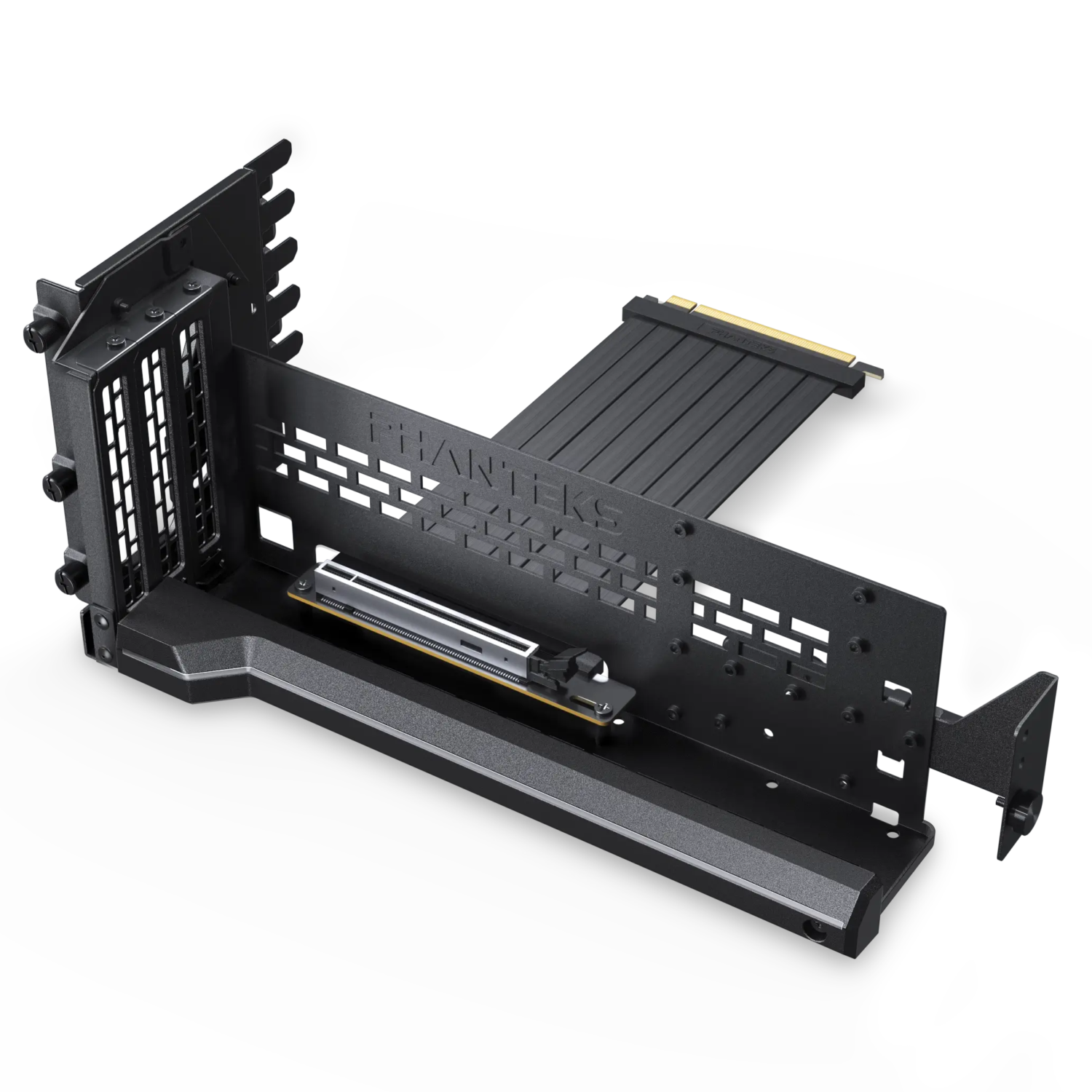

Premium Gen5 Vertical GPU Bracket
Showcase your GPU with style

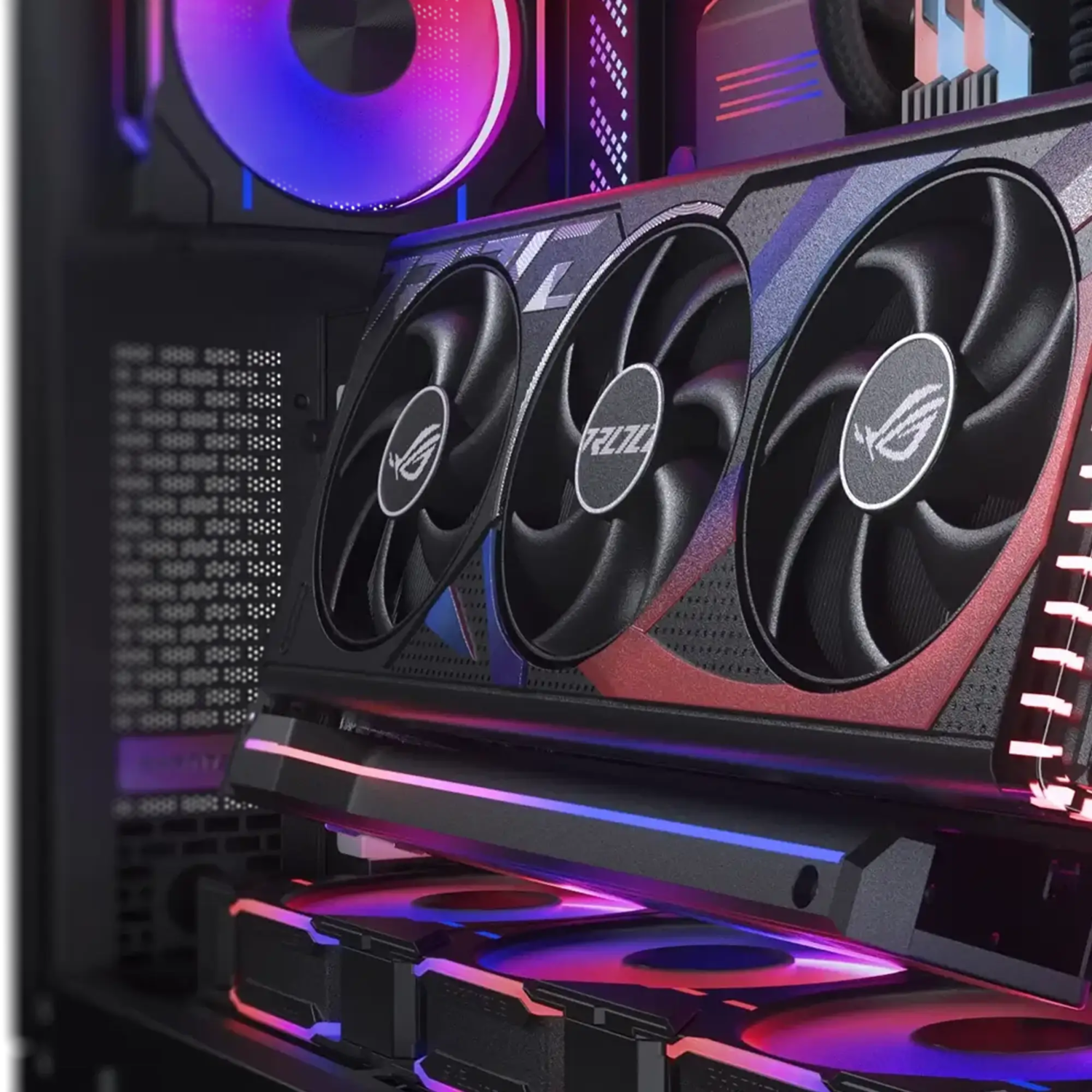

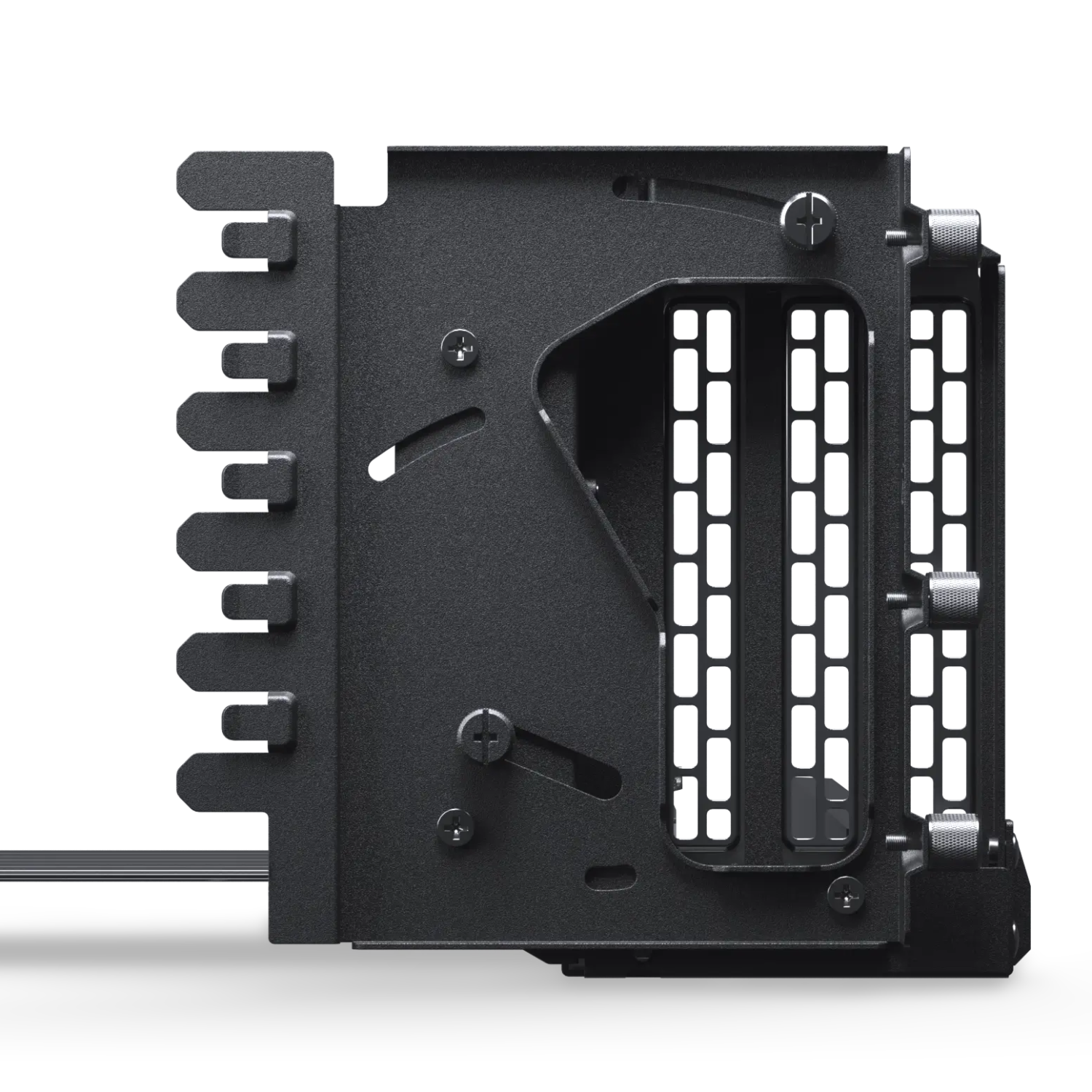

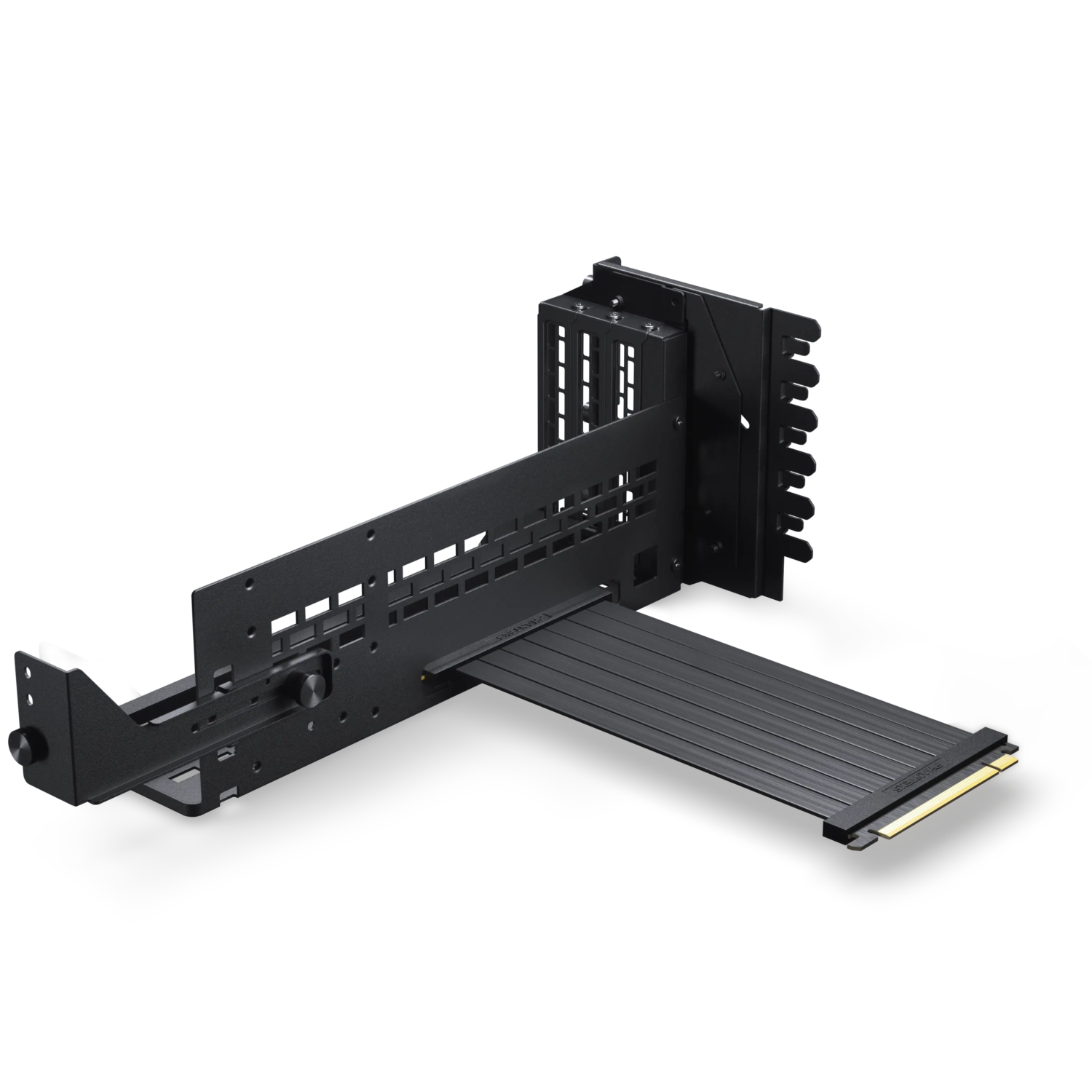

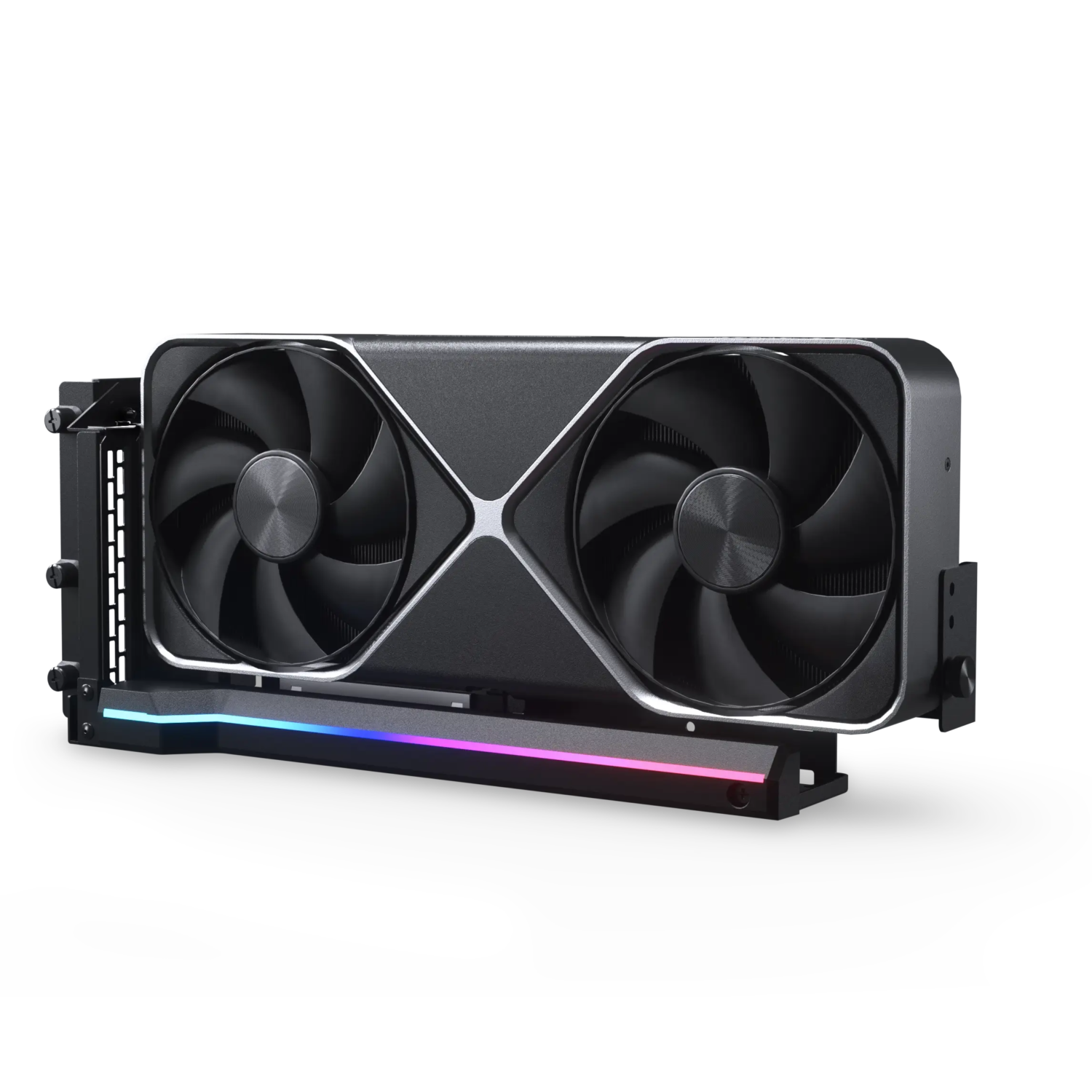

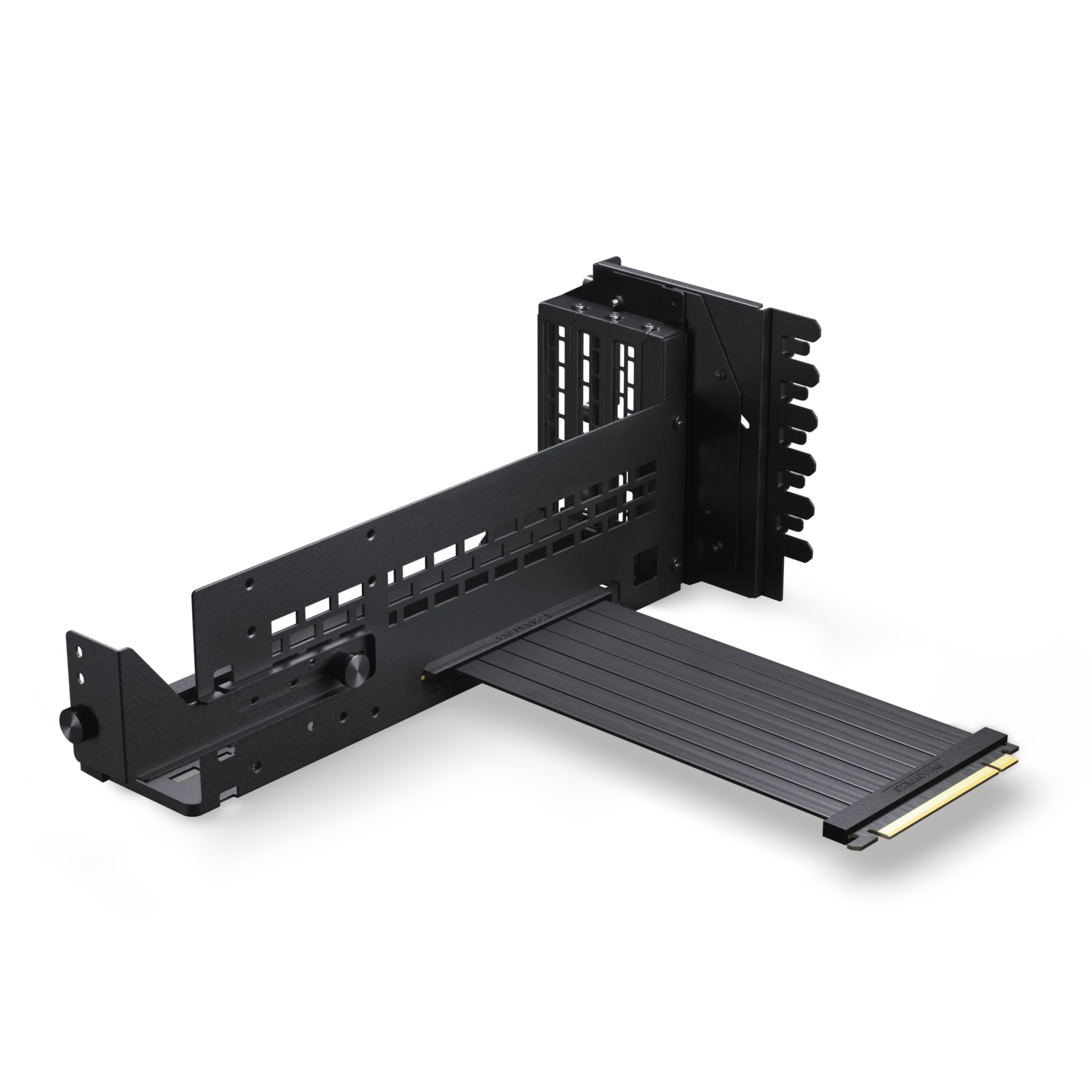

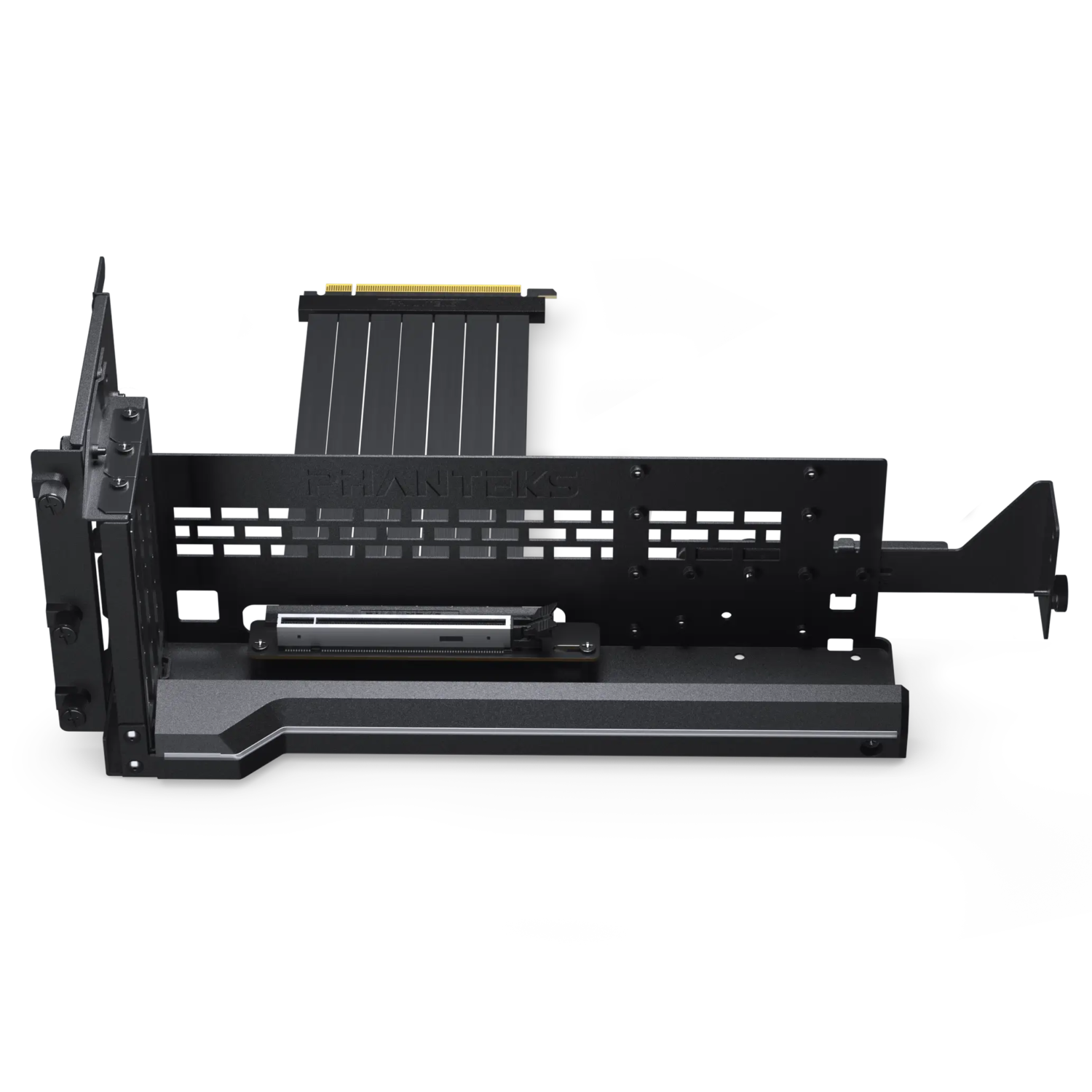

The Premium GPU bracket combines flexibility and style to bring focus to graphics cards in a way only Phanteks can. The bracket is fully supported in vertical orientation but can also be adjusted up to 30 degrees to create a visually appealing display.

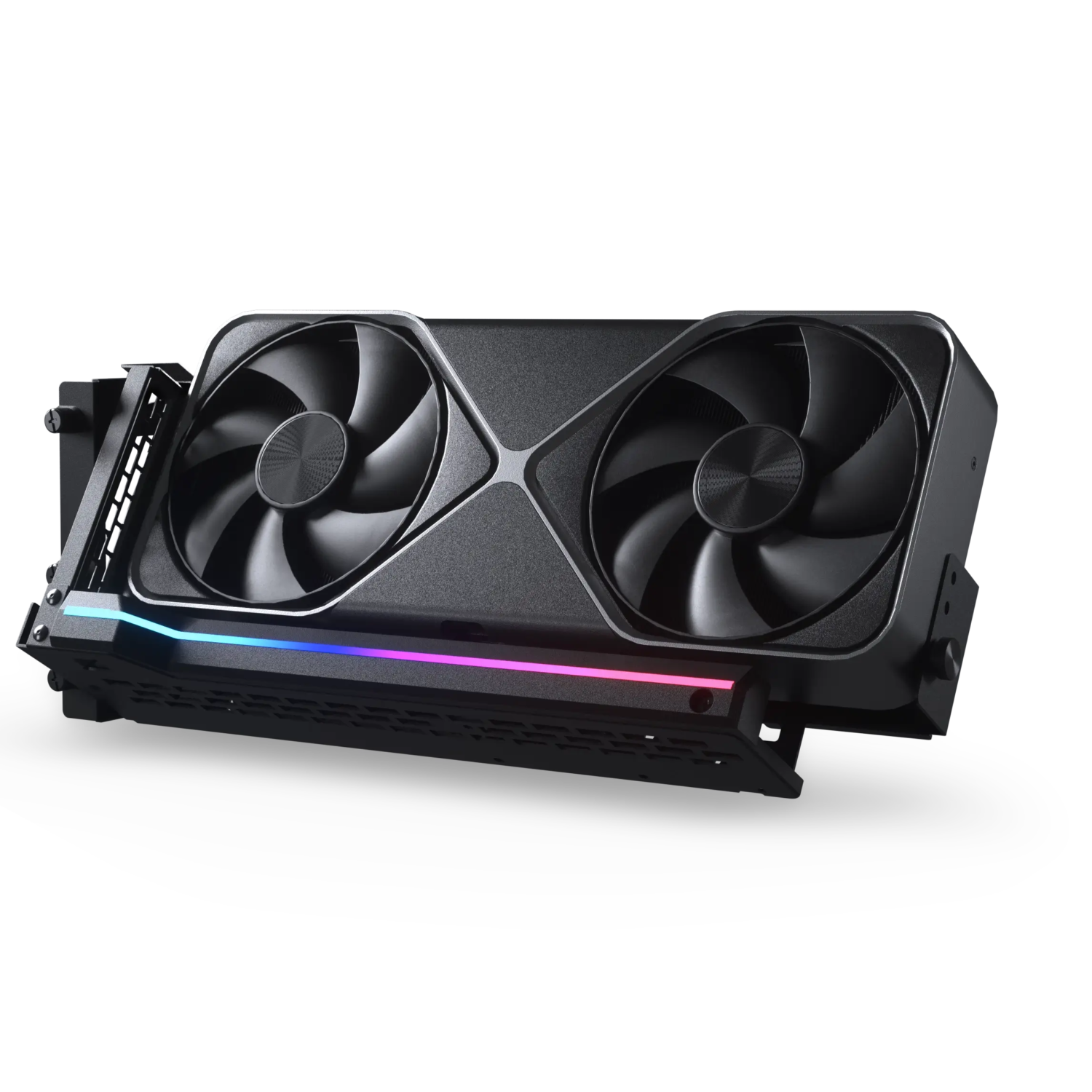

With its D-RGB lighting feature, the bracket adds a vibrant and eye-catching element to your gaming setup, enhancing the overall aesthetics and creating a visually stunning experience. Whether a hardcore gamer or a dedicated PC enthusiast, the Premium GPU bracket delivers outstanding functionality that will ensure a system that stands out from the crowd.

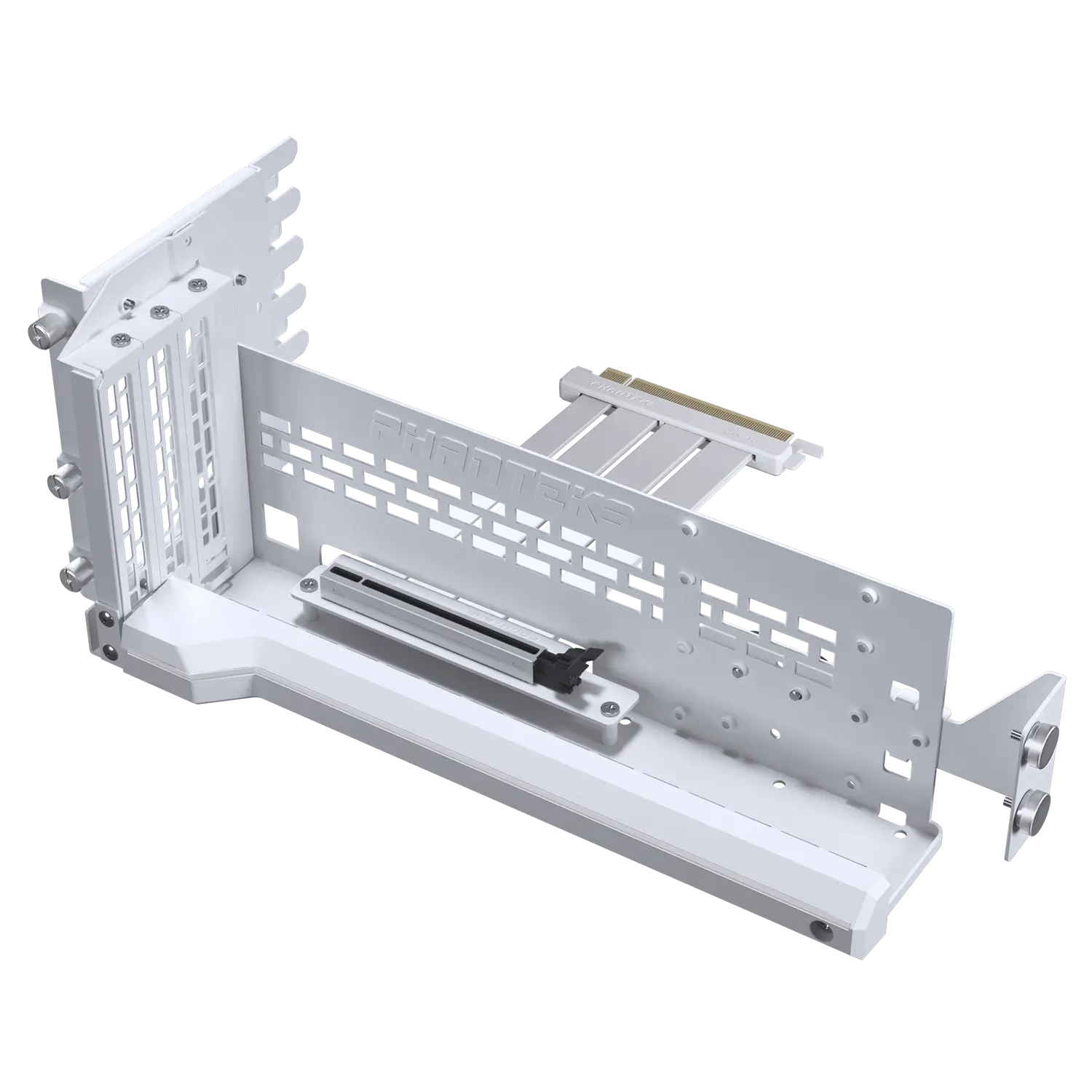

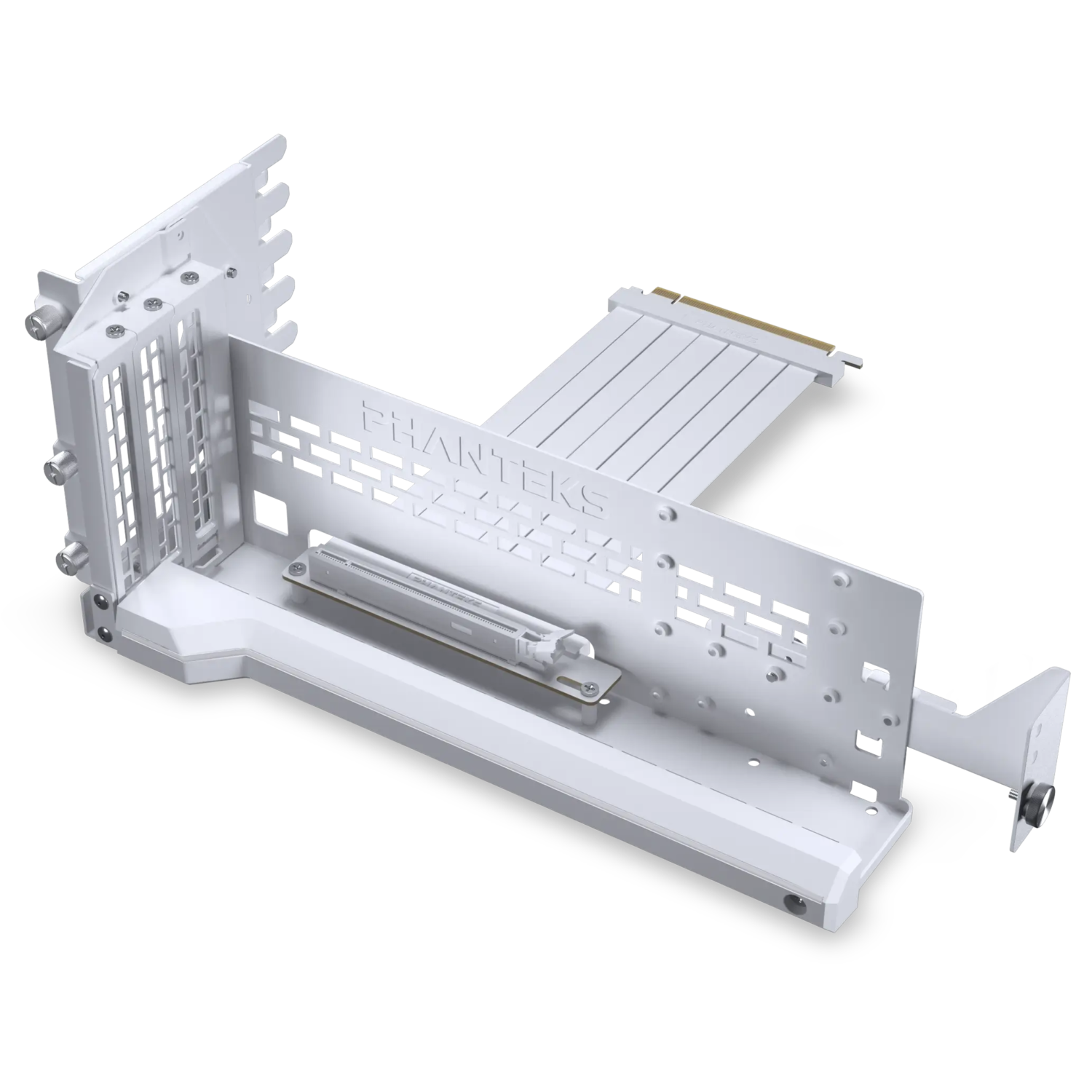

Colors
Specifications
General
Model No.
PH-PGPUKT5.0_DBK01
UPC Code
886523004042
Materials
Powder-coated steel
Color
Black
PCI Slots Required
7
PCIe Generation
PCIe 5.0
GPU Length Support
Max. 365 mm
D-RGB Power Draw
0.20A
Extra
Scope of Delivery
1x Premium vertical GPU bracket

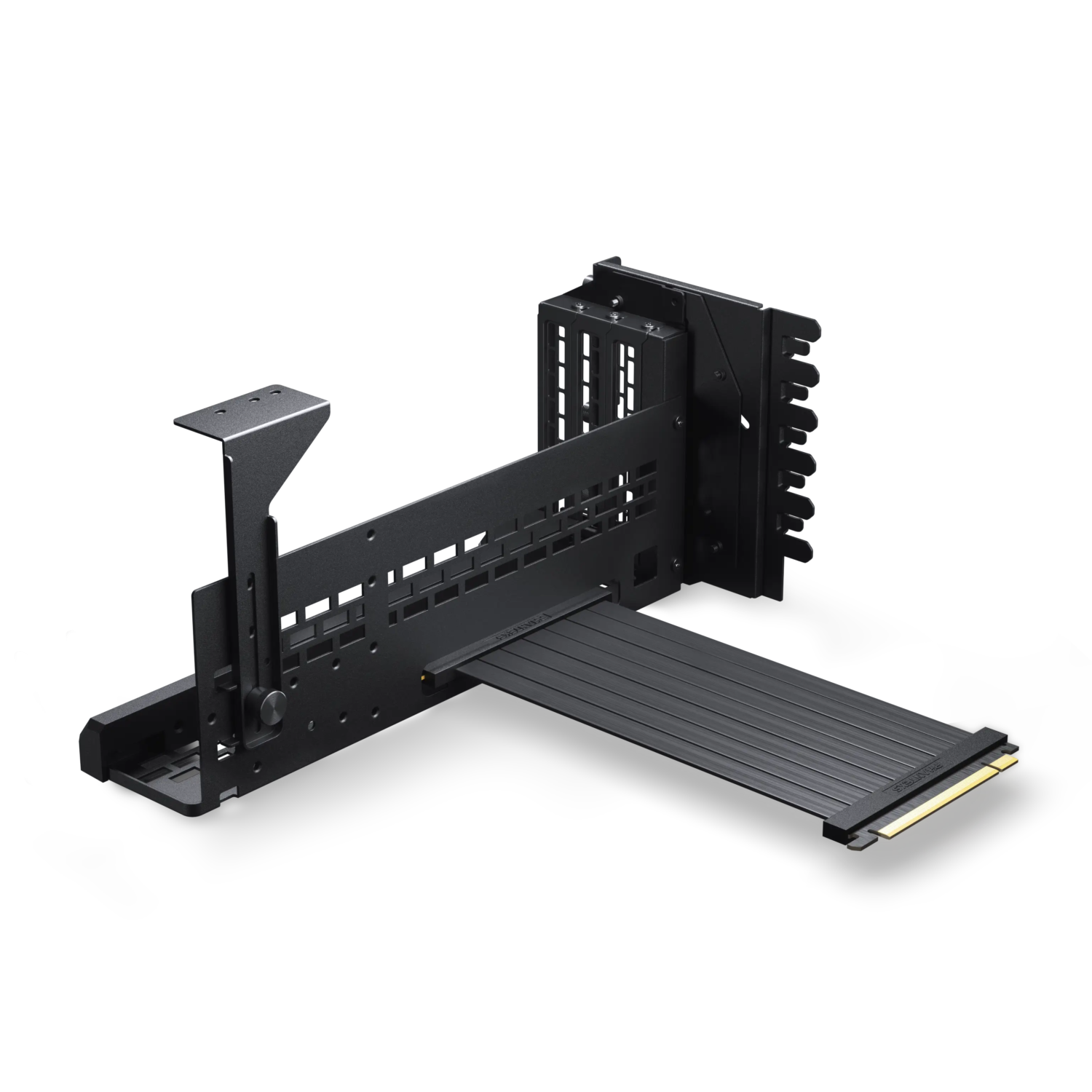

1x PCI-E Gen5 x16 riser cable 220 mm
Accessory Box
2x Thumb screw
1x Long thumb screw
5x Rubber washers
1x Stand-off 50 mm
1x D-RGB mainboard connection cable 600 mm
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
You don’t need the Nexlinq app directly for housing your PC in the Matrix-supported cases. However, the Nexlinq app is required to set up and customize the Matrix display (system stats, animations, lighting, and custom visuals). Without the app, the Matrix screen cannot be configured and will show the text ‘Matrix 600’ or ‘Matrix 900’ depending on the Matrix display size.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
