XT View
XTreme space, Cooling & Value

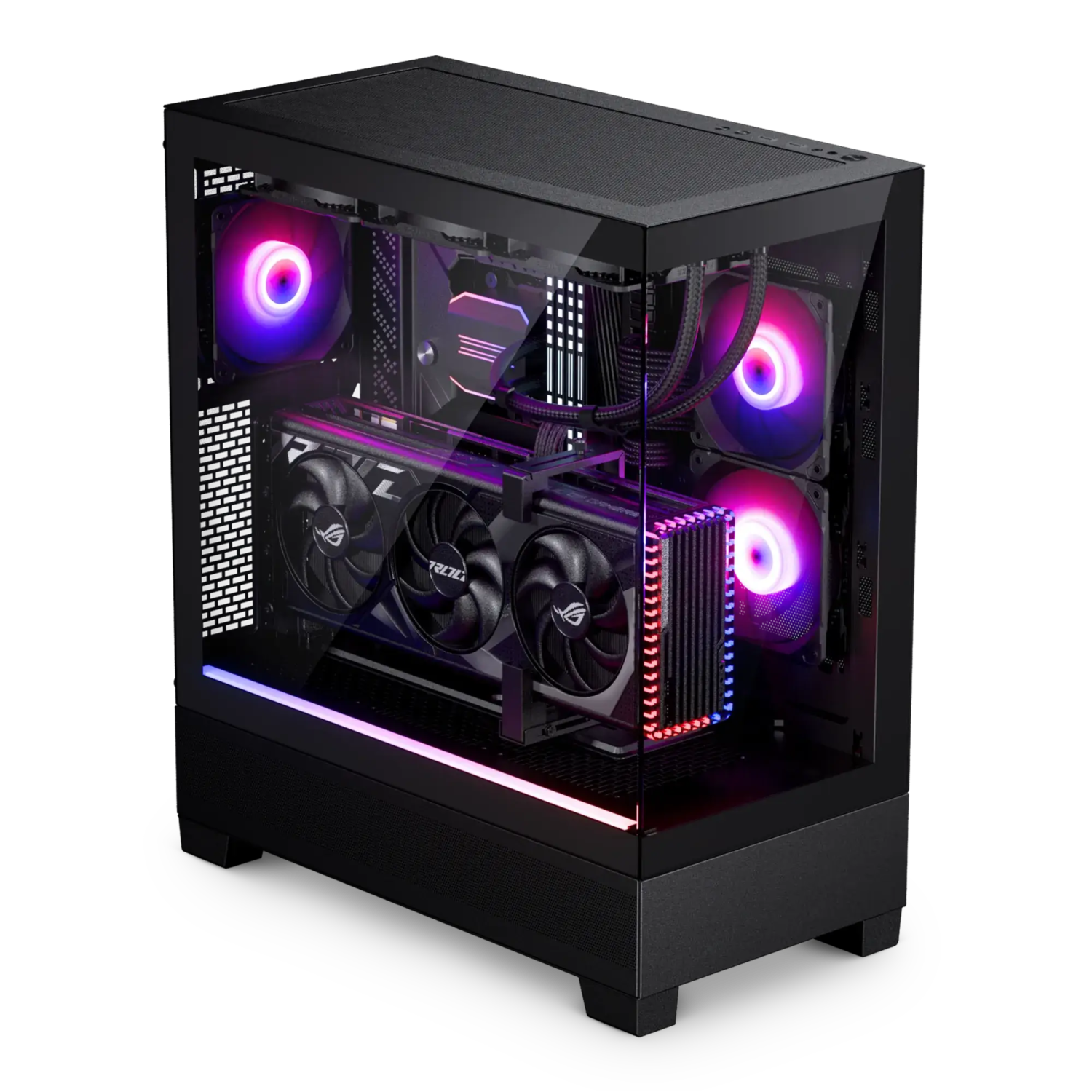

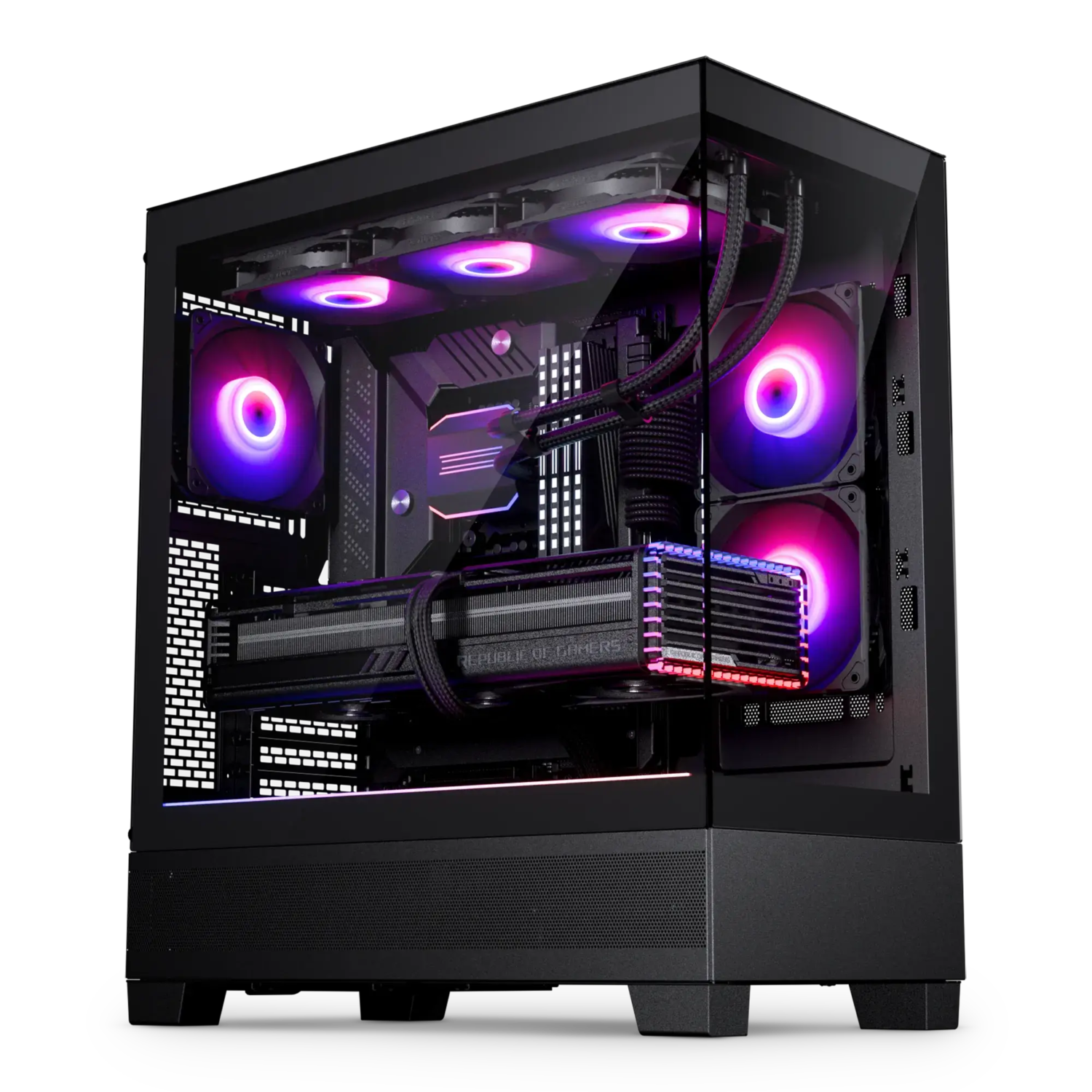

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

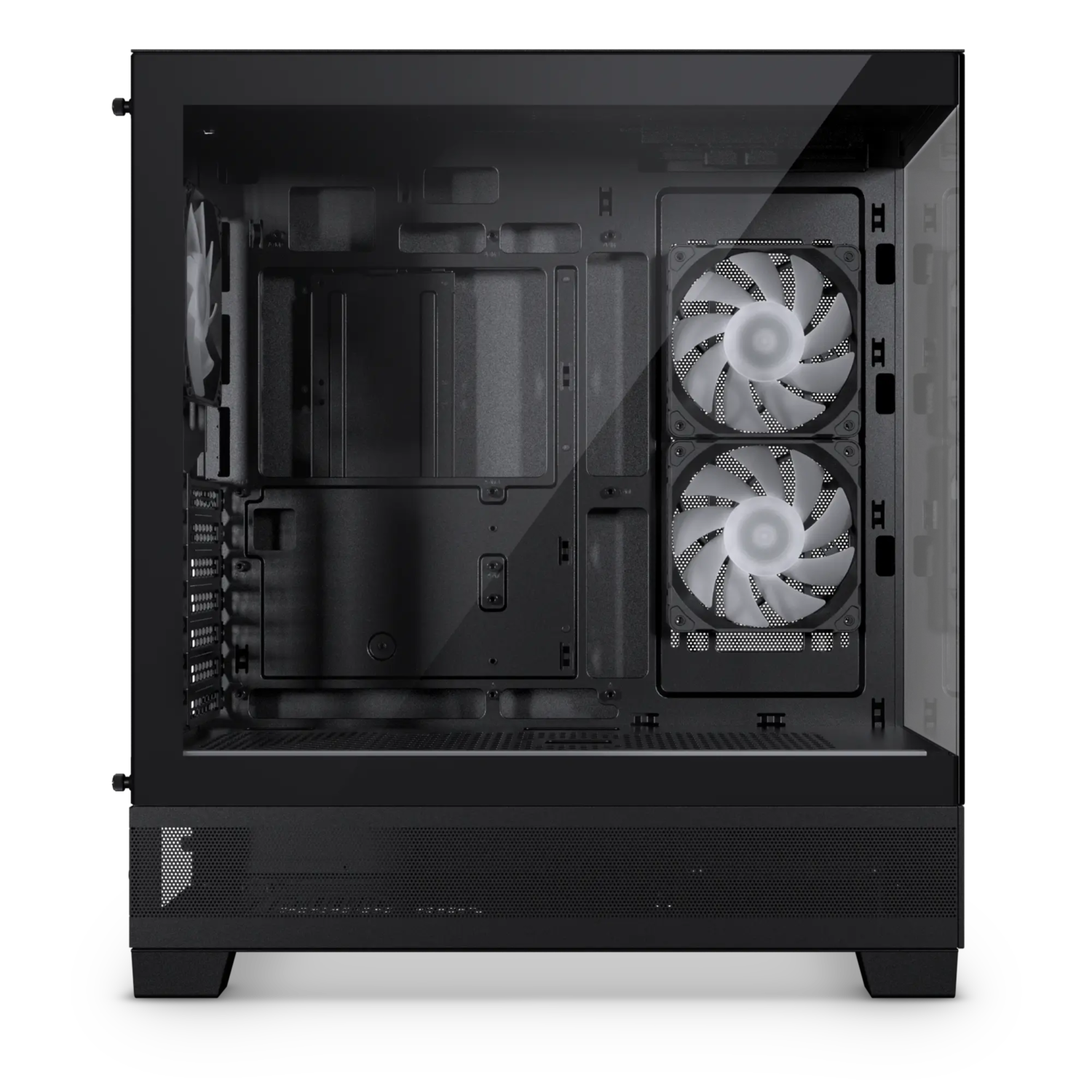

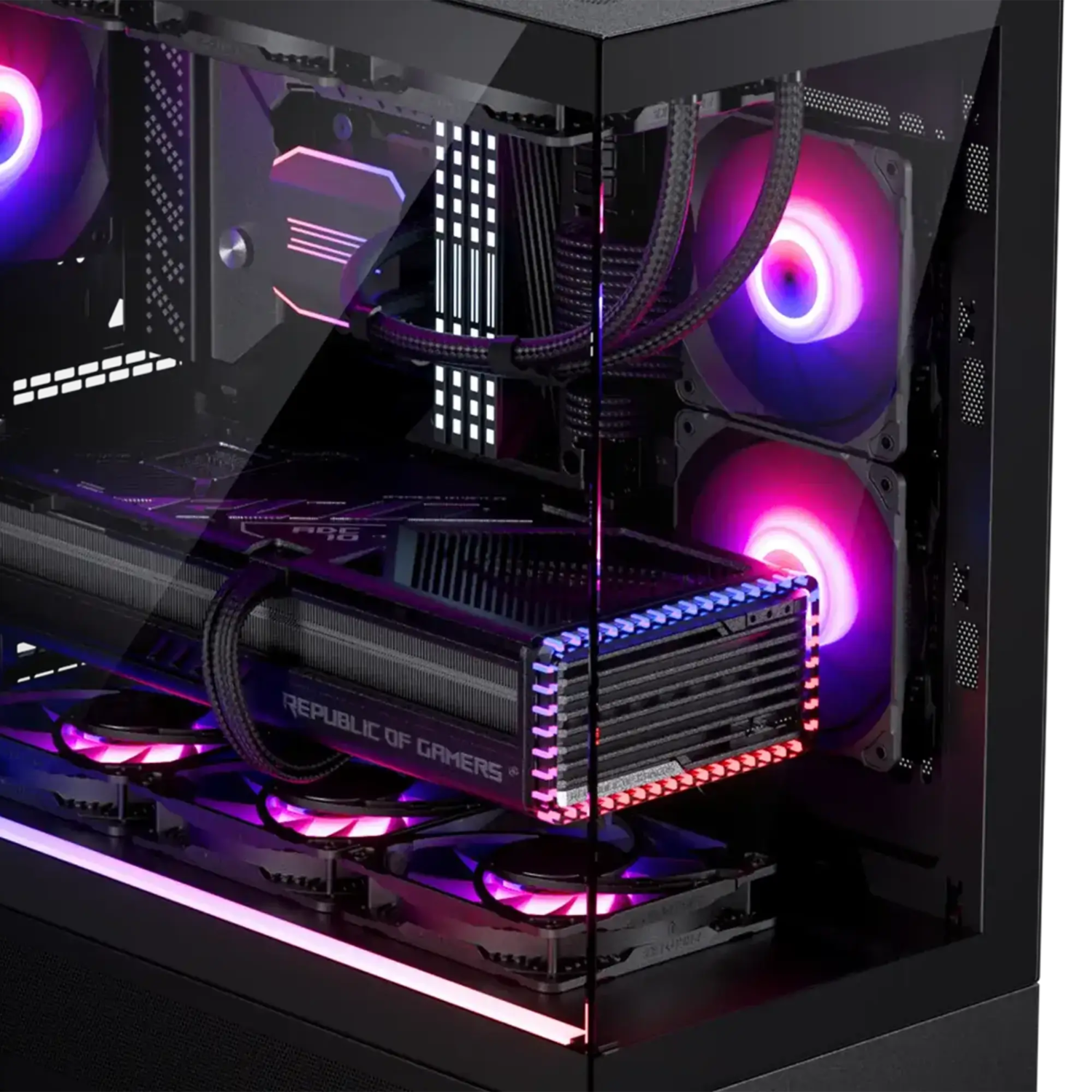

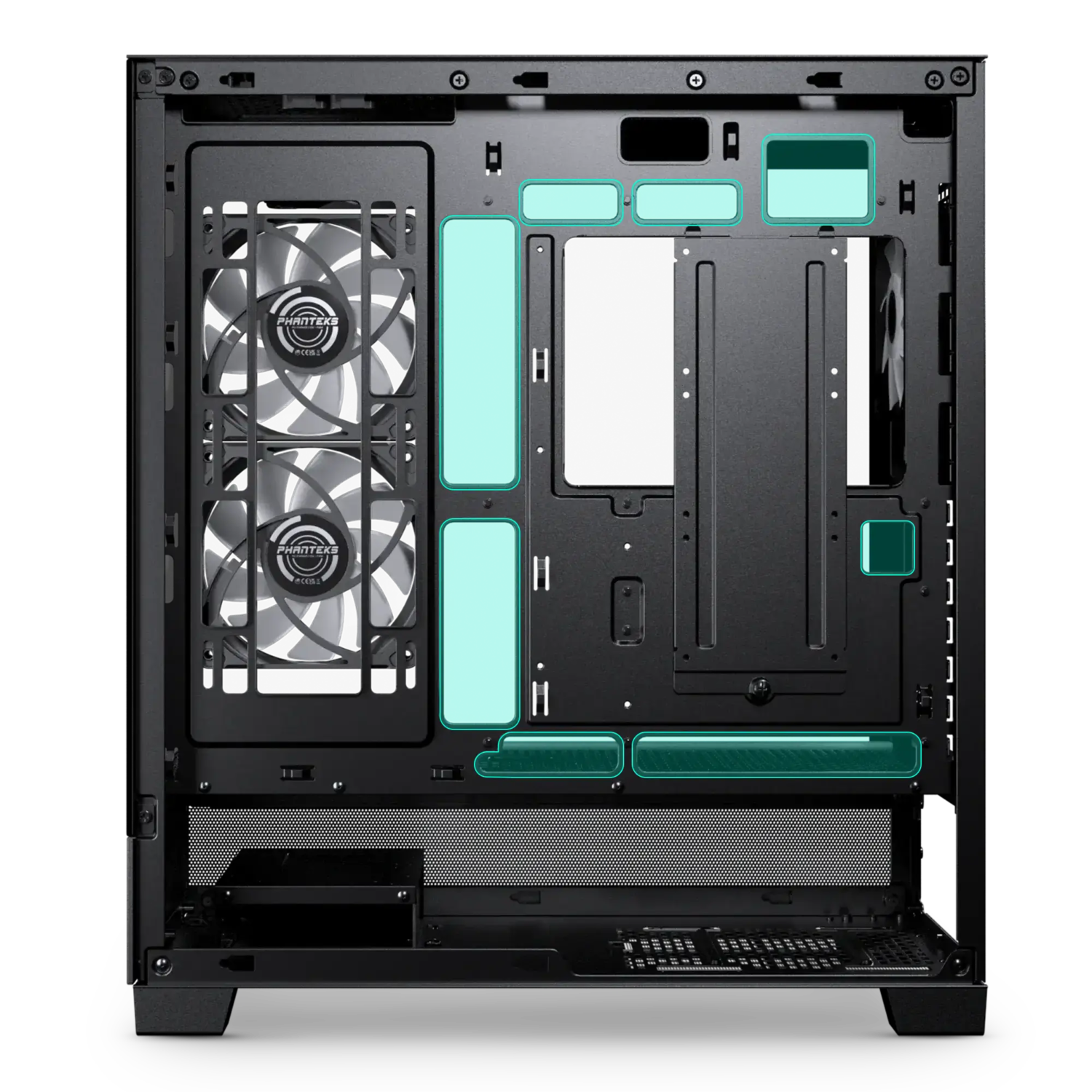

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.
Colors
Configurations
D-RGB

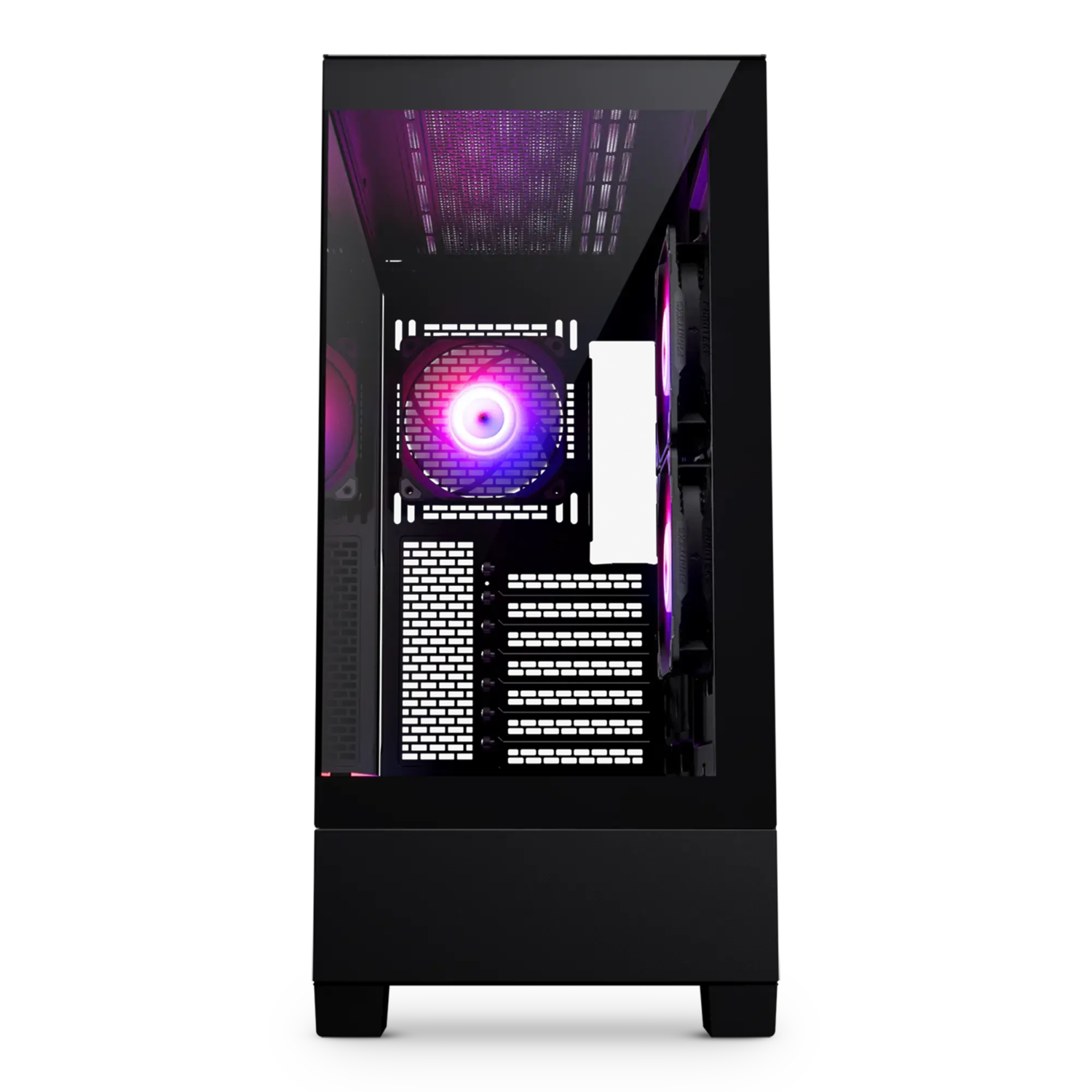

Computing with a View

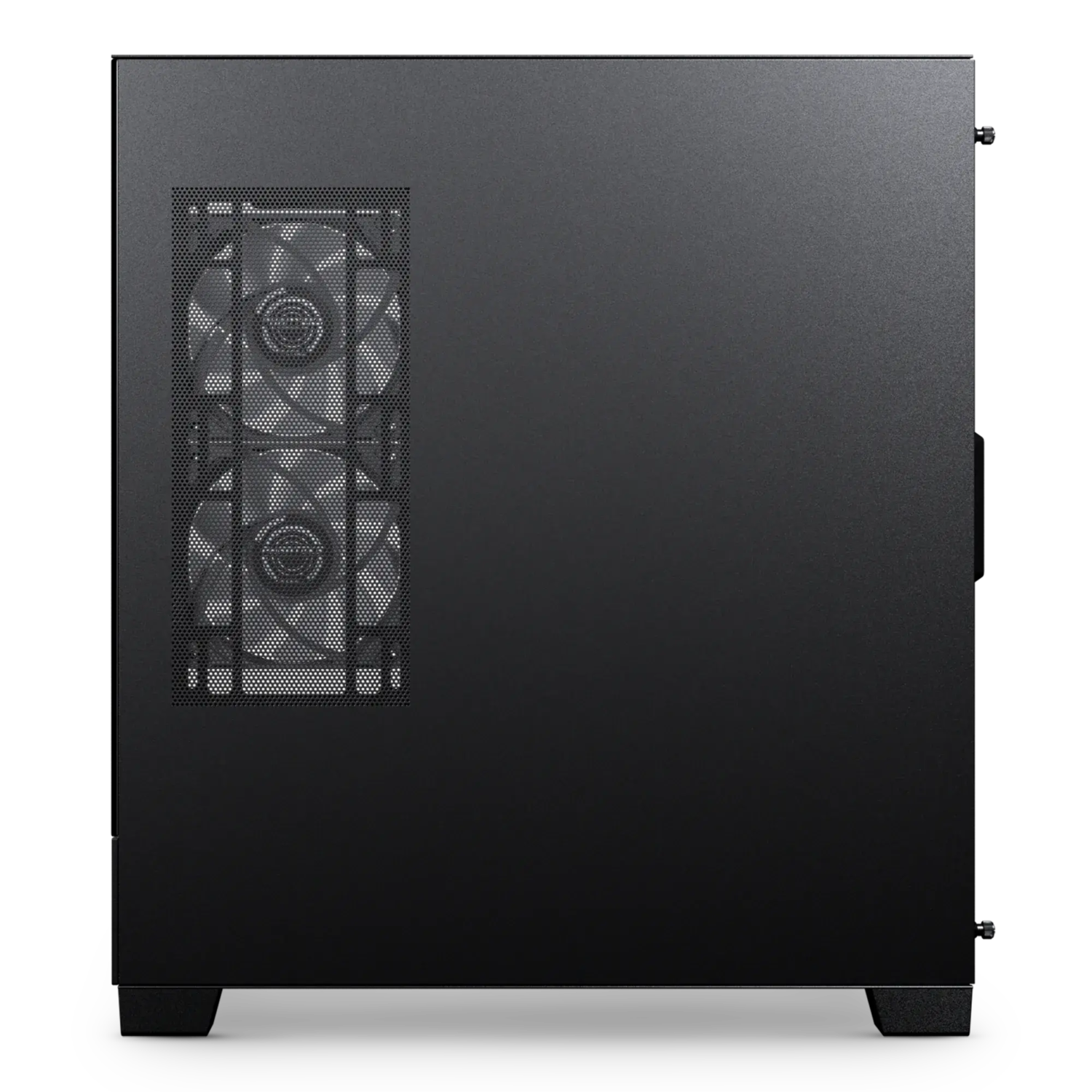

Cool and Powerful

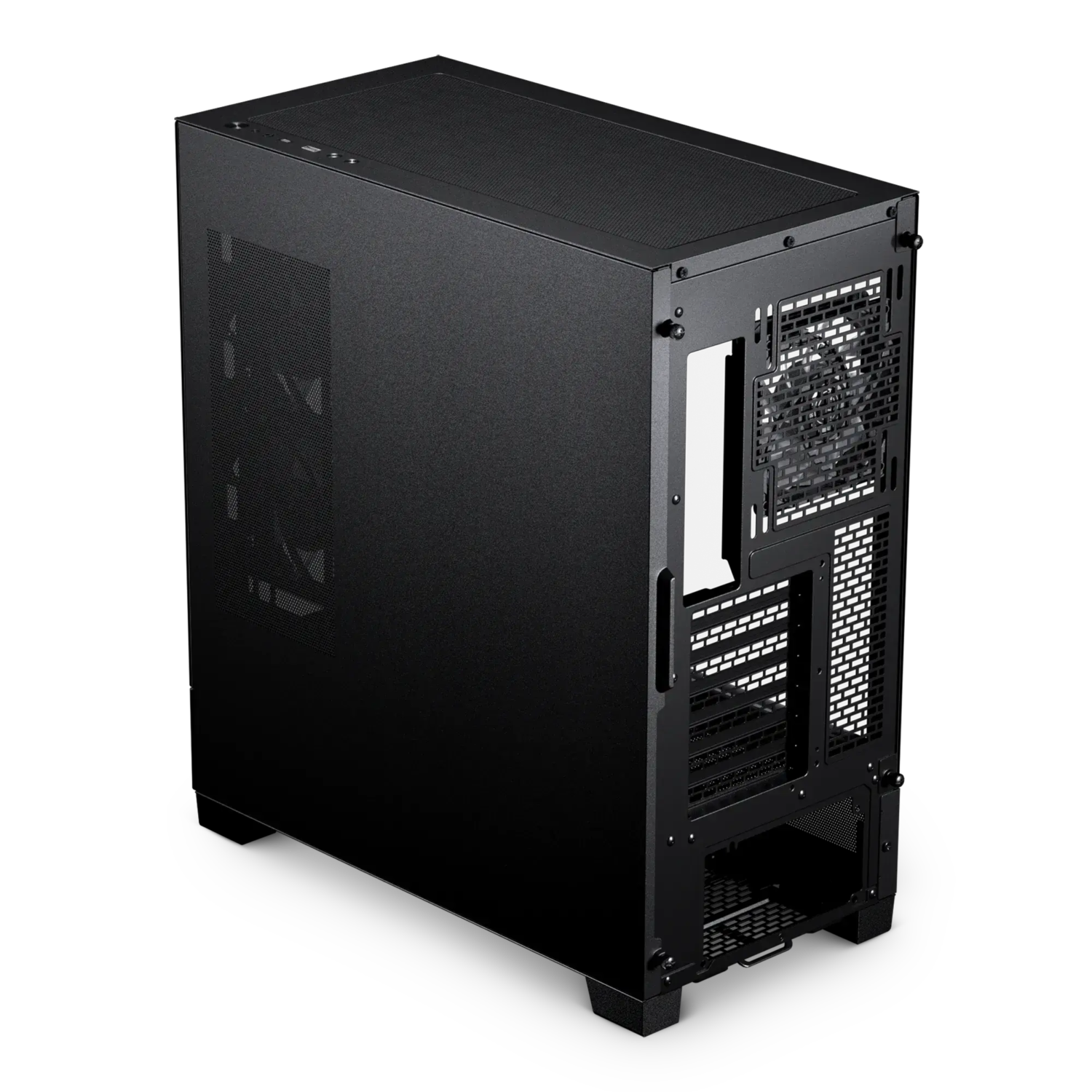

Build for the Future
Packed with Value
Integrated D-RGB lighting
*Vertical GPU bracket sold separately.
Multiple Storage Options
Specifications
General
Model No.
PH-XT523V1_DBK01
UPC Code
886523303176
Case Dimensions
440 x 230 x 500 mm | 17.7×9.05×19.68 in
Form Factor
Mid-Tower
Mainboard Support
E-ATX* | ATX | Micro-ATX | Mini-ITX
*Up to 280mm wide
Materials
Steel chassis | Tempered glass | ABS plastic
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
5
+ 1x 3.5″ HDD
Internal 3.5″ Bay
2
+ 3x 2.5″ SSD

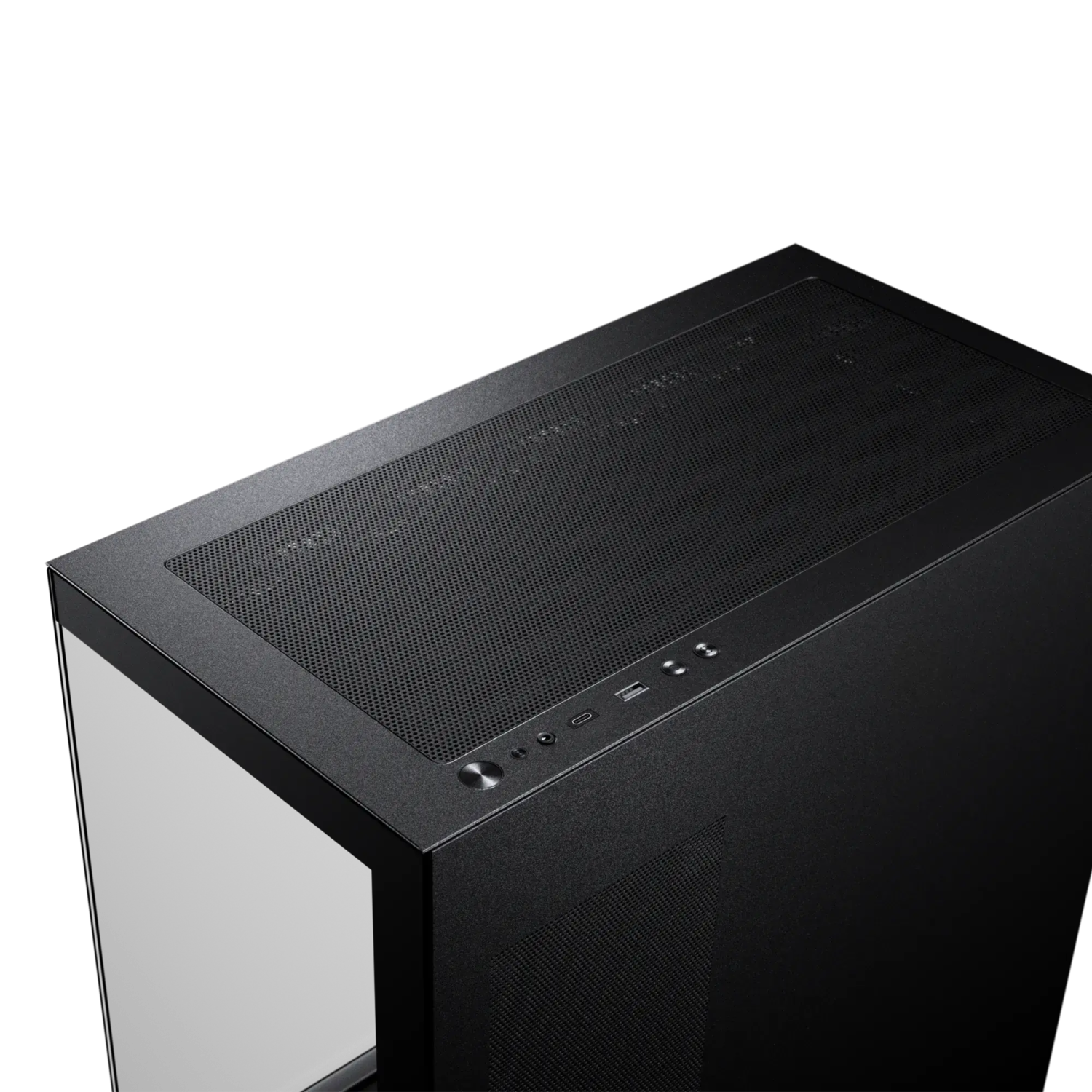

Front I/O
1x USB-C 3.2 Gen2
1x USB 3.0
Microphone | Headphone combo
Power button
Reset button
D-RGB mode button
D-RGB color button
Fans
Total Fans
120 mm | 140 mm
10x | 6x
Top
3x | 2x
Front
3x | 3x
Side
– | –
Rear
1x | 1x
Midplate
3x | –
Radiators
Top
Max. 360 | –
Front
– | –
Side
Max. 240* | –
*Only with vertical GPU bracket
Rear
120 | –
Midplate
– | –
Clearance
CPU Cooler
Height
184 mm | 7.24 in
GPU
Length
415 mm | 16.33 in
GPU
Width
184 mm | 7.24 in
Power Supply
Length
270 mm | 10.62 in
Top Radiator
Length x Width x Height
415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in
Front Radiator
Length x Width
–
Side Radiator
Length x Width
305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in
*Only with vertical GPU bracket
Midplate Radiator
Length x Width
–
Extra
Scope of Delivery
1x XT View chassis
3x M25-120 D-RGB fans
Accessory
30x Zip ties
Screws
30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
12x 30mm Fan Screw
1x Motherboard stand-off
1x Stand-off removal tool
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
