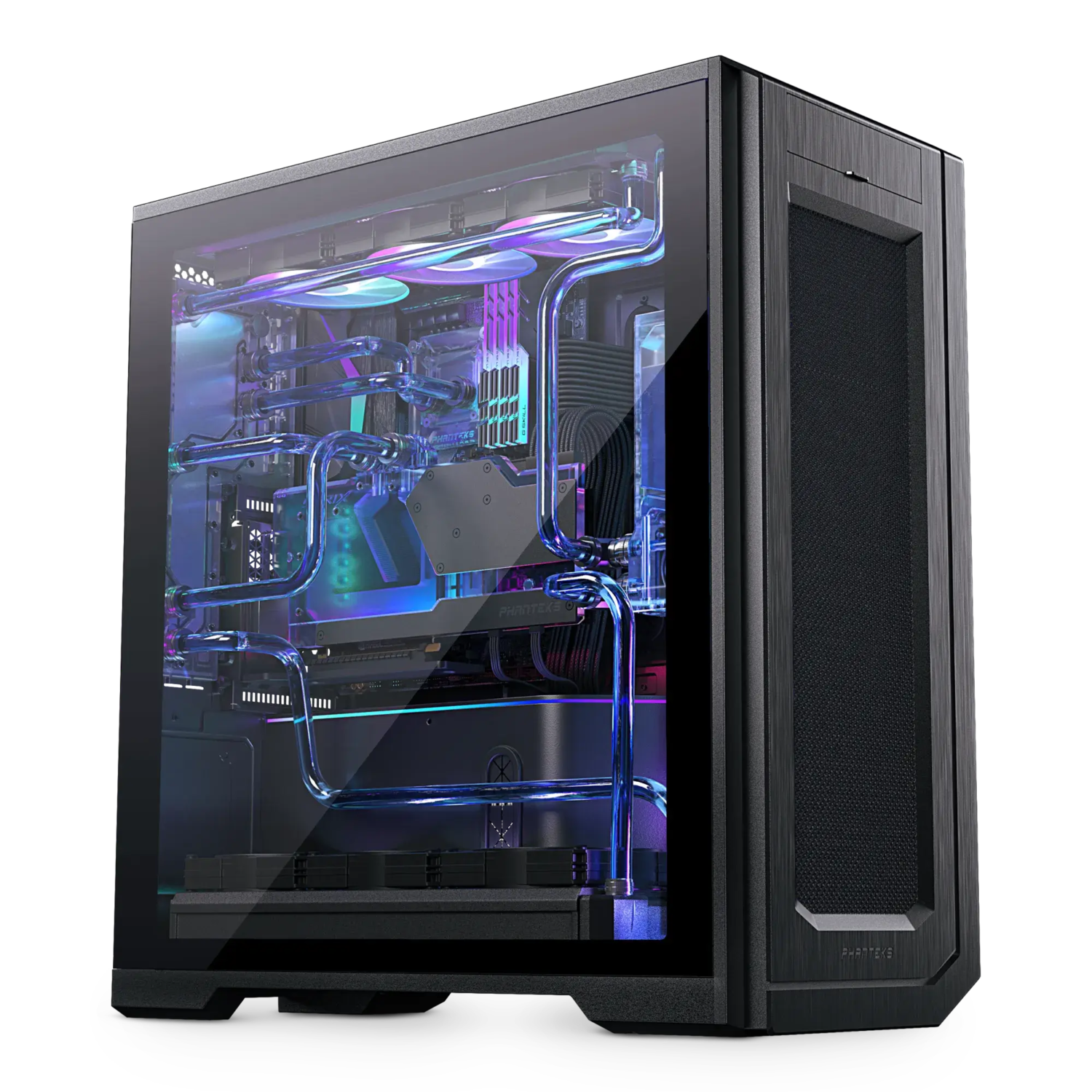

Enthoo Pro II
Extreme Versatility and Exceptional Airflow
The Enthoo Pro 2 has been designed with extreme performance in mind, featuring Phanteks’ innovative ‘High-Performance Fabric’ that sets a new airflow performance standard in the PC enclosure industry. The High-Performance Fabric from Phanteks, known from the award winning Eclipse P600S, brings ultimate airflow performance with much lower flow restriction compared to any metal mesh.
Colors
Satin Black
Configurations
The Future-Proof Full Tower
Supreme Airflow
Practical & Versatile
Design Your Ideal Configuration
Integrated D-RGB lighting
Multiple storage options
Specifications
General
Model No.
PH-ES620PTG_DBK01
UPC Code
886523301950
Case Dimensions
240 x 580 x 560 mm | 9.45 x 22.83 x 22.05 in
Form Factor
Full Tower
Mainboard Support
XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
11
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
11
Internal 3.5″ Bay
12 | 4 Included
+ 3x 2.5″ SSD
Front I/O
1x USB-C GEN 2
4x USB 3.0
Microphone | Headphone Combo
Reset Button
Power Button
D-RGB Color Button
D-RGB Mode Button
Fans
Total Fans
120 mm | 140 mm
15x | 6x
Top
3x | 3x
Front
4x | 3x
Side
4x | –
Bottom
3x | 1x
Rear
1x | 1x
Radiators
Top
Max. 360 | –
Front
Max. 480 | 420
Side
Max. 480 | –
Rear
120 | –
Bottom
Max. 360 | –
Clearance
CPU Cooler
Height
195 mm | 7.67 in
GPU
Length
503 mm | 19.95 in
Mainboard
Height x Width
Max. 305 x 330 mm | 12.00 x 12.99 in
Top Radiator
Length x Width
120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height)
Front Radiator
Length x Width
142 x 475 mm | 5.59 x 18.70 in
Side Radiator
Length x Width x Height
134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in
Extra
Scope of Delivery
1x Enthoo Pro II chassis
3x SSD bracket
4x HDD bracket
Accessory Box
6x Zip ties
1x Vertical GPU mount
1x GPU anti-sag bracket
1x Dual system cover
1x Phanteks case badge
Screws
18x Mainboard | SSD screws
5x Power supply screws
12x Fan screws
1x Motherboard stand-off
2x HDD cage screws
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.
Enthoo Series
Our Enthoo series gives the space for a home server or an extreme gaming rig. Every space in an Enthoo chassis is efficiently designed with multiple functions to make sure no space will go wasted, while offering maximum flexibility. Many different configurations can be formed depending on personal system preferences. With extreme cooling possibilities, it assures to keep the most highend gaming system running cool. The Enthoo series is made of beautiful materials engineered with utmost care and attention to detail.
