Enthoo Pro II

Extreme Versatility and Exceptional Airflow

The Enthoo Pro 2 has been designed with extreme performance in mind, featuring Phanteks’ innovative ‘High-Performance Fabric’ that sets a new airflow performance standard in the PC enclosure industry. The High-Performance Fabric from Phanteks, known from the award winning Eclipse P600S, brings ultimate airflow performance with much lower flow restriction compared to any metal mesh.

Colors

Black

Satin Black

Configurations

Tempered Glass

Closed Panel

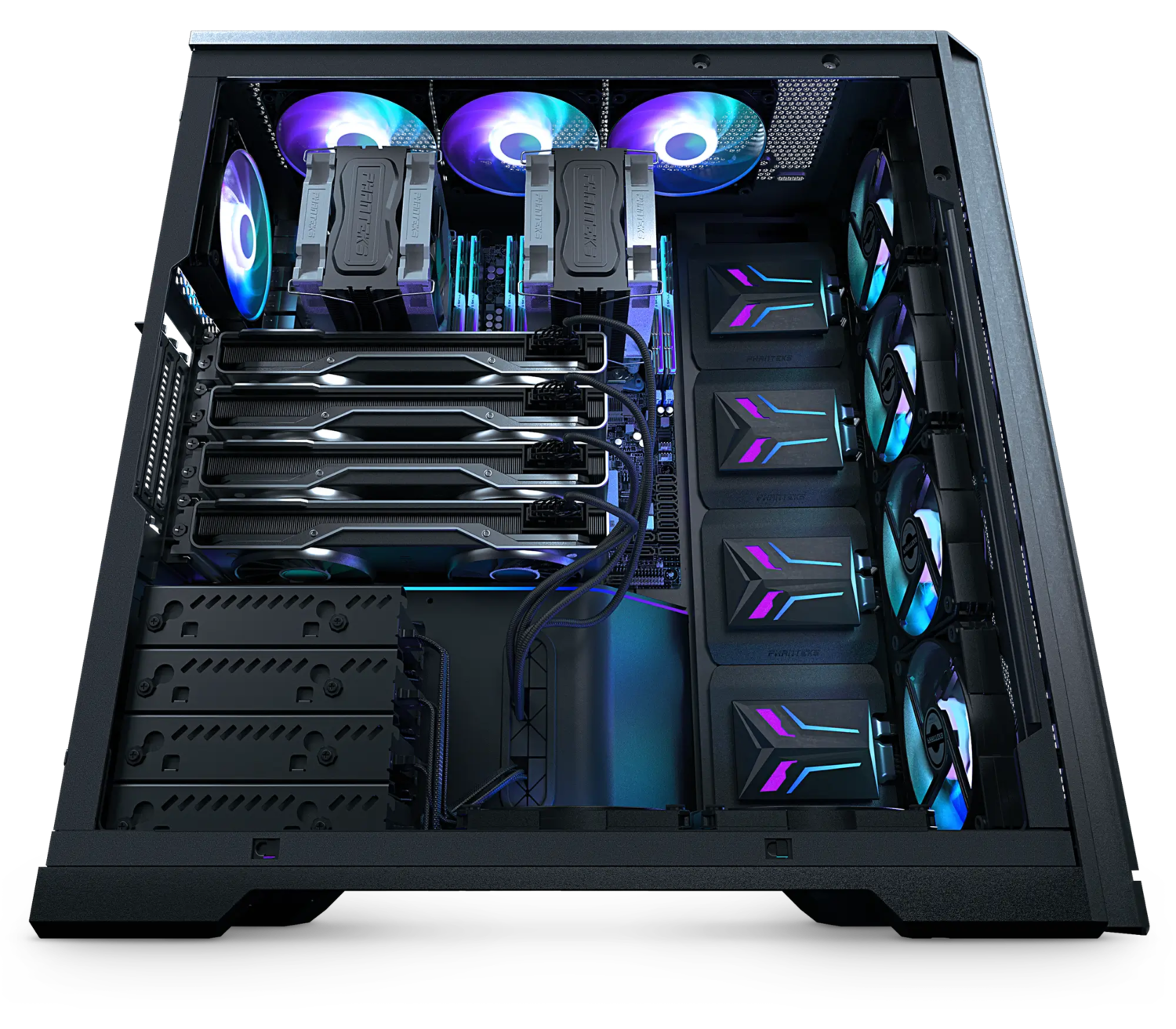

The Future-Proof Full Tower

  • In every aspect build for the professional and enthusiasts.
  • Spacious interior that supports the most high-end configurations for a modern workstation.
  • Capable of housing Dual-CPU SSI-EEB setups.

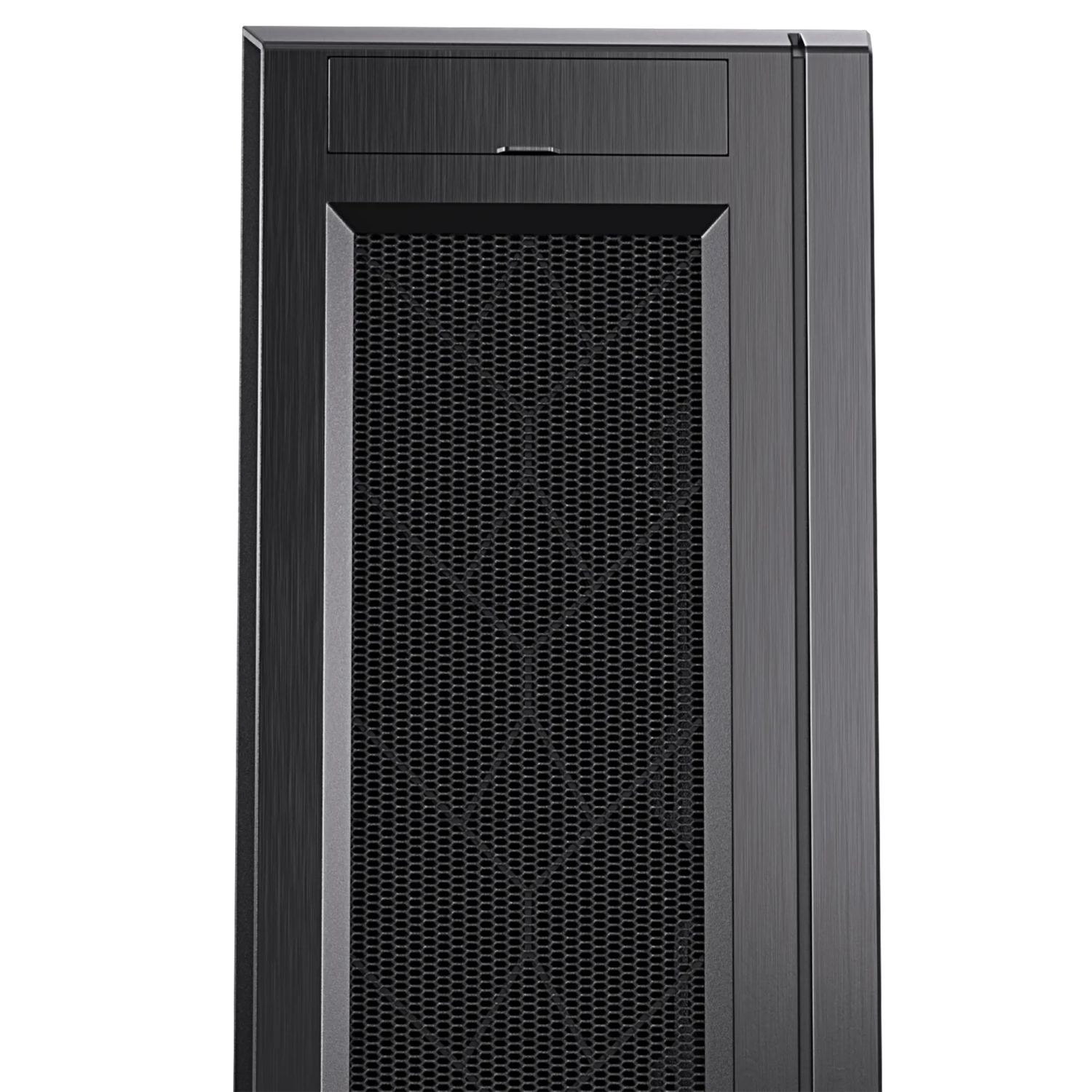

Supreme Airflow

  • Exceptional airflow performance, thanks to Phanteks’ High-Performance Fabric.

  • Optimized layout for extreme cooling.
  • Equipped with high-airflow dust filters.
  • Highly breathable fabric.
    Made from rugged and durable nylon fiber that minimizes restrictions to increase airflow performance.

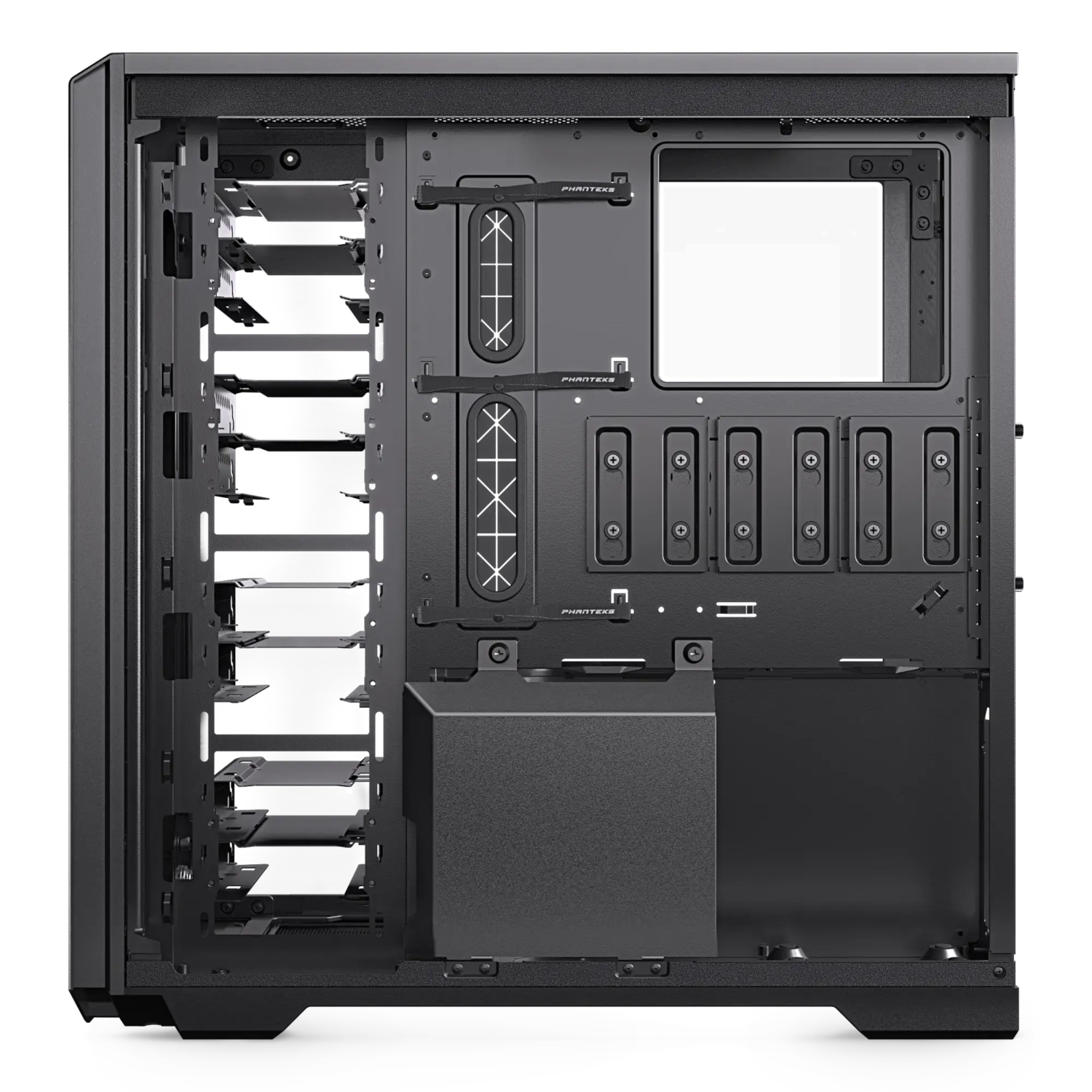

Practical & Versatile

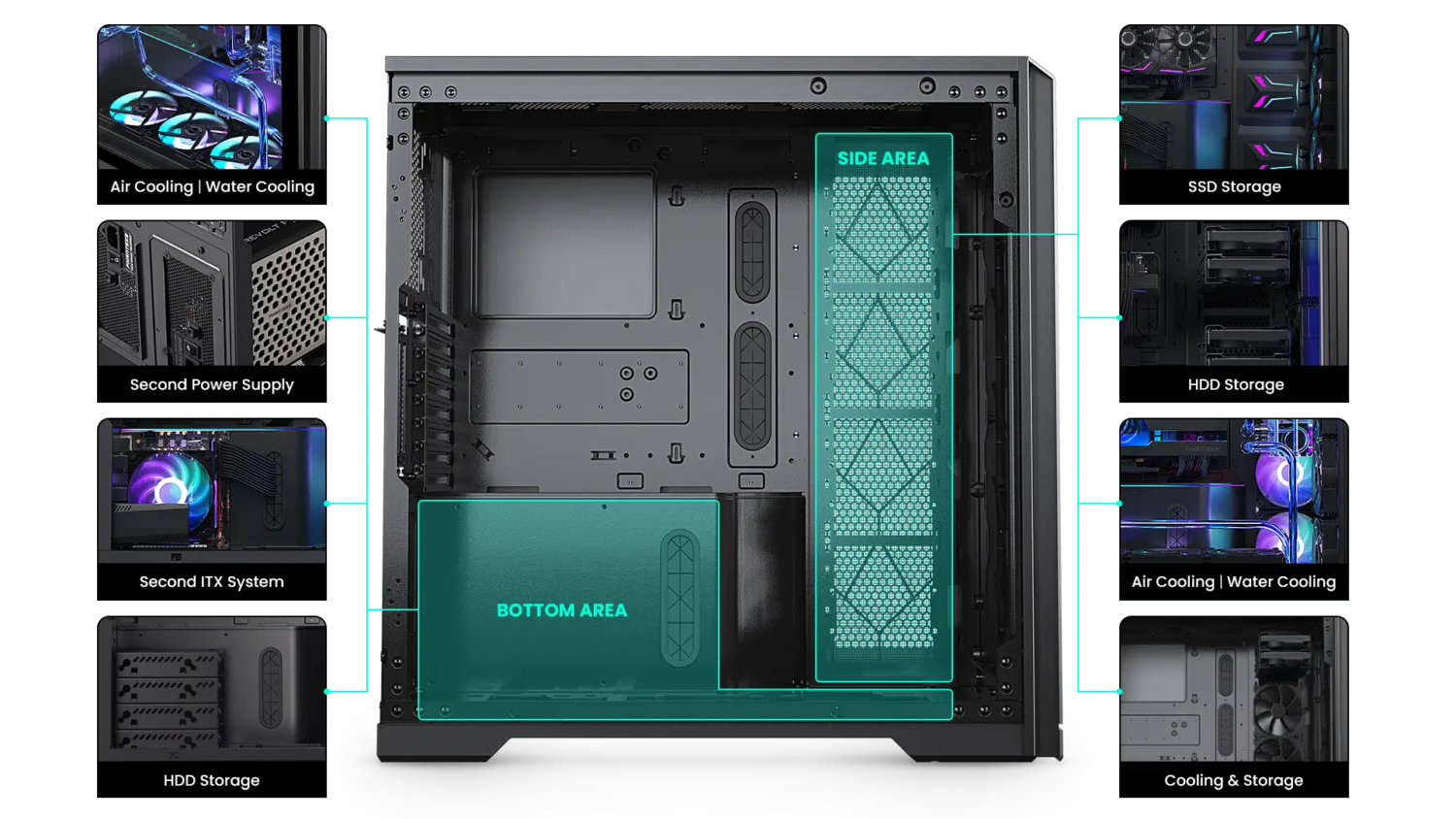

Design Your Ideal Configuration

Multiple storage options

  • Support for 8x 2.5″ SSD

  • 4x 3.5″ HDD brackets included.

  • Supports up to 12x 3.5″ HDD with the additional stackable 3.5″ brackets.

  • Support for 3x 2.5″ SSD

Specifications

General

Model No.

PH-ES620PC_BK01

UPC Code

886523301974

Case Dimensions

240 x 580 x 560 mm | 9.45 x 22.83 x 22.05 in

Form Factor

Full Tower

Mainboard Support

XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis

Side Window

No

PCI Slots

11

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

11

Internal 3.5″ Bay

12 | 4 Included

+ 3x 2.5″ SSD

Front I/O

1x USB-C GEN 2
4x USB 3.0
Microphone | Headphone Combo
Reset Button
Power Button
D-RGB Color Button
D-RGB Mode Button

Fans

Total Fans

120 mm | 140 mm

15x | 6x

Top

3x | 3x

Front

4x | 3x

Side

4x | –

Bottom

3x | 1x

Rear

1x | 1x

Radiators

Top

Max. 360 | –

Front

Max. 480 | 420

Side

Max. 480 | –

Rear

120 | –

Bottom

Max. 360 | –

Clearance

CPU Cooler

Height

195 mm | 7.67 in

GPU

Length

503 mm | 19.95 in

Mainboard

Height x Width

Max. 305 x 330 mm | 12.00 x 12.99 in

Top Radiator

Length x Width

120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height)

Front Radiator

Length x Width

142 x 475 mm | 5.59 x 18.70 in

Side Radiator

Length x Width x Height

134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in

Extra

Net Weight

13.00 kg | 28.66 lbs

Gross Weight

15.00 kg | 33.06 lbs

Warranty

5 Years limited

Scope of Delivery

1x Enthoo Pro II chassis
3x SSD bracket
4x HDD bracket

Accessory Box

6x Zip ties
1x Vertical GPU mount
1x GPU anti-sag bracket
1x Dual system cover
1x Phanteks case badge

Screws

18x Mainboard | SSD screws
5x Power supply screws
12x Fan screws
1x Motherboard stand-off
2x HDD cage screws

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Enthoo Series

Our Enthoo series gives the space for a home server or an extreme gaming rig. Every space in an Enthoo chassis is efficiently designed with multiple functions to make sure no space will go wasted, while offering maximum flexibility. Many different configurations can be formed depending on personal system preferences. With extreme cooling possibilities, it assures to keep the most highend gaming system running cool. The Enthoo series is made of beautiful materials engineered with utmost care and attention to detail.
