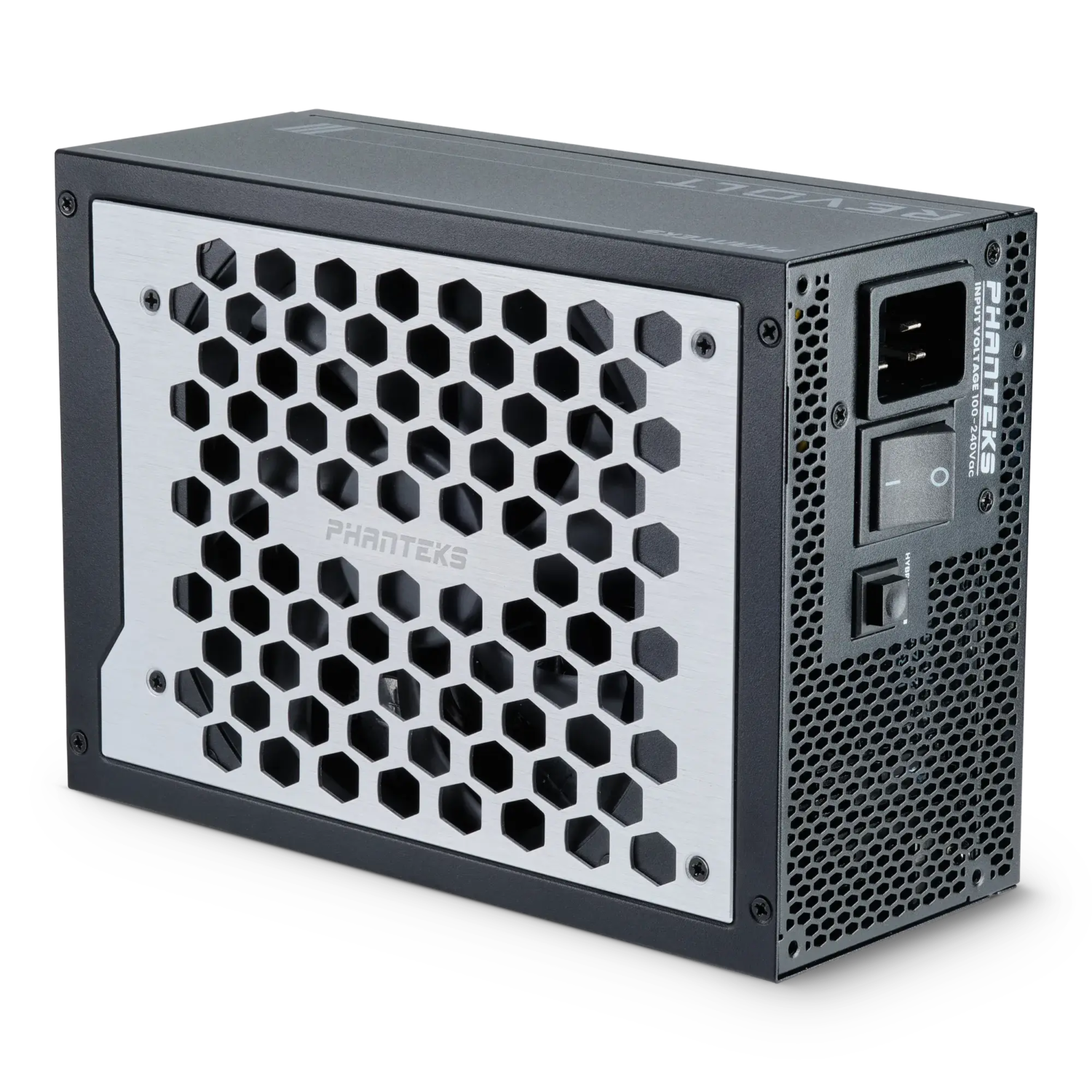

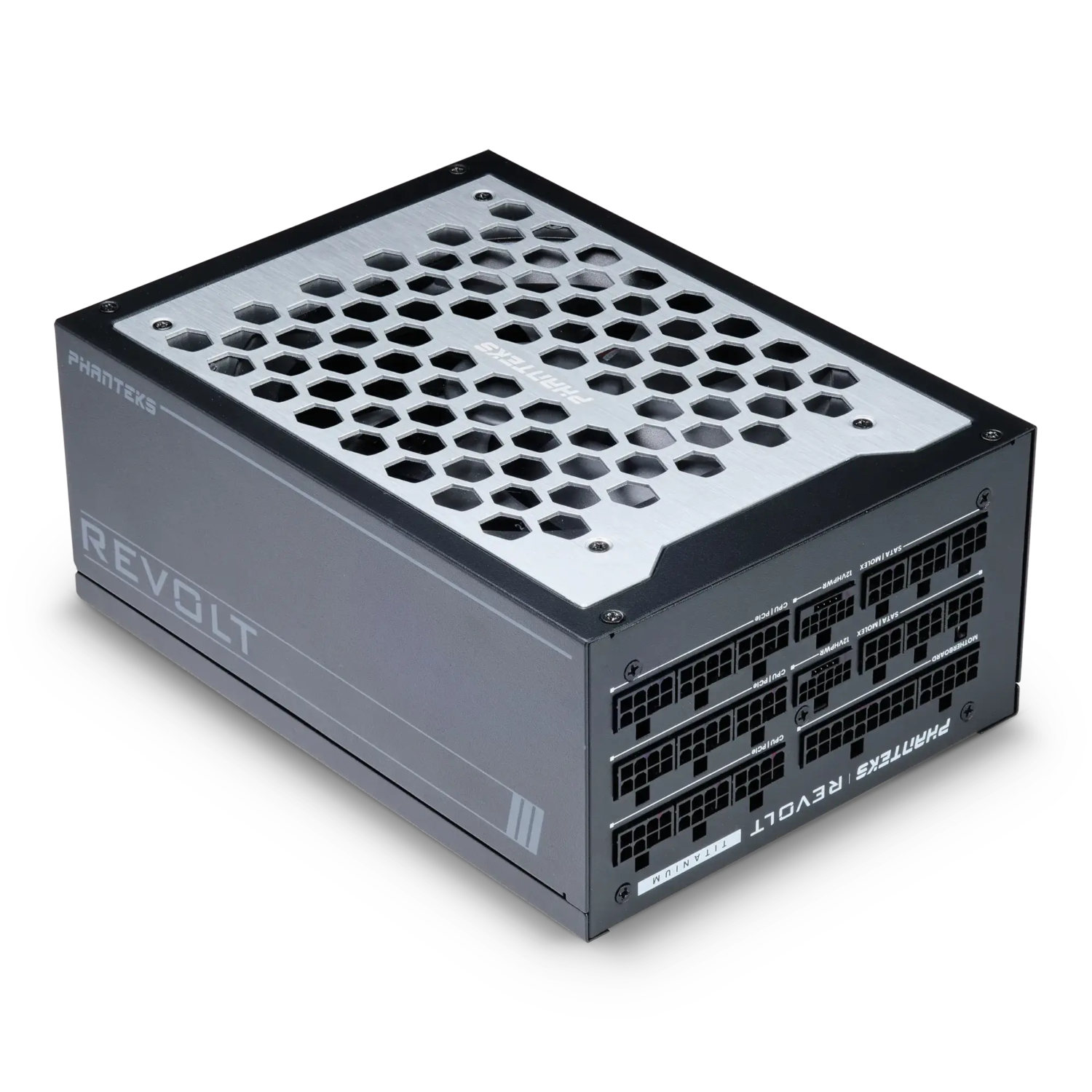

Revolt
Designed For Custom Cables
Extending the Revolt Series power supplies, Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.
The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and come with either 80 Plus Platinum or Titanium certification. Wattage capacity ranges from 1000 Watt all the way up to 1600 watt.
Colors
Wattage

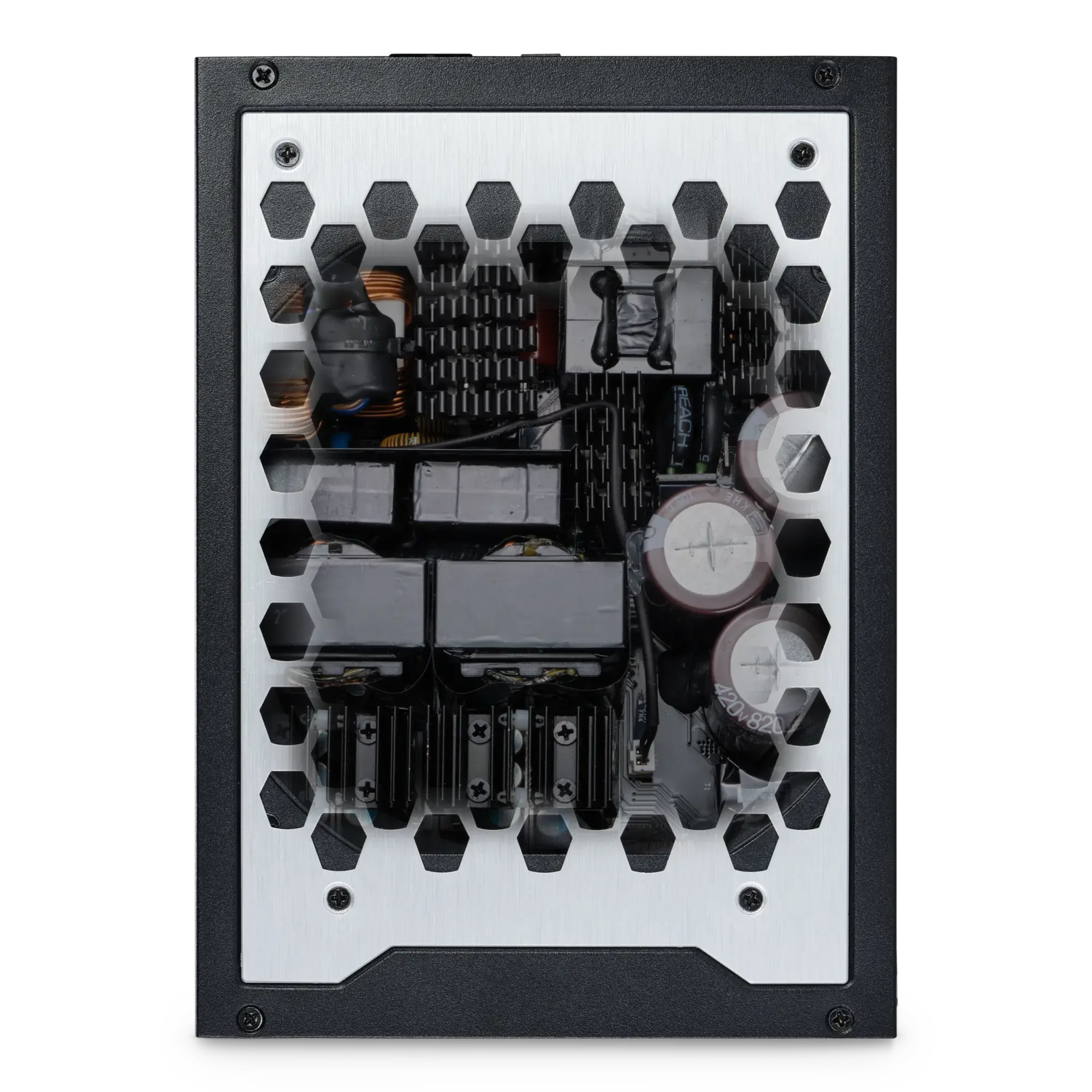

Next-Gen Platform by Seasonic

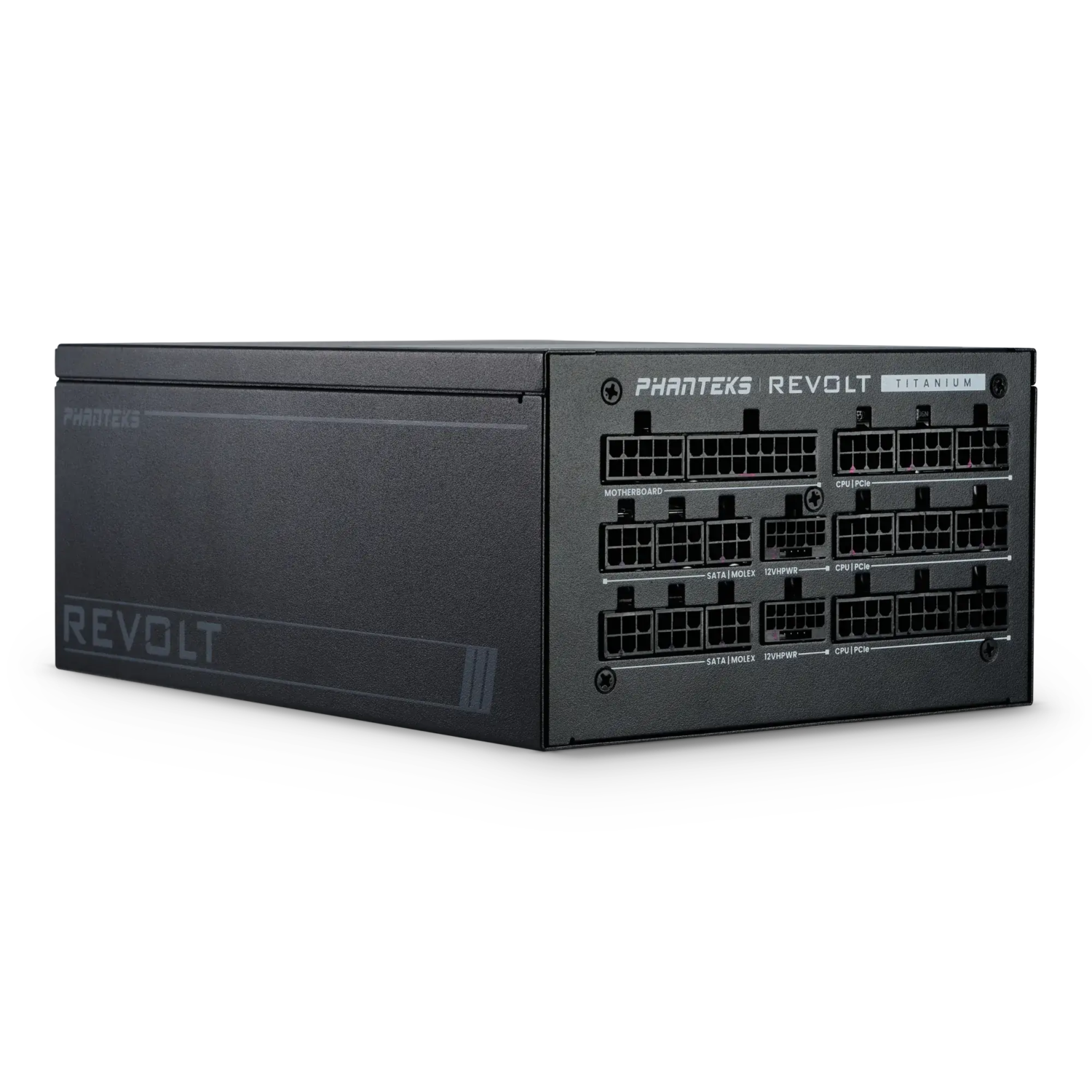

Combine with CableMod Cable Kits
Specifications
General
Model No.
PH-P1600TR_BK01C
UPC Code
886523510147
Color
Black
Dimensions
Length x Width x Height
210 x 150 x 86 mm | 8.3 x 5.9 x 3.4 in
Power Output
1600W
PCIe GEN5 OUTPUT
600W
80 Plus
Titanium
TECHNICAL DETAILS
Cooling Fan
135 mm Fluid Dynamic Bearing (FDB) Fan
Back Plate
Fully modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)

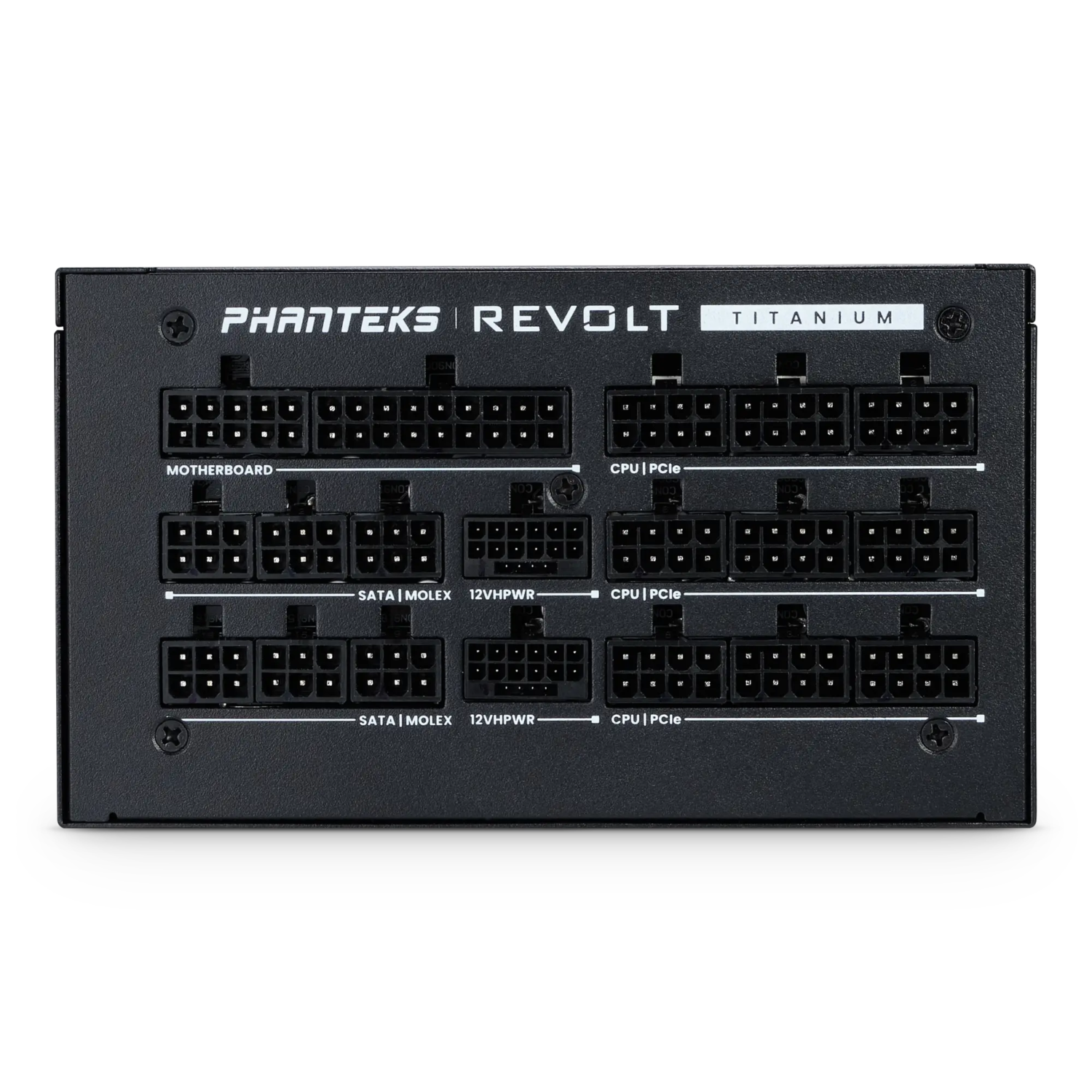

Power Supply Output Connectors
Mainboard – 1x
CPU | PCIe – 9x
SATA | Molex – 6x
12V-2×6 – 2x
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
| Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB | |
|---|---|---|---|---|---|---|
| Maximum Output | 133.33A | 25A | 25A | 0.5A | 3A | |
| Maximum Capacity | 1600W | 125W | 6W | 15W | ||
| DC Output | 1600W | |||||
| AC Output | 100-240Vac 15-10A 50-60Hz 200-240V ~ 10A 50-60Hz |
|||||
Extra
Scope of Delivery
1x Revolt 1600W Power supply unit
1x C13 Power cord (1500mm)
Accessory Box
1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
