Glacier One 360M25G2
High Performance 360 Cooling

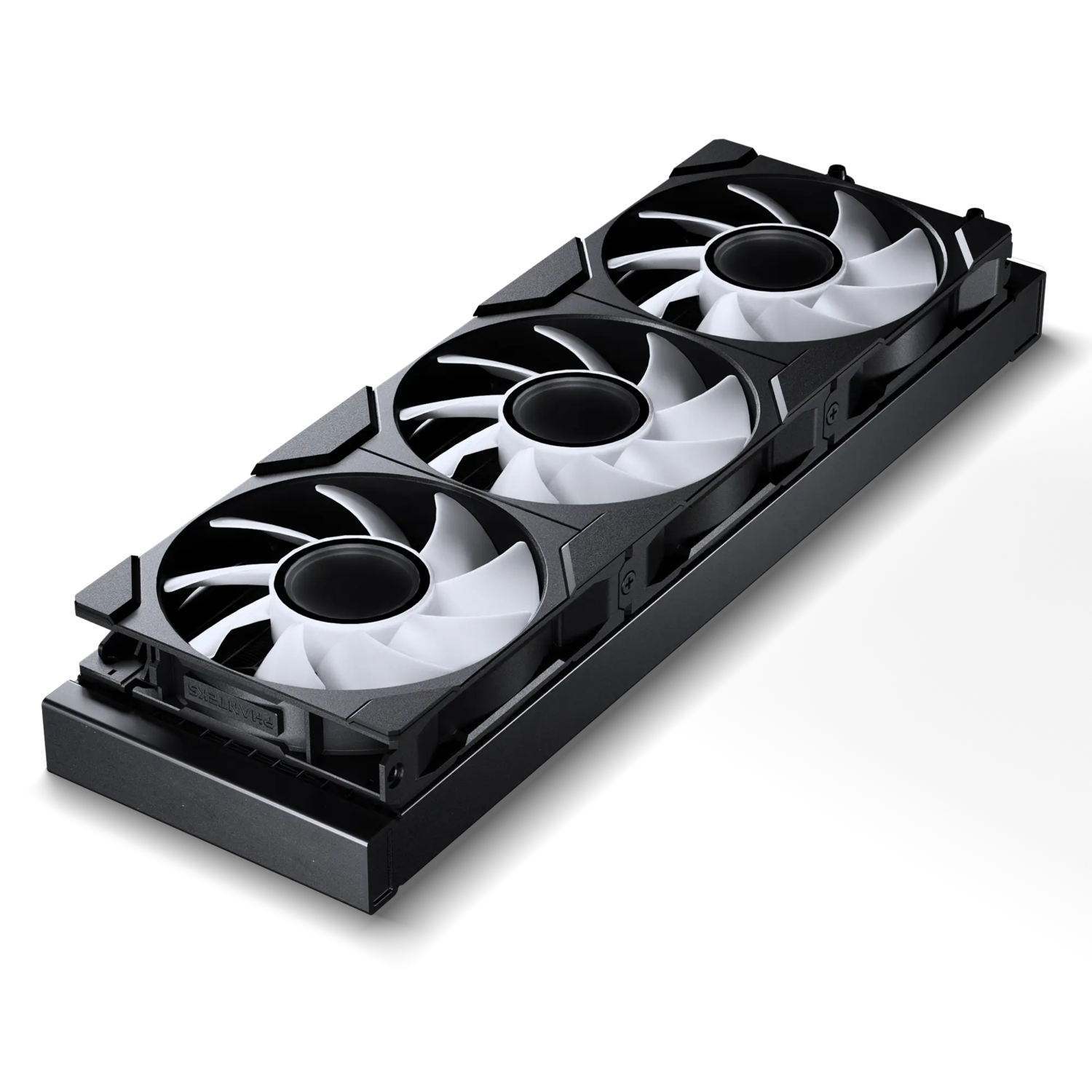

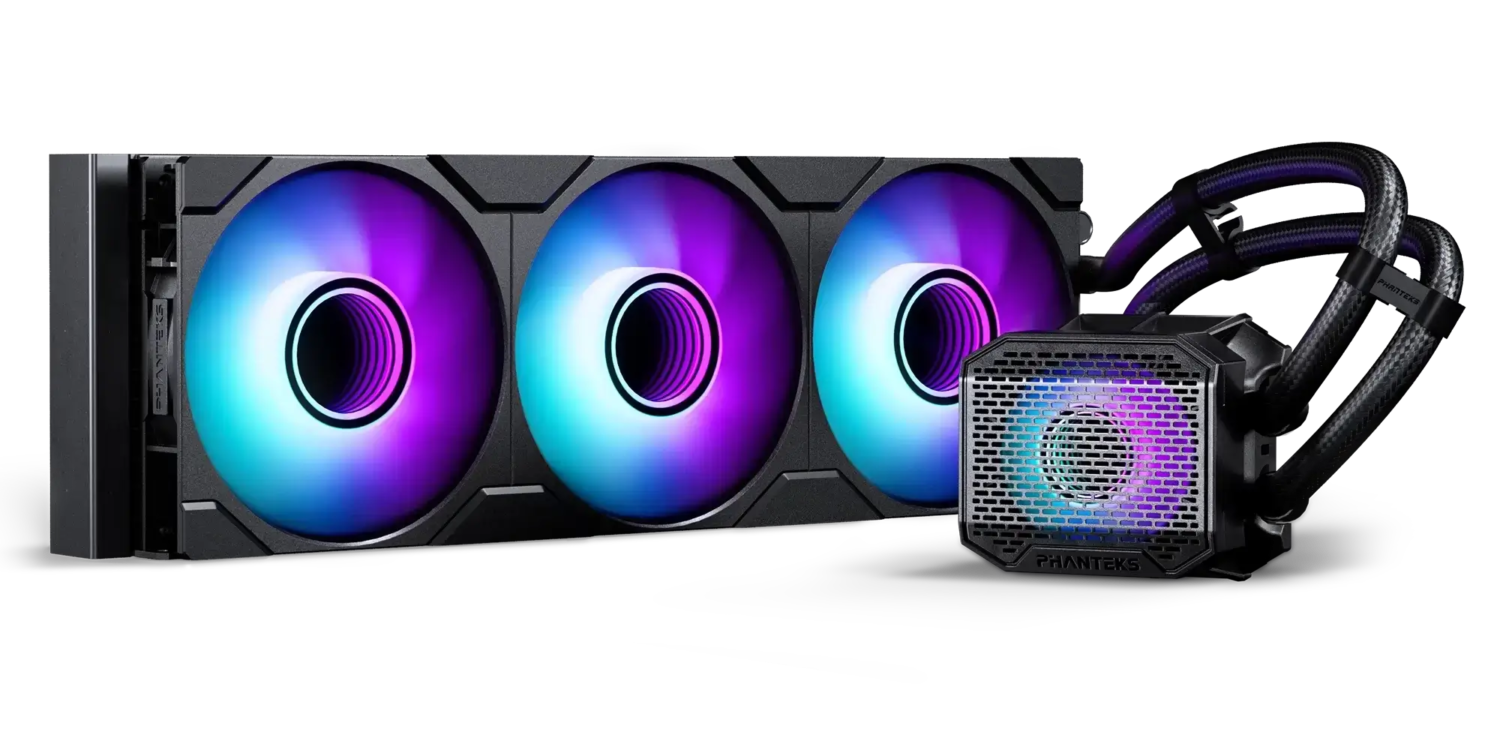

The Glacier One 360M25 G2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with M25 G2 fans that can interconnect into a single frame, simplifying cable management, while RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.

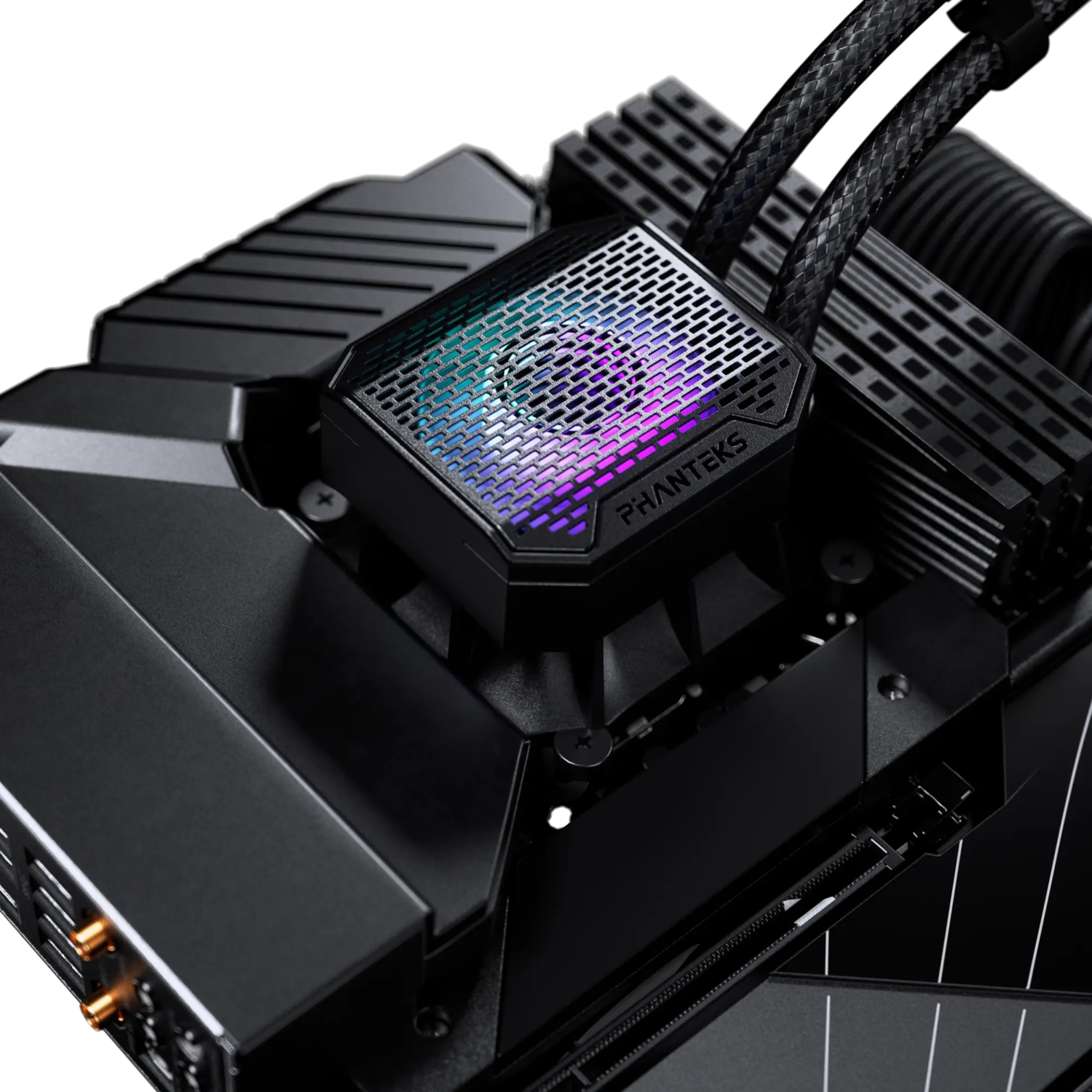

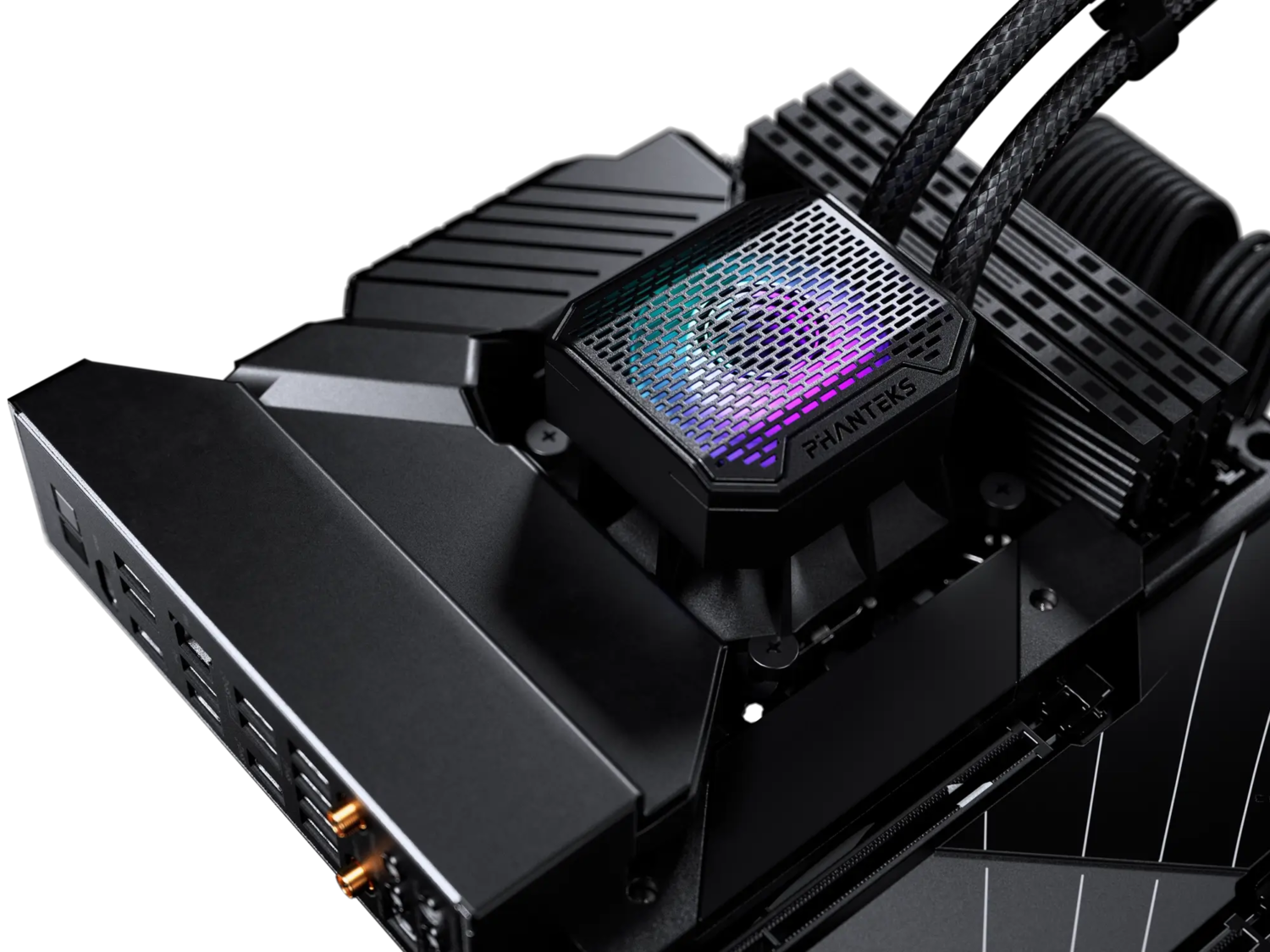

With a design that maximizes clearance for motherboard and RAM components, it also features a cap cover with an integrated fan for extra cooling to surrounding VRMs. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
Colors
Dimensions
360
designed for gamers & PC enthusiasts
Performance M25 Gen2 D-RGB Fans
Ready To Perform
Specifications
General
Model No.
PH-GO360M25G2_DBK02
UPC Code
886523703242
Materials
Aluminum | ABS Plastic | Copper
Color
Black
Intel Compatibility
LGA 115x | 1200 | 1700 | 1851
AMD Compatibility
AM4 | AM5

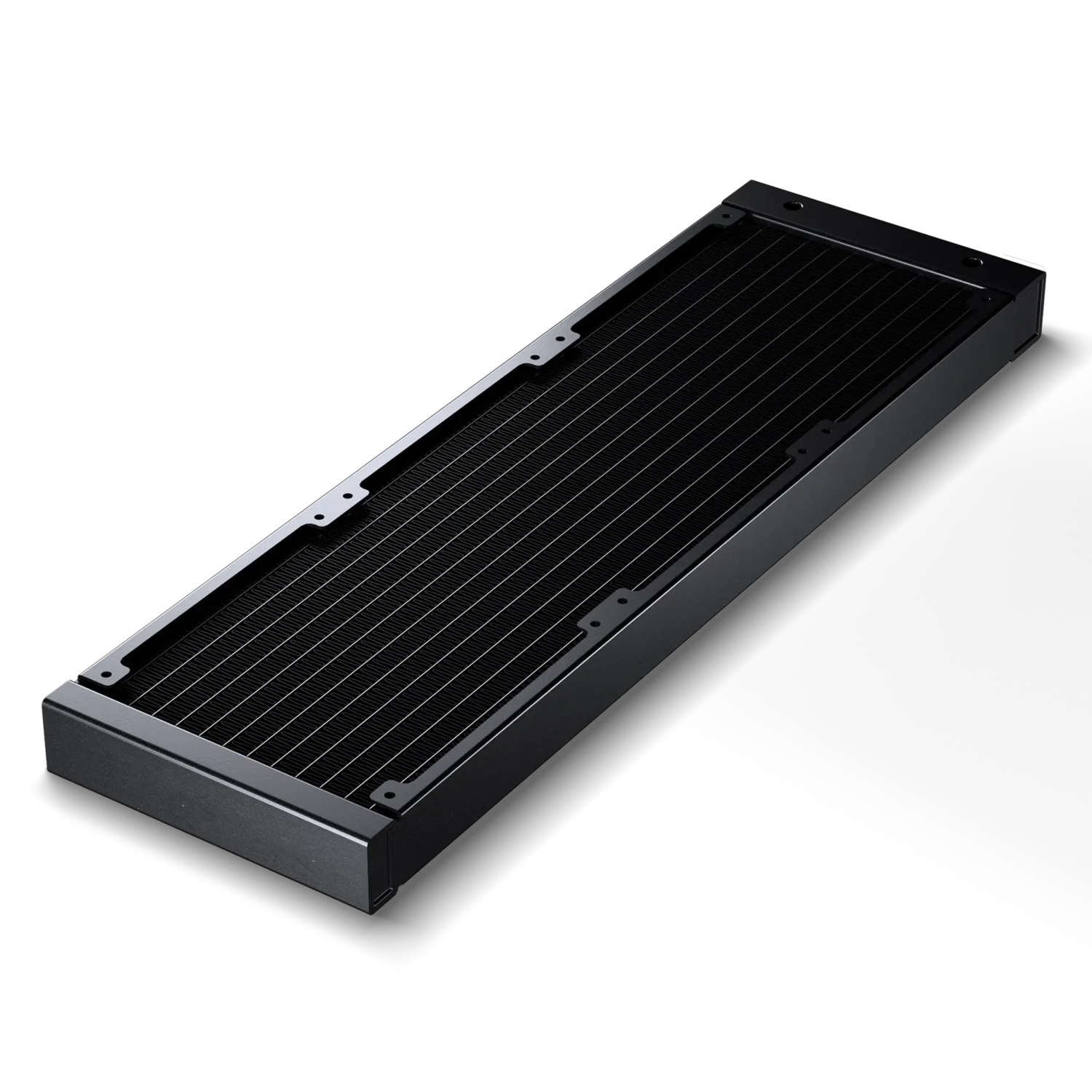

Radiator Dimensions
Length x Width x Height
397 x 120 x 27 mm | 15.62 x 4.72 x 1.06 in
Pump Dimensions
Length x Width x Height
85.5 x 80.9 x 69.17 mm | 3.36 x 3.18 x 2.72 in
Pump Details
Tube Details
Motor Speed
3100 RPM ± 10% (100% Duty Cycle)
Power
12V | 0.28A – 0.45A | 3.36W – 3.96W
Pump DC Cable
400 + 10 mm | 15.74 + 0.39 in
Sound Level
20.0 dBA
Material
Copper | ABS
D-RGB Connector
Linq6
D-RGB Cable Length
470 + 105 ± 10 mm | 18.50 + 4.13 ± 0.39 in
Length
400 mm | 15.74 in
Diameter
10.5 mm OD | 0.41 in OD
Tube Clips
3x
Material
CIIR rubber | Braided sleeves
Fans 3x Included
Fan Model
M25G2-120 D-RGB
Dimensions
Length x Width x Height
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
Speed
350 – 2000 ± 10% RPM
Air Flow
72.72 CFM
Fan Static Pressure
2.51 mm H2O | 0.09 in H2O
Sound Level
35.13 dBA
MTFB
150.000 Hours
Connector
Linq 6
Cable Length
120 mm | 4.72 in Daisy-chain
Extra
Scope of Delivery
1x Glacier One 360M25G2 AIO cooler
3x M25G2-120 fans pre-assembled
Accessory Box
3x Tube clip
1x SATA to 2-pin pump adapter
1x Linq6 adapter cable 250 mm
1x PH-NDC thermal paste
Mounting Hardware
4x AM4 | AM5 Stand-off screws
4x LGA 1700 | 1851 Stand-off screws
4x LGA 115X | 1200 Stand-off screws
4x Thumb nuts
1x AM4 | AM5 bracket
1x LGA 115X | 1200 | 1700 | 1851 bracket
1x LGA 115X | 1200 | 1700 | 1851 plastic backplate
Screws
12x 30 mm 6-32 UNC radiator screws
12x 6 mm 6-32 UNC radiator screws
M25G2 Fan Components
2x Screw cover L
2x Screw cover R
4x Screw cover M
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
You don’t need the Nexlinq app directly for housing your PC in the Matrix-supported cases. However, the Nexlinq app is required to set up and customize the Matrix display (system stats, animations, lighting, and custom visuals). Without the app, the Matrix screen cannot be configured and will show the text ‘Matrix 600’ or ‘Matrix 900’ depending on the Matrix display size.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
