Glacier One 360M25G2
High Performance 360 Cooling
The Glacier One 360M25 G2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with M25 G2 fans that can interconnect into a single frame, simplifying cable management, while RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.

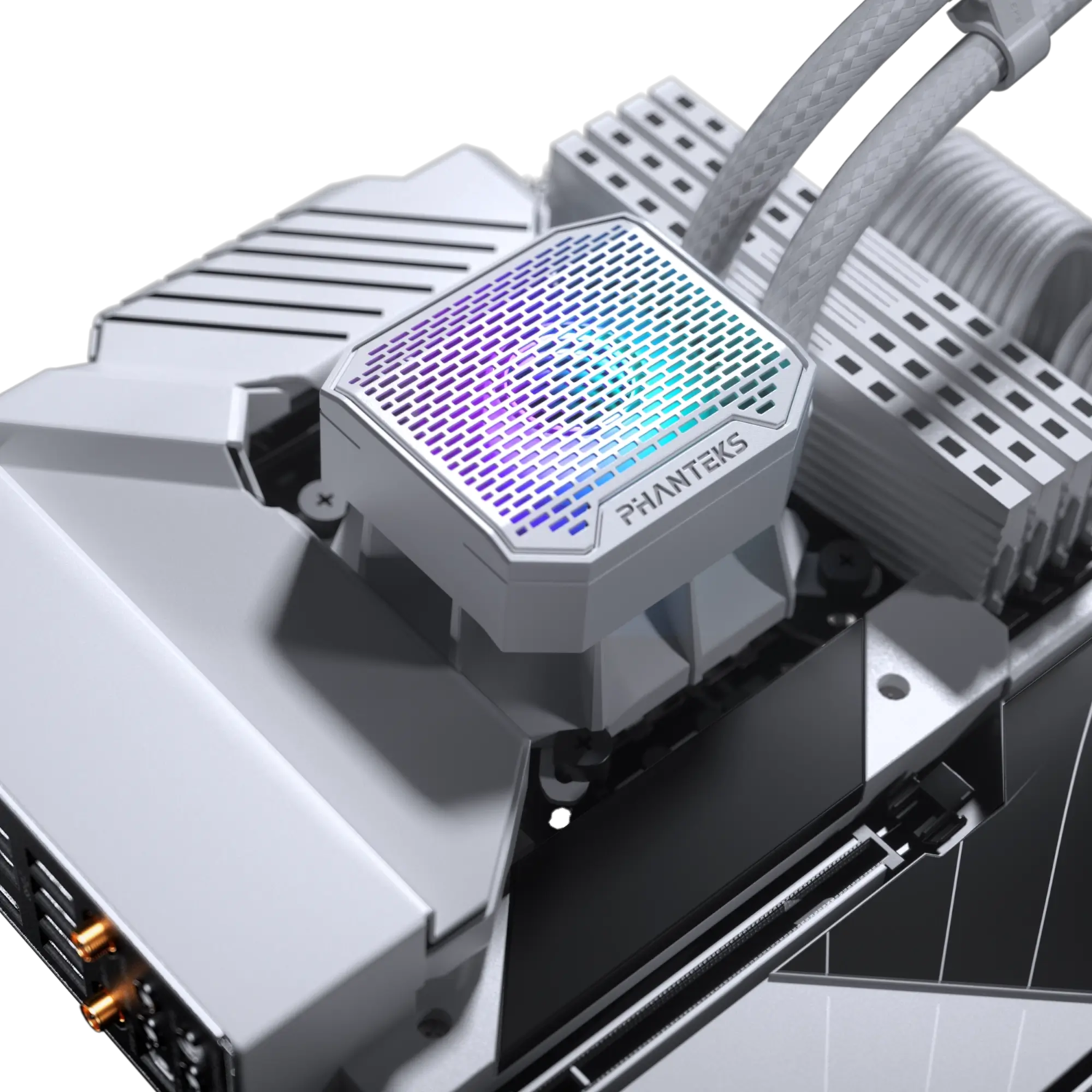

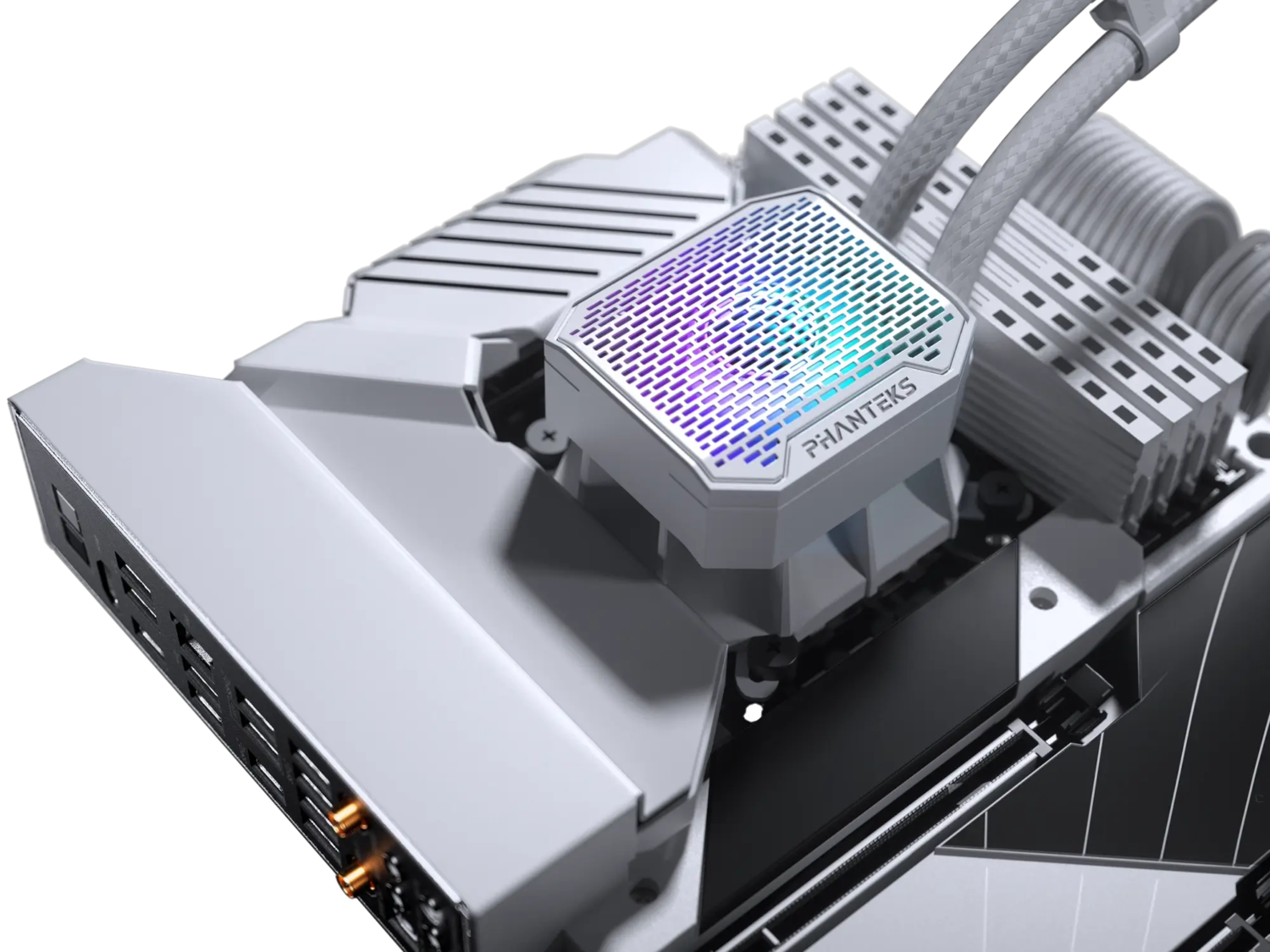

With a design that maximizes clearance for motherboard and RAM components, it also features a cap cover with an integrated fan for extra cooling to surrounding VRMs. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
Colors
Dimensions
360
designed for gamers & PC enthusiasts

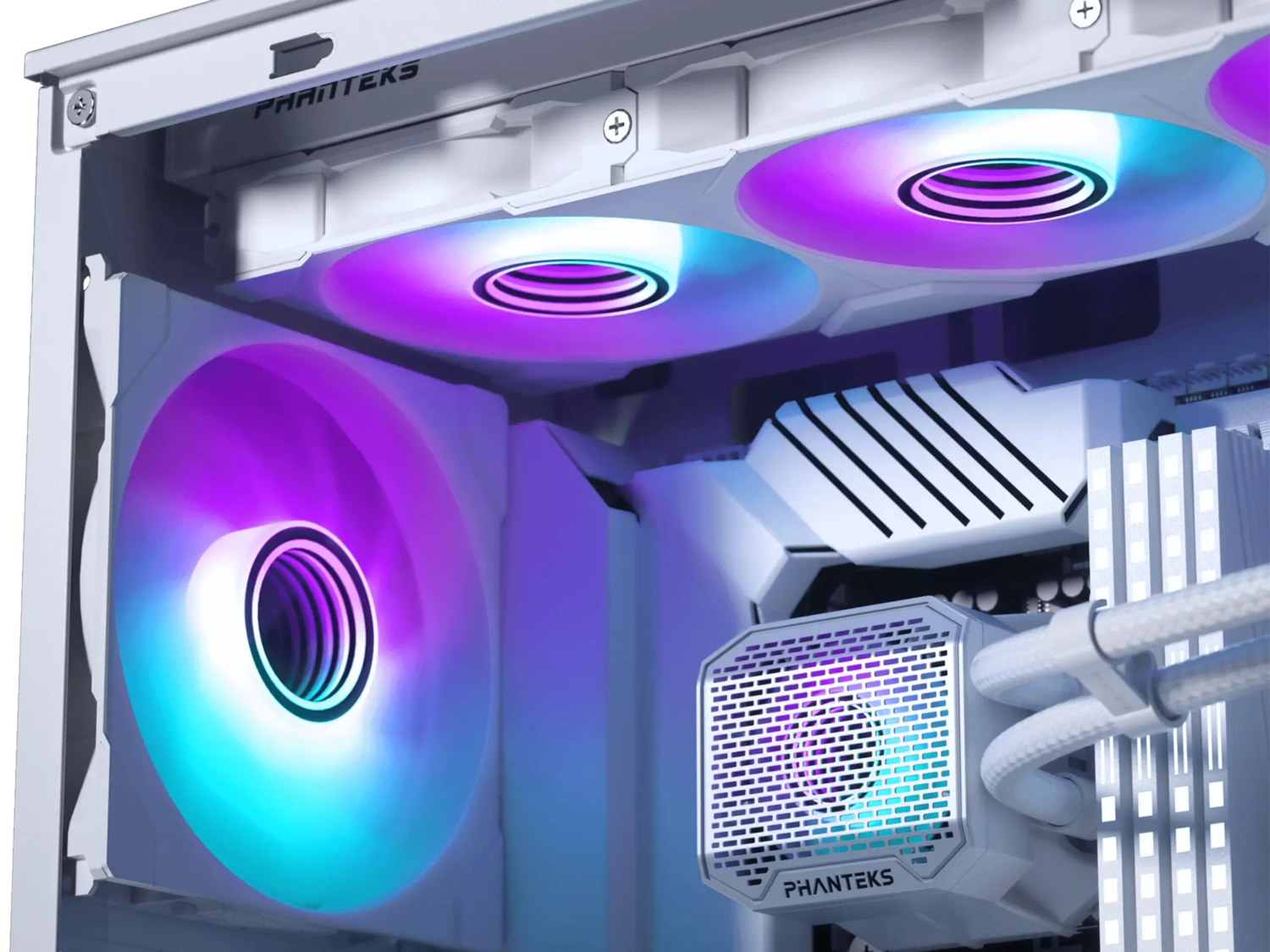

Performance M25 Gen2 D-RGB Fans
Ready To Perform
Specifications
General
Model No.
PH-GO360M25G2_DWT02
UPC Code
886523703259
Materials
Aluminum | ABS Plastic | Copper
Color
White
Intel Compatibility
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066
AMD Compatibility
AM4 | AM5

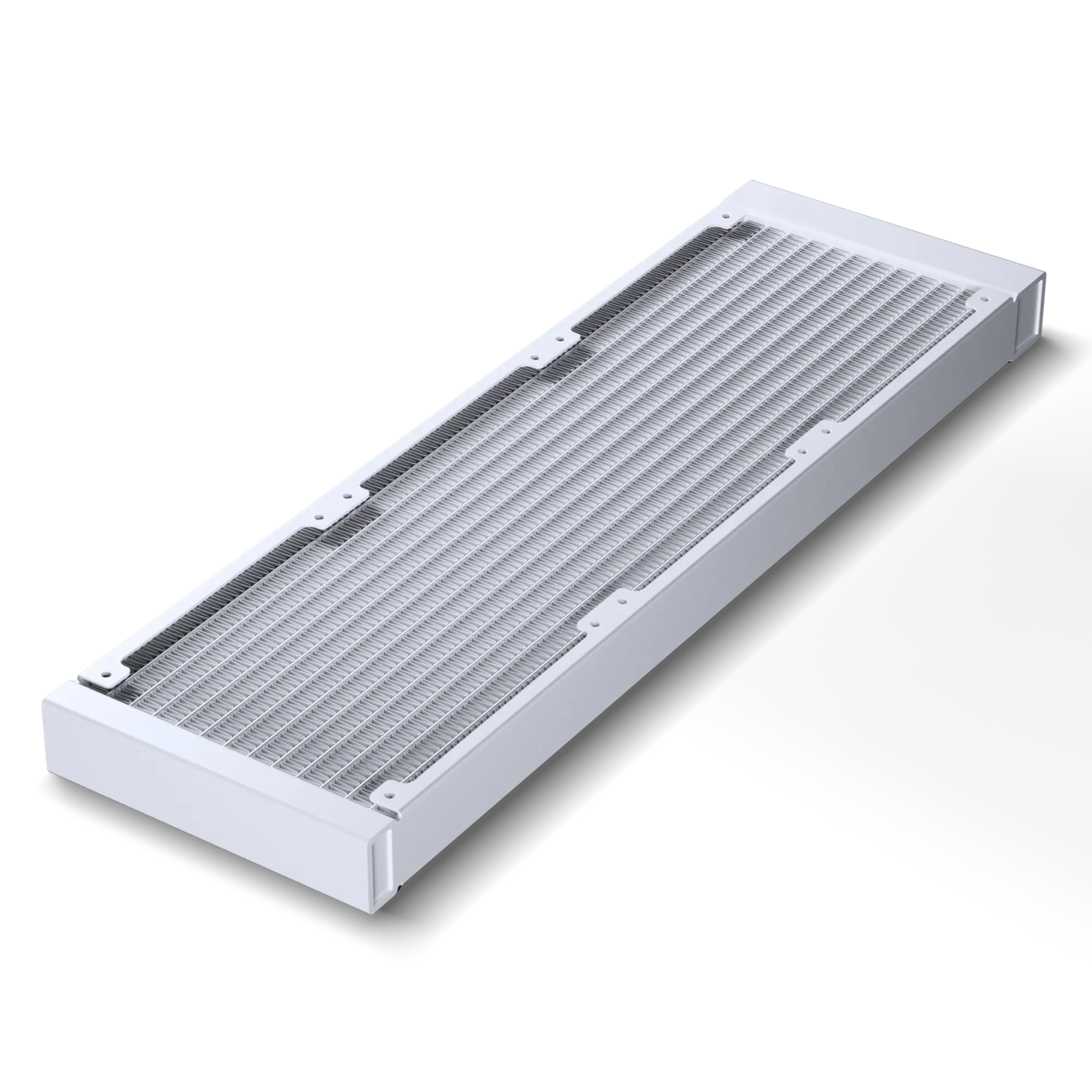

Radiator Dimensions
Length x Width x Height
397 x 120 x 27 mm | 15.62 x 4.72 x 1.06 in
Pump Dimensions
Length x Width x Height
85.5 x 80.9 x 69.17 mm | 3.36 x 3.18 x 2.72 in
Pump Details
Tube Details
Motor Speed
3100 RPM ± 10% (100% Duty Cycle)
Power
12V | 0.28A – 0.45A | 3.36W – 3.96W
Pump DC Cable
400 + 10 mm | 15.74 + 0.39 in
Sound Level
20.0 dBA
Material
Copper | ABS
D-RGB Connector
Linq6
D-RGB Cable Length
470 + 105 ± 10 mm | 18.50 + 4.13 ± 0.39 in
Length
400 mm | 15.74 in
Diameter
10.5 mm OD | 0.41 in OD
Tube Clips
3x
Material
CIIR rubber | Braided sleeves

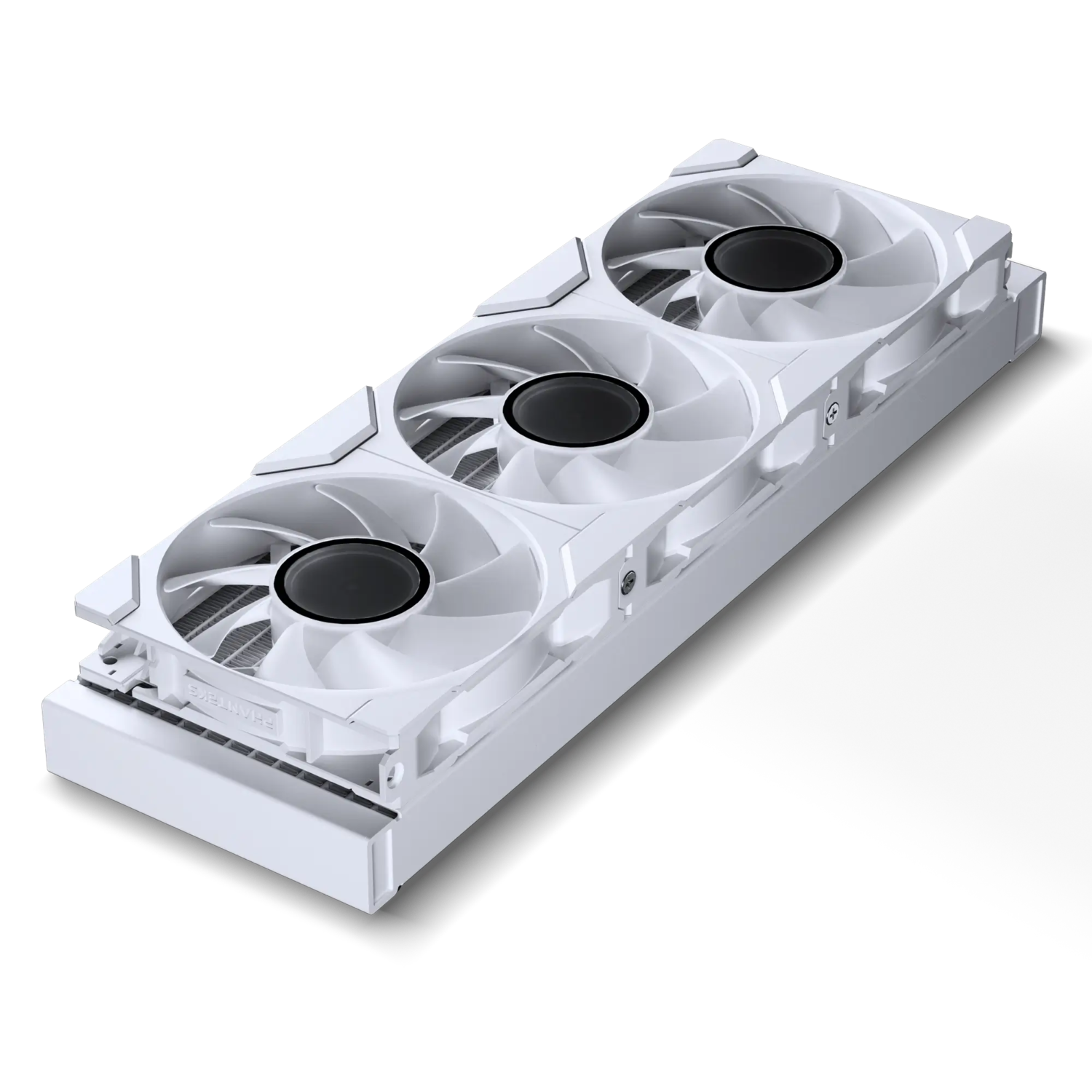

Fans 3x Included
Fan Model
M25G2-120 D-RGB
Dimensions
Length x Width x Height
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
Speed
350 – 2000 ± 10% RPM
Air Flow
72.72 CFM
Fan Static Pressure
2.51 mm H2O | 0.09 in H2O
Sound Level
35.13 dBA
MTFB
150.000 Hours
Connector
Linq 6
Cable Length
120 mm | 4.72 in Daisy-chain
Extra
Scope of Delivery
1x Glacier One 360M25G2 AIO cooler
3x M25G2-120 fans pre-assembled
Accessory Box
3x Tube clip
1x SATA to 2-pin pump adapter
1x Linq6 adapter cable 250 mm
1x PH-NDC thermal paste
Mounting Hardware
4x AM4 | AM5 Stand-Off screws
4x LGA 1700 Stand-Off screws
4x LGA 115X | 1200 Stand-Off screws
4x LGA 2011 | 2066 Stand-Off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
1x LGA 115X | 1200 | 1700 | 2011 | 2066 Bracket
1x LGA 115X | 1200 | 1700 Plastic back plate
Screws
12x 30 mm 6-32 UNC radiator screws
12x 6 mm 6-32 UNC radiator screws
M25G2 Fan Components
2x Screw cover L
2x Screw cover R
4x Screw cover M
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
