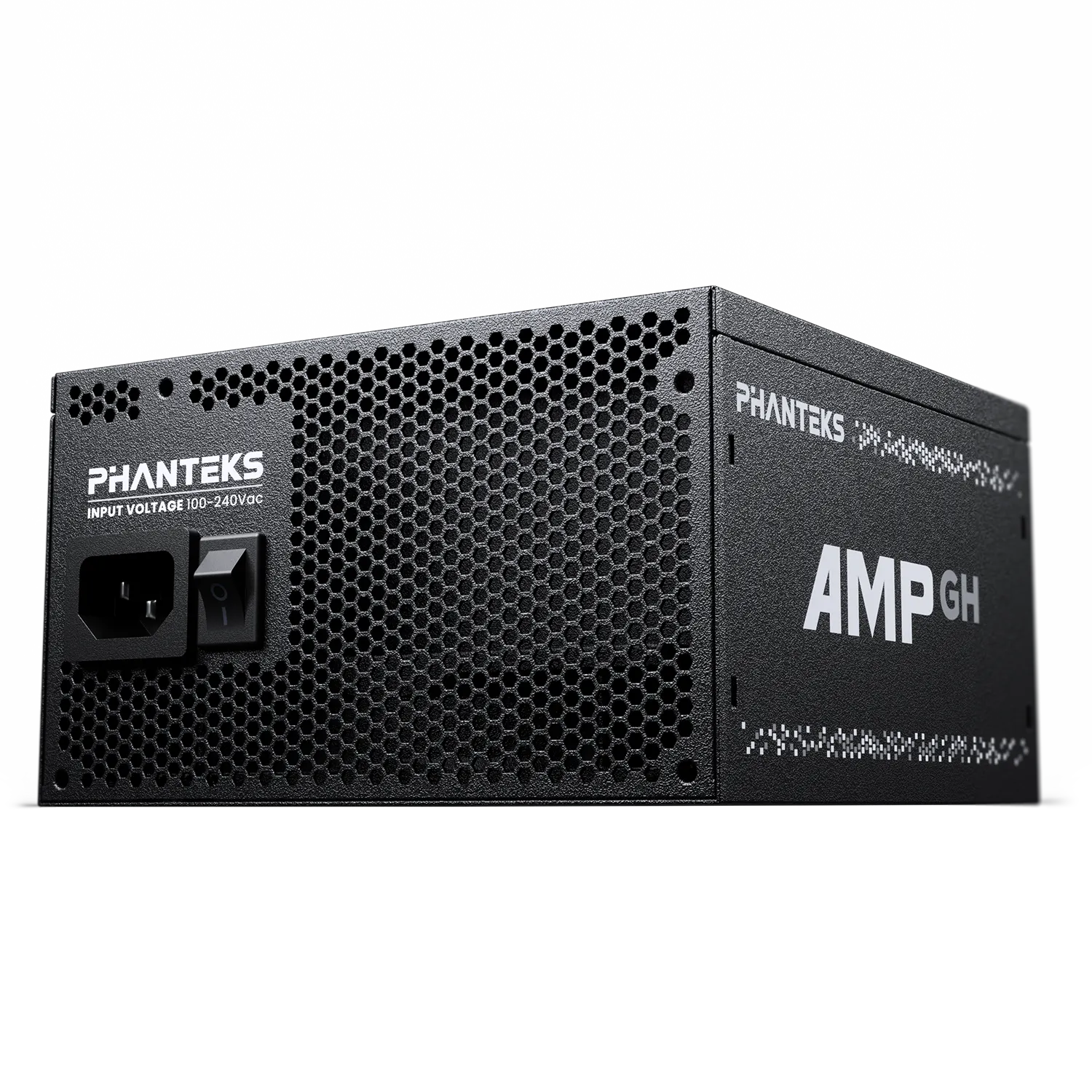

AMP GH 650W Gold
Powerful and Compact Power Supply
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2×6 connector delivers up to 600W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
Colors
Black
Wattage
Specifications
General
Model No.
PH-P650GH_BK01
UPC Code
AU 886523511458
CH 886523510574
EU 886523511410
UK 886523511434
US 886523511472
Materials
Steel | ABS plastic
Color
Black
Dimensions
Length x Width x Height
140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
Power Output
650 Watt
PCIe Gen5 Output
300 Watt
80 Plus
Gold
Technical Details
Power Ratings

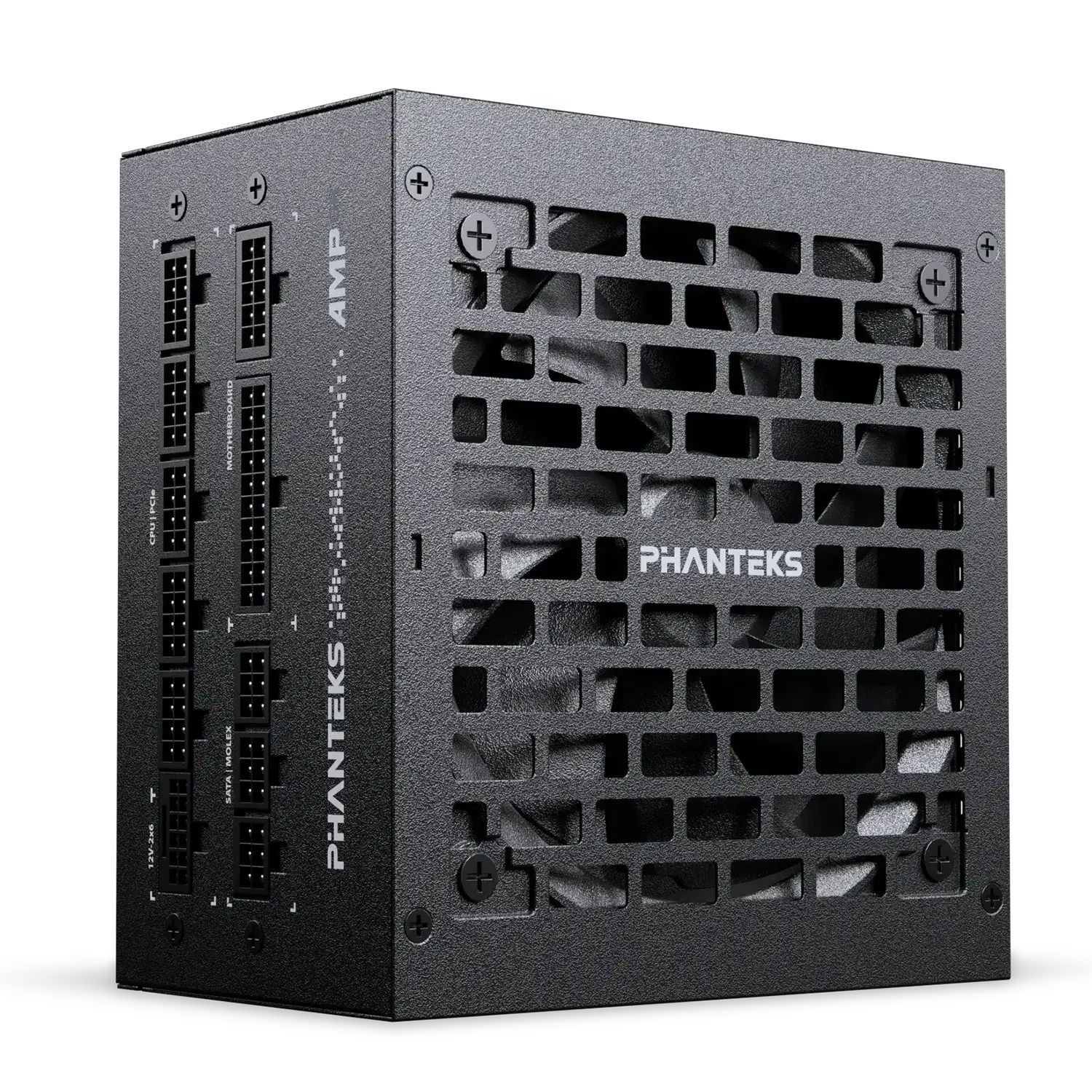

Cooling Fan
120 mm Hydraulic bearing fan
Back Plate
Fully Modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)
Platform
Intel ATX 3.1 | PCIe Gen5.1

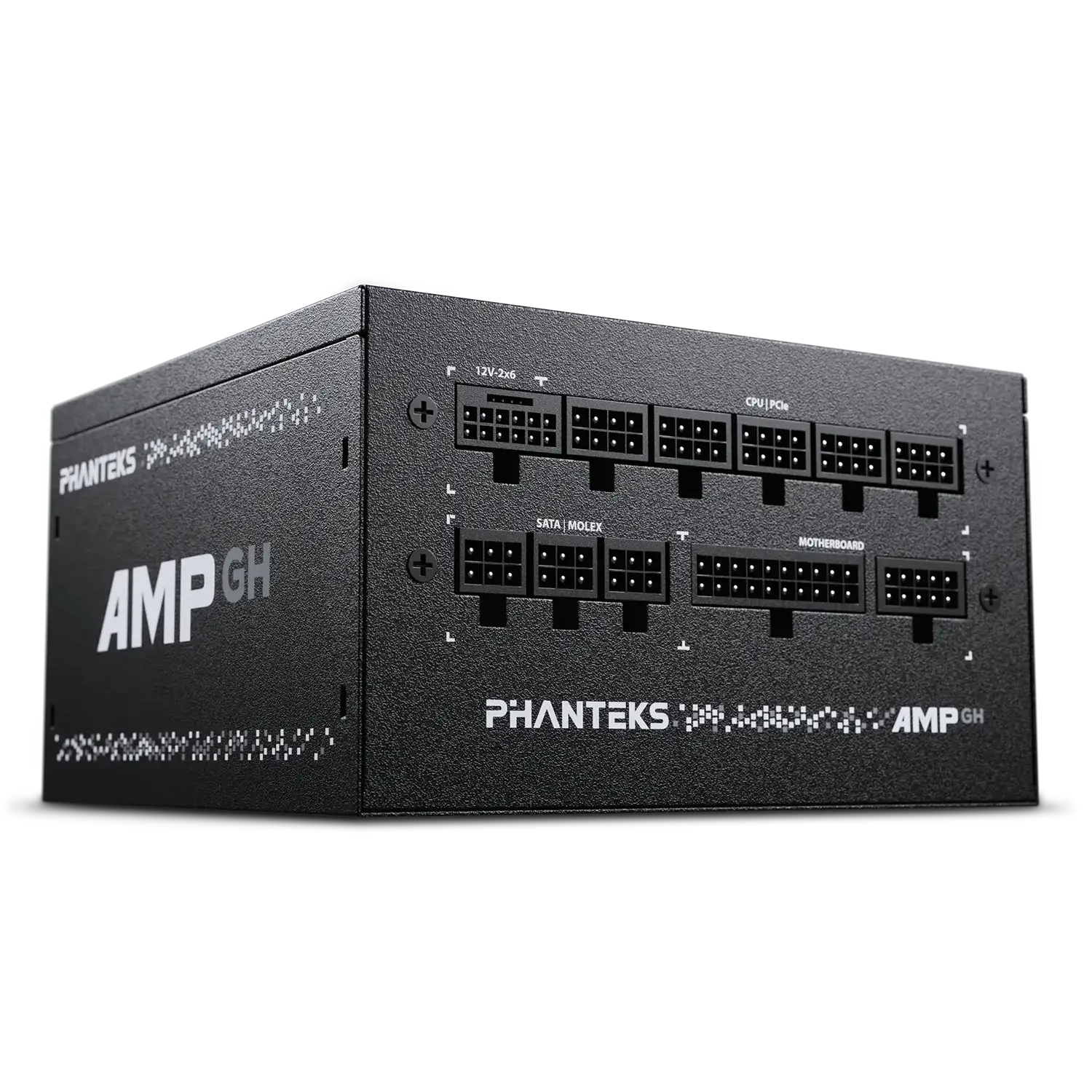

Power Supply Output Connectors
| 1x | Mainboard → 18+10 Pin |
| 5x | CPU | PCIe → 8 Pin |
| 3x | SATA | Molex → 6 Pin |
| 1x | 12V-2×6 → PCIe |
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
| Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB |
|---|---|---|---|---|---|
| Maximum Output | 54A | 20A | 20A | 0.3A | 2.5A |
| Maximum Capacity | 648W | 100W | 3.6W | 7.5W | |
| DC Output | 650W | ||||
| AC Input | 100-240V ~ 15-7.5A 50-60Hz | ||||
Extra
Scope of Delivery
1x AMP GH power supply unit
1x C13 Power cord 1500 mm
Cables
Textured
1x 18+10-Pin Mainboard 600 mm
2x 4+4-Pin CPU 700 mm
2x 6+2-Pin PCI-E 750 mm
1x 6-Pin 4-SATA 400 – 120 | 120 | 120 mm
1x 6-Pin 2-SATA + 2-Molex 400 – 120 | 120 | 120 mm
Accessory Box
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x Cable comb pack
1x Installation guide
