Enthoo Pro

Engineered to maximize cooling potential

Beautifully crafted and engineered to maximize cooling potential with its amazing expansion flexibiltiy, the Enthoo Pro is the budget friendly mid-tower from Phanteks. Embracing many features from the Enthoo Primo and Luxe, without the price tag. This case has mulitple radiator support, removable ssd bracket, closed HDD panel, and velcro cable management. The Enthoo Pro, trying to establish it’s own solid reputation.

Colors

Black

Satin Black

Configurations

Tempered Glass

Closed Panel

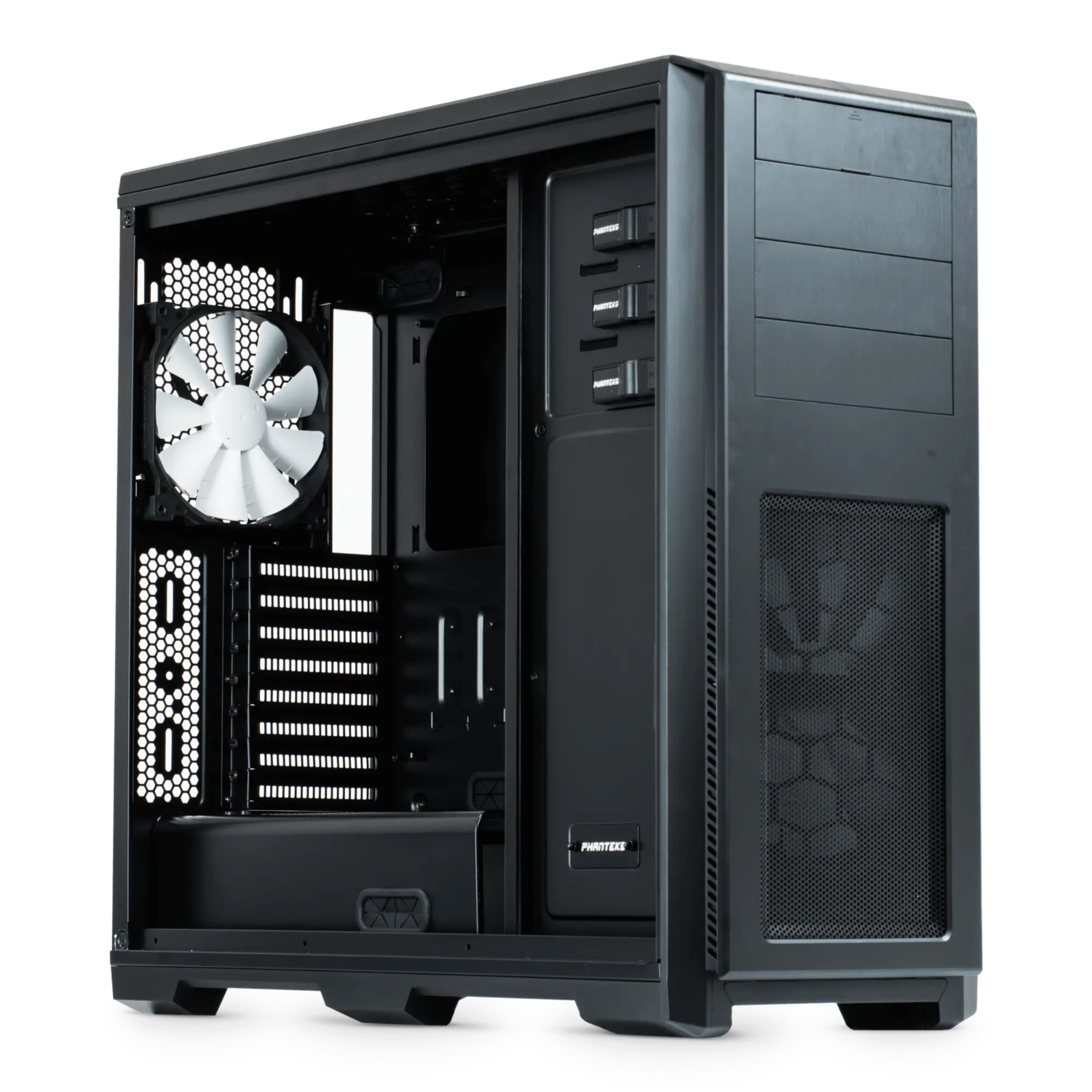

Extreme Workstation

  • Full ATX chassis capable.

  • Spacious open interior for full size GPU.

  • Hidden PSU and HDDs compartment.

  • Stealthy interior design.

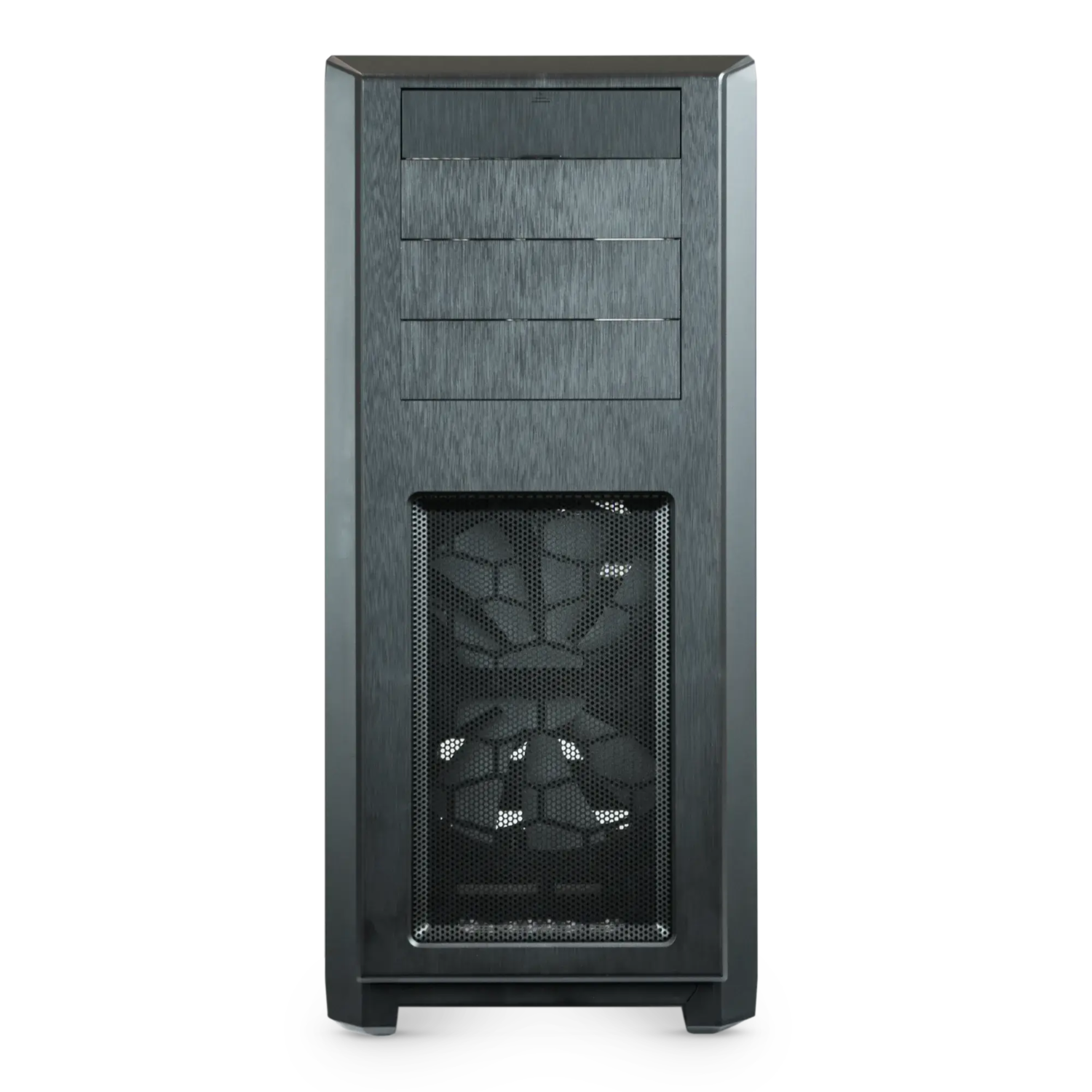

Clean and Elegant Design

  • Brushed Aluminum look.

  • Optical Drive Bay with reservoir mount and pump slots.

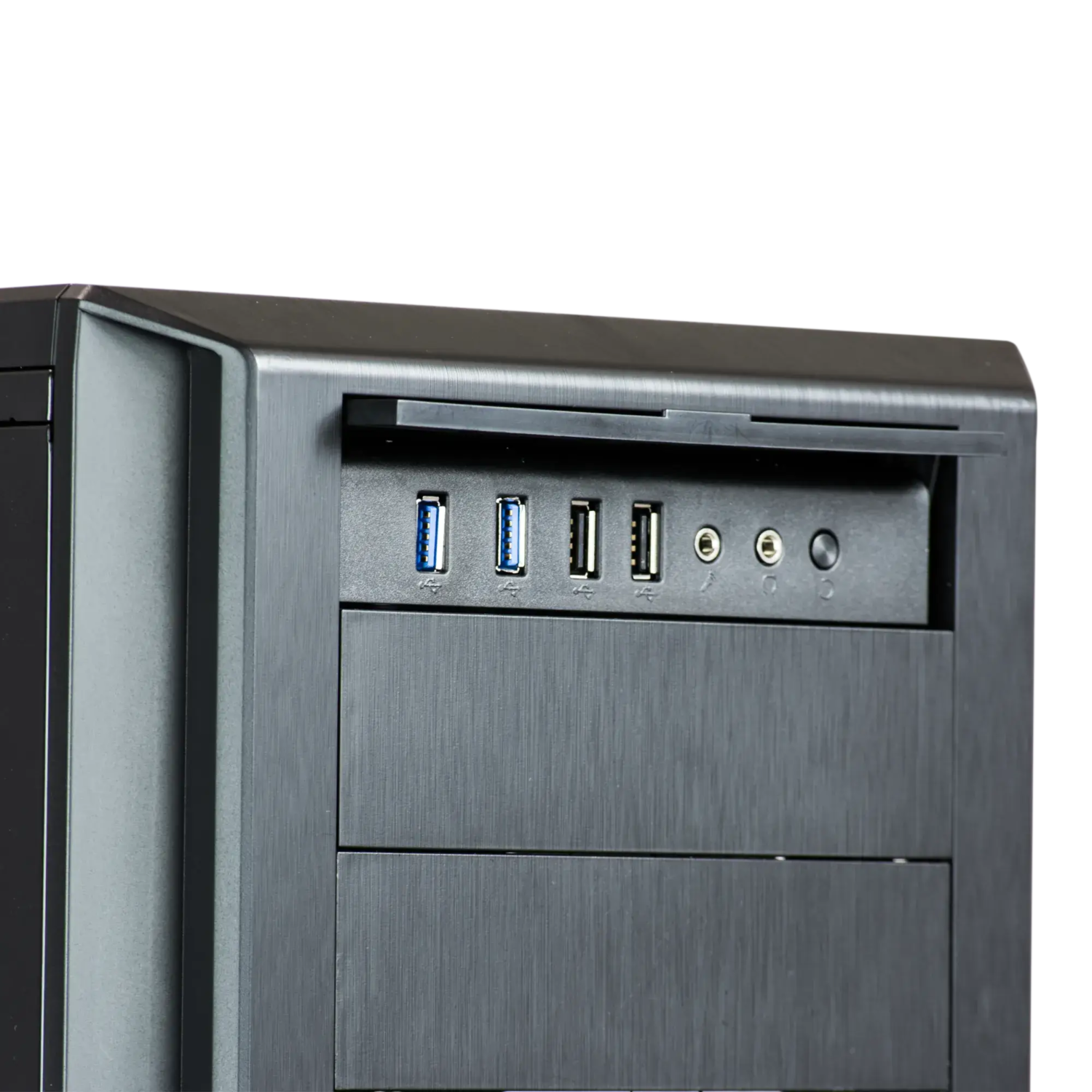

  • Easy accessibility front I/O port.

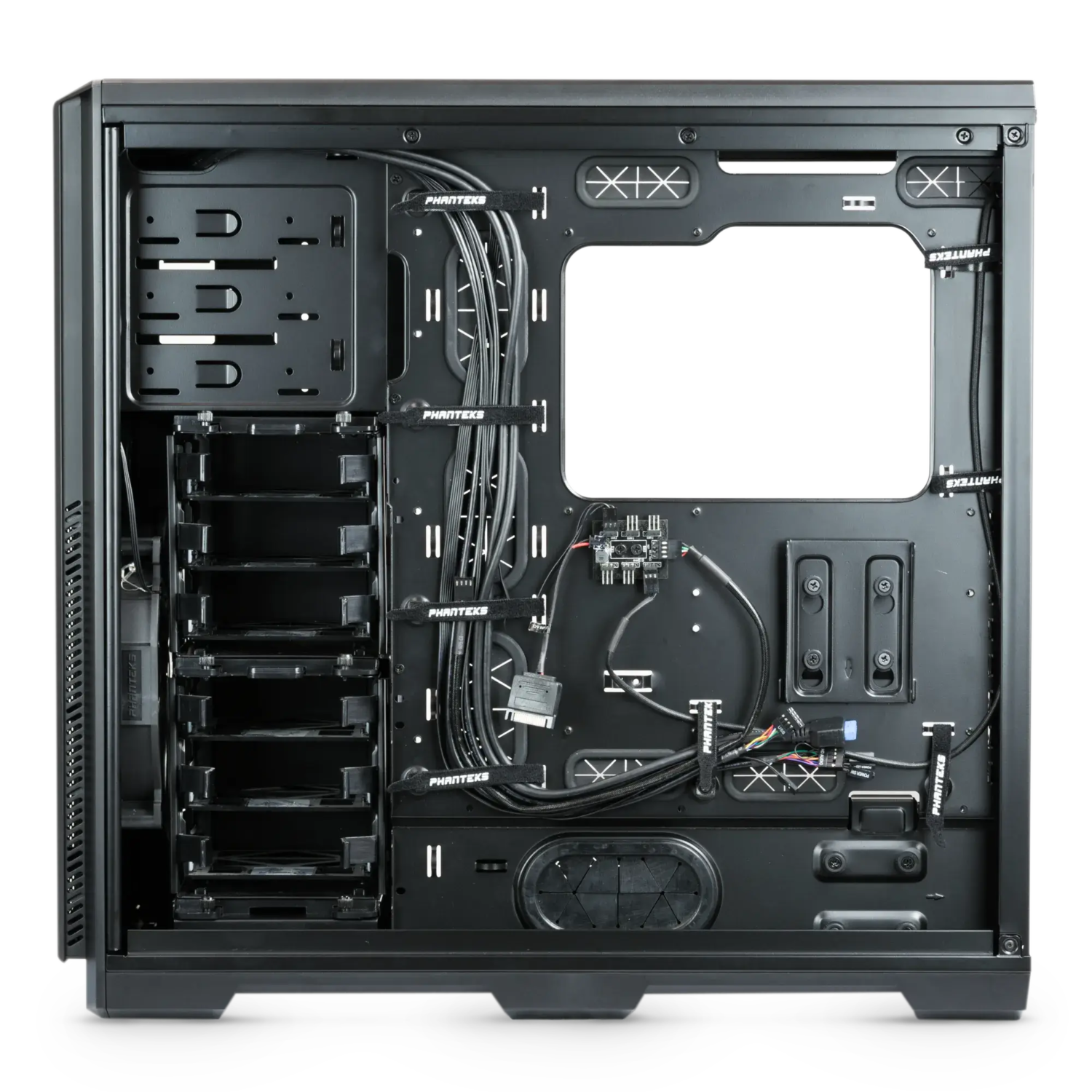

Extreme Workstation

  • Dual repositionable and removable harddrive cages.

  • Closed HDD panel.

  • Removable Drop-N-Lock SSD bracket.

  • Clean cable management using Phanteks’ pre-installed Hoop-N-Loop cable ties.

Multiple storage options

  • Support for 2x 2.5″ SSD

  • Support for 2x 2.5″ SSD

  • Supports up to 6x 3.5″ HDDs

Specifications

General

Model No.

PH-ES614P_BK02

UPC Code

886523302230

Case Dimensions

235 x 535 x 550 mm | 9.25 x 21.10 x 21.70 in

Form Factor

Full Tower

Mainboard Support

SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis

Side Window

No

PCI Slots

8

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

4 | 2x included

+ 6x 3.5″ HDD

Internal 3.5″ Bay

6

+ 4x 2.5″ SSD

Internal 5.25” ODD Bays

3

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
Reset Button
Power Button

Fans 120 | 140 | 200

Total Fans

10x | 7x | 2x

Top

3x | 3x | 1x

Front

2x (1x pre-installed) | 2x | 1x

Side

– | – | –

Rear

1x | 1x (1x pre-installed) | –

Bottom

2x | 1x | –

Radiators 120 | 140

Top

Max. 360 | 420

Front

Max. 240 | 140*

*HDD cage needs to be removed

Side

– | –

Rear

120 | –

Bottom

Max. 240 | 140

Clearance

CPU Cooler

Height

185 mm | 7.28 in

GPU

Length

472 mm | 18.5 in*

*347 mm | 13.6 in with HDD cage

GPU

Height

Power Supply

Length

318 mm | 12.5 in

Top Radiator

Height

65 mm | 2.55 in to mainboard

Front Radiator

Length x Width

Side Radiator

Length x Width

Bottom Radiator

Length x Width

Extra

Net Weight

11 kg | 24.30 lbs

Gross Weight

15 kg | 33.10 lbs

Warranty

5 Years limited

Scope of Delivery

1x Enthoo Pro chassis
2x SSD bracket
2x 120 mm fans

Accessory Box

10x Zipties
Hook-n-loop
1x | 188 x 10 x 1.8 mm
1x | 110 x 10 x 1.8 mm

Screws

23x Mainboard | SSD screws
5x Power supply screws
8x HDD locking screws
10x Bracket screws
12x Fan screws
8x Case screws
2x Motherboard stand-off
3x Riser cable screws
12x HDD CM6 #11
8x Reservoir screws
3x Reservoir bracket screws
2x Hook-n-Loop screws
5x Pump bracket upgrade screws

Support

Documentation

FAQ

What is Digital-RGB?2024-05-30T12:24:53+00:00

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products2024-05-30T12:24:17+00:00

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?2024-05-30T12:23:51+00:00

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?2024-05-30T12:26:57+00:00

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?2024-05-30T12:27:34+00:00

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?2024-05-30T12:28:14+00:00

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?2024-05-30T12:29:05+00:00

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?2024-05-30T12:29:44+00:00

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?2024-05-30T12:31:50+00:00

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Enthoo Series

Our Enthoo series gives the space for a home server or an extreme gaming rig. Every space in an Enthoo chassis is efficiently designed with multiple functions to make sure no space will go wasted, while offering maximum flexibility. Many different configurations can be formed depending on personal system preferences. With extreme cooling possibilities, it assures to keep the most highend gaming system running cool. The Enthoo series is made of beautiful materials engineered with utmost care and attention to detail.
