EZ-Fit 140 RES-D5
PH-GEF_RES140

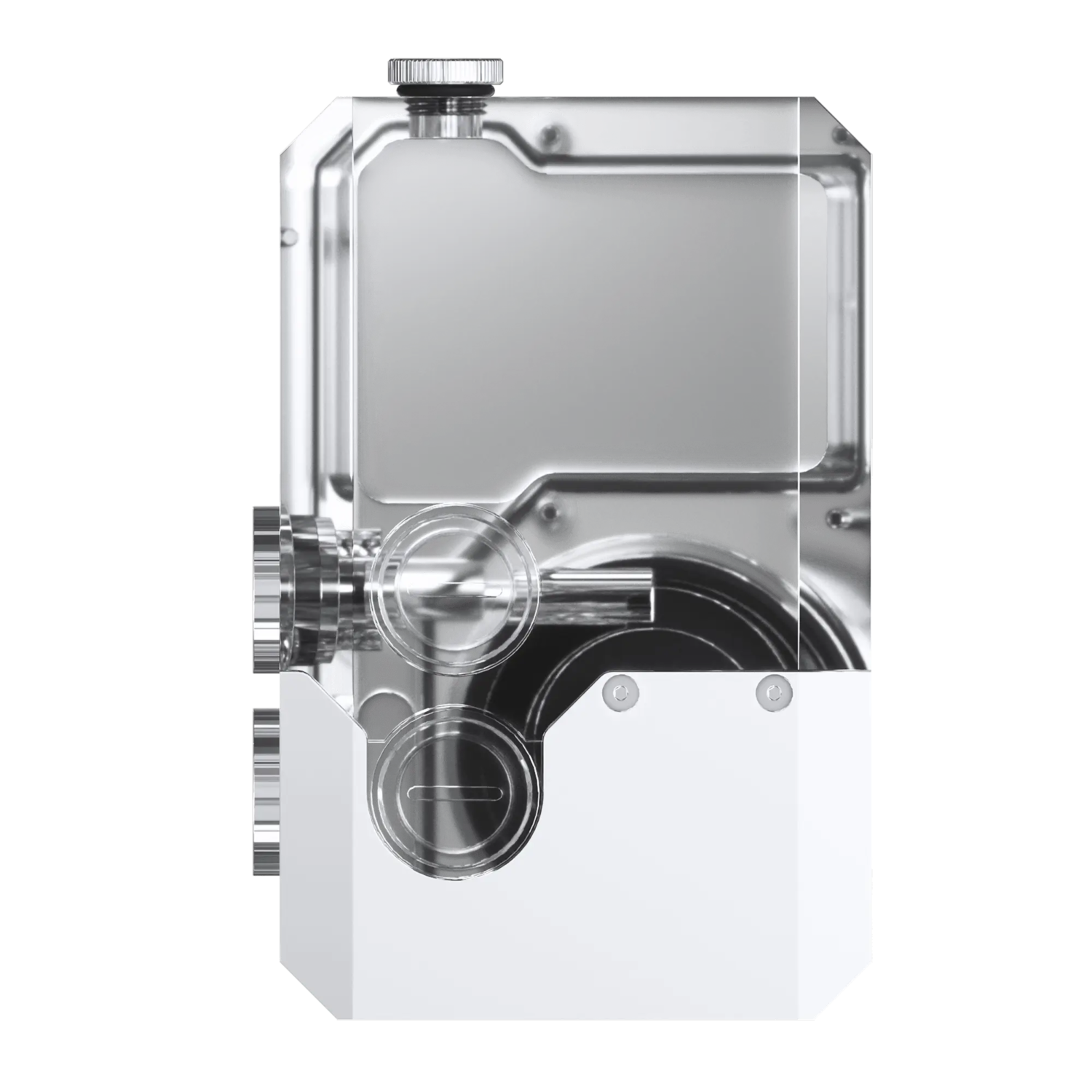

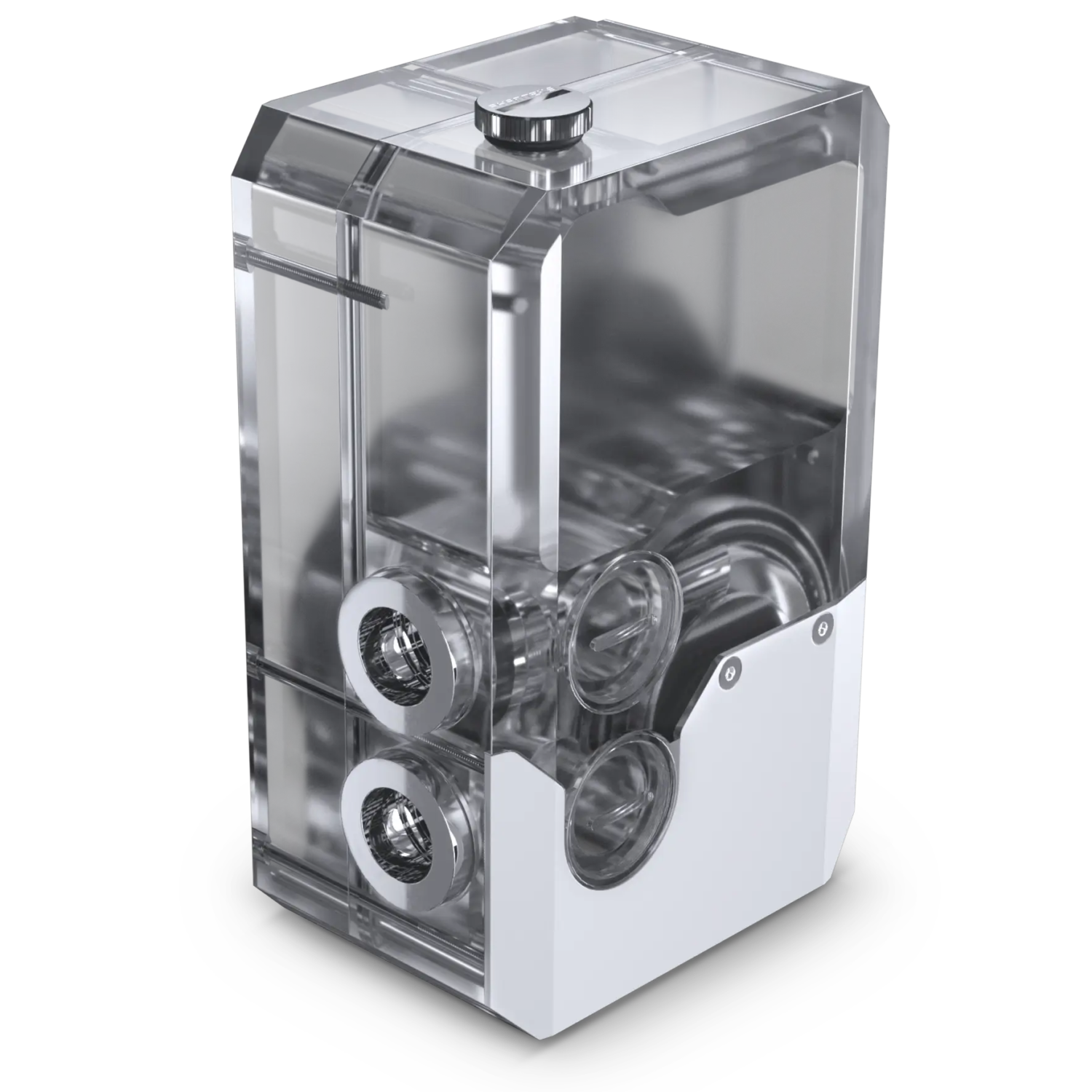

The Glacier EZ-Fit 140RES-D5 reservoir is compact and versatile with its flexible mounting system. This allows the reservoir to be mounted onto any fan in multiple orientations, while the integrated fittings have multiple locations to give maximum freedom.

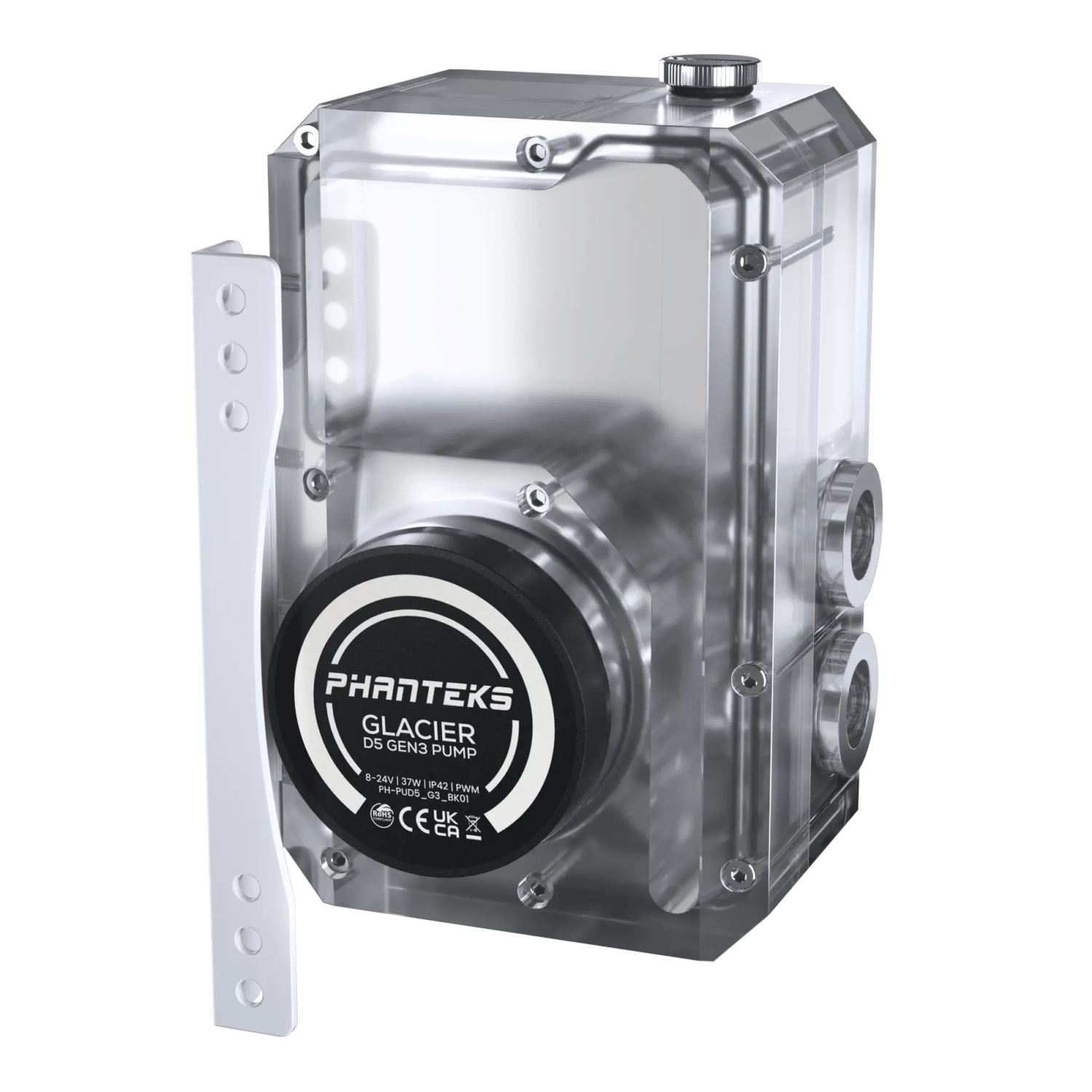

The powerful D5-Gen3 pump sits integrated into the thick acrylic body while showing its water flow from all sides.
Colors
Compact and versatile

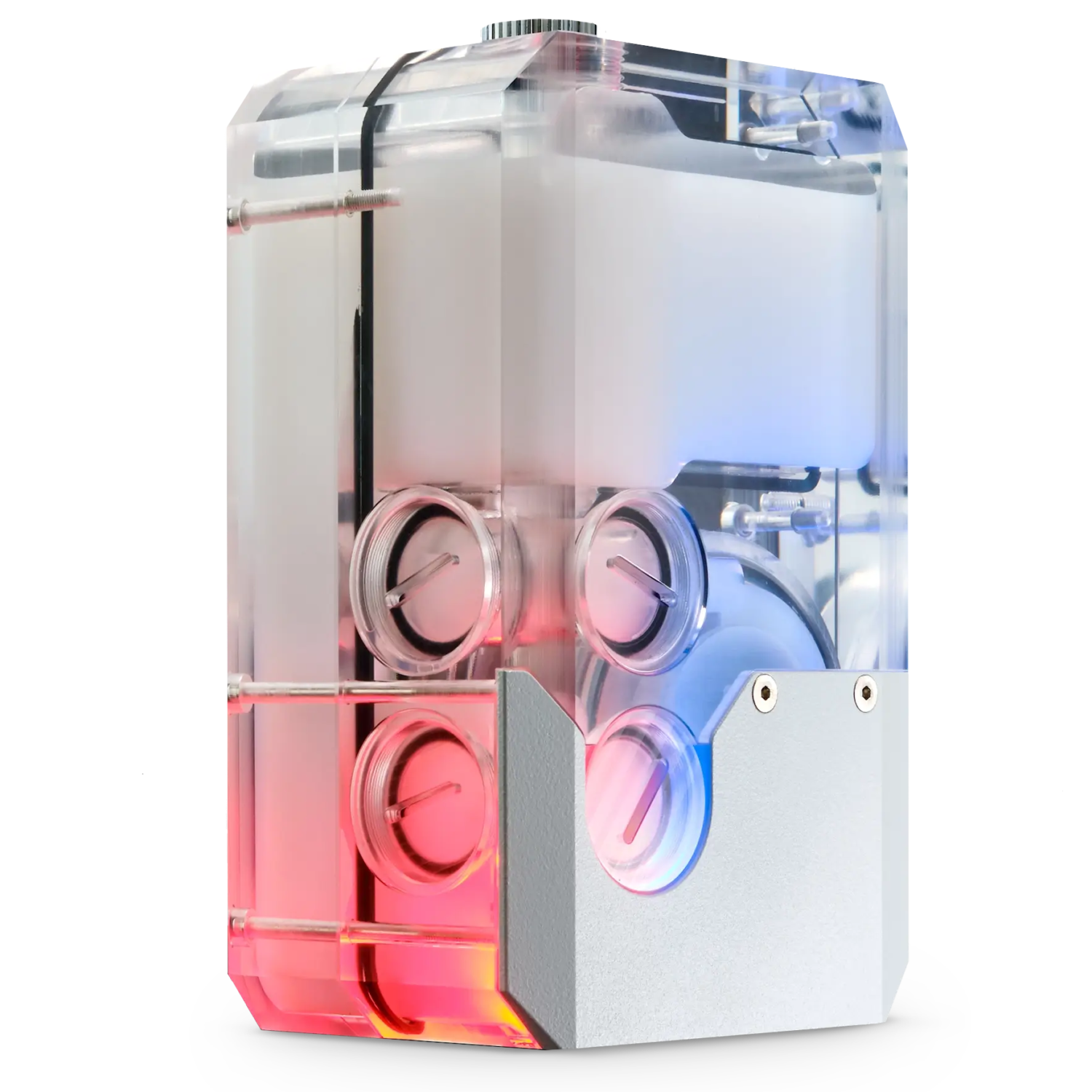

Integrated D-RGB lighting
Specifications
General
Model No.
PH-GEF_CPU450_DWT
UPC Code
886523702061
Type
Combo Reservoir
Color
White
Pump Compatibility
D5 Pump (Gen3 D5 Pump pre-installed)
Installation Compatibility
120 | 140 Fan or Radiator
Materials
Acrylic | Aluminum Cover
Fitting: ED Black Brass
Fitting Insert: ABS
Technical Details
Capacity
210 ml
LED Number
7
Fill Port
1x G¼ Stop Fitting
Number of Inlet
2x M24xP1
Number of Outlet
2x M24xP1
Supported Tube Size
Hard Tube: OD 16mm
Soft Tube: OD 16mm, ID 10mm
Tube Compatibility
Hard Tube: PETG | Acrylic tube
Soft Tube: PVC tube
Extra
Scope of Delivery
1x Reservoir
3x Fitting inserts (for soft tube)
1x Mounting bracket
2x Gen3 D5 pump (Pre-installed)
1x Stop Fitting G1/4 (Pre-installed)
2x Plug Fitting M24 (Pre-installed)
2x EZ-Fit F16 (Pre-installed)
2x M4x8mm bracket screws
2x Fan screws
1x D-RGB LED strips
1x D-RGB LED cable
1x D-RGB mainboard adapter
