GLACIER EZ-FIT 360RAD-30

PH-GEF_RAD363

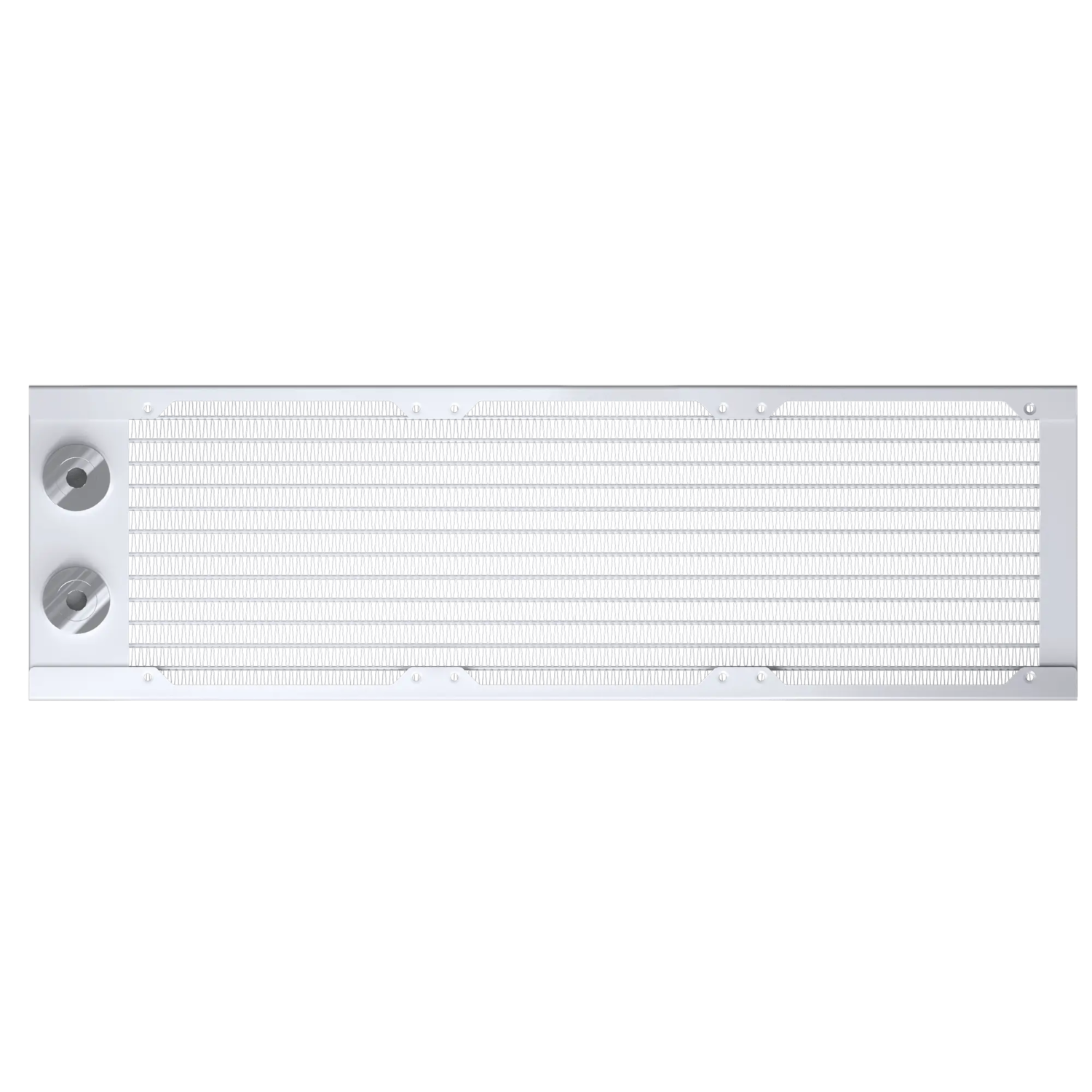

The Glacier EZ-Fit 360RAD-30 is a slim 360 radiator. Its 30mm thickness makes it highly versatile for a wide array of chassis while the integrated 16mm fittings get you started on the loop right away.

The core of the radiator is made from H90 copper tubing and pure copper fins with a density of 19 FPI. The outer steel frame ensures a rigid construciton that protects the copper core for long lasting performance.

Colors

Black

Black

White

White

Rigid construction with steel outer frame

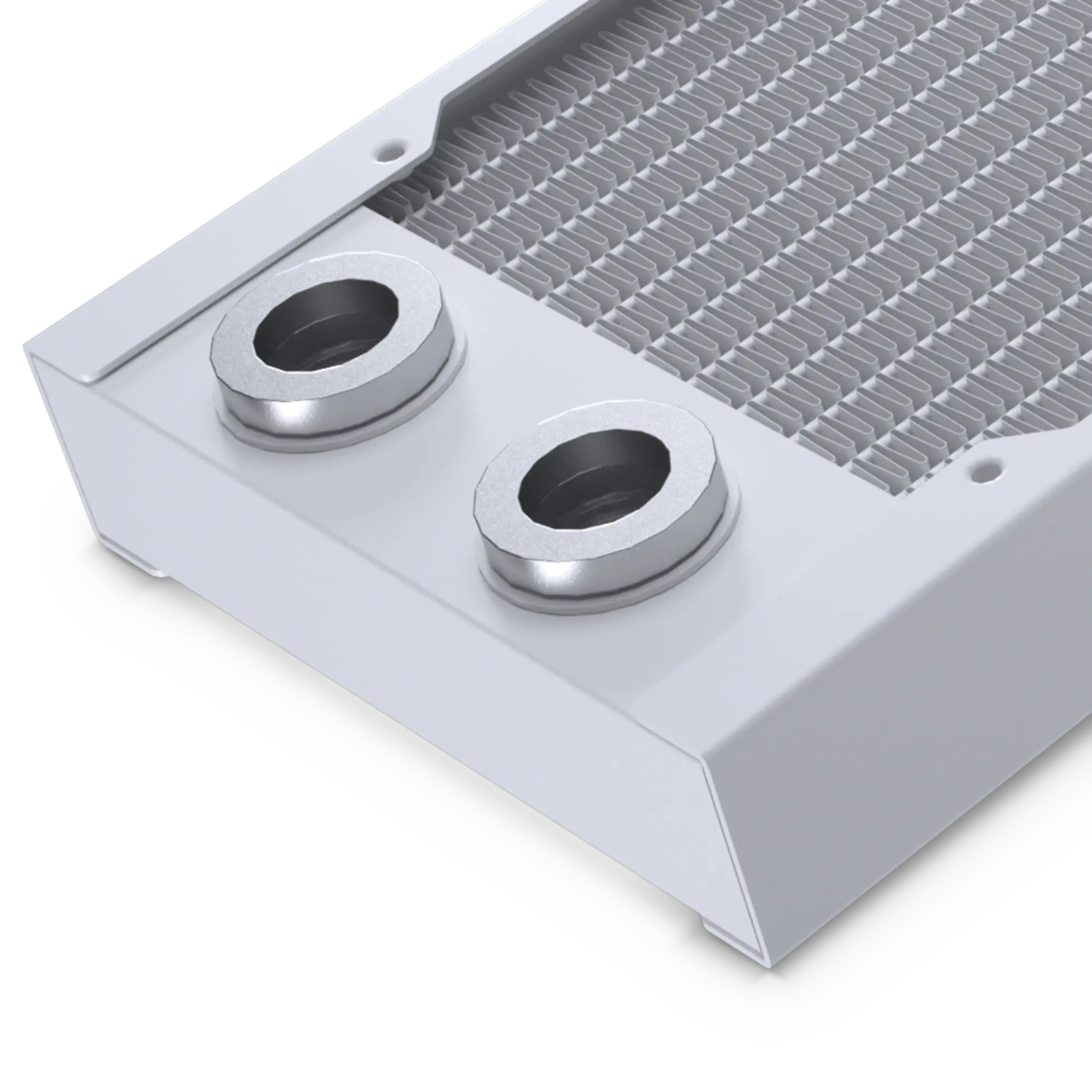

  • Integrated 16mm fittings for hard and soft tube
  • All copper core with H90 copper tubing and pure copper fins
  • Large surface area with 19 FPI
  • Standard M4 threads and included screws for 25mm and 30mm thick fans

Specifications

General

Model No.

PH-GEF_RAD363_WT

UPC Code

886523702085

Type

30mm Radiator

Color

White

Materials

Copper | Stainless steel

Technical Details

Screw Thread Size

M24x1

FPI

19

Supported Tube Size

Hard Tube: OD 16mm
Soft Tube: OD 16mm, ID 10mm

Tube Compatibility

Hard Tube: PETG | Acrylic tube
Soft Tube: PVC tube

Extra

Net Weight

807 g | 1.78 lbs

Gross Weight

967 g | 2.13 lbs

Warranty

2 Years limited

Scope of Delivery

1x 360 radiator
2x EZ-Fit F16 (Pre-installed)
3x Fitting inserts (for soft tube)
12x M4x5 screws
12x M4x30 screws

Support

Documentation

FAQ

What is Digital-RGB?

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Glacier One EZ-Fit Series

The Glacier EZ-Fit water cooling system brings a new way to cool your system that is easy to use, flexible to design your own loop and brings the highest level of performance. Separate fittings and complicated shopping lists are now a thing of the past. Instead, the fittings are integrated into the cooling components and even lets you combine hard tube and soft tube in the same loop!
