EZ-Fit 450 CPU Block
PH-GEFCPU450

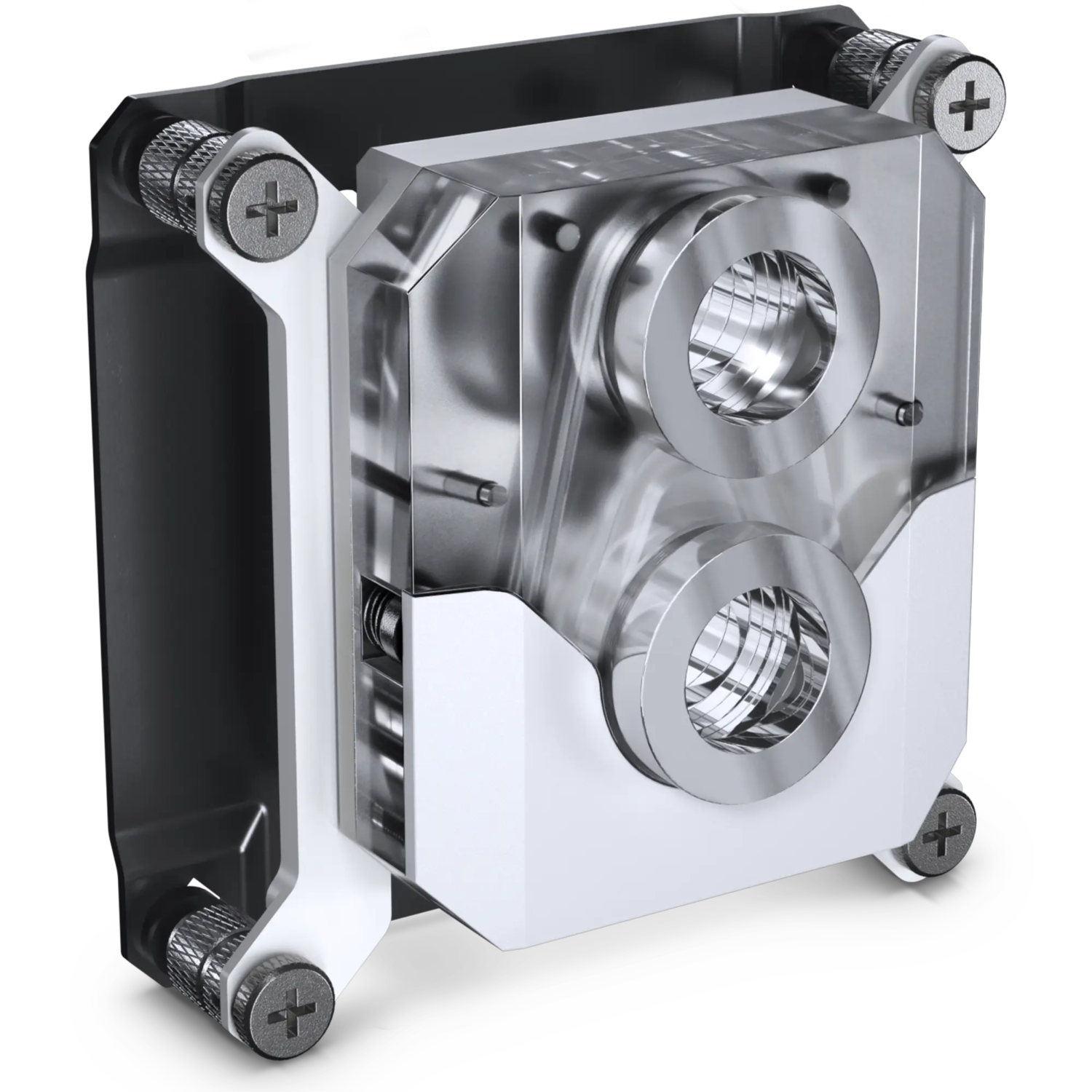

The Glacier EZ-Fit 450CPU block comes with 2 integrated 16mm fittings to start building the loop immediately. The 100% copper base features an incredibly large surface area with microfins of just 0.15 mm.
The mounting system is made fully out of metal with 2 springs that automatically provide a balanced pressure on the CPU for the best and most stable performance.
Colors
Start building the loop immediately

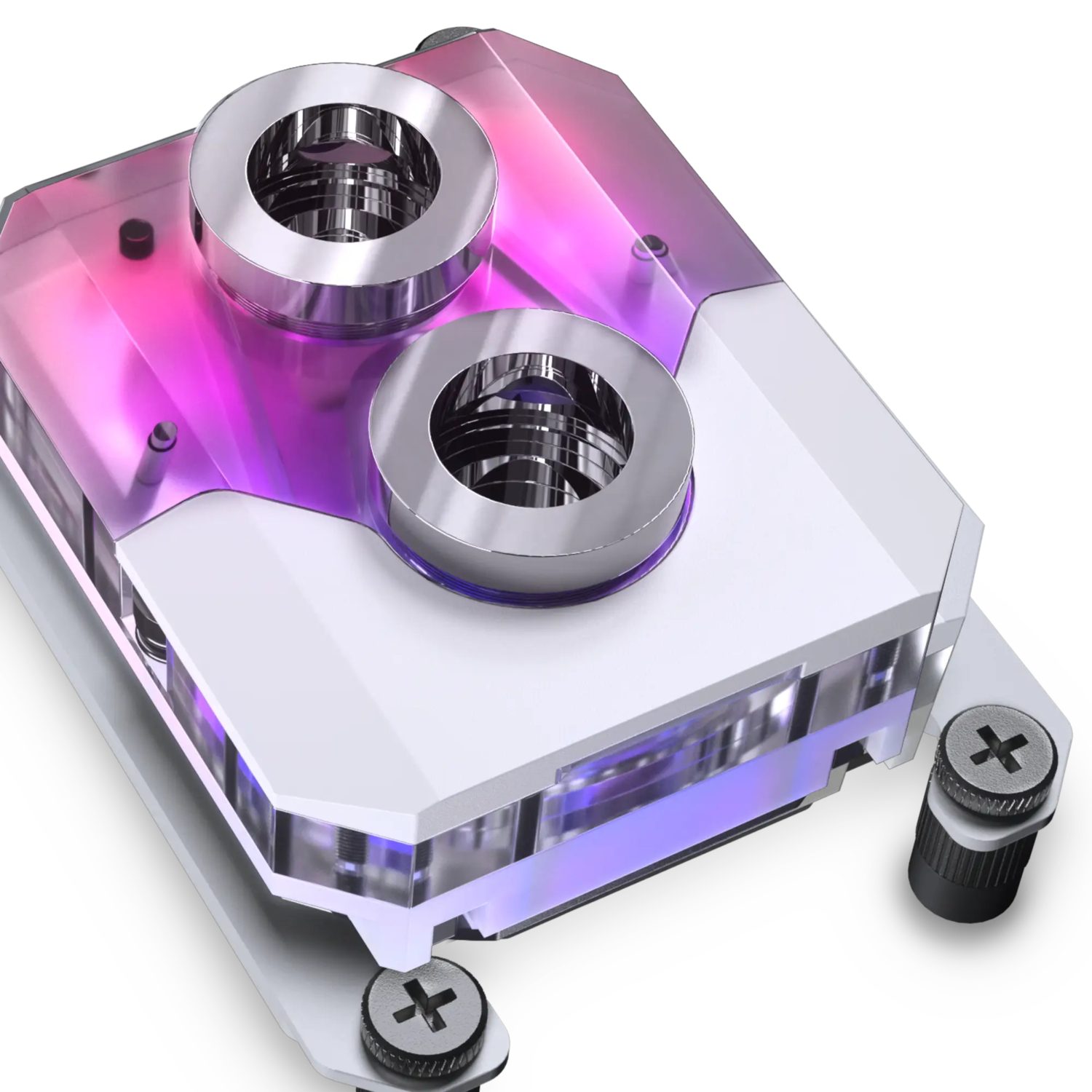

Integrated D-RGB lighting
Specifications
General
Model No.
PH-GEFÂ_CPU450_DWT
UPC Code
886523702061
Type
CPU Block
Compatibility
LGA 1700 | AM4 | AM5
Color
White
Materials
Acrylic | POM | Copper | Aluminum cover
Technical Details
Copper Base Dimension
60.2 x 51 x 3.7 mm | 2.37 x 2 x 0.15 in
Fin Construction
0.15 mm
LED Number
2x 5
Supported Tube Size
Hard Tube: OD 16mm
Soft Tube: OD 16mm, ID 10mm
Tube Compatibility
Hard Tube: PETG | Acrylic tube
Soft Tube: PVC tube
Extra
Scope of Delivery
1x Glacier 450 CPU block
2x EZ-Fit F16 (Pre-installed)
3x Fitting inserts (Soft tube)
1x Aluminum cover
2x Mounting hardware (Pre-installed)
1x PH-NDC thermal compound
2x D-RGB LED strips
1x D-RGB LED cable
1x D-RGB mainboard adapter
2x Intel mounting bracket
1x Intel backplate
2x AMD mounting bracket
4x Thumb screw
4x Intel standoff
4x AMD standoff
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
