Glacier EZ-FIT G40 ASUS GPU Block
PH-GEF_GPU4090AS

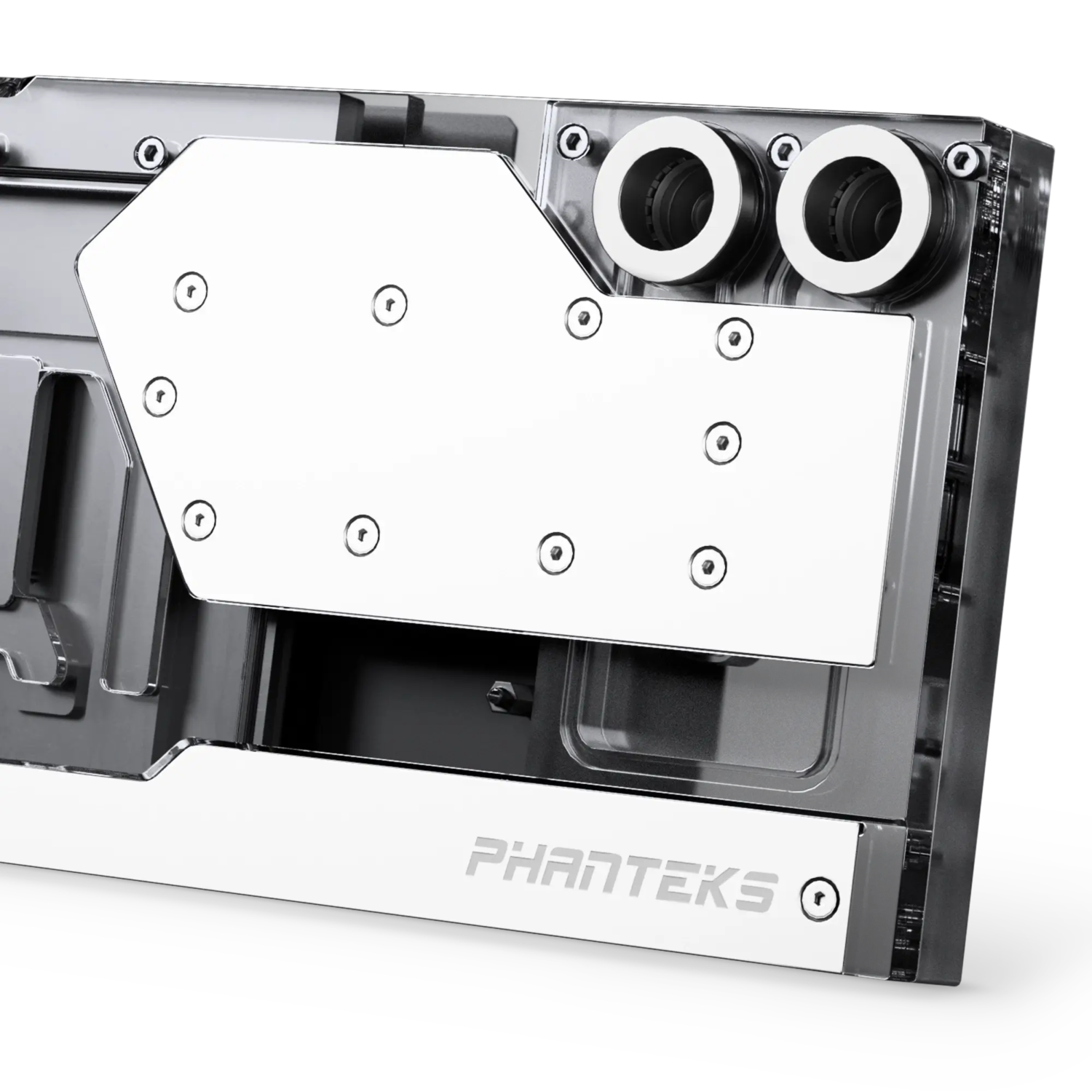

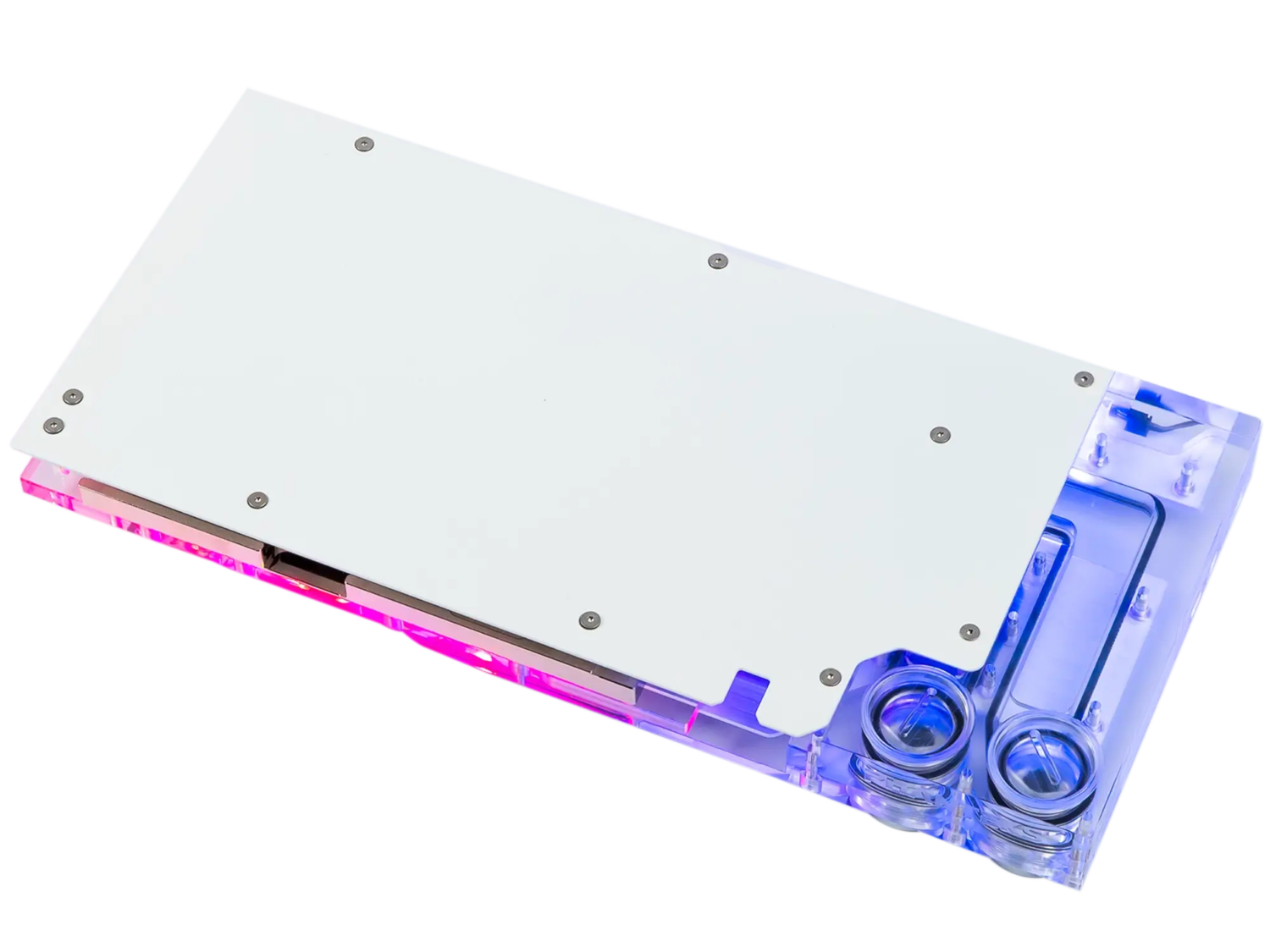

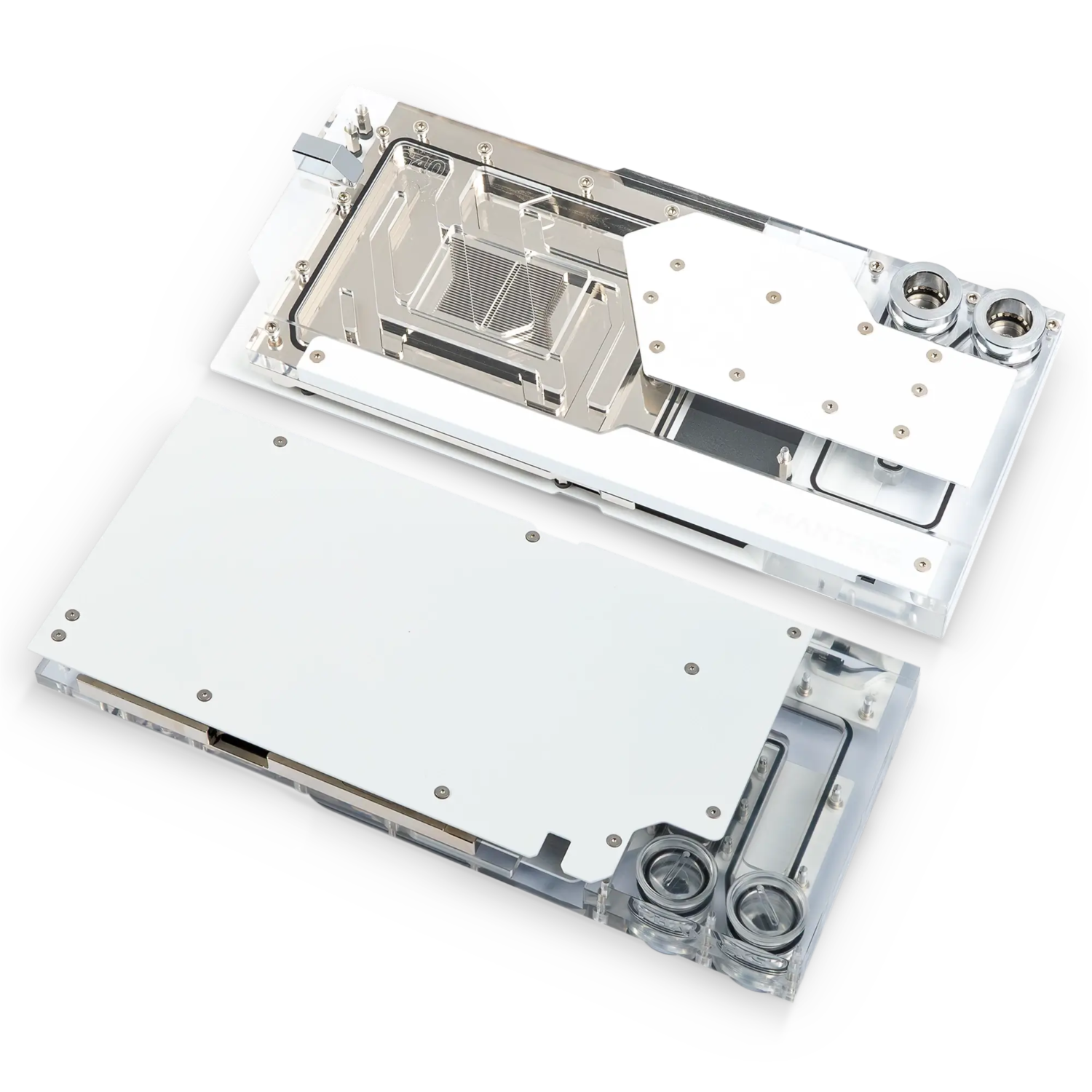

The Phanteks’ Glacier G40 ASUS GPU Block provides a high-performance water-cooling solution custom-designed for the latest Asus ROG Strix / TUF Gaming RTX 4090 cards. The Glacier G40 ASUS GPU Block brings the ultimate cooling performance with some unique water block features to build amazing water-cooled systems.

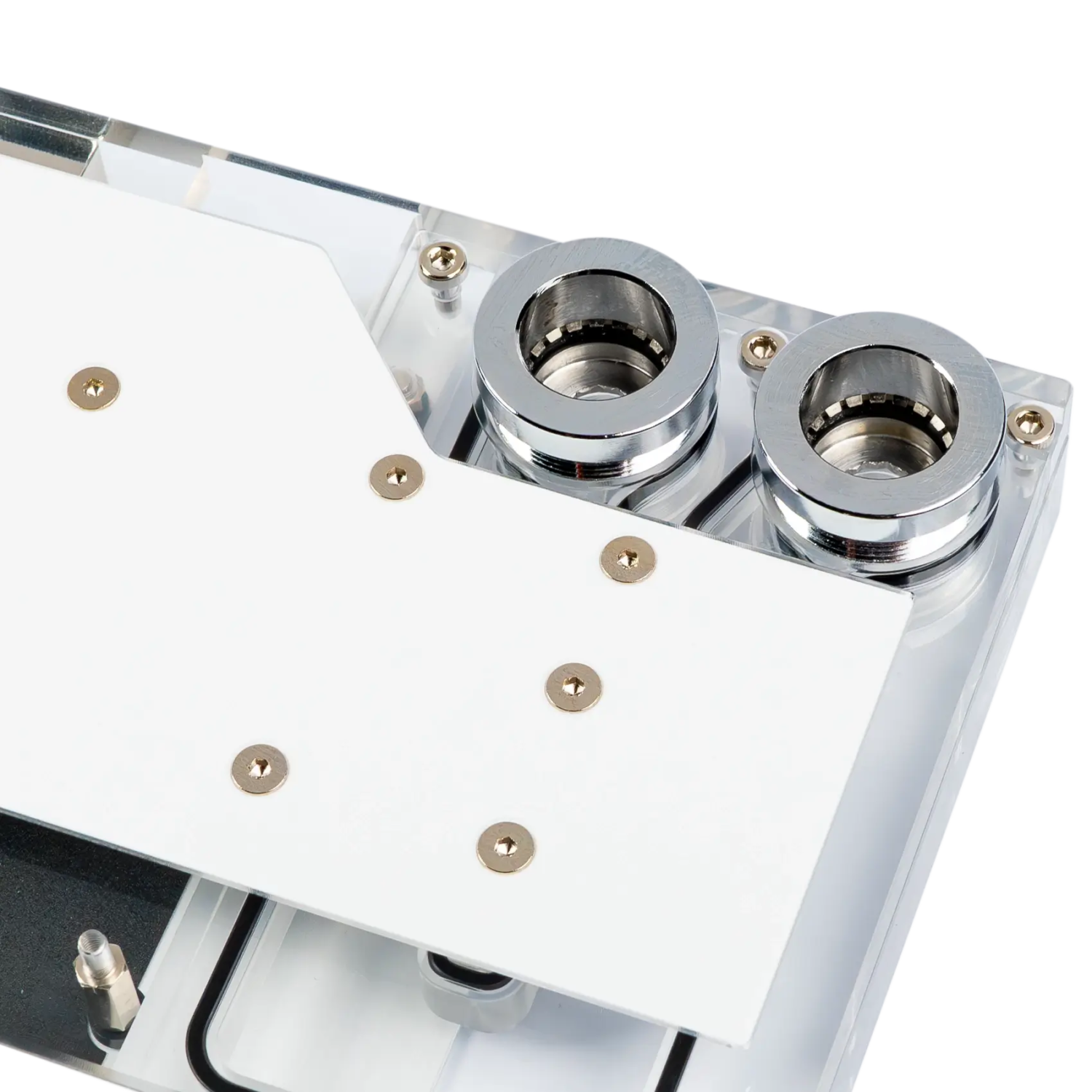

The Glacier G40 ASUS GPU Block also introduces some new features, such as a new fitting location to allow for better tube routing, even in more compact chassis. To improve stability, a GPU support bracket is added to connect the water block to the rear PCI bracket so the GPU is mounted more securely.
Colors
High Class Performance
New Design Features

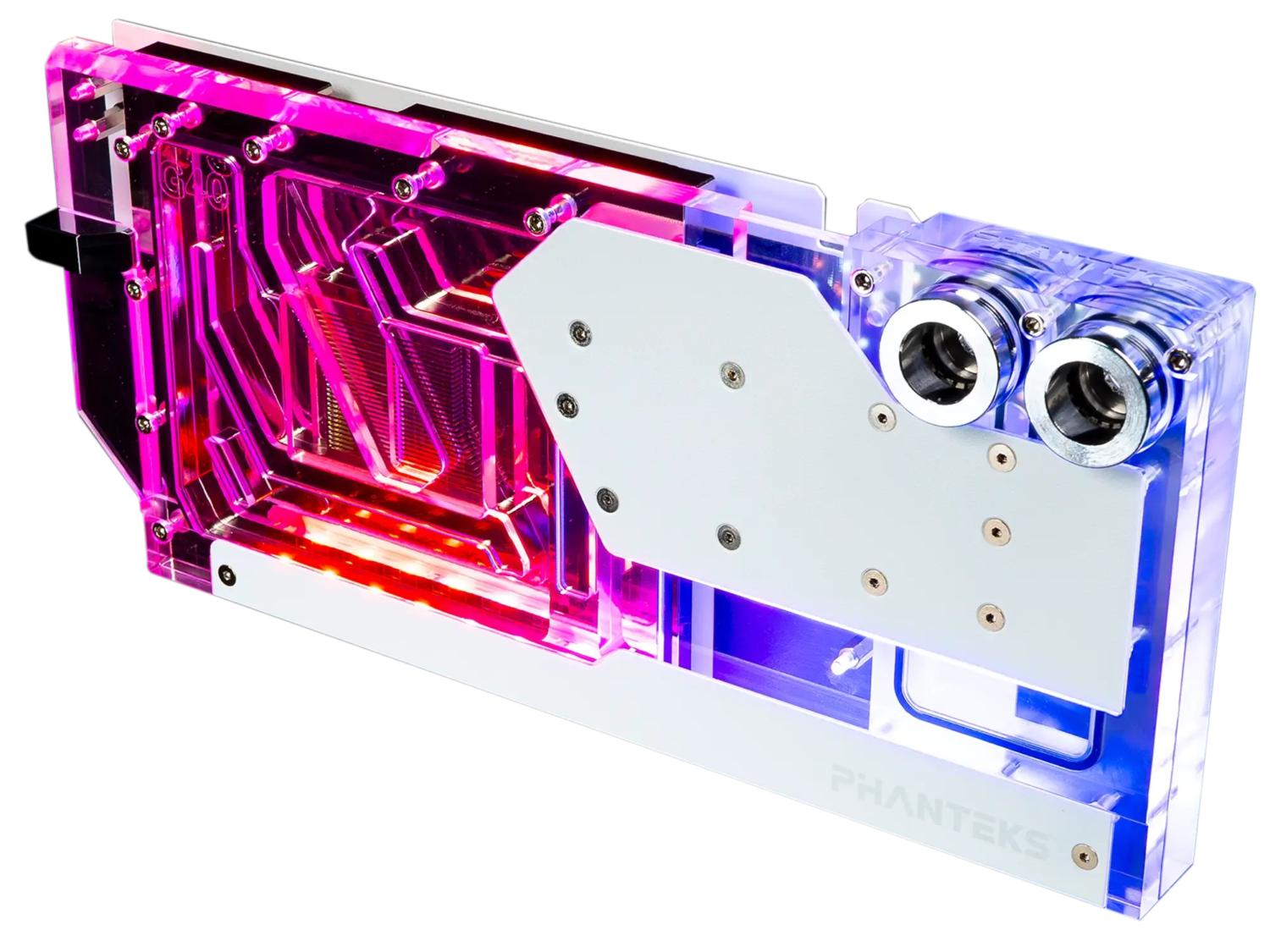

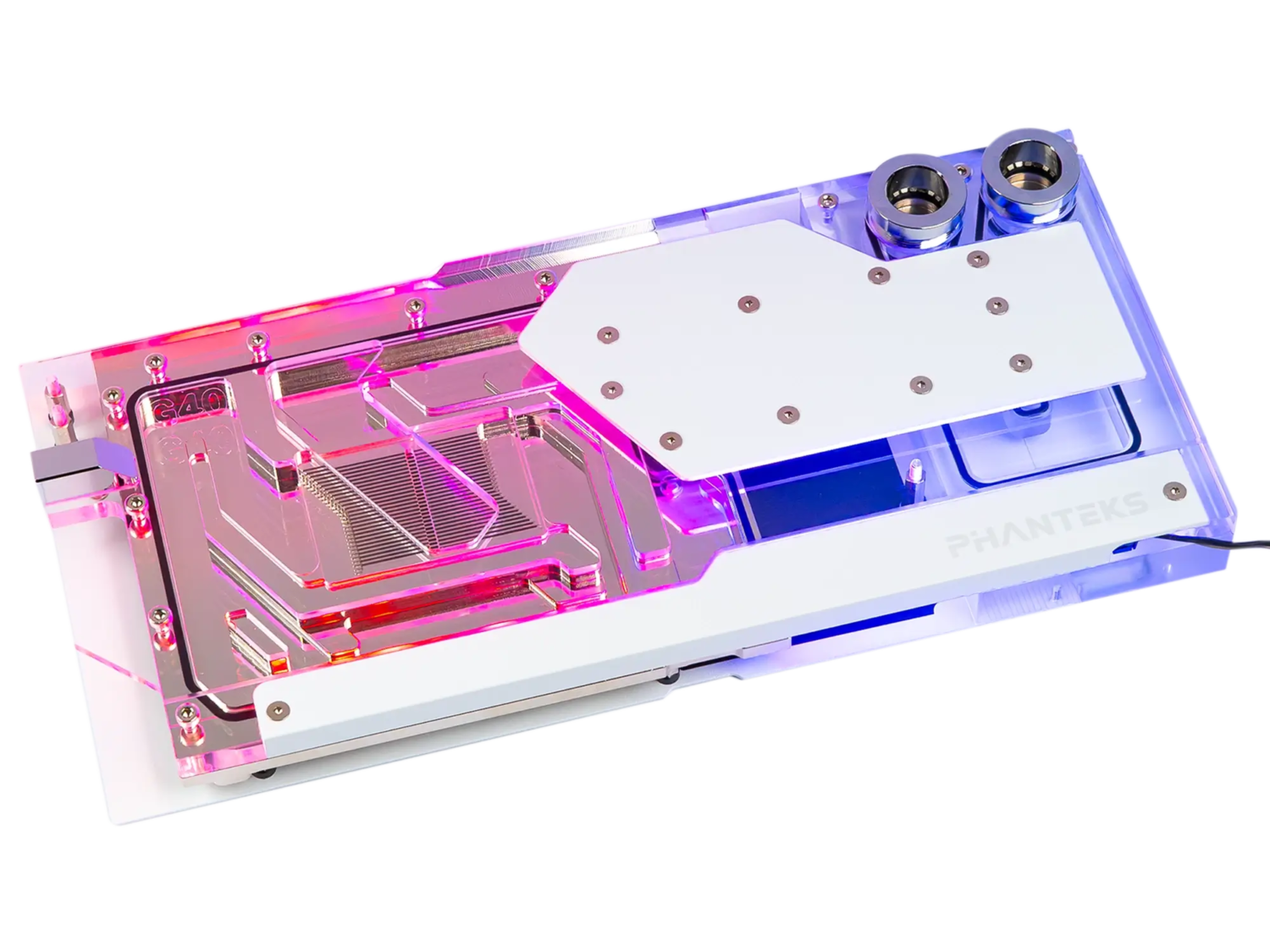

Integrated D-RGB lighting
Specifications
General
Model No.
PH-GEF_GPU4090AS_DMW01
UPC Code
886523703228
Type
GPU Water-block
Color
White
Compatibility
ASUS ROG Strix GeForce RTX® 4090 24GB
ASUS ROG Strix GeForce RTX® 4090 OC Edition 24GB
ASUS TUF-RTX4090-O24G-GAMING
ASUS TUF-RTX4090-24G-GAMING
Water Block Materials
Copper Base, Nickel plated
Acrylic cover
Aluminum covers
Brass stop fitting
Viton o-rings
Backplate Materials
Aluminum covers (Anodized)
Mylar layer with 0.25mm thickness
Technical Details
Supported Tube Size
Hard Tube: OD 16mm
Soft Tube: OD 16mm, ID 10mm
Tube Compatibility
Hard Tube: PETG | Acrylic tube
Soft Tube: PVC tube
LED Number
15
Extra
Net Weight
Water Block Weight
Backplate Block Weight
1.44 kg | 3.17 lbs
82.1 g | 0.18 lbs
Gross Weight
2 kg | 4.4 lbs
Warranty
2 Years limited
Scope of Delivery
1x PH-GEF_GPU4090AS Water-block
1x PH-GB4090ASBP Aluminum backplate
1x PH-NDC Thermal compound
2x Push-in fitting
2x Acrylic plug fitting
3x Fitting insert (for soft tube)
1x D-RGB LED cable (for Phanteks Case)
1x D-RGB mainboard adapter
2x Thermal pad (pre-cut)
1x Support bracket (Anodized)
1x M3x10 screw
4x M2.5×5 screws & washers
2x M2.5×6 screws
8x M2.5×8 screws
1x 8mm Allen key
