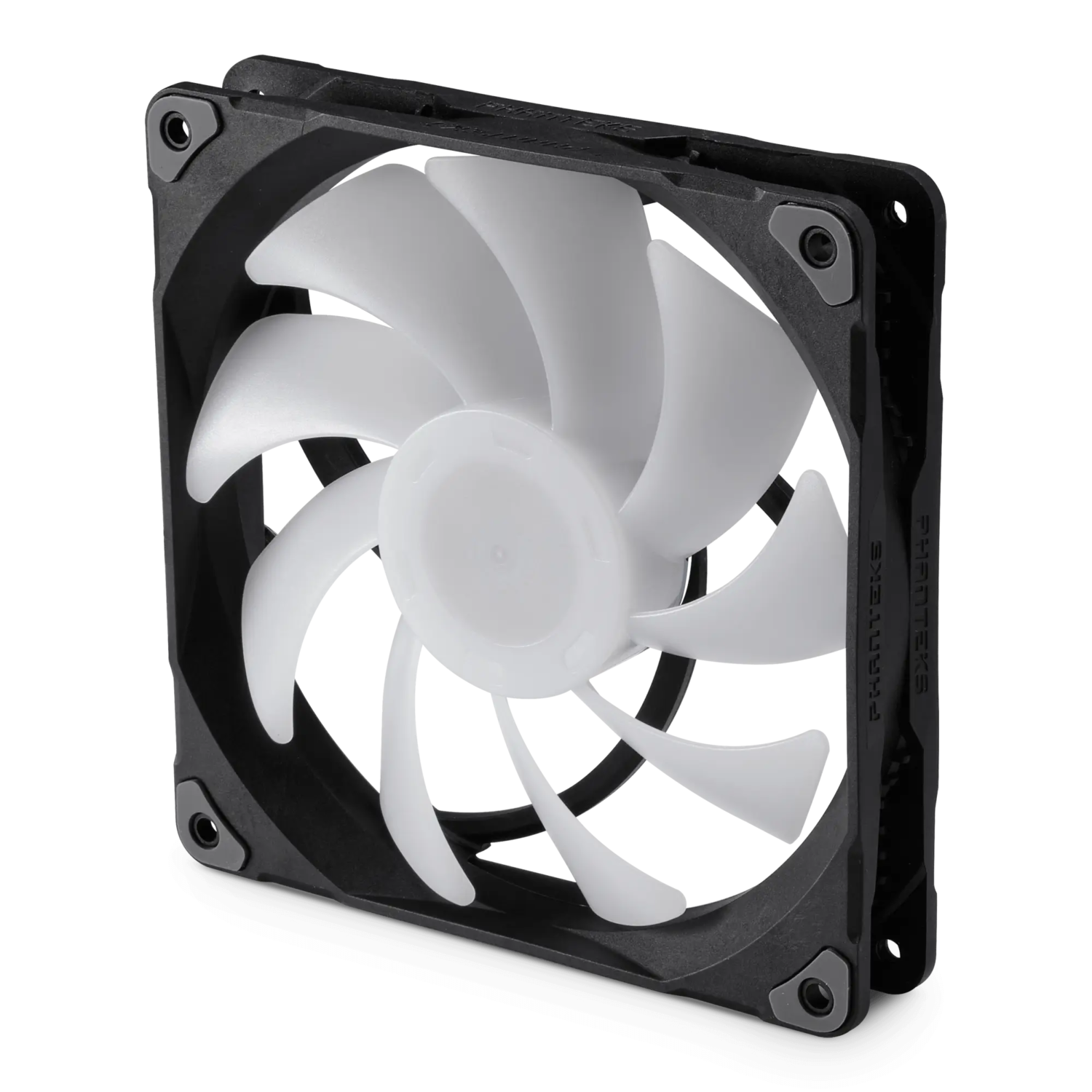

M25-140

Designed to deliver high air flow cooling performance

The Phanteks M25 fan builds upon the award winning T30 fan to keep next gen hardware cool with high airflow cooling performance. The M25 fan blades are specifically optimized to perform the best with fine mesh/dust filters, heatsinks and radiators with reduced RPM levels. This optimization keeps unwanted bearing noises at a minimum while also leaving plenty of cooling headroom when necessary by going full speed.

Colors

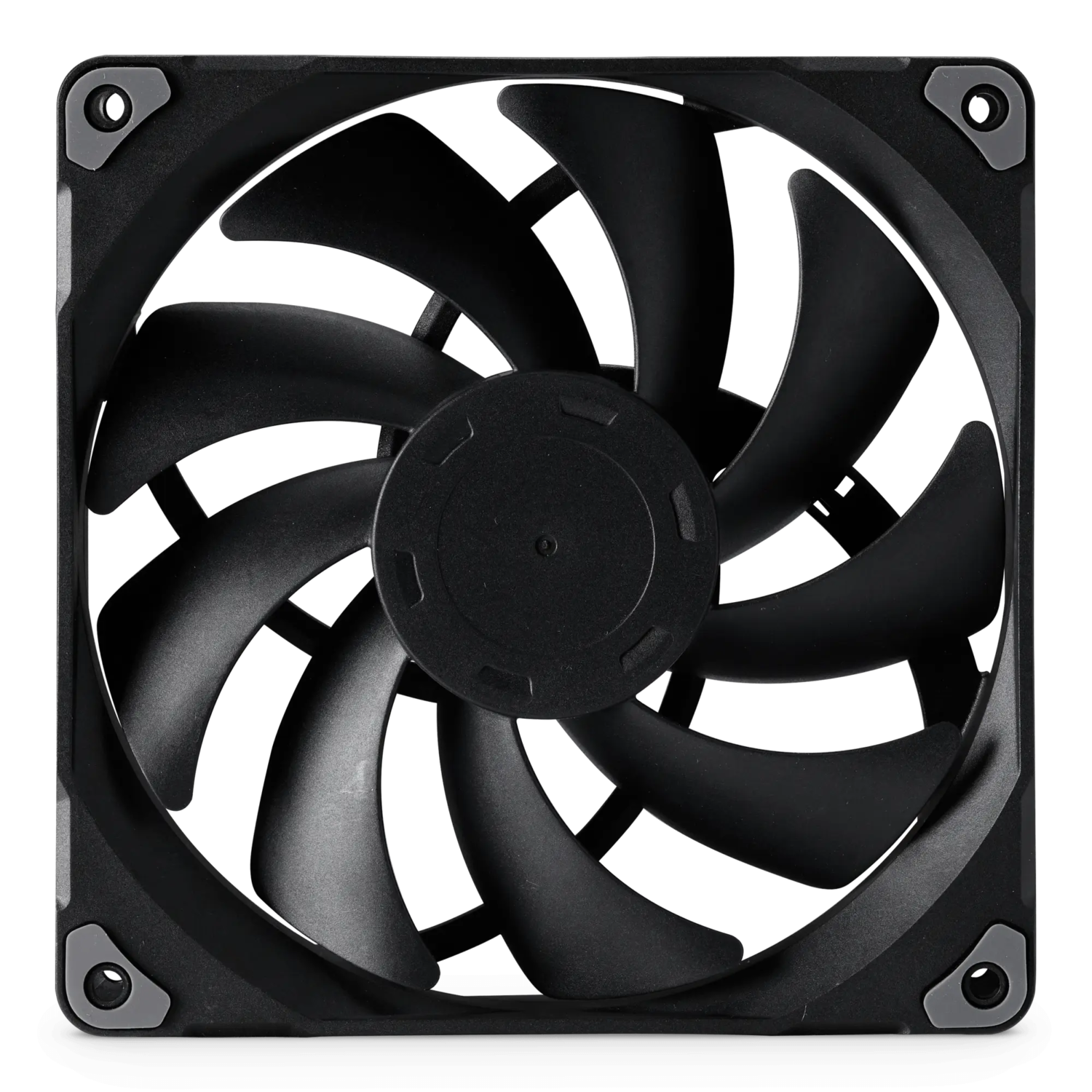

Black

Black D-RGB

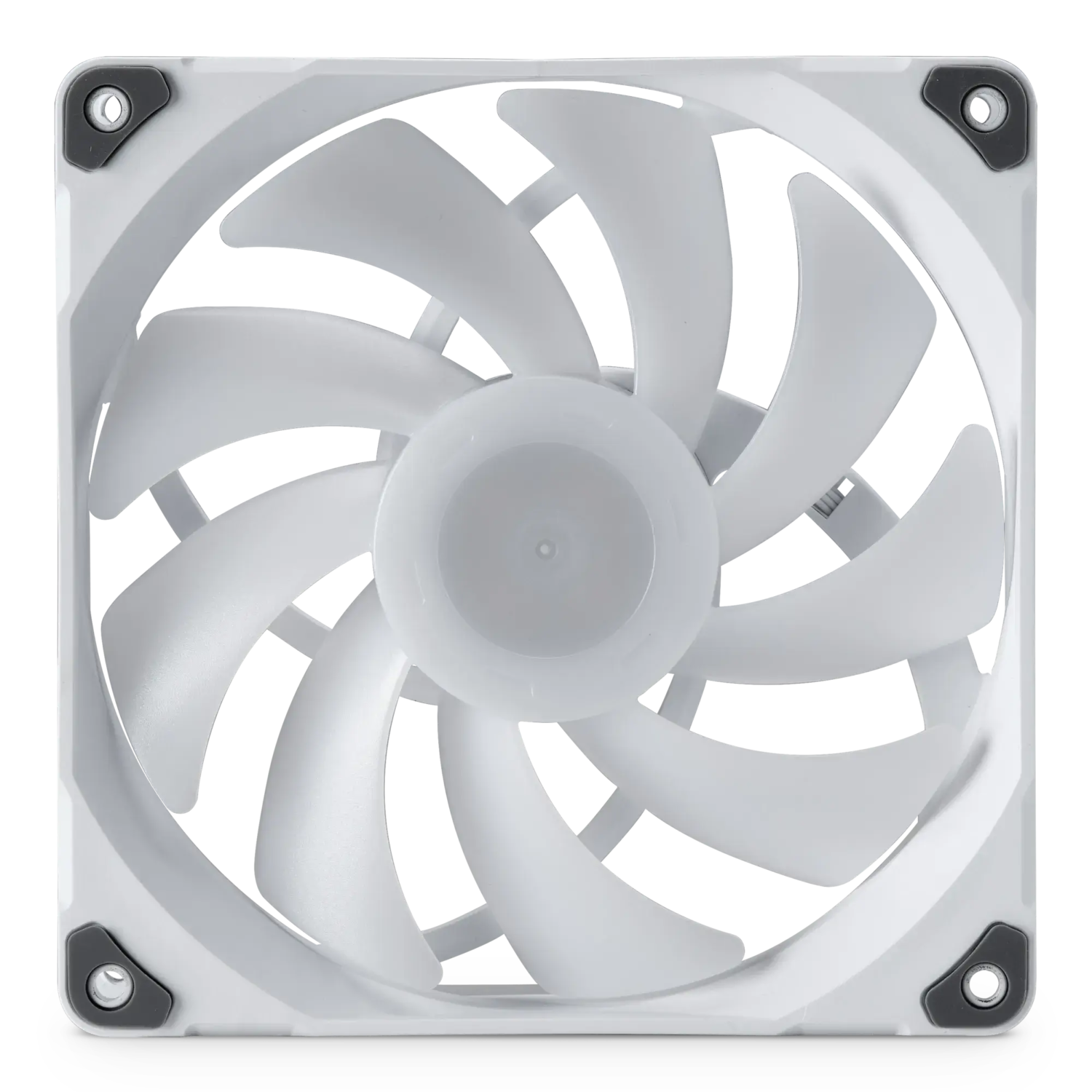

White D-RGB

Dimensions

120

140

Optimized for Performance

  • Optimized for heatsinks and radiators to maximize CPU and GPU performance.

  • High cooling capacity at 2000 RPM to cool even the most power ful hardware components.

  • Excellent low noise performance thanks to a high air flow/RPM ratio to minimize bearing and motor noises.

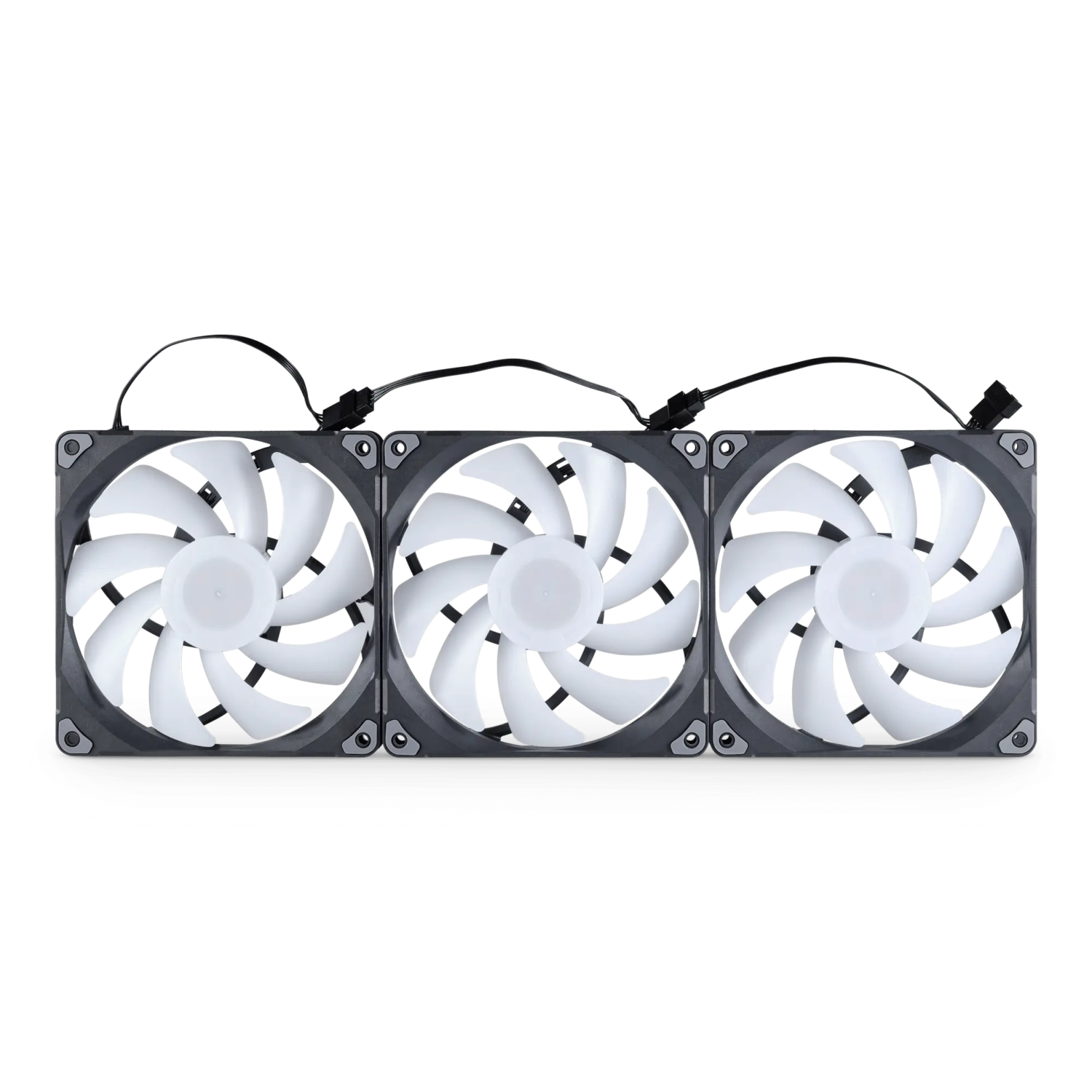

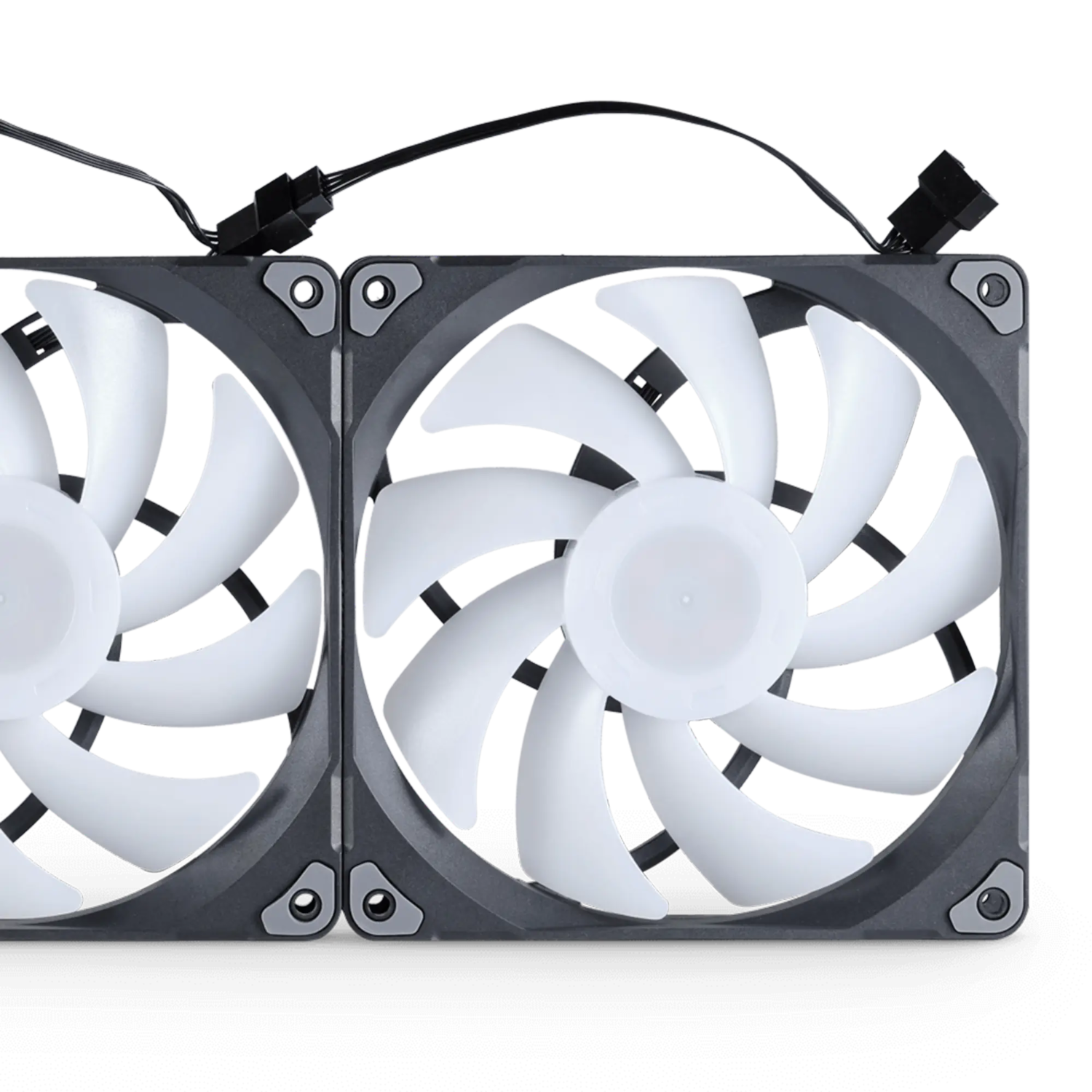

Daisy-chain Connection

  • Clutter-free cable management with both fan and D-RGB daisy-chain connection.

  • Connect multiple fans together with a single PWM extension cable.

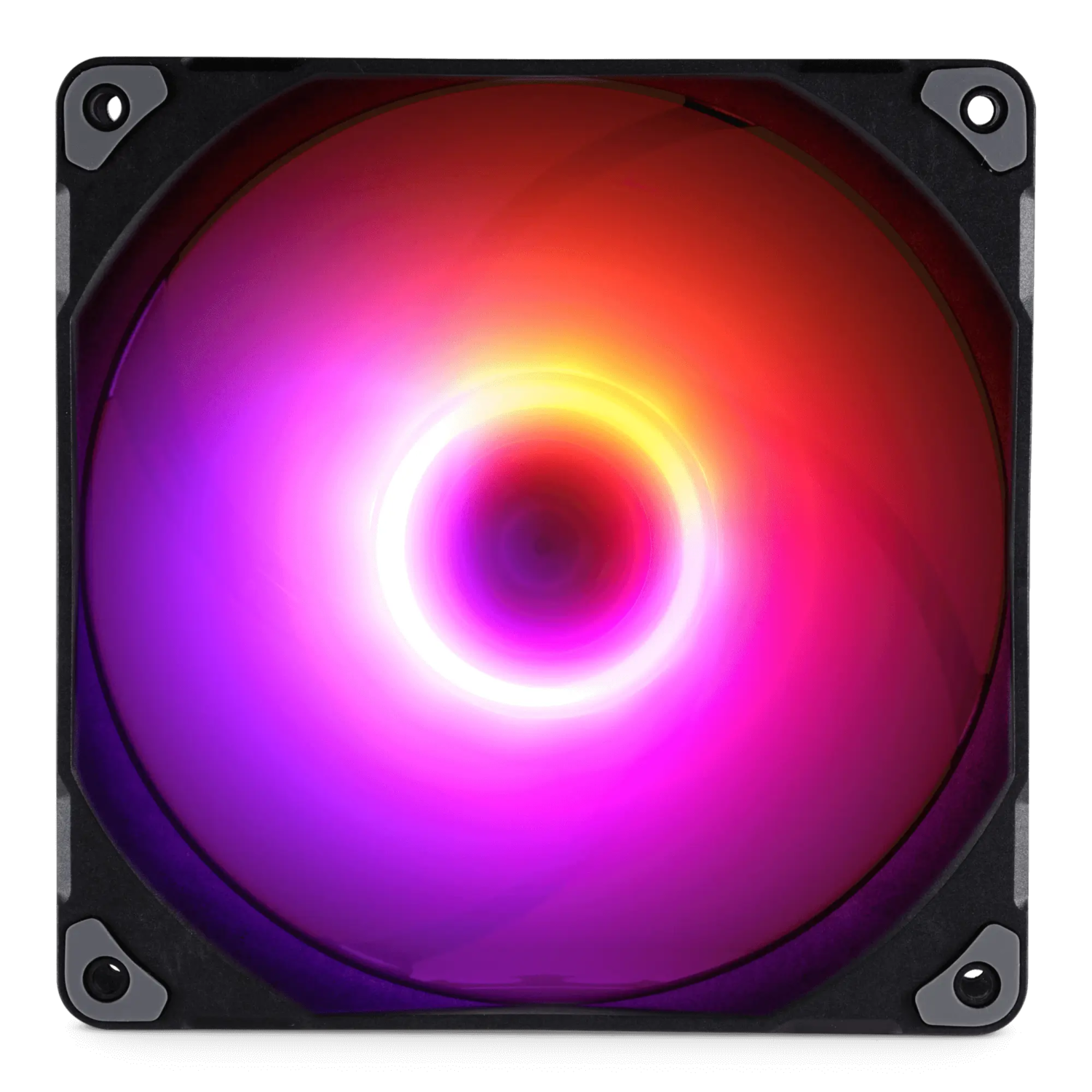

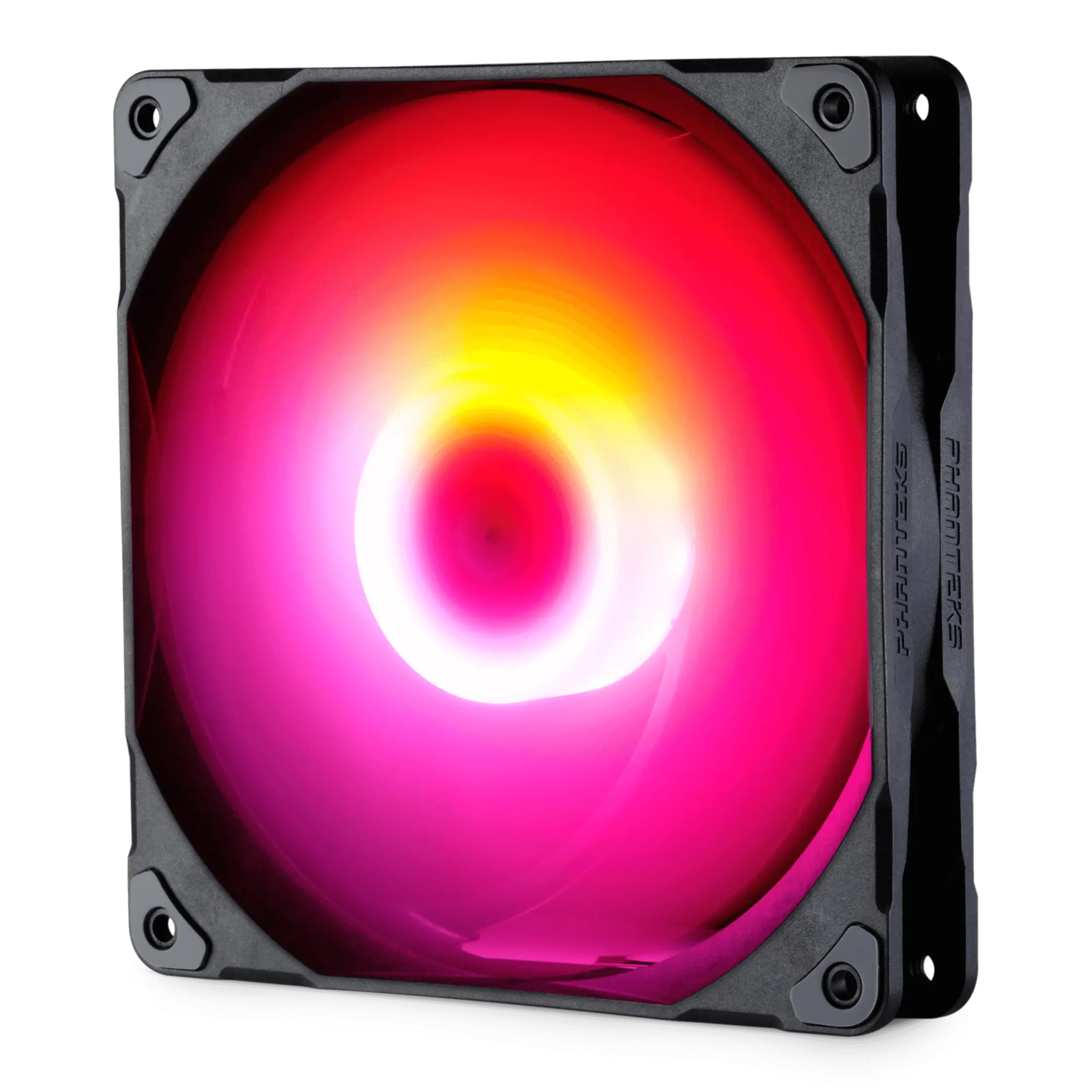

Colorful D-RGB Lighting

  • Built-in D-RGB LEDs for smooth lighting effects.

  • Daisy chain D-RGB connectors for easy cable management.

  • Compatible with all Phanteks cases.

  • Optionally sync with mainboard and software.

Asus Auro Sync | RGB Fusion 2.0 | MSI Mystic Light Sync | ASRock Polychrome Sync | Razer Chroma

Specifications

General

Model No.

PH-F140M25_DRGB_PWM_BK01 | PH-F140M25_DRGB_PWM_BK01_3P

UPC Code

886523002505 | 886523002444

Frame Size

140 x 140 x 25 mm | 5.51 x 5.51 x 0.98 in

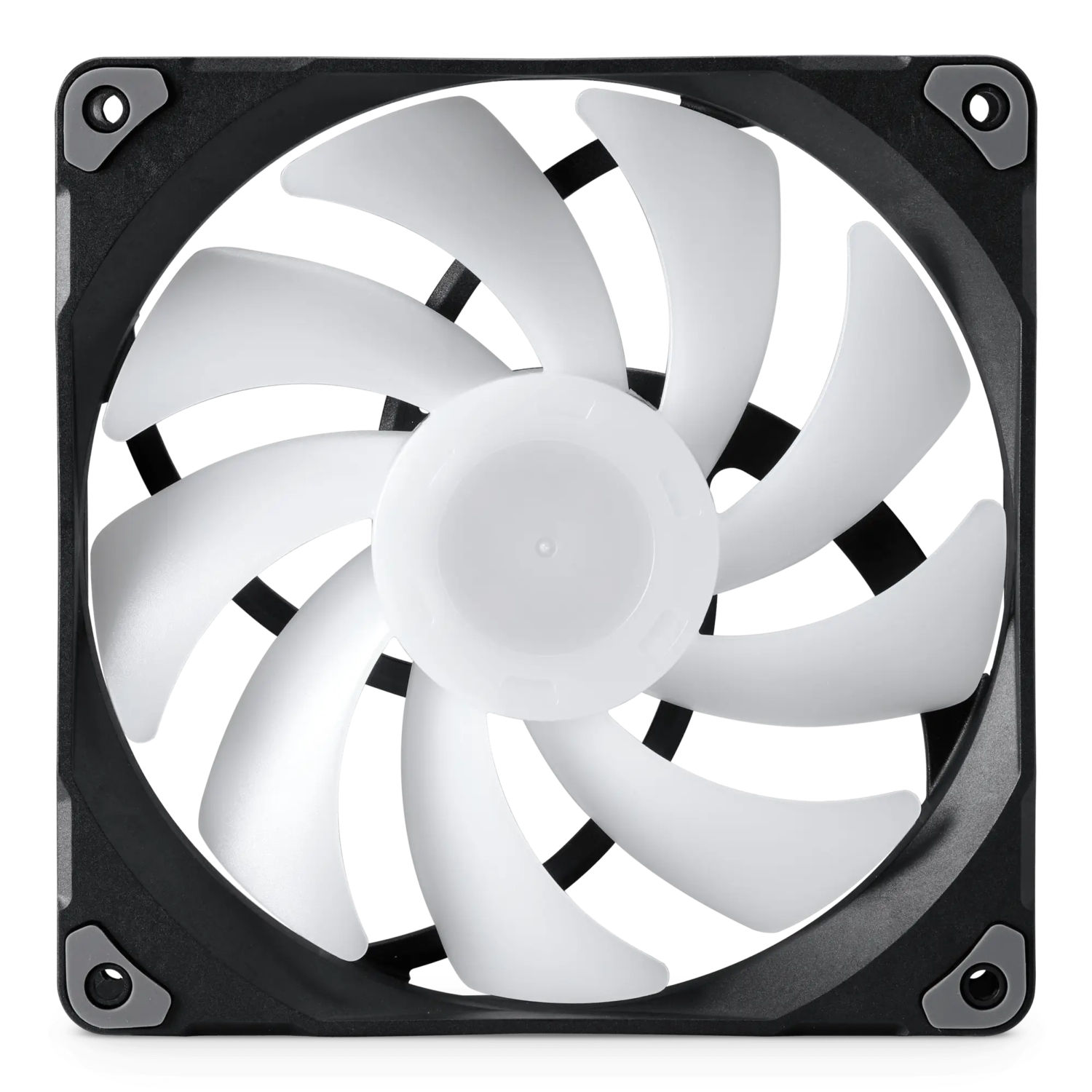

Blade Geometry

Nine blades design

PWM Connector

4-Pin Daisy-chain

PWM Cable Length

140 + 500 mm | 5.51 + 19.68 in Extension cable

D-RGB Connector

3-Pin D-RGB Daisy-Chain

D-RGB Cable Length

300 + 100 mm | 11.8 + 3.9 in

TECHNICAL DETAILS

Bearing Type

Hydraulic bearing

Rated Voltage

12V

Noise Level

36.57 dBA

Max. Airflow

104.62 CFM

Max. Air Pressure

2.80 mm H2O

Speed

500~1800 ± 10% RPM

MTFB

30.000 hours

Max Current

0.28A

Max Power

2.40W

Operating Voltage Range

DC 7 – 13.2V

LED Number

12

LED Rated Current

Max. 0.25 ± 0.04A

Single Pack

Triple Pack

Net Weight

195 g | 6.87 oz

Gross Weight

247 g | 8.71 oz

Warranty

5 Years

Scope of Delivery

1x M25-120 fan

Accessories

1x 500 mm PWM extension cable
1x 600 mm D-RGB mainboard connection cable

Screws

4x Fan Screw

Net Weight

195 g | 6.87 oz

Gross Weight

667 g | 23.53 oz

Warranty

5 Years

Scope of Delivery

3x M25-120 D-RGB fans

Accessories

2x 500 mm PWM extension cable
1x 600 mm D-RGB mainboard connection cable

Screws

12x Fan Screw

Support

Documentation

N/A

FAQ

What is Digital-RGB?

Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.

Phanteks D-RGB products

Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.

Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.

Why are Digital-RGB and RGB not compatible?

Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.

Is Digital-RGB compatible with my mainboard?

Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.

How many D-RGB products can I connect to a compatible mainboard?

Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.

How many D-RGB products can I connect to the D-RGB controller from Phanteks?

The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.

How do I connect my D-RGB product from Phanteks to my mainboard?

Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.

Can I install multiple Digital-RGB controllers in my case?

You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.

How do I turn off the D-RGB LED’s on the Phanteks D-RGB controller?

Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.

Can’t find the answer you’re looking for?
Contact us through the SUPPORT button in the bottom right corner of the website.

Discover all Phanteks fans

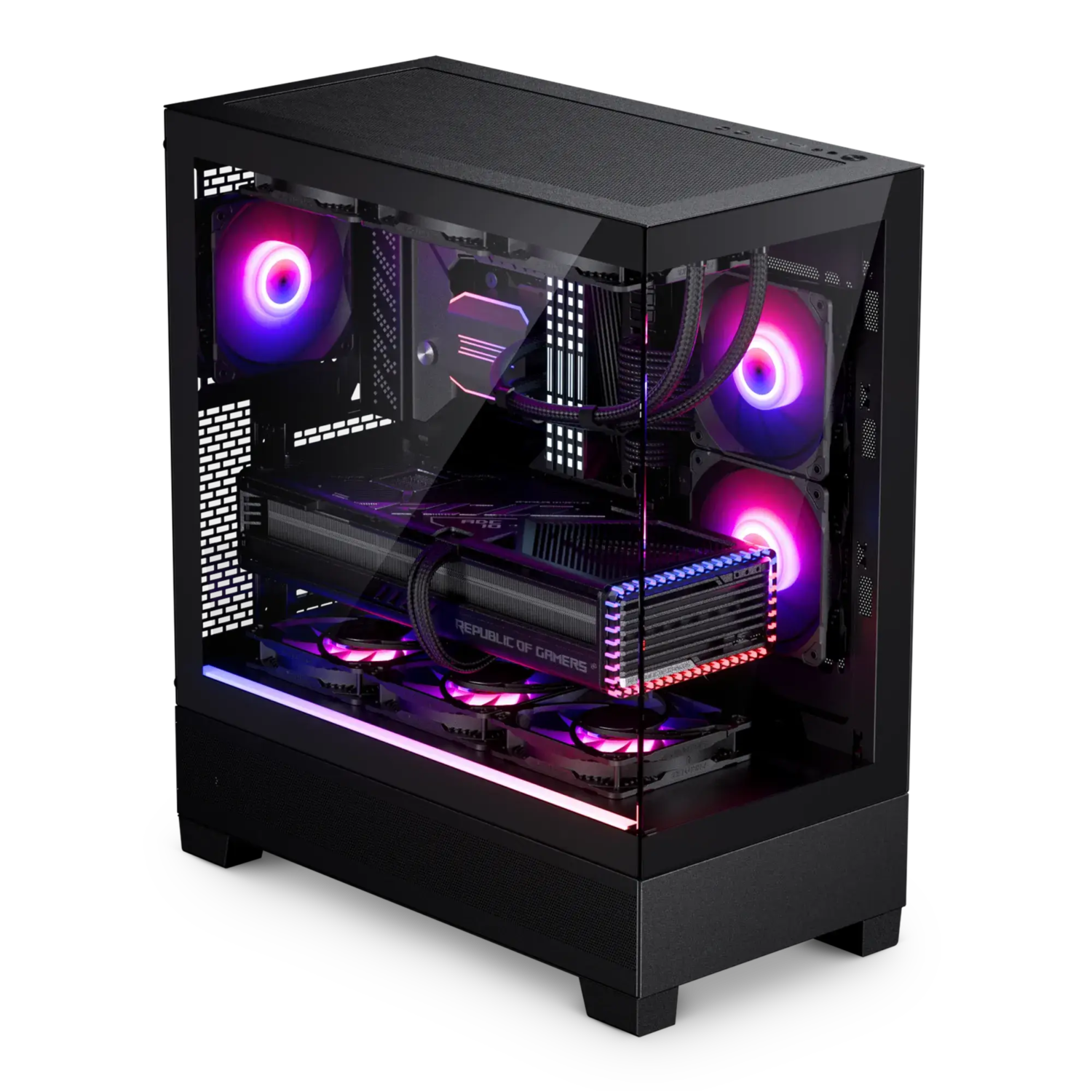

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management.
