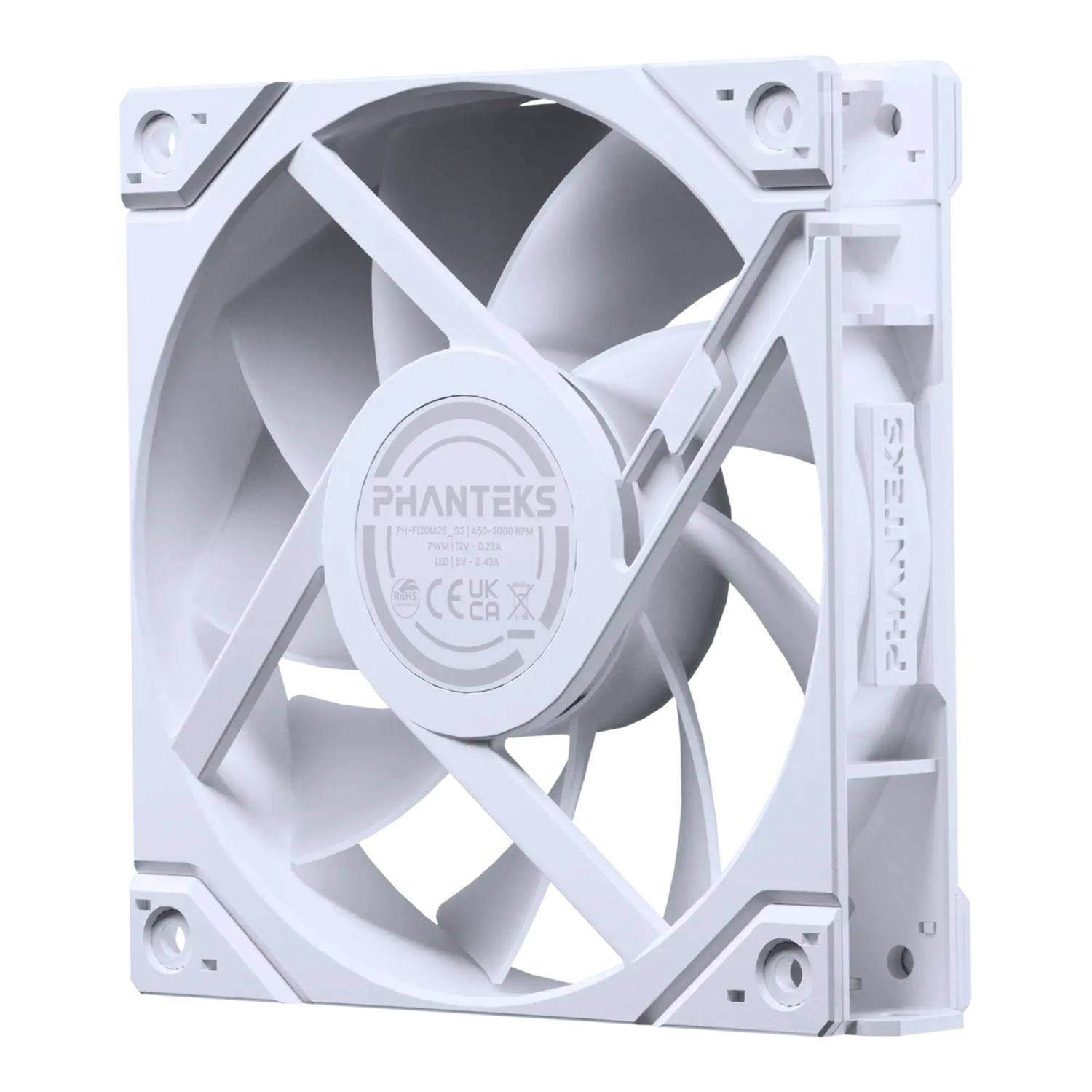

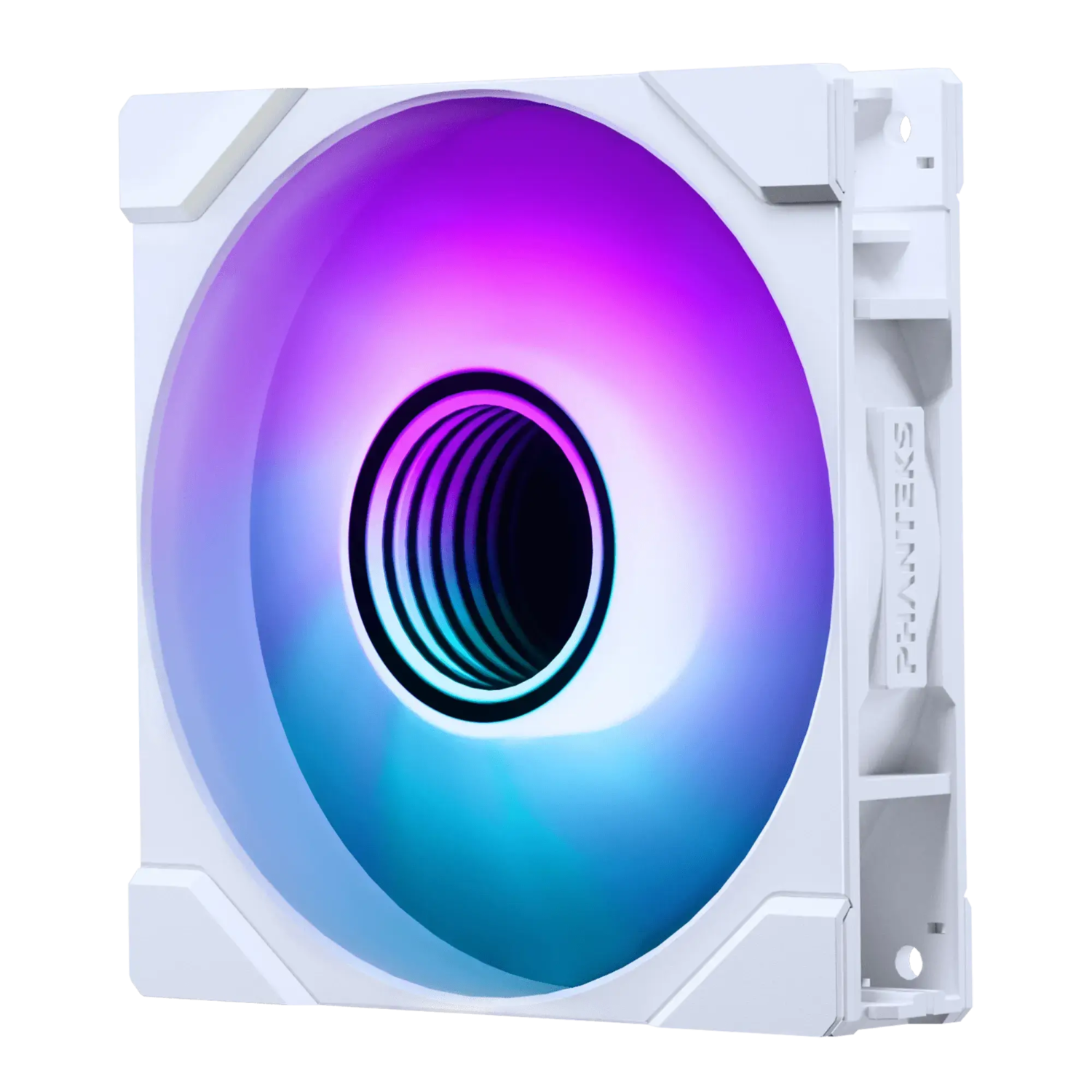

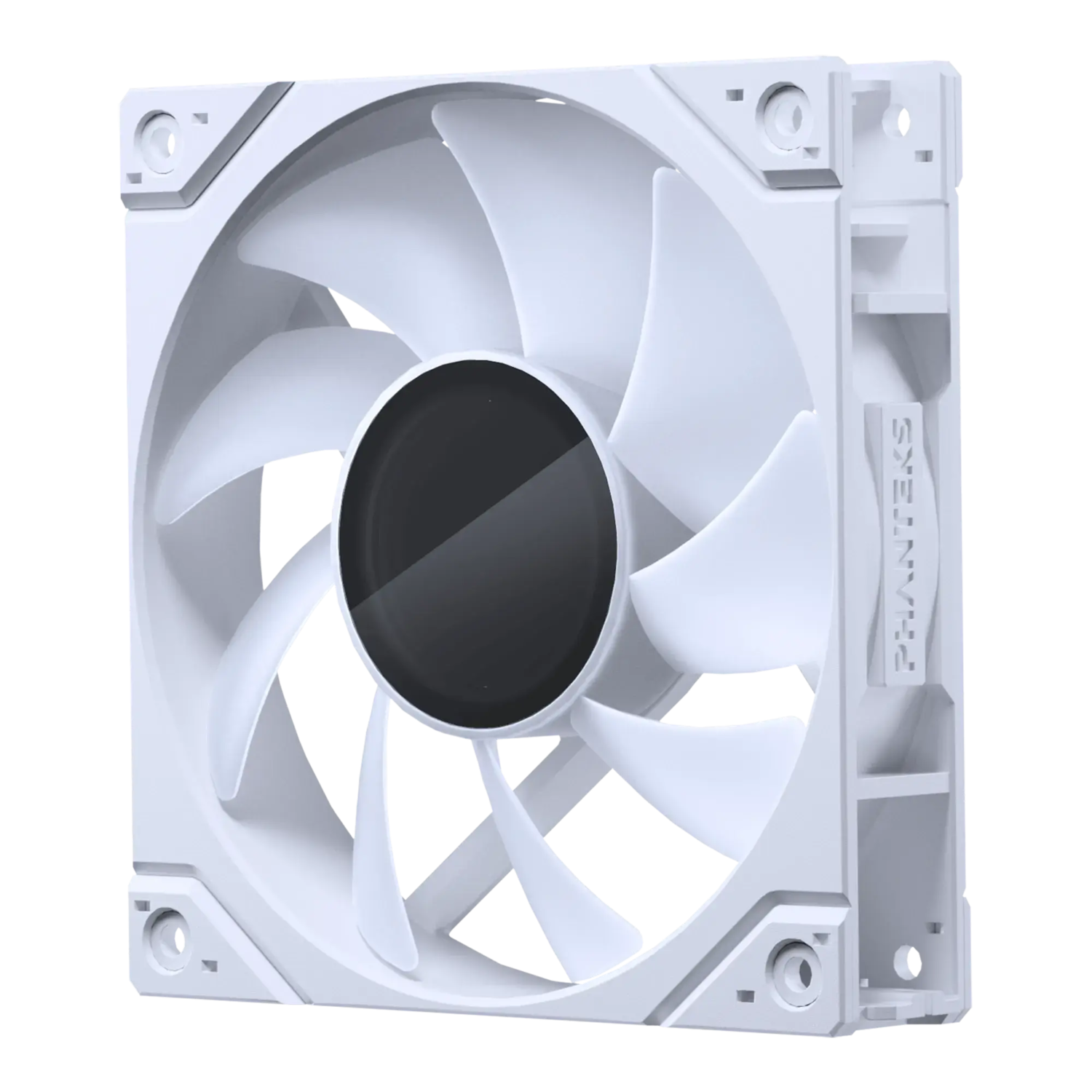

M25G2-120
High Value Daisy-Chained Fan

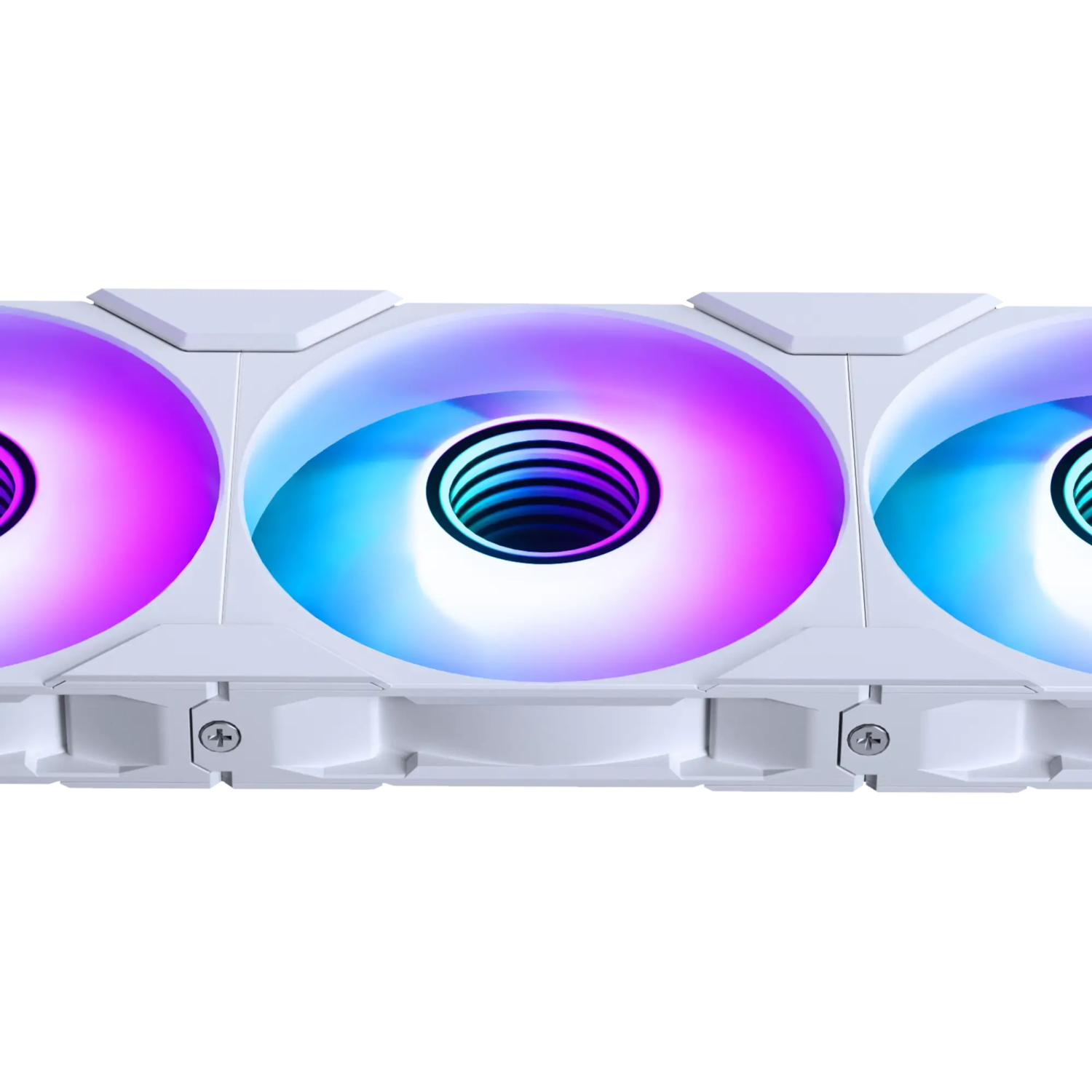

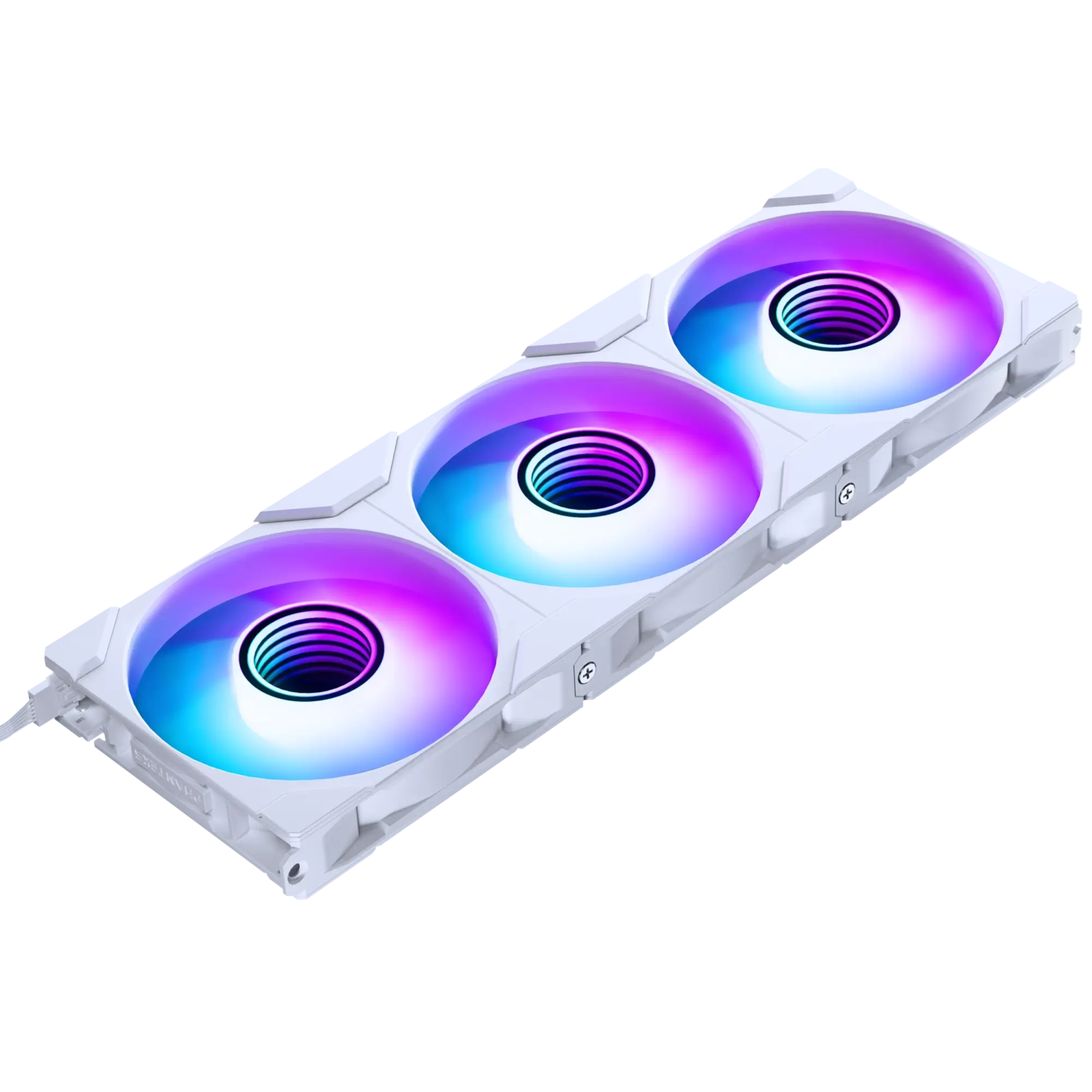

The Phanteks M25 Gen2 comes packed with features previously only seen in the highest-end fans. Its daisy-chain unified fan frame easily interlocks with the next fan to link multiple fans together into one.
With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
Colors
Dimensions
Specifications
General
Model No.
Regular

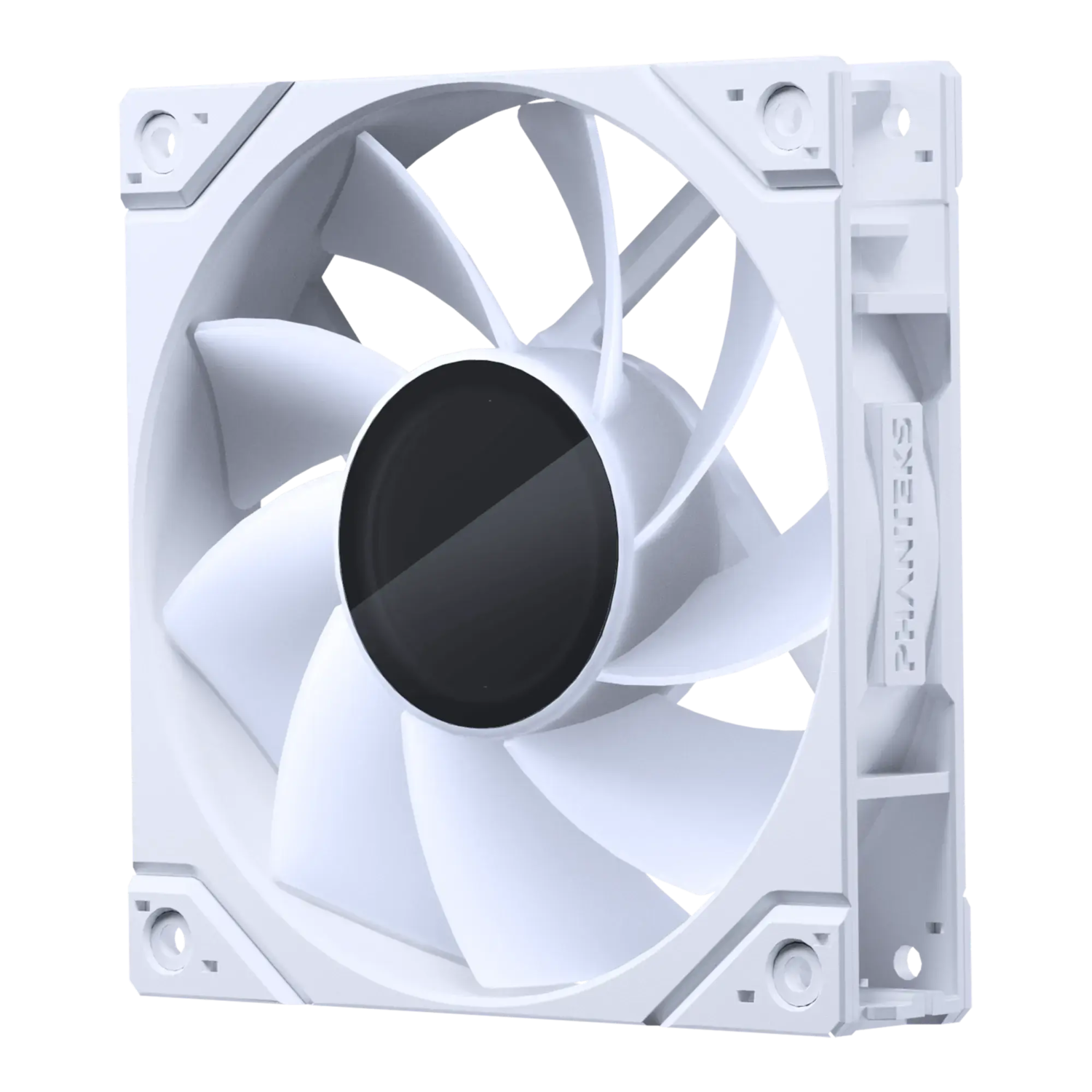

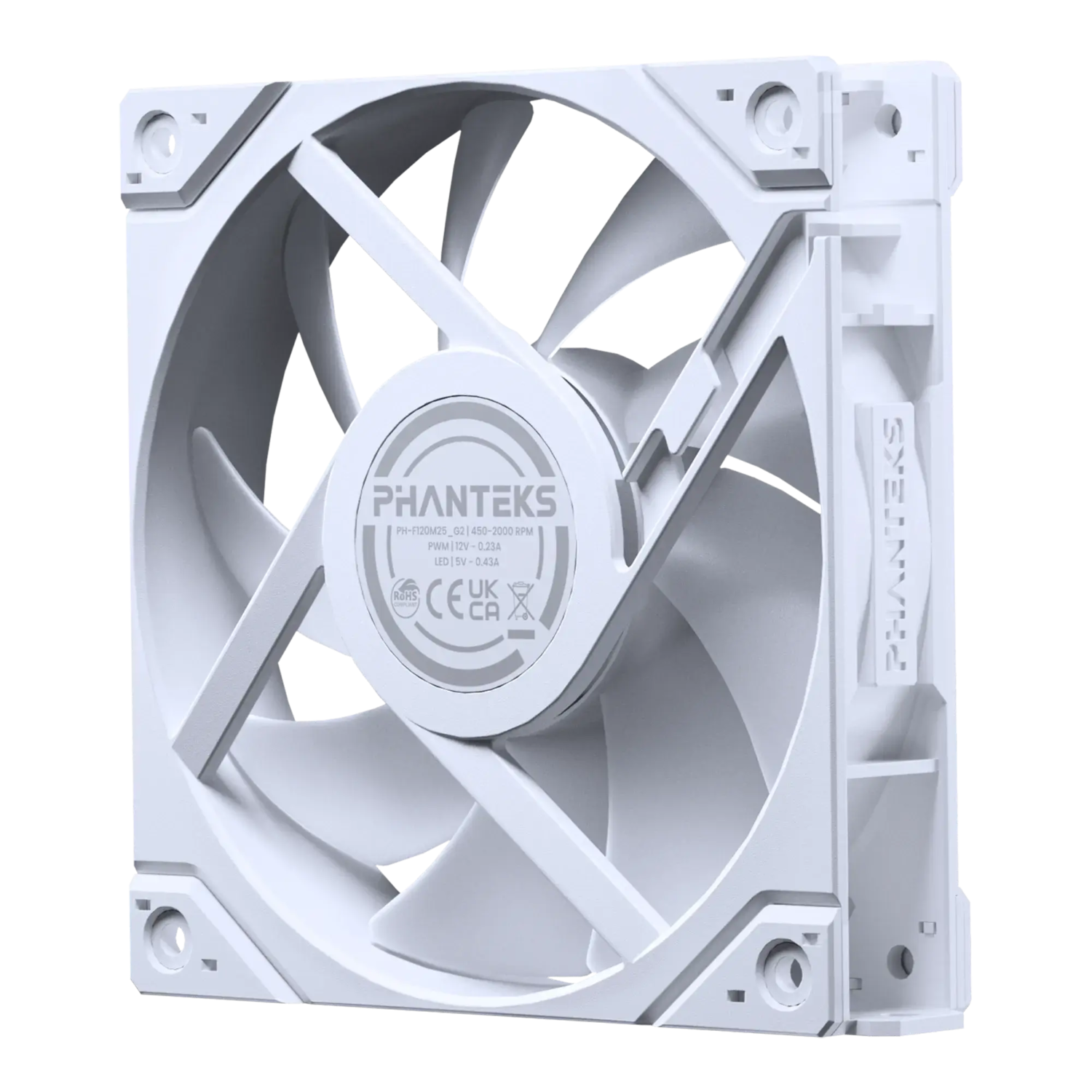

Reverse
PH-F120M25_G2_DWT01 | PH-F120M25_G2_DWT01 _3P
PH-F120M25R_G2_DWT01 | PH-F120M25R_G2_DWT01 _3P
UPC Code
Regular
Reverse
886523003489 | 886523003519
886523003595 | 886523003618
Frame Size
120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in
Blade Geometry
Nine blades design
Color
White
Connector
Linq6
Cable Length
120 mm | 4.72 in Daisy-chain
Technical Details Regular
Technical Details Reverse
Bearing Type
Hydraulic bearing
Rated Voltage
12V
Noise Level
35.13 dBA
Max. Airflow
72.72 CFM
Max. Air Pressure
2.51 mm H2O
Speed
350~2000 ± 10% RPM
MTFB
40.000 hours
Max Current
0.30A
Max Power
2.76W
Operating Voltage Range
DC 6 – 13.2V
LED Number
12
LED Rated Current
Max. 0.43A
Bearing Type
Hydraulic bearing
Rated Voltage
12V
Noise Level
39.28 dBA
Max. Airflow
73.69 CFM
Max. Air Pressure
1.99 mm H2O
Speed
350~2000 ± 10% RPM
MTFB
40.000 hours
Max Current
0.30A
Max Power
2.76W
Operating Voltage Range
DC 6 – 13.2V
LED Number
12
LED Max Rated Current
0.43A
Single Pack
Triple Pack
Net Weight
154 ± 5 g | 5.43 ± 0.17 oz
Gross Weight
224 ± 5 g | 7.90 ± 0.17 oz
Warranty
3 Years
Scope of Delivery
1x M25G2-120 fan
Accessories
1x Linq6 extension cable 500 mm
1x Linq6 adapter cable 500 mm
4x Screw cover corner
2x Screw cover bridge
Screws
5x Fan screw
Net Weight
464 ± 5 g | 16.63 ± 0.17 oz
Gross Weight
623 ± 5 g | 16.63 ± 0.17 oz
Warranty
3 Years
Scope of Delivery
3x M25G2-120 fans
Accessories
2x Linq6 extension cable 500 mm
1x Linq6 adapter cable 500 mm
8x Screw cover corner
4x Screw cover bridge
Screws
14x Fan Screw
