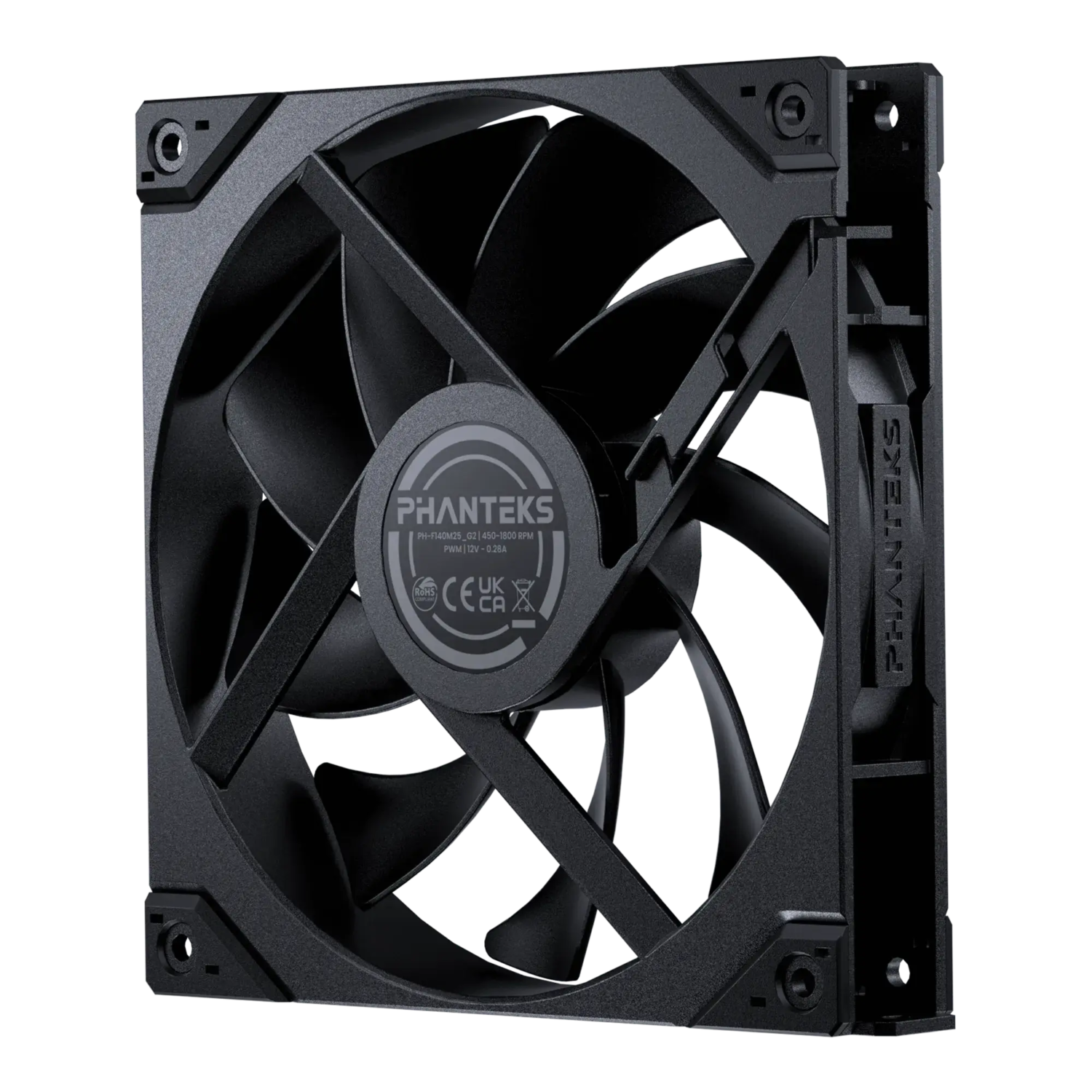

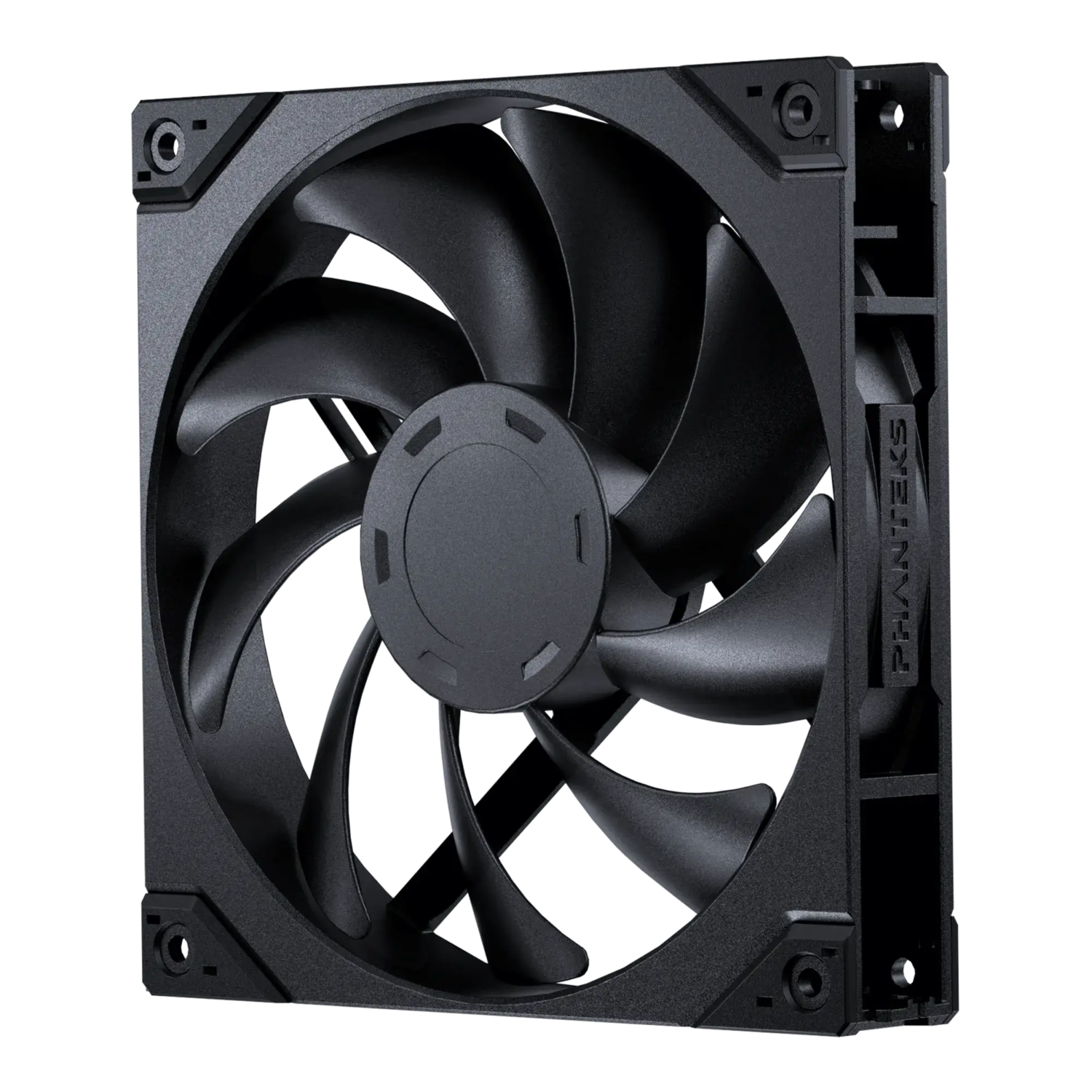

M25G2-140
High Value Daisy-Chained Fan
The Phanteks M25 Gen2 comes packed with features previously only seen in the highest-end fans. Its daisy-chain unified fan frame easily interlocks with the next fan to link multiple fans together into one.
With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
Colors
Dimensions
Specifications
General
Model No.
PH-F140M25_G2_BBK01 | PH-F140M25_G2_BBK01_3P
UPC Code
886523003526 | 886523003557
Frame Size
140 x 140 x 25 mm | 5.51 x 5.51 x 0.98 in
Blade Geometry
Nine blades design
Color
Black
Connector
4-Pin PWM
Cable Length
140 mm | 5.51 in Daisy-chain
Technical Details
Bearing Type
Hydraulic bearing
Rated Voltage
12V
Noise Level
36.40 dBA
Max. Airflow
101.78 CFM
Max. Air Pressure
2.23 mm H2O
Speed
350~1800 ± 10% RPM
MTFB
40.000 hours
Max Current
0.30A
Max Power
3.36W
Operating Voltage Range
DC 6 – 13.2V
LED Number
–
LED Rated Current
–
Single Pack
Triple Pack
Net Weight
187 ± 5 g | 6.59 ± 0.17 oz
Gross Weight
260 ± 5 g | 9.17 ± 0.17 oz
Warranty
3 Years
Scope of Delivery
1x M25G2-140 fan
Accessories
1x PWM extension cable 500 mm
4x Screw cover corner
2x Screw cover bridge
Screws
5x Fan screw
Net Weight
563 ± 5 g | 19.85 ± 0.17 oz
Gross Weight
732 ± 5 g | 25.82 ± 0.17 oz
Warranty
3 Years
Scope of Delivery
3x M25G2-140 fans
Accessories
2x PWM extension cable 500 mm
1x PWM adapter cable 500 mm
8x Screw cover corner
4x Screw cover bridge
Screws
14x Fan Screw
