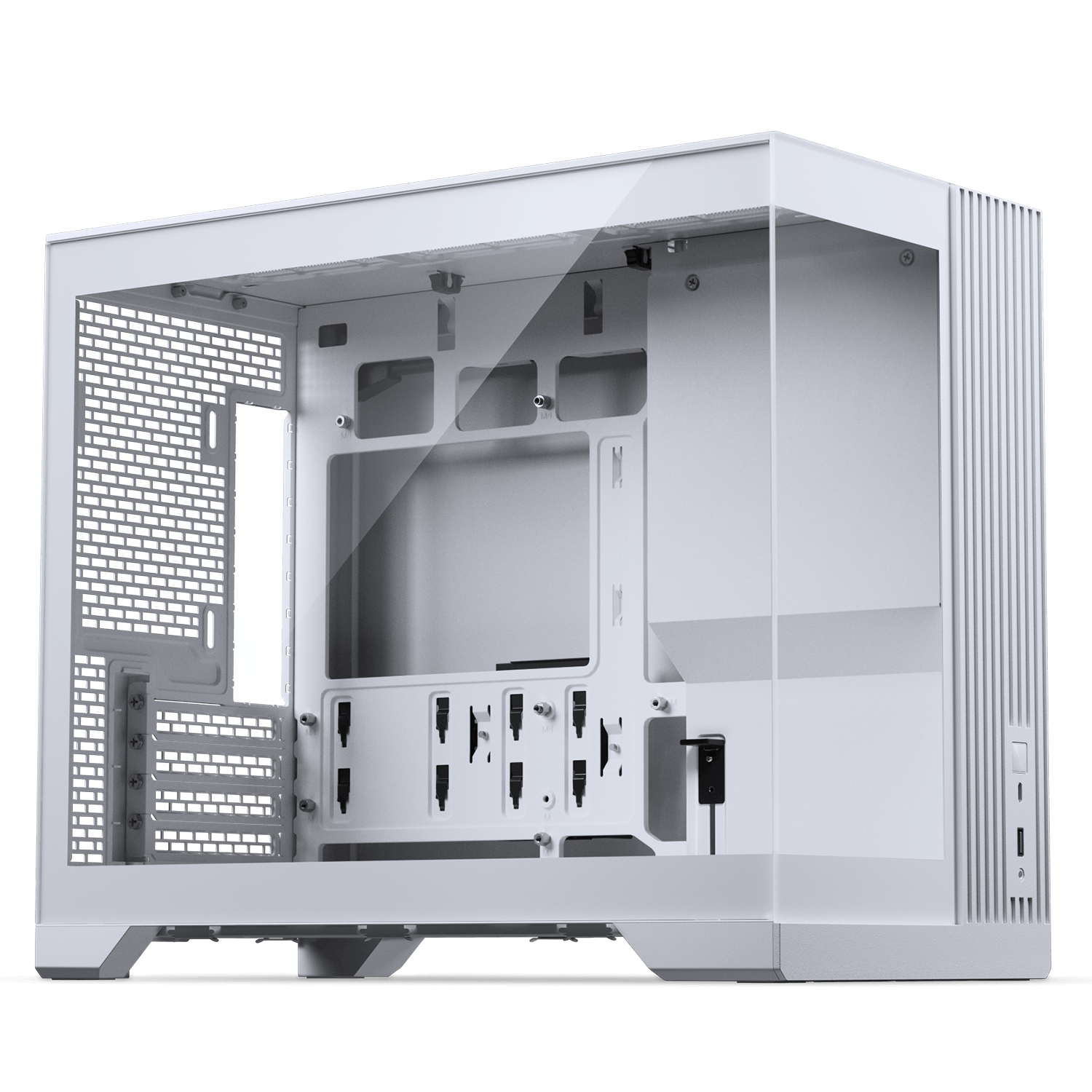

XT V3
Compact Micro ATX Gaming Chassis

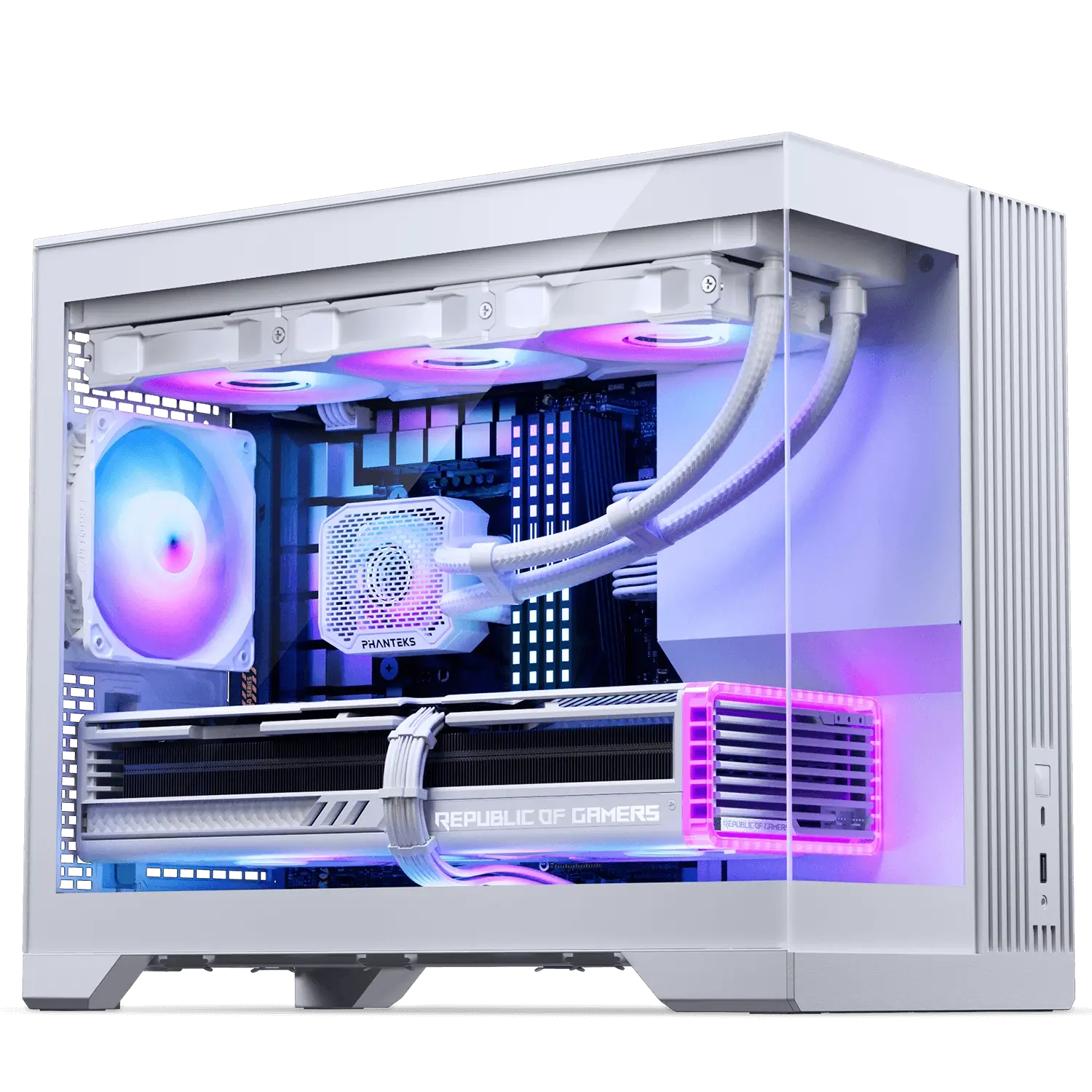

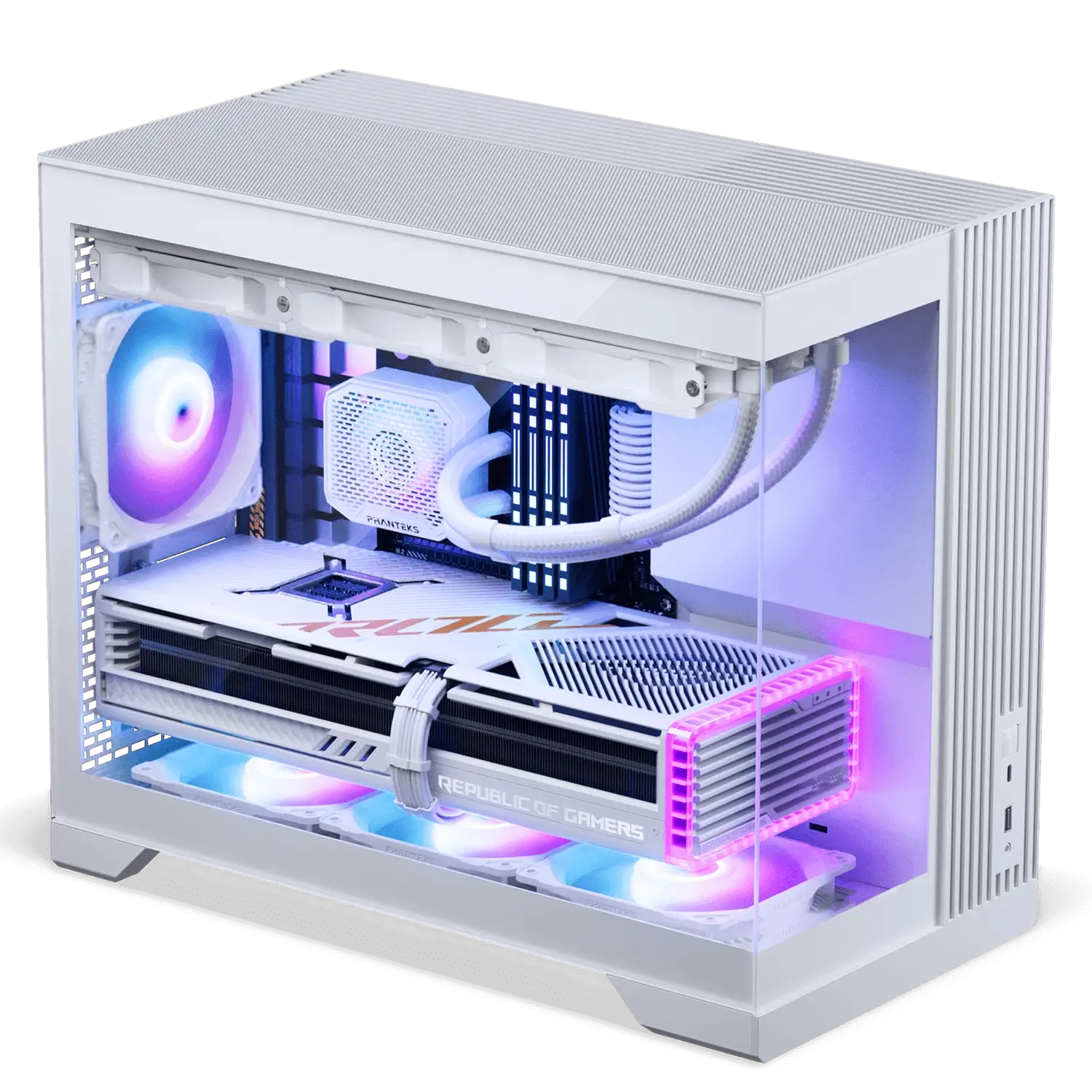

The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.
Colors
Specifications
General
Model No.
PH-XT325V_DWT01
UPC Code
886523303800
Case Dimensions
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
From Factor
Compact microATX tower
Mainboard Support
Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass window | ABS plastic
Color
White
Expansion Slots
4
Vertical GPU Support
No

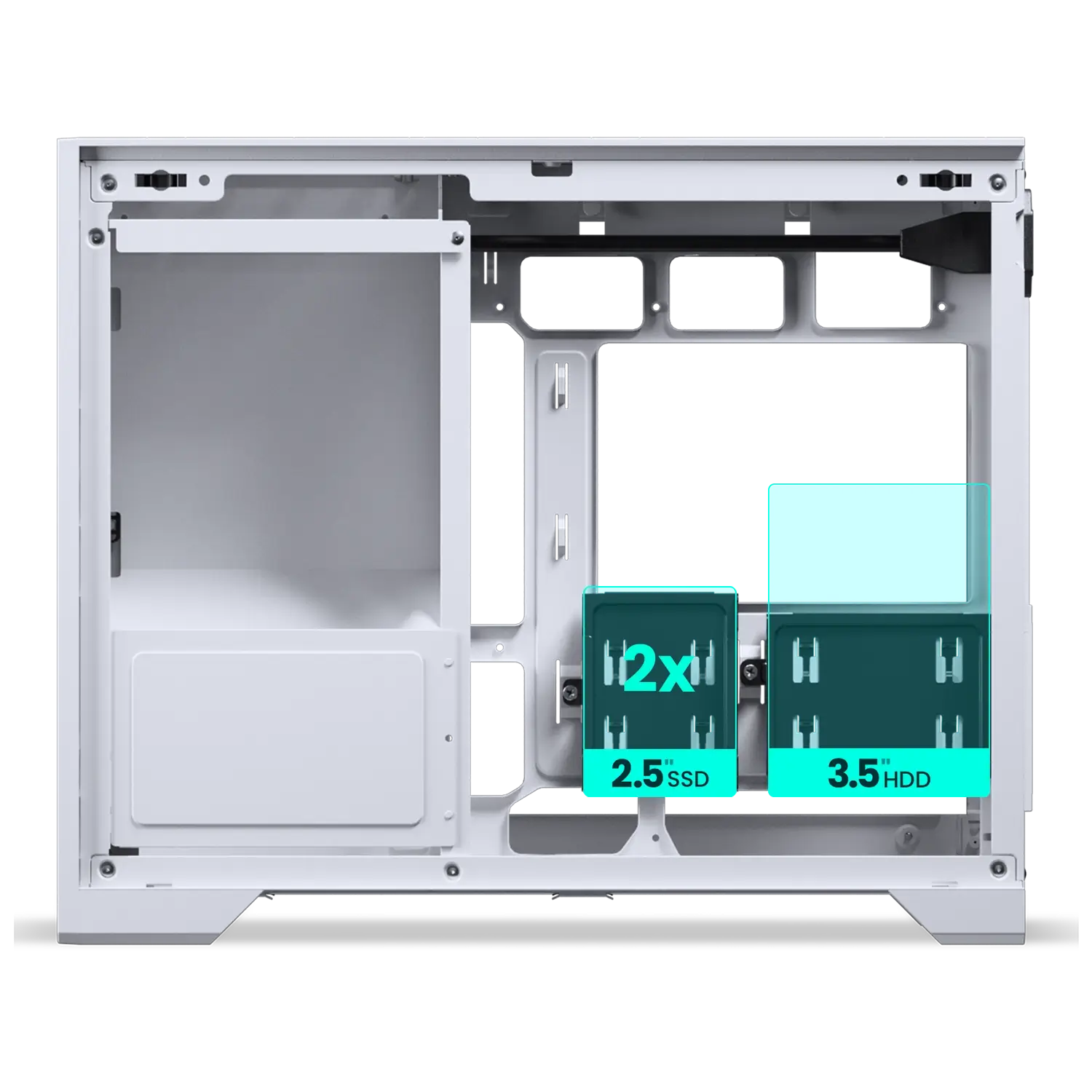

Internal 2.5″ Positions
2
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 2x 2.5″ SSD

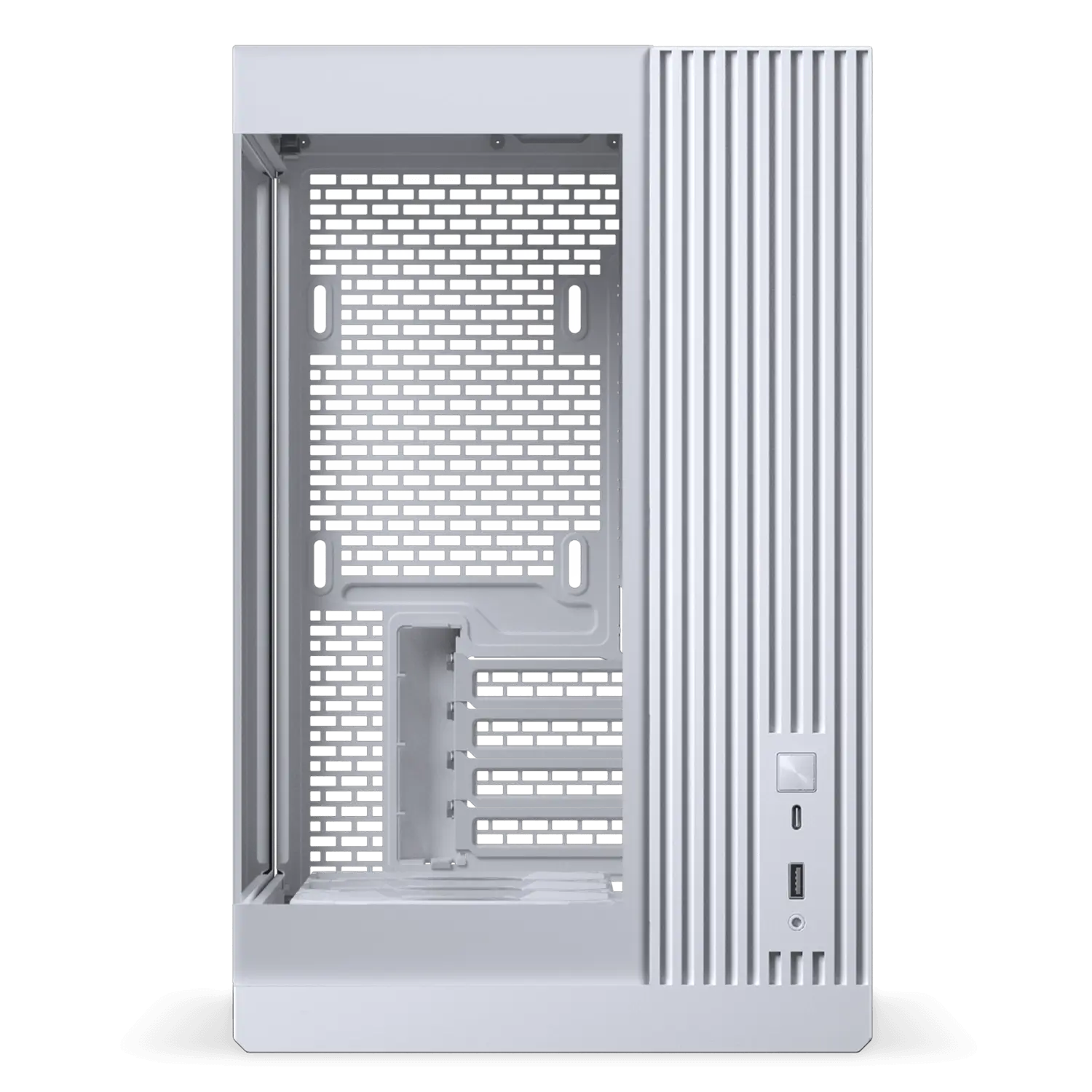

Front I/O
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Fans 120 | 140
Total Fans
7 | –
Top
3 | –
Front
– | –
Side
– | –
Rear
1 | –

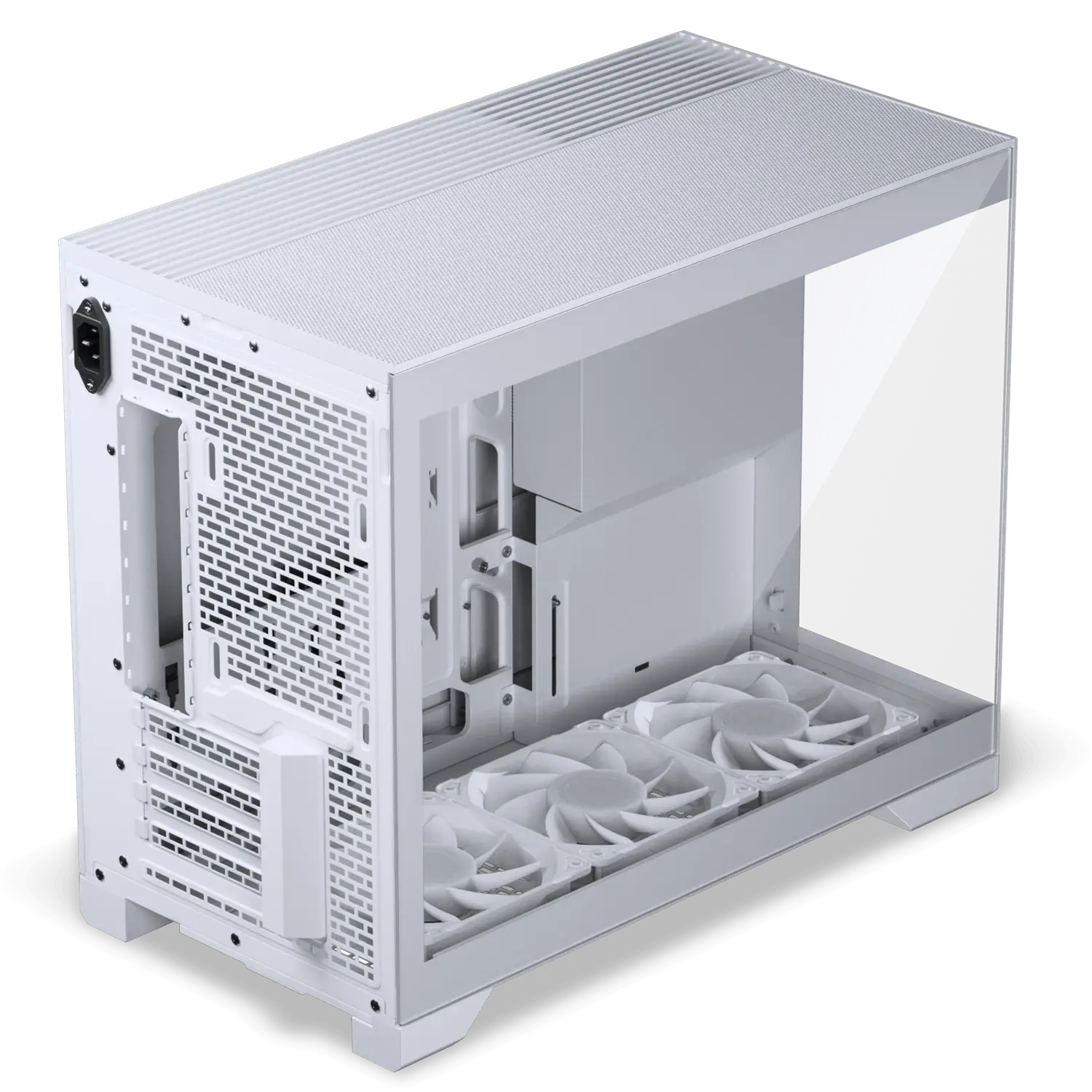

Bottom
3 | –
Radiator 120 | 140
Top
Max. 360 | –
Front
– | –
Rear
– | –
Bottom
– | –
Clearance
CPU Cooler
Height
175 mm | 6.88 in
GPU
Length
430 mm | 15.94 in
Without front fans installed
GPU
Width
175 mm | 6.88 in
Power Supply
150 mm | 5.90 in
Top 360 Radiator
Length x Width x Height
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Extra
Scope of Delivery
1x XT V3 chassis

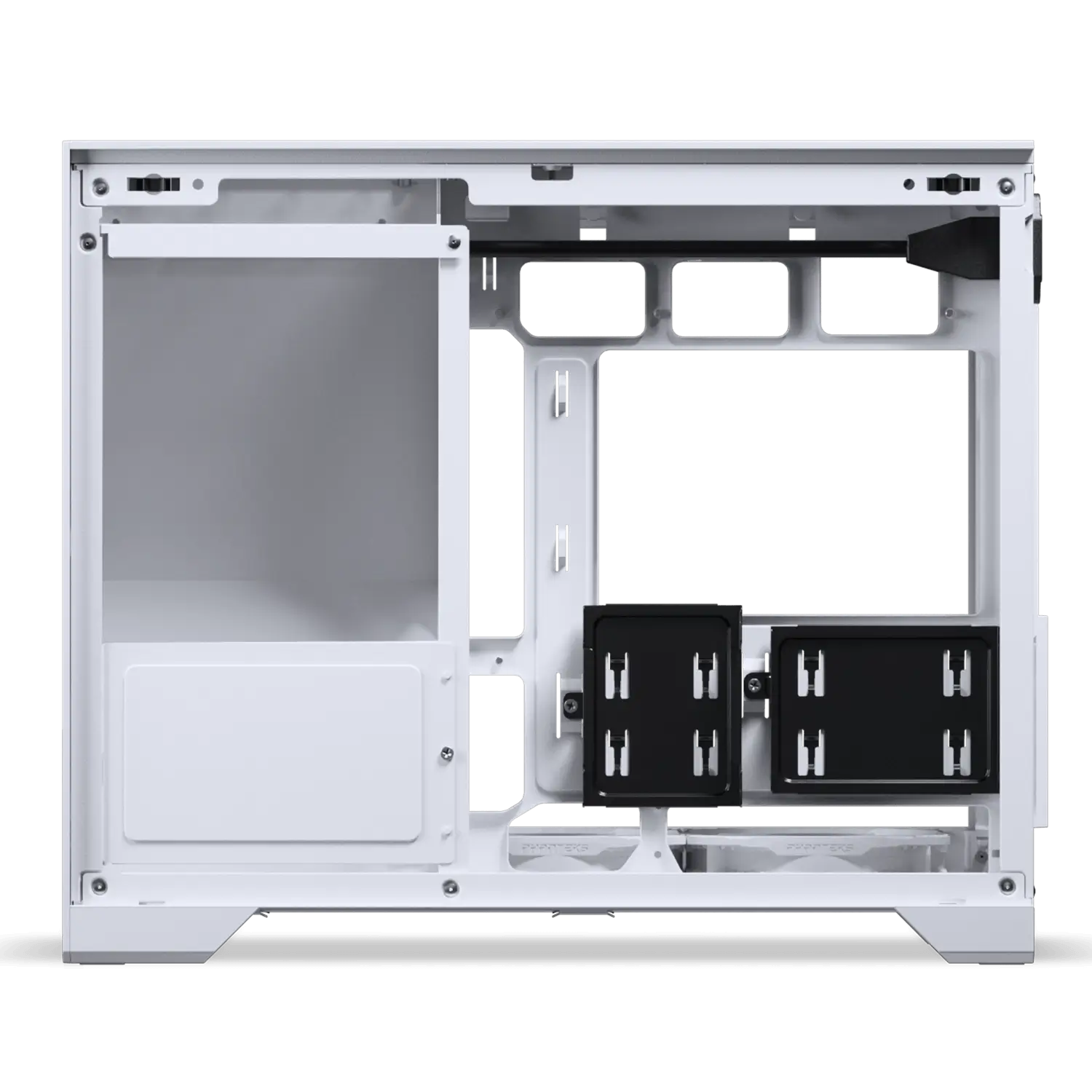

1x SSD bracket Pre-installed
1x HDD bracket Pre-installed
Accessory Box
9x Zip ties
1x Stand-off removal tool
1x GPU support
Screws
17x Mainboard | SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-off
Support
FAQ
Most products have their product manual in the accessory box or directly printed on the packaging if the installation only contains a few steps. For the latest version, we always recommend checking the online manual, which can be found under the support section of the product page.
Because there are many different GPU sizes, it is always recommended to check the GPU clearance beforehand. If the length of the GPU fits within the clearance numbers, the GPU should fit neatly. This information can be found within the ‘Specifications’ section on the product page.
