NV9
A True Showcase of Performance

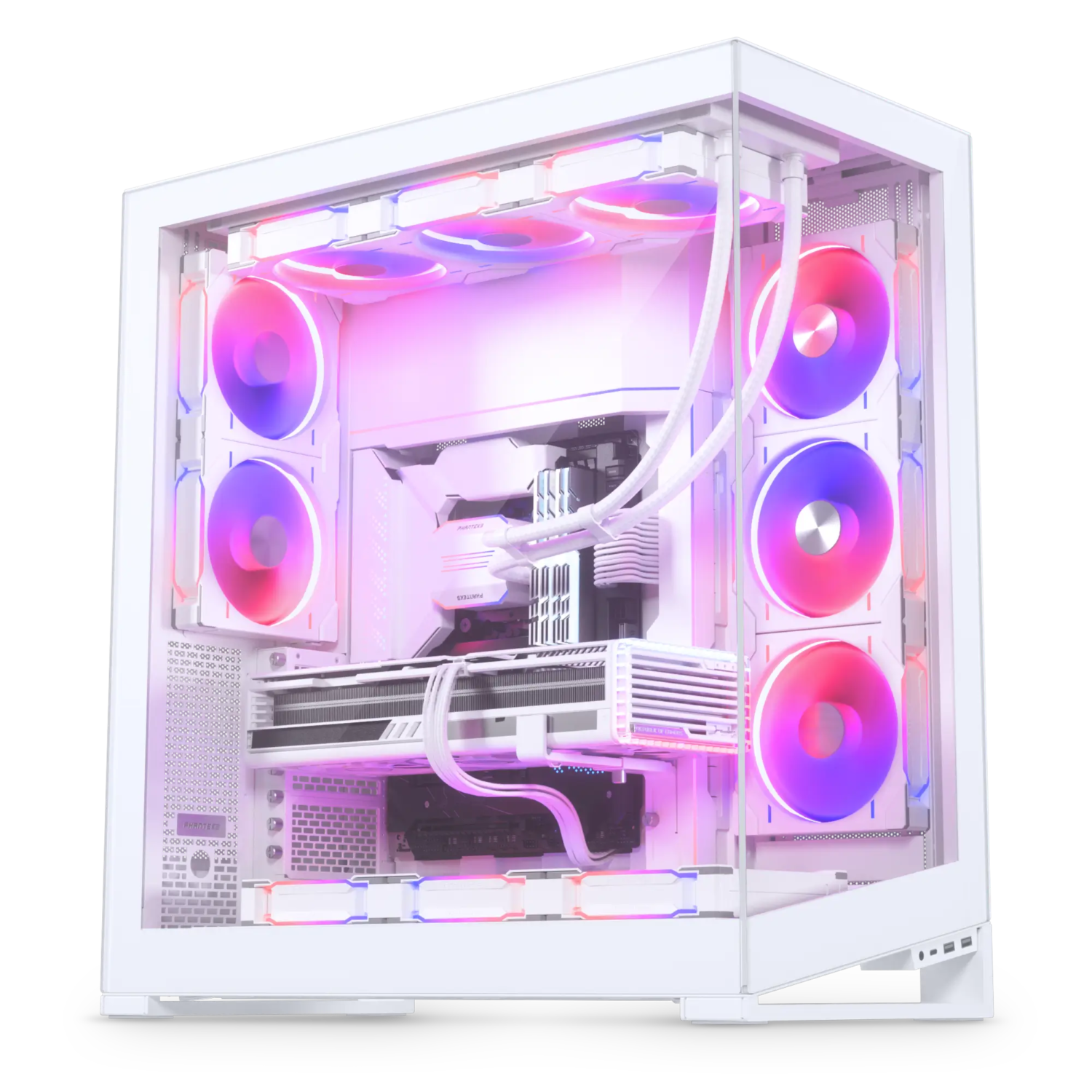

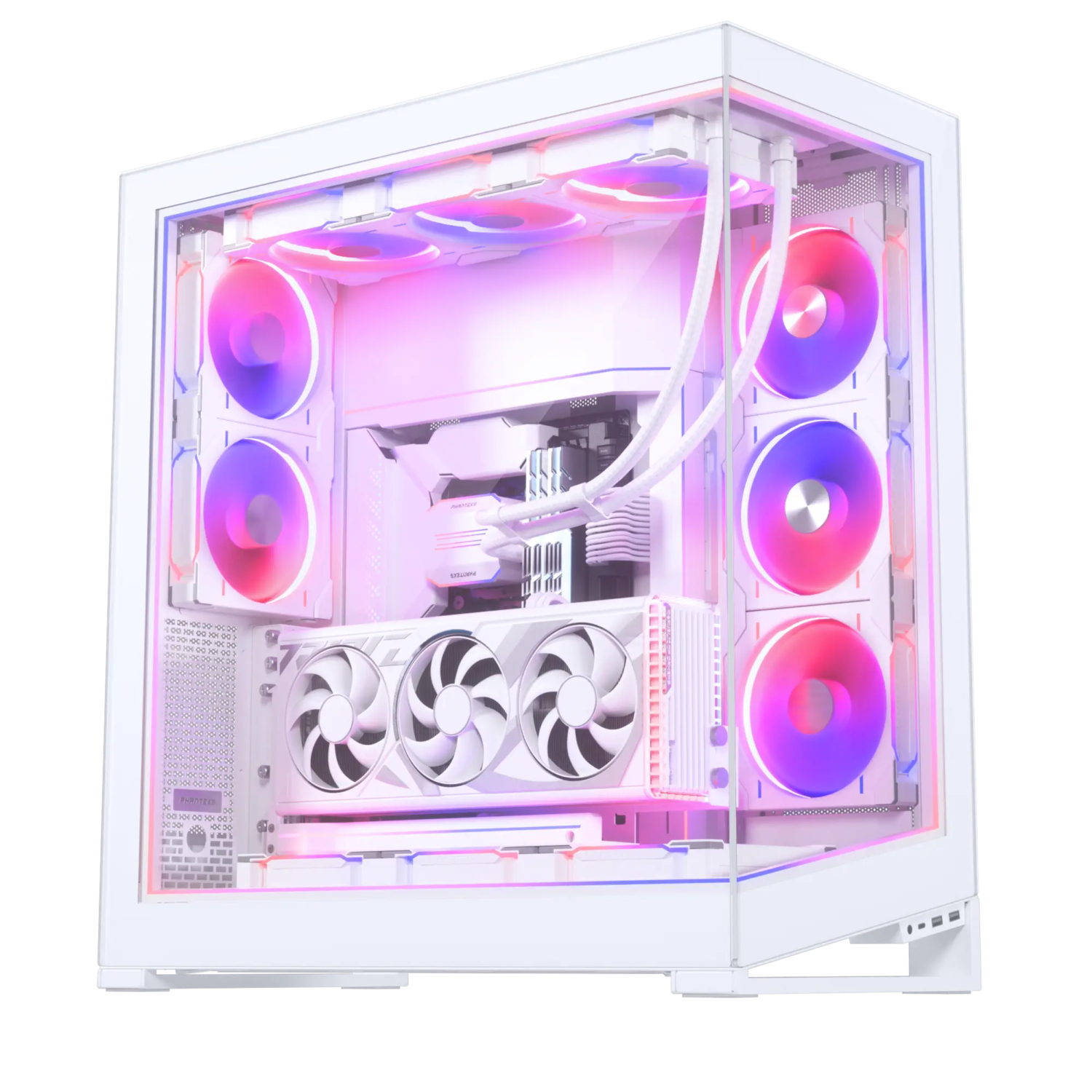

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for twelve 140 mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the mainboard at its center. Combined with a strong and defining outer frame, it captures and accentuates the hardware components.
With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
Colors
Configurations
D-RGB
A Showcase of Performance
Performance without Compromise

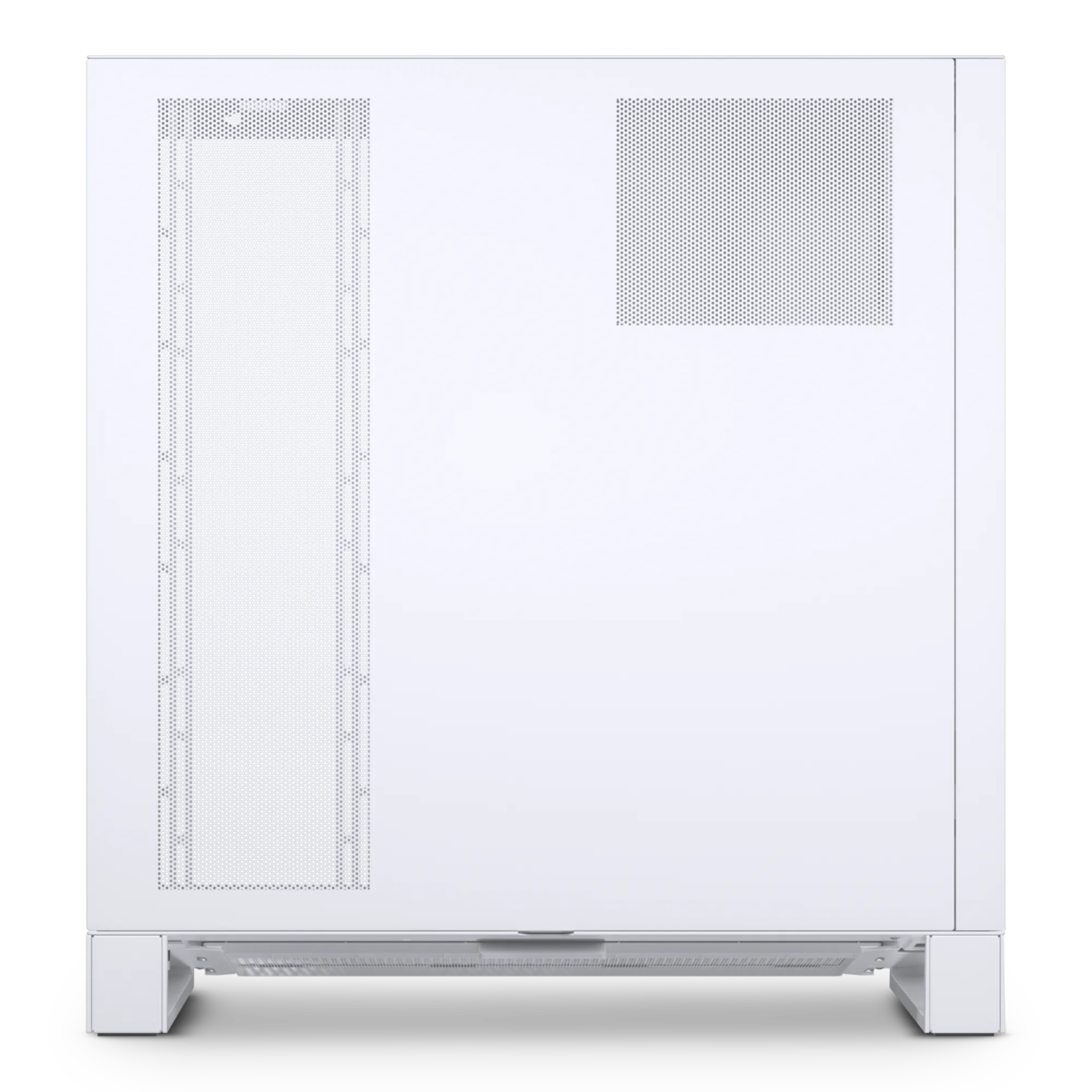

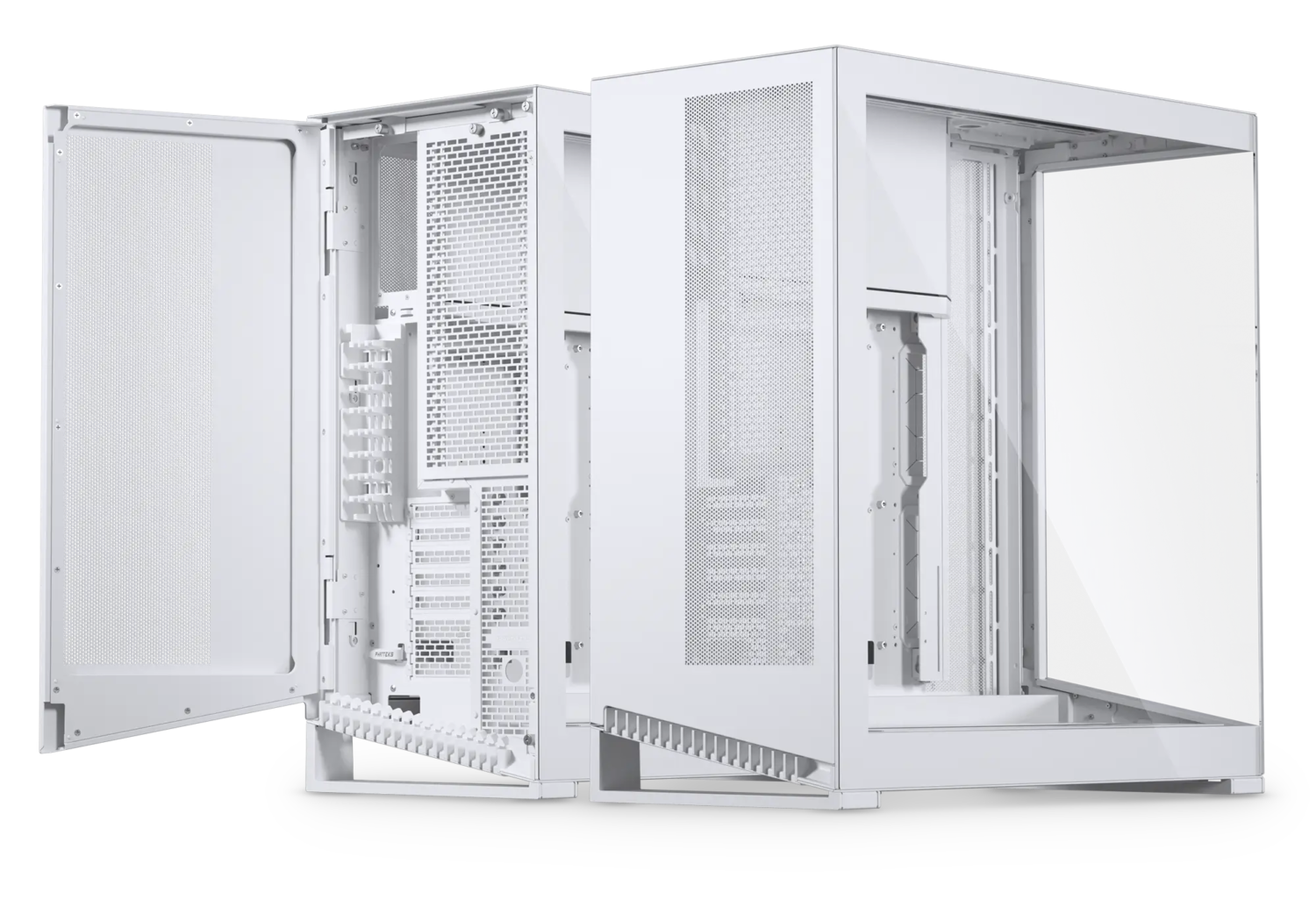

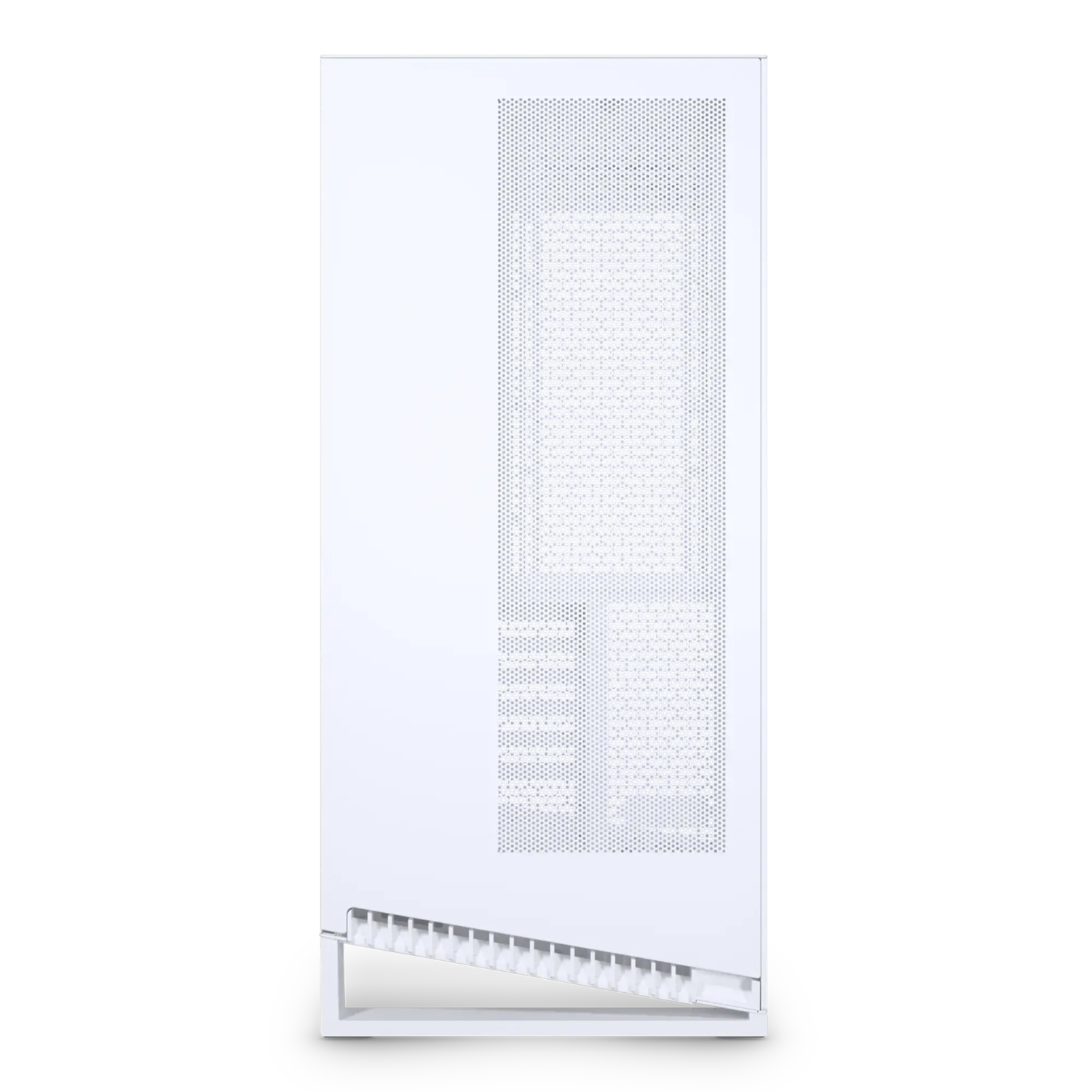

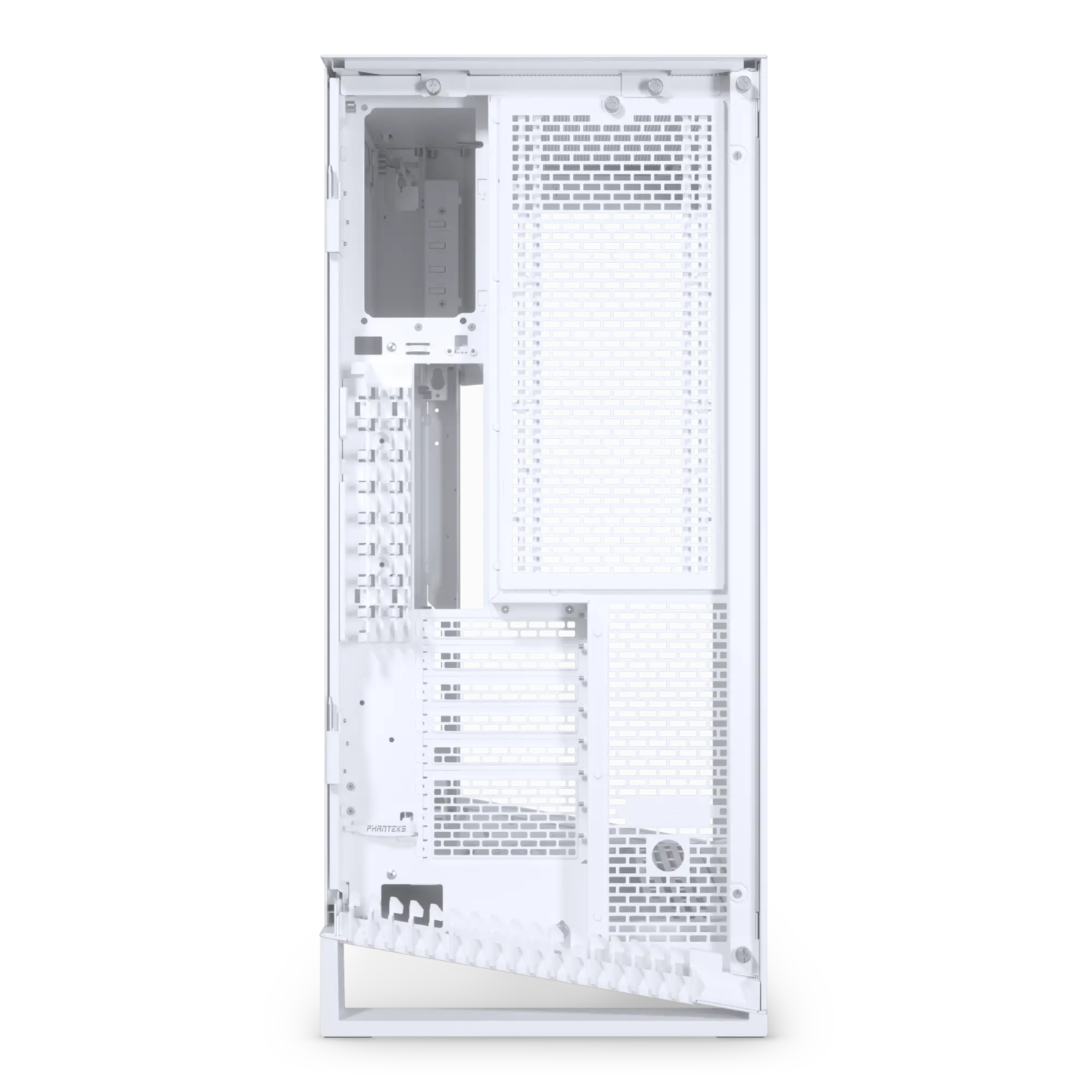

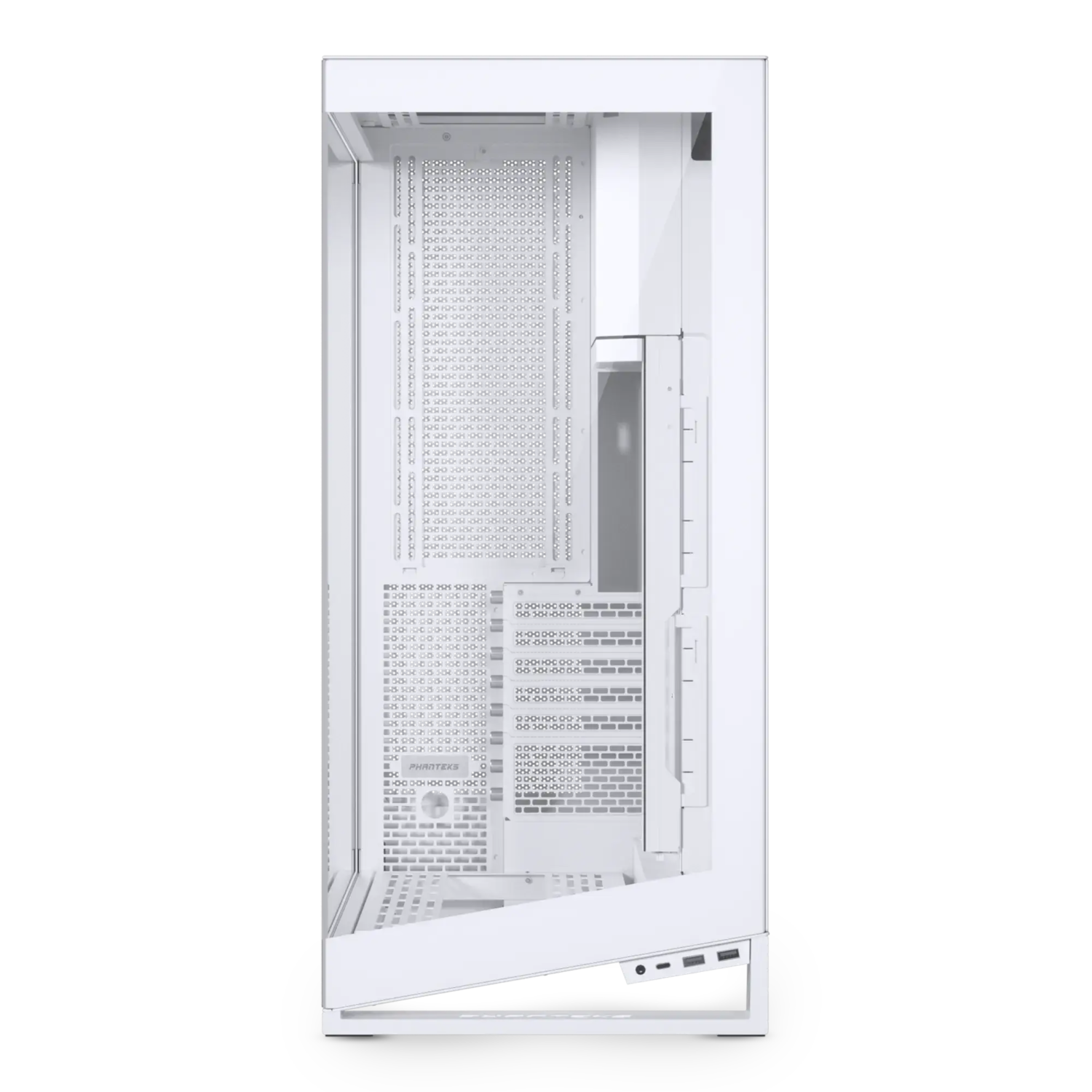

Clean Exterior From All Sides

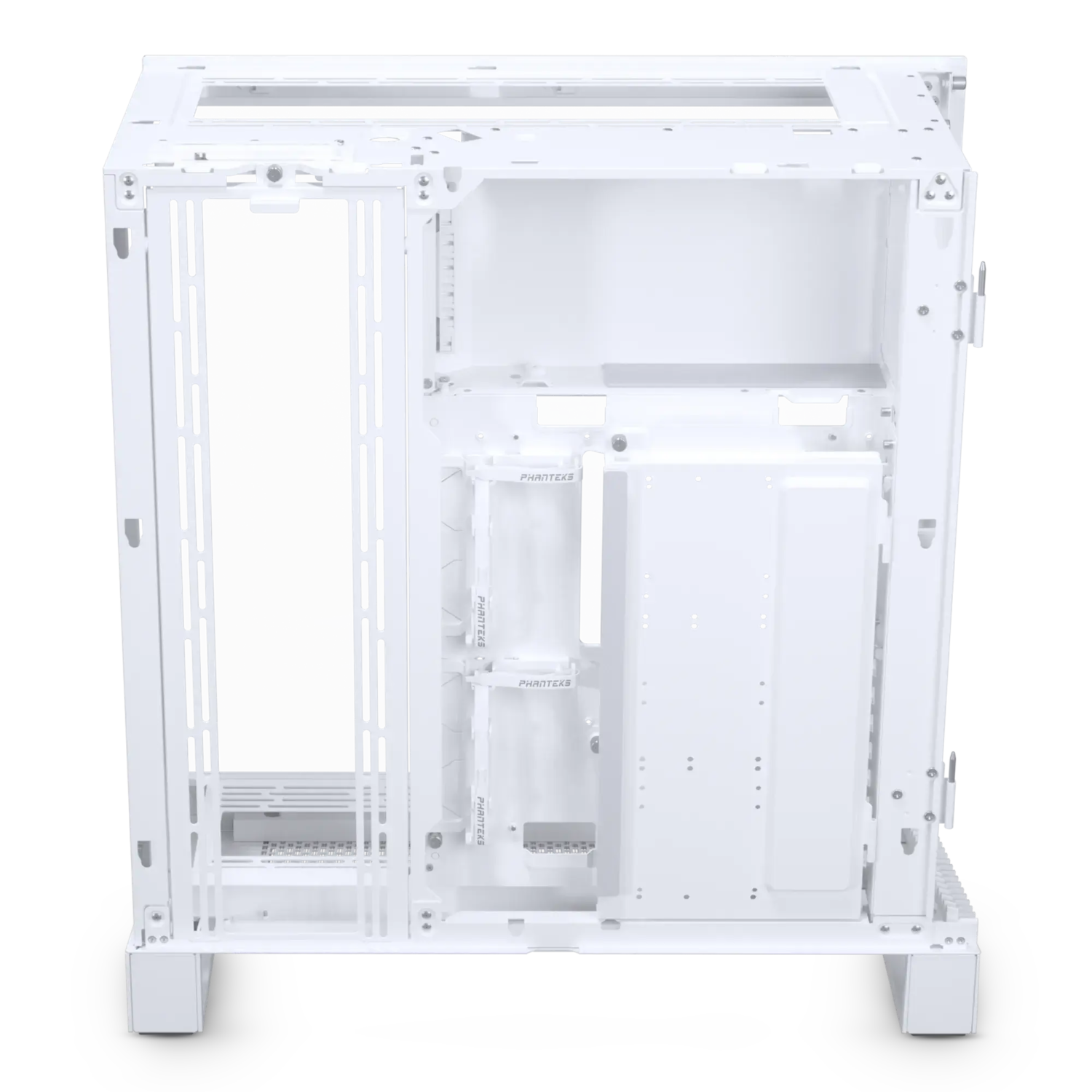

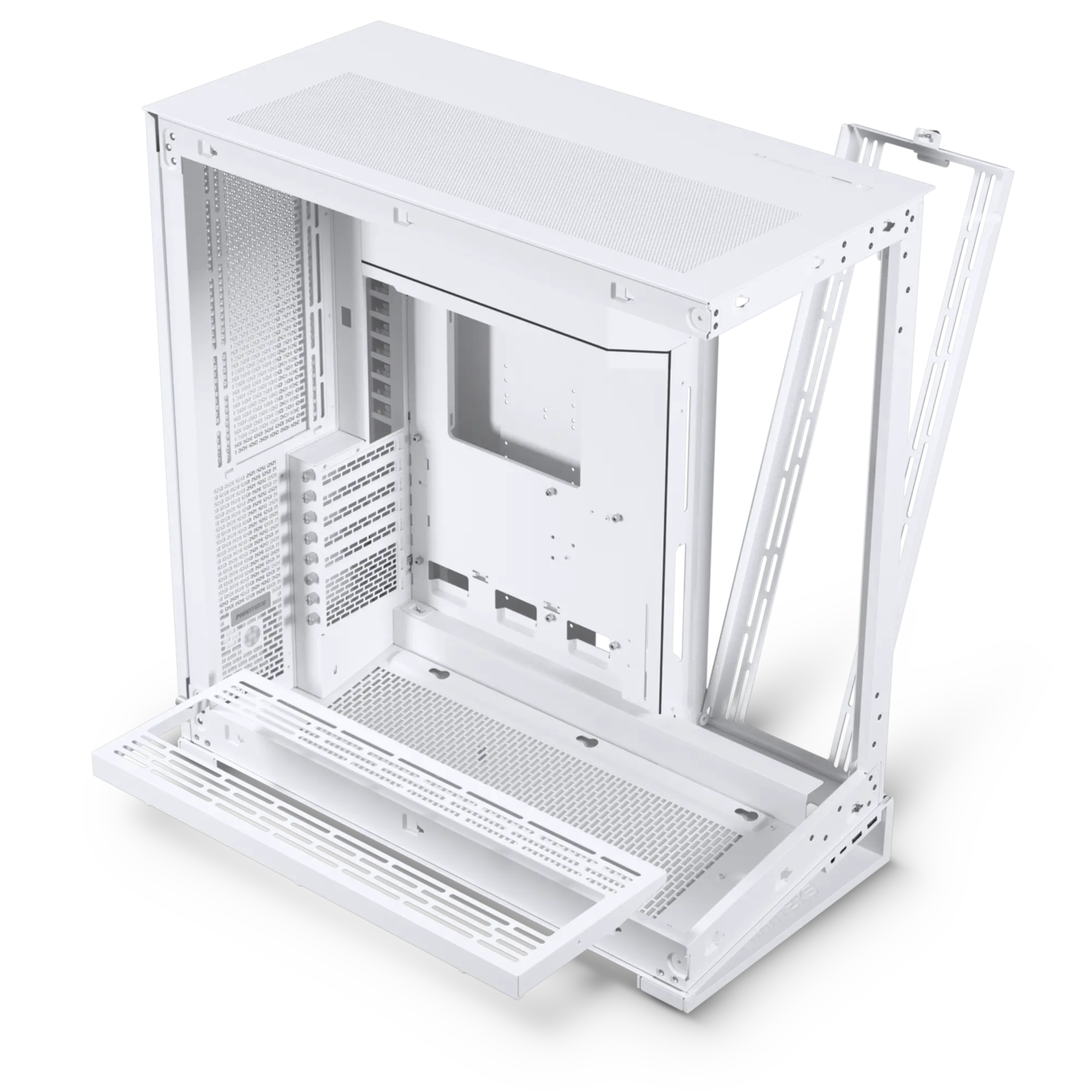

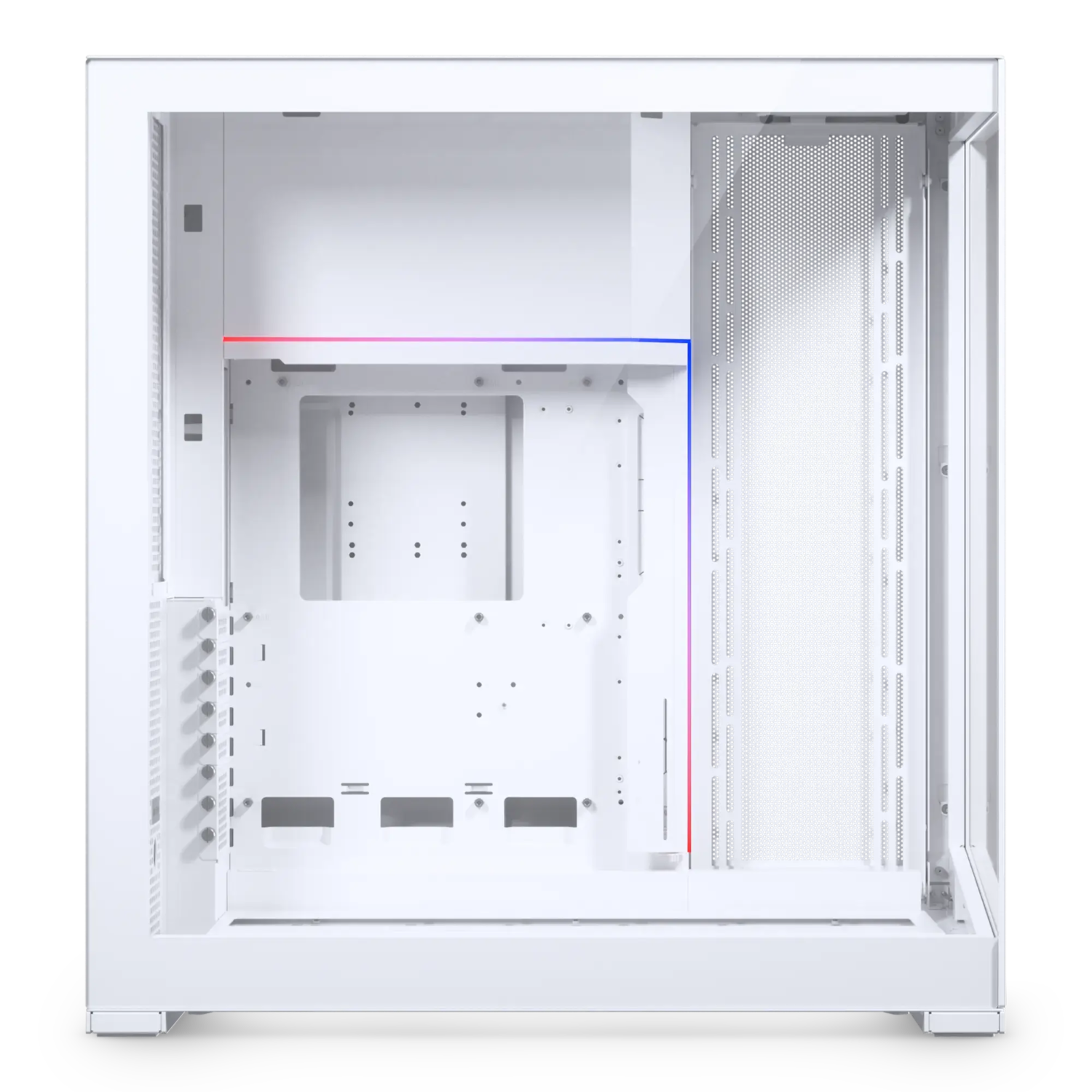

Unique Interior Features
*Premium D-RGB Kit not included
New Generation D-RGB Controller

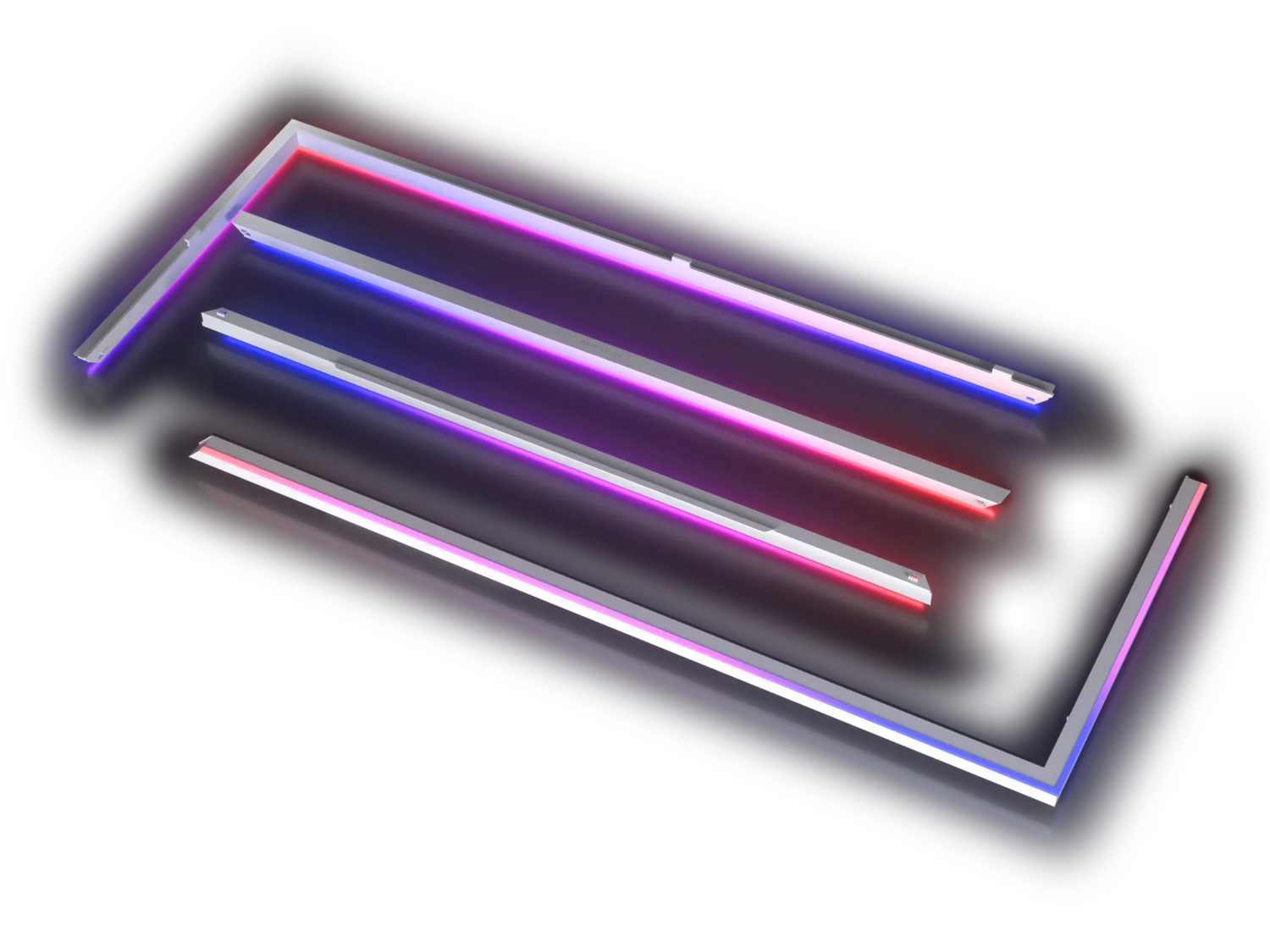

NV9 Premium D-RGB Kit
Optional Upgrade
Multiple storage options
Specifications
General
Model No.
PH-NV923TG_DMW01
UPC Code
886523303084
Case Dimensions
575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in
Form Factor
Full Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280mm wide
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
8
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
6
Internal 3.5″ Bay
3
+ 2x 2.5″ SSD
Max. 24mm HDD height when SSDs installed.

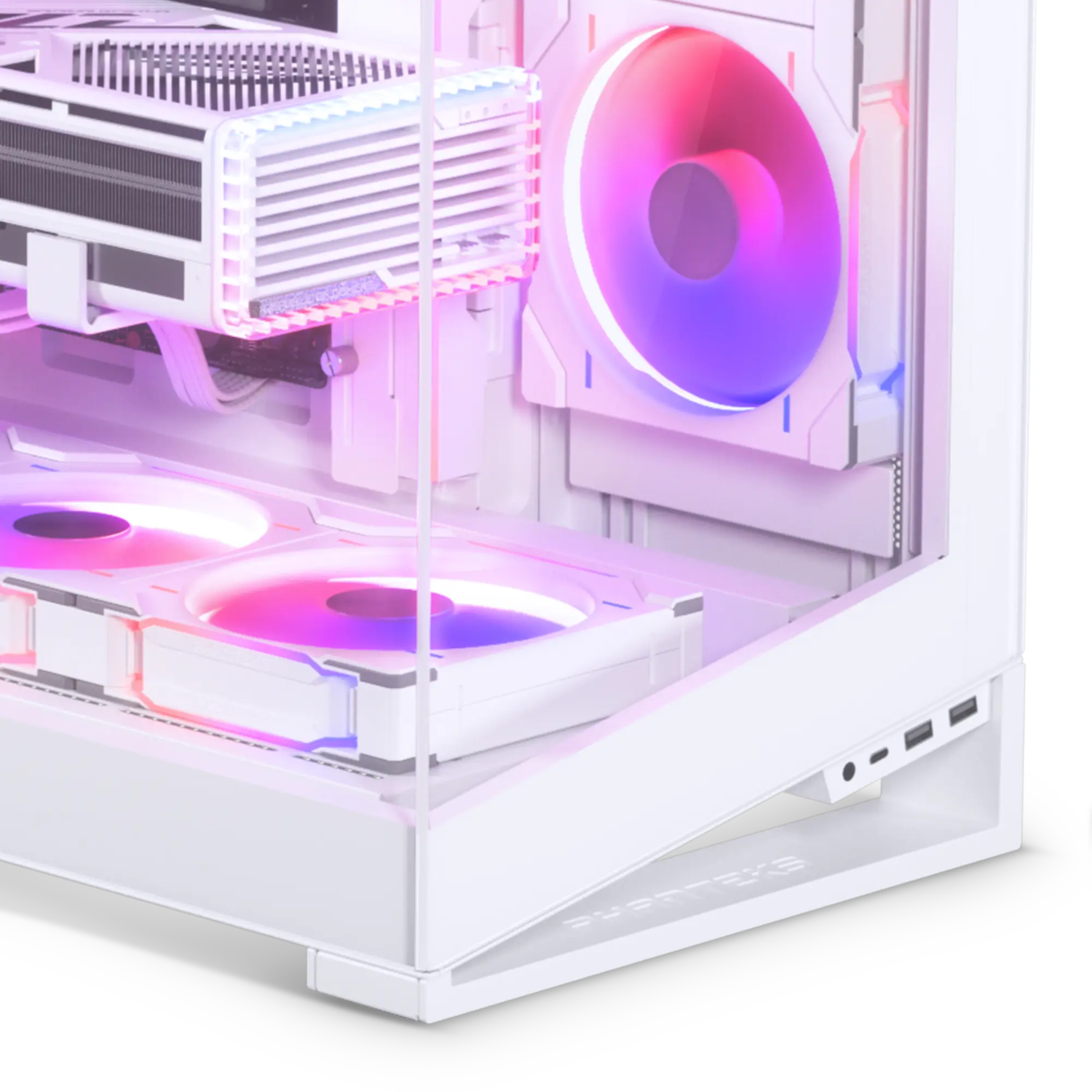

Front I/O
1x USB 3.2 USB-C Gen2
2x USB 3.0
Microphone | Headphone Combo
Power Button
D-RGB Mode Button
D-RGB Color Button
D-RGB Speed Button
D-RGB Channel Button
Fans 120 | 140
Total Fans
12x | 11x
Top
3x | 3x
Front
– | –
Side
4x | 3x
Rear
2x | 2x
Bottom
3x | 3x
Radiators 120 | 140
Top
Max. 360 | 420
Front
– | –
Side
Max. 480 | 420
Rear
Max. 240 | 280
Bottom
Max. 360 | 420
Clearance
CPU Cooler
Height
205 mm | 8.07 in
GPU
Length
490 mm | 19.29 in
GPU
Width
205 mm | 8.07 in
Power Supply
Length
210 mm | 8.26 in
Top Radiator
Length x Width
515 x 154 mm | 20.27 x 6.06 in
Front Radiator
Length x Width
– | –
Side Radiator
Length x Width
525 x 154 mm | 20.66 x 6.06 in
Rear Radiator
Length x Width
325 x 154 mm | 12.79 x 6.06 in
Extra
Scope of Delivery
1x NV9 chassis
Accessory Box
2x Airflow covers
1x Microfiber cloth
6x Zip ties
1x GPU support bracket
Screws
34x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
9x HDD screws
1x Motherboard stand-off
1x Stand-off removal tool
1x Extra R-side panel screw
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
