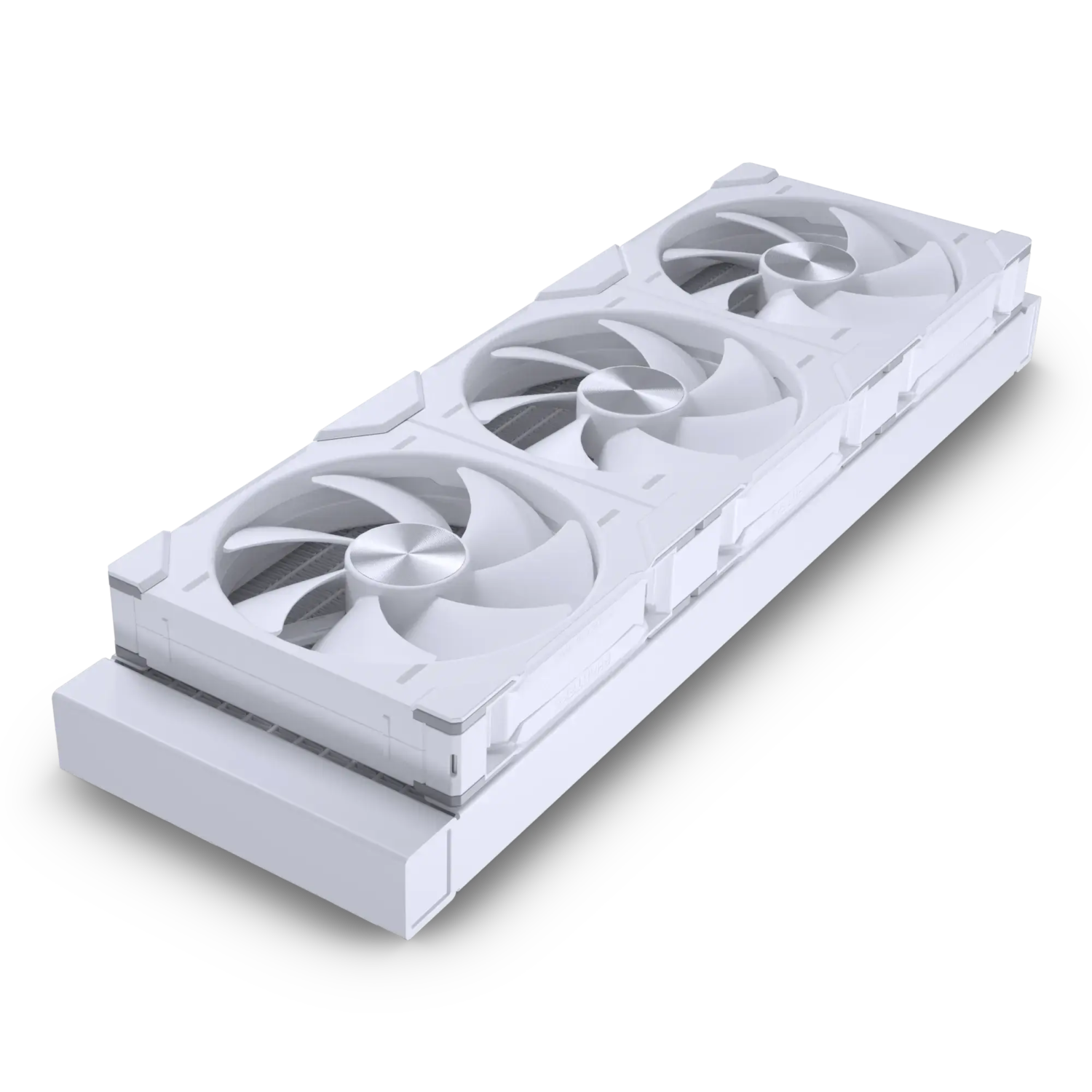

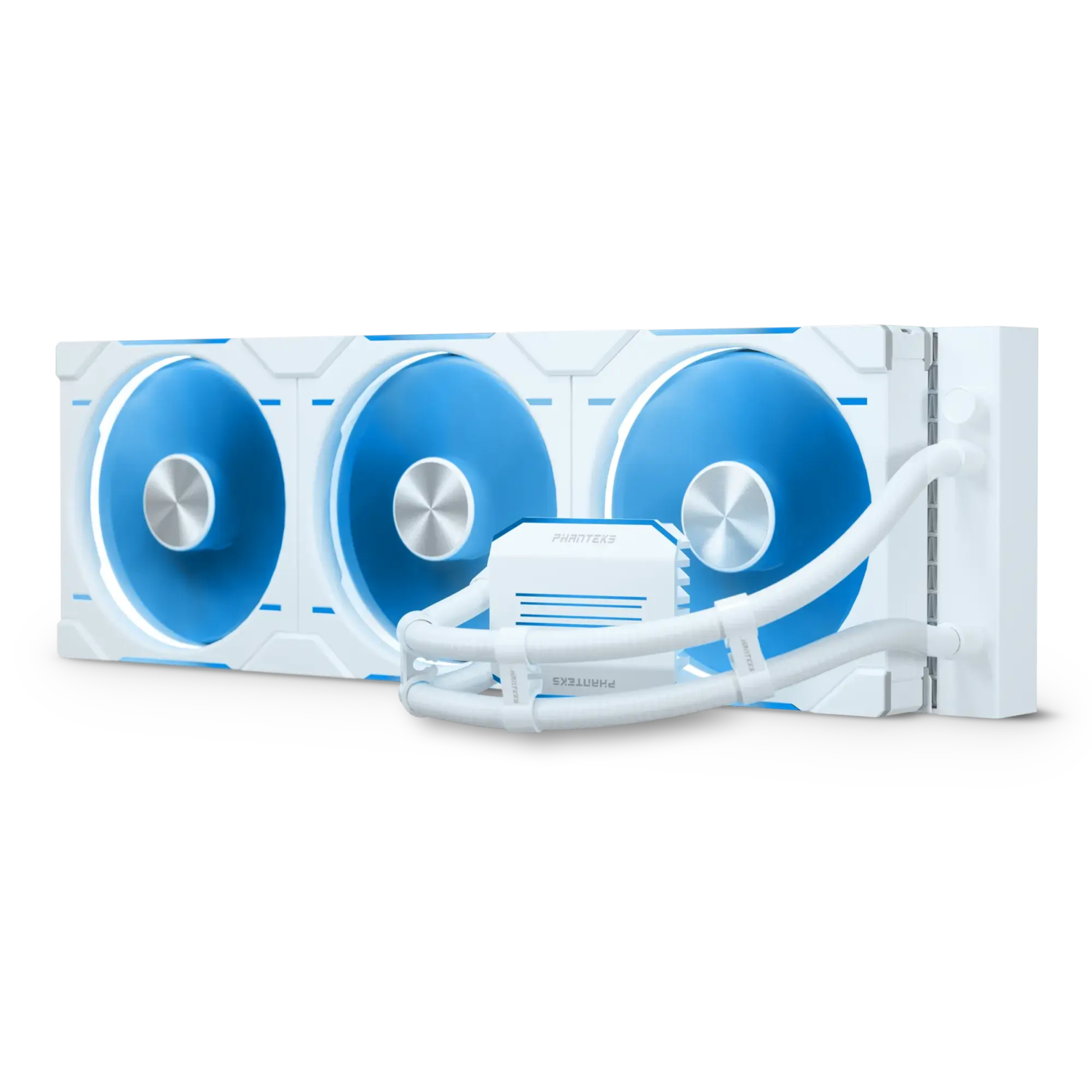

Glacier One 420D30
Premium D-RGB AIO Water Cooling
The Glacier One D30 AIO cooler is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the D30 fans. The Glacier One D30 AIO cooler equipped with D30 fans, can be daisy-chained and controlled through a single cable. Its large copper base and fin array make it suitable for use with high-end CPUs, while its design allows for maximum clearance with motherboard and RAM components.
Colors
Dimensions
Minimalistic And High Performance Design
Performance D30 D-RGB PWM Fans

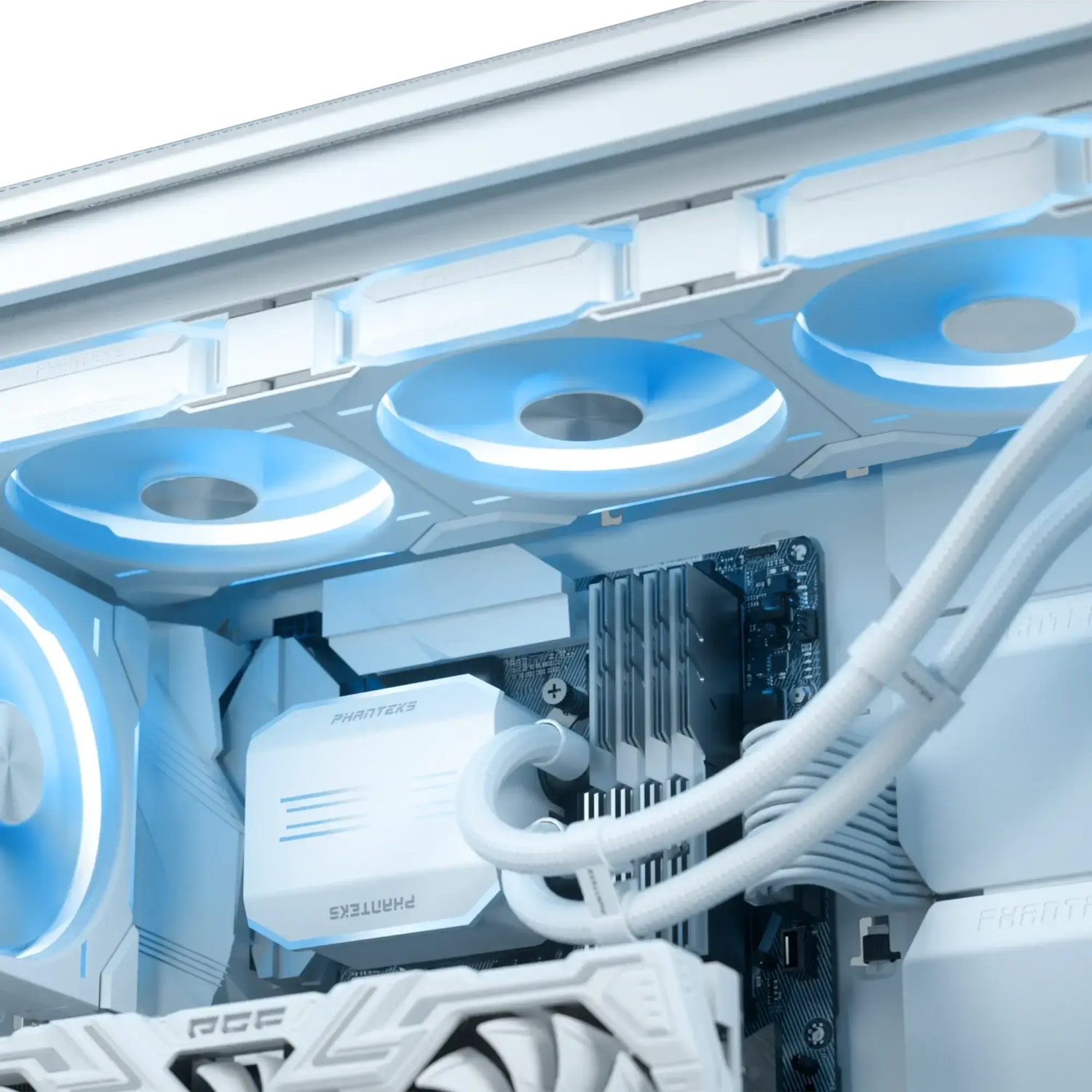

Ready To Perform
Integrated D-RGB lighting
Specifications
General
Model No.
PH-GO420D30_DWT01
UPC Code
886523003342
Materials
Aluminum | ABS Plastic | Copper
Color
Black
Intel Compatibility
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066
AMD Compatibility
AM4 | AM5

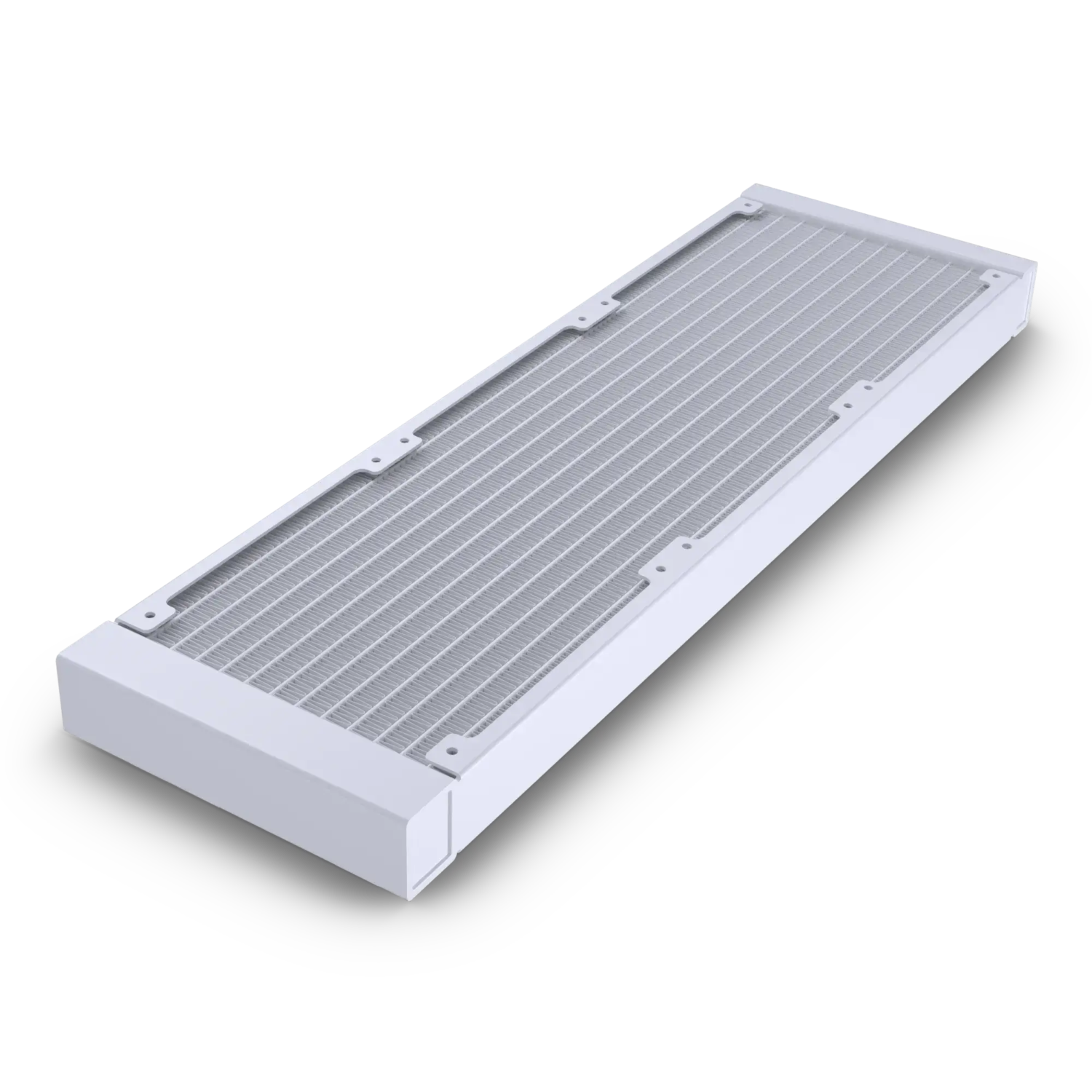

Radiator Dimensions
Length x Width x Height
456 x 138.5 x 27 mm | 17.95 x 5.33 x 1.06 in
Pump Dimensions
Length x Width x Height
76 x 64 x 51.4 mm | 2.99 x 2.51 x 2.02 in
Pump Details
Tube Details
Motor Speed
3100 RPM ± 10% (100% Duty Cycle)
Power
12V | 0.38A – 0.45A | 4.56W – 5.4W
Pump DC Cable
490 mm
Sound Level
20.0 dBA
Material
Copper | ABS
D-RGB Connector
3-Pin D-RGB Daisy-chain
D-RGB Cable Length
500 + 90 mm
Length
400 mm | 15.74 in
Diameter
10.5 mm OD | 0.41 in OD
Tube Clips
3x
Material
CIIR rubber | Braided sleeves
Fans 3x Included
Fan Model
D30-140 D-RGB PWM
Dimensions
Length x Width x Height
140 x 140 x 30 mm | 5.51 x 5.51 x 1.18 in
Speed
250 – 1800 ± 10% RPM
Air Flow
71.93 CFM
Fan Static Pressure
3.32 mm H2O | 0.11 in H2O
Sound Level
29.5 dBA
MTFB
150.000 Hours
PWM Connector
4-Pin Daisy-chain
PWM Cable Length
700 mm | 27.55 in
D-RGB Connector
3-Pin D-RGB Daisy-chain
D-RGB Cable Length
600 + 100 mm | 23.62 + 3.93 in
Extra
Net Weight
1.50 kg | 3.30 lbs
Gross Weight
2.30 kg | 5.07 lbs
Warranty
5 Years limited
Scope of Delivery
1x Glacier One 420D30 AIO cooler
3x D30-140 fans
Accessory Box
3x Tube clip
1x SATA to 2-pin pump adapter
1x D-RGB Mainboard adapter 600 mm
1x PH-NDC Thermal paste
1x Installation guide
Mounting Hardware
4x AM4 | AM5 Stand-Off screws
4x LGA 1700 Stand-Off screws
4x LGA 115X | 1200 Stand-Off screws
4x LGA 2011 | 2066 Stand-Off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
1x LGA 115X | 1200 | 1700 | 2011 | 2066 Bracket
1x LGA 115X | 1200 | 1700 Metal back plate
Screws
12x 33 mm 6-32 UNC radiator screws
12x 35 mm 6-32 UNC radiator screws
12x 6 mm 6-32 UNC radiator screws
D30 Fan Components
1x Corner clip connector
3x Corner clip
2x Bridge clip connector
2x Bridge clip
4x Screw cover bridge
2x Screw cover L
2x Screw cover R
Support
FAQ
Digital-RGB means that each LED chip can be controlled individually, allowing for multiple colors and effects in a single D-RGB LED strip. While regular RGB LED strips can only show the same color on each LED chip per strip at a time. However, not every Digital-RGB (Addressable) product is the same.
Are plug-and-play. No software is needed, yet it is compatible with software control through MSI or ASUS compatible motherboards if desired. Have custom developed color patterns. We believe D-RGB lighting can be stylish when having the right color/pattern settings, which is why the Phanteks D-RGB controller is pre-installed with custom selected color modes and patterns.
Have 30 LED chips. This is a lot! Having 30 LEDs per product instead of just 8 or 12 creates a much more beautiful color gradient and higher quality lighting. This also means more color tints can be displayed simultaneously in one strip.
Digital-RGB and RGB have a different connector. Digital-RGB uses a 3-pin connector while RGB uses a 4-pin connector. Technical explanation: Digital-RGB uses 5 Volts while RGB uses 12 Volts. Connecting Digital-RGB products and RGB products would cause damage.
Digital-RGB from Phanteks is compatible with Asus Addressable-equipped motherboards and MSI Mystic Light Rainbow-equipped motherboards. Check with the Motherboard specifications if your motherboard has a ‘AURA Addressable Header’ or a ‘Mystic Light Sync Rainbow header’ with 3 pins.
Each D-RGB product uses 1 Ampere. Check the power output with your motherboards specifications to determine how many D-RGB products can be powered by your mainboards. Currently mainboards support 3 Amperes.
The Phanteks D-RGB controller can support up to 7 D-RGB products when using the remote. If the D-RGB controller is connected to your motherboard a total of 9 D-RGB can be connected to the controller. A maximum of 4 D-RGB products can be connected to a single output port on the controller.
Most of the D-RGB products and compatible mainboards include a mainboard adapter. Simply connect this mainboard adapter to the Addressable or Rainbow port on your mainboard and the Phanteks D-RGB products. D-RGB products from Phanteks can be daisy-chained so you only need one port on your motherboard. Most mainboards also include this motherboard adapter cable.
You can install as many D-RGB controllers as you would like. However they do not connect to each other. Each controller will work, and need to be controlled, individually.
Press and hold the ‘Mode’ for 2 seconds until the LED’s turn off. When using software control please consult with the motherboard manufacturer.
